Model Whirlpool RF310PXXW2 – Common Parts & Diagrams

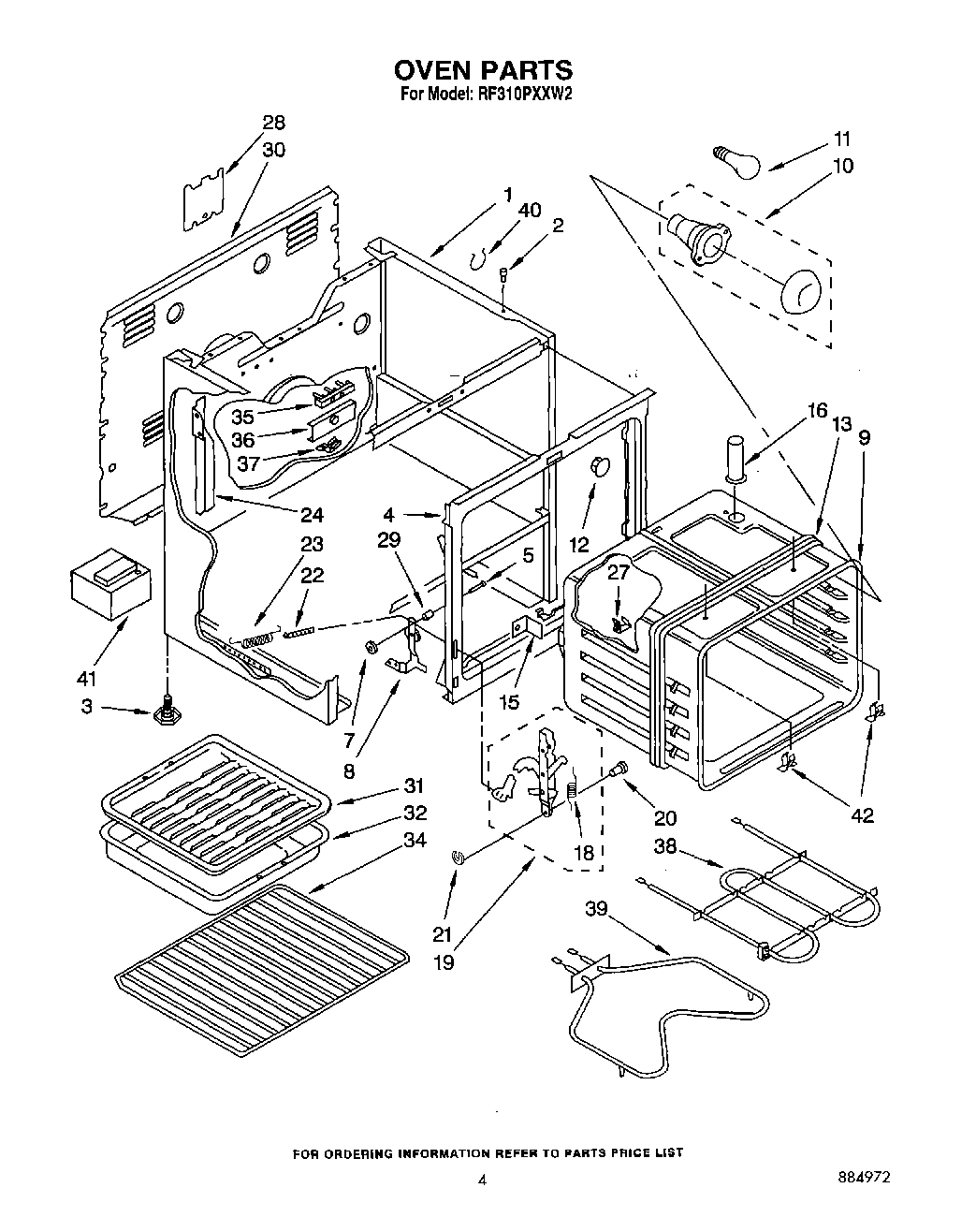

04 - OVEN

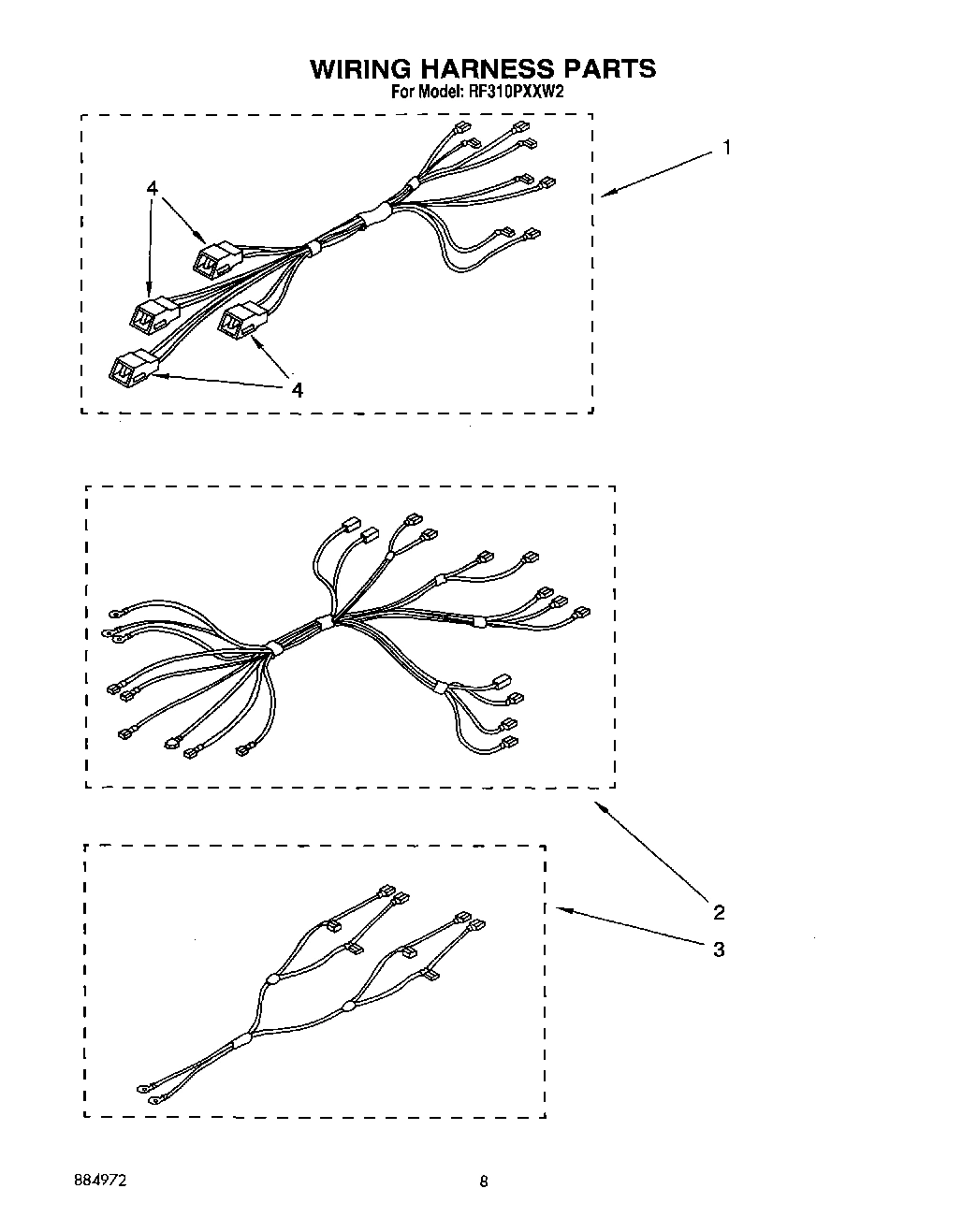

06 - WIRING HARNESS, LIT/OPTIONAL
05 - DOOR AND DRAWER
02 - COOKTOP
03 - CONTROL PANEL
Common parts from model Whirlpool RF310PXXW2
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3150291 WPL LIT3150291 Contact Us For Availability
WPL LIT3150656 WPL LIT3150656 Contact Us For Availability
WPL LIT884972 WPL LIT884972 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3150694 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3181677 Contact Us For Availability
2
End Cap L.H. WPL 3181678 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
Coffee (Uncut) WPL 261887 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coff WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
5
Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Panel, Outer WPL 3148185 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
10
Timer, Clock WPL 3149835 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Motor, Timer WPL 313512 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Glass, Timer WPL 308441 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Shield (2) WPL 313608 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
15
Screw (2) WPL 3149333 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
15
Panel, Control (White) WPL 3150467 Contact Us For Availability
15
Panel, Control (Almond) WPL 3150468 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Switch, Selector WPL 3150430 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
19
Thermostat, Oven WPL 661150 Contact Us For Availability
20
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Light, Indicator (Surface Unit On) WPL 3150662 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
25
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
26
Bracket, Rail (2) WPL 307981 Contact Us For Availability
26
Tube Clip WPL 313570 Contact Us For Availability
27
Rear Cover Control Panel WPL 313195 Contact Us For Availability
28
Rail, Slide (Screw (2)) WPL 307748 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
28
Lens, Amber (2) WPL 313101 Contact Us For Availability
31
Knob, Control WPL 3149984 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
41
Block, Balance WPL 312804 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
