Model Whirlpool RF310PXDZ0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3169512 WPL LIT3169512 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3189068 WPL LIT3189068 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

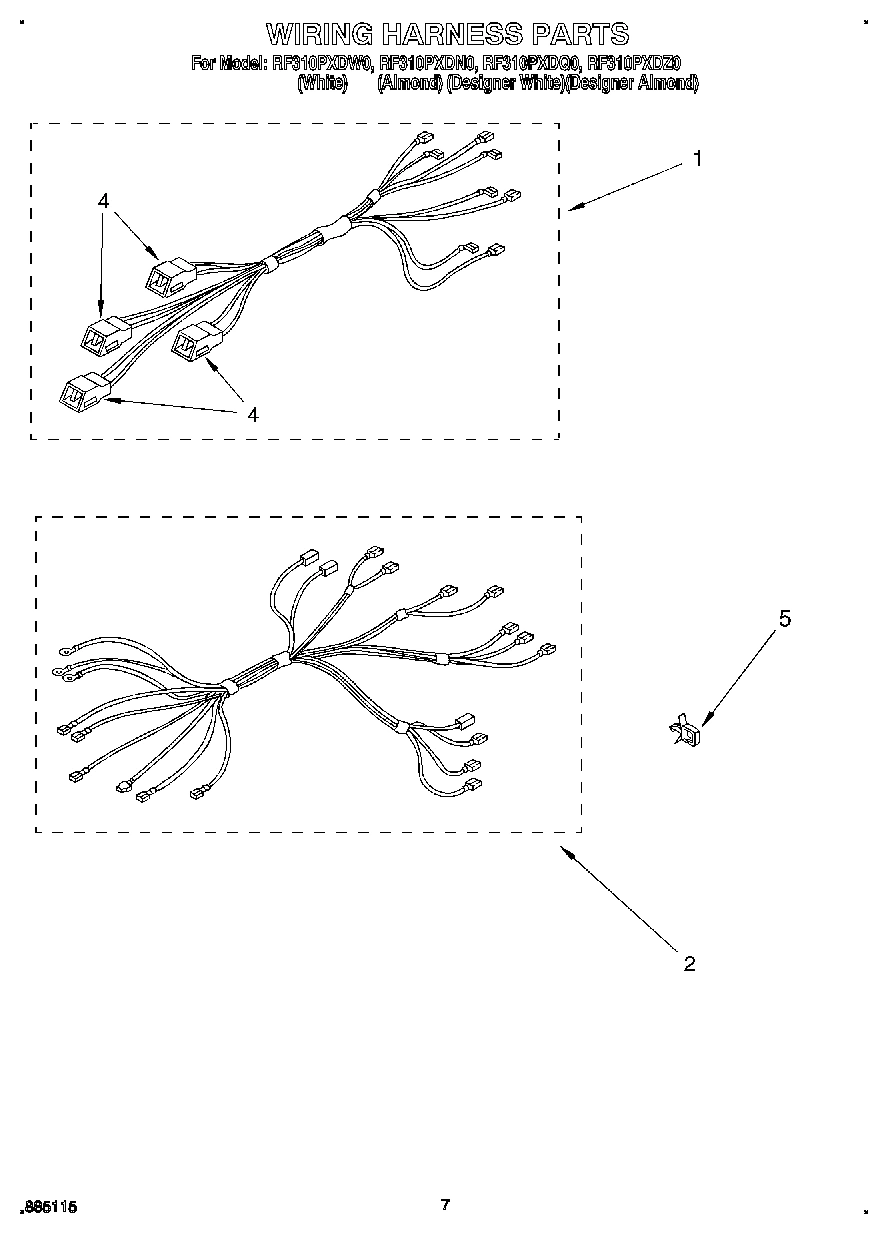

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

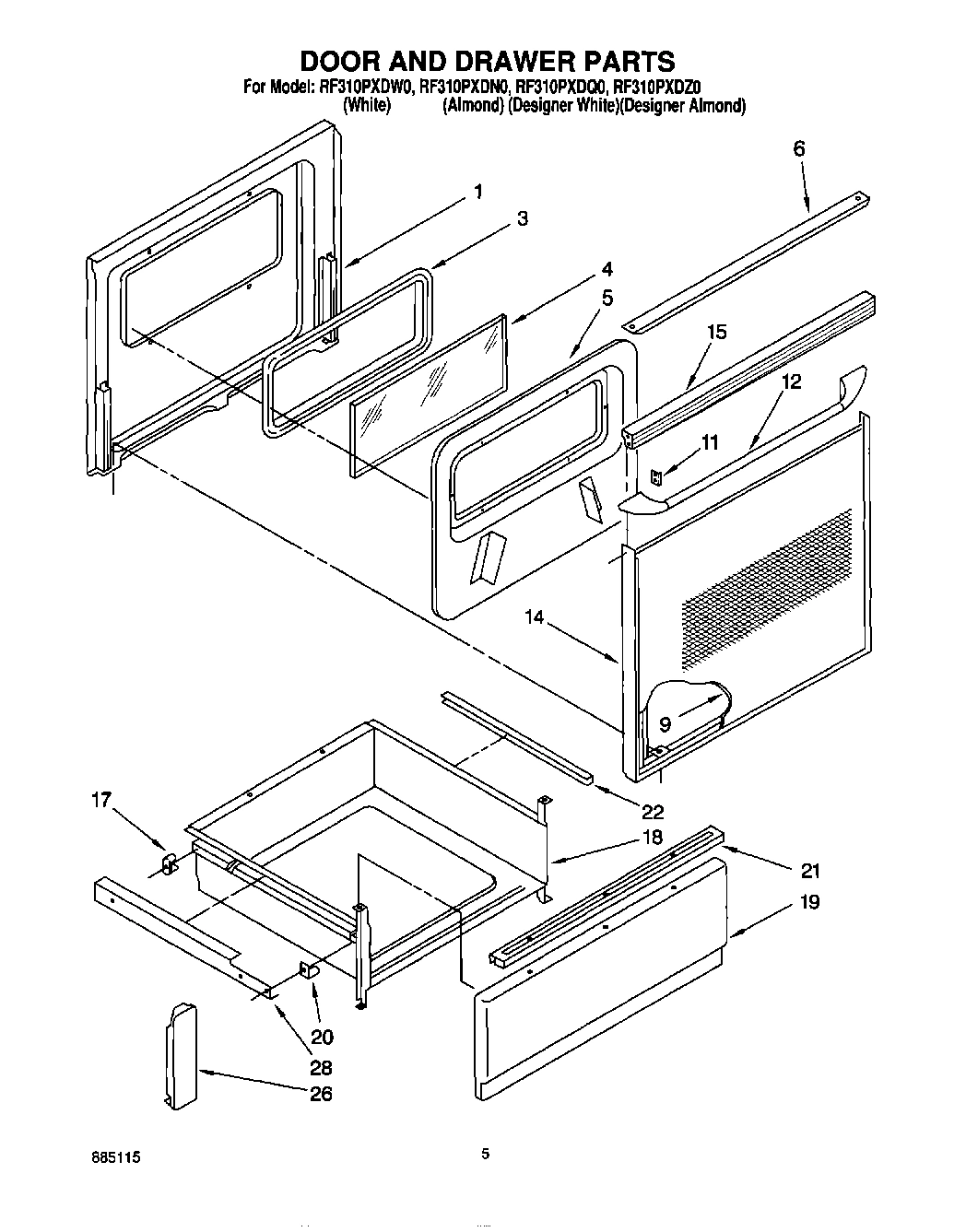

Liner, Door WPL 3172220 Contact Us For Availability

1

End Trim, Right (Designer Almond) WPL 3169468 Contact Us For Availability

1

(End Trim, Left) (Designer Almond) WPL 3169469 Contact Us For Availability

1

End Trim, Right (Black) WPL 3187671 Contact Us For Availability

1

(End Trim, Left) (Black) WPL 3187672 Contact Us For Availability

1

End Trim, Right (Designer White) WPL 3188992 Contact Us For Availability

1

(End Trim, Left) (Designer White) WPL 3188993 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

2

Harness, Wire (Oven) WPL 3169501 Contact Us For Availability

2

End Cap, Right (Black) WPL 3187791 Contact Us For Availability

2

(End Cap, Left) (Black) WPL 3187792 Contact Us For Availability

2

End Cap, Right (Designer White) WPL 3187793 Contact Us For Availability

2

(End Cap, Left) (Designer White) WPL 3187794 Contact Us For Availability

2

End Cap, Right (Designer Almond) WPL 3187795 Contact Us For Availability

2

(End Cap, Left) (Designer Almond) WPL 3187796 Contact Us For Availability

3

814103 Whirlpool Clip In Stock WPL 814103 $3.95

3

Seal, Glass WPL 3148183 Contact Us For Availability

3

Timer, Clock (Black) WPL 3189298 Contact Us For Availability

3

Timer, Clock (Designer White) WPL 3189299 Contact Us For Availability

3

Timer, Clock (Designer Almond) WPL 3189300 Contact Us For Availability

3

Leg Leveling (4) WPL 3169499 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

4

Glass, Inner WPL 3169202 Contact Us For Availability

4

Screw (2) WPL 311056 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3176714 Contact Us For Availability

5

Clip, Snap-In WPL 3169449 Contact Us For Availability

5

Retainer, WPL 3148287 Contact Us For Availability

5

Screw, 8-18x3/8 (6) WPL 3185647 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Cap, Top (Designer Models Only) (Screw (2)) WPL 3188399 Contact Us For Availability

6

Cap, Top (Designer Models Only) (Screw (2)) WPL 3188400 Contact Us For Availability

6

Cap, Top (Designer Models Only) (Designer Whi WPL 3189001 Contact Us For Availability

6

Cap, Top (Designer Models Only) (Designer Alm WPL 3189002 Contact Us For Availability

6

Shield (2) WPL 313608 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

7

Panel, Control (Screw (2)) WPL 254225 Contact Us For Availability

7

Panel, Control (Designer White) WPL 3188672 Contact Us For Availability

7

Panel, Control (Designer Almond) WPL 3188673 Contact Us For Availability

7

Panel, Control (Black) WPL 3189221 Contact Us For Availability

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

8

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

8

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

9

WP3188987 Whirlpool Range Switch In Stock WPL WP3188987 $60.82

9

Outer Glass (Designer White) WPL 3188738 Contact Us For Availability

9

Outer Glass (Black) WPL 3188739 Contact Us For Availability

9

Outer Glass (Designer Almond) WPL 3189263 Contact Us For Availability

9

Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Oven (30`` Conv.) WPL 3176611 Contact Us For Availability

10

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

10

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

10

Thermostat, Oven WPL 3169302 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

11

Light, Indicator (Oven) WPL 314031 Contact Us For Availability

11

Clip (2) WPL 3148282 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Handle, Door (Black) WPL 3188695 Contact Us For Availability

Handle, Door (Designer White) WPL 3188696 Contact Us For Availability

Handle, Door (Designer Almond) WPL 3188697 Contact Us For Availability

Light, Indicator (Surface Unit) WPL 3169457 Contact Us For Availability

Pin, Cooktop (2) WPL 3169384 Contact Us For Availability

Rocker Switch (Black) WPL 3182717 Contact Us For Availability

Rocker Switch (Designer White) WPL 3182718 Contact Us For Availability

Rocker Switch (Designer Almond) WPL 3182719 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Seal, Heat WPL 3169283 Contact Us For Availability

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $25.94

Switch, Door WPL 310345 Contact Us For Availability

Frame, Door (Screw, Bottom (3)) WPL 3149333 Contact Us For Availability

Frame, Door (Screw, Side (4)) WPL 3149253 Contact Us For Availability

Frame, Door (Screw, Bottom (3)) WPL 3185918 Contact Us For Availability

Frame, Door (Screw, Side (4)) WPL 3188403 Contact Us For Availability

Frame, Door (Screw, Side (4)) WPL 3188404 Contact Us For Availability

Frame, Door (Black) WPL 3188997 Contact Us For Availability

Frame, Door (Designer White) WPL 3188998 Contact Us For Availability

Frame, Door (Designer Almond) WPL 3188999 Contact Us For Availability

Knob, (5) (Inf. & Selector) (Designer Whi WPL 3188722 Contact Us For Availability

WPL 3188723 WPL 3188723 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Door Top, Vent (Black) WPL 3188692 Contact Us For Availability

Door Top, Vent (Designer White) WPL 3188693 Contact Us For Availability

Door Top, Vent (Designer Almond) WPL 3188694 Contact Us For Availability

WPL 3188724 WPL 3188724 Contact Us For Availability

WPL 3188725 WPL 3188725 Contact Us For Availability

WPL 3188726 WPL 3188726 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

9755804 Whirlpool Range Vent Tube Backorder WPL 9755804 $50.56

16

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

17

Glide, Rear WPL 307980 Contact Us For Availability

17

WPL 3187332 WPL 3187332 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $4.59

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

Drawer, Utility WPL 327887 Contact Us For Availability

WPL 313101 WPL 313101 Contact Us For Availability

Spring, Stop WPL 308207 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Panel Drawer (White) WPL 3169422 Contact Us For Availability

Panel Drawer (Almond) WPL 3169423 Contact Us For Availability

WPL 3169525 WPL 3169525 Contact Us For Availability

Channel, Arm (2) WPL 3176708 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Glide, Front (2) WPL 3149257 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

21

Handle, Drawer (Almond) WPL 3169472 Contact Us For Availability

21

Handle, Drawer (White) WPL 3169473 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Door (2) WPL 308127 Contact Us For Availability

22

Protector, D WPL 309329 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

24

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

26

WPL 3169420 WPL 3169420 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

28

WPL 3149255 WPL 3149255 Contact Us For Availability

28

WPL 3149256 WPL 3149256 Contact Us For Availability

28

Plate, Service WPL 307972 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Cover, Rear WPL 3148975 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

34

Oven Rack (2) WPL 308173 Contact Us For Availability

35

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

35

Screw (2) WPL 98884 Contact Us For Availability

36

Bracket, Service WPL 3150190 Contact Us For Availability

37

Ground Strap WPL 308498 Contact Us For Availability

37

Clip WPL 313660 Contact Us For Availability

38

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

39

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

39

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

40

16515 Whirlpool Clip Backorder WPL 16515 $11.62

41

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

41

Support, Foot (2) WPL 3169418 Contact Us For Availability

42

Plug, Button (2) WPL 3169107 Contact Us For Availability

43

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

43

Insulation, Oven Wrap WPL 309961 Contact Us For Availability

43

Cover, Foot (2) WPL 3169448 Contact Us For Availability
