Model Whirlpool RF302PXXQ1 – Common Parts & Diagrams

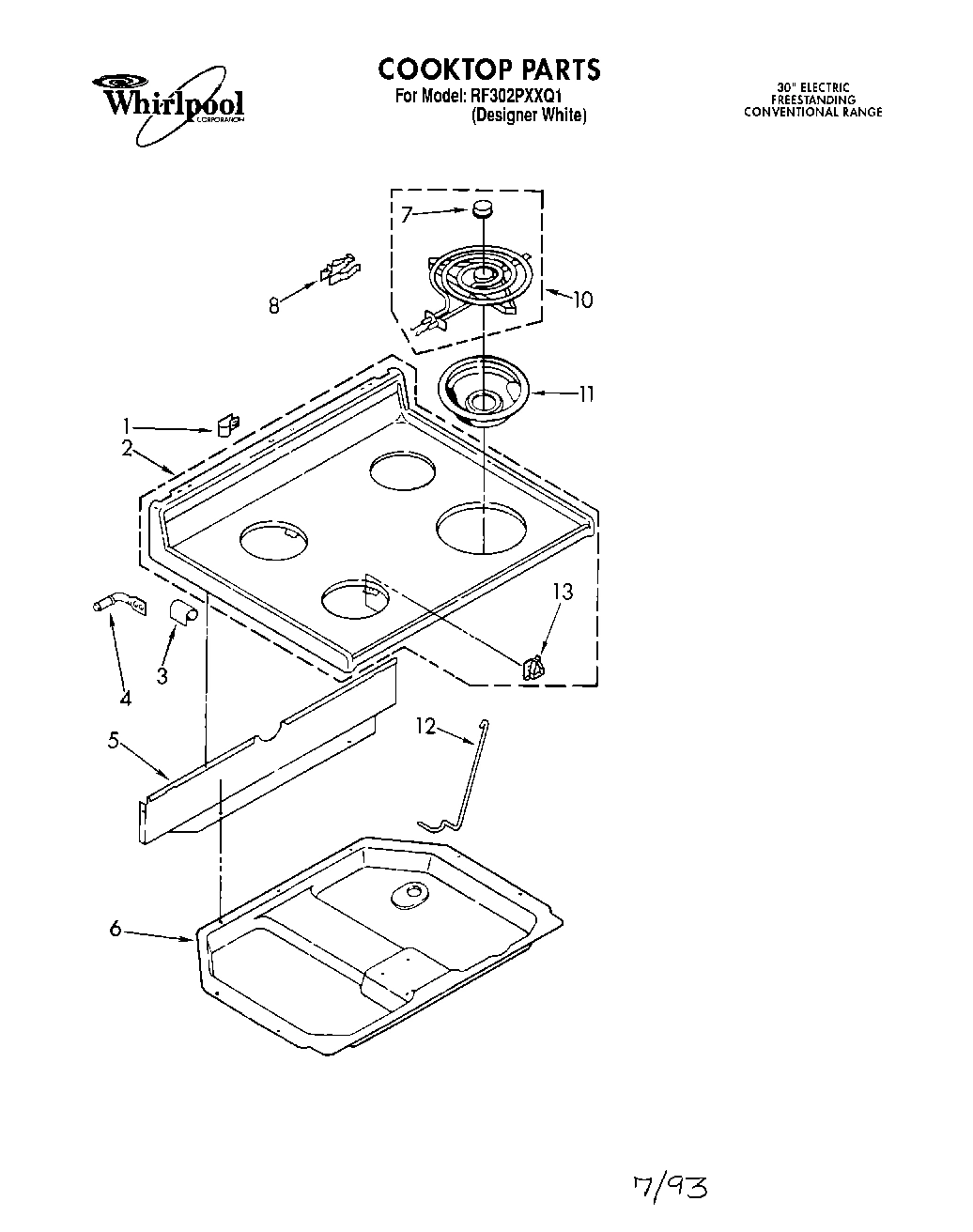

01 - COOKTOP

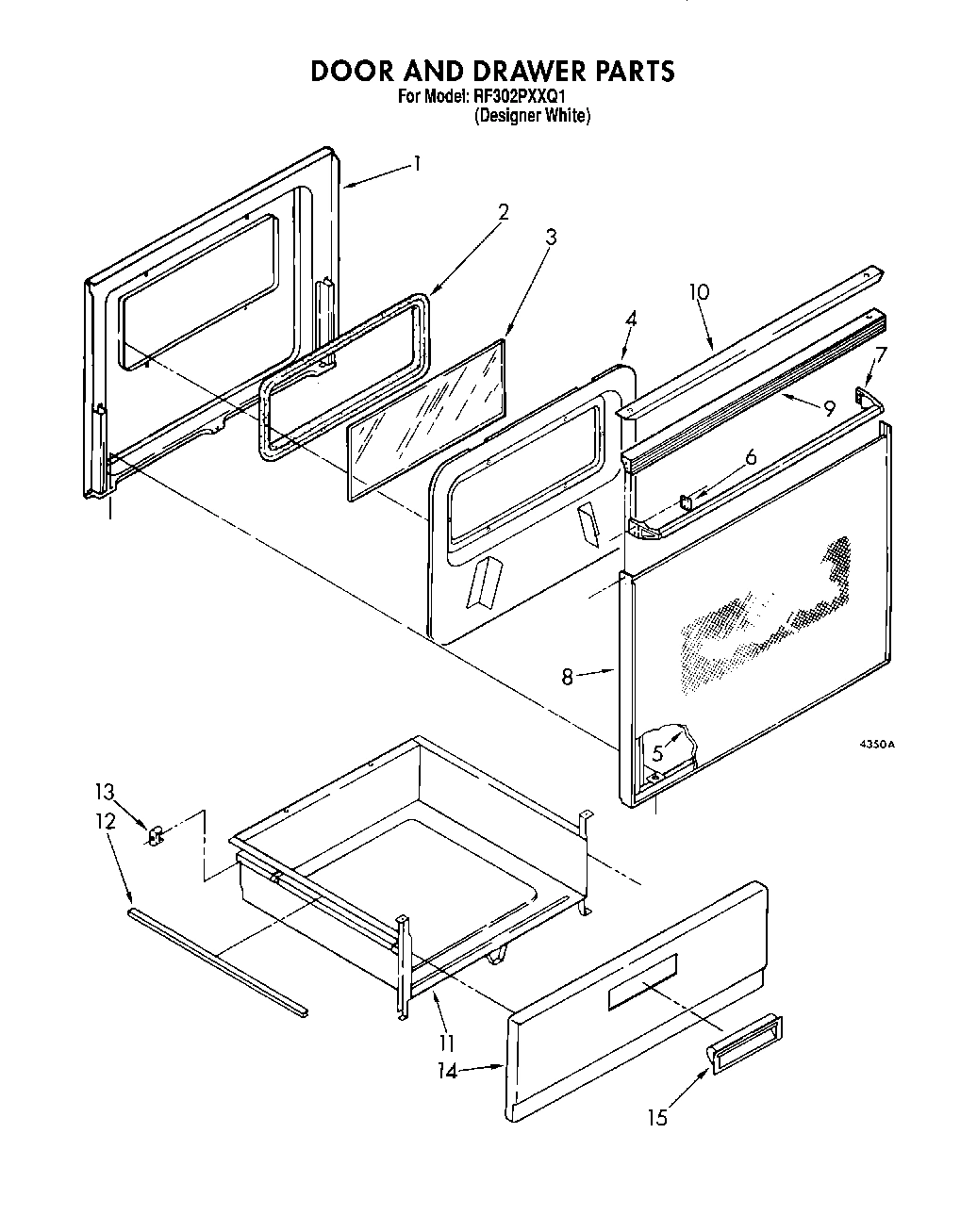

03 - DOOR AND DRAWER
04 - OVEN
02 - CONTROL PANEL, LITERATURE
06 - OVEN, OPTIONAL
05 - WIRING HARNESS
Common parts from model Whirlpool RF302PXXQ1
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Guide, Use & Care WPL LIT3150290 Contact Us For Availability
Wiring Diagram WPL LIT3182699 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Cover, Rear WPL 313195 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, Wire (Main) WPL 313147 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
(Alt.) WPL 310864 Contact Us For Availability
2
(Alt.) WPL 311498 Contact Us For Availability
2
Thermostat, Oven WPL 661150 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3182698 Contact Us For Availability
3
Clamp, Tube WPL 313570 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
4
Switch, Selector WPL 3150430 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
6
End Cap R.H. WPL 313230 Contact Us For Availability
6
End Cap L.H. WPL 313231 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
End Trim L.H. WPL 313190 Contact Us For Availability
7
End Trim R.H. WPL 313191 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Knob, Selector WPL 3182483 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Light, Indicator (Includes No. 12) (Oven Unit WPL 314031 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
9
Light, Indicator (Includes No. 12) (Surface U WPL 3150662 Contact Us For Availability
9
Block, Balance WPL 312804 Contact Us For Availability
10
Cap, Top WPL 3181363 Contact Us For Availability
10
Cover, Rear (Cabinet) WPL 3148975 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
11
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
11
Panel, Control White WPL 3182709 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
13
Seal WPL 309107 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
Drawer Panel, White WPL 3150676 Contact Us For Availability
14
Knob, Temperature WPL 3182482 Contact Us For Availability
14
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
WPL 261582 WPL 261582 Contact Us For Availability
14
WPL 261886 WPL 261886 Contact Us For Availability
14
WPL 261887 WPL 261887 Contact Us For Availability
14
WPL 261888 WPL 261888 Contact Us For Availability
14
WPL 261890 WPL 261890 Contact Us For Availability
14
WPL 261891 WPL 261891 Contact Us For Availability
14
WPL 285365 WPL 285365 Contact Us For Availability
14
WPL 285366 WPL 285366 Contact Us For Availability
14
WPL 285367 WPL 285367 Contact Us For Availability
14
WPL 285368 WPL 285368 Contact Us For Availability
14
WPL 308173 WPL 308173 Contact Us For Availability
14
WPL 309961 WPL 309961 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
15
Snap-In Handle, White WPL 3150612 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Shield (2) WPL 313608 Contact Us For Availability
17
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
28
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
