Model Whirlpool RF302BXXG2 – Common Parts &amp; Diagrams

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Instructions, Installation WPL LIT3147395 Contact Us For Availability

Guide, Use & Care WPL LIT3150290 Contact Us For Availability

Wiring Diagram WPL LIT3150655 Contact Us For Availability

List, Parts WPL LIT884970 Contact Us For Availability

1

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

1

Screw (2) WPL 3149333 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Gold) WPL 330089 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

screw (3) WPL 307748 Contact Us For Availability

1

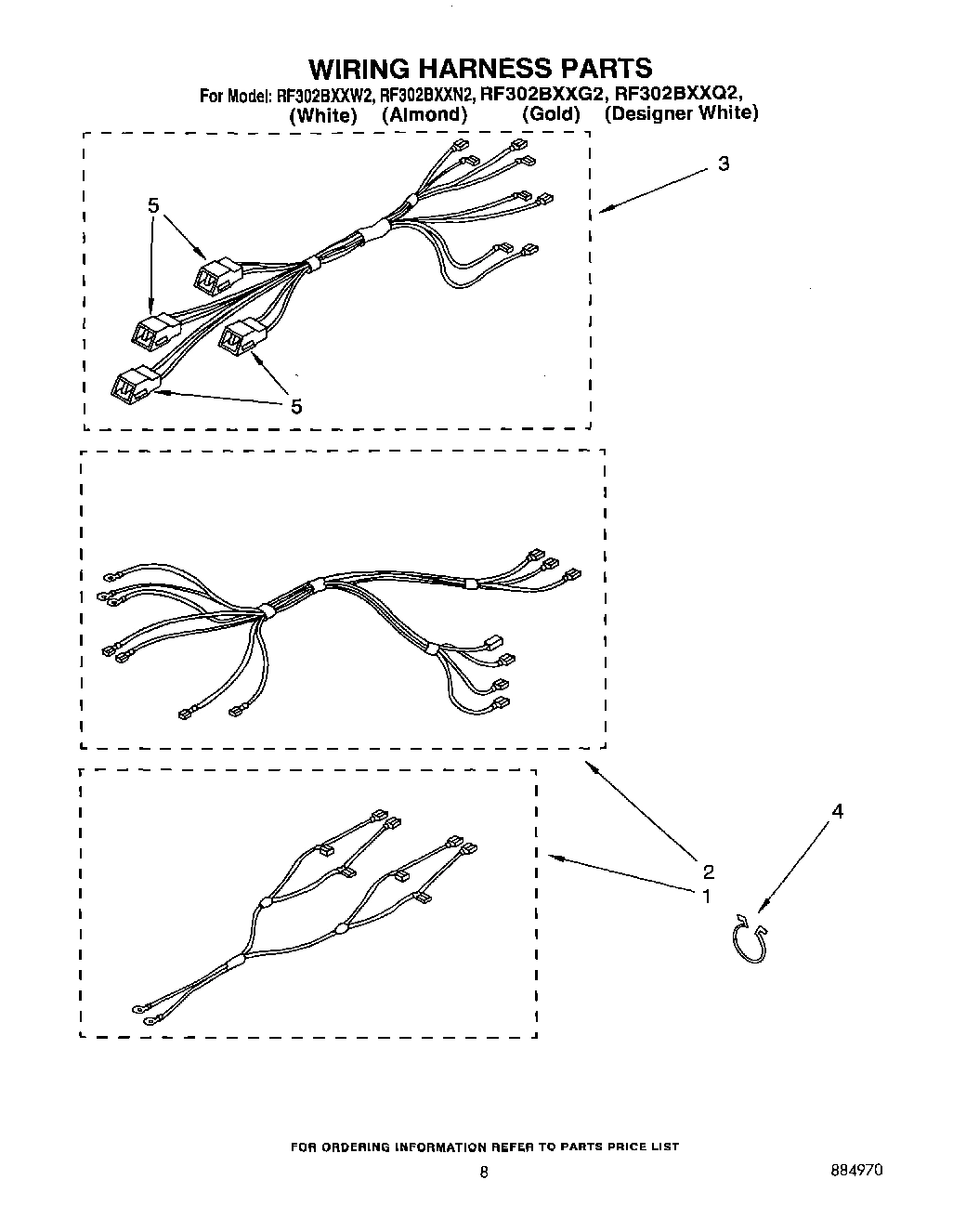

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

1

Cover, Rear WPL 313195 Contact Us For Availability

1

Liner, Door WPL 3172221 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Cooktop (White) WPL 3170989 Contact Us For Availability

2

Cooktop (Almond) WPL 3170990 Contact Us For Availability

2

Cooktop (Gold) WPL 3170993 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3150659 Contact Us For Availability

2

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

2

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

2

Thermostat, Oven WPL 661150 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Bracket, Cooktop WPL 307965 Contact Us For Availability

3

Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability

3

Clamp, Tube WPL 313570 Contact Us For Availability

3

Outer Glass Panel (Black Glass) WPL 3148186 Contact Us For Availability

3

Outer Glass Panel (Designer White) WPL 3149051 Contact Us For Availability

4

16515 Whirlpool Clip Backorder WPL 16515 $11.62

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

4

Switch, Selector WPL 3150430 Contact Us For Availability

4

Pin, Hinge (2) WPL 307966 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

4

Frame, Panel WPL 3148235 Contact Us For Availability

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

5

Shield, Wiring WPL 307973 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Top, Door (White/Almond/Gold) WPL 3148223 Contact Us For Availability

5

Top, Door (Designer Mdl) WPL 3149355 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

Box, Burner WPL 3169186 Contact Us For Availability

6

Snubber, Door (2) WPL 309111 Contact Us For Availability

6

End Cap, R.H. (Screw 8BT X 1/4 (4)) WPL 254225 Contact Us For Availability

6

End Cap, R.H. (Designer Mdl End Cap, L.H.) WPL 313230 Contact Us For Availability

6

End Cap, R.H. (Designer Mdl) WPL 313231 Contact Us For Availability

6

End Cap, R.H. (White/Almond/Gold) WPL 3181677 Contact Us For Availability

6

End Cap, R.H. (White/Almond/Gold) WPL 3181678 Contact Us For Availability

6

Cap, Designer Model only WPL 3181363 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Clip, Handle (2) WPL 3148282 Contact Us For Availability

7

Medallion (4) WPL 309926 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

End Trim L.H. WPL 313190 Contact Us For Availability

7

End Trim R.H. WPL 313191 Contact Us For Availability

8

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

8

Knob, Selector (White/Almond/Gold) WPL 3149984 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Knob, Selector (Designer Mdl) WPL 3182483 Contact Us For Availability

8

Handle, Door (Black color) WPL 3148228 Contact Us For Availability

8

Handle, Door (Platinum color) WPL 3149354 Contact Us For Availability

9

Light, Indicator (Includes No. 12) (Oven Unit WPL 314031 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Conv.) WPL 3176612 Contact Us For Availability

9

Light, Indicator (Includes No. 12) (Surface U WPL 3150662 Contact Us For Availability

10

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

10

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

10

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

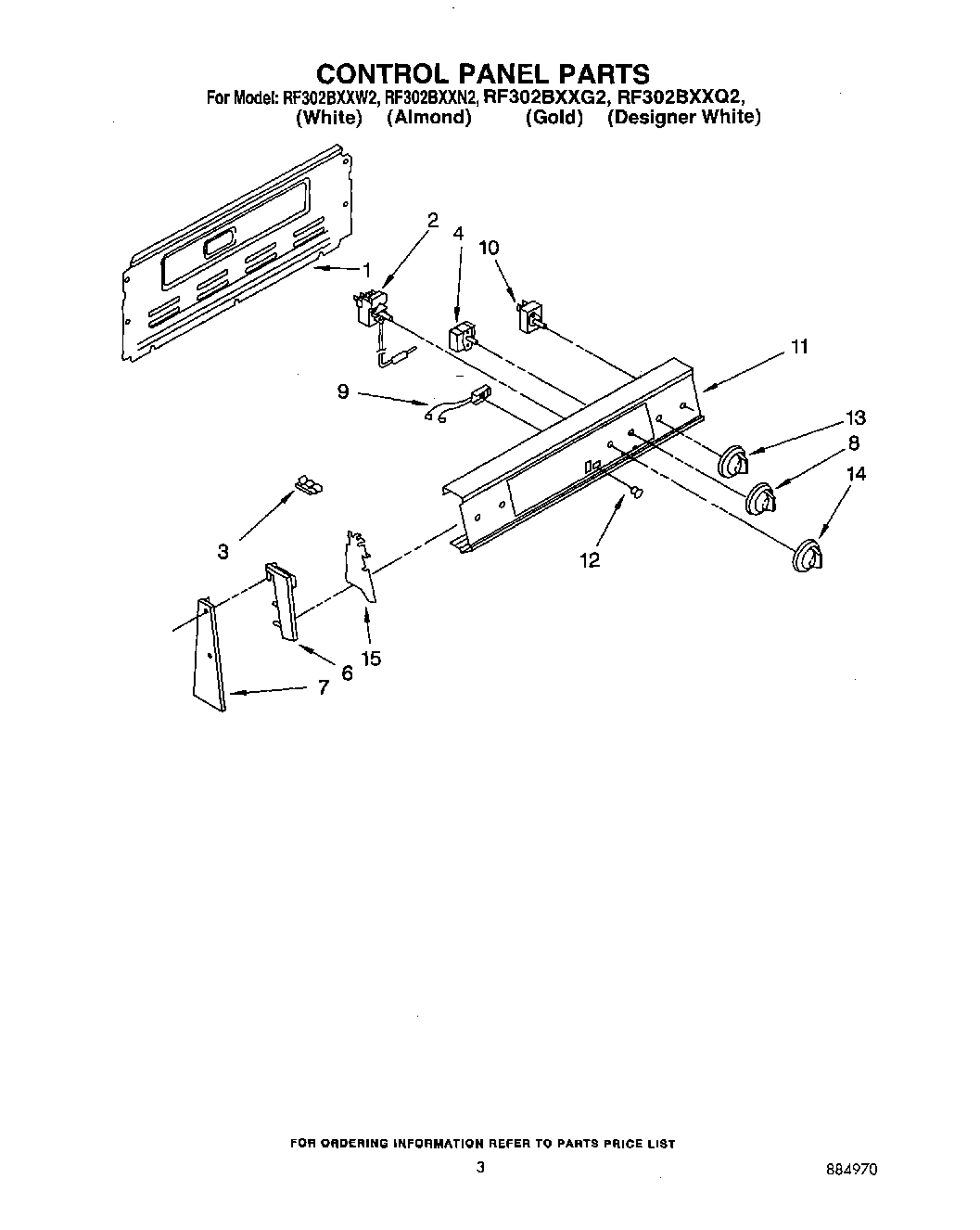

Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability

Panel, Control (White) WPL 3150489 Contact Us For Availability

Panel, Control (Almond) WPL 3150490 Contact Us For Availability

Panel, Control (Designer Mdl) WPL 3150491 Contact Us For Availability

Panel, Control (Gold) WPL 3150492 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

12

Rod, Cooktop WPL 3148659 Contact Us For Availability

12

Lens, Amber (2) WPL 313101 Contact Us For Availability

12

Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Seal WPL 309107 Contact Us For Availability

Nut (4) WPL 814102 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Knob, Temperature (White/Almond/Gold) WPL 3149987 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 308173 WPL 308173 Contact Us For Availability

WPL 309961 WPL 309961 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Knob, Temperature (Designer Mdl WPL 3182482 Contact Us For Availability

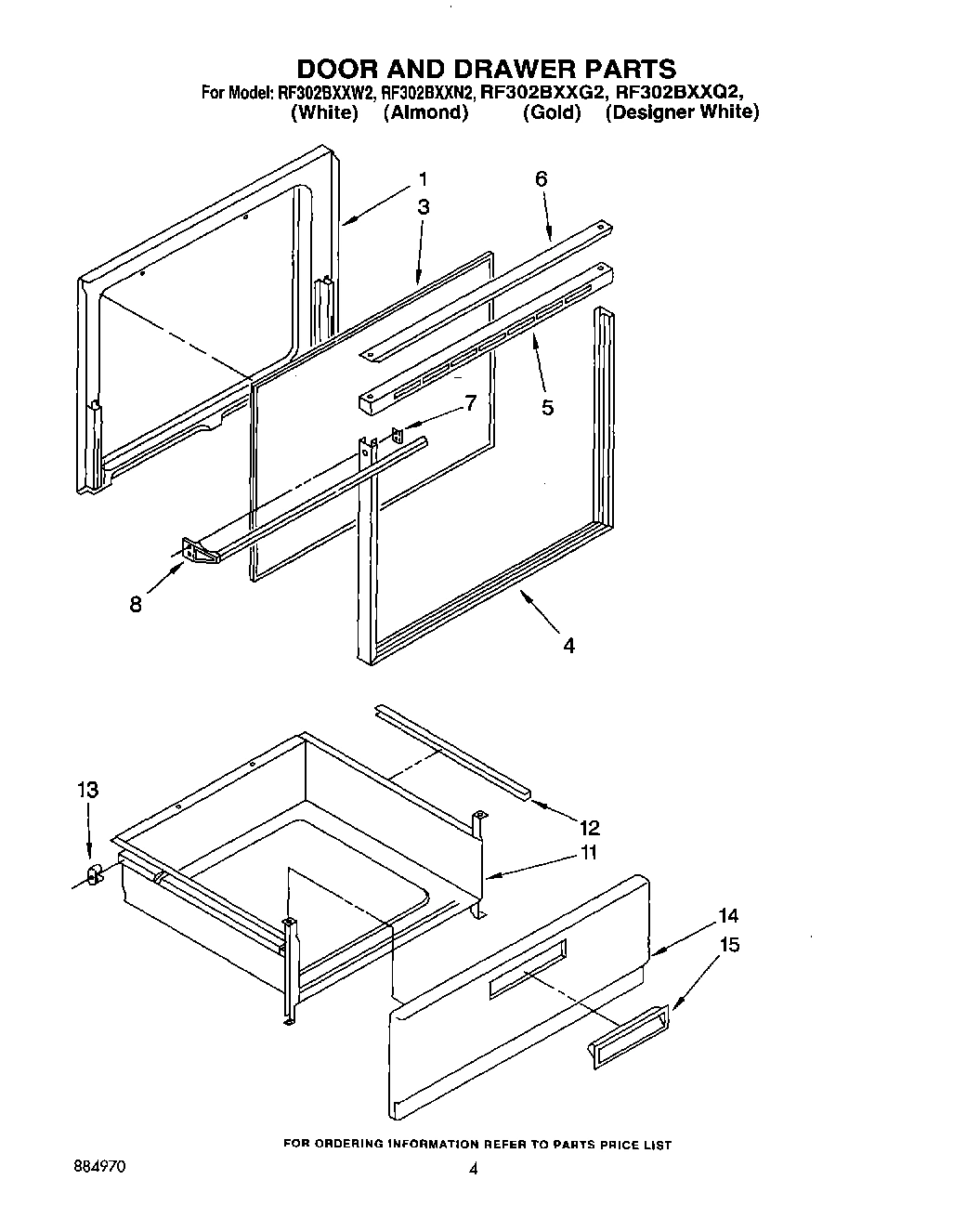

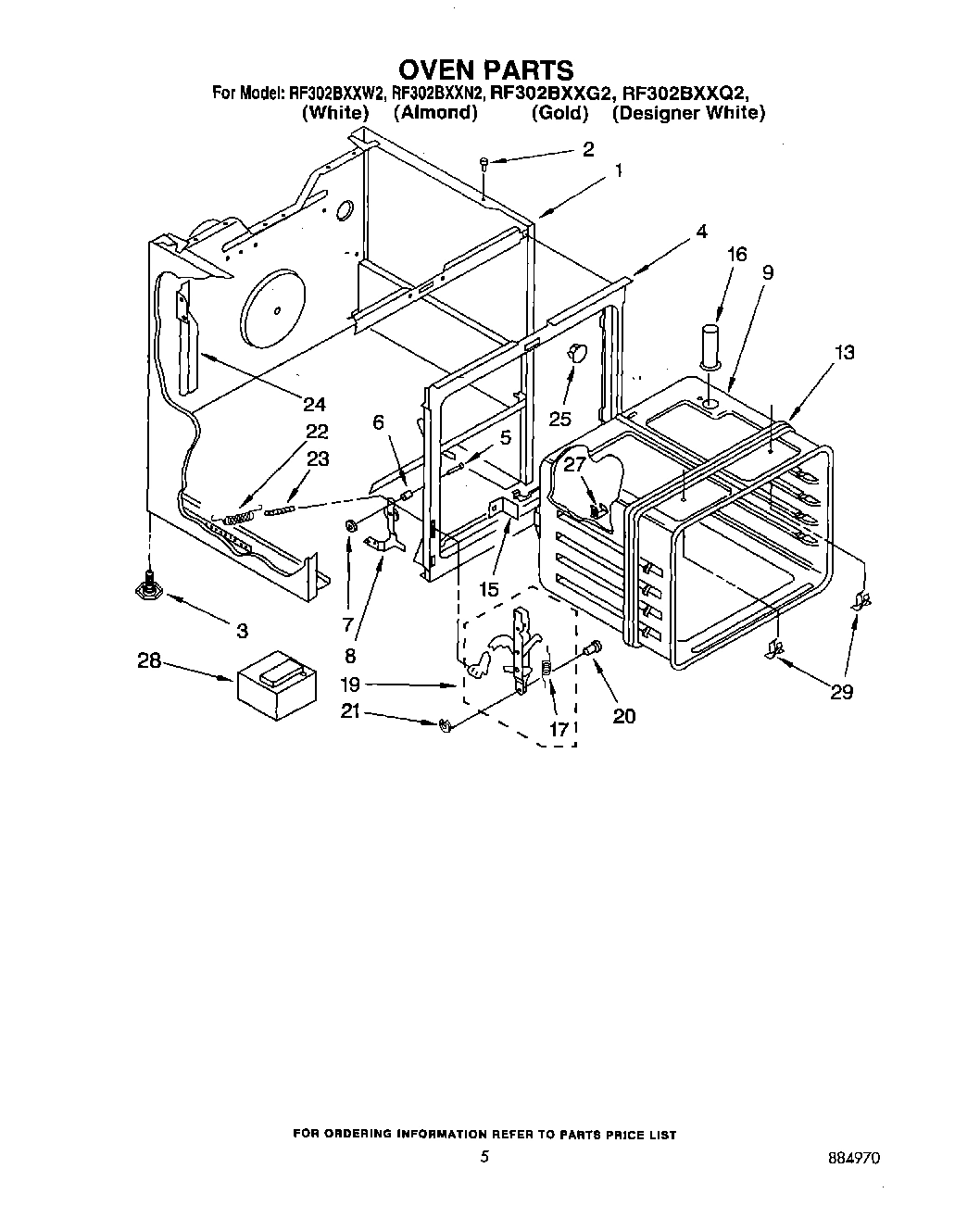

Panel, Drawer (White) WPL 3150676 Contact Us For Availability

Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability

Panel, Drawer (Gold) WPL 3150678 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WPL 313608 WPL 313608 Contact Us For Availability

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

Handle, Snap-In (Gold) WPL 3150614 Contact Us For Availability

16

9755804 Whirlpool Oven Vent Tube Backorder WPL 9755804 $48.15

17

Spring, Door Stop WPL 308207 Contact Us For Availability

19

Channel, Arm (2) WPL 329712 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Plug Button WPL 308535 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

340184 Whirlpool Screw Backorder WPL 340184 $9.59

28

Block, Balance WPL 312804 Contact Us For Availability

29

Plug, Button (2) WPL 3169107 Contact Us For Availability
