Model Whirlpool RF3020XDW0 – Common Parts & Diagrams

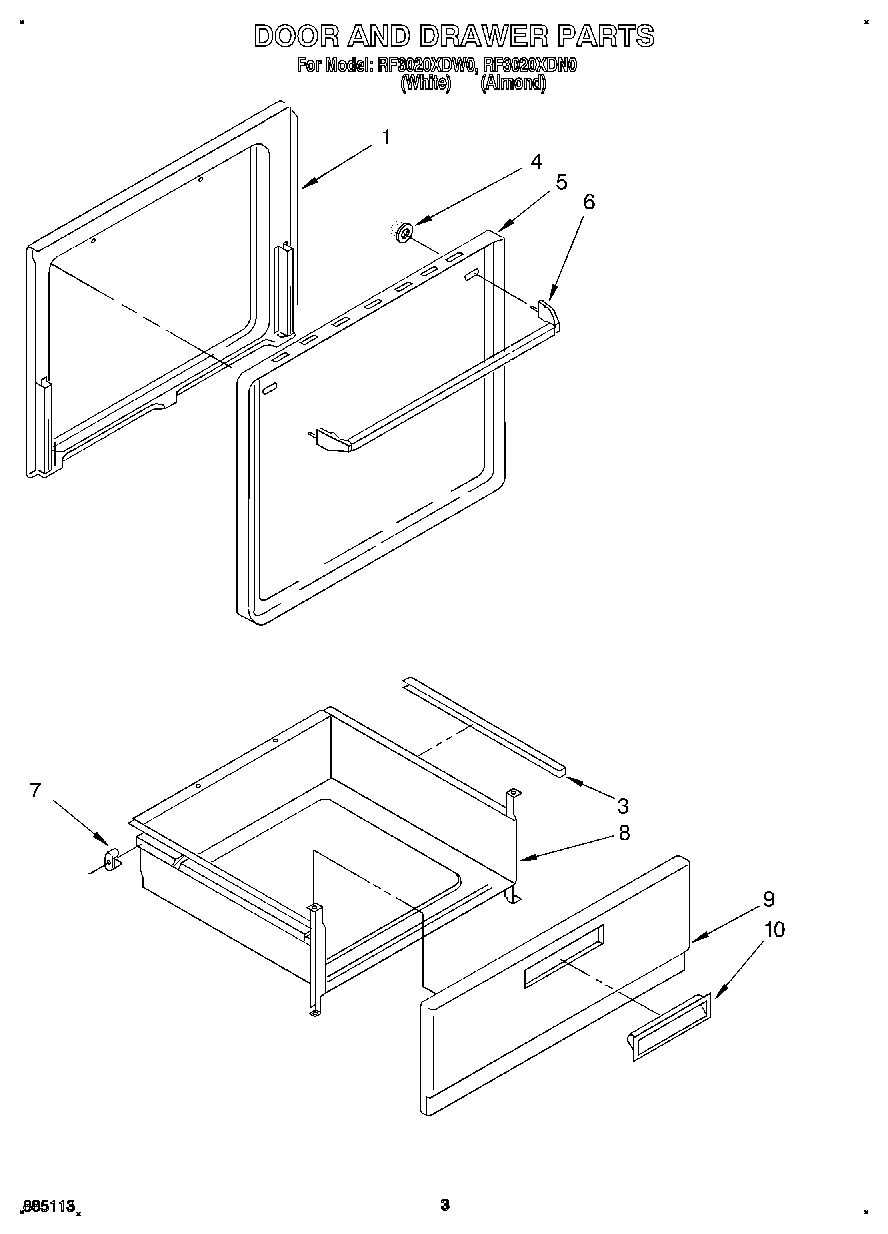

03 - DOOR AND DRAWER

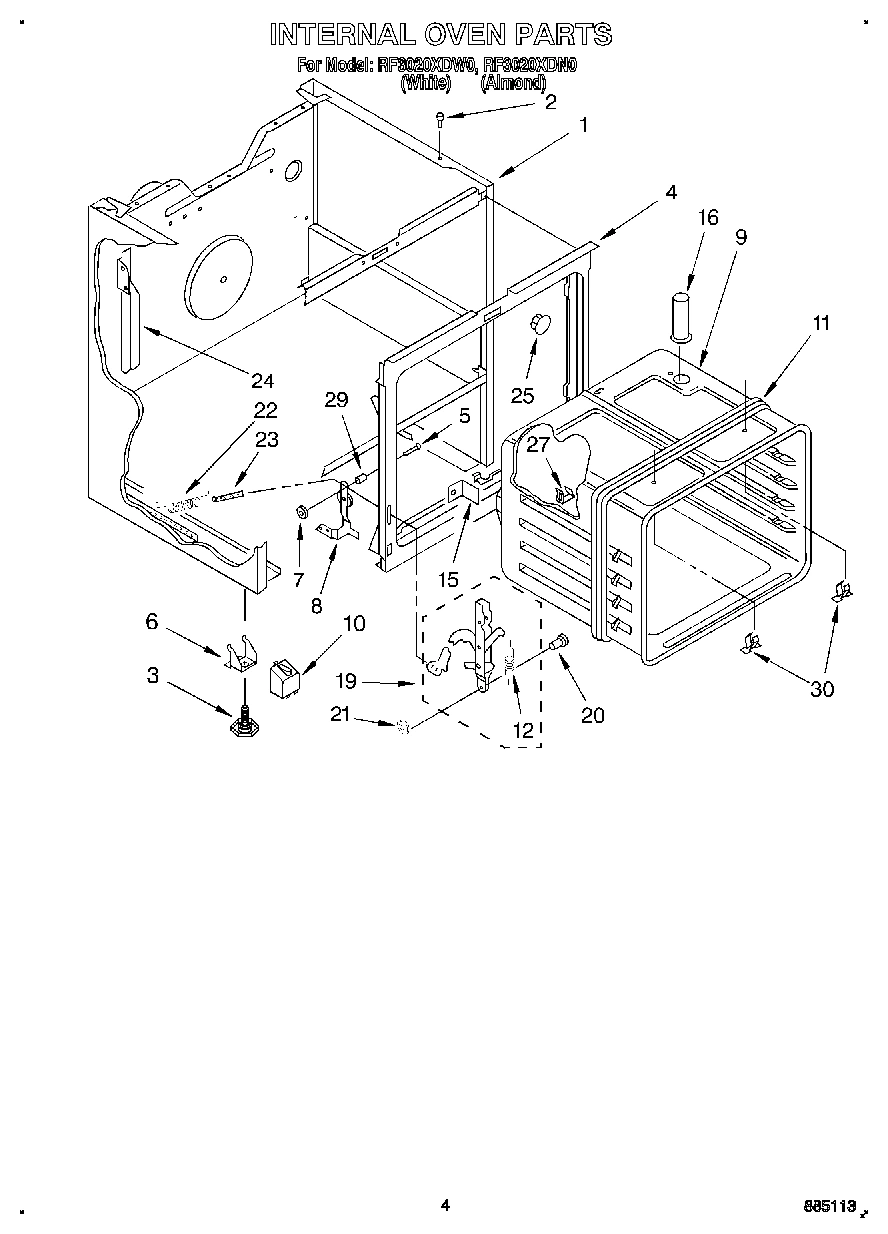

04 - INTERNAL OVEN

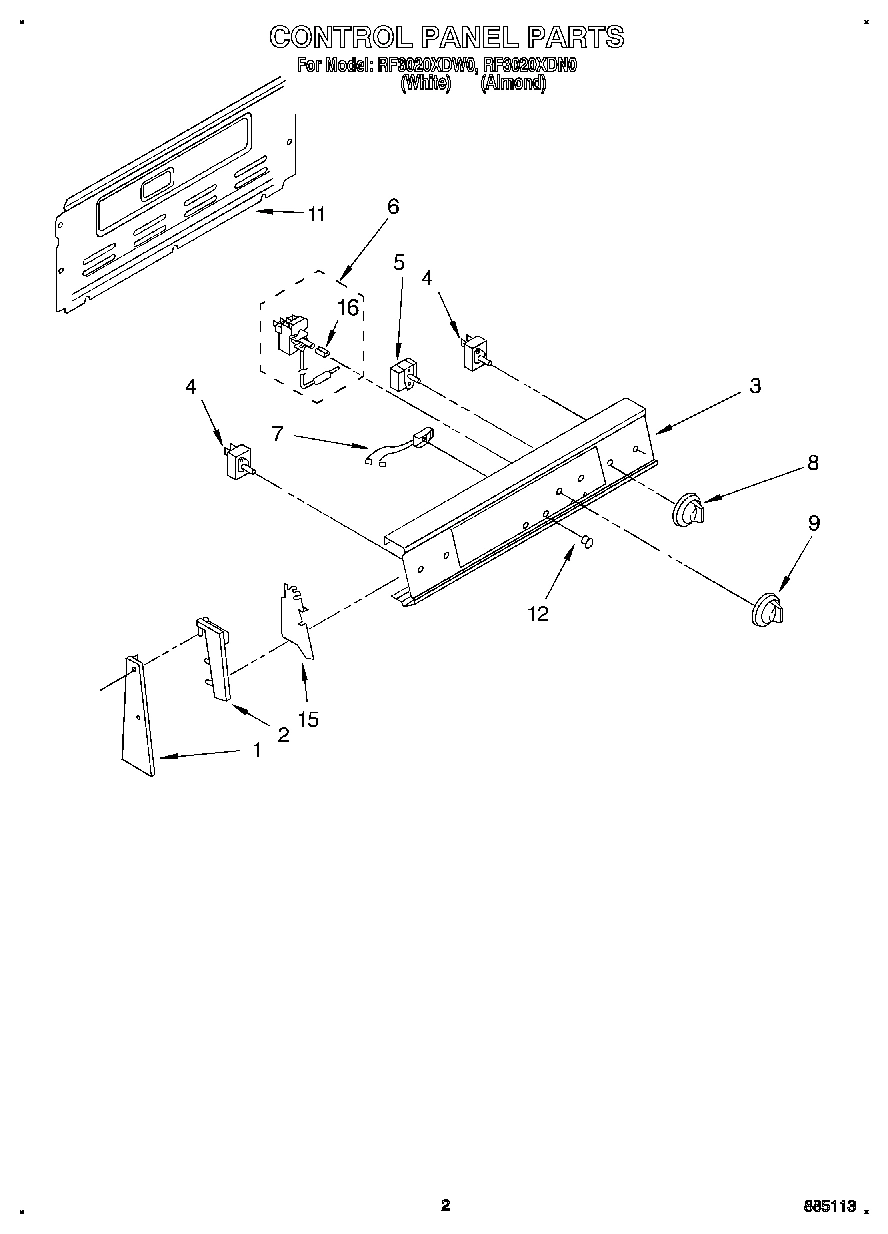

02 - CONTROL PANEL

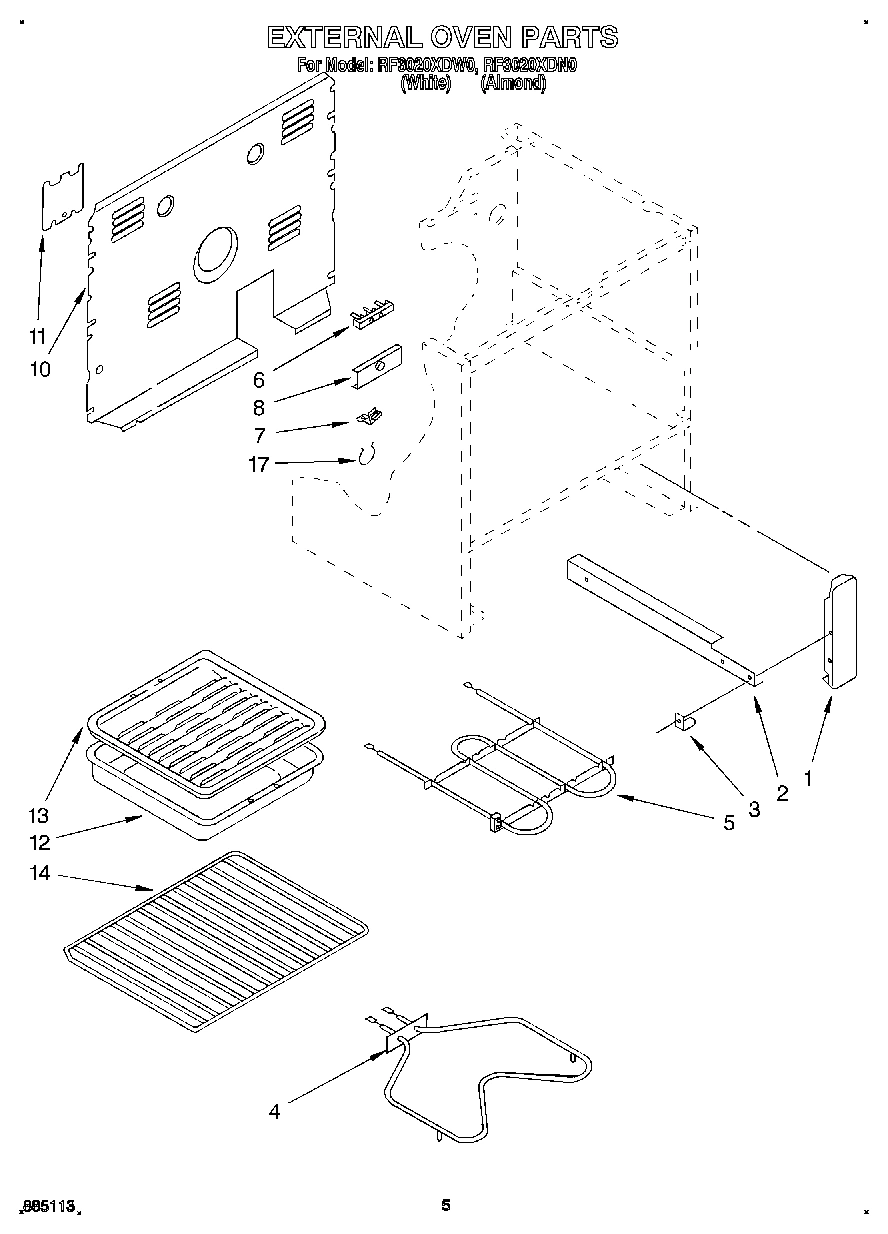

05 - EXTERNAL OVEN, OPTIONAL

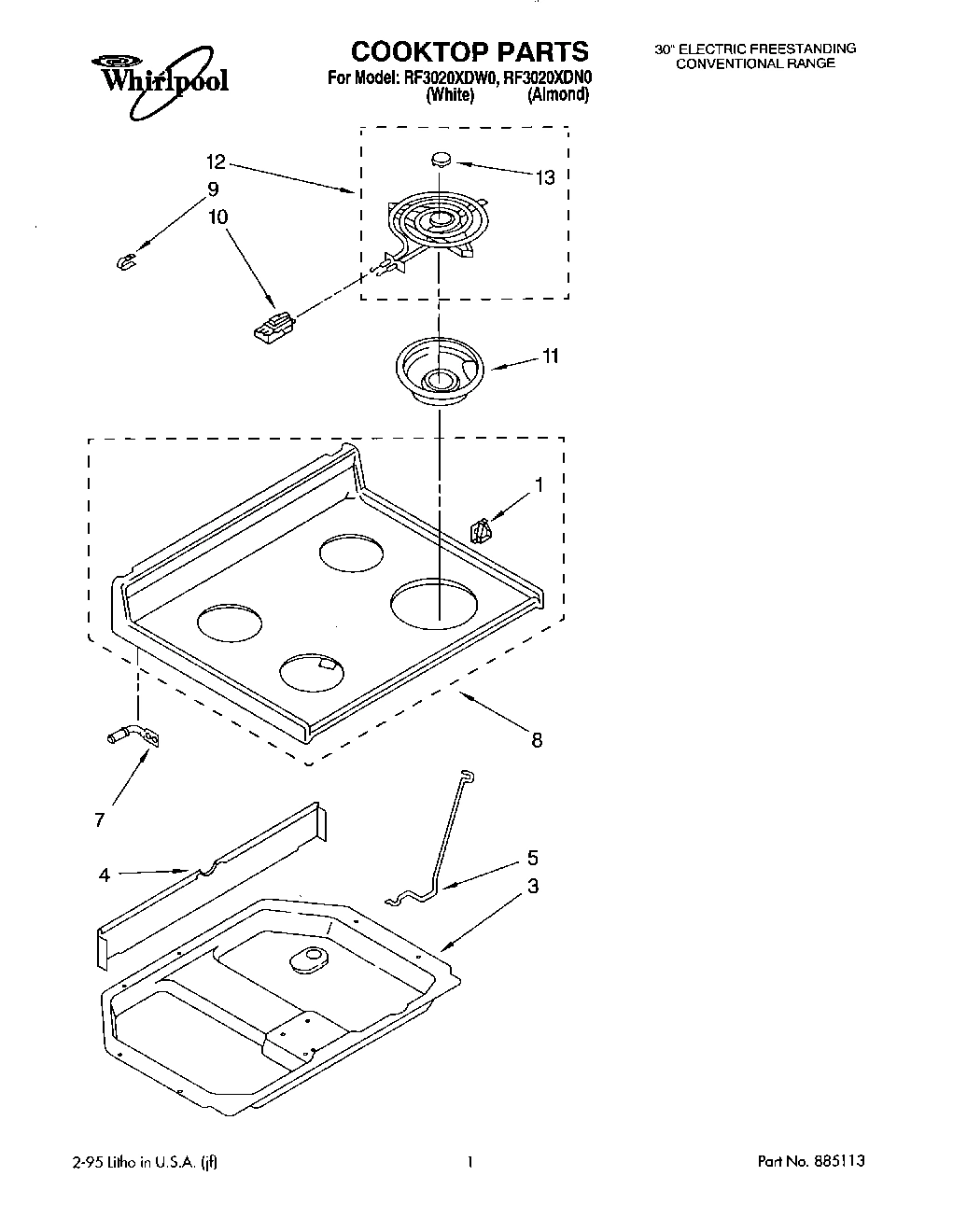

01 - COOKTOP, LITERATURE

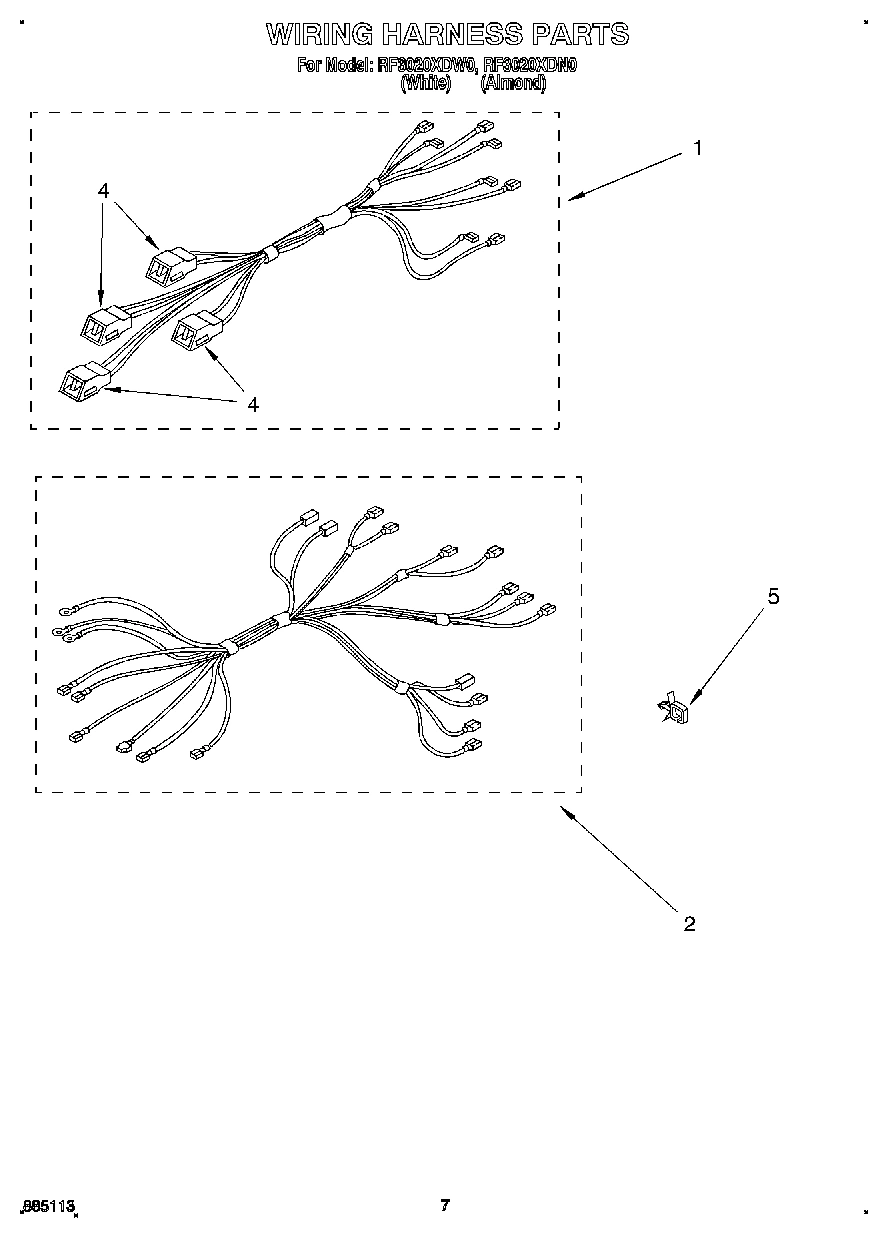

06 - WIRING HARNESS
Common parts from model Whirlpool RF3020XDW0
WPL 241430 WPL 241430 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169512 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Guide, Use & Care WPL LIT3189066 Contact Us For Availability
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
Nut (4) WPL 814102 Contact Us For Availability
1
Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3187791 Contact Us For Availability
2
End Cap L.H. WPL 3187792 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169147 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Panel, Control WPL 3188671 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Box, Burner WPL 3169186 Contact Us For Availability
4
Shield, Wiring WPL 307973 Contact Us For Availability
5
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
5
Clip, Snap-In WPL 3169449 Contact Us For Availability
6
Thermostat WPL 3169302 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
7
Light, Indicator (Surface Unit On (Includes N WPL 3169457 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Cooktop (White) WPL 3170989 Contact Us For Availability
8
Cooktop (Almond) WPL 3170990 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conventional) WPL 3176612 Contact Us For Availability
9
Knob, Thermostat WPL 3188724 Contact Us For Availability
10
Cover, Foot (2) WPL 3169448 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Seal, Rubber WPL 3169283 Contact Us For Availability
11
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
13
Medallion (4) WPL 309195 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Shield (2) WPL 313608 Contact Us For Availability
16
Sleeve, Adaptor WPL 3169525 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 309961 WPL 309961 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug, Bottom WPL 308535 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
