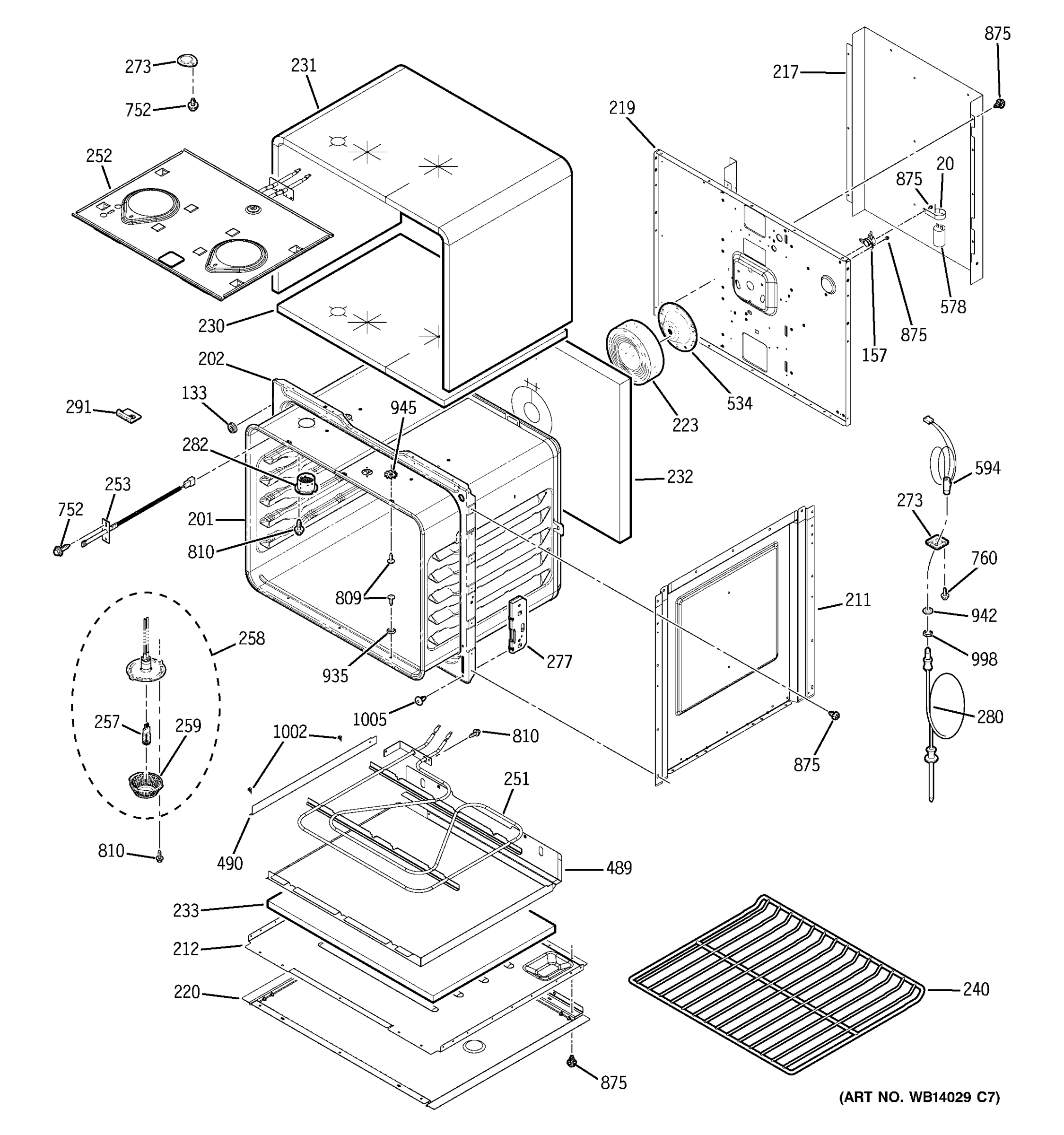

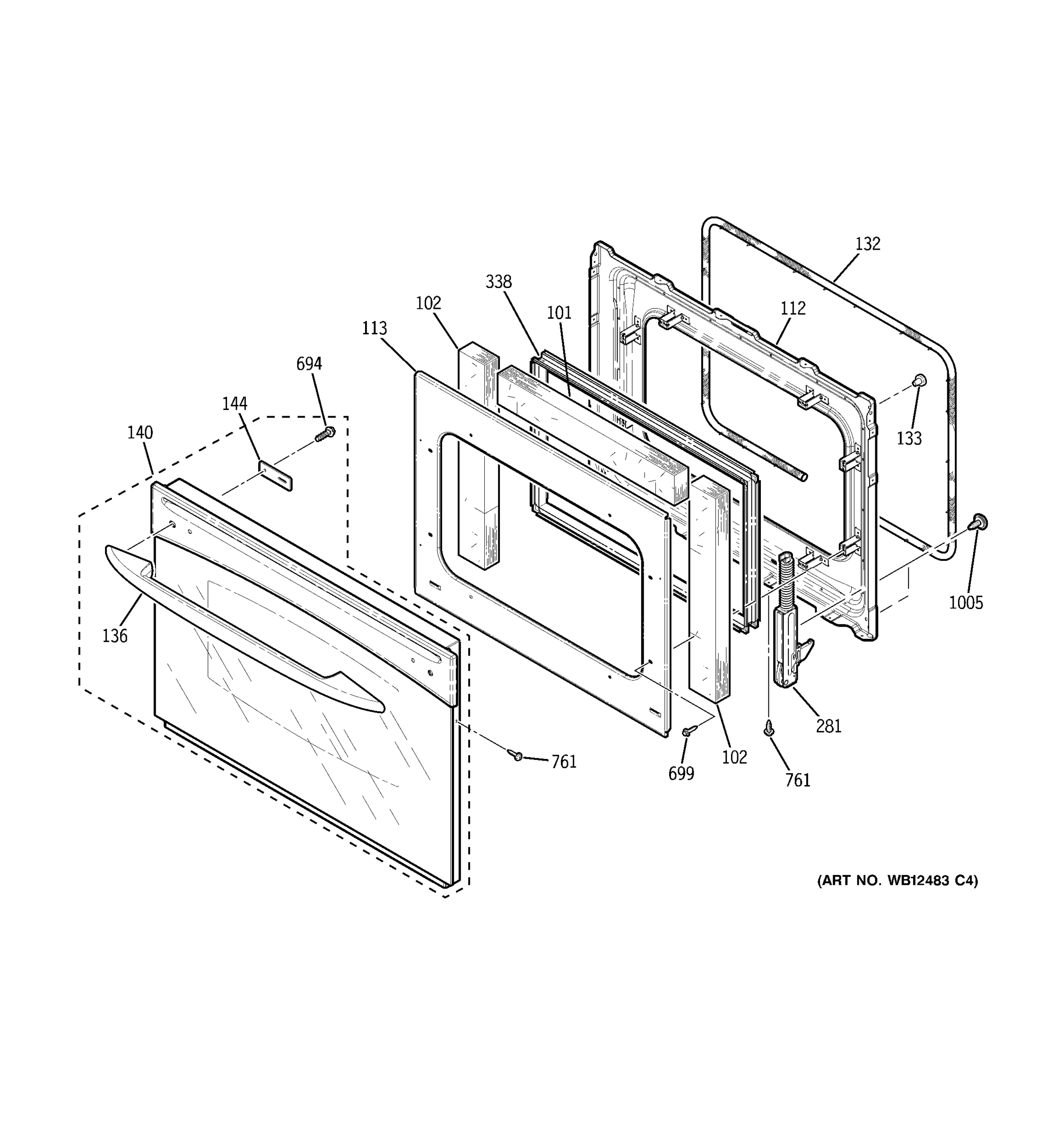

Model PT956WM2WW – Common Parts & Diagrams

Common parts from model PT956WM2WW

WB27T10905 GE Oven Control ERC DDHE 30 PROF

WB27T10905 GE Oven Control ERC DDHE 30 PROF Out of Stock GEN WB27T10905 $431.02

WB02T10152 GE Oven Bracket Capacitor Motor

WB02T10152 GE Oven Bracket Capacitor Motor Out of Stock GEN WB02T10152 $5.11

WB26T10049 GE Oven Blower Tangetial 60MM

WB26T10049 GE Oven Blower Tangetial 60MM Out of Stock GEN WB26T10049 $154.58

WB02T10289 GE Oven Stirrer Fan Blade

WB02T10289 GE Oven Stirrer Fan Blade In Stock GEN WB02T10289 $15.70

WB27T10569 GE Oven Range Control Board

WB27T10569 GE Oven Range Control Board Out of Stock GEN WB27T10569 $54.39

WB35X30052 GE Oven Door Insulation

WB35X30052 GE Oven Door Insulation Out of Stock GEN WB35X30052 $5.11

WB35K10025 GE Oven Insulation Oven Door Side

WB35K10025 GE Oven Insulation Oven Door Side Out of Stock GEN WB35K10025 $5.11

WB02T10371 GE Oven Retainer Insulation

WB02T10371 GE Oven Retainer Insulation Out of Stock GEN WB02T10371 $43.44

WB04T10050 GE Oven Gasket Oven Door

WB04T10050 GE Oven Gasket Oven Door In Stock GEN WB04T10050 $42.71

WB01T10022 GE Oven Bumper Door

WB01T10022 GE Oven Bumper Door Out of Stock GEN WB01T10022 $5.11

WB15T10136 GE Oven Drawer Handle

WB15T10136 GE Oven Drawer Handle Out of Stock GEN WB15T10136 $60.46

WB02T10375 GE Oven Bracket Reinforcement 30

WB02T10375 GE Oven Bracket Reinforcement 30 Out of Stock GEN WB02T10375 $10.62

WB24T10127 GE Oven Switch Limit Bimetal

WB24T10127 GE Oven Switch Limit Bimetal In Stock GEN WB24T10127 $7.00

WB24T10081 GE Oven High Limit Thermostat

WB24T10081 GE Oven High Limit Thermostat In Stock GEN WB24T10081 $27.04

WB24T10118 GE Oven Switch Limit Bimetal

WB24T10118 GE Oven Switch Limit Bimetal Out of Stock GEN WB24T10118 $7.94

WB24T10060 GE Oven Safety Thermostat

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $8.89

WB02T10284 GE Oven Retainer Insulation Side

WB02T10284 GE Oven Retainer Insulation Side Out of Stock GEN WB02T10284 $46.69

RETAINER INSLN BTM

RETAINER INSLN BTM Out of Stock GEN WB02T10372 $77.00

COVER WIRE UPR

COVER WIRE UPR Out of Stock GEN WB02T10373 $28.98

WB02X20948 GE Oven Back Insulation Retainer

WB02X20948 GE Oven Back Insulation Retainer Out of Stock GEN WB02X20948 $43.20

DUCT BTM AIR

DUCT BTM AIR Out of Stock GEN WB02T10502 $59.33

INSULATION TOP

INSULATION TOP Out of Stock GEN WB35T10183 $20.52

WB35T10186 GE Oven Insulation

WB35T10186 GE Oven Insulation Out of Stock GEN WB35T10186 $24.30

INSULATION

INSULATION Out of Stock GEN WB35T10182 $52.20

INSULATION BTM

INSULATION BTM Out of Stock GEN WB35T10181 $27.90

WB48T10059 GE Oven Rack

WB48T10059 GE Oven Rack In Stock GEN WB48T10059 $36.86

WB44T10105 GE Oven Element Bake Assembly (210

WB44T10105 GE Oven Element Bake Assembly (210 In Stock GEN WB44T10105 $74.60

WB44T10106 GE Oven Unit Broil Assembly

WB44T10106 GE Oven Unit Broil Assembly Out of Stock GEN WB44T10106 $61.37

WB23T10015 GE Oven Sensor Probe

WB23T10015 GE Oven Sensor Probe In Stock GEN WB23T10015 $18.34

WB08T10002 GE Oven Cooktop Lamp 40W 120V Bulb

WB08T10002 GE Oven Cooktop Lamp 40W 120V Bulb In Stock GEN WB08T10002 $17.06

WB25T10002 GE Oven Bulb Lens

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $5.11

WB07T10589 GE Oven Trim Bottom CAB (White)

WB07T10589 GE Oven Trim Bottom CAB (White) Out of Stock GEN WB07T10589 $78.65

WB20T10024 GE Oven Probe Thermistor

WB20T10024 GE Oven Probe Thermistor In Stock GEN WB20T10024 $43.29

WB10T10114 GE Oven Hinge Right Door

WB10T10114 GE Oven Hinge Right Door Out of Stock GEN WB10T10114 $43.85

WB28T10215 GE Oven Tube Vent Assembly

WB28T10215 GE Oven Tube Vent Assembly Out of Stock GEN WB28T10215 $29.86

TUBE ASM VENT

TUBE ASM VENT Out of Stock GEN WB28T10216 $44.28

WB2X9152 GE Oven Cover

WB2X9152 GE Oven Cover Out of Stock GEN WB2X9152 $17.59

WB44X31764 GE Convection Heating Element

WB44X31764 GE Convection Heating Element Out of Stock GEN WB44X31764 $18.52

PAN REFLECTOR SIDE

PAN REFLECTOR SIDE Out of Stock GEN WB49T10018 $5.94

WB26T10043 GE Oven Motor PSC Convection

WB26T10043 GE Oven Motor PSC Convection In Stock GEN WB26T10043 $120.93

WB27T10662 GE Oven Capacitor

WB27T10662 GE Oven Capacitor Out of Stock GEN WB27T10662 $5.00

WB01T10066 GE Oven Screw 10-16 XC02

WB01T10066 GE Oven Screw 10-16 XC02 Out of Stock GEN WB01T10066 $5.11

WB1K5200 GE Oven SCREW 340531

WB1K5200 GE Oven SCREW 340531 Out of Stock GEN WB1K5200 $5.11

WB1X536 GE Oven Screw

WB1X536 GE Oven Screw Out of Stock GEN WB1X536 $6.25

WB1X1137 GE Oven Screw-10AB

WB1X1137 GE Oven Screw-10AB Out of Stock GEN WB1X1137 $5.00

WB1X1130 GE Oven Screw-10-32

WB1X1130 GE Oven Screw-10-32 Out of Stock GEN WB1X1130 $5.00

WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI

WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI Out of Stock GEN WB02T10324 $5.11

WH2X930 GE Screw

WH2X930 GE Screw In Stock GEN WH2X930 $5.11

WB1K5172 GE Oven Screw

WB1K5172 GE Oven Screw Out of Stock GEN WB1K5172 $11.16

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Out of Stock GEN WB1K5173 $5.11

WB1K5174 GE Oven Washer

WB1K5174 GE Oven Washer Out of Stock GEN WB1K5174 $5.11

WB1X5573 GE Oven Washer

WB1X5573 GE Oven Washer Out of Stock GEN WB1X5573 $5.11

WB02T10017 GE Oven Nut

WB02T10017 GE Oven Nut Out of Stock GEN WB02T10017 $6.25

WB18T10371 GE Oven Ribbon Connector GLS TCH

WB18T10371 GE Oven Ribbon Connector GLS TCH Out of Stock GEN WB18T10371 $54.39

WB1X5572 GE Oven Nut

WB1X5572 GE Oven Nut Out of Stock GEN WB1X5572 $14.04

WB18T10342 GE Oven Harness LOGIC/Display.

WB18T10342 GE Oven Harness LOGIC/Display. Out of Stock GEN WB18T10342 $41.96

SCR 8-32 1HW .312 NI

SCR 8-32 1HW .312 NI Out of Stock GEN WB01T10072 $5.11

WB01T10008 GE Oven Screw 10-32 TR

WB01T10008 GE Oven Screw 10-32 TR In Stock GEN WB01T10008 $5.11
