Model GE PT9050SF6SS Electric Range – Common Parts & Diagrams
CONTROL PANEL
BODY PARTS

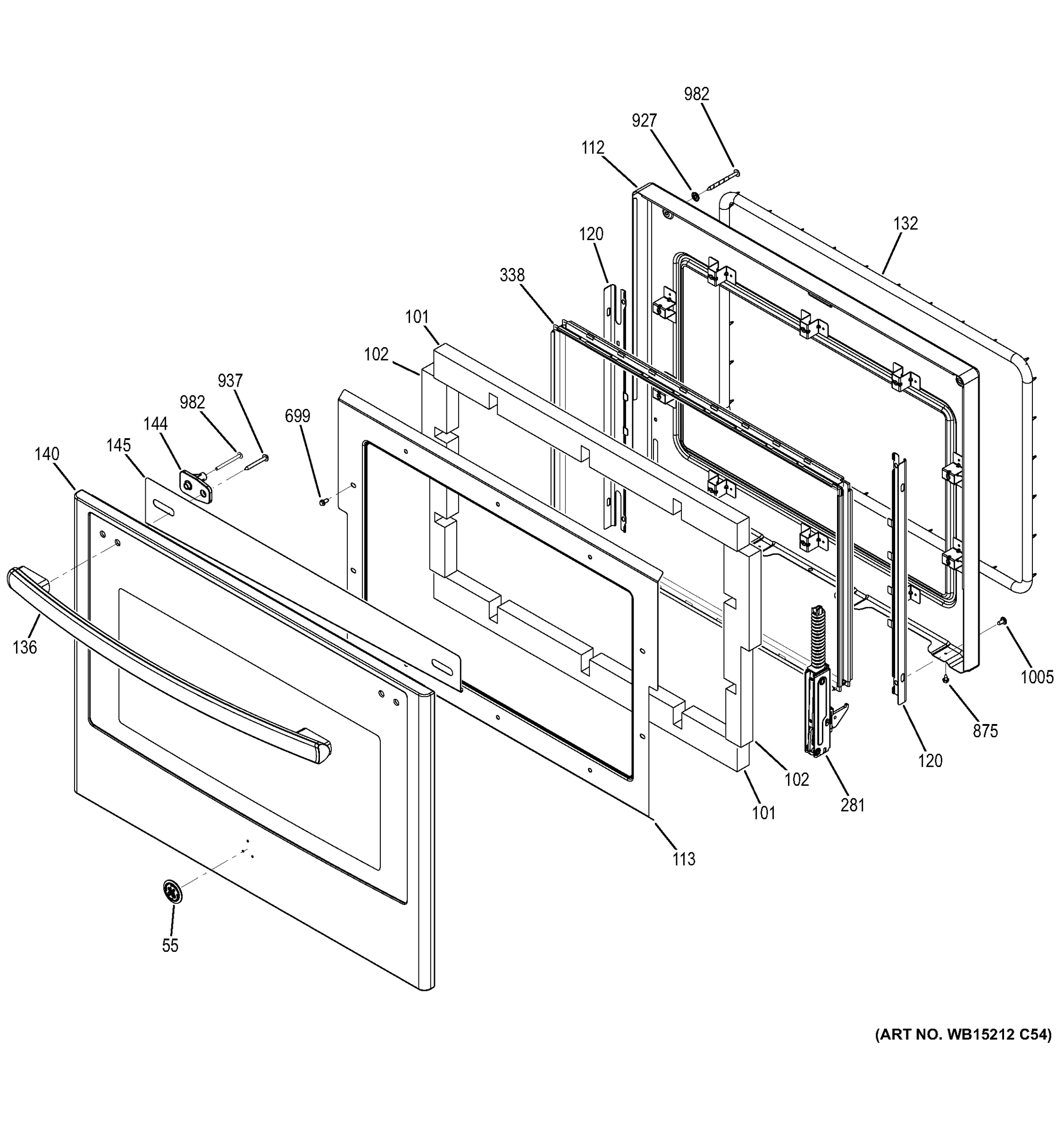

DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE PT9050SF6SS Electric Range
1
CONTROL PANEL ASM (SS) GEN WB56X25769 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
223
INSULATION CONVECT FAN GEN WB35T10259 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21187 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27480 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
512
PLATE - TOP OVEN GEN WB37T10024 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10023 Contact Us For Availability
516
DUCT CONVECTION FAN GEN WB37T10022 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10578 Contact Us For Availability
606
HARNESS WIRE LATCH COM GEN WB18X23726 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
937
SCREW 10-32 HEX 1 3/4 IN GEN WB01T10132 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
982
SCREW 10-32 T20 2 1/2 IN GEN WB01T10131 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
