Model GE PCT7050SF8SS – Common Parts & Diagrams

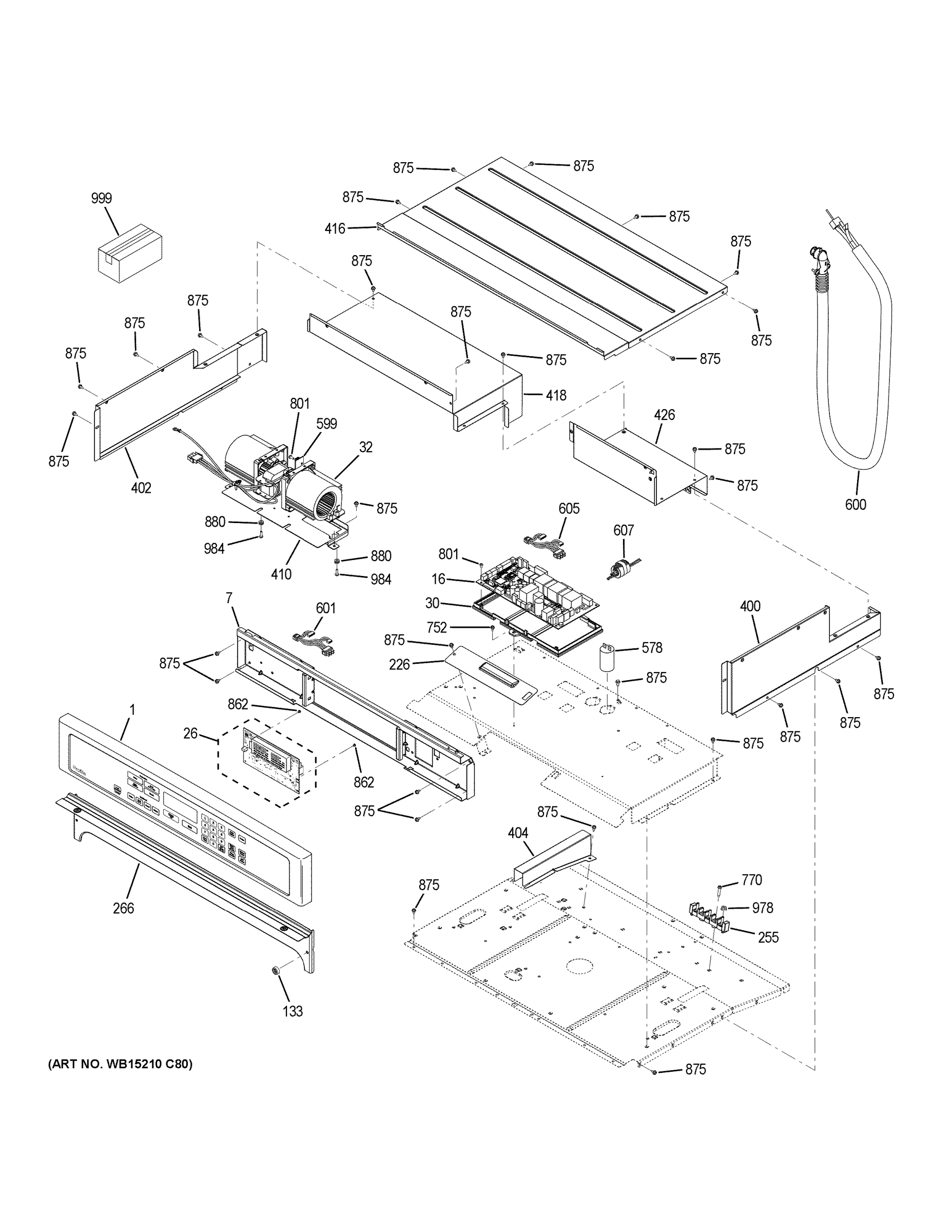

CONTROL PANEL

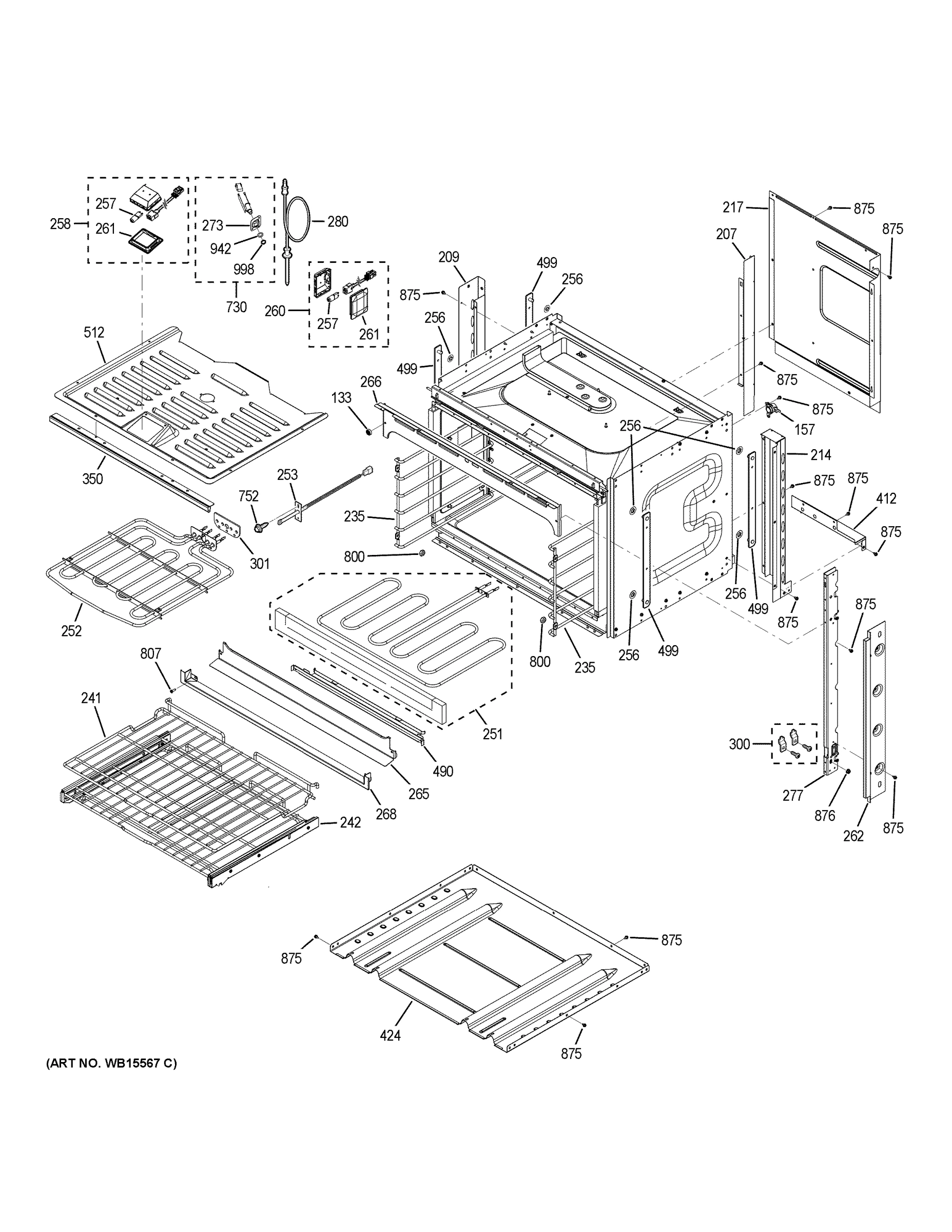

BODY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE PCT7050SF8SS
1
CONTROL PANEL GLASS ASM GEN WB56X25733 Contact Us For Availability
26
CONTROL BOARD AND OVERLAY ASM WHITE LED GEN WB27X29602 Contact Us For Availability
32
COOLING FAN GEN WB26X24020 Contact Us For Availability
43
BLADE FAN CONVECTION GEN WB02T10598 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X27281 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
145
DEFLECTOR OVEN DOOR GEN WB34T10142 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
235
GUIDE OVN RACK LT GEN WB48X21766 Contact Us For Availability
241
RACK FLAT GEN WB48X23857 Contact Us For Availability
242
RACK OVN SLIDE ASM GEN WB48X21764 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
262
TRIM VERT SIDE (BK) GEN WB07T10732 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21187 Contact Us For Availability
266
TRIM VENT UPR (BK) GEN WB07T10797 Contact Us For Availability
268
TRIM BOTTOM CABINET GEN WB07T10786 Contact Us For Availability
300
HINGE BRACKET ASM KIT GEN WB49X21652 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27480 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
416
COVER HOUSING FRT GEN WB34X28390 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
512
PLATE - TOP OVEN GEN WB37T10024 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10023 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
800
RACK GUIDE NUT GEN WB01X21270 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
937
SCREW 10-32 HEX 1 3/4 IN GEN WB01T10132 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
982
SCREW 10-32 T20 2 1/2 IN GEN WB01T10131 Contact Us For Availability
999
LUBRICANT CLEANER GEN WB02T10303 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
