Model Alliance NG6339-3000 Dryer – Common Parts & Diagrams

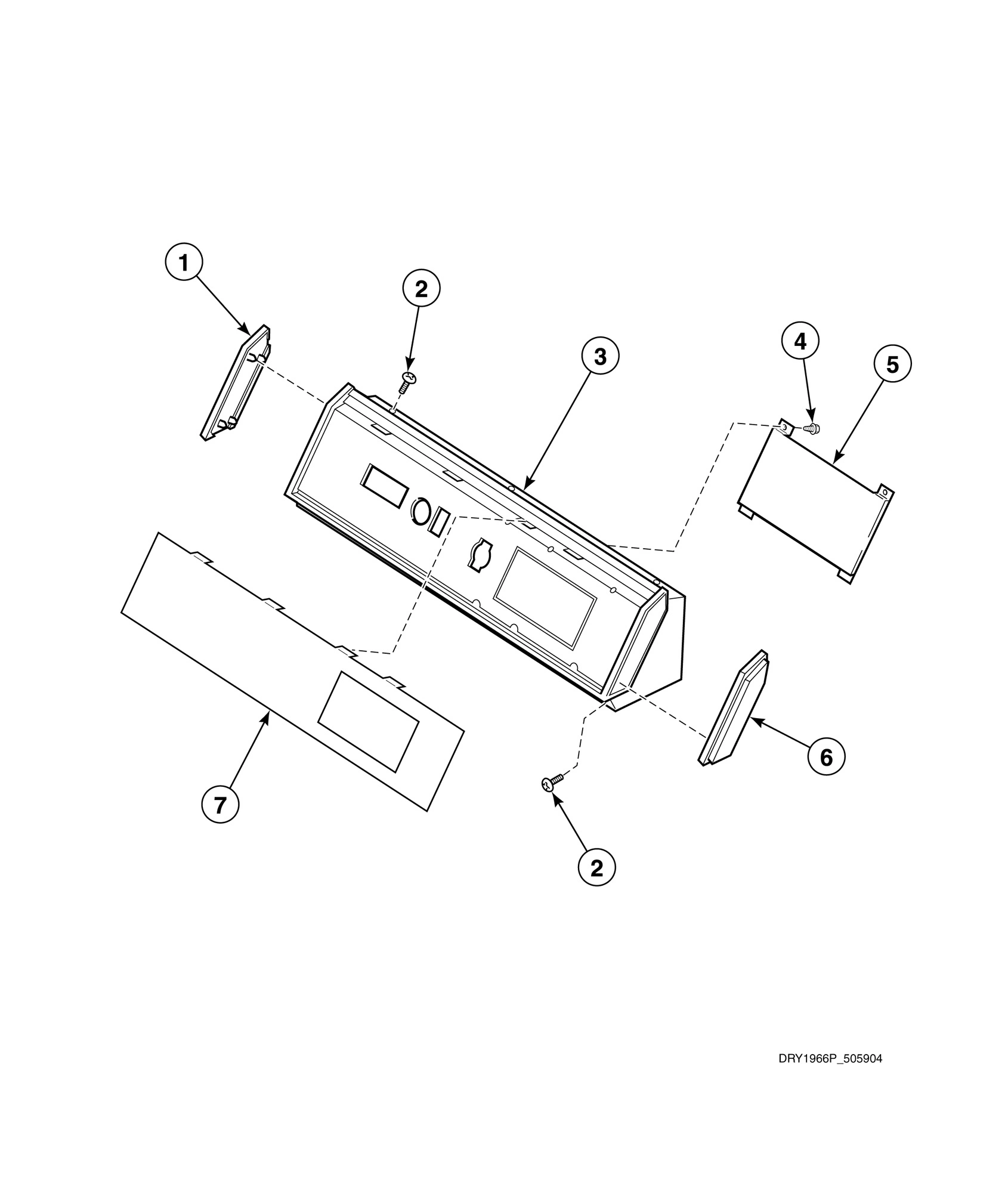

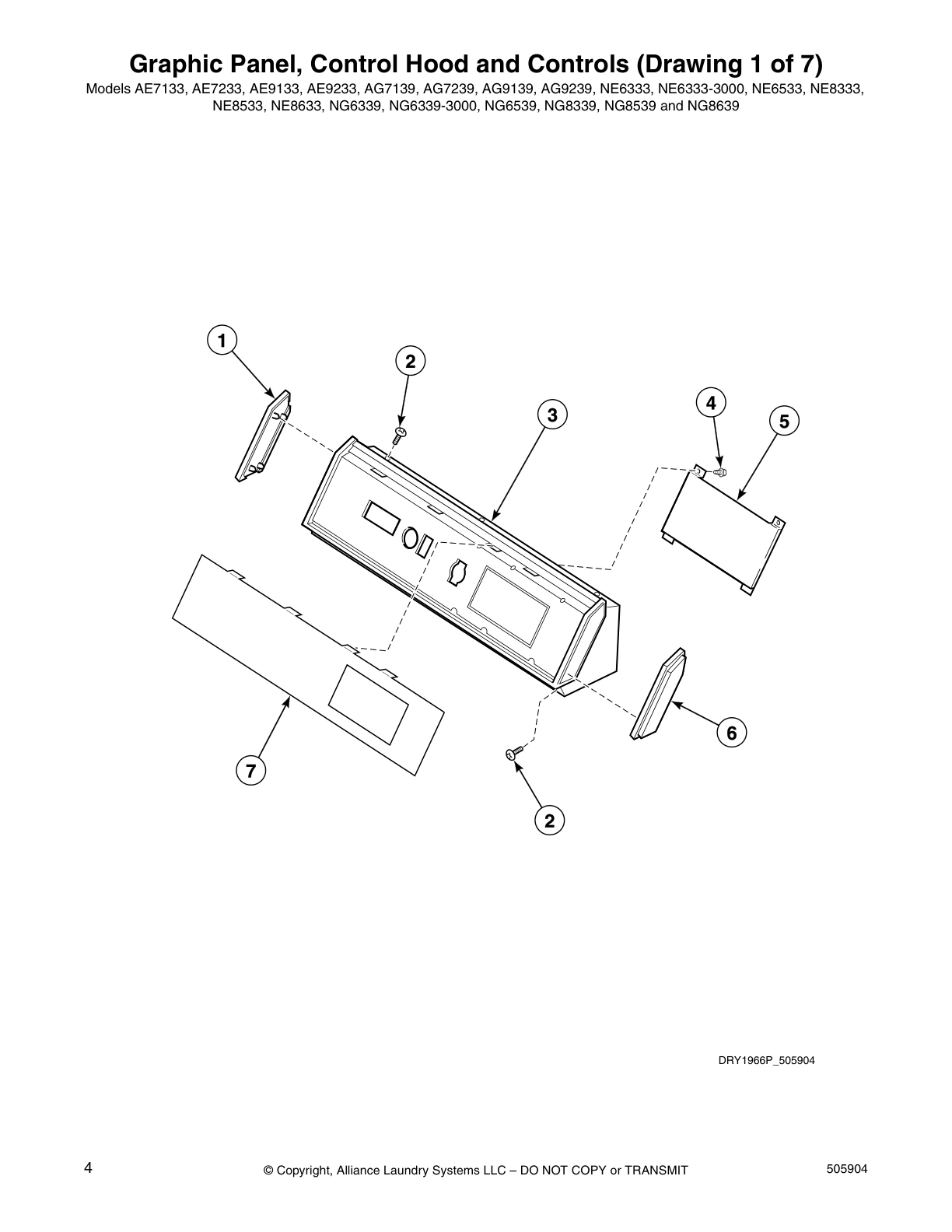

Graphic Panel, Control Hood and Controls (Drawing 1 of 7)

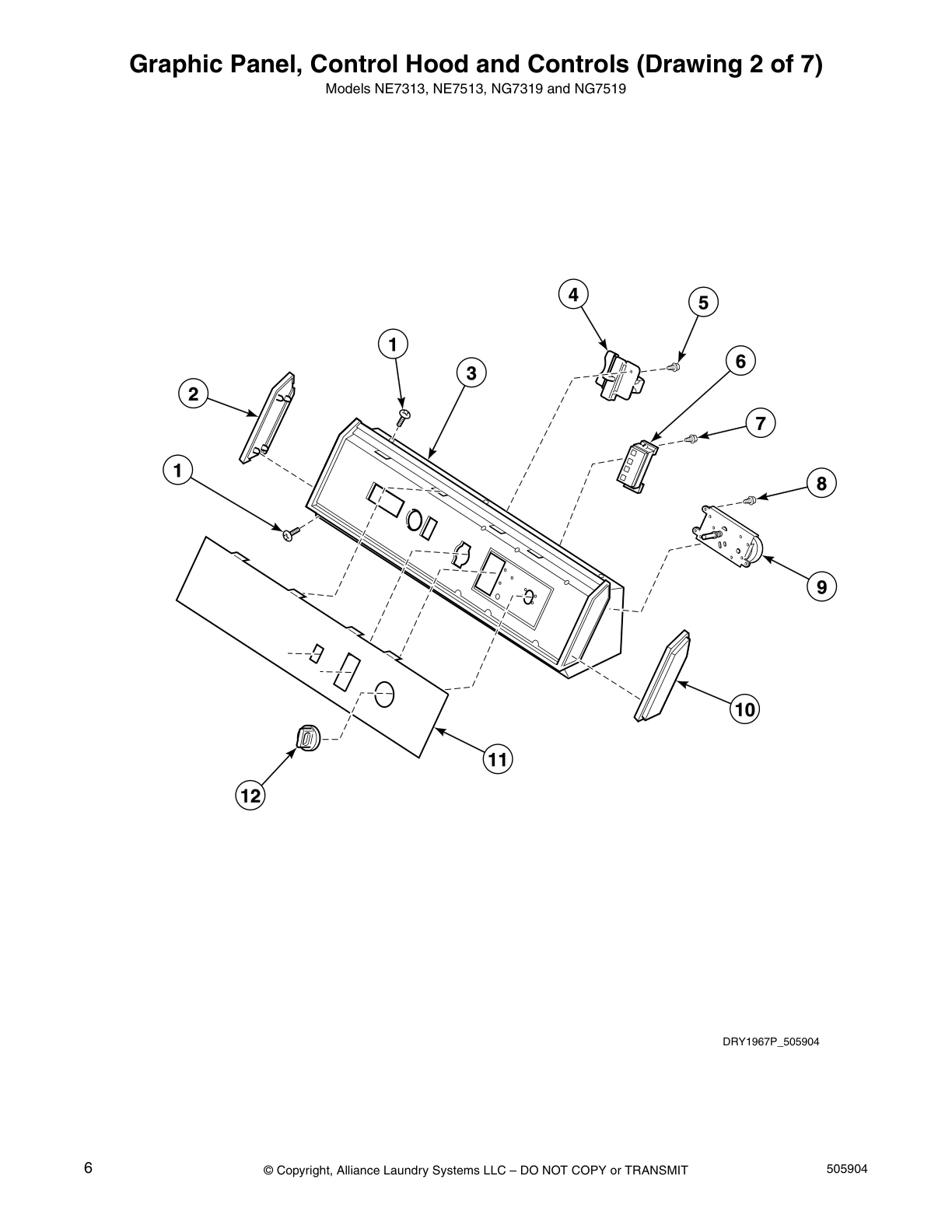

Graphic Panel, Control Hood and Controls (Drawing 2 of 7)

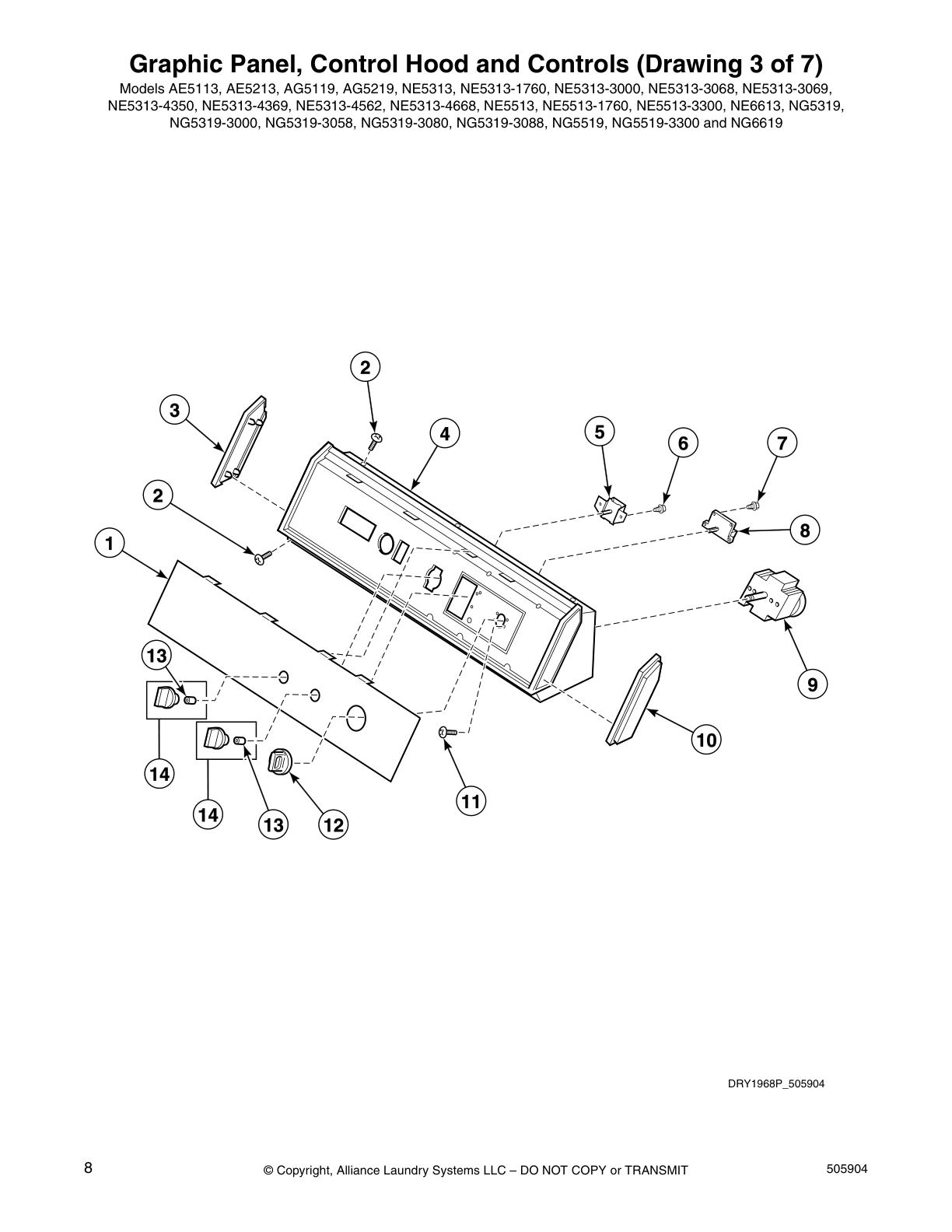

Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

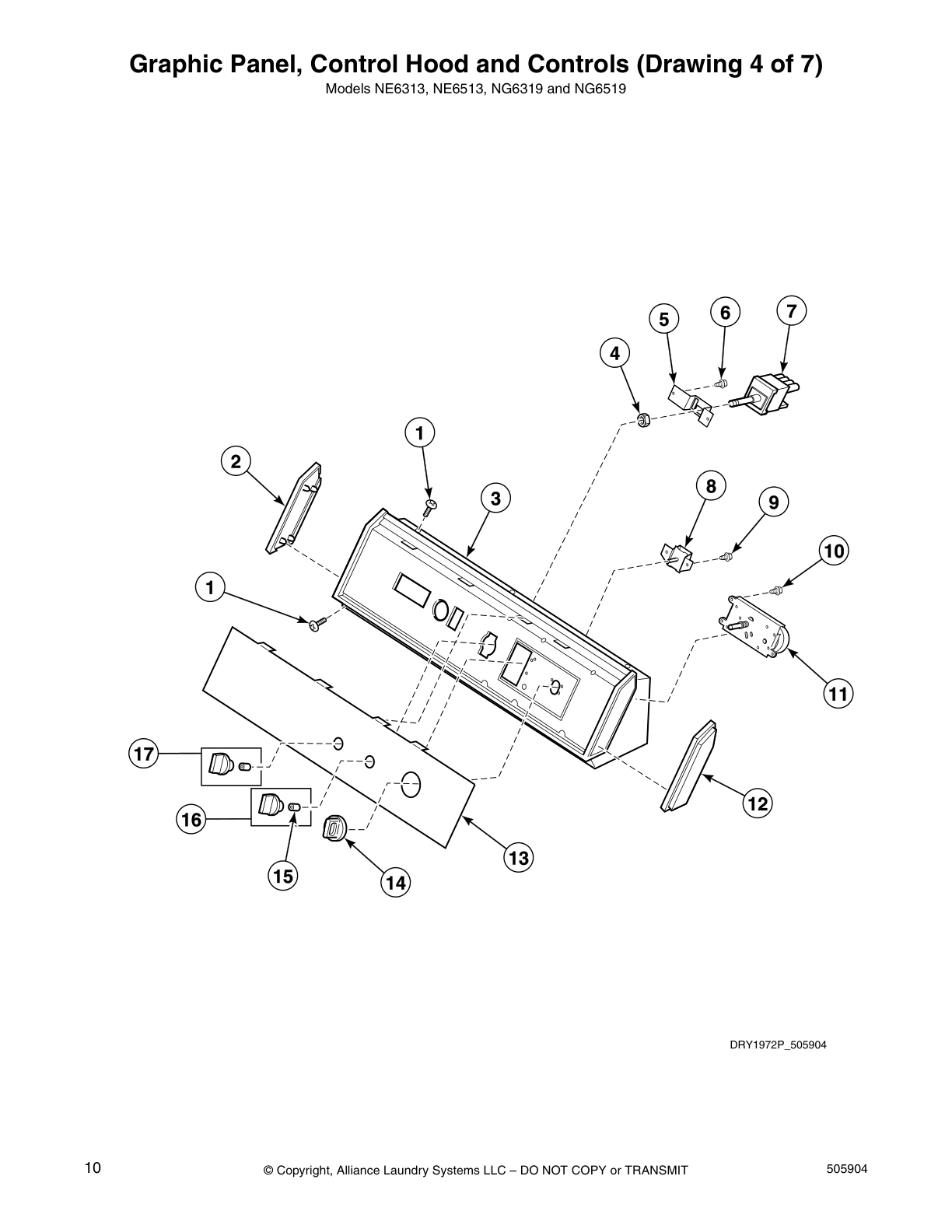

Graphic Panel, Control Hood and Controls (Drawing 4 of 7)

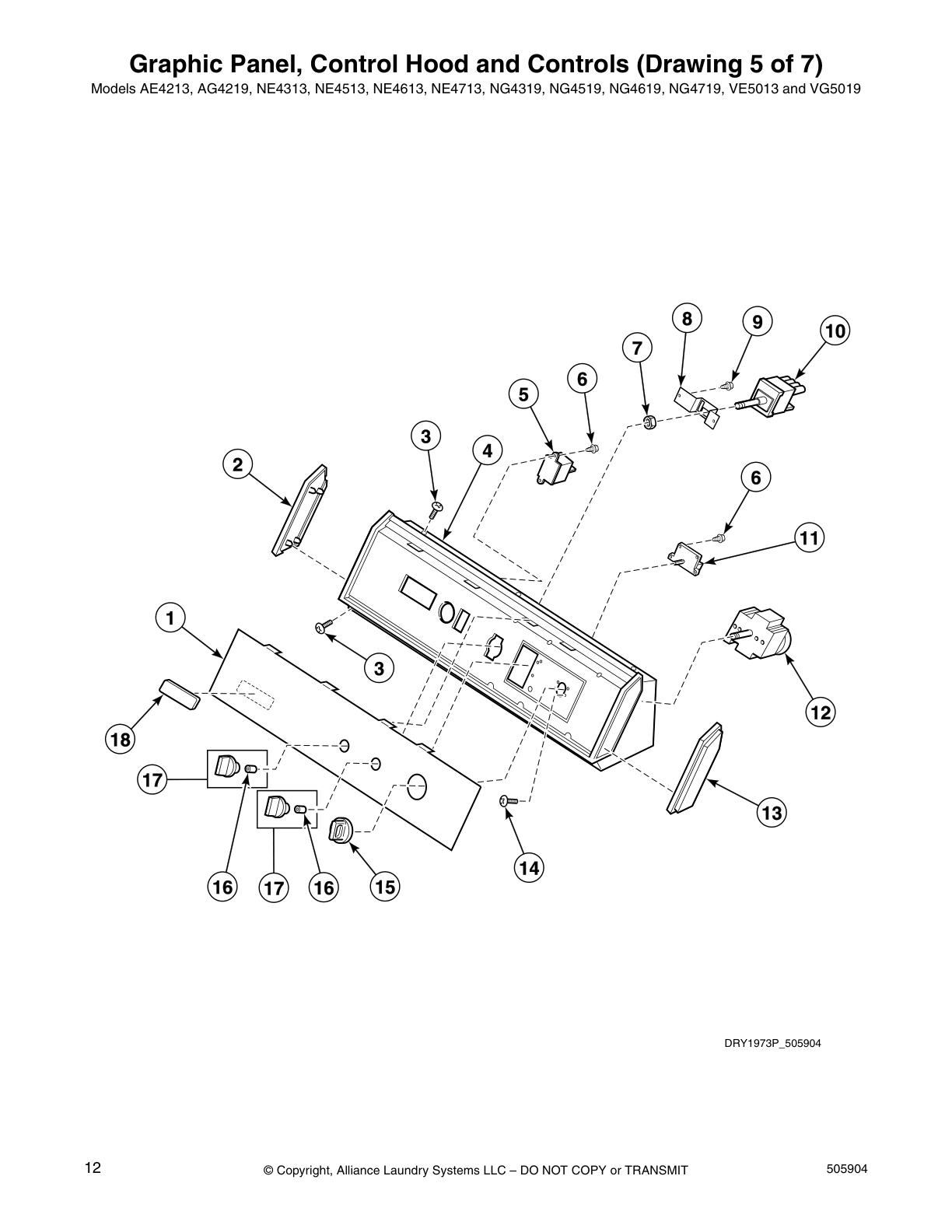

Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

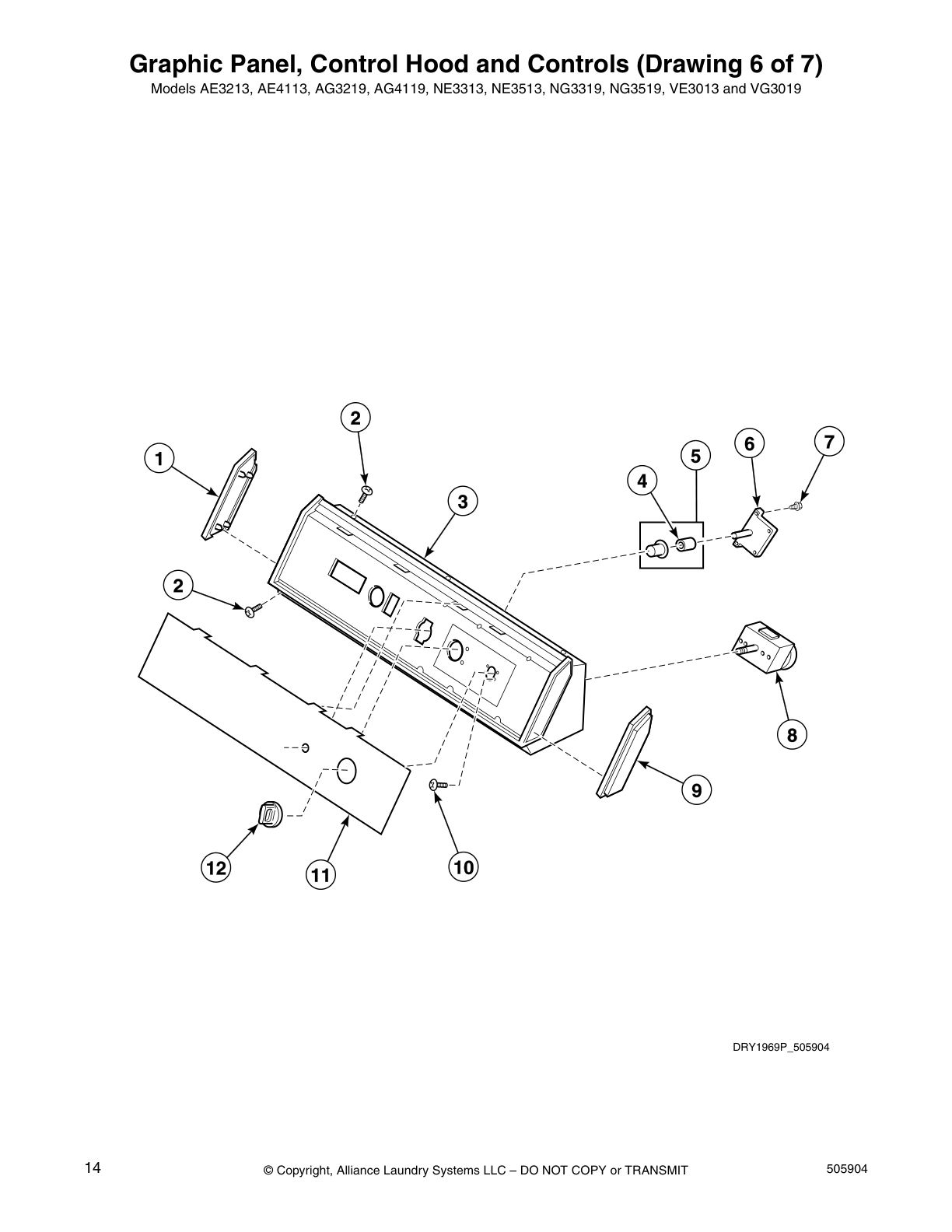

Graphic Panel, Control Hood and Controls (Drawing 6 of 7)

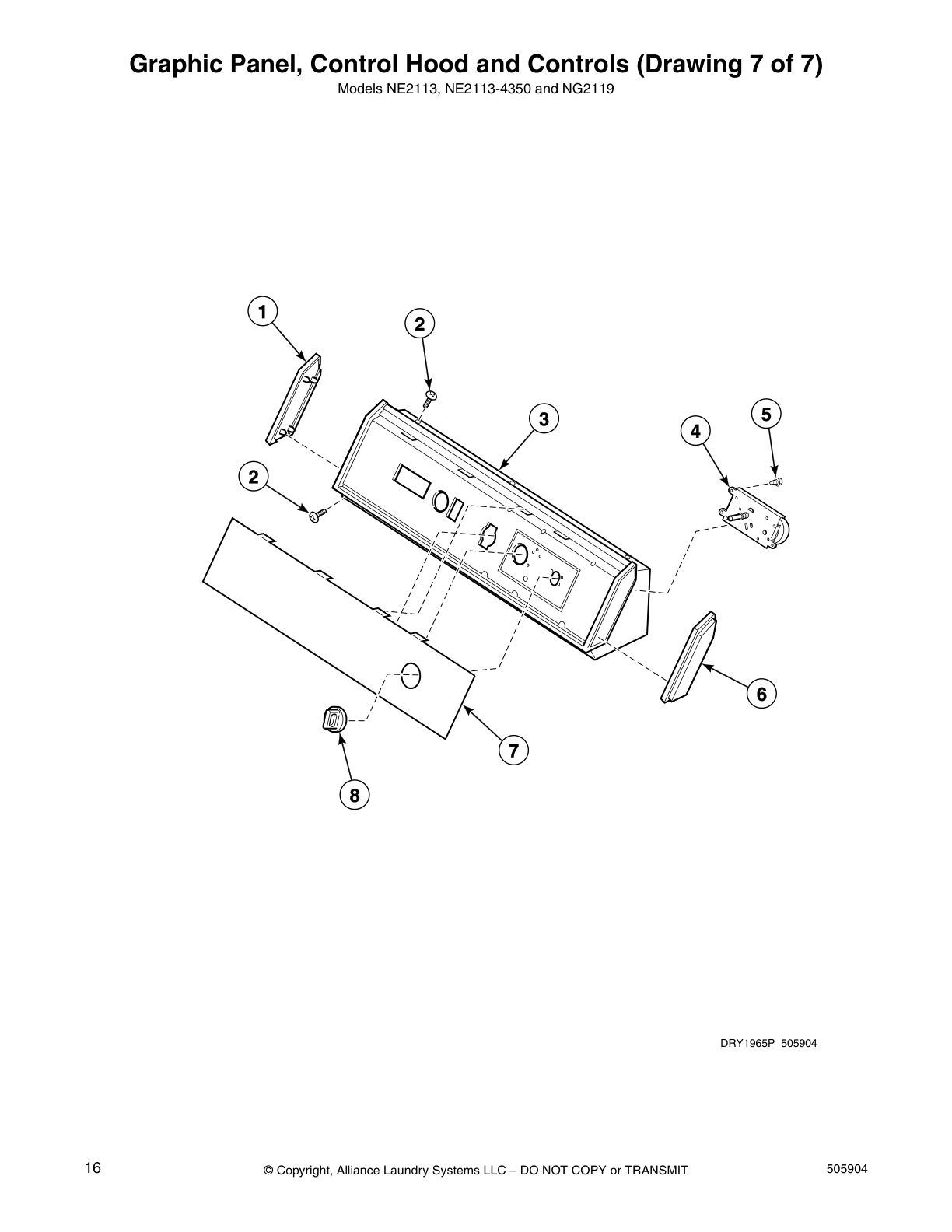

Graphic Panel, Control Hood and Controls (Drawing 7 of 7)

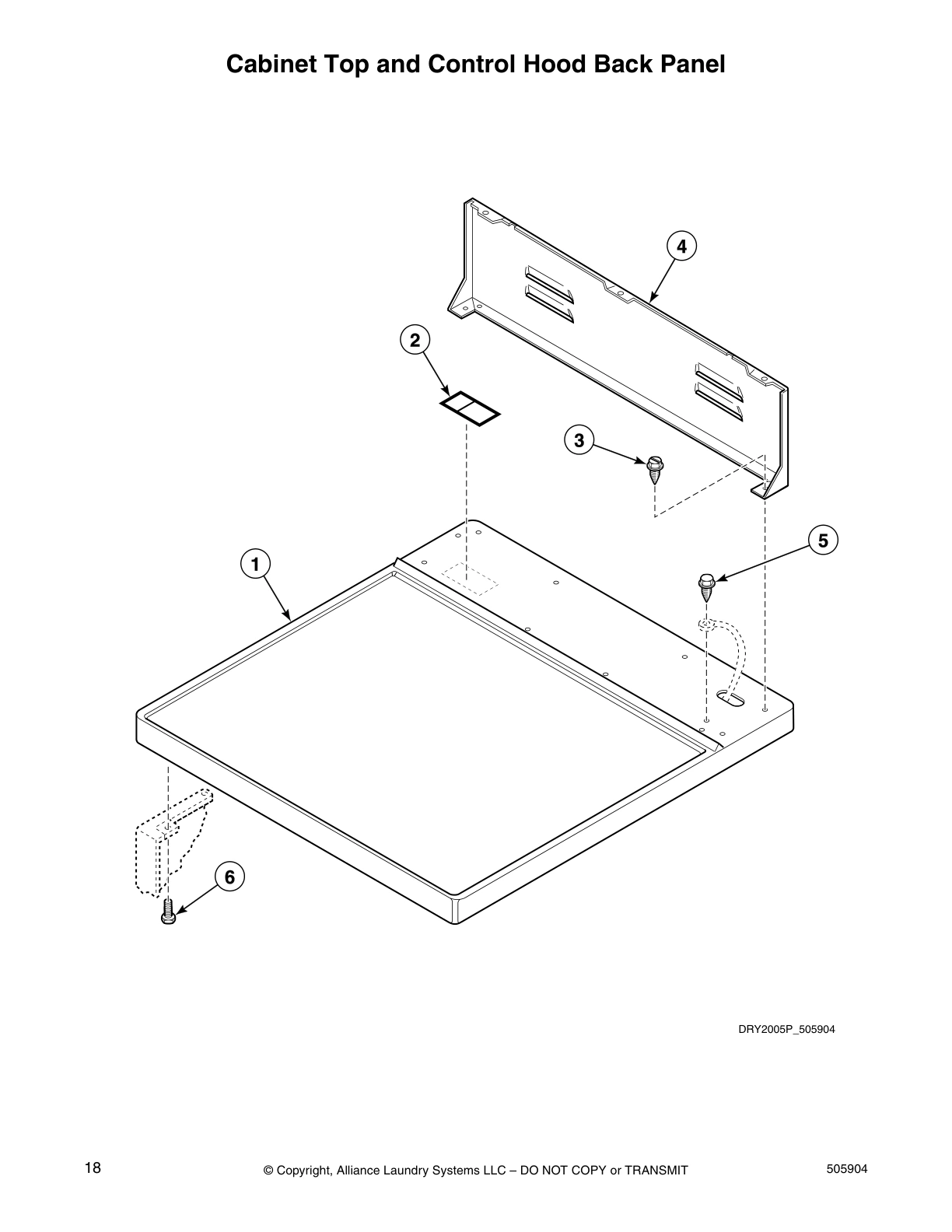

Cabinet Top and Control Hood Back Panel

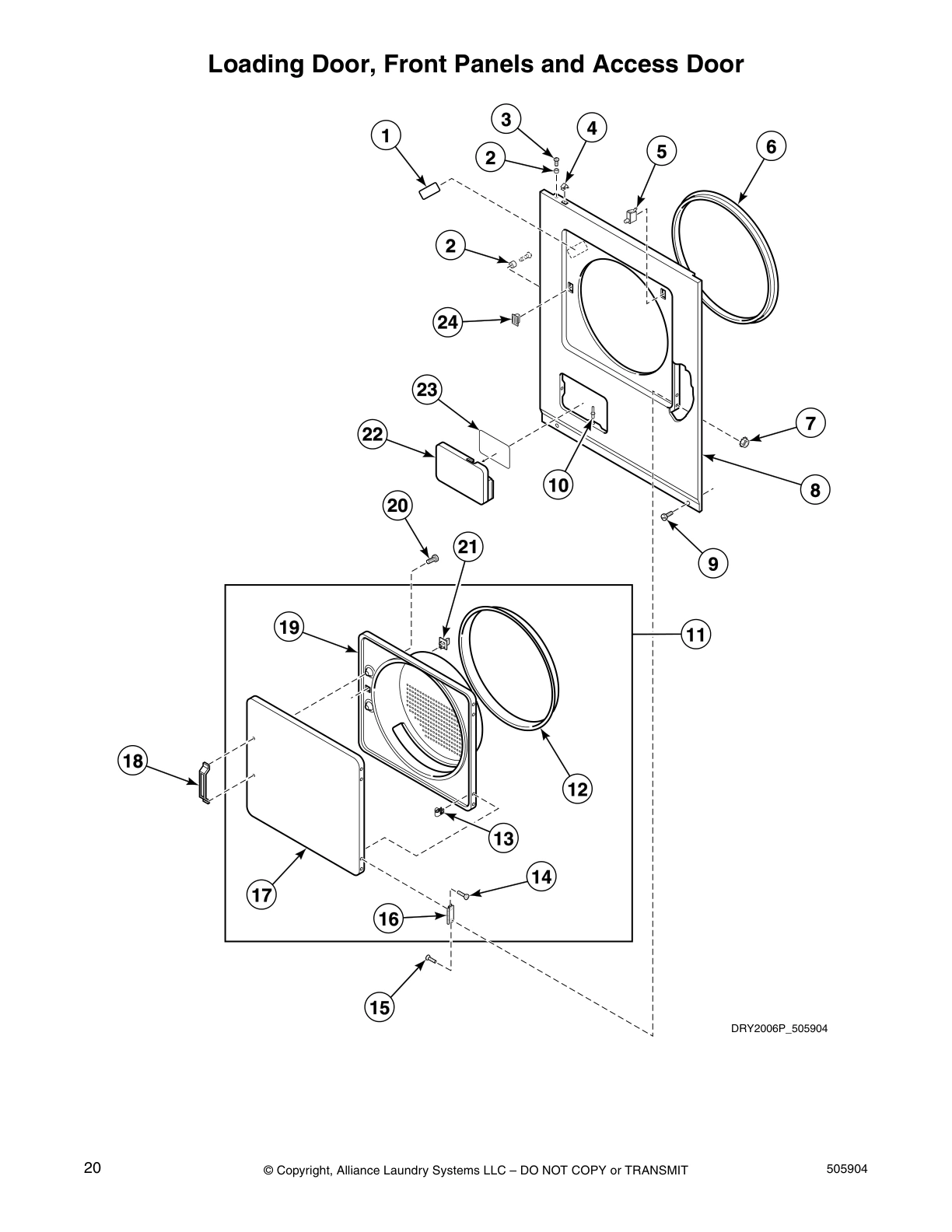

Loading Door, Front Panels and Access Door

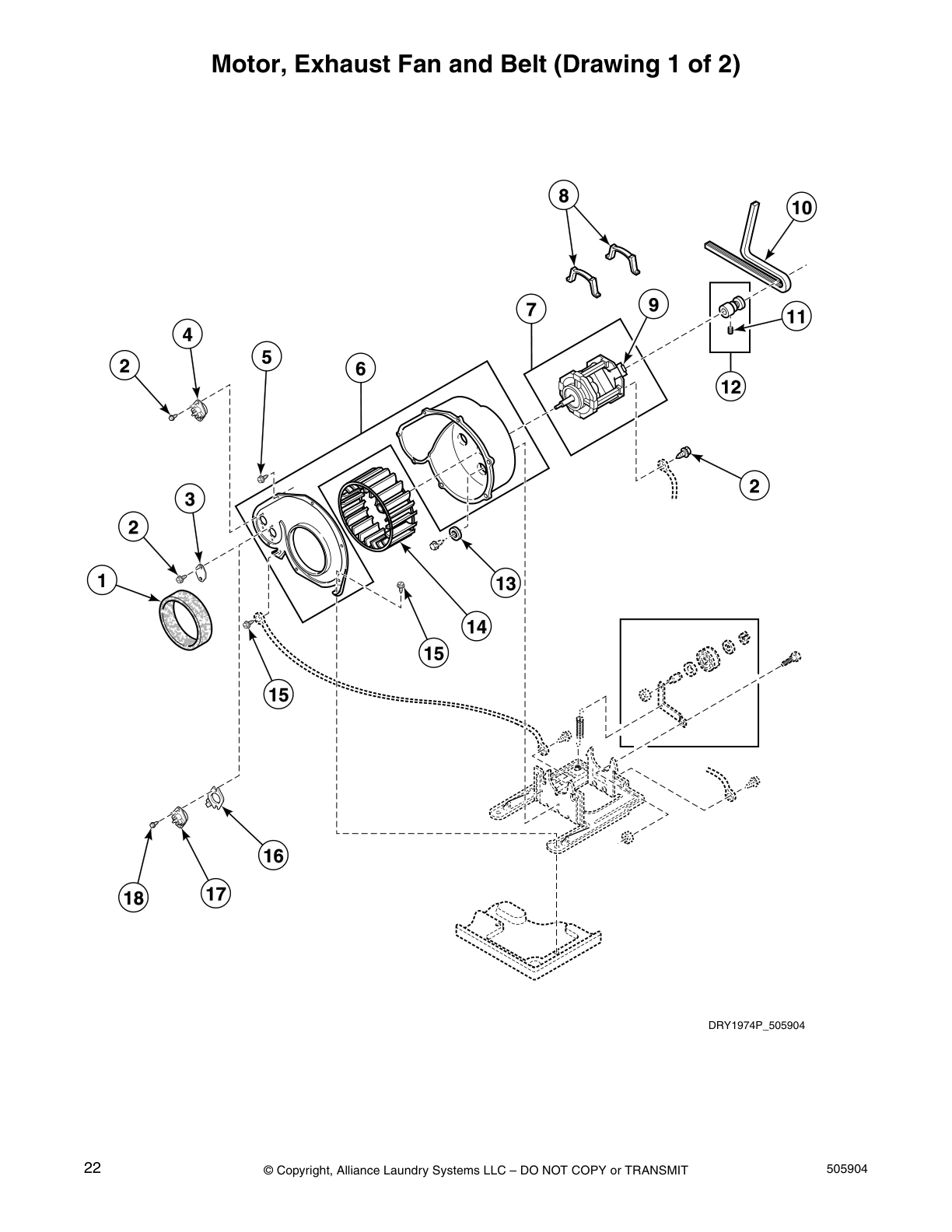

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

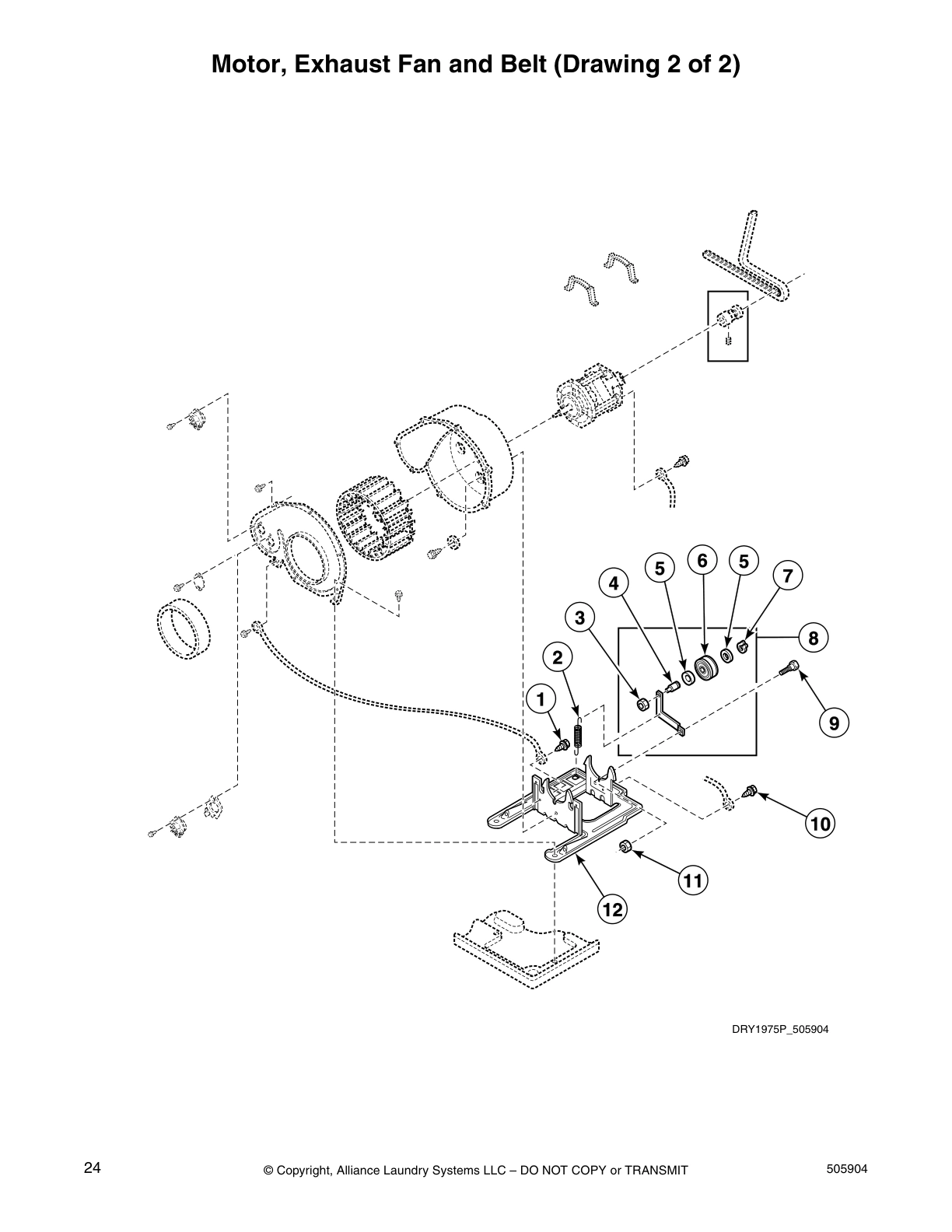

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

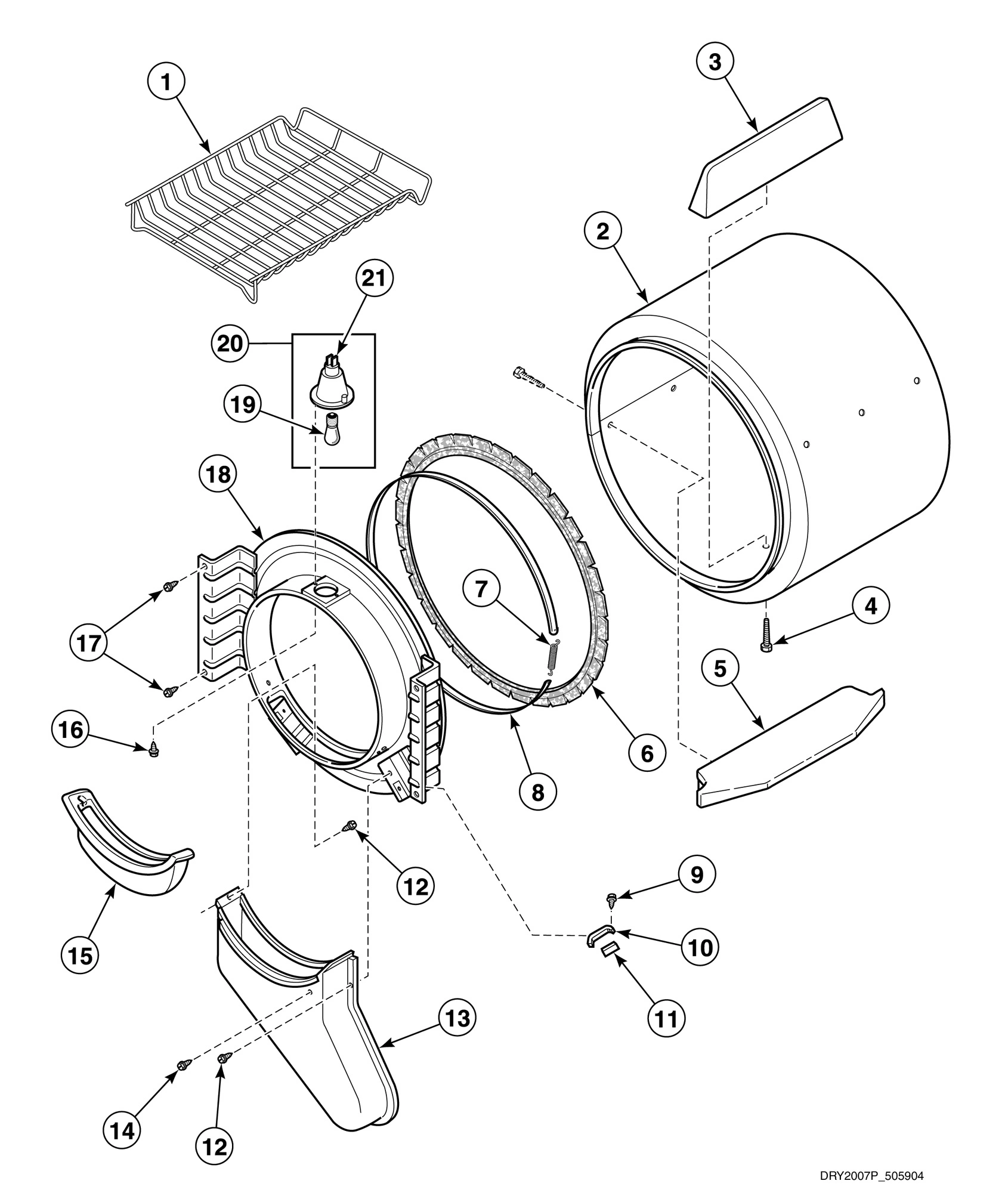

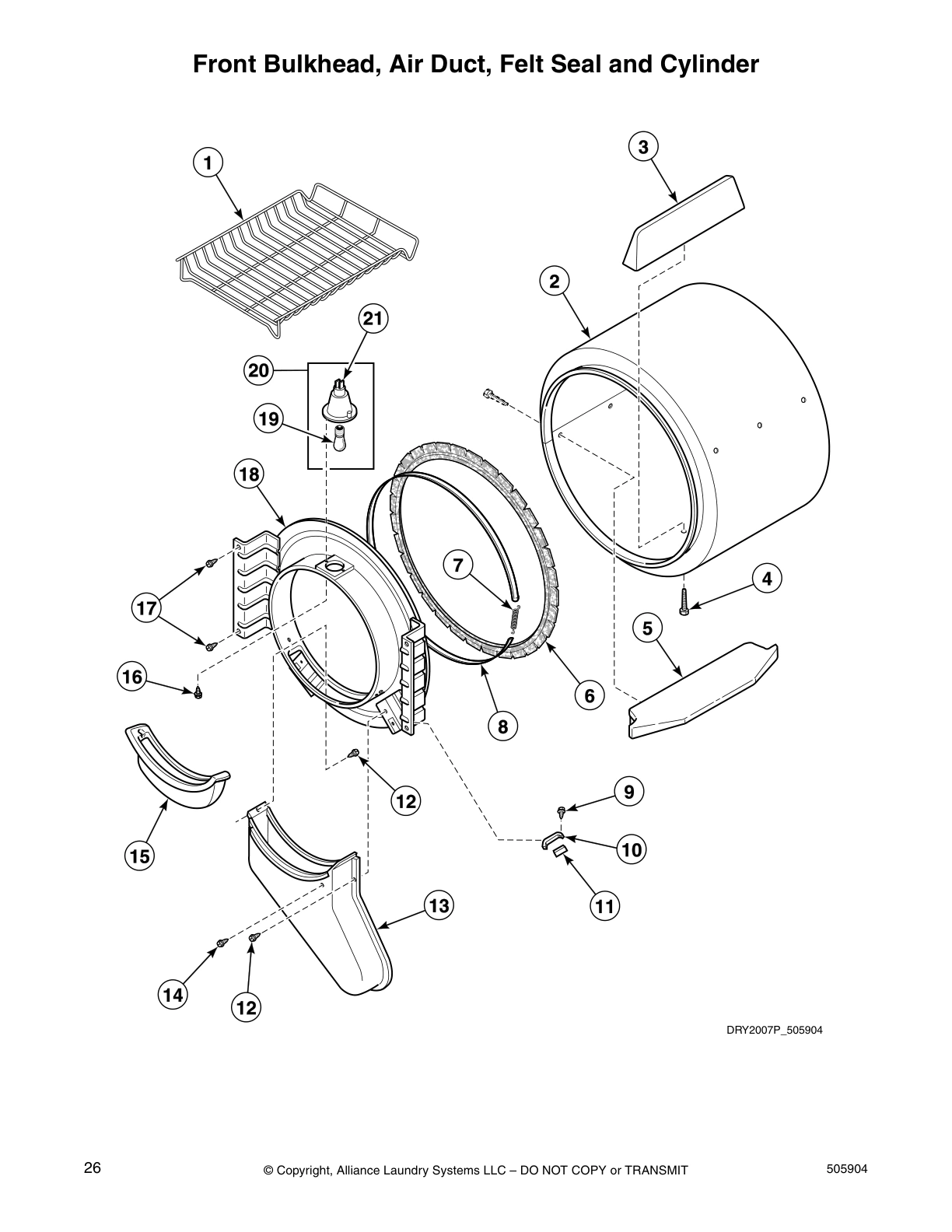

Front Bulkhead, Air Duct, Felt Seal and Cylinder

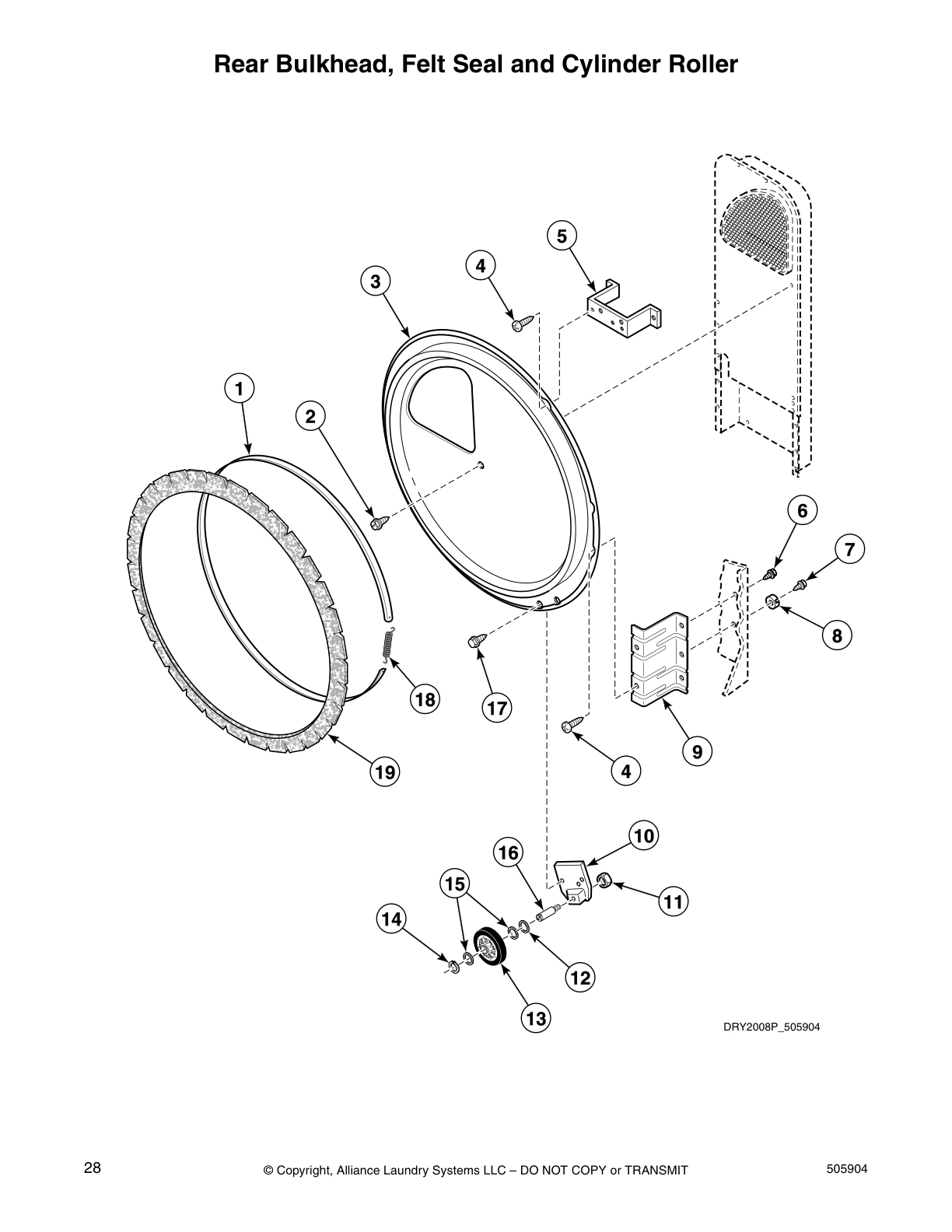

Rear Bulkhead, Felt Seal and Cylinder Roller

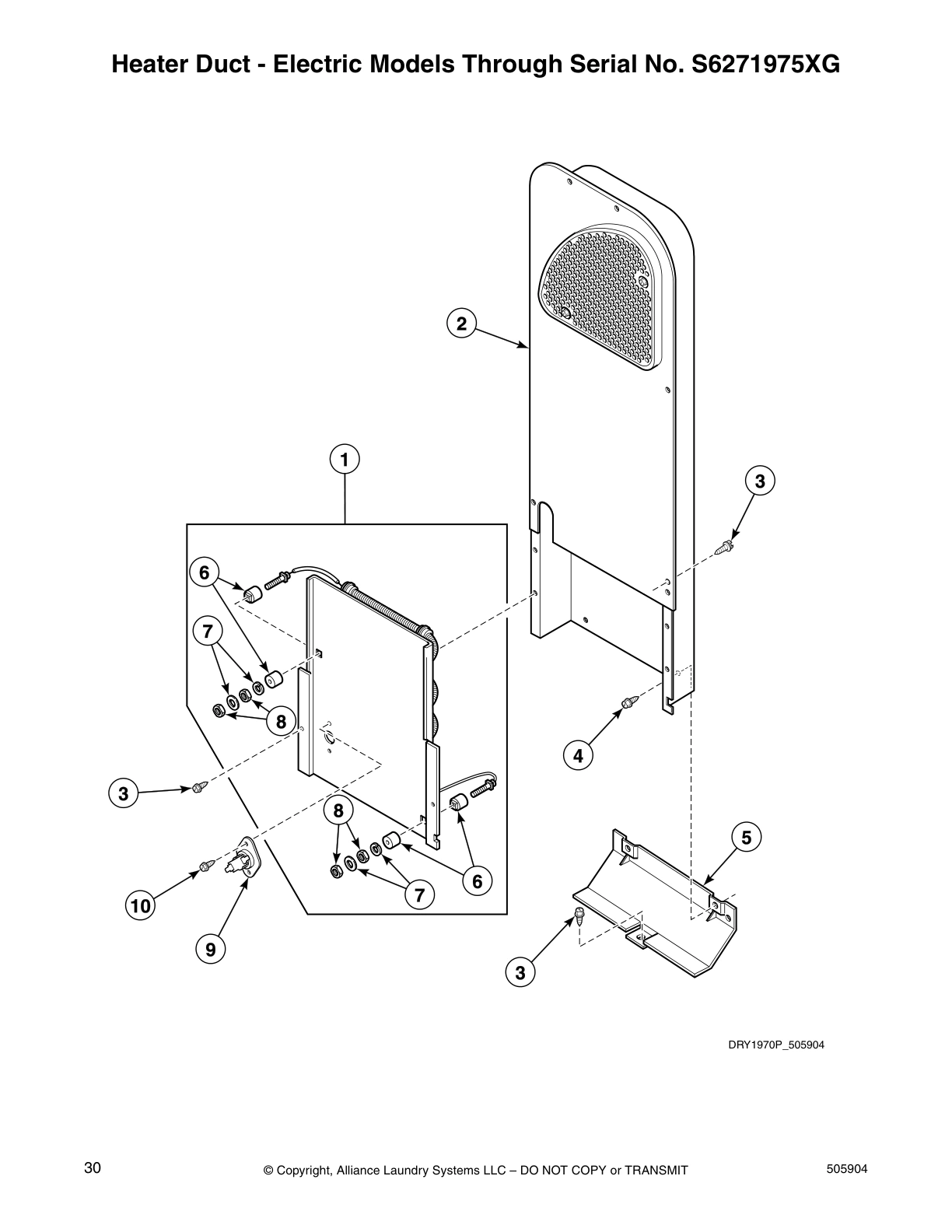

Heater Duct - Electric Models Through Serial No. S6271975XG

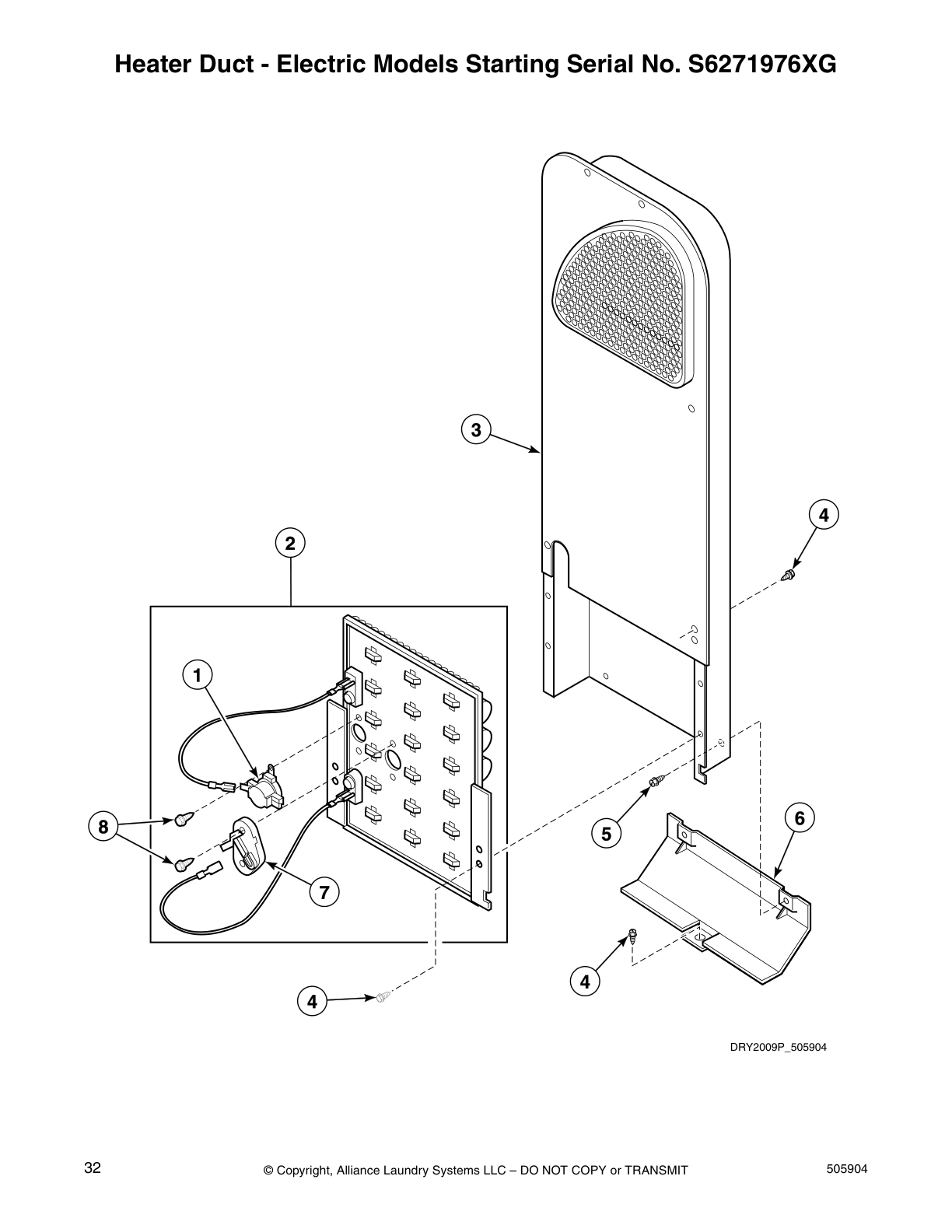

Heater Duct - Electric Models Starting Serial No. S6271976XG

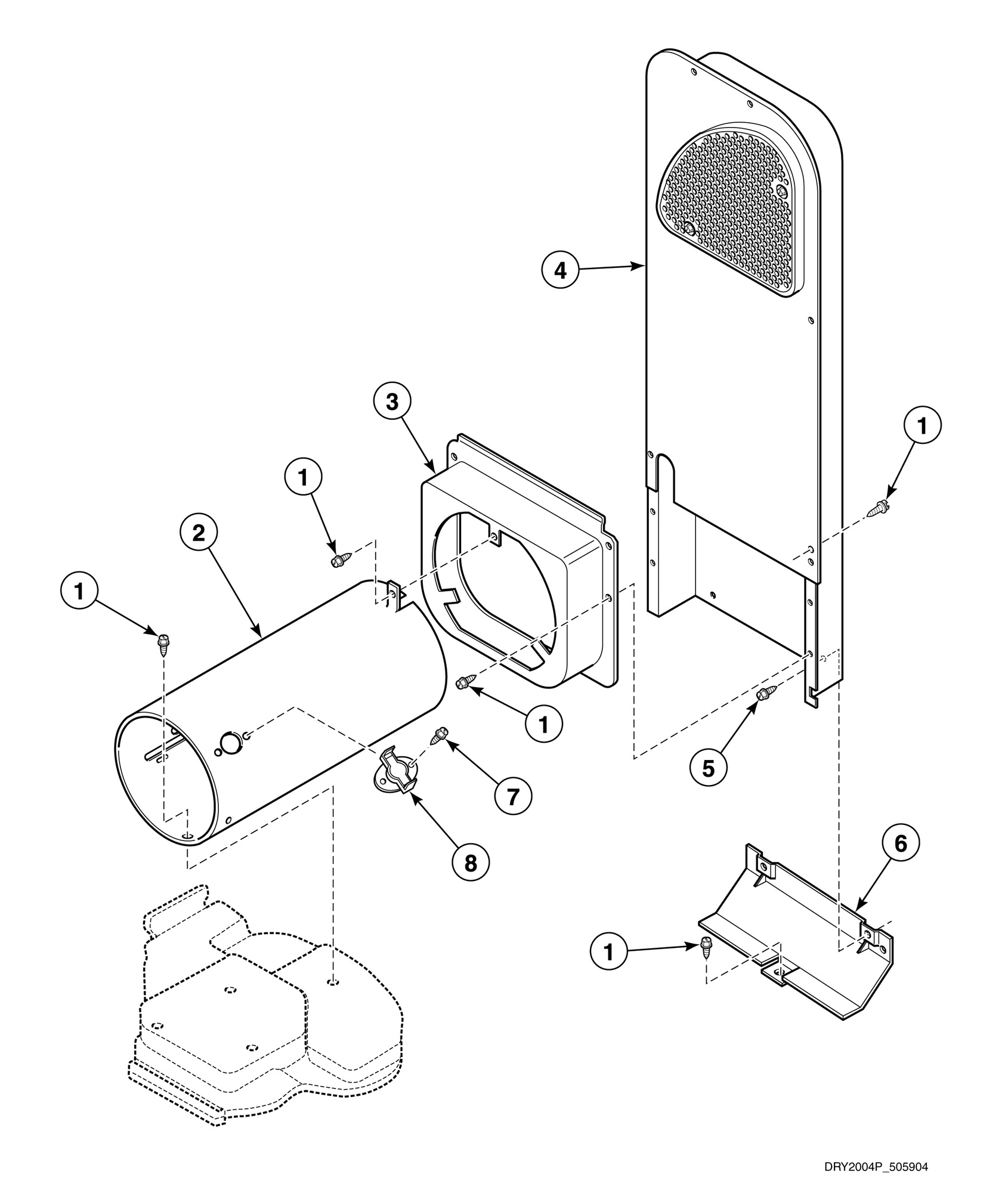

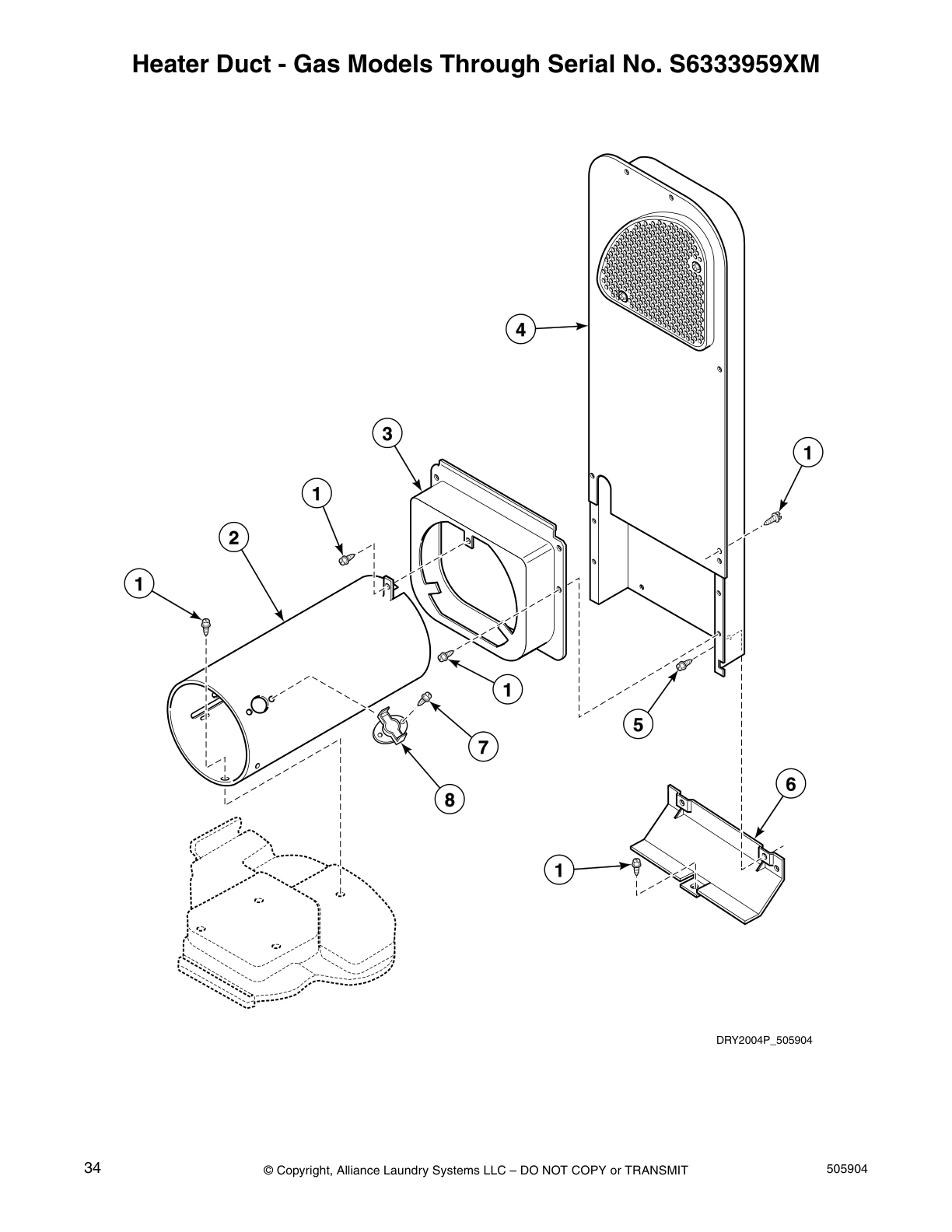

Heater Duct - Gas Models Through Serial No. S6333959XM

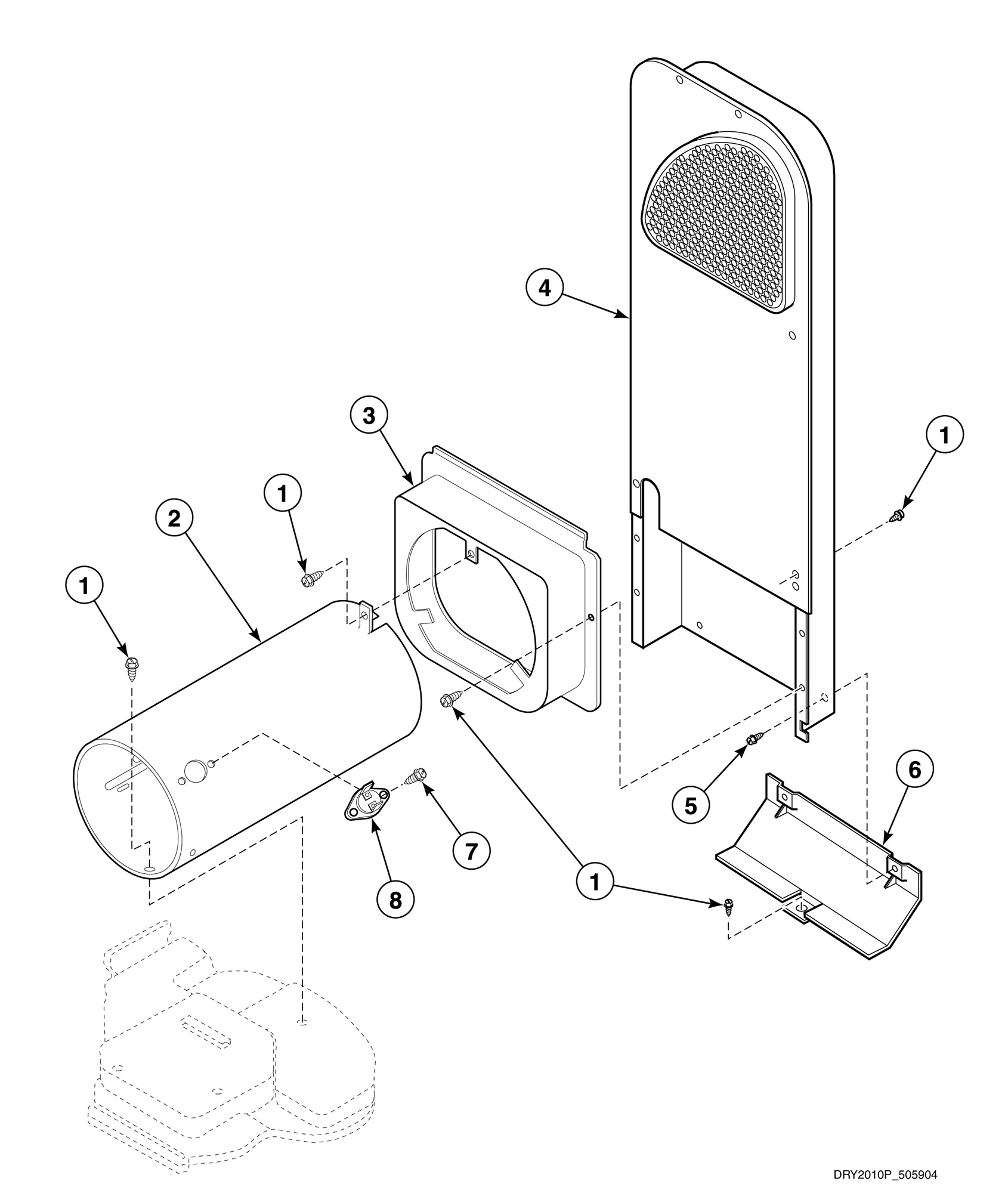

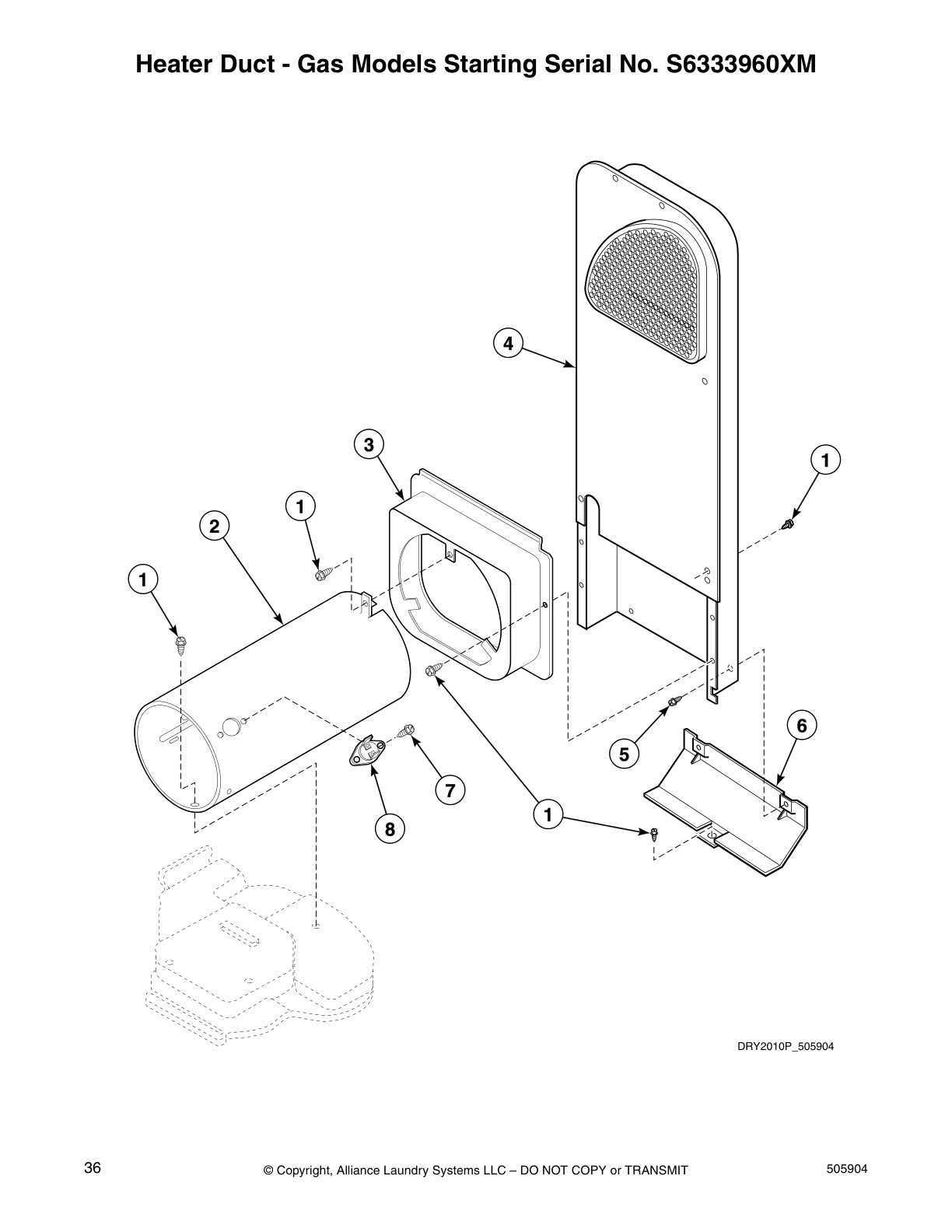

Heater Duct - Gas Models Starting Serial No. S6333960XM

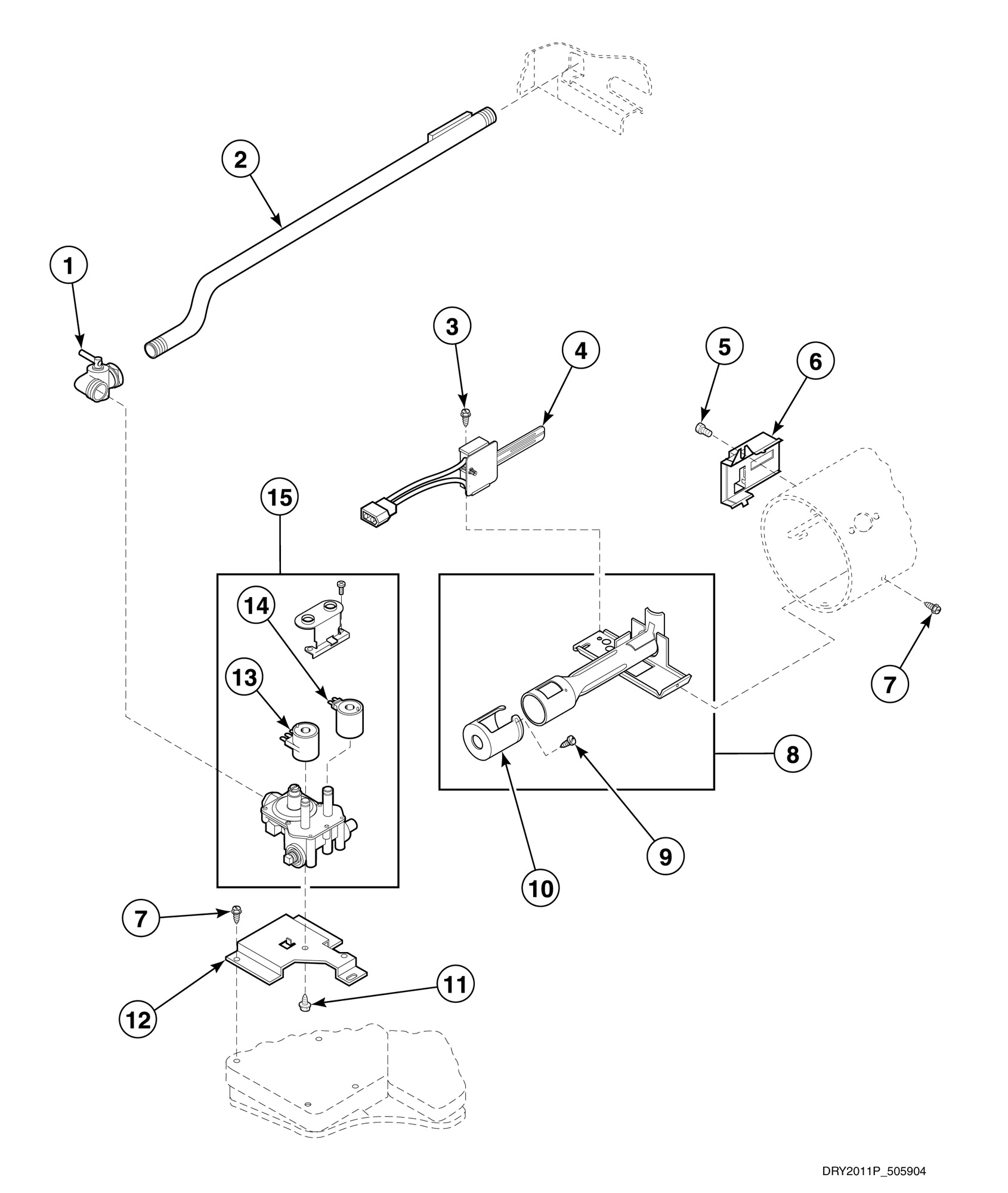

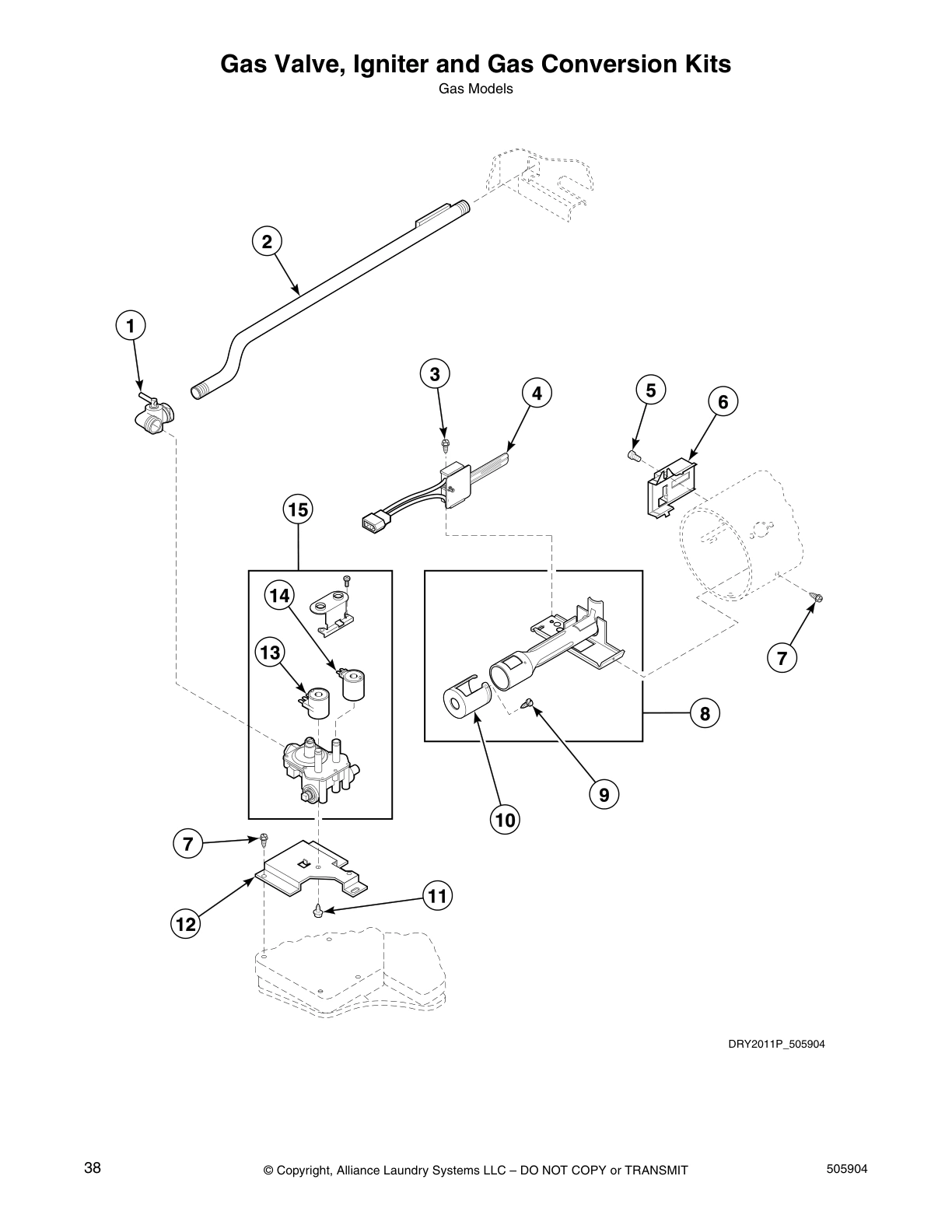

Gas Valve, Igniter and Gas Conversion Kits

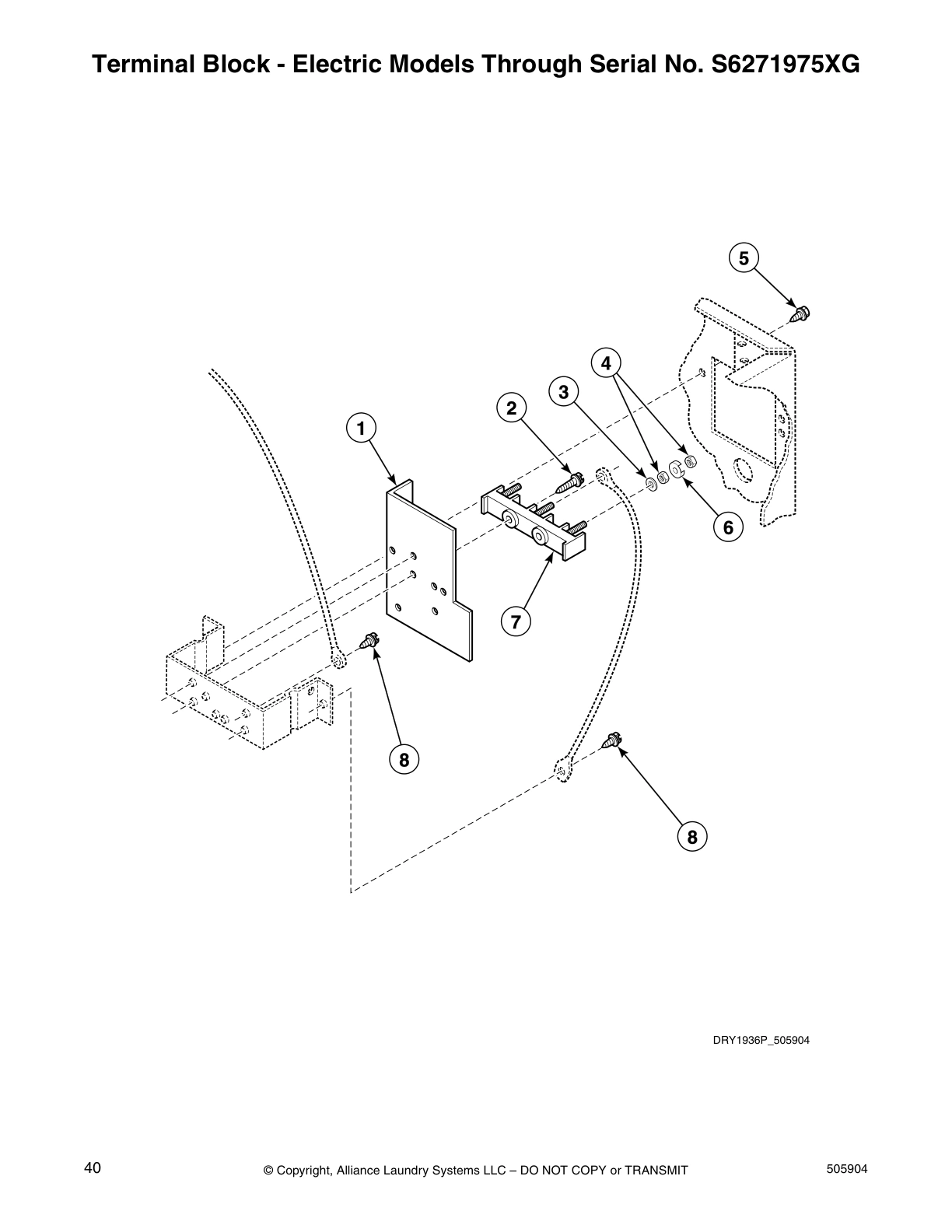

Terminal Block - Electric Models Through Serial No. S6271975XG

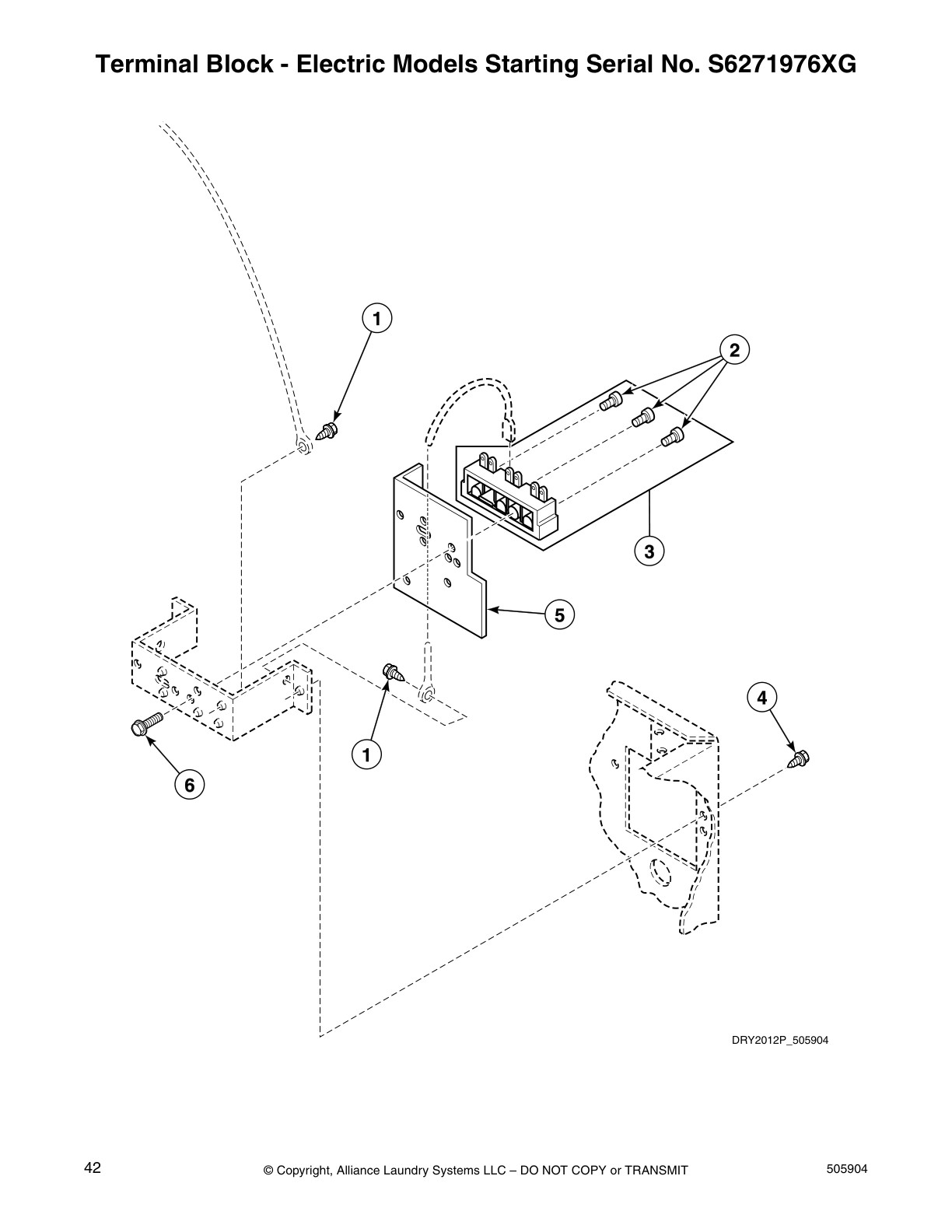

Terminal Block - Electric Models Starting Serial No. S6271976XG

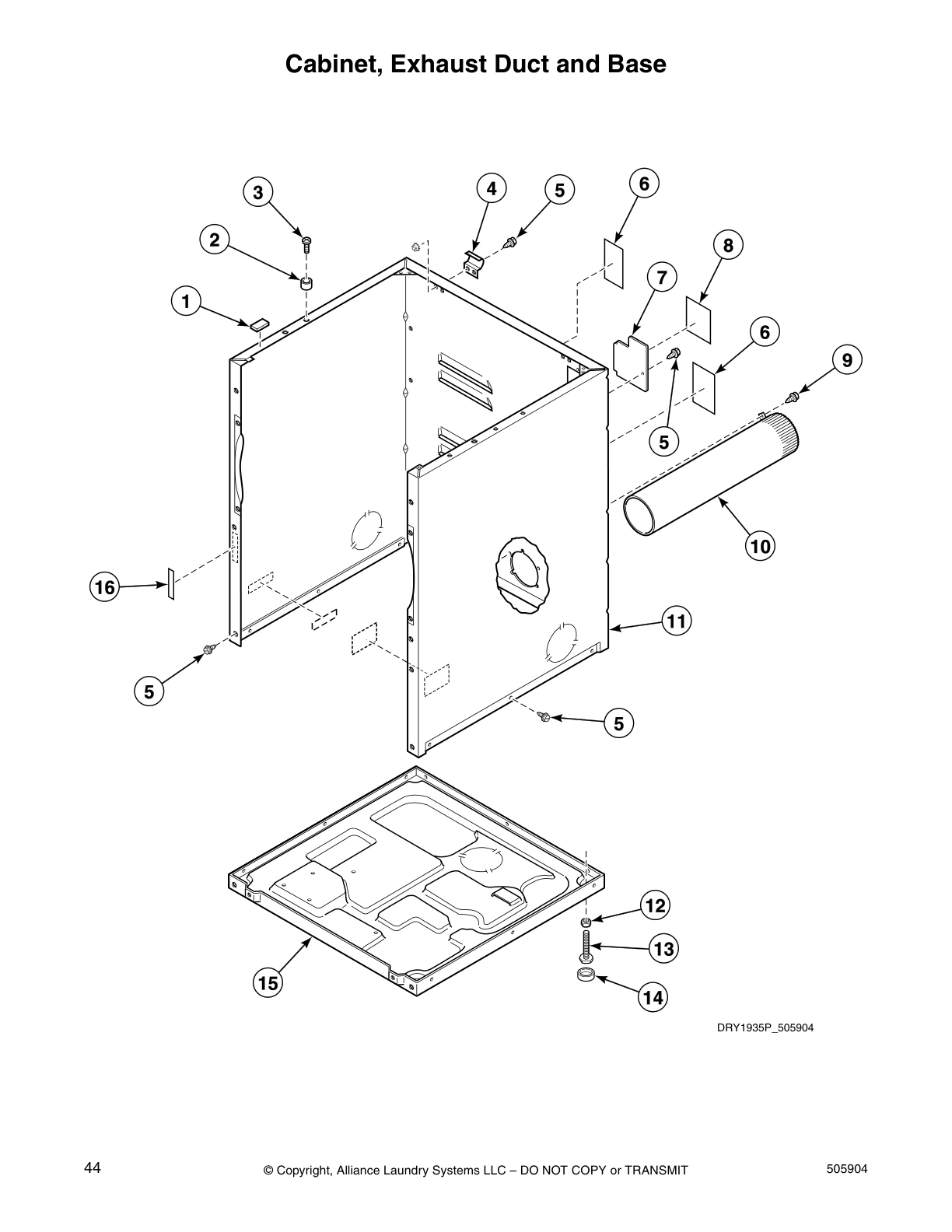

Cabinet, Exhaust Duct and Base

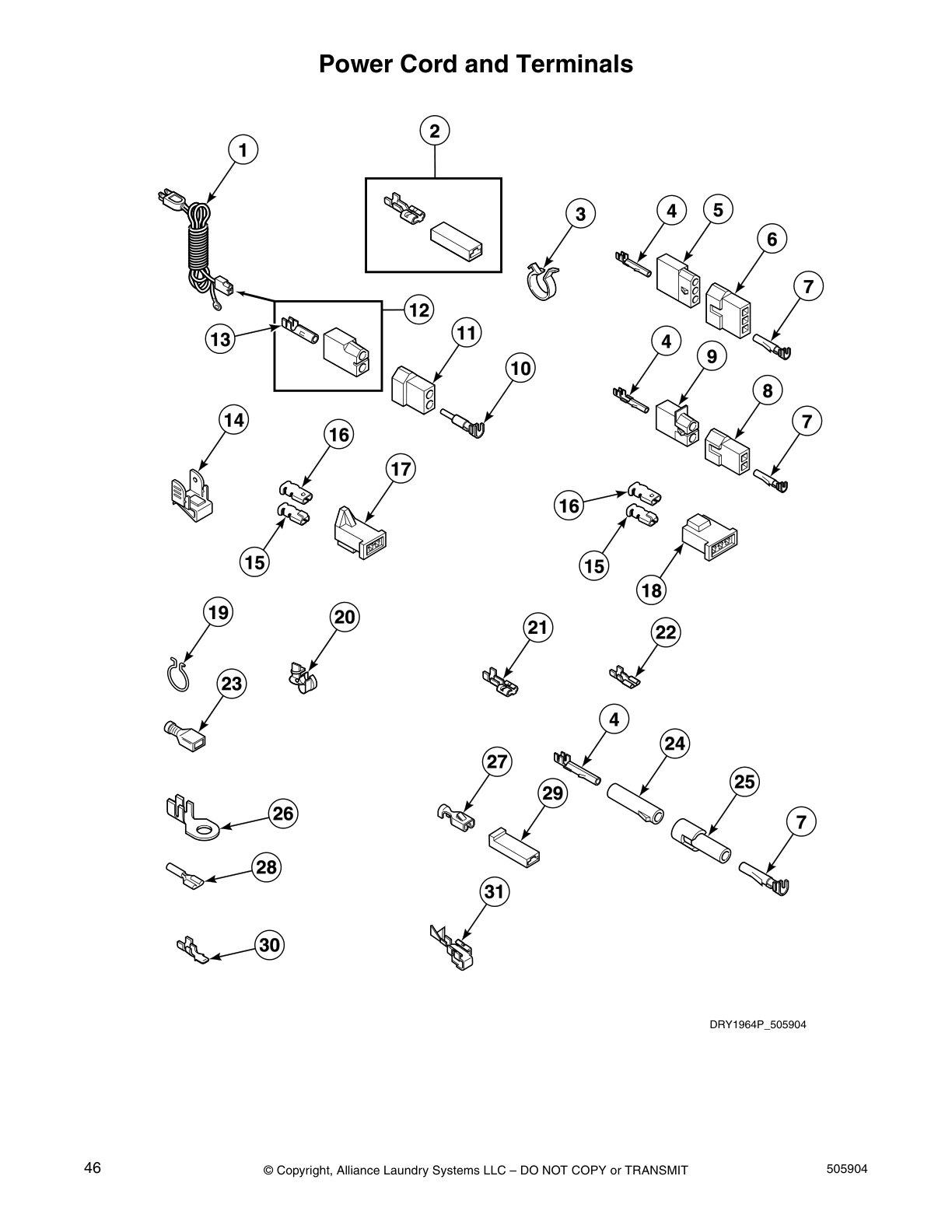

Power Cord and Terminals
Cabinet, Exhaust Duct And Base
Loading Door, Front Panels And Access Door
Power Cord And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Heater Duct - Gas Models Starting Serial No. S6333960xm
Gas Valve, Igniter And Gas Conversion Kits
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Power Cord And Terminals
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Power Cord And Terminals
Loading Door, Front Panels And Access Door
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Power Cord And Terminals
Gas Valve, Igniter And Gas Conversion Kits
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Heater Duct - Gas Models Through Serial No. S6333959xm
Heater Duct - Gas Models Starting Serial No. S6333960xm
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Power Cord And Terminals
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits
Heater Duct - Gas Models Through Serial No. S6333959xm
Heater Duct - Gas Models Starting Serial No. S6333960xm
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Gas Valve, Igniter And Gas Conversion Kits
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Loading Door, Front Panels And Access Door
Power Cord And Terminals
Cabinet Top And Control Hood Back Panel
Cabinet, Exhaust Duct And Base
Heater Duct - Gas Models Through Serial No. S6333959xm
Heater Duct - Gas Models Starting Serial No. S6333960xm
Cabinet Top And Control Hood Back Panel
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Cabinet Top And Control Hood Back Panel
Heater Duct - Gas Models Through Serial No. S6333959xm
Heater Duct - Gas Models Starting Serial No. S6333960xm
Gas Valve, Igniter And Gas Conversion Kits
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Gas Valve, Igniter And Gas Conversion Kits
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Gas Valve, Igniter And Gas Conversion Kits
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Gas Valve, Igniter And Gas Conversion Kits
Loading Door, Front Panels And Access Door
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Heater Duct - Gas Models Through Serial No. S6333959xm
Gas Valve, Igniter And Gas Conversion Kits
Cabinet Top And Control Hood Back Panel
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Heater Duct - Gas Models Through Serial No. S6333959xm
Heater Duct - Gas Models Starting Serial No. S6333960xm
Gas Valve, Igniter And Gas Conversion Kits
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet Top And Control Hood Back Panel
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Common parts from model Alliance NG6339-3000 Dryer
2
Screw SPQ 31752 Contact Us For Availability
3
M SCREW WAS 211294 SPQ WP90767 Contact Us For Availability
5
SCREW SPQ WP3177991 Contact Us For Availability
5
SCREW SPQ WP3351614 Contact Us For Availability
5
SCREW SPQ WP3390631 Contact Us For Availability
6
ASSY SEAL SPQ 56088P Contact Us For Availability
6
Idler Wheel And Bearing Assembly SPQ D510142 Contact Us For Availability
6
Gas Clearance Label SPQ D511004 Contact Us For Availability
7
SPQ 52310 SPQ 52310 Contact Us For Availability
9
SCREW SPQ WP489464 Contact Us For Availability
10
Cylinder Belt SPQ D511255 Contact Us For Availability
11
SCREW SPQ WP489128 Contact Us For Availability
11
NUT SPQ WPW10139757 Contact Us For Availability
12
Idler Spring SPQ 510060 Contact Us For Availability
12
NUT SPQ WP62739 Contact Us For Availability
13
ADJUSTABLE SPQ WPY305086 Contact Us For Availability
14
FOOT- RUBB SPQ WPY314137 Contact Us For Availability
16
Thermostat SPQ 61401 Contact Us For Availability
18
Panel Locator SPQ 61925 Contact Us For Availability
× ![]()
