Model Maytag NED5800TQ0 ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET PARTS
02 - TOP AND CONSOLE PARTS

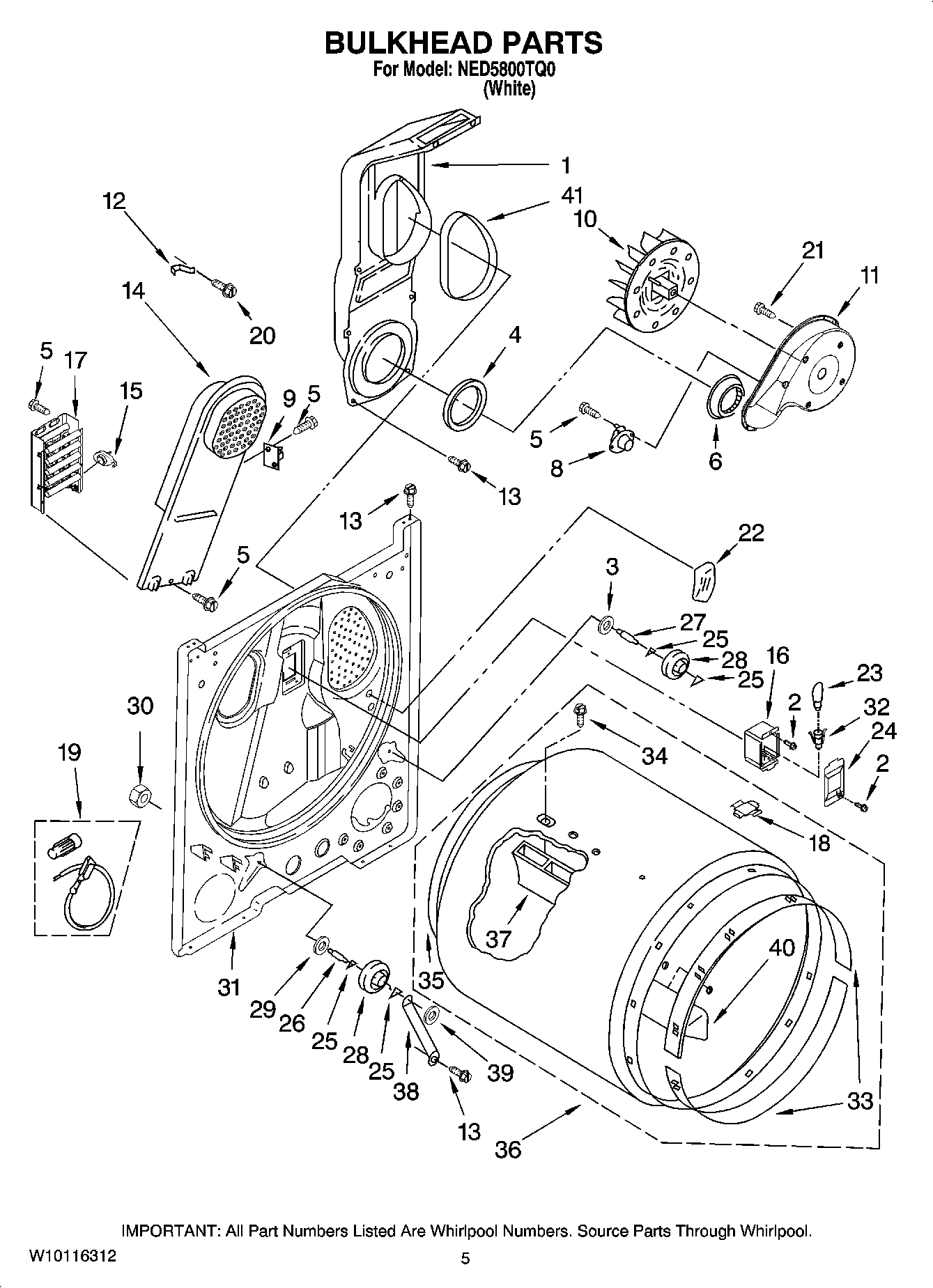

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NED5800TQ0 ELECTRIC DRYER
MAY 279948 MAY 279948 Contact Us For Availability
Dry Rack MAY 3406839 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
MAY 4392900 MAY 4392900 Contact Us For Availability
MAY 4392901 MAY 4392901 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
1
MAY 3406661 MAY 3406661 Contact Us For Availability
1
MAY W10088771 MAY W10088771 Contact Us For Availability
1
MAY W10088970 MAY W10088970 Contact Us For Availability
1
MAY W10089173 MAY W10089173 Contact Us For Availability
1
MAY 8274261 MAY 8274261 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
Nut-Push-In (2) MAY 357213 Contact Us For Availability
2
MAY 487909 MAY 487909 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
Cap, End (L.H.) (White) MAY 8271365 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
MAY 3405154 MAY 3405154 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
PLUG-STRIKE MAY 3403630 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 694419 MAY 694419 Contact Us For Availability
8
Cap, End (R.H.) (White) MAY 8271359 Contact Us For Availability
8
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
9
MAY 8578352 MAY 8578352 Contact Us For Availability
9
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
10
MAY 3406107 MAY 3406107 Contact Us For Availability
10
Screen, Lint (White) MAY 8558463 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
MAY 3405246 MAY 3405246 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
14
MAY 8533951 MAY 8533951 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
Top (White) MAY 8557930 Contact Us For Availability
16
MAY 3977373 MAY 3977373 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
Knob, Control (3) (White) MAY W10110047 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
Cabinet (Includes Illus. 4) (White) MAY 8530603 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
MAY 8066086 MAY 8066086 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
MAY 690363 MAY 690363 Contact Us For Availability
20
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
Panel, Front (White) MAY 3403444 Contact Us For Availability
21
MAY 3406725 MAY 3406725 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
MAY 3405152 MAY 3405152 Contact Us For Availability
22
MAY 3976479 MAY 3976479 Contact Us For Availability
23
Clip, Felt Pad (3) MAY 685203 Contact Us For Availability
23
Knob, Push-To-Start (White) MAY W10110049 Contact Us For Availability
23
Bulb MAY 3406124 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
MAY 3402841 MAY 3402841 Contact Us For Availability
25
MAY 690997 MAY 690997 Contact Us For Availability
26
MAY 3399506 MAY 3399506 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
MAY 3399507 MAY 3399507 Contact Us For Availability
28
Hinge, Door MAY 3405514 Contact Us For Availability
28
MAY 3397590 MAY 3397590 Contact Us For Availability
29
Screw, Mounting (8-18 x 5/16) MAY 8533971 Contact Us For Availability
29
MAY 348197 MAY 348197 Contact Us For Availability
30
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
31
MAY 8576545 MAY 8576545 Contact Us For Availability
31
MAY 3403414 MAY 3403414 Contact Us For Availability
32
MAY 3403634 MAY 3403634 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
Connector-Timer MAY 3397269 Contact Us For Availability
33
Ring, Bearing (2) MAY 692526 Contact Us For Availability
34
Connector 6-Circuit MAY 3347243 Contact Us For Availability
34
MAY W10109200 MAY W10109200 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
Terminal MAY 94614 Contact Us For Availability
35
MAY 3406130 MAY 3406130 Contact Us For Availability
36
Door, Front (White) MAY 3402335 Contact Us For Availability
36
MAY 695587 MAY 695587 Contact Us For Availability
37
Handle, Door (White) MAY 3405184 Contact Us For Availability
37
MAY 692490 MAY 692490 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
38
MAY 3976434 MAY 3976434 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
39
Switch, Push-To-Start MAY 3398094 Contact Us For Availability
39
MAY 90296 MAY 90296 Contact Us For Availability
40
Screw, 10-32 x 5/8 MAY 697776 Contact Us For Availability
40
Timer Knob, Assembly (White) MAY W10110048 Contact Us For Availability
40
MAY 3403636 MAY 3403636 Contact Us For Availability
41
MAY 3397659 MAY 3397659 Contact Us For Availability
41
MAY 3936144 MAY 3936144 Contact Us For Availability
41
MAY 339956 MAY 339956 Contact Us For Availability
42
MAY 8066217 MAY 8066217 Contact Us For Availability
42
MAY 8558178 MAY 8558178 Contact Us For Availability
43
MAY 691366 MAY 691366 Contact Us For Availability
43
MAY 3391885 MAY 3391885 Contact Us For Availability
44
MAY 8066065 MAY 8066065 Contact Us For Availability
44
MAY 8271418 MAY 8271418 Contact Us For Availability
45
MAY 348780 MAY 348780 Contact Us For Availability
45
MAY W10086671 MAY W10086671 Contact Us For Availability
46
MAY 3400500 MAY 3400500 Contact Us For Availability
47
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
48
MAY 8066206 MAY 8066206 Contact Us For Availability
49
MAY 660658 MAY 660658 Contact Us For Availability
50
MAY 3404162 MAY 3404162 Contact Us For Availability
52
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
× ![]()
