Model Maytag NED5800HW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

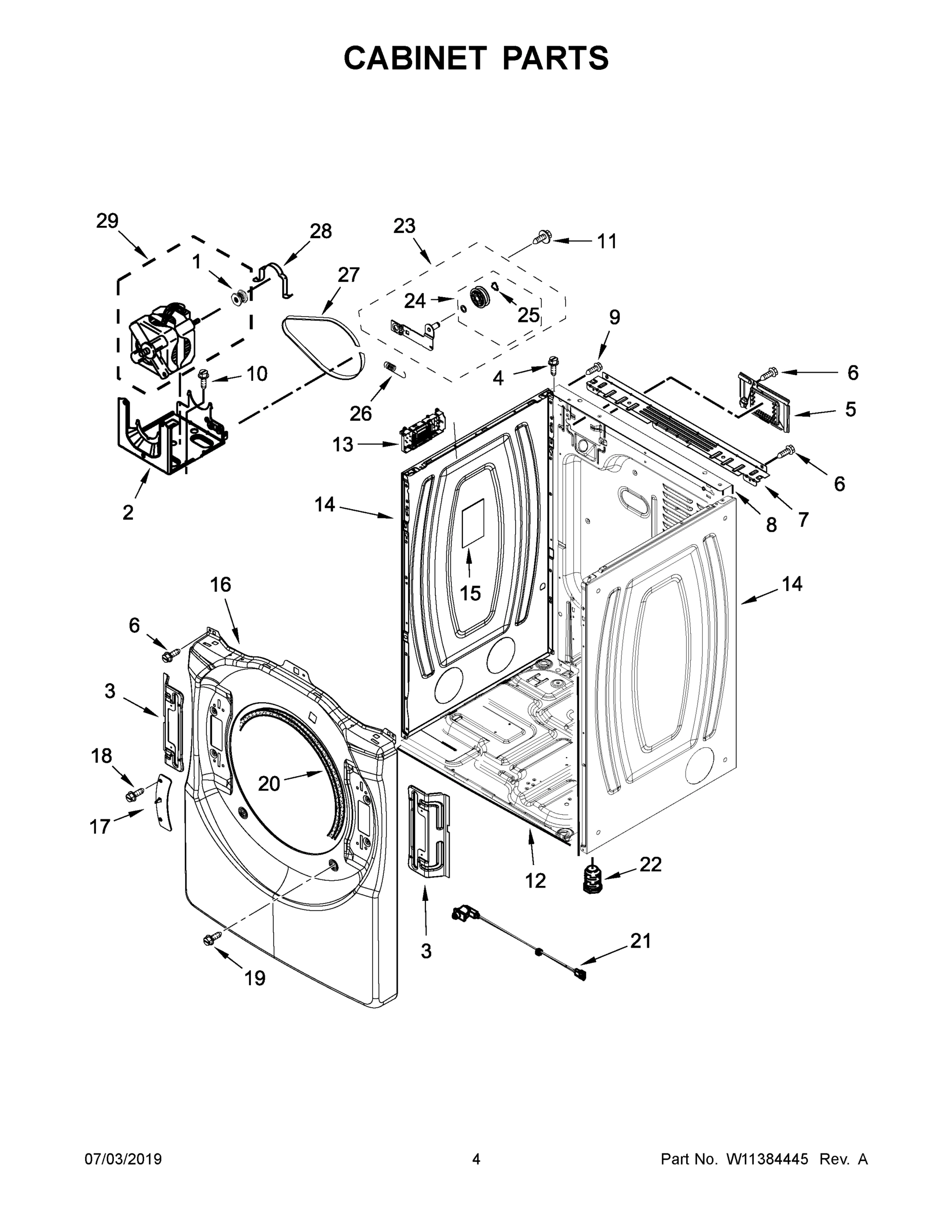

03 - CABINET PARTS

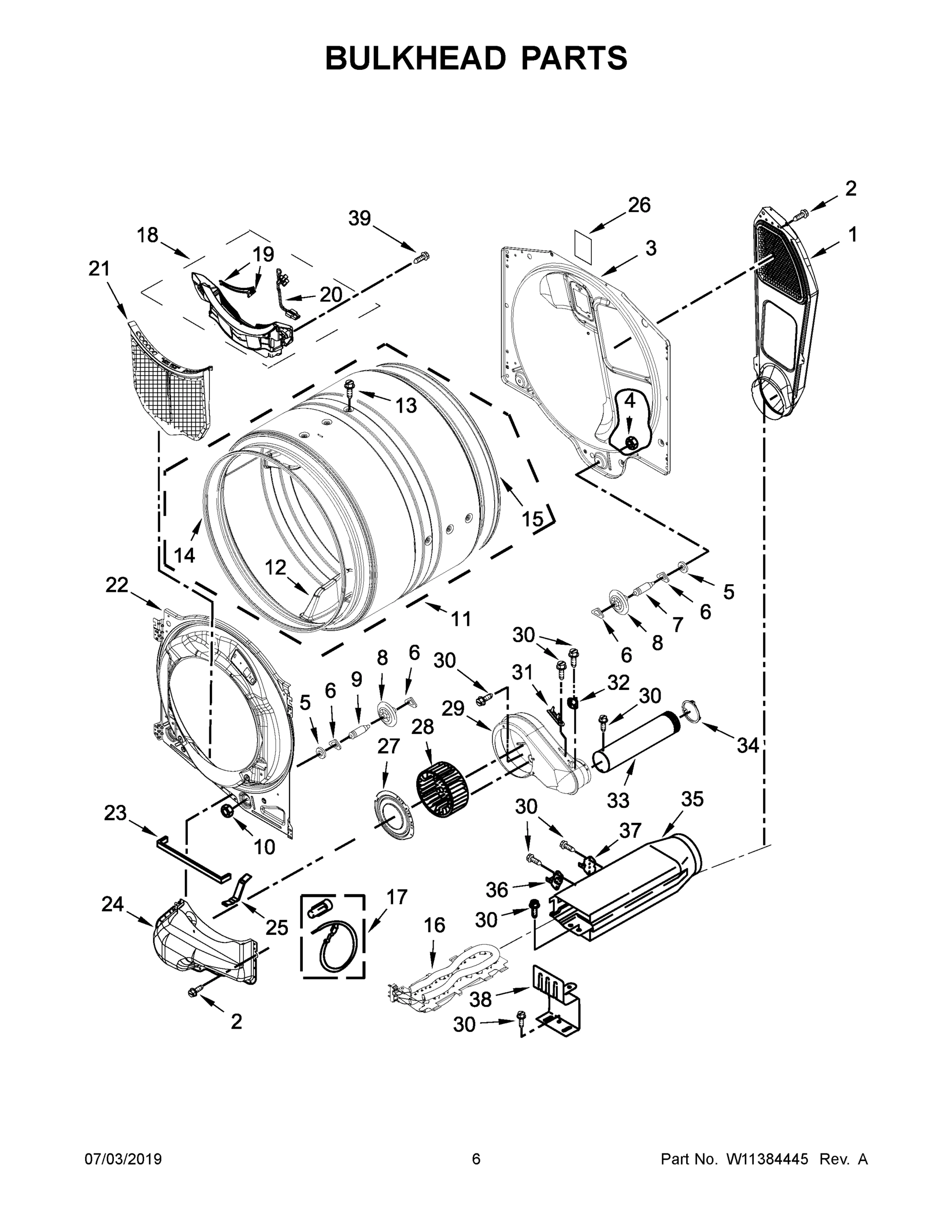

04 - BULKHEAD PARTS

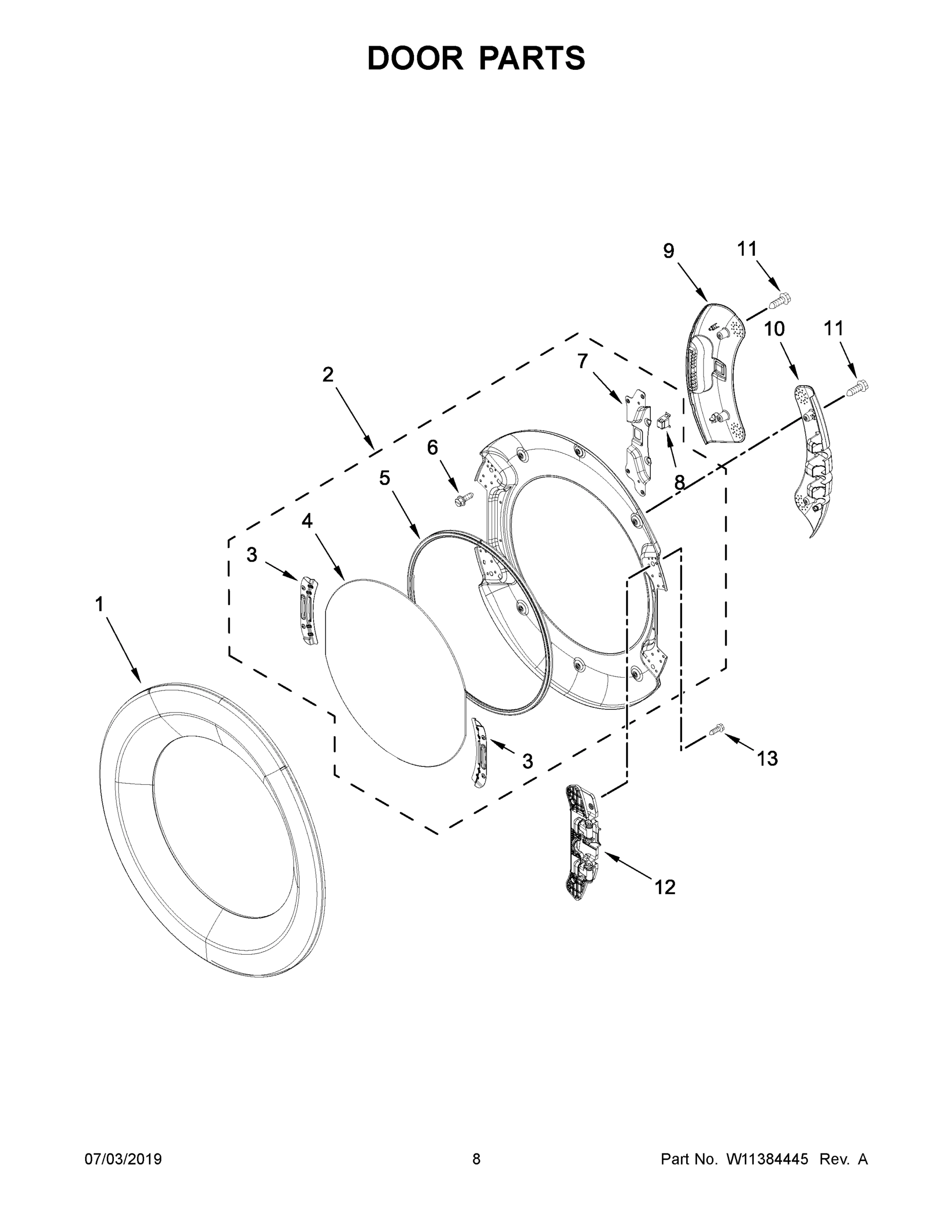

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NED5800HW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
MAY W11184584 MAY W11184584 Contact Us For Availability
1
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
1
ASSEMBLY, AIR DUCT MAY W11104018 Contact Us For Availability
1
MAY W11114013 MAY W11114013 Contact Us For Availability
1A
MAY W11184899 MAY W11184899 Contact Us For Availability
1B
MAY W11183136 MAY W11183136 Contact Us For Availability
1C
MAY W11241395 MAY W11241395 Contact Us For Availability
1D
MAY W11184893 MAY W11184893 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
2
MAY W11122999 MAY W11122999 Contact Us For Availability
3
MAY W11084215 MAY W11084215 Contact Us For Availability
3
BULKHEAD, REAR MAY W11162462 Contact Us For Availability
3
MAY W11100789 MAY W11100789 Contact Us For Availability
4
MAY W11255768 MAY W11255768 Contact Us For Availability
4
SCREW MAY 489463 Contact Us For Availability
4
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
4
MAY W10891207 MAY W10891207 Contact Us For Availability
5
SCREW MAY 12990702 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
5
WASHER MAY 3387459 Contact Us For Availability
5
MAY W11183899 MAY W11183899 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
SCREW MAY W10288126 Contact Us For Availability
6
WASHER, TRI RING MAY W10512946 Contact Us For Availability
7
MAY W11231800 MAY W11231800 Contact Us For Availability
7
BRACKET, REAR MAY W10208382 Contact Us For Availability
7
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
7
MAY W11050690 MAY W11050690 Contact Us For Availability
8
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
8
PANEL, REAR MAY W10487431 Contact Us For Availability
8
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
8
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
9
MAY W11160620 MAY W11160620 Contact Us For Availability
9
SCREW MAY W10773242 Contact Us For Availability
9
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
9
MAY W11120683 MAY W11120683 Contact Us For Availability
10
MAY W11314467 MAY W11314467 Contact Us For Availability
10
SCREW MAY 343641 Contact Us For Availability
10
NUT, HEX MAY 3934666 Contact Us For Availability
10
MAY W11120174 MAY W11120174 Contact Us For Availability
11
MAY W11109747 MAY W11109747 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
ASSEMBLY, DRUM (COMPLETE) MAY W10508188 Contact Us For Availability
11
SCREW MAY 9742177 Contact Us For Availability
12
BASE, CABINET MAY 8565046 Contact Us For Availability
12
BAFFFLE, DRUM MAY W10416098 Contact Us For Availability
12
MAY W11114011 MAY W11114011 Contact Us For Availability
13
MAY W11314889 MAY W11314889 Contact Us For Availability
13
SCREW MAY W10219342 Contact Us For Availability
13
SCREW, GROUNDING MAY 8540479 Contact Us For Availability
14
MAY W11177568 MAY W11177568 Contact Us For Availability
14
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
15
PAD, FOAM MAY W10504381 Contact Us For Availability
15
SEAL, DRUM MAY W10521118 Contact Us For Availability
16
MAY W11045946 MAY W11045946 Contact Us For Availability
16
MAY W11045584 MAY W11045584 Contact Us For Availability
17
MAY W11126752 MAY W11126752 Contact Us For Availability
17
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
18
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
19
SCREW MAY 3357011 Contact Us For Availability
19
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
20
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
20
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
21
DOOR SWITCH, SNAP IN MAY W10569114 Contact Us For Availability
21
LINT SCREEN (WHITE) MAY W10516085 Contact Us For Availability
22
FOOT, DRYER MAY 3392100 Contact Us For Availability
22
BULKHEAD, FRONT MAY W10673493 Contact Us For Availability
23
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
23
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
24
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
24
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
25
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
26
SPRING, IDLER MAY W10446781 Contact Us For Availability
26
PAD, FOAM MAY W10653662 Contact Us For Availability
27
BELT, DRIVE MAY 3387610 Contact Us For Availability
27
MAY W11254843 MAY W11254843 Contact Us For Availability
28
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
28
WHEEL, BLOWER MAY 697772 Contact Us For Availability
29
ASSEMBLY, MOTOR MAY W10806758 Contact Us For Availability
29
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
30
SCREW MAY 693995 Contact Us For Availability
31
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
32
THERMISTOR MAY 8577274 Contact Us For Availability
33
EXHAUST PIPE MAY W10342188 Contact Us For Availability
34
COLLAR, DUCT MAY W10344699 Contact Us For Availability
35
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
36
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
37
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
38
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
39
SCREW MAY W10794806 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VE MAY W10323246 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283 Contact Us For Availability
NI
MAY W10869845 MAY W10869845 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10886894 Contact Us For Availability
× ![]()
