Model Whirlpool NE8533 WASHER – Common Parts & Diagrams

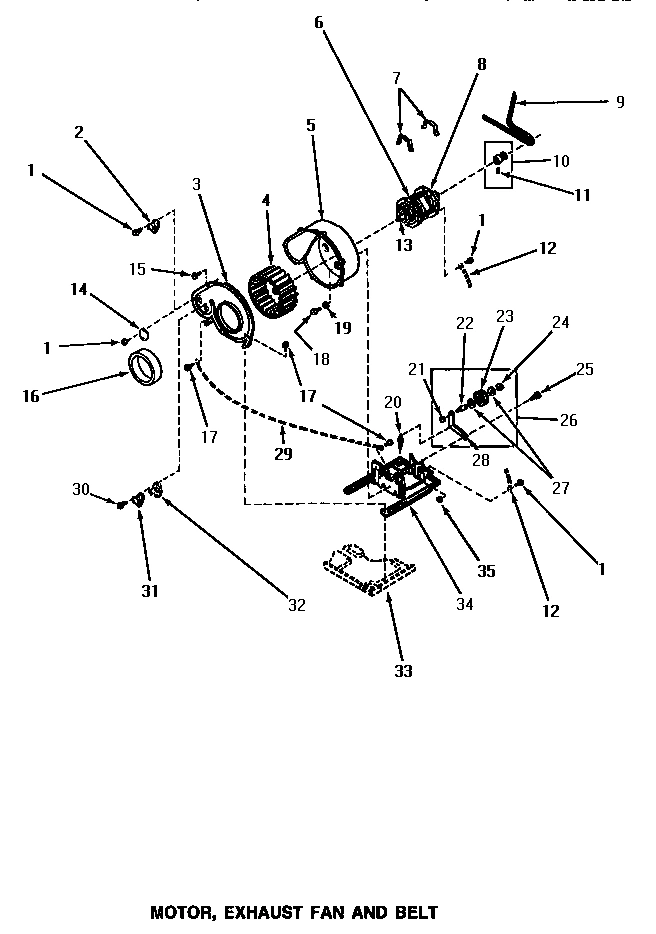

08 - MOTOR, EXHAUST FAN & BELT

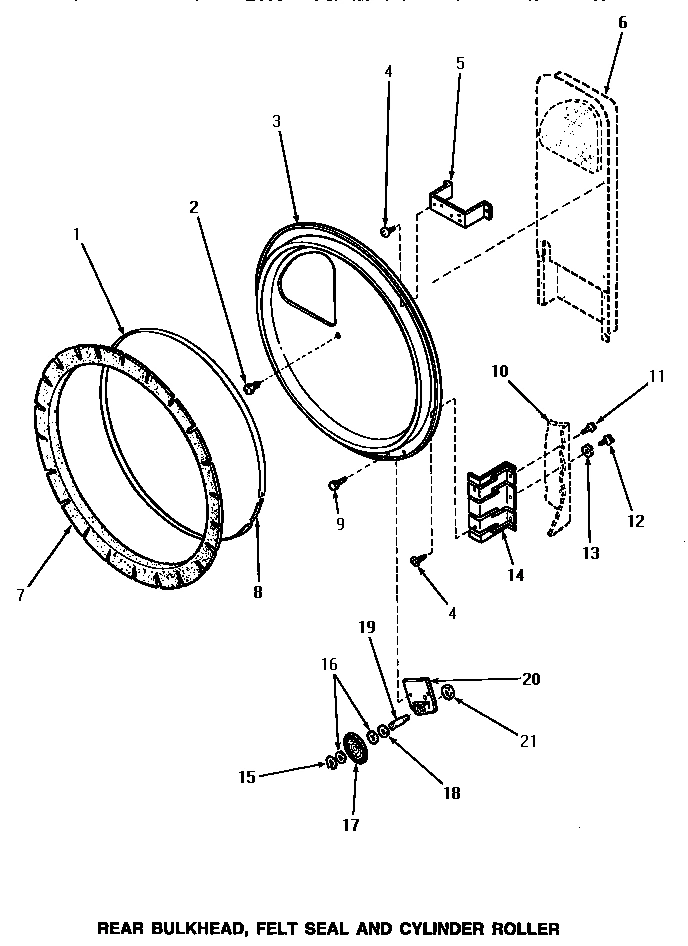

10 - REAR BLKHD, FELT SEAL & CYLINDER ROLLER

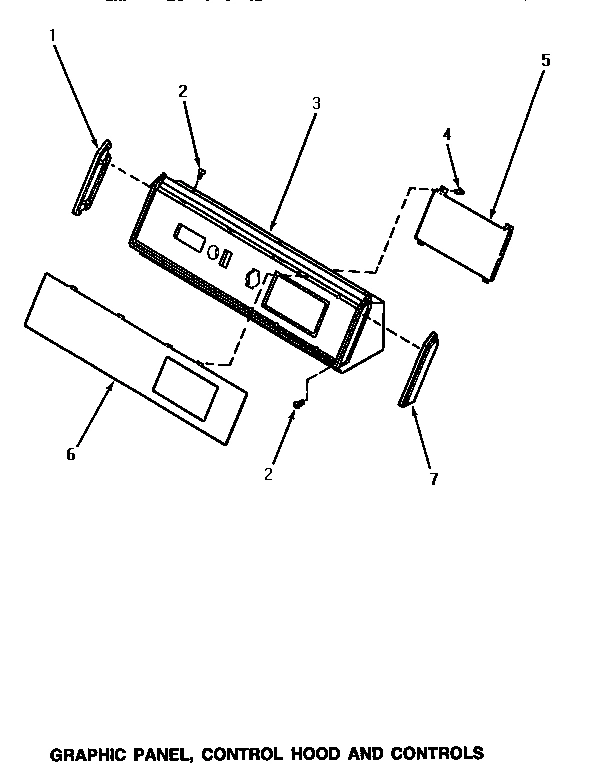

04 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

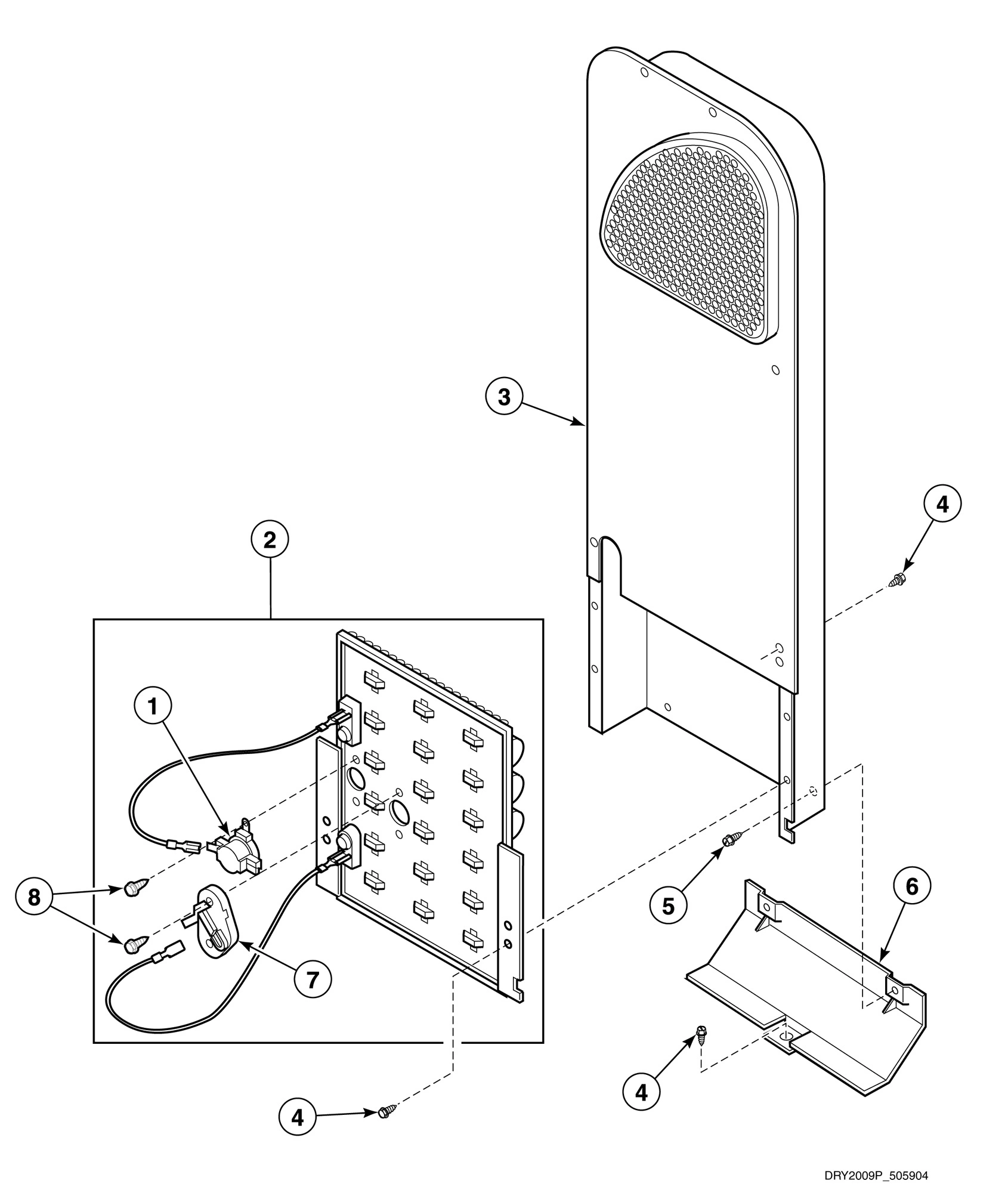

06 - HEATER BOX

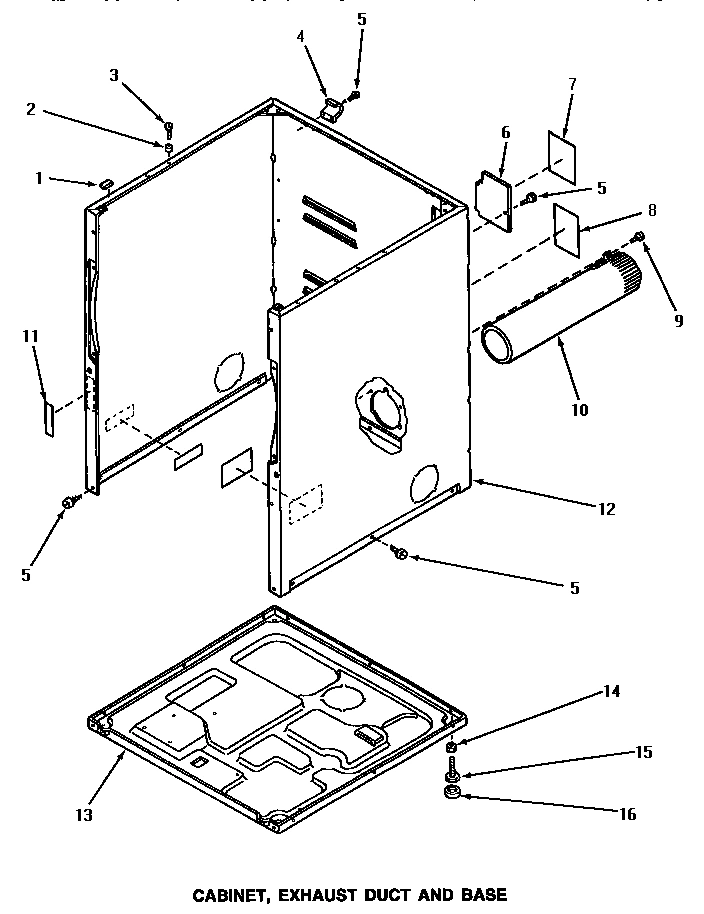

02 - CABINET, EXHAUST DUCT & BASE

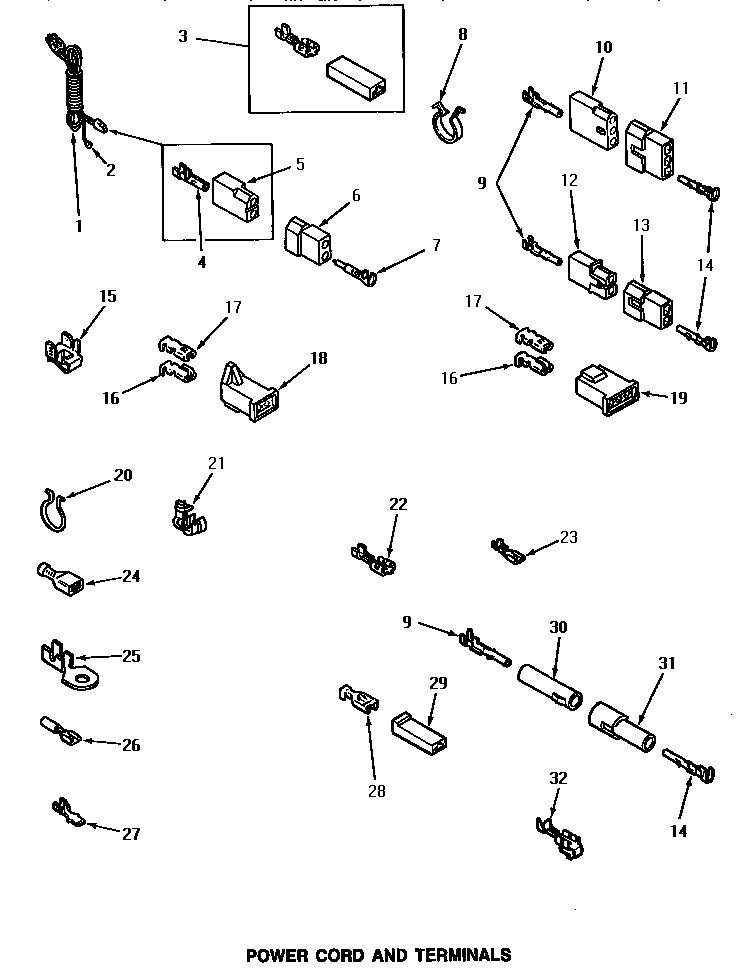

09 - POWER CORD & TERMINALS

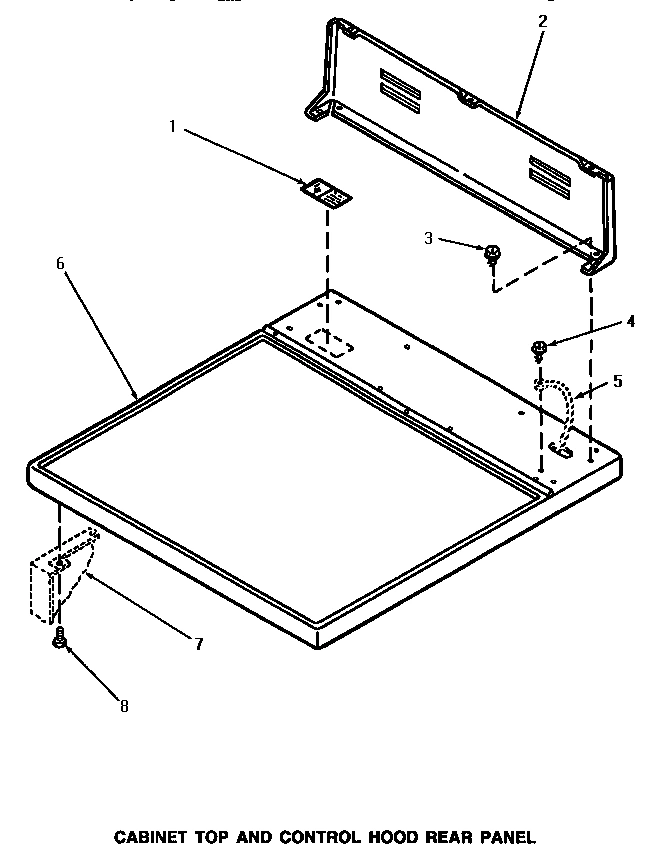

01 - CABINET TOP & CONTROL HOOD REAR PANEL

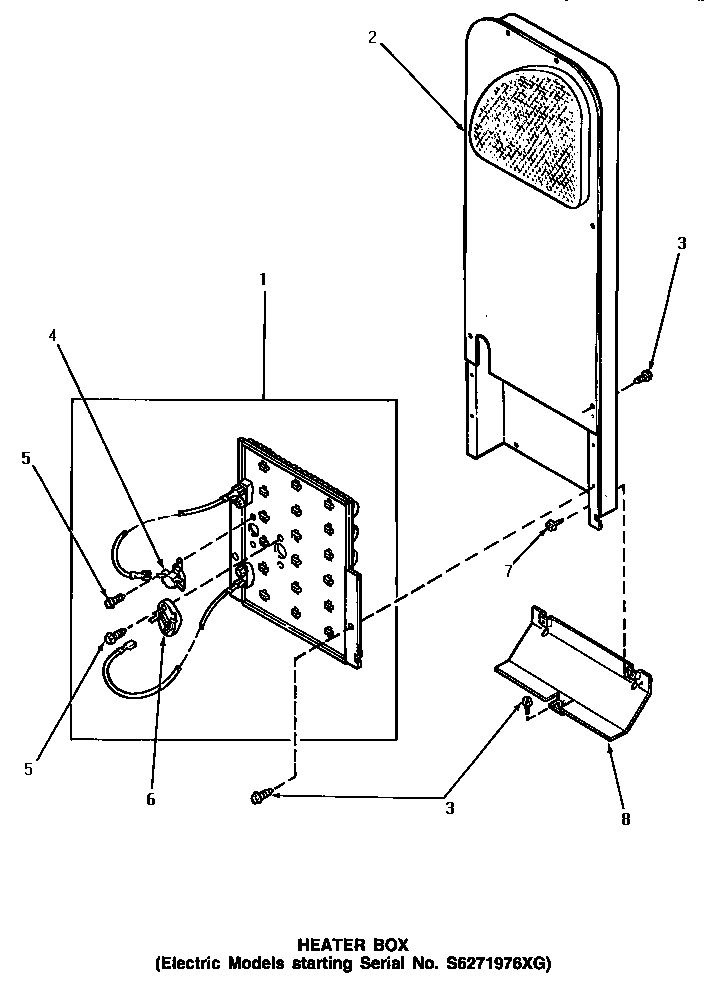

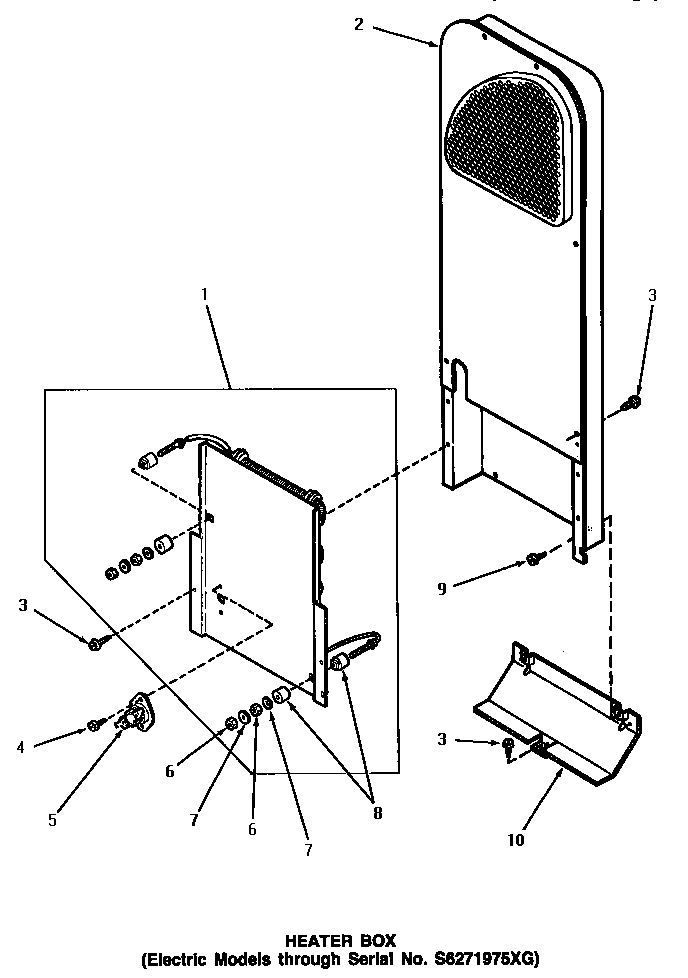

05 - HEATER BOX

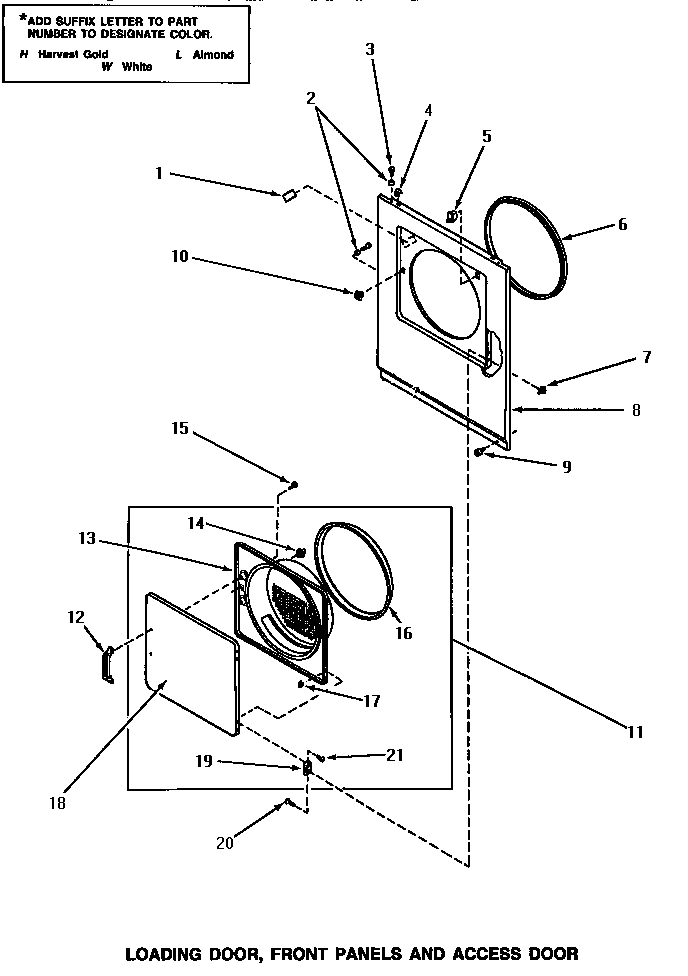

07 - LOADING DOOR, FRONT PANELS & ACCESS DOOR

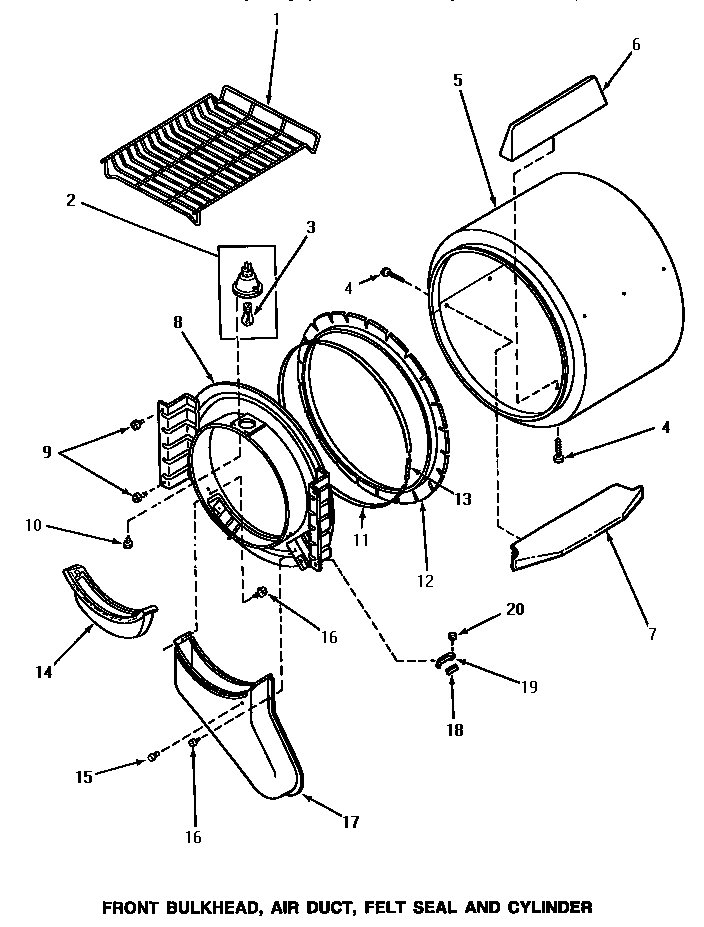

03 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

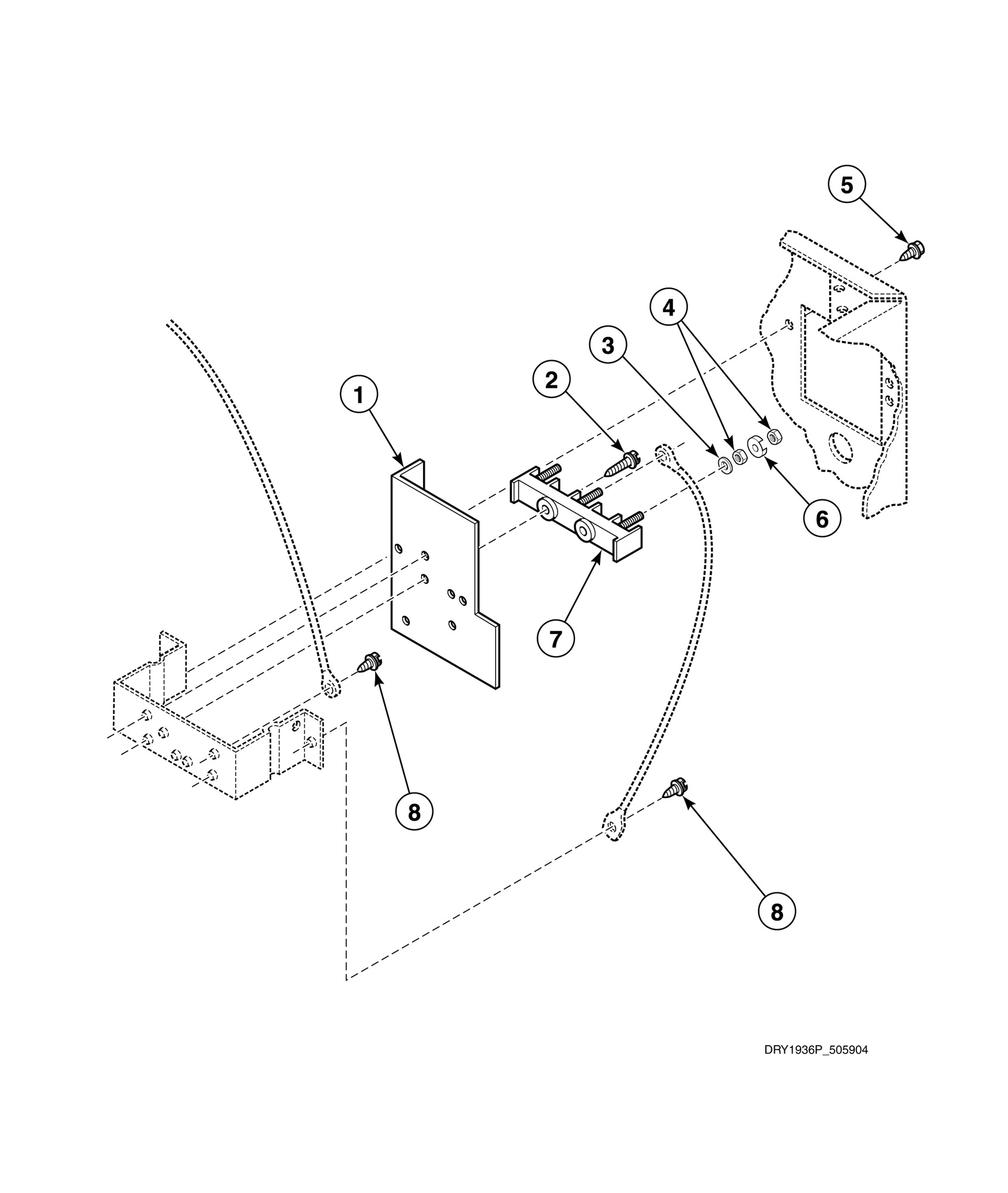

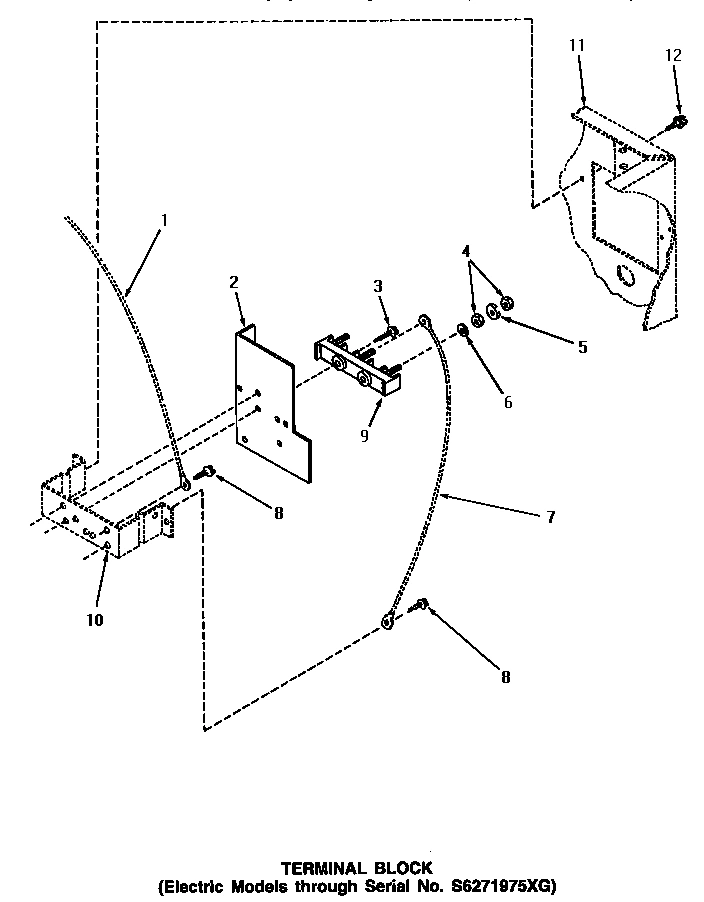

12 - TERMINAL BLOCK (THRU SN S6271975XG)

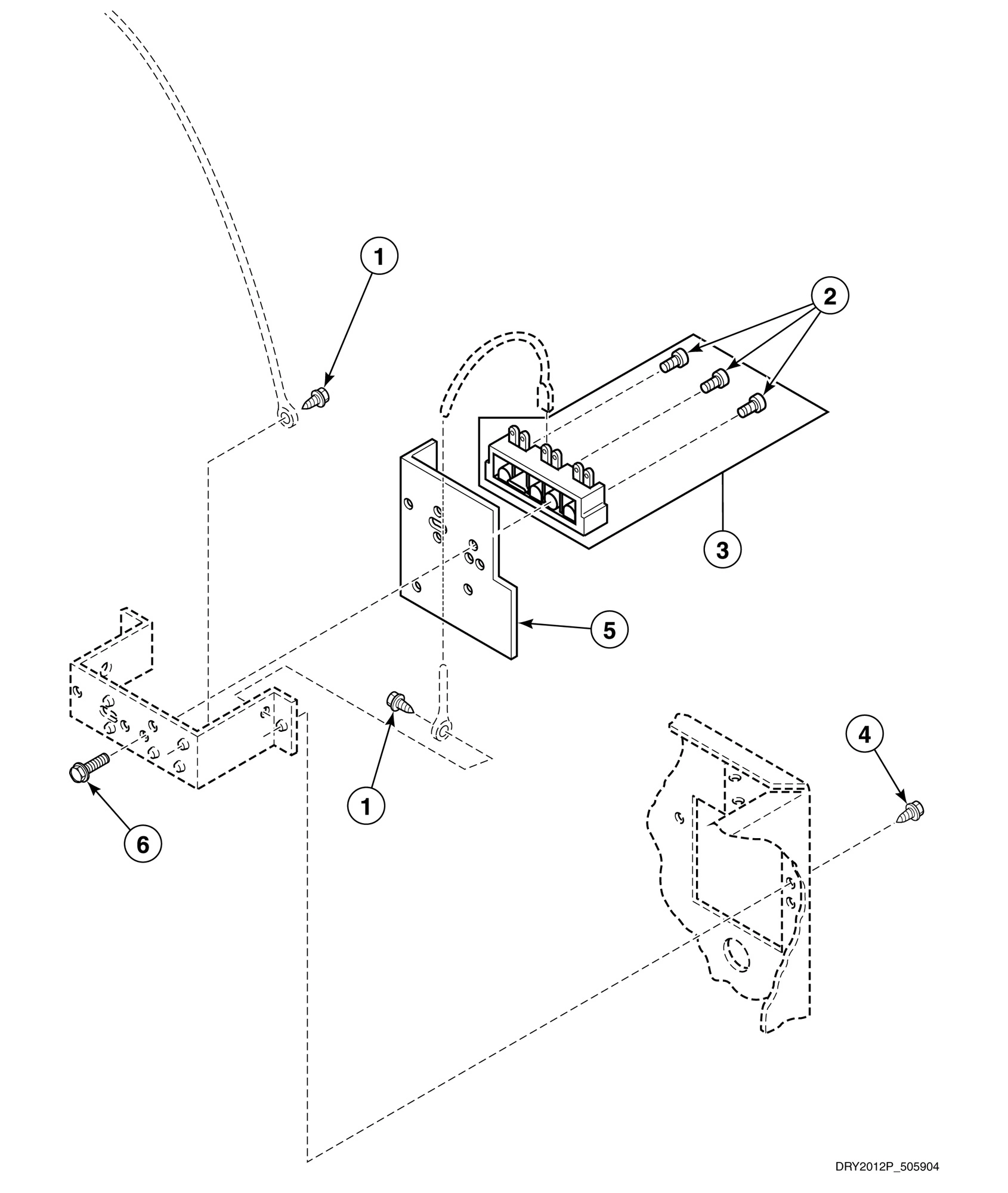

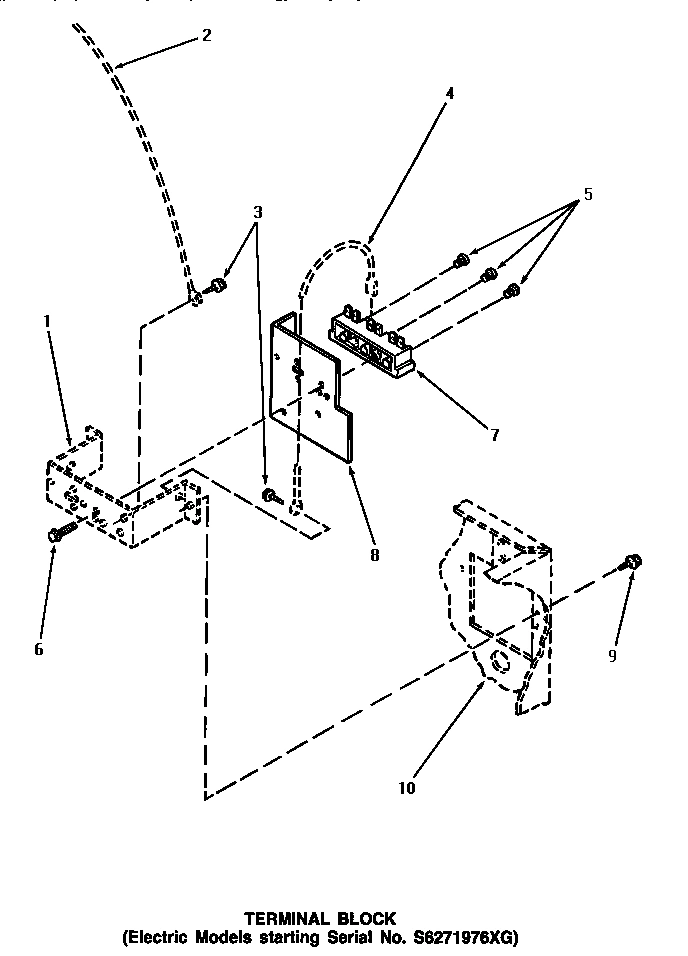

11 - TERMINAL BLOCK (STARTIN SN S6271976XG)
Common parts from model Whirlpool NE8533 WASHER
IF DRYER IS INSTALLED IN A MANUFACTURED (MOBI WPL NOTE Contact Us For Availability
1
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
1
HEATER ASSEMBLY 208V WPL 61928 Contact Us For Availability
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
1
CORD,LEAD-IN WPL Y56222 Contact Us For Availability
1
REPL BY 500281 WPL 58854 Contact Us For Availability
1
RACK,DRYING WPL 58846 Contact Us For Availability
2
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
2
HEATER BOX WPL 61161P Contact Us For Availability
2
LOCATER, PANEL WPL 56079 Contact Us For Availability
2
CONTROL HOOD, REAR PANEL WPL 59970 Contact Us For Availability
2
CYLINDER LIGHT ASSEMBLY WPL 60953P Contact Us For Availability
3
ASSY,REAR BULKHEAD WPL 61135P Contact Us For Availability
3
HOOD,DRYER-BLACK WPL 59606 Contact Us For Availability
3
TERMINAL,SPADE-1/4 FEM WPL Y00237 Contact Us For Availability
3
LIGHT BULB WPL Y54608 Contact Us For Availability
3
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
4
M400664 WPL 56078 Contact Us For Availability
4
LIMIT THERMOSTAT WPL 62461 Contact Us For Availability
4
HINGE, TOP WPL 60826 Contact Us For Availability
4
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
4
NUT WPL Q6163 Contact Us For Availability
4
SCREW,10BT X 1 TAPPING WPL 56131 Contact Us For Availability
5
BRACKET,TERMINAL BLOCK WPL 60823P Contact Us For Availability
5
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
5
ASSY, ELECTRONIC CONTROL WPL 59608 Contact Us For Availability
5
RECEPTACLE,2 CIRCUIT WPL 56265 Contact Us For Availability
5
THERMOSTAT,LIMIT WPL 56082 Contact Us For Availability
5
ASSY,CYLINDER PACK WPL 60645P Contact Us For Availability
5
ASSY,CYLINDER-WHITE WPL 61073P Contact Us For Availability
6
PANEL,GRAPHIC WPL 60310 Contact Us For Availability
6
ACESS COVER WPL 60821 Contact Us For Availability
6
PLUG WPL 56266 Contact Us For Availability
6
ASSY,TOP PANEL-DOMESTI WPL 60815H Contact Us For Availability
6
CABINET TOP, ALMOND WPL 60815L Contact Us For Availability
6
ASSY, TOP & CARTON WPL 60815W Contact Us For Availability
6
LOCKWASHER WPL 56552 Contact Us For Availability
6
SEAL,FRONT PANEL WPL Y61380 Contact Us For Availability
6
BAFFLE,CYLINDER-SHORT- WPL Y61399 Contact Us For Availability
6
SCREW WPL Y61200 Contact Us For Availability
7
INSERT,CONTROL HOOD-R. WPL 32342 Contact Us For Availability
7
STICKER,NOTICE INSTALL WPL 61206 Contact Us For Availability
7
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
7
NUT K WPL 51236 Contact Us For Availability
7
BAFFLE,CYLINDER-EXTEND WPL Y61027 Contact Us For Availability
7
TERMINAL BLOCK WPL 61923P Contact Us For Availability
8
SWITCH WPL 53249 Contact Us For Availability
8
MOTOR SWITCH, INTERNAL MOUNTED WPL 59895 Contact Us For Availability
8
SPRING WPL 52310 Contact Us For Availability
8
STICKER,WARNING-GROUND WPL 58866 Contact Us For Availability
8
CLIP,WIRE WPL 61510 Contact Us For Availability
8
INSULATOR WPL 57408 Contact Us For Availability
8
FRONT PANEL, HARVEST GOLD WPL 62420H Contact Us For Availability
8
ASSY, FRT PNL/CARTON WPL 62420L Contact Us For Availability
8
FRONT PANEL, WHITE WPL 62420W Contact Us For Availability
8
ASSY,BULKHEAD-FRONT-SV WPL 62142W Contact Us For Availability
8
SHIELD,TERMINAL BLOCK WPL 56087 Contact Us For Availability
9
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
9
TERMINAL BLOCK WPL 58555 Contact Us For Availability
10
MOTOR PULLEY ASSEMBLY WPL 59173 Contact Us For Availability
10
SEE NOTE CABINET WPL Y00000000 Contact Us For Availability
10
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
10
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
10
ASSY, EXHAUST DUCT WPL 56118 Contact Us For Availability
10
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
11
SETSCREW WPL 52906 Contact Us For Availability
11
SEAL STRAP WPL Y56090 Contact Us For Availability
11
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
11
ASSY,DOOR WPL 62151H Contact Us For Availability
11
ASSY,DOOR WPL 62151L Contact Us For Availability
11
ASSY,DOOR WPL 62151W Contact Us For Availability
12
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
12
CABINET, HARVEST GOLD WPL 60813PH Contact Us For Availability
12
CABINET, ALMOND WPL 60813PL Contact Us For Availability
12
CABINET, WHITE WPL 60813PW Contact Us For Availability
12
RECEPTACLE,2 CIRCUIT WPL 56451 Contact Us For Availability
12
PULL,DOOR WPL 54068P Contact Us For Availability
13
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
13
ASSY,BASE-COMPLETE WPL 60811 Contact Us For Availability
13
PLUG 2 CIRCUIT WPL 56448 Contact Us For Availability
13
INNER DOOR PANEL, HARVEST GOLD WPL 62152H Contact Us For Availability
13
LINER,DOOR WPL 62152L Contact Us For Availability
13
LINER,DOOR WPL 62152W Contact Us For Availability
13
ADAPTER, STRAIN RELIEF WPL 52130 Contact Us For Availability
14
COVER PLATE WPL 61203 Contact Us For Availability
14
BRACKET,BULKHEAD-REAR WPL 56055 Contact Us For Availability
14
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
14
FILTER,LINT-WHITE W/INST. WPL 61376P Contact Us For Availability
15
GROUND CLIP WPL Y00161 Contact Us For Availability
15
BUMPER WPL 56938 Contact Us For Availability
16
SEAL WPL 56065 Contact Us For Availability
16
CONNECTOR,RECEPTACLE WPL Y00190 Contact Us For Availability
16
DOOR SEAL WPL 61379 Contact Us For Availability
17
CYLINDER ROLLER WPL 56457 Contact Us For Availability
17
TERMINAL,SPADE WPL Y00189 Contact Us For Availability
17
NUT,SPEED-8A TINN C15 WPL 23407 Contact Us For Availability
17
ASSY,AIR DUCT-FRONT WPL 60786 Contact Us For Availability
18
WASHER,.578IDX1.25ODX1 WPL 23886 Contact Us For Availability
18
CONNECTOR,2 CIRCUIT WPL 58799 Contact Us For Availability
18
DOOR (GOLD) WPL 62153H Contact Us For Availability
18
DOOR WPL 62153L Contact Us For Availability
18
PANEL OUTER DOOR WPL 62153W Contact Us For Availability
18
PAD,THIN WPL 58049 Contact Us For Availability
19
WASHER WPL 20492 Contact Us For Availability
19
CONNECTOR,3 CIRCUIT WPL 58800 Contact Us For Availability
19
HINGE (DRYER) WPL 56045 Contact Us For Availability
19
GLIDE,CYLINDER-RULON F WPL 61448 Contact Us For Availability
20
BRACKET,CYLINDER ROLLER WPL 56042 Contact Us For Availability
20
CLIP,WIRE WPL 51291 Contact Us For Availability
20
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
21
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
21
STRAIN RELIEF WPL 21903 Contact Us For Availability
21
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
22
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
22
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
22
TERMINAL,FEMALE-1/4 SP WPL Y00222 Contact Us For Availability
23
TERMINAL,SPADE 3/16 WPL 00156 Contact Us For Availability
23
TERMINAL,SPADE-3/16 FE WPL Y00124 Contact Us For Availability
23
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
25
SCREW,1/4-20 HEX HD SH WPL 56587 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
27
TERMINAL,TAB 1/4 MALE WPL Y00138 Contact Us For Availability
27
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
28
LEVER,IDLER WPL 56057 Contact Us For Availability
28
TERMINAL,SPADE-1/4 FEM WPL 00122 Contact Us For Availability
28
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
29
CONNECTOR WPL 90789 Contact Us For Availability
30
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
31
ASSY,THERMISTOR WPL 59500 Contact Us For Availability
31
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
32
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
34
MOTOR MOUNTING BRACKET WPL Y60816 Contact Us For Availability
× ![]()
