Model Whirlpool MUE15MNAYW ELECTRIC DRYER – Common Parts & Diagrams
06 - HEATER

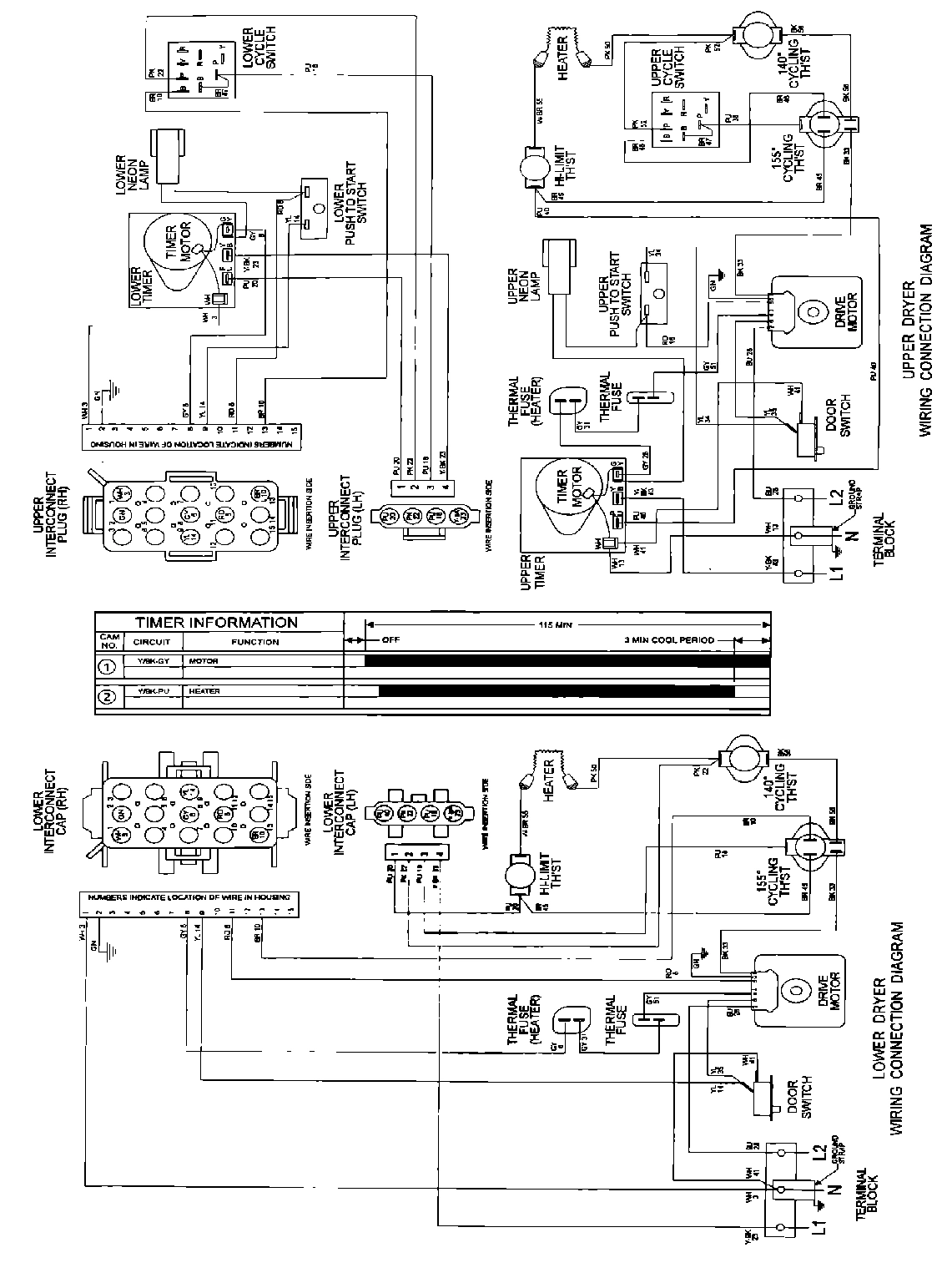

08 - WIRING INFORMATION

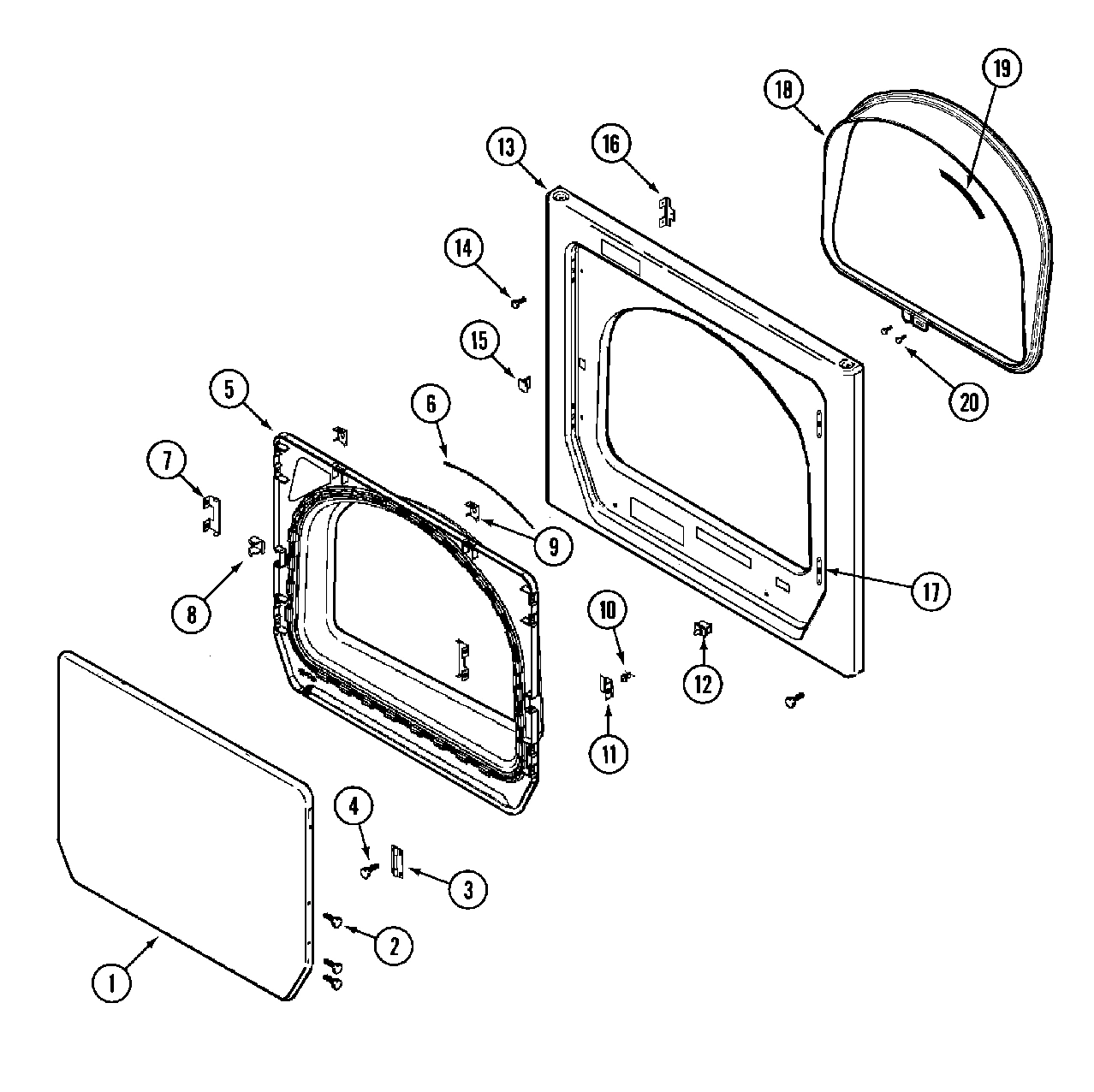

03 - DOOR (UPPER)

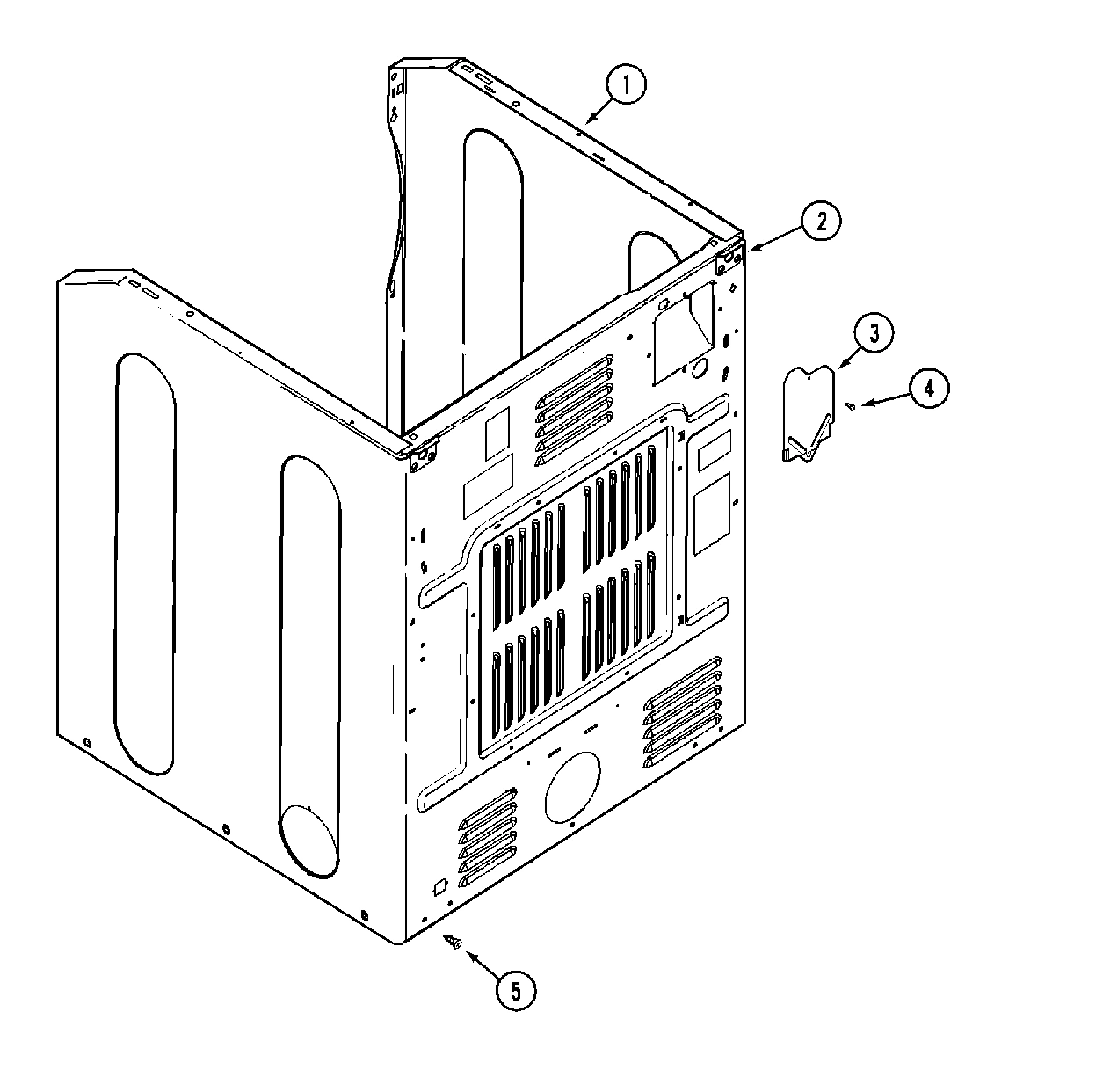

04 - CABINET-REAR

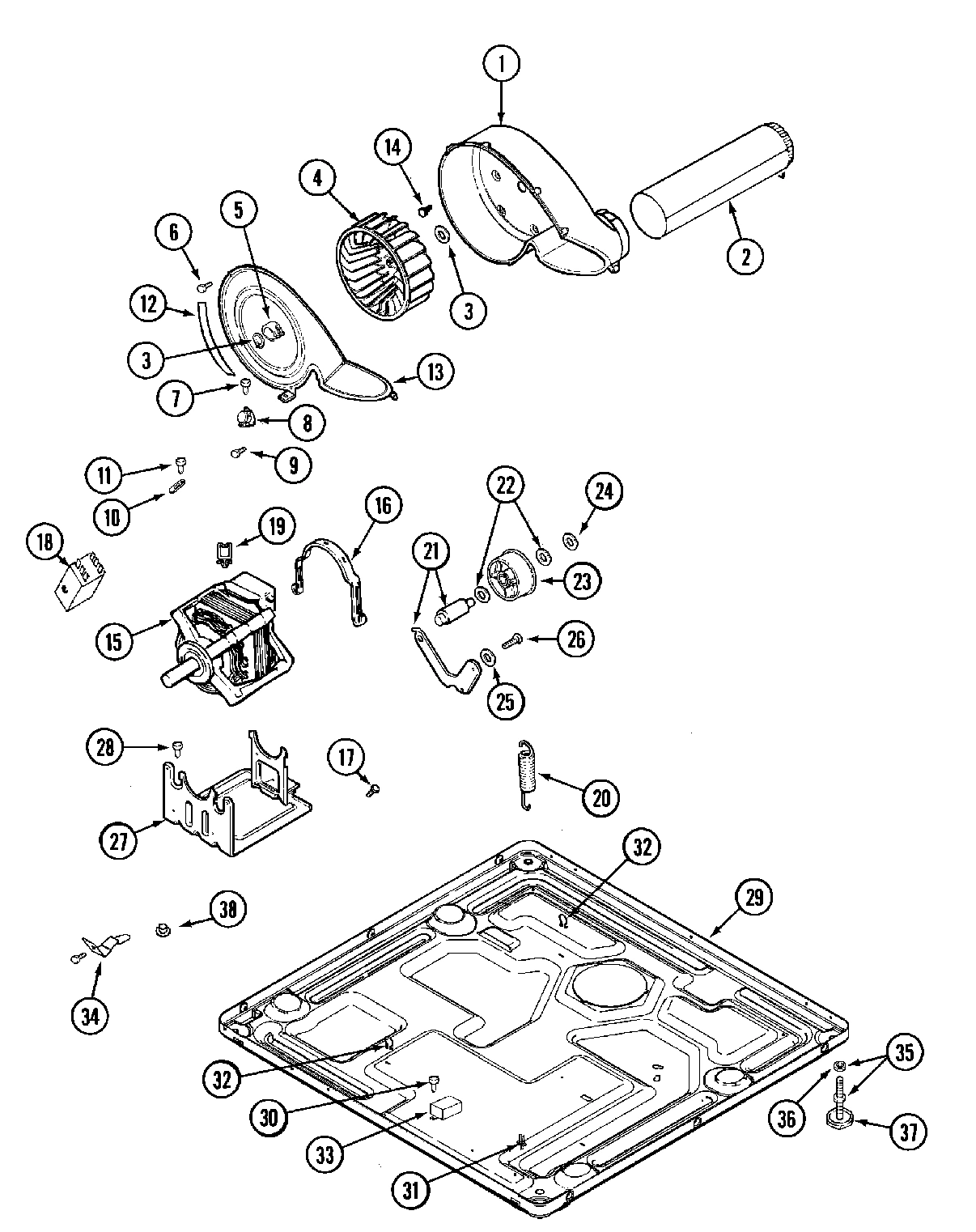

07 - MOTOR DRIVE

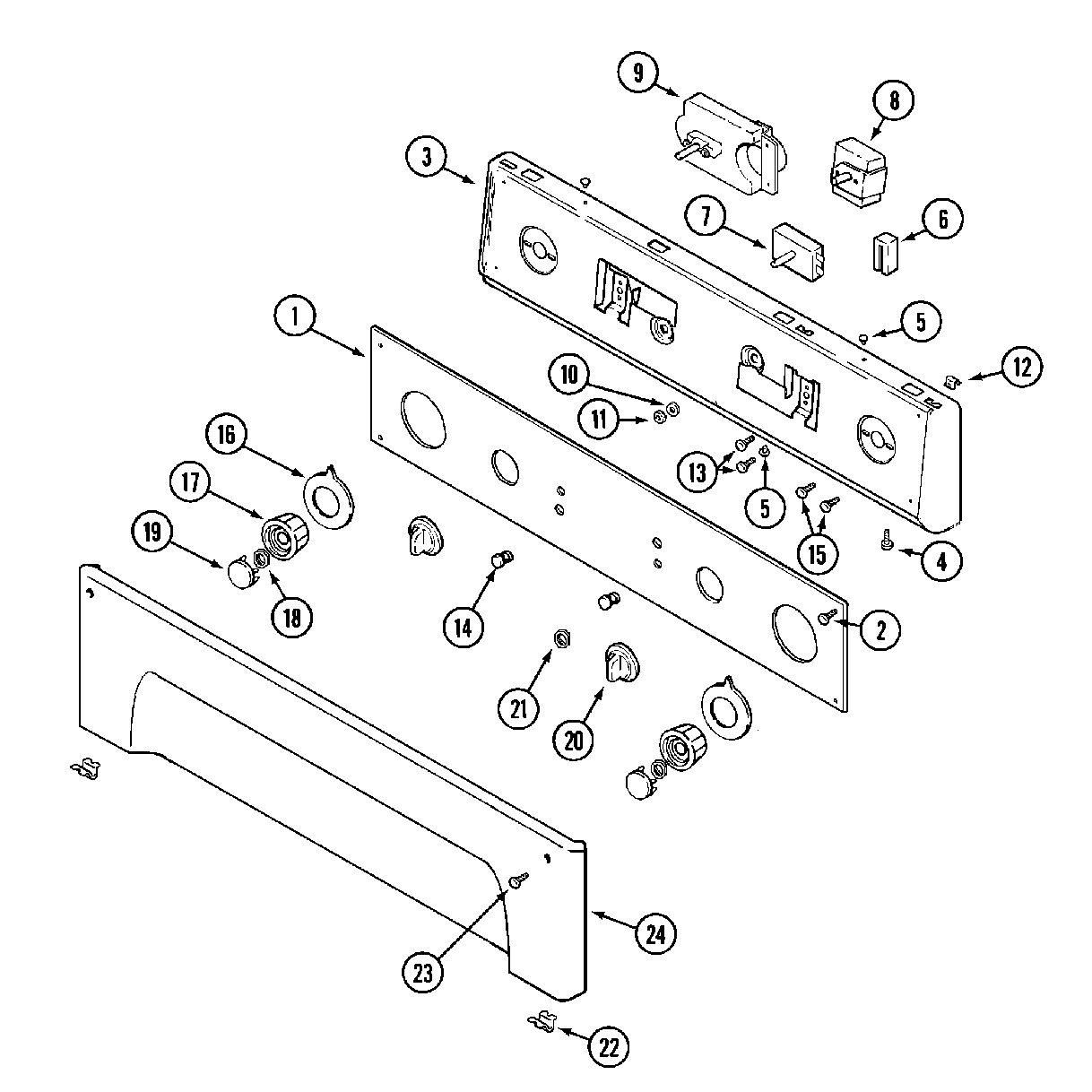

01 - CONTROL PANEL
02 - CABINET-FRONT (UPPER)

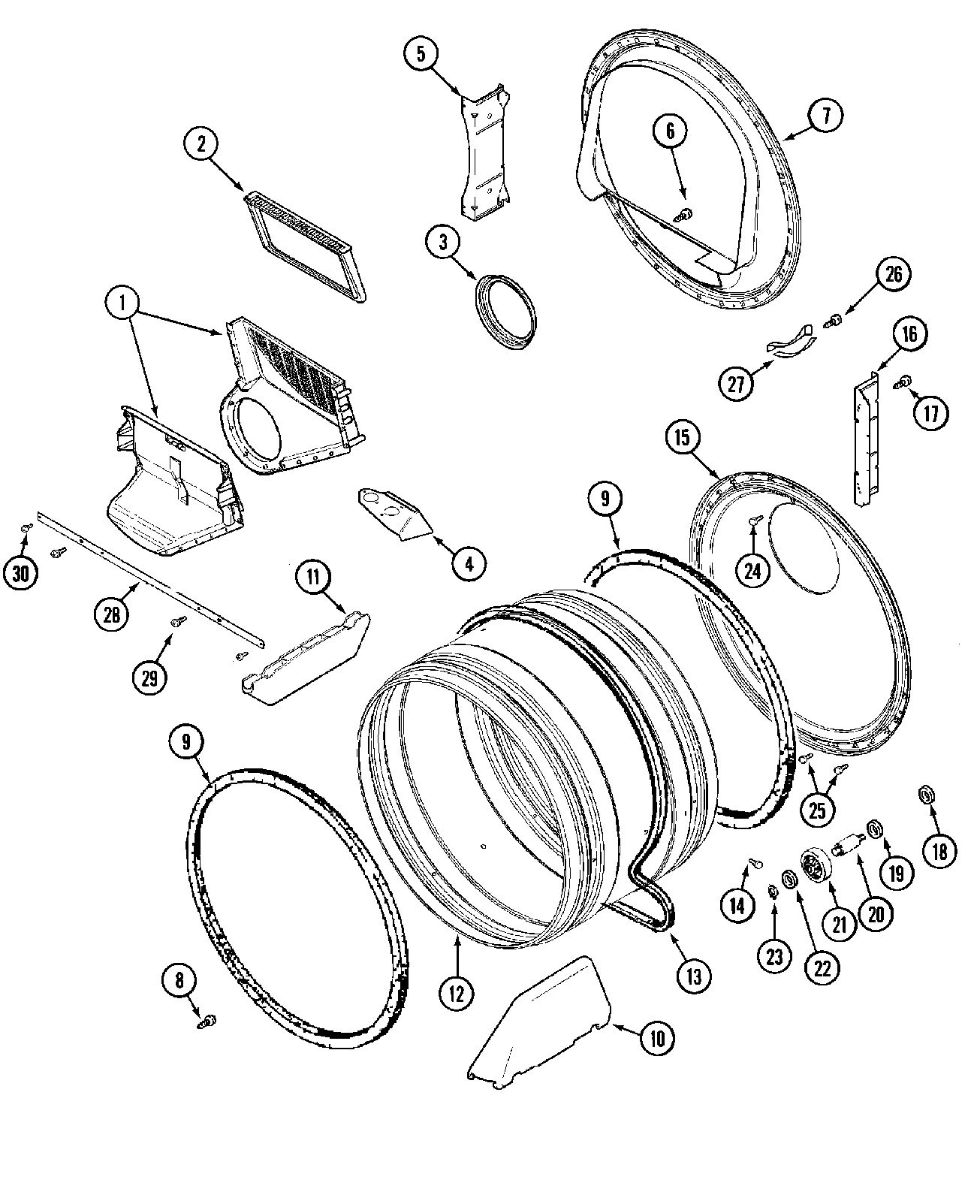

05 - TUMBLER
Common parts from model Whirlpool MUE15MNAYW ELECTRIC DRYER
001
DOOR, OUTER (WHT) WPL 33002079 Contact Us For Availability
001
CABINET, ASSY. (WHT-AS PK) WPL 33002626 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 33002070 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001995 Contact Us For Availability
001
(WHT) WPL 33002058 Contact Us For Availability
001
BACKUP, STRAIN RELIEF WPL 33002062 Contact Us For Availability
001
COVER, TERMINAL WPL Y314174 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
002
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
003
PANEL, CONTROL (WHT) WPL 33002071 Contact Us For Availability
003
SCREW, TOP COVER WPL 22001883 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
003
SEAL, BLOWER WPL 33002082 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
(RT) WPL 33001999 Contact Us For Availability
004
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
DOOR, INNER (WHT) WPL 33002080 Contact Us For Availability
005
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
LAMP, CONTROL PANEL WPL 204075 Contact Us For Availability
006
(CAN) WPL 33002059 Contact Us For Availability
007
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
007
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
008
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT WPL 33001306 Contact Us For Availability
008
WIRE, THERMOSTAT JUMPER WPL 33002083 Contact Us For Availability
008
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
009
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
009
TIMER RPR WPL Y307296 Contact Us For Availability
010
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
010
STRAP, GROUND WPL Y312184 Contact Us For Availability
011
NUT, PUSH TO START SWITCH WPL Y312706 Contact Us For Availability
012
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
NAMEPLATE WPL 33001711 Contact Us For Availability
013
SCREW, FRONT PANEL WPL 33002051 Contact Us For Availability
013
PANEL, FRONT (WHT-UPR) WPL 33002081 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
015
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
016
SUPPORT, BACK WPL NLA Contact Us For Availability
016
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
016
SKIRT, DIAL WPL 33001500 Contact Us For Availability
017
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
018
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
018
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
019
SEAL, SHROUD WPL 33001767 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
020
GROMMET WPL 33002157 Contact Us For Availability
020
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
020
KNOB, CYCLE SELECTOR WPL 205663 Contact Us For Availability
021
NUT, PUSH TO START SWITCH WPL Y312702 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
PANEL, ACCESS (WHT) WPL 33002072 Contact Us For Availability
024
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
025
WIRE HARNESS, MAIN (UPR) WPL 33002076 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
028
SCREW, MOTOR SUPPORT WPL Y313561 Contact Us For Availability
028
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
029
BASE (UPR) WPL 33002041 Contact Us For Availability
029
FASTENER, PUSH WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS WPL 33002050 Contact Us For Availability
029
BASE (UPR) WPL 33002467 Contact Us For Availability
029
BASE, (LWR) WPL 33002622 Contact Us For Availability
029
BASE, (UPR) WPL 33002623 Contact Us For Availability
029
SCREW, BRACE WPL 33001768 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER WPL 315218 Contact Us For Availability
033
TRANSFORMER WPL 33001205 Contact Us For Availability
034
CLIP, LOWER FRO WPL 22002239 Contact Us For Availability
034
WPL 22002244 WPL 22002244 Contact Us For Availability
034
WPL 33002042 WPL 33002042 Contact Us For Availability
034
WPL 33002043 WPL 33002043 Contact Us For Availability
034
WPL Y310632 WPL Y310632 Contact Us For Availability
038
WPL 33002044 WPL 33002044 Contact Us For Availability
× ![]()
