Model Whirlpool MTB2154ARW REFRIGERATOR – Common Parts & Diagrams

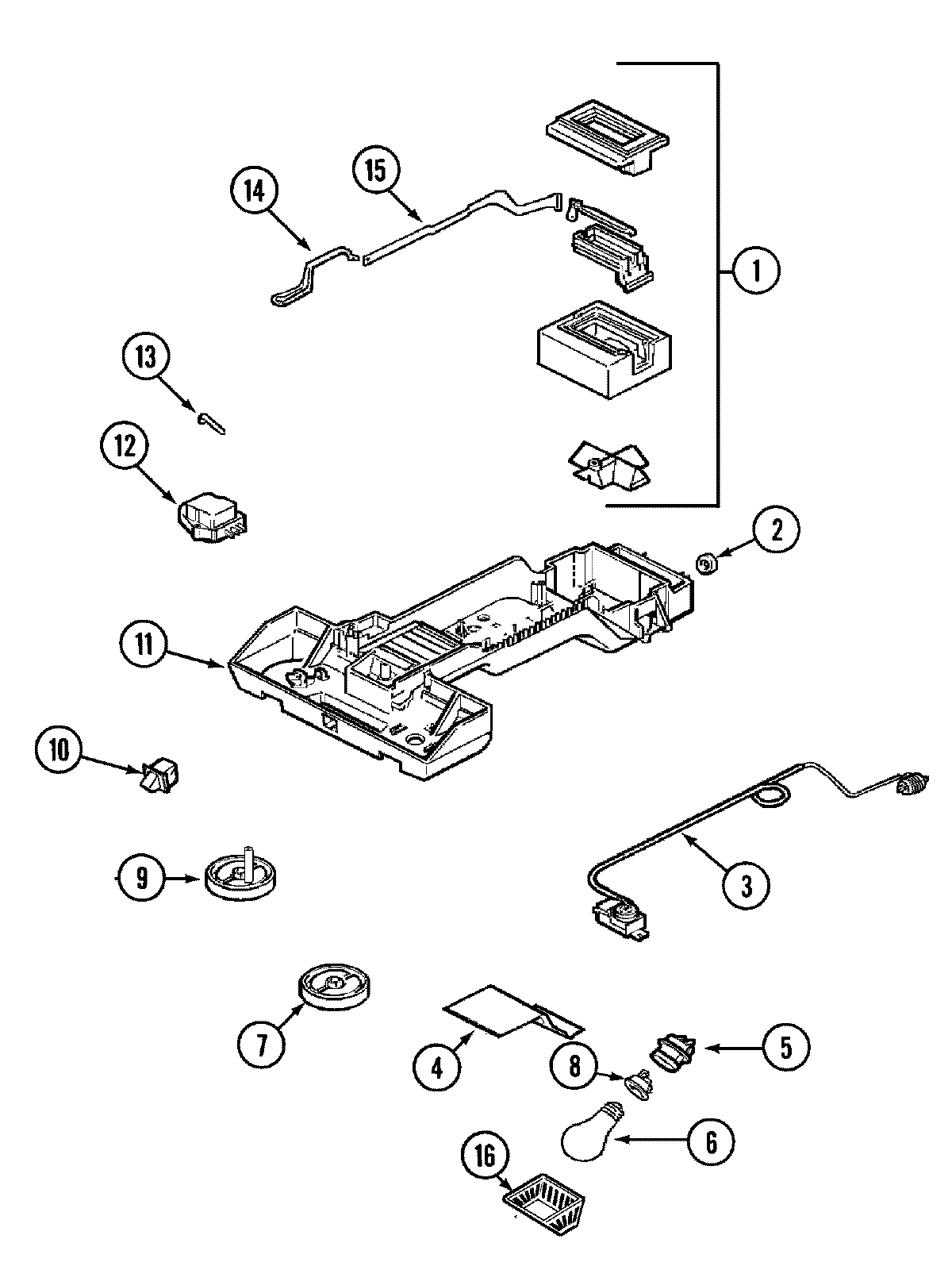

02 - CONTROLS

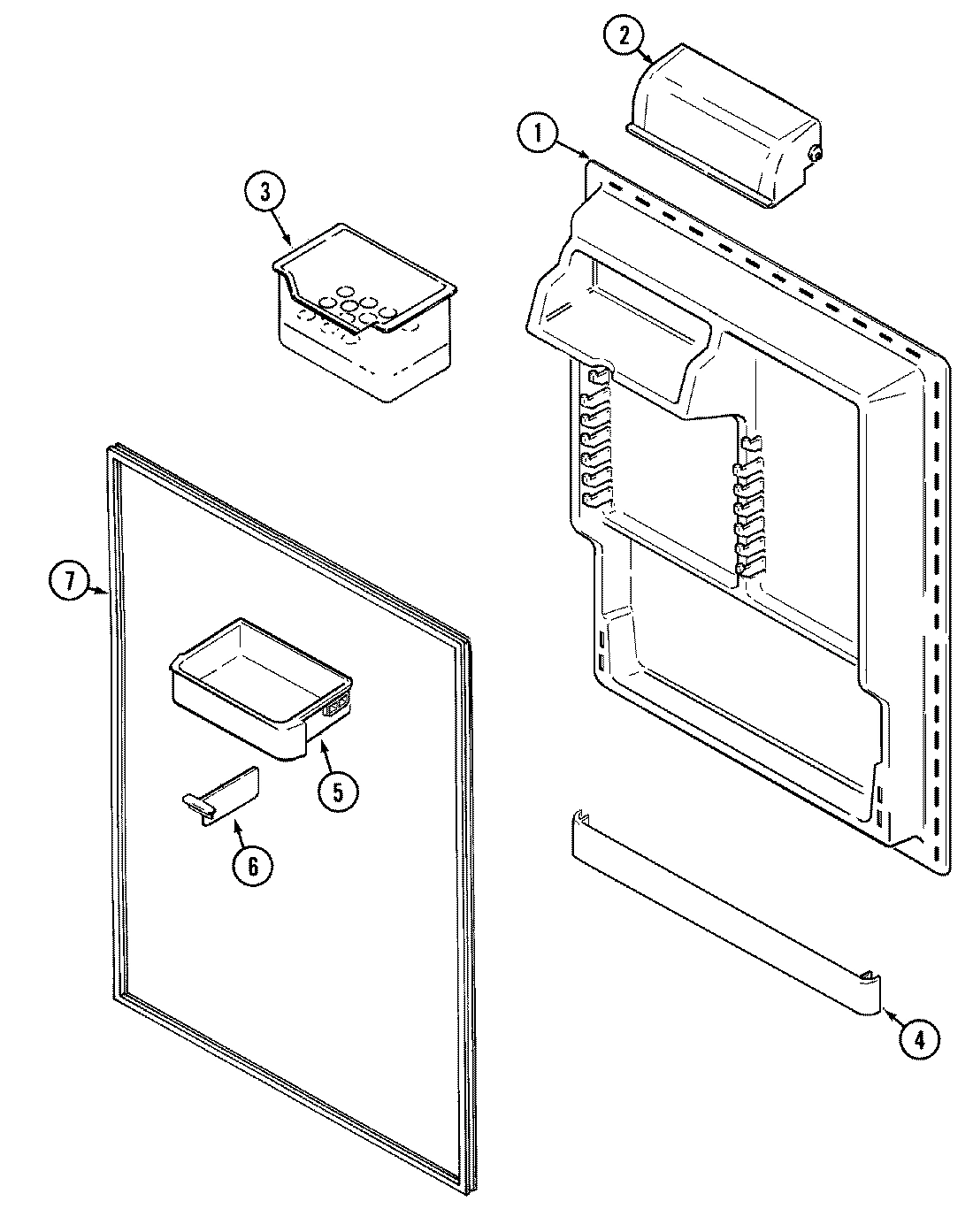

06 - FRESH FOOD INNER DOOR

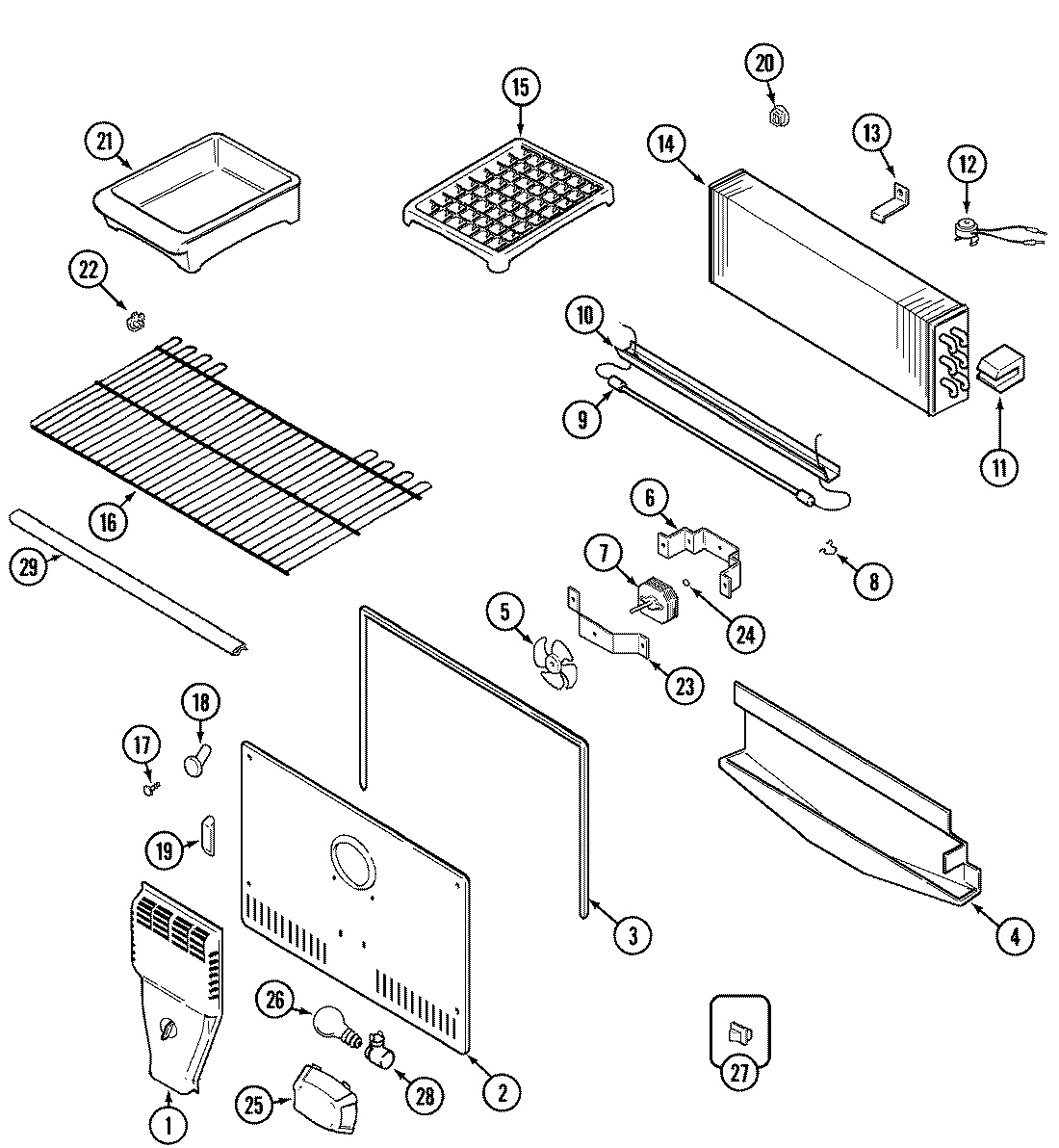

03 - FREEZER COMPARTMENT

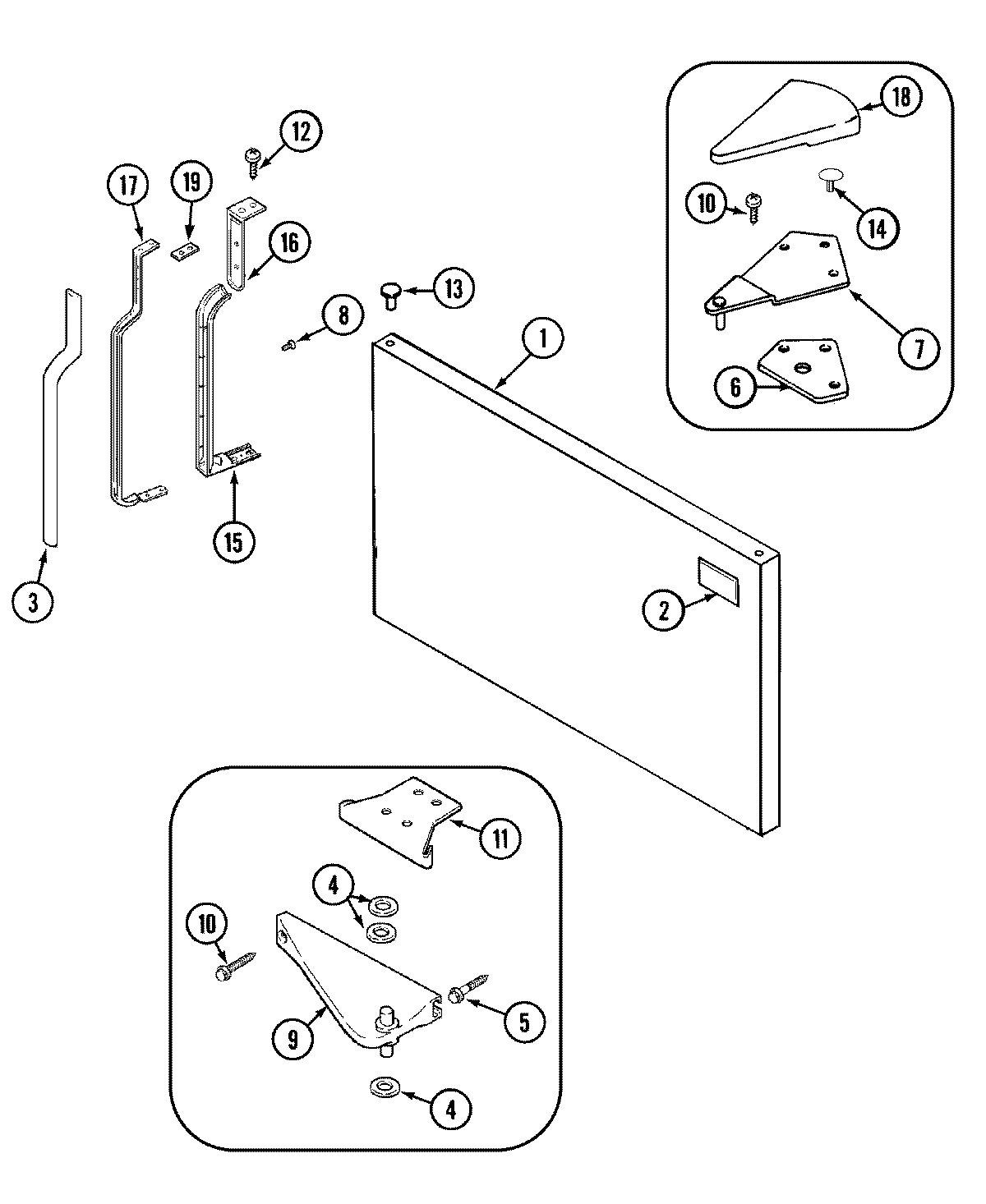

05 - FREEZER OUTER DOOR

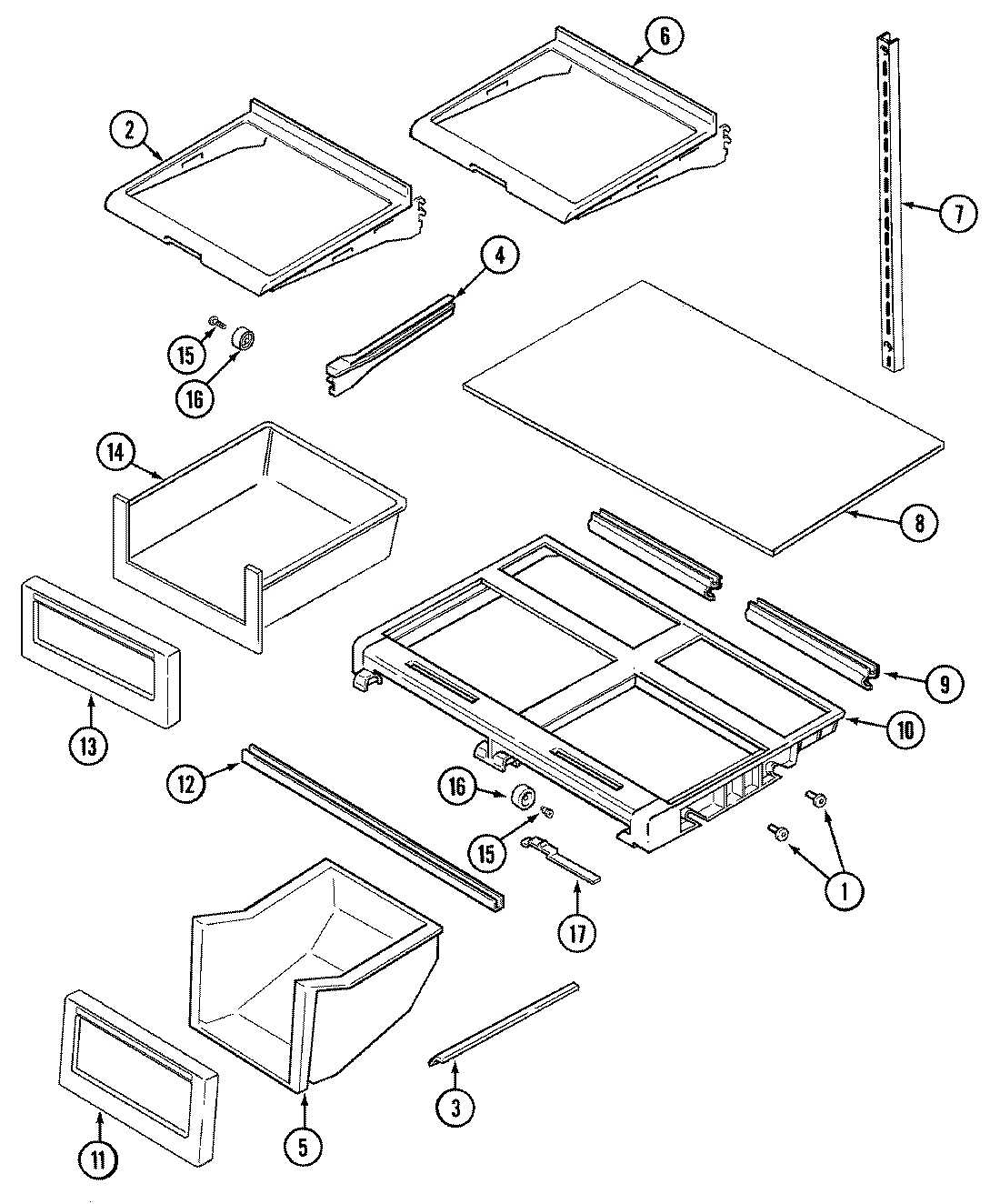

09 - SHELVES & ACCESSORIES

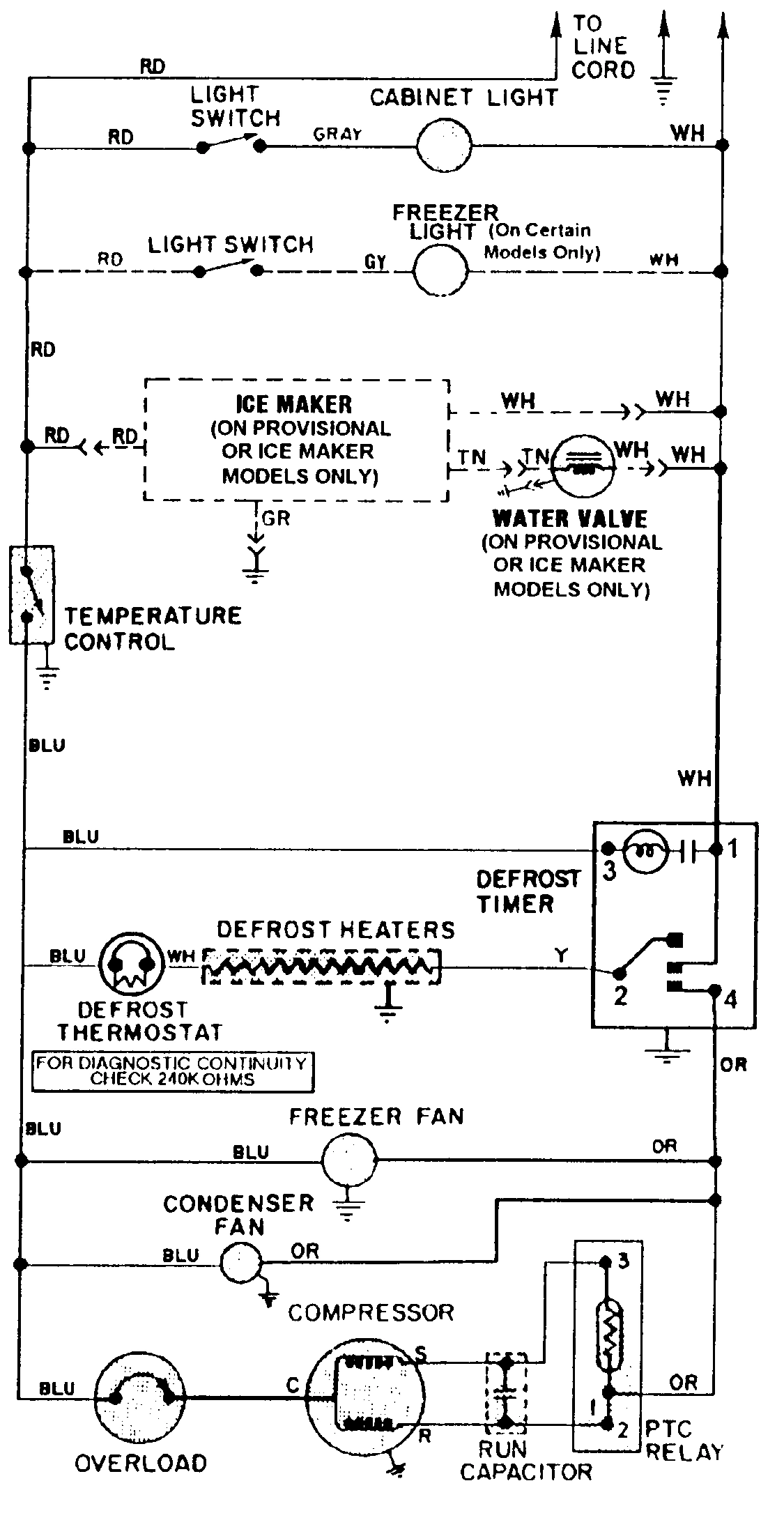

10 - WIRING INFORMATION

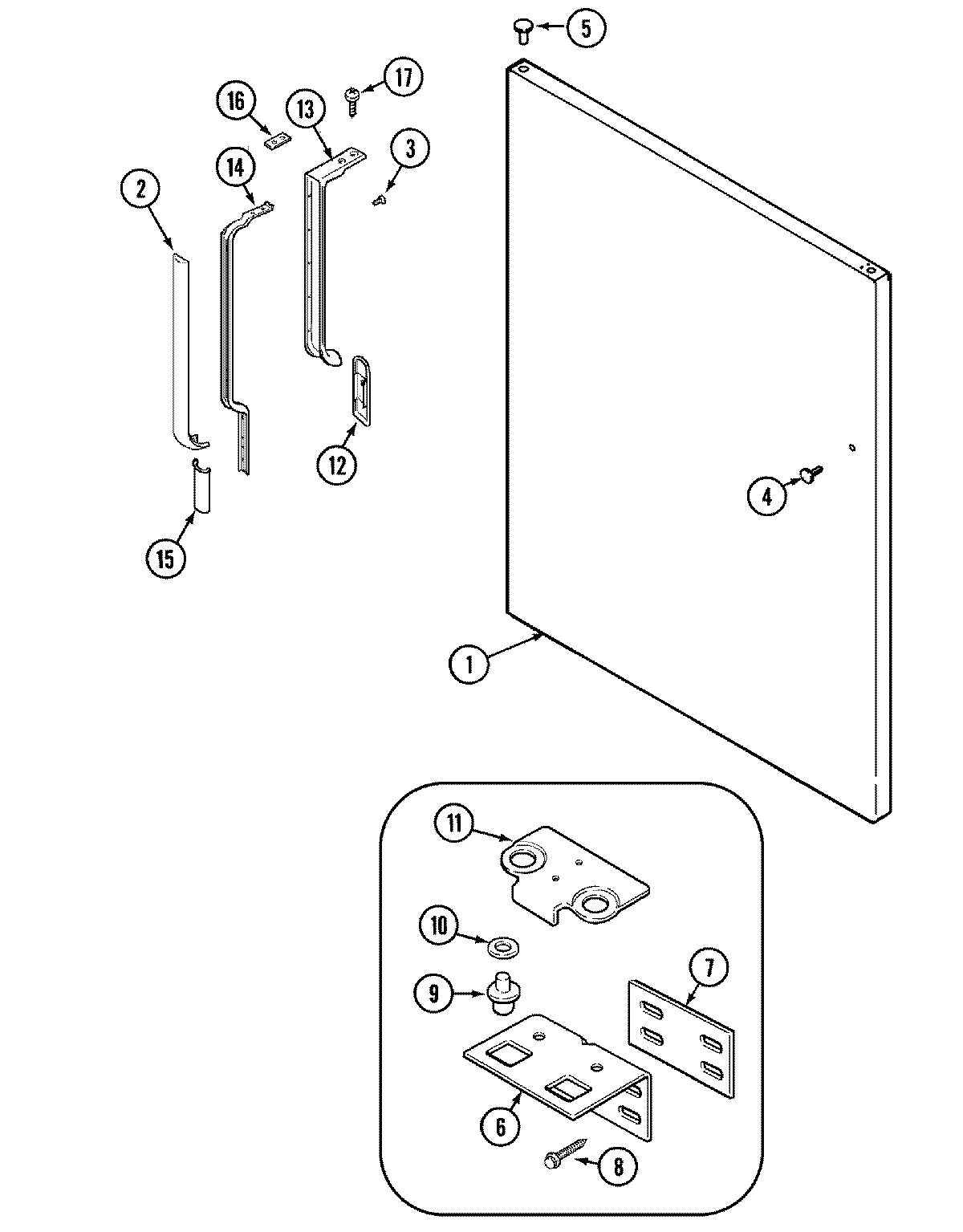

07 - FRESH FOOD OUTER DOOR

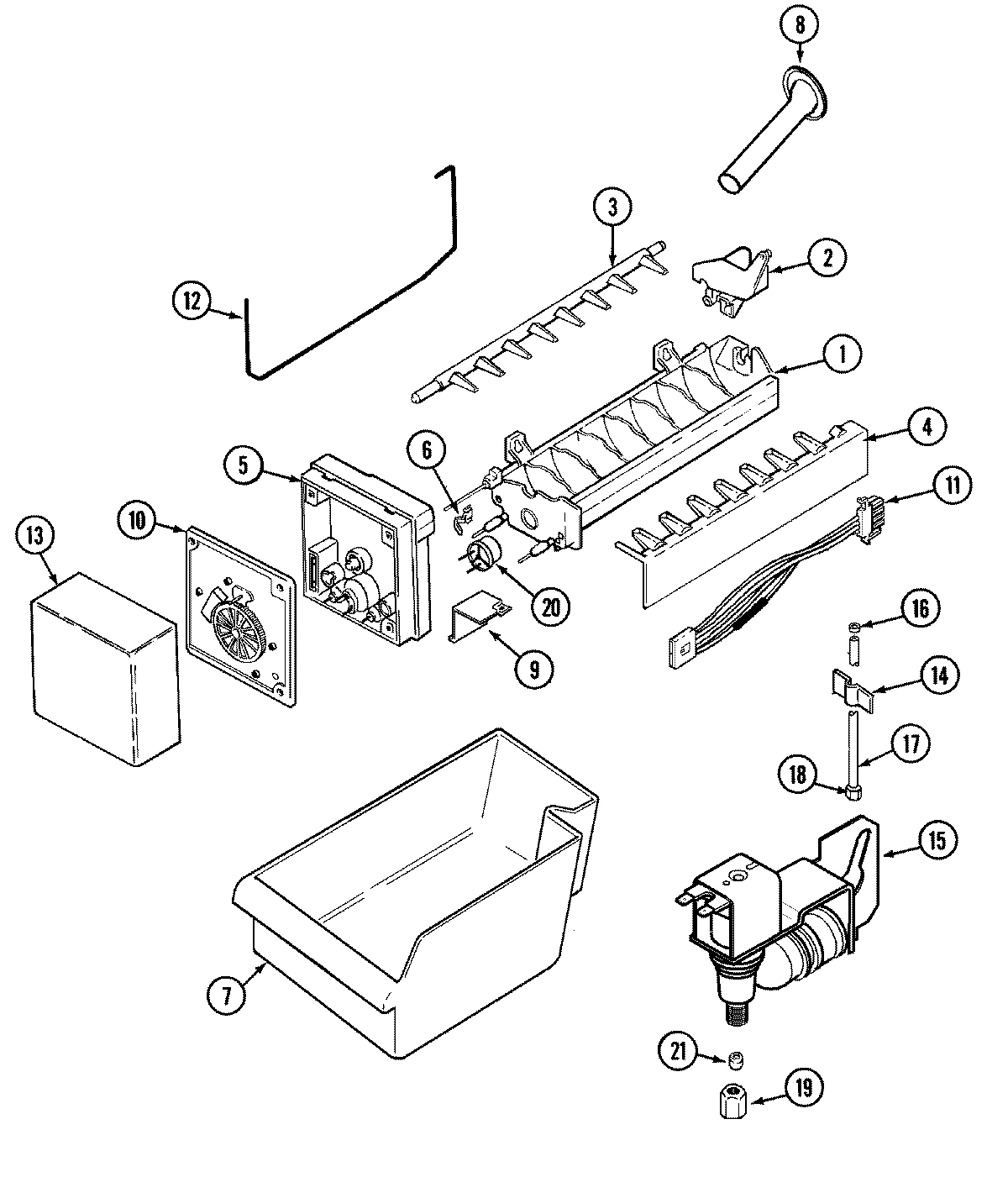

08 - OPTIONAL ICE MAKER KIT-UKI1000AXX

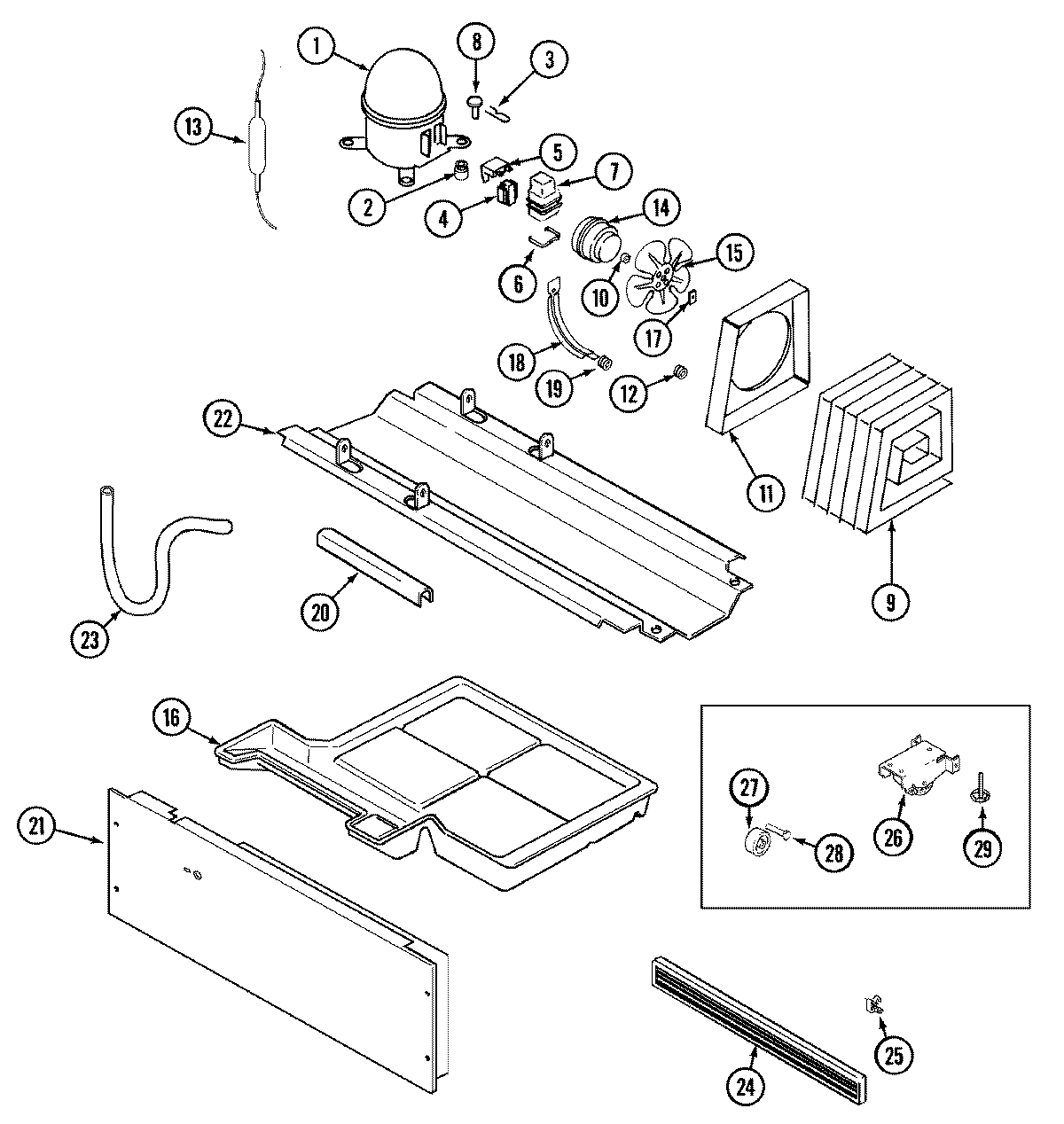

01 - COMPRESSOR

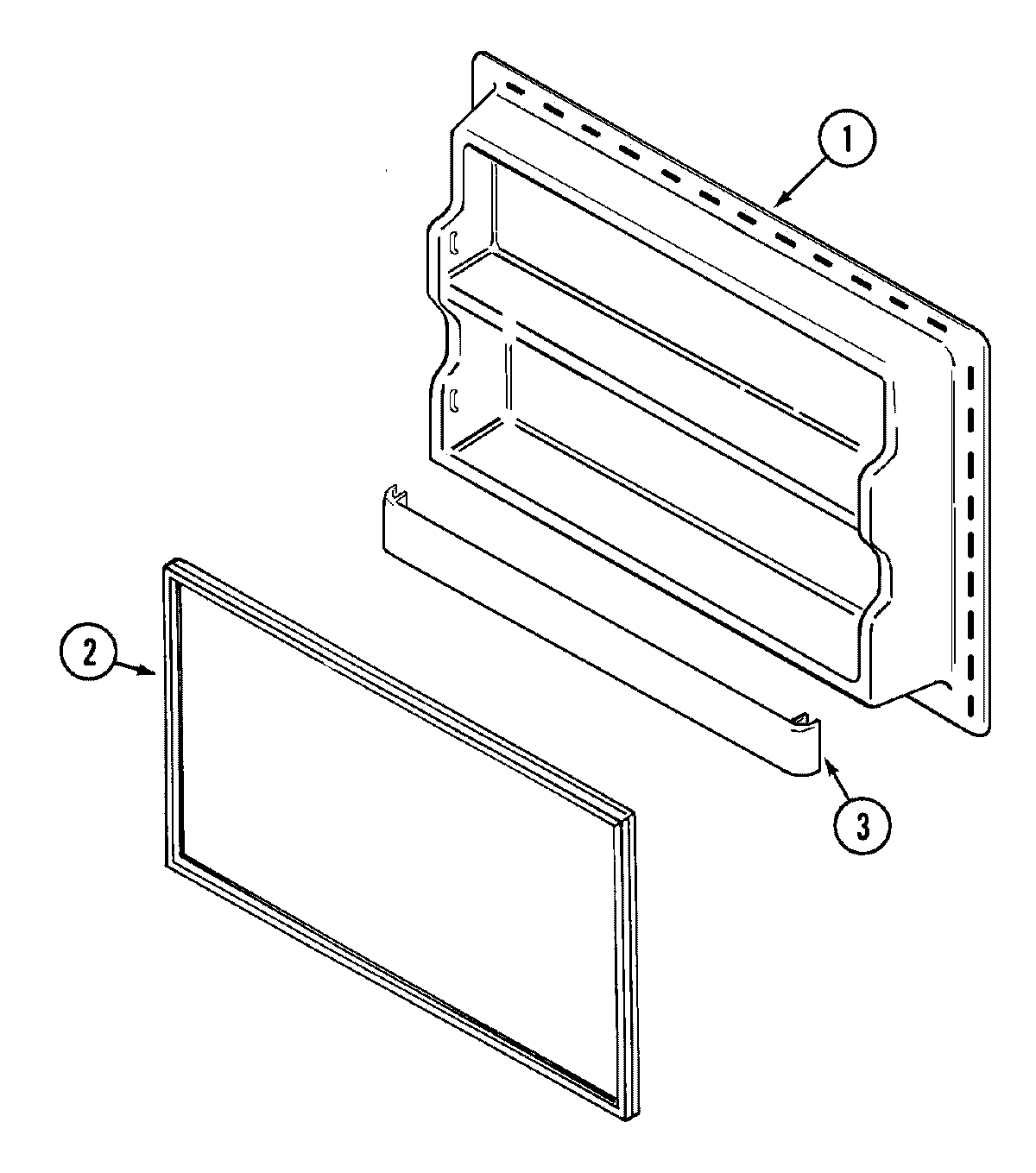

04 - FREEZER INNER DOOR
Common parts from model Whirlpool MTB2154ARW REFRIGERATOR
1
LINER, F.F. DOOR WPL 61002592 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
TUNNEL, AIR WPL 61002205 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61002552 Contact Us For Availability
1
SCREW WPL 4000171 Contact Us For Availability
1
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61002546 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61002556 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002601 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
DOOR, DAIRY WPL 61002593 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002627 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 61002164 Contact Us For Availability
2
SHELF, MEAT WPL 61002675 Contact Us For Availability
2
INSERT, HANDLE (WHT) WPL 61002146 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
TRAY, EGG WPL 672152 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002419 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002539 Contact Us For Availability
3
COVER, HANDLE (WHT) WPL 61002209 Contact Us For Availability
3
SCREW WPL 6527544 Contact Us For Availability
3
SEAL, SIDE WPL 61002312 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
FRONT, PICK-OFF WPL 61002603 Contact Us For Availability
4
TRAY, DRIP WPL 61002541 Contact Us For Availability
4
PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability
4
RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability
4
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
SHELF, PICK-OFF WPL 61002595 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
5
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
6
ORGANIZER, SHELF WPL 61002274 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
6
SHELF, SPILLPROOF WPL 61002677 Contact Us For Availability
6
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 61002620 Contact Us For Availability
7
HINGE, UPPER WPL 61001971 Contact Us For Availability
7
SCREW WPL 4000221 Contact Us For Availability
7
SCREW WPL 40003728 Contact Us For Availability
7
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
7
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
9
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
9
SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
COIL, CONDENSER WPL 61002048 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61002543 Contact Us For Availability
10
SHELF, CRISPER WPL 61002575 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
11
HOUSING, CONTROL WPL 61001997 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability
11
FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability
11
FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
SUPPORT, CRISPER PAN WPL 61002535 Contact Us For Availability
12
BASE, EXTENSION WPL 61002148 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
13
HANDLE (WHT) WPL 61002149 Contact Us For Availability
13
FRONT, MEAT PAN WPL 61002676 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
14
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
14
PAN, MEAT WPL 61002581 Contact Us For Availability
14
FRAME, HANDLE WPL 61002151 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
15
SCREW, ROLLER WPL 61002308 Contact Us For Availability
15
TRIM, HANDLE EXT. (WHT) WPL 61002152 Contact Us For Availability
16
GUARD, LIGHT WPL 61002110 Contact Us For Availability
16
SHELF, FRZ. WPL 61002544 Contact Us For Availability
16
BASE, EXTENSION WPL 61002325 Contact Us For Availability
16
SHIM, HANDLE WPL 679341 Contact Us For Availability
16
ROLLER WPL 61002307 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
17
SCREW WPL 61001875 Contact Us For Availability
17
FRAME, HANDLE WPL 61002326 Contact Us For Availability
17
SLIDE, CONTROL WPL 61002310 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
18
COVER, UPPER HINGE (WHT) WPL 61002076 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
21
PAN, ICE WPL 61002177 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61002518 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
22
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
22
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002519 Contact Us For Availability
23
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
24
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
24
KICKPLATE W/CLIPS (WHT) WPL 61002536 Contact Us For Availability
25
SHIELD, LIGHT WPL 61002272 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
26
BULB, LIGHT WPL 319561 Contact Us For Availability
26
SCREW WPL 4000161 Contact Us For Availability
26
WHEEL ASSY. WPL 61001978 Contact Us For Availability
27
SWITCH, LIGHT WPL 669871 Contact Us For Availability
28
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
29
TRIM, FRZ. SHELF WPL 61002678 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
30
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
31
MANUAL, USE & CARE WPL 61002213 Contact Us For Availability
32
WIRE HARNESS, FREEZER WPL 61002545 Contact Us For Availability
32
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002139 Contact Us For Availability
× ![]()
