Model Whirlpool MTB1553ARA REFRIGERATOR – Common Parts & Diagrams

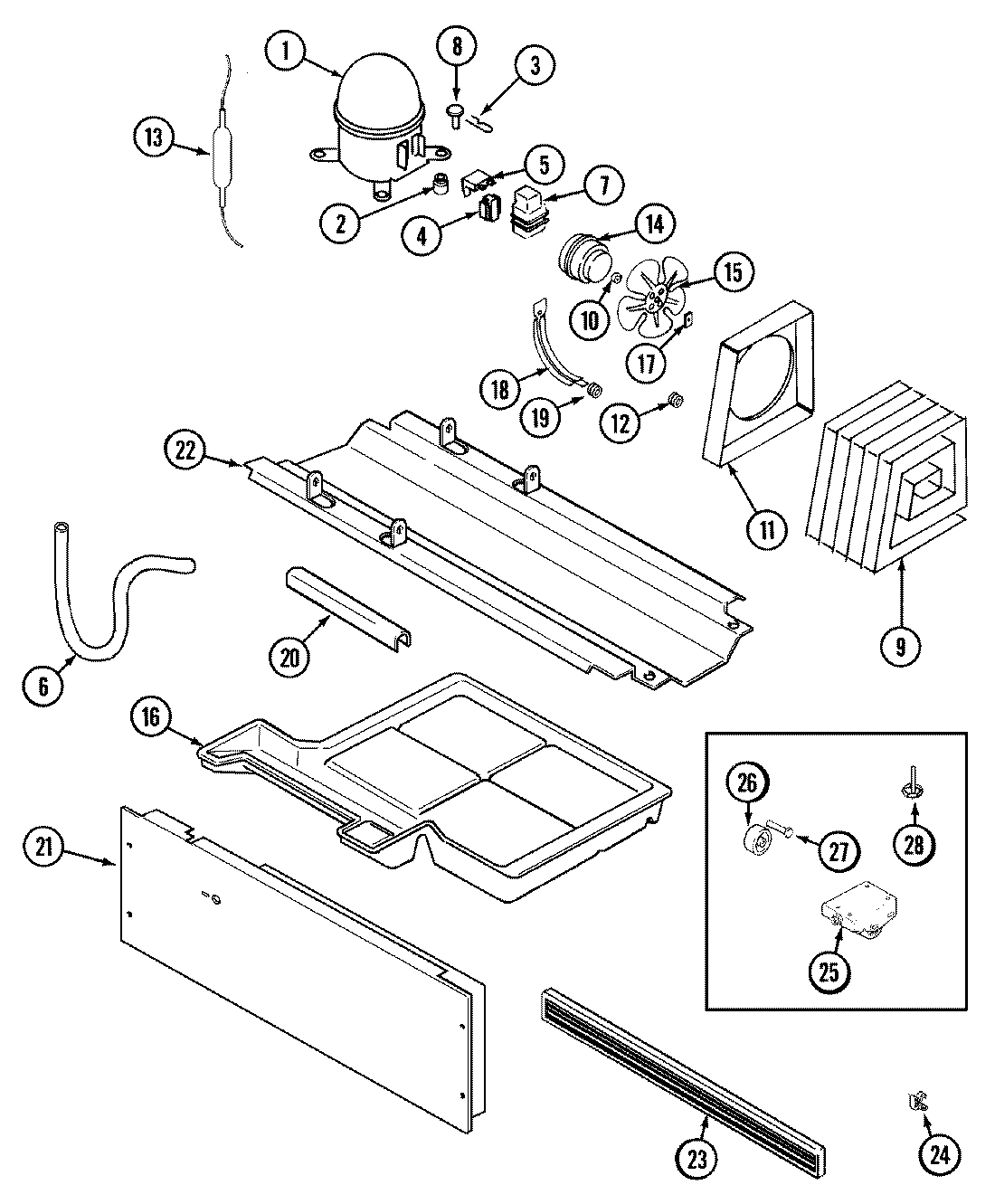

01 - COMPRESSOR

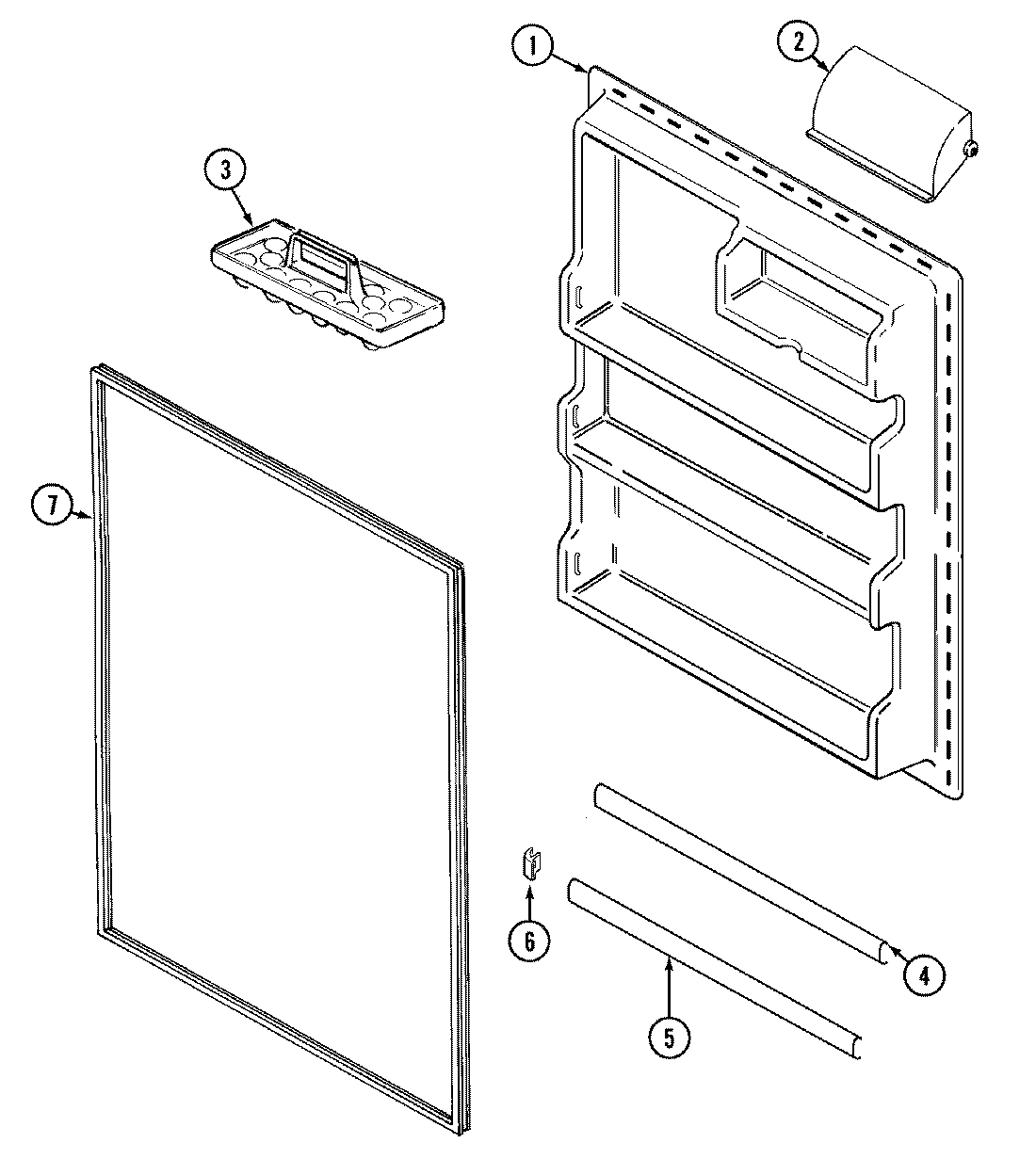

06 - FRESH FOOD INNER DOOR

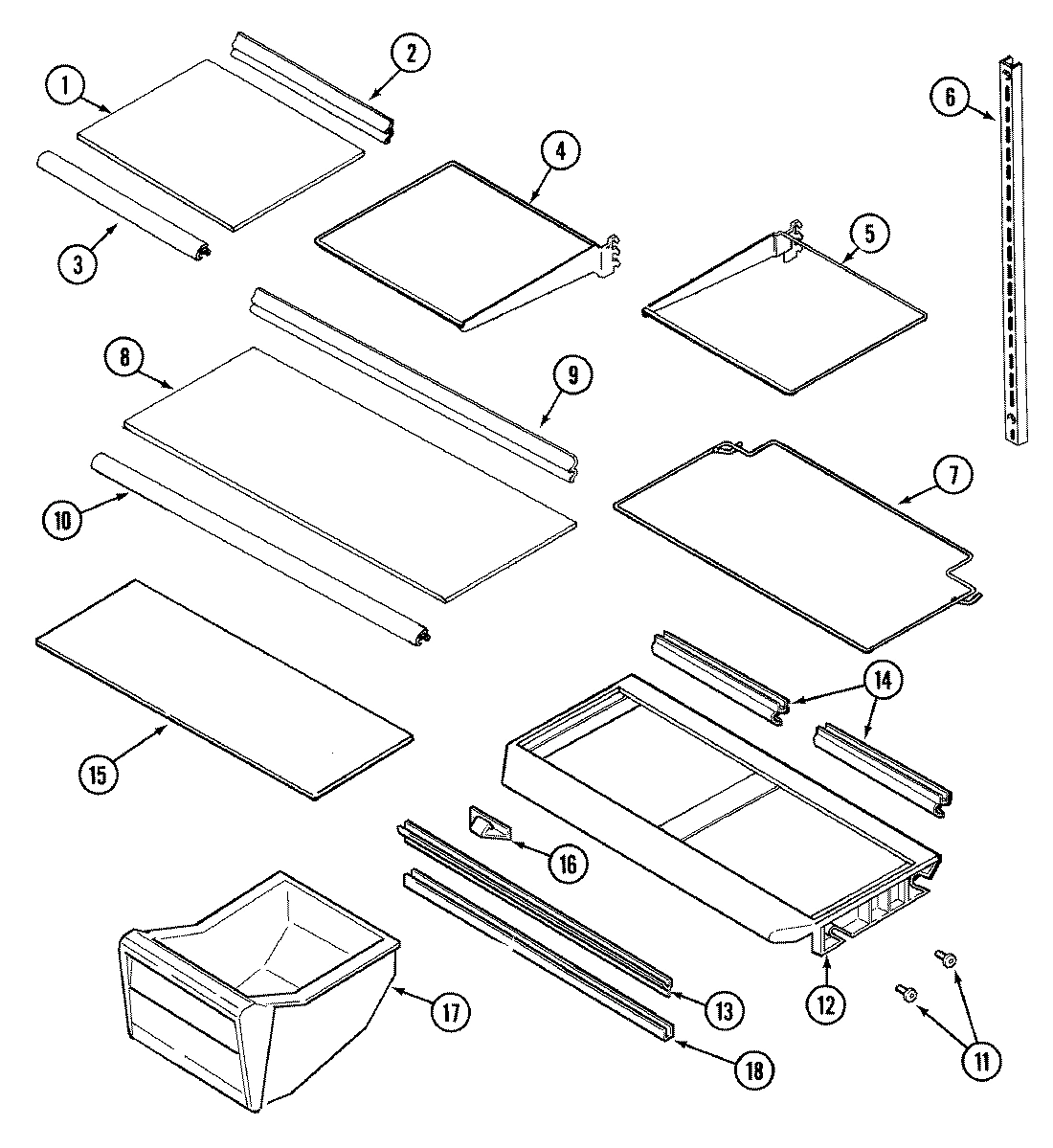

09 - SHELVES & ACCESSORIES

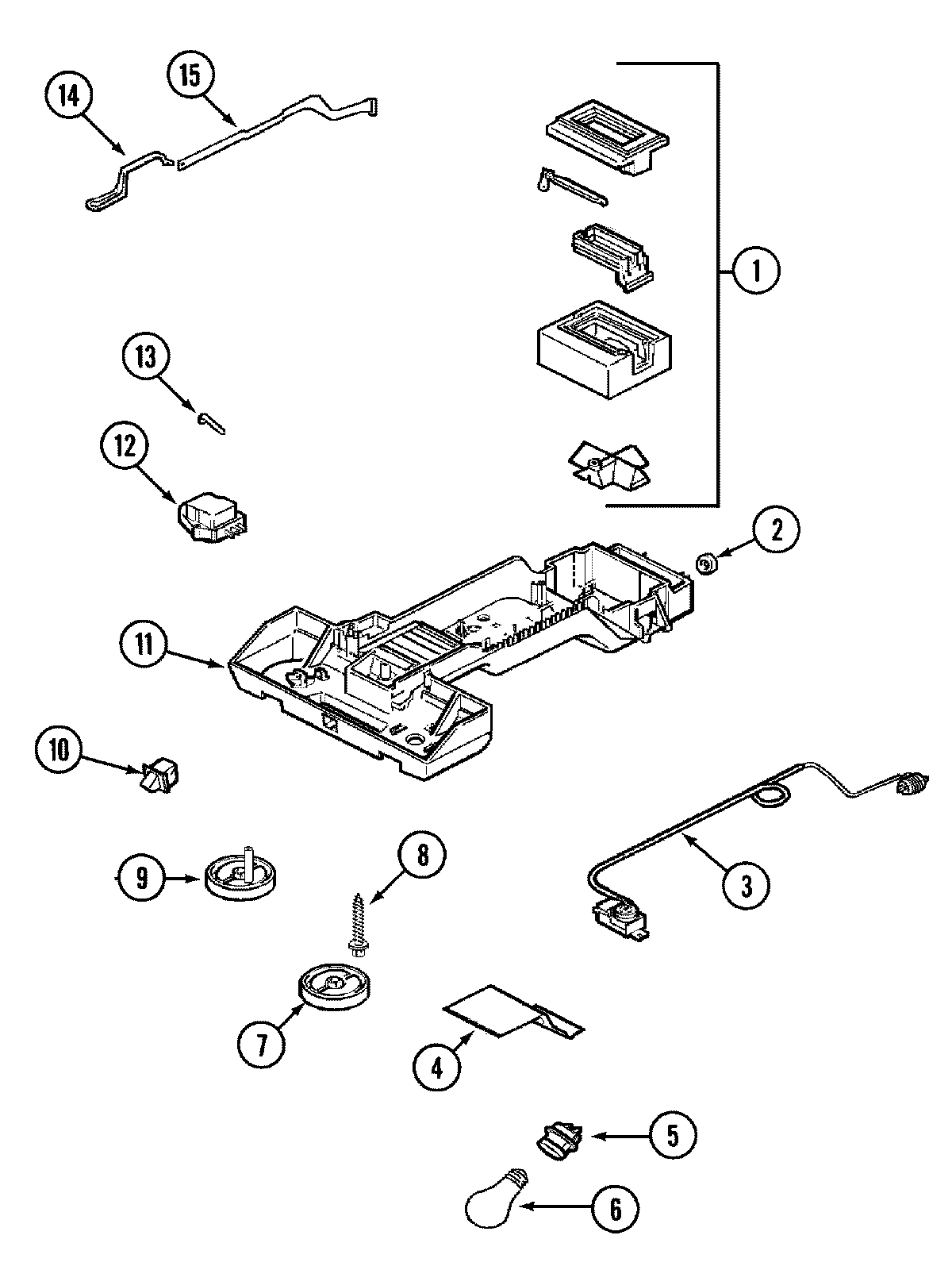

02 - CONTROLS

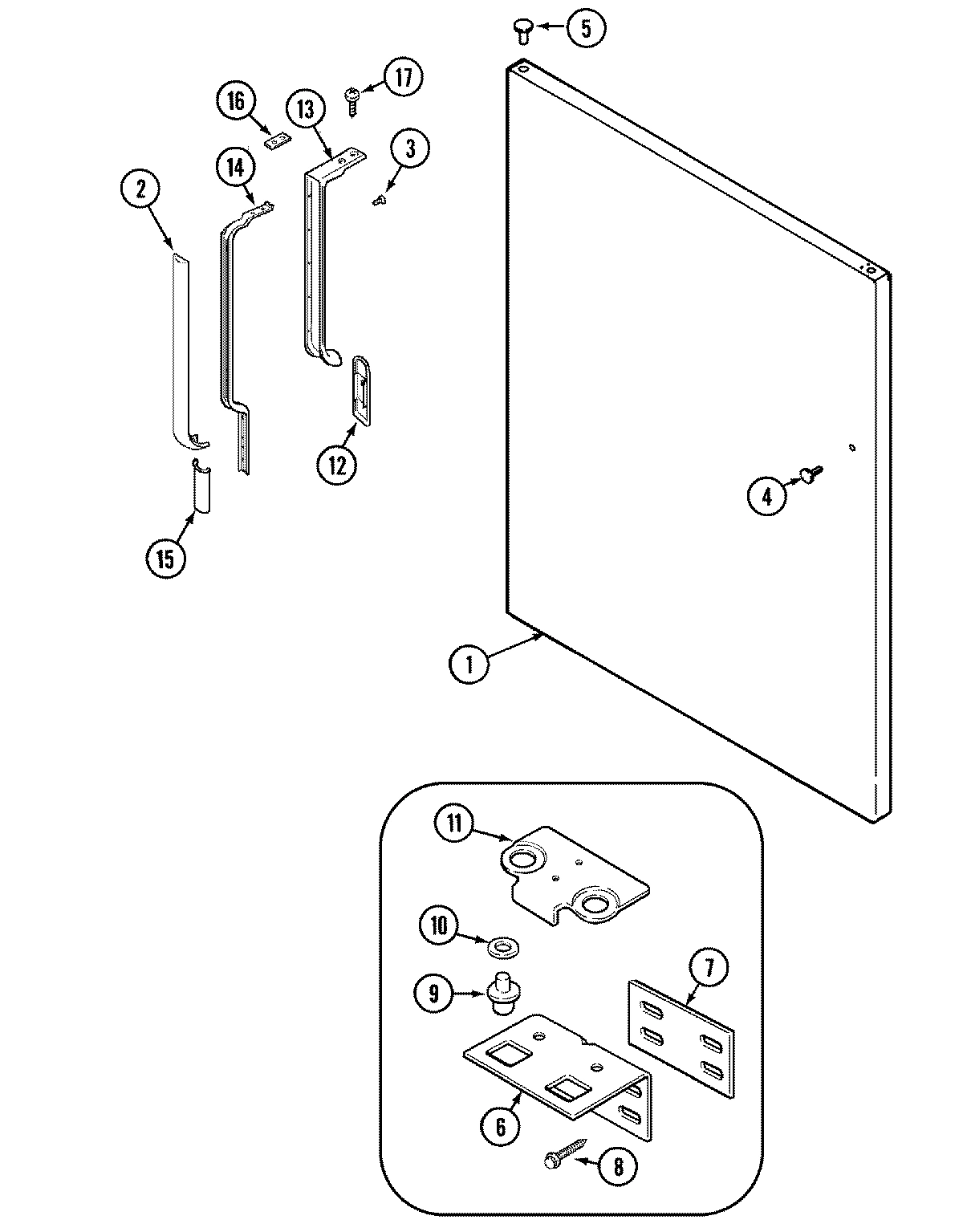

07 - FRESH FOOD OUTER DOOR

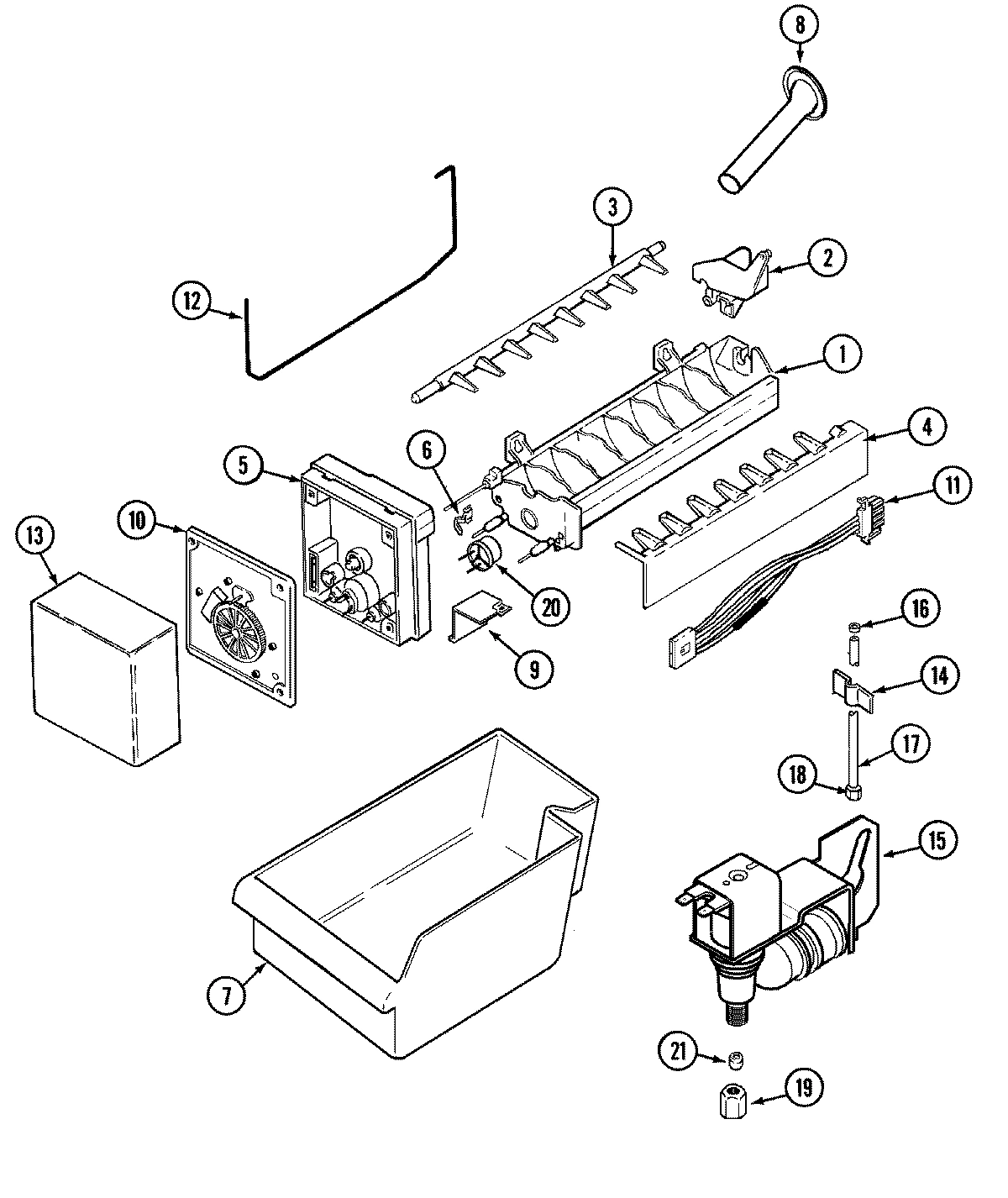

08 - OPTIONAL ICE MAKER KIT-UKI1000AXX

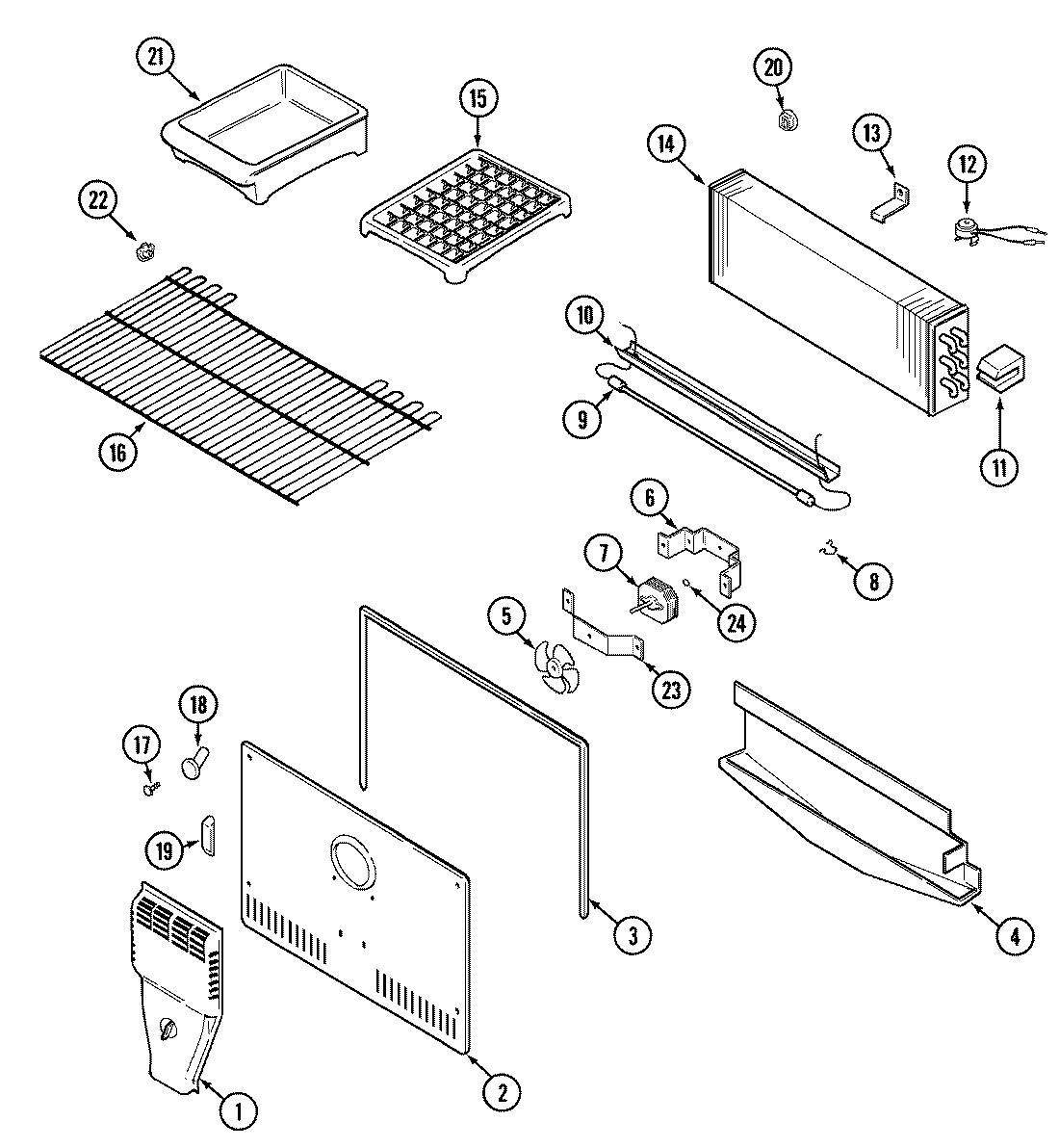

03 - FREEZER COMPARTMENT

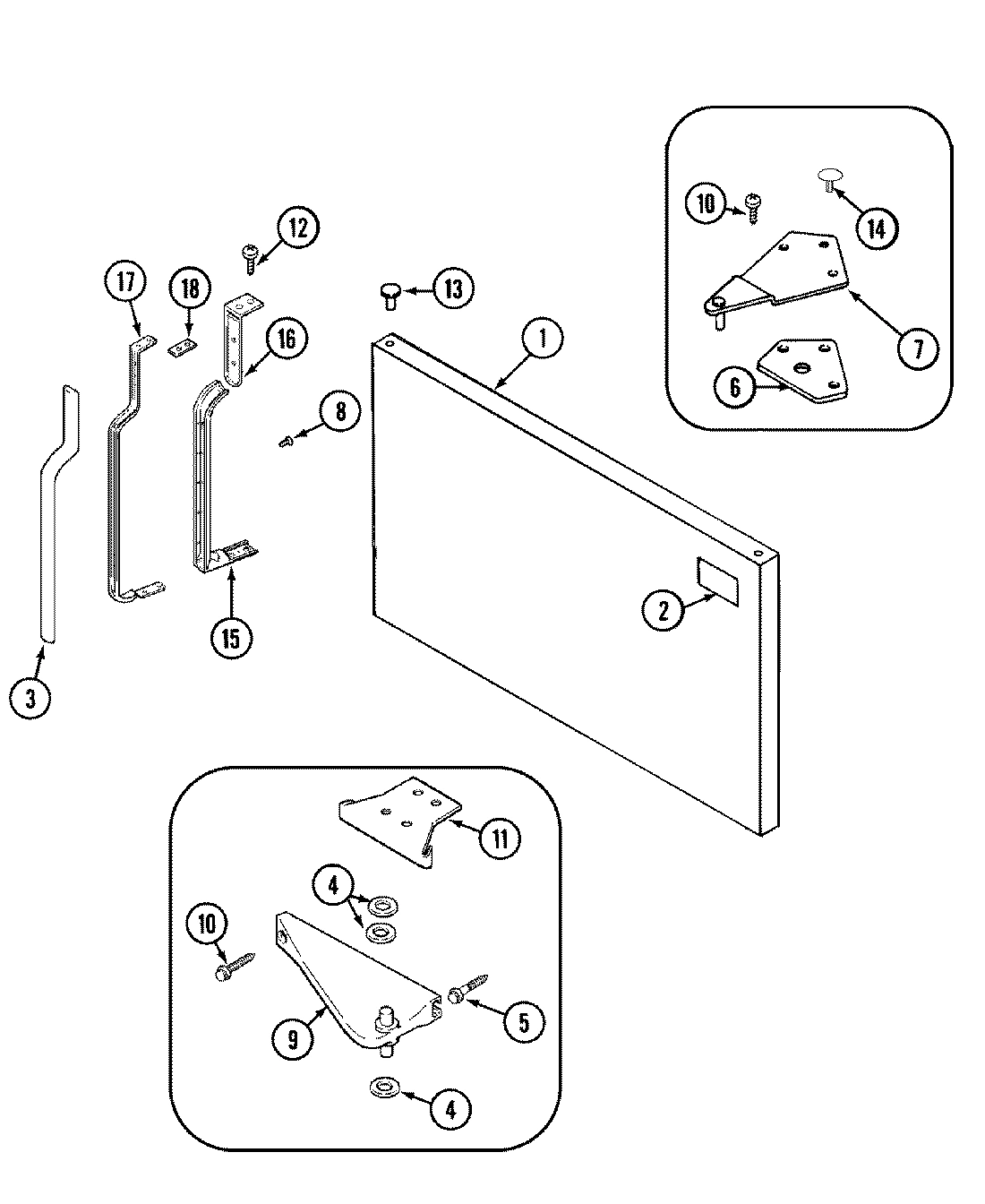

05 - FREEZER OUTER DOOR

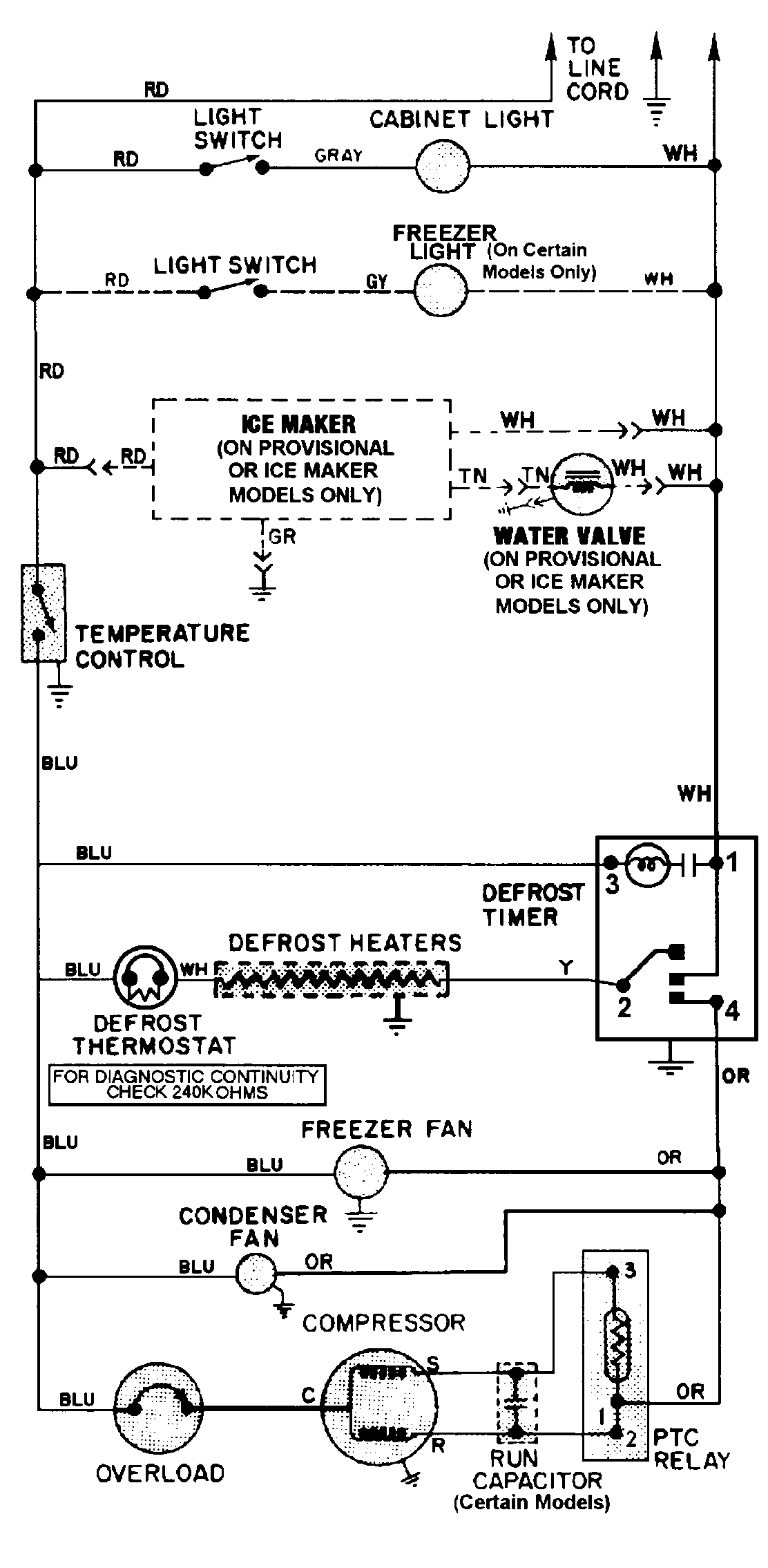

10 - WIRING INFORMATION

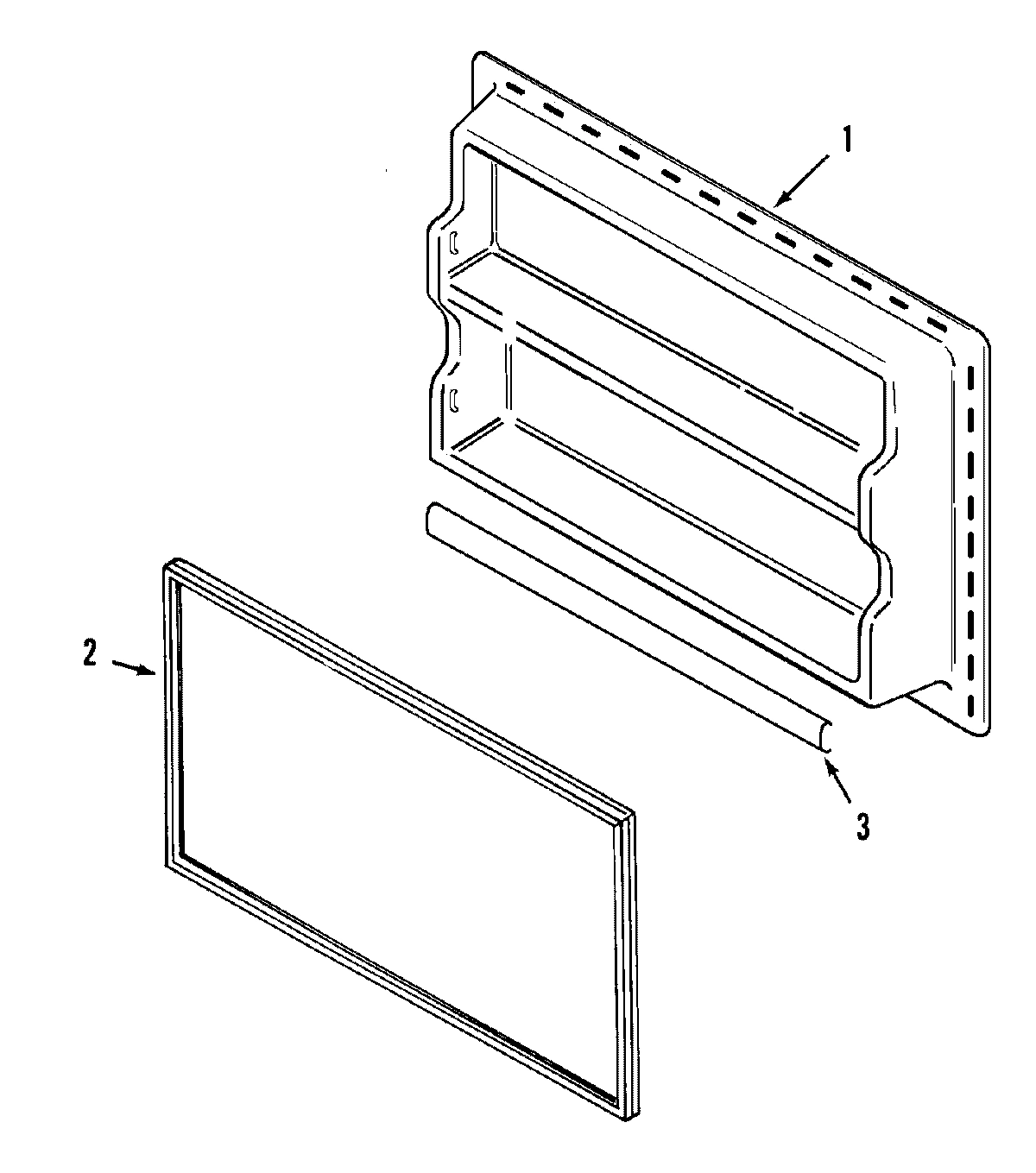

04 - FREEZER INNER DOOR
Common parts from model Whirlpool MTB1553ARA REFRIGERATOR
1
LINER, F.F. DOOR WPL 61001936 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
GLASS, SHELF WPL 61002118 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 61002145 Contact Us For Availability
1
LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TUNNEL, AIR WPL 61001943 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 61002959 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61001927 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61001980 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
DOOR, DAIRY WPL 61002160 Contact Us For Availability
2
TRIM, SHELF (REAR)----NA WPL 61002119 Contact Us For Availability
2
INSERT, HANDLE (ALM) WPL 61002147 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61001938 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 61002165 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
TRAY, EGG WPL 600661 Contact Us For Availability
3
TRIM, SHELF (FRONT) WPL 61002120 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002088 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61001968 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002517 Contact Us For Availability
3
COVER, HANDLE (ALM) WPL 61002157 Contact Us For Availability
4
RELAY, START WPL 61004837 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
FRAME, SHELF (LT) WPL 61002121 Contact Us For Availability
4
FRAME, SHELF WPL 61003646 Contact Us For Availability
4
FOIL, BARRIER WPL 61001949 Contact Us For Availability
4
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TRAY, DRIP WPL 61002015 Contact Us For Availability
4
TRAY, DRIP WPL 61004830 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
5
OVERLOAD WPL 61003672 Contact Us For Availability
5
FRAME, SHELF (RT) WPL 61002122 Contact Us For Availability
5
FRAME, SHELF WPL 61003061 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
6
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, SHELF SUPPORT WPL 61002123 Contact Us For Availability
6
HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
7
SEAL, F.F. DOOR (WHT) WPL 61001979 Contact Us For Availability
7
FRAME, SHELF WPL 61002124 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
HINGE, UPPER WPL 61001971 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
GLASS, SHELF WPL 61002125 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
SCREW WPL 6527544 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
9
COIL, CONDENSER WPL 61001957 Contact Us For Availability
9
TRIM, SHELF (REAR) WPL 61002126 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
HINGE, CENTER (ALM) WPL 61001921 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
TRIM, SHELF (FRONT) WPL 61002127 Contact Us For Availability
10
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61001956 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
HOUSING, CONTROL WPL 61001997 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
STOP, DOOR (ALM) WPL 61004486 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
SHELF, CRISPER WPL 61002128 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682332 Contact Us For Availability
12
BASE, EXTENSION WPL 61002148 Contact Us For Availability
12
SCREW WPL 61001875 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SEAL, CRISPER (FRONT) WPL 61002129 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (ALM) WPL 61001909 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
SEAL, CRISPER (REAR) WPL 61002130 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
FRAME, HANDLE WPL 61002151 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability
14
PLUG BUTTON, HINGE (ALM) WPL 61001924 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002131 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
15
PLUG BUTTON (ALM) WPL 61001796 Contact Us For Availability
15
HANDLE (ALM) WPL 61002150 Contact Us For Availability
15
TRIM, HANDLE EXT. (ALM) WPL 61002153 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
CONTROL, HUMIDITY WPL 61002132 Contact Us For Availability
16
GUARD, LIGHT WPL 61002110 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
SHELF, FREEZER WPL 61002141 Contact Us For Availability
16
BASE, EXTENSION WPL 61002158 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
PAN, CRISPER WPL 61002172 Contact Us For Availability
17
WIRE HARNESS, CONTROLS WPL 61002173 Contact Us For Availability
17
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
17
FRAME, HANDLE WPL 61002159 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SUPPORT, RAIL WPL 61002133 Contact Us For Availability
18
SHIM, HANDLE WPL 679341 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61001973 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
PAN, ICE WPL 61002177 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002032 Contact Us For Availability
22
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
22
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
23
KICKPLATE W/CLIPS (ALM) WPL 61002698 Contact Us For Availability
23
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
24
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
24
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
25
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
25
WIRE HARNESS, FREEZER WPL 61002236 Contact Us For Availability
25
WIRE HARNESS, FREEZER WPL 61002321 Contact Us For Availability
28
LEG, LEVELING WPL 61002014 Contact Us For Availability
29
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
30
MANUAL, USE & CARE WPL 61002213 Contact Us For Availability
31
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002065 Contact Us For Availability
× ![]()
