Model Maytag MLE24PRAZW1 ELECTRIC DRYER – Common Parts & Diagrams
01 - LOWER CABINET AND FRONT PANEL PARTS
02 - CONTROL PANEL AND SEPARATOR PARTS

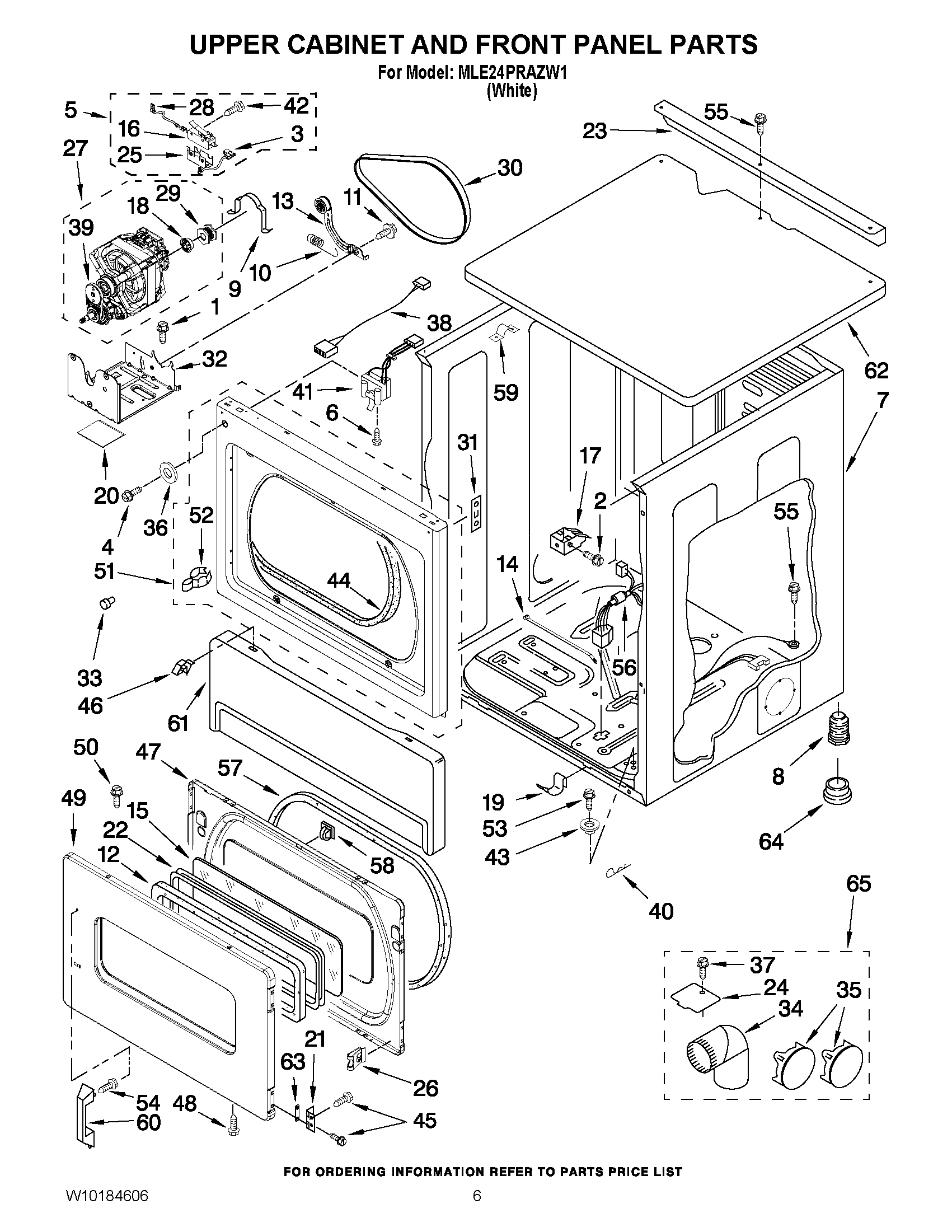

03 - UPPER CABINET AND FRONT PANEL PARTS

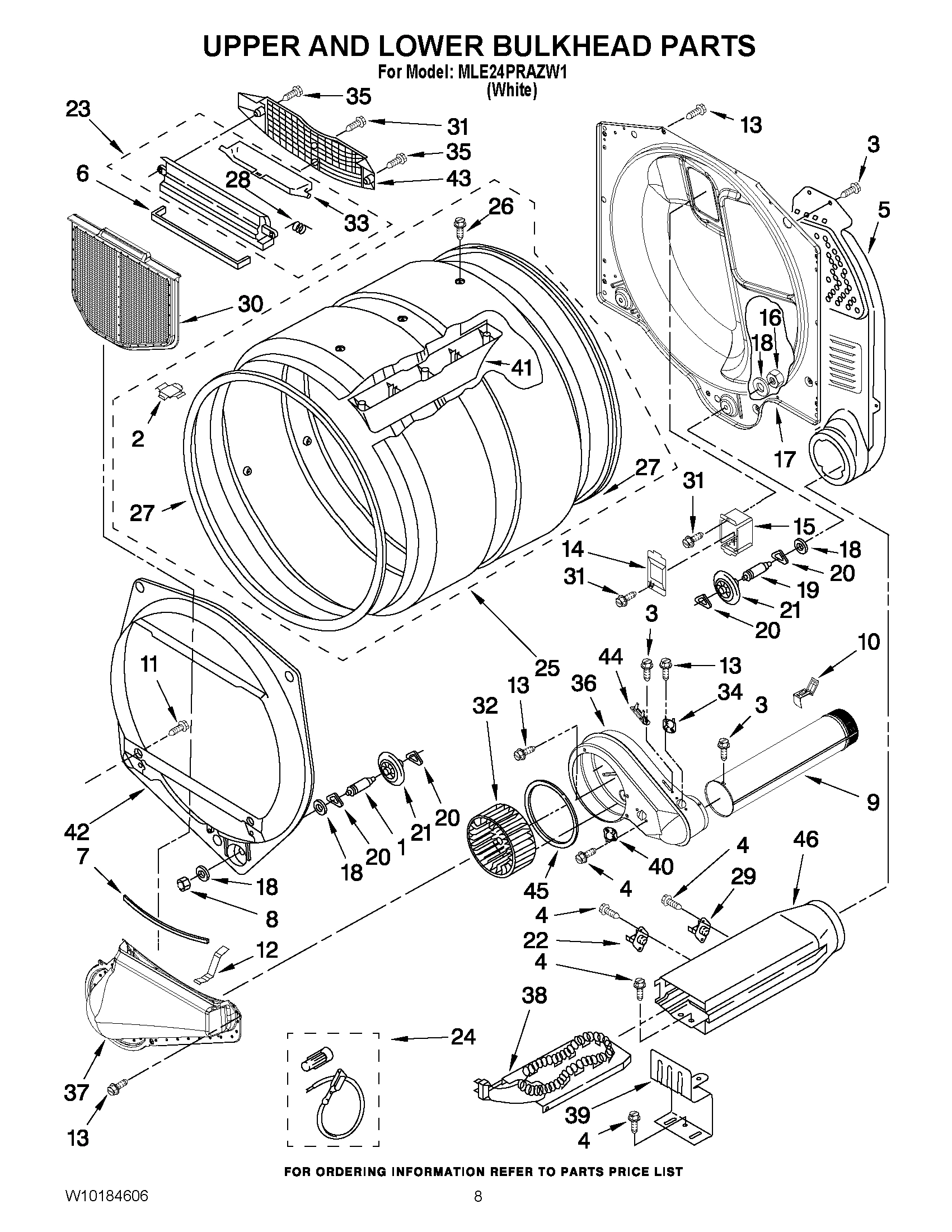

04 - UPPER AND LOWER BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLE24PRAZW1 ELECTRIC DRYER
1
MAY W10135168 MAY W10135168 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS CARD READER MAY W10135291 Contact Us For Availability
1
MAY W10184580 MAY W10184580 Contact Us For Availability
1
MAY W10184606 MAY W10184606 Contact Us For Availability
1
SCREW MAY 3390663 Contact Us For Availability
1
MAY W10169682 MAY W10169682 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
Hex Nut, 3/4-27 MAY W10139762 Contact Us For Availability
2
MAY 8066086 MAY 8066086 Contact Us For Availability
3
MAY 8539892 MAY 8539892 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
SCREW MAY 697776 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
MAY W10155571 MAY W10155571 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY W10133285 MAY W10133285 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
Cabinet, Lower MAY 8310656 Contact Us For Availability
7
MAY 3978859 MAY 3978859 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
Hex-Nut 9/32 - 28 MAY W10177242 Contact Us For Availability
8
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
NUT, 6-32 MAY W10139046 Contact Us For Availability
9
MAY 8066224 MAY 8066224 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
SCREW MAY W10131119 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY W10163677 MAY W10163677 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
12
MAY 3392915 MAY 3392915 Contact Us For Availability
12
Push Button MAY W10131113 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
13
MAY W10344192 MAY W10344192 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
MAY W10135186 MAY W10135186 Contact Us For Availability
14
MAY 8529895 MAY 8529895 Contact Us For Availability
14
MAY W10137769 MAY W10137769 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
15
WINDOW MAY 3392918 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
16
Switch, Broken Belt MAY 8564010 Contact Us For Availability
16
Switch, Service Access MAY W10133280 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
Clip, Front Panel MAY 3391846 Contact Us For Availability
17
MAY W10145157 MAY W10145157 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
BELT, RESTRAIN MAY 3393657 Contact Us For Availability
18
Lock Assembly MAY W10133264 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10212333 MAY W10212333 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY W10212660 MAY W10212660 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
HINGE AND PIN MAY W10279703 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY 3392914 MAY 3392914 Contact Us For Availability
22
SCREW MAY 3400618 Contact Us For Availability
22
Thermostat High Limit MAY 3391914 Contact Us For Availability
23
MAY W10165714 MAY W10165714 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
Housing, Outlet MAY 8563755 Contact Us For Availability
24
PLATE, COVER (BOTTOM EXHAUST) MAY 3394331 Contact Us For Availability
24
MAY W10196677 MAY W10196677 Contact Us For Availability
24
Terminal Wire Kit (For Heater Element Wiring MAY 279457 Contact Us For Availability
25
MAY 8564011 MAY 8564011 Contact Us For Availability
25
SCREW MAY W10143462 Contact Us For Availability
25
Drum Complete MAY 8318215 Contact Us For Availability
26
MAY 3389249 MAY 3389249 Contact Us For Availability
26
MAY W10133278 MAY W10133278 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MOTOR ASSEMBLY 60 HZ. MAY W10139766 Contact Us For Availability
27
MAY W10130700 MAY W10130700 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
Wire, Belt Switch (To Protector) MAY W10167613 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
MAY 3394341 MAY 3394341 Contact Us For Availability
29
MAY W10239515 MAY W10239515 Contact Us For Availability
29
Thermal-Cutoff (Includes Item. 22) MAY 8318314 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY 3400000 Contact Us For Availability
30
MAY W10049370 MAY W10049370 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
MAY W10163036 MAY W10163036 Contact Us For Availability
31
SCREW MAY 487909 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
TERMINAL BRASS TINNED (3) (INCLUDES ITEM. 35 MAY 279318 Contact Us For Availability
33
MAY 8563758 MAY 8563758 Contact Us For Availability
34
MAY 279731 MAY 279731 Contact Us For Availability
34
Key, Access Door MAY W10140858 Contact Us For Availability
34
THERMOSTAT 140° F CYCLING MAY W10131836 Contact Us For Availability
35
Plug, Multivent MAY 697750 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
SCREW MAY 98445 Contact Us For Availability
36
WASHER MAY 3392186 Contact Us For Availability
36
Locking Cam MAY W10133266 Contact Us For Availability
36
MAY W10135254 MAY W10135254 Contact Us For Availability
37
MAY 488729 MAY 488729 Contact Us For Availability
37
MAY W10192090 MAY W10192090 Contact Us For Availability
37
Lint Duct Assembly MAY 8066168 Contact Us For Availability
38
Jumper, Door Switch MAY 8283298 Contact Us For Availability
38
RELAY-SPST MAY W10133335 Contact Us For Availability
38
Heater Element MAY W10157669 Contact Us For Availability
39
MAY 3405160 MAY 3405160 Contact Us For Availability
39
MAY W10111027 MAY W10111027 Contact Us For Availability
39
MAY 8066099 MAY 8066099 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
Thermostat 155 Electronic MAY W10193019 Contact Us For Availability
41
MAY 3406109 MAY 3406109 Contact Us For Availability
41
Baffle, Drum MAY 697693 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
43
Grille, Outlet MAY 8563756 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
Thermal Fuse MAY 3392519 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
45
MAY 697770 MAY 697770 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
MAY W10205622 MAY W10205622 Contact Us For Availability
48
SCREW MAY 694091 Contact Us For Availability
49
MAY W10205649 MAY W10205649 Contact Us For Availability
50
SCREW MAY 718032 Contact Us For Availability
51
Upper Front Panel MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
Screw, Security (Includes Item. 40) MAY 3400523 Contact Us For Availability
54
Screw MAY 9742177 Contact Us For Availability
56
MAY W10169678 MAY W10169678 Contact Us For Availability
56
MAY W10169676 MAY W10169676 Contact Us For Availability
57
MAY 3390735 MAY 3390735 Contact Us For Availability
58
MAY 3392538 MAY 3392538 Contact Us For Availability
59
Clip MAY 98997 Contact Us For Availability
60
MAY W10213202 MAY W10213202 Contact Us For Availability
61
Panel, Toe (Includes Illus. 33) MAY 697215 Contact Us For Availability
62
Top (Upper) MAY 3389351 Contact Us For Availability
63
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
64
MAY 3391943 MAY 3391943 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
WINDOW PACK. INCLUDES ILLUS. 12 & 15 MAY 3396122 Contact Us For Availability
NI
MAY 285875 MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 350938 MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
