Model Maytag MHE15MNAYW ELECTRIC DRYER – Common Parts &amp; Diagrams

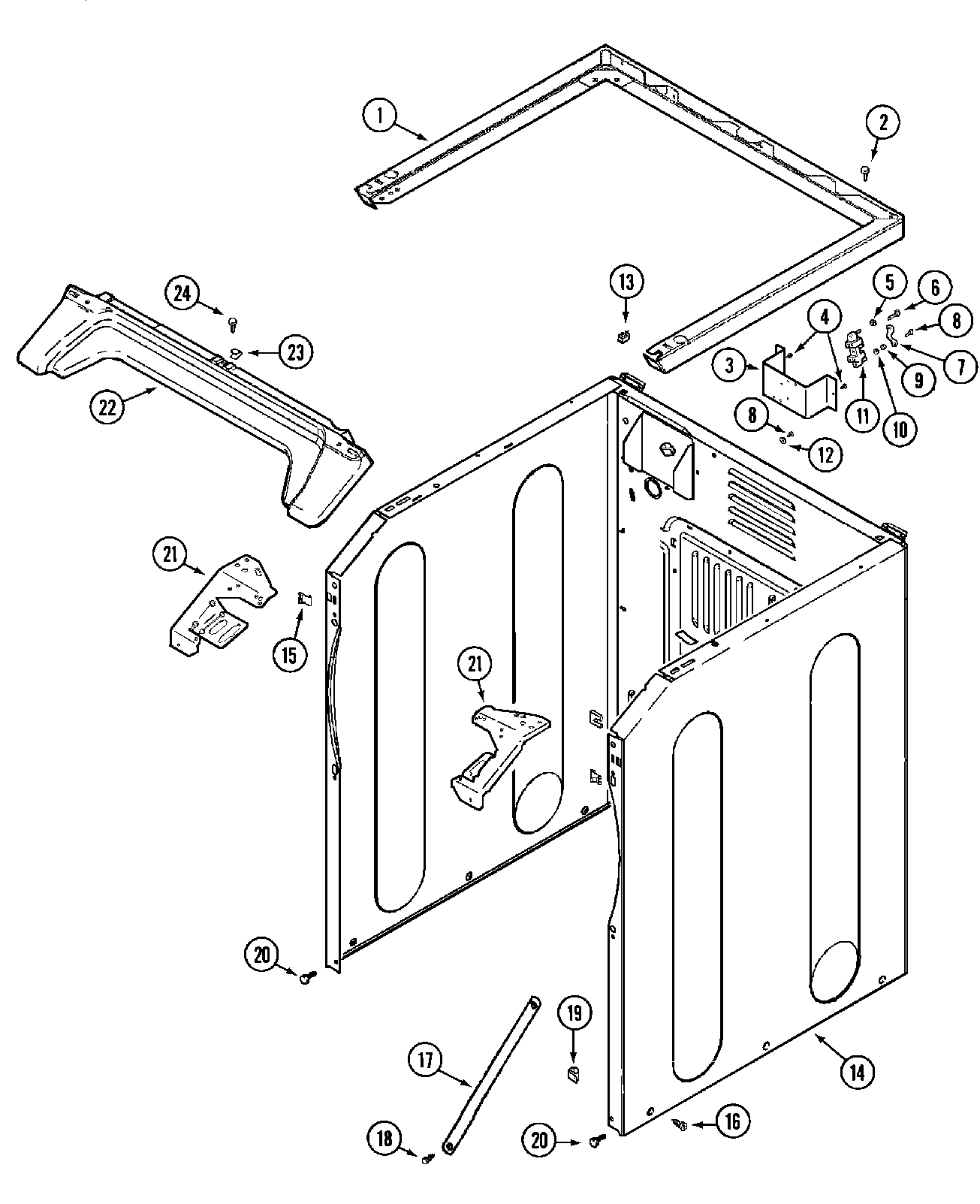

001

MAY 33001799 MAY 33001799 Contact Us For Availability

001

WIRING INFORMATION MAY NLA Contact Us For Availability

002

WP33001764 Whirlpool Cover In Stock WPL WP33001764 $29.10

002

MAY 33001803 MAY 33001803 Contact Us For Availability

002

MAY 33001800 MAY 33001800 Contact Us For Availability

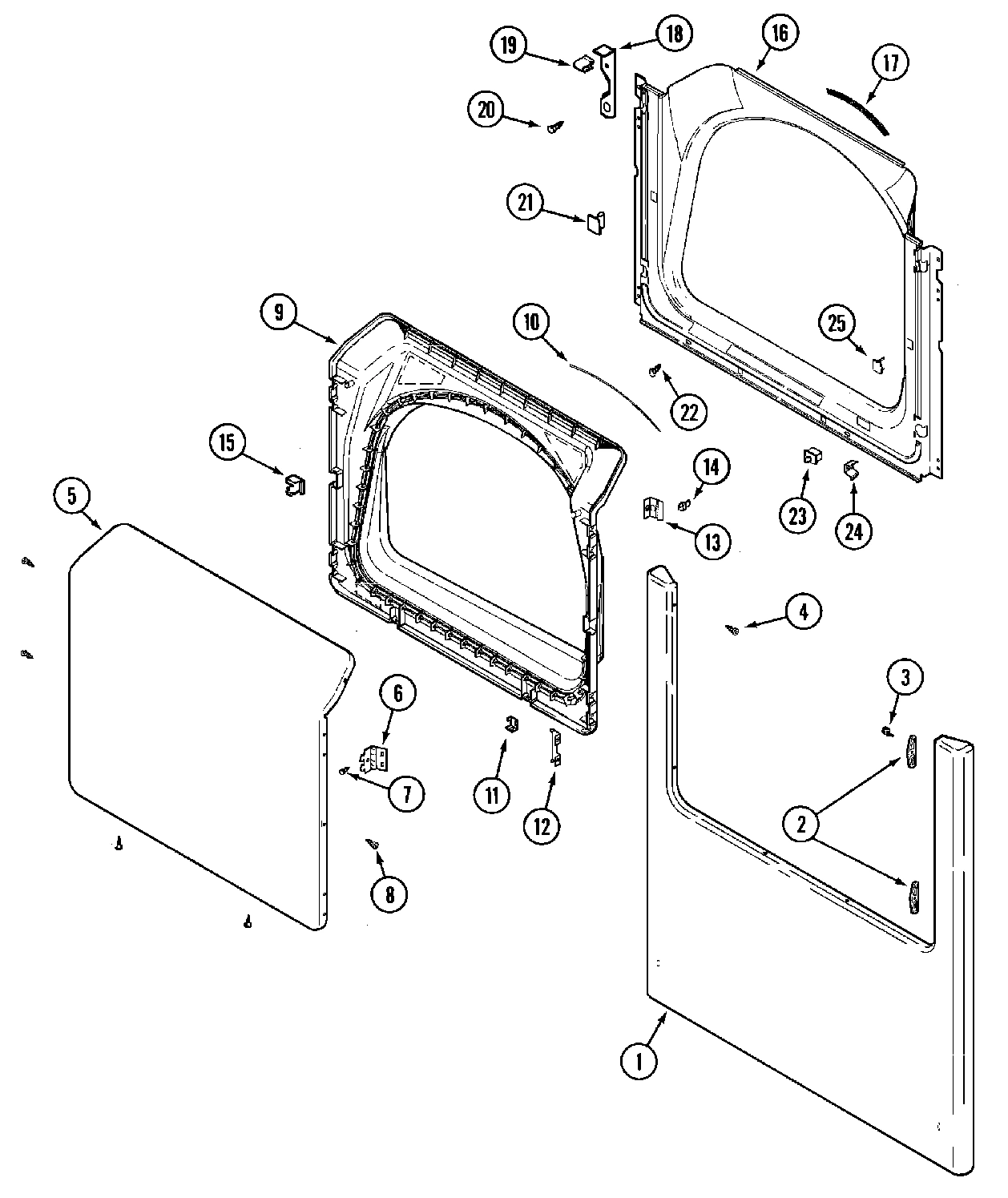

003

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

003

MAY 314995 MAY 314995 Contact Us For Availability

004

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $19.32

004

MAY 314998 MAY 314998 Contact Us For Availability

005

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.78

005

MAY 307185 MAY 307185 Contact Us For Availability

006

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $37.79

006

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

006

MAY 314999 MAY 314999 Contact Us For Availability

007

MAY 33001802 MAY 33001802 Contact Us For Availability

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $15.21

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

MAY 306967 MAY 306967 Contact Us For Availability

WIRE HARNESS, THERMOSTAT MAY 33001306 Contact Us For Availability

MAY 33002083 MAY 33002083 Contact Us For Availability

WP308614 Whirlpool Element Backorder WPL WP308614 $238.00

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $8.31

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

MAY 33001750 MAY 33001750 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $2.51

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $29.47

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $12.51

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $57.16

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $3.70

W11705611 Whirlpool Block Ter In Stock WPL W11705611 $40.08

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $30.29

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $16.36

CLIP, INNER DOOR MAY 22002039 Contact Us For Availability

012

MAY 22002038 MAY 22002038 Contact Us For Availability

013

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $3.70

013

MAY 315346 MAY 315346 Contact Us For Availability

013

MAY 33001796 MAY 33001796 Contact Us For Availability

014

MAY 33001761 MAY 33001761 Contact Us For Availability

014

SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $114.93

WP22002049 Whirlpool Washer/Dryer Clip Backorder WPL WP22002049 $4.78

MAY 33001801 MAY 33001801 Contact Us For Availability

MAY 33001763 MAY 33001763 Contact Us For Availability

MAY Y308590 MAY Y308590 Contact Us For Availability

MAY 33002237 MAY 33002237 Contact Us For Availability

MAY 33002462 MAY 33002462 Contact Us For Availability

016

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.20

016

MAY 33001778 MAY 33001778 Contact Us For Availability

017

MAY 33001767 MAY 33001767 Contact Us For Availability

017

MAY 910343 MAY 910343 Contact Us For Availability

018

WP33001443 Whirlpool Hex Nut In Stock WPL WP33001443 $2.51

018

MAY 33001854 MAY 33001854 Contact Us For Availability

019

MAY 33002040 MAY 33002040 Contact Us For Availability

33002459 Whirlpool Idler Spring In Stock WPL 33002459 $2.51

WP6-3129480 Whirlpool Roller Shaft In Stock WPL WP6-3129480 $3.70

MAY 33002157 MAY 33002157 Contact Us For Availability

MAY 33002461 MAY 33002461 Contact Us For Availability

021

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $31.68

021

ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability

022

WP312535 Whirlpool Washer Backorder WPL WP312535 $4.70

022

MAY Y312527 MAY Y312527 Contact Us For Availability

023

WP6-3700340 Whirlpool Belt Tension Pulley Whe In Stock WPL WP6-3700340 $7.40

024

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

024

SCREW, INLET DUCT MAY 210932 Contact Us For Availability

025

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $4.78

026

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.59

026

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.51

027

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $4.51

027

MAY 33001752 MAY 33001752 Contact Us For Availability

027

MAY 33002466 MAY 33002466 Contact Us For Availability

028

MAY 33002039 MAY 33002039 Contact Us For Availability

028

SCREW, MOTOR SUPPORT MAY Y313561 Contact Us For Availability

SCREW, BRACE MAY 33001768 Contact Us For Availability

SCREW, HARNESS PROTECTOR MAY 314568 Contact Us For Availability

MAY 33002041 MAY 33002041 Contact Us For Availability

MAY 33002048 MAY 33002048 Contact Us For Availability

MAY 33002049 MAY 33002049 Contact Us For Availability

MAY 33002050 MAY 33002050 Contact Us For Availability

MAY 33002467 MAY 33002467 Contact Us For Availability

MAY 33002622 MAY 33002622 Contact Us For Availability

MAY 33002623 MAY 33002623 Contact Us For Availability

030

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

031

MAY 315471 MAY 315471 Contact Us For Availability

032

MAY 410490 MAY 410490 Contact Us For Availability

033

MAY 33001205 MAY 33001205 Contact Us For Availability

033

SHIELD, TRANSFORMER MAY 315218 Contact Us For Availability

033

SCREW, TRANSFORMER SHIELD MAY Y313559 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

MAY 22002239 MAY 22002239 Contact Us For Availability

MAY 22002244 MAY 22002244 Contact Us For Availability

MAY 33002042 MAY 33002042 Contact Us For Availability

MAY 33002043 MAY 33002043 Contact Us For Availability

SCREW, FRONT PANEL CLIP MAY Y310632 Contact Us For Availability

035

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.06

036

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

037

WP210684 Whirlpool Dishwasher Leveling Leg Pa In Stock WPL WP210684 $4.23

038

MAY 33002044 MAY 33002044 Contact Us For Availability
