Model Maytag MGD5840TW0 GAS DRYER – Common Parts & Diagrams

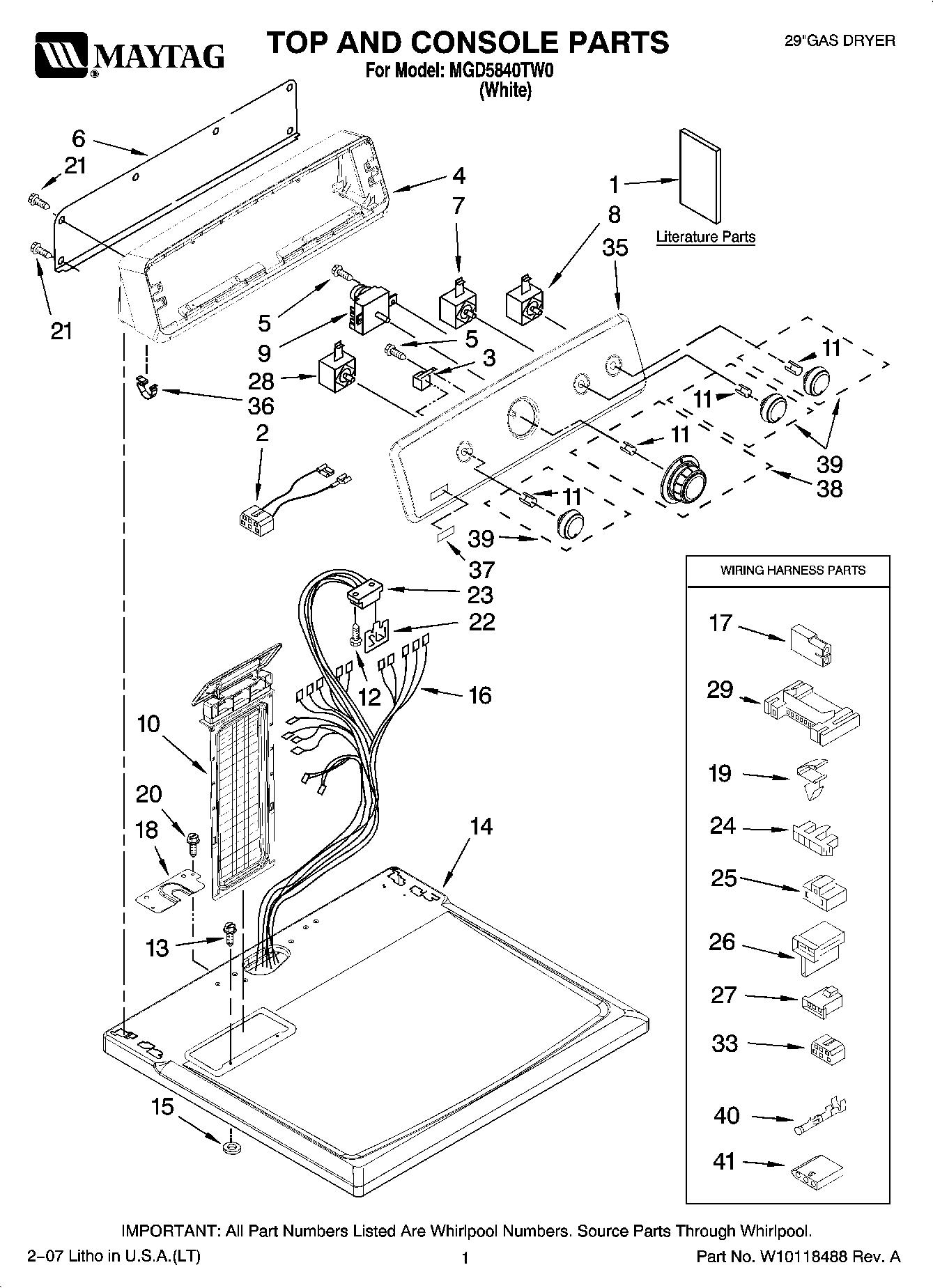

01 - TOP AND CONSOLE PARTS

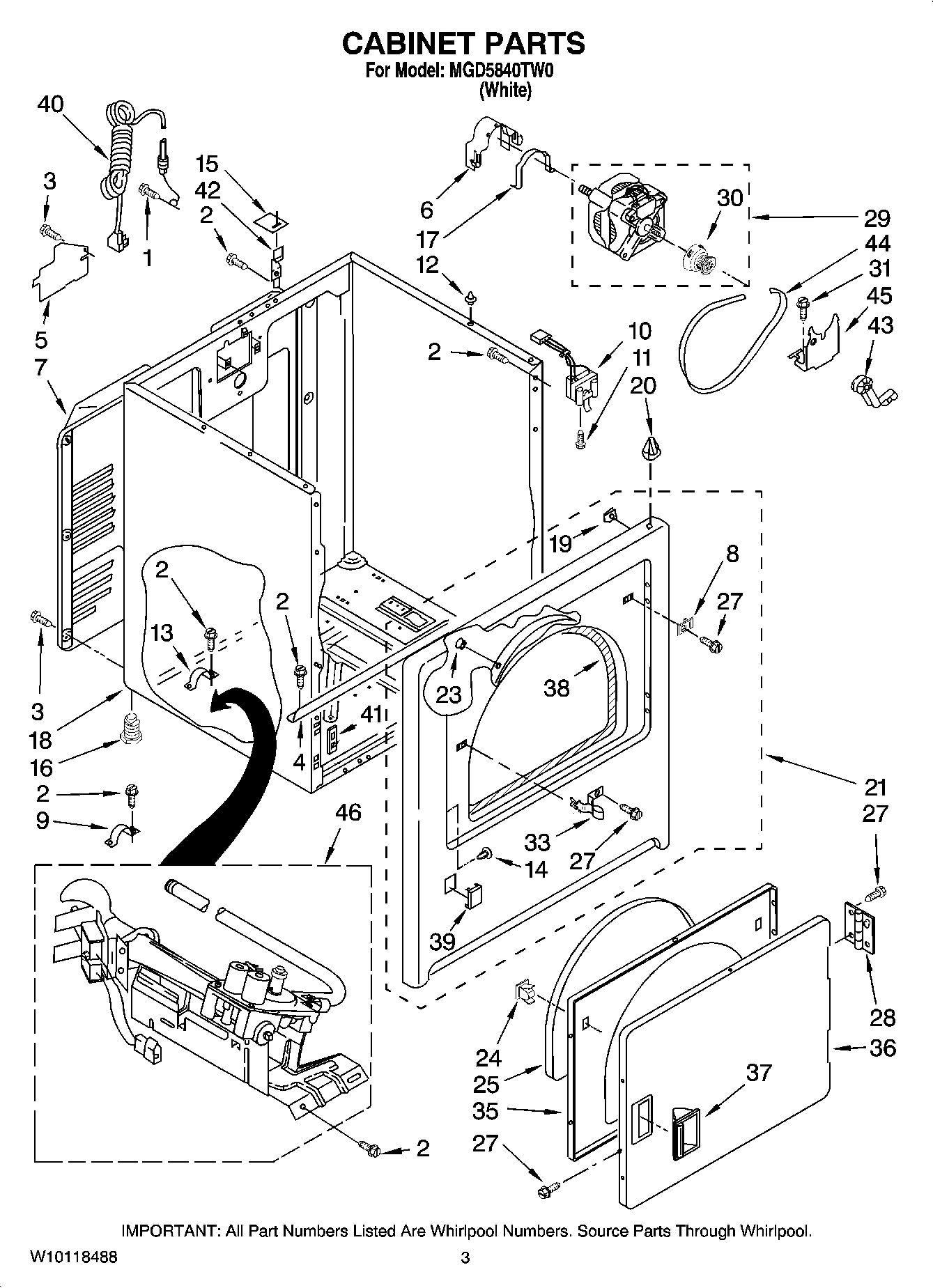

02 - CABINET PARTS

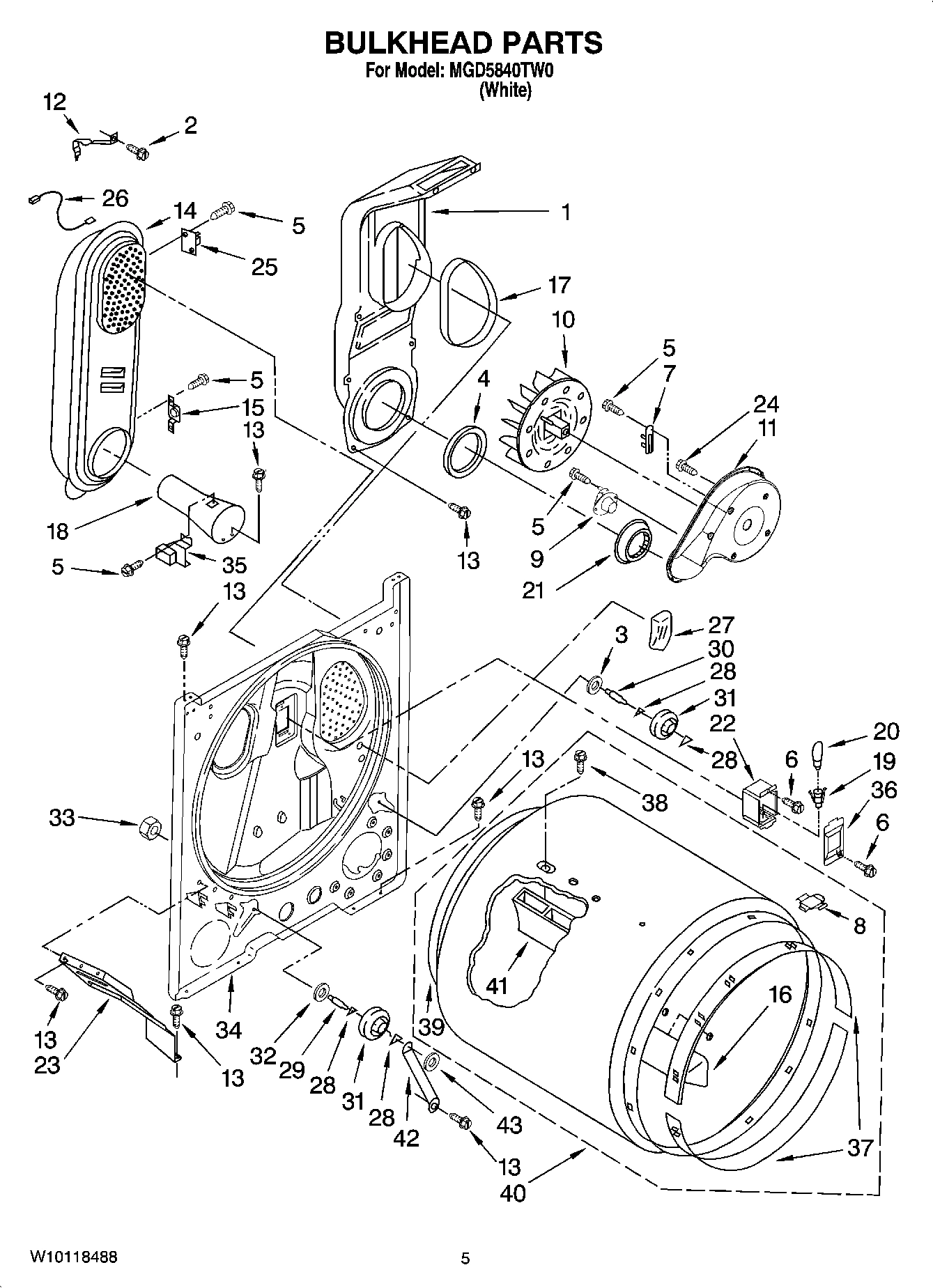

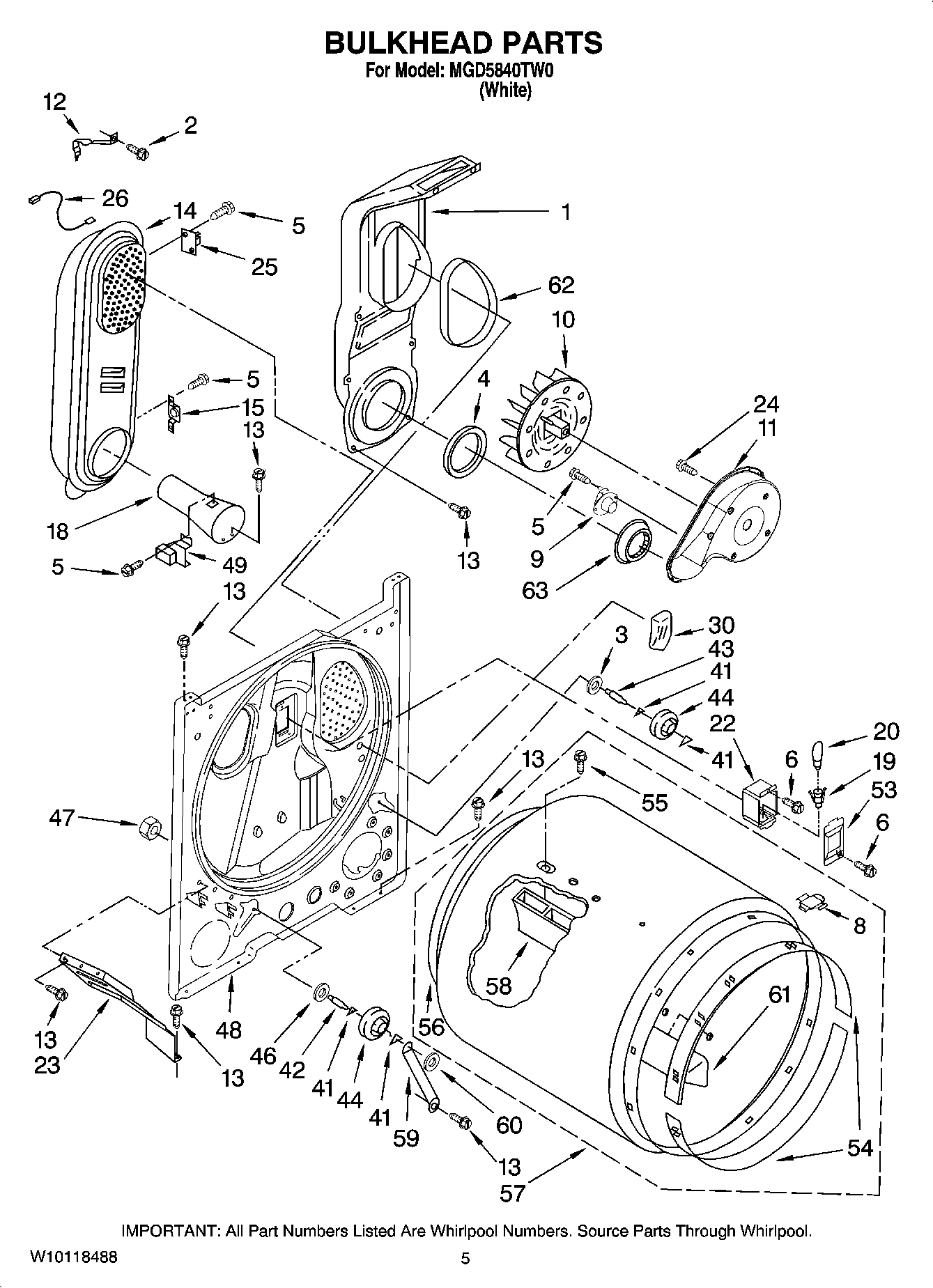

03 - BULKHEAD PARTS

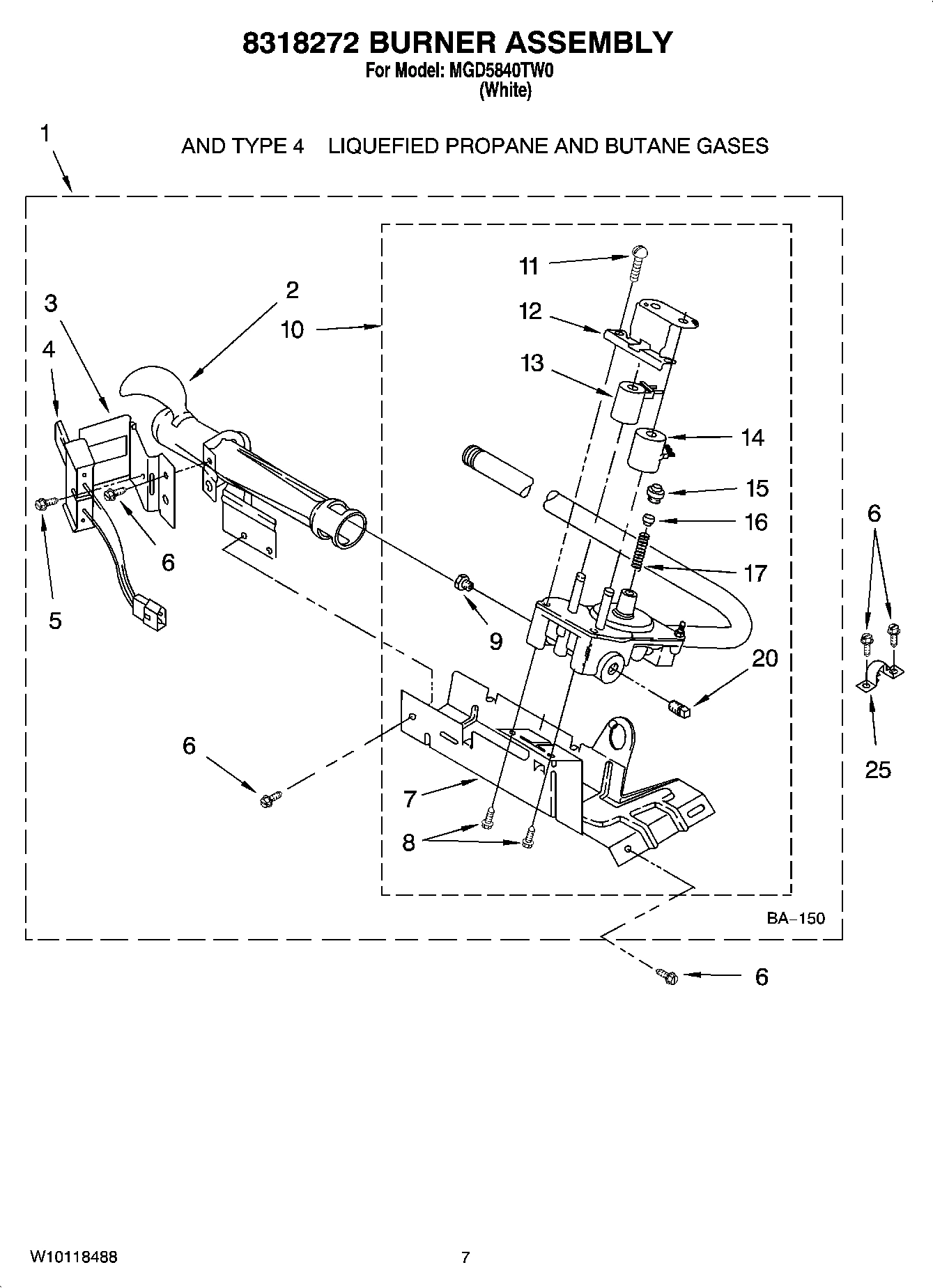

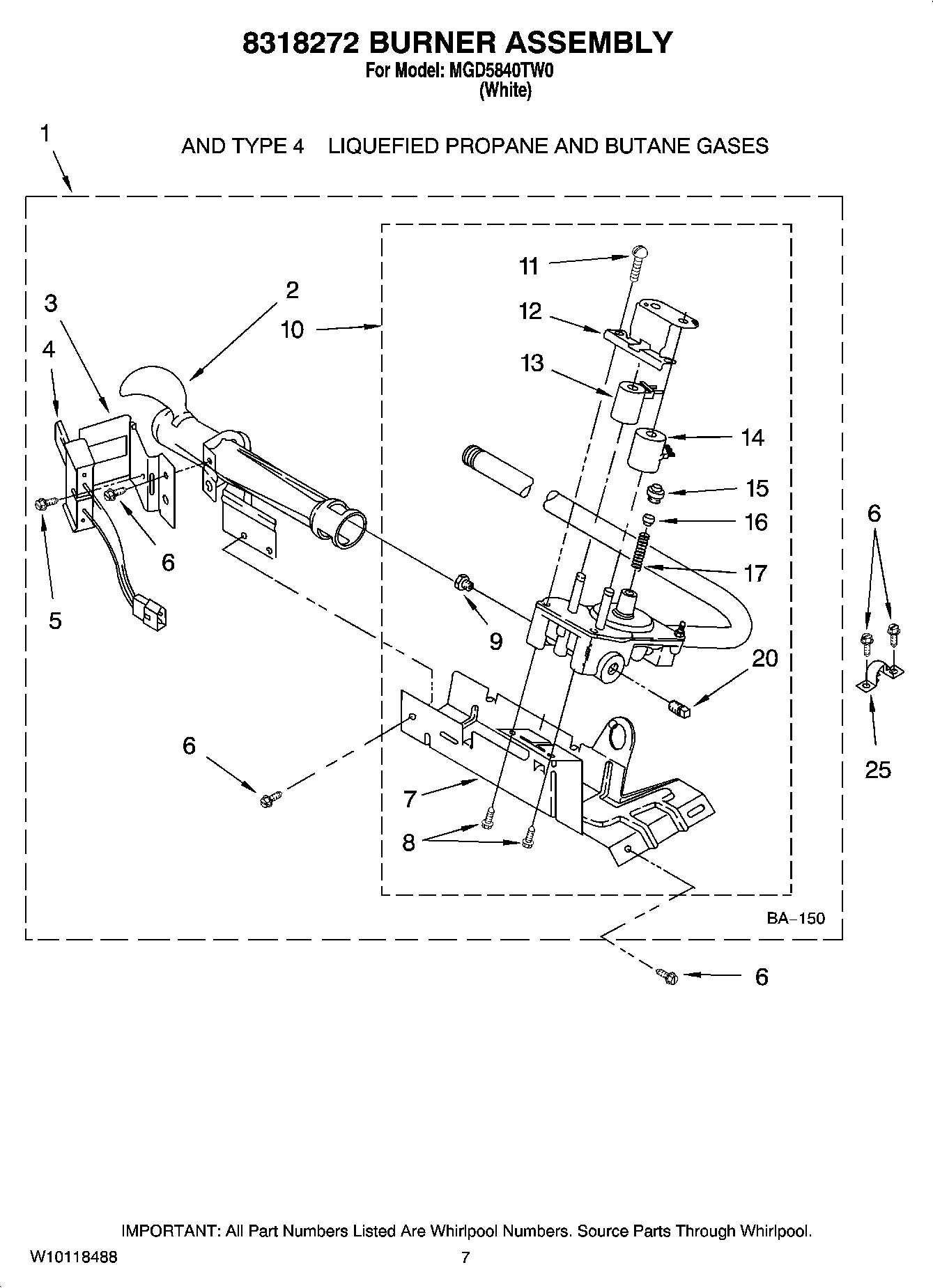

04 - 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD5840TW0 GAS DRYER
1
MAY 3406668 MAY 3406668 Contact Us For Availability
1
MAY W10088775 MAY W10088775 Contact Us For Availability
1
MAY W10089171 MAY W10089171 Contact Us For Availability
1
MAY 697776 MAY 697776 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1) (White Rodger MAY 8318272 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
MAY W10113080 MAY W10113080 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 694419 MAY 694419 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
Foam-Seal Console Bracket MAY W10112267 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
Screw, 8-18 x 5/8 MAY 8533971 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
6
MAY W10112576 MAY W10112576 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 3404162 MAY 3404162 Contact Us For Availability
6
MAY 487909 MAY 487909 Contact Us For Availability
7
MAY 3405155 MAY 3405155 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
8
MAY W10117655 MAY W10117655 Contact Us For Availability
8
PLUG-STRIKE MAY 3403630 Contact Us For Availability
8
MAY 8066086 MAY 8066086 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
9
Timer Assembly 60 HZ. MAY 3406725 Contact Us For Availability
9
MAY 3980175 MAY 3980175 Contact Us For Availability
9
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
9
MAY 229742 MAY 229742 Contact Us For Availability
9
MAY 234826 MAY 234826 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
10
Screen, Lint MAY 8565972 Contact Us For Availability
10
MAY 3406107 MAY 3406107 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
10
MAY 8318277 MAY 8318277 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
12
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
12
MAY 98669 MAY 98669 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY W10112599 MAY W10112599 Contact Us For Availability
14
PLUG, HOLE MAY 3404413 Contact Us For Availability
14
MAY 8530285 MAY 8530285 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
Washer (Top/Chute) MAY 237446 Contact Us For Availability
15
Pad-Top Hinge MAY 18849 Contact Us For Availability
15
Thermostat, 205 F (96C) MAY 3403140 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10113073 MAY W10113073 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 3403636 MAY 3403636 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
Plug, 2-Way MAY 717252 Contact Us For Availability
17
MAY 660658 MAY 660658 Contact Us For Availability
17
MAY 339956 MAY 339956 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY 8565981 MAY 8565981 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
MAY 8066049 MAY 8066049 Contact Us For Availability
19
CLIP, HARNESS MAY 3394427 Contact Us For Availability
19
MAY 98234 MAY 98234 Contact Us For Availability
19
MAY W10136369 MAY W10136369 Contact Us For Availability
20
Screw, 8-18 x 3/4 MAY 337686 Contact Us For Availability
20
MAY 18776 MAY 18776 Contact Us For Availability
20
MAY 3406126 MAY 3406126 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
21
MAY 3403447 MAY 3403447 Contact Us For Availability
21
MAY 696302 MAY 696302 Contact Us For Availability
22
MAY 8558178 MAY 8558178 Contact Us For Availability
22
MAY 348780 MAY 348780 Contact Us For Availability
22
MAY 3977373 MAY 3977373 Contact Us For Availability
23
MAY 3391885 MAY 3391885 Contact Us For Availability
23
MAY 685203 MAY 685203 Contact Us For Availability
23
MAY 3406022 MAY 3406022 Contact Us For Availability
24
Connector-Timer MAY 3397269 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
25
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
25
MAY 341029 MAY 341029 Contact Us For Availability
25
MAY 3405246 MAY 3405246 Contact Us For Availability
25
MAY 280010 MAY 280010 Contact Us For Availability
26
CONNECTOR, 2-POSITION (GAS VALVE) MAY 3403499 Contact Us For Availability
26
MAY W10131364 MAY W10131364 Contact Us For Availability
26
WIRE JUMPER MAY 3401707 Contact Us For Availability
27
MAY 3403498 MAY 3403498 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
MAY 3976479 MAY 3976479 Contact Us For Availability
28
Switch Rotary (Twist Mount) MAY 3405154 Contact Us For Availability
28
Hinge, Door MAY 3405514 Contact Us For Availability
28
MAY 690997 MAY 690997 Contact Us For Availability
29
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
29
MAY 8066206 MAY 8066206 Contact Us For Availability
29
MAY 3399506 MAY 3399506 Contact Us For Availability
30
MAY W10110036 MAY W10110036 Contact Us For Availability
30
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
30
MAY 3399507 MAY 3399507 Contact Us For Availability
31
Control Knob (3) MAY W10110035 Contact Us For Availability
31
MAY 3400500 MAY 3400500 Contact Us For Availability
31
MAY 3397590 MAY 3397590 Contact Us For Availability
32
TERMINAL, FEMALE MAY 94614 Contact Us For Availability
32
MAY 691366 MAY 691366 Contact Us For Availability
32
MAY 348197 MAY 348197 Contact Us For Availability
33
Connector 6-Circuit MAY 3347243 Contact Us For Availability
33
Strike, Panel MAY 3403431 Contact Us For Availability
33
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
34
MAY 3936144 MAY 3936144 Contact Us For Availability
34
MAY 8066217 MAY 8066217 Contact Us For Availability
34
MAY 3403414 MAY 3403414 Contact Us For Availability
35
Console & Control Panel Assembly (Includes It MAY W10086716 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
MAY 338906 MAY 338906 Contact Us For Availability
36
MAY 8312709 MAY 8312709 Contact Us For Availability
36
DOOR FRONT MAY 3402335 Contact Us For Availability
36
MAY 3402841 MAY 3402841 Contact Us For Availability
37
MAY W10112569 MAY W10112569 Contact Us For Availability
37
Handle, Door MAY 8565970 Contact Us For Availability
37
MAY 692526 MAY 692526 Contact Us For Availability
38
MAY W10118608 MAY W10118608 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
38
MAY W10109200 MAY W10109200 Contact Us For Availability
39
MAY 3394975 MAY 3394975 Contact Us For Availability
39
MAY 3406130 MAY 3406130 Contact Us For Availability
40
MAY 344020 MAY 344020 Contact Us For Availability
40
MAY 695587 MAY 695587 Contact Us For Availability
41
MAY 3394083 MAY 3394083 Contact Us For Availability
41
MAY 692490 MAY 692490 Contact Us For Availability
42
MAY 3976434 MAY 3976434 Contact Us For Availability
43
MAY 90296 MAY 90296 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 694572 MAY 694572 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
