Model Maytag MGD3500FW0 GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

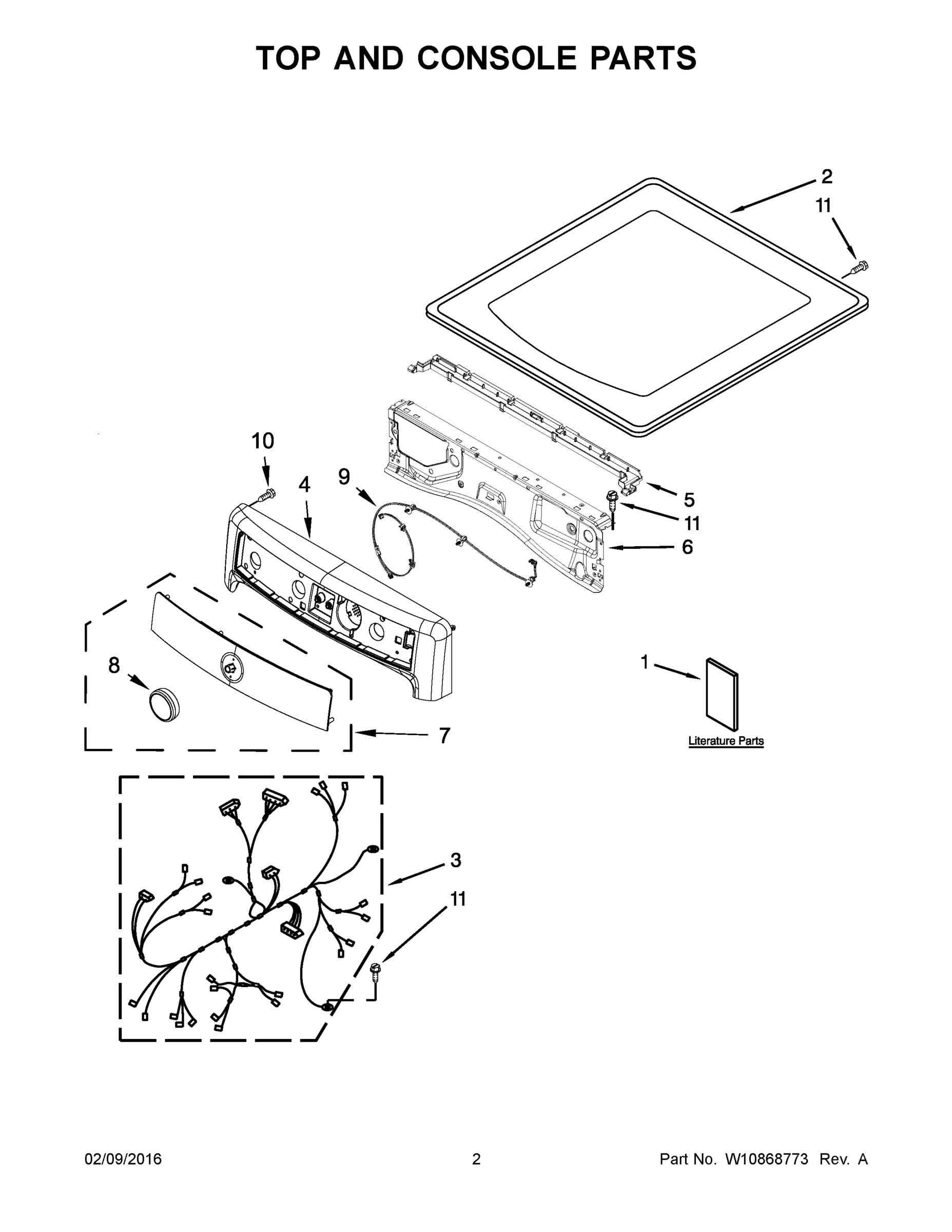

02 - TOP AND CONSOLE PARTS

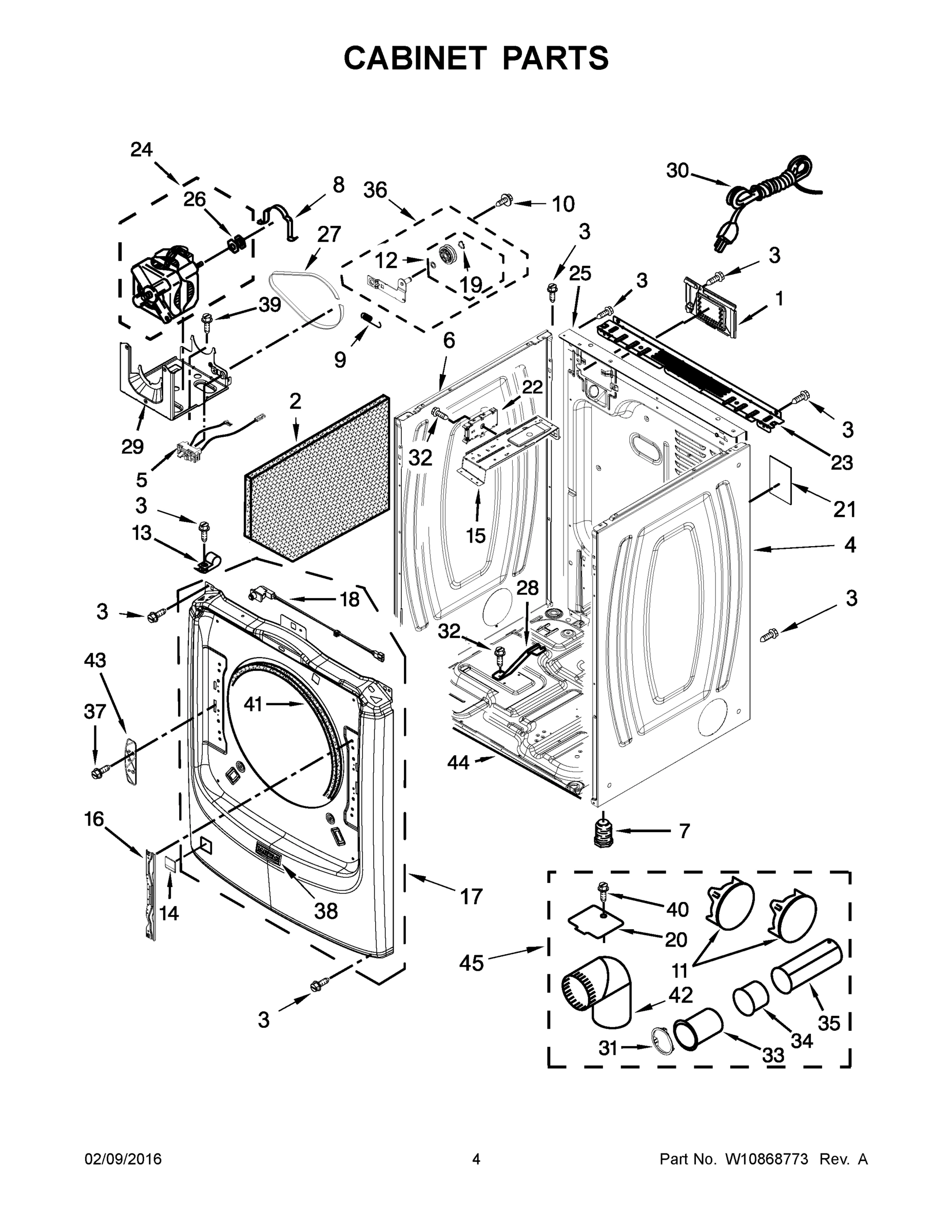

03 - CABINET PARTS

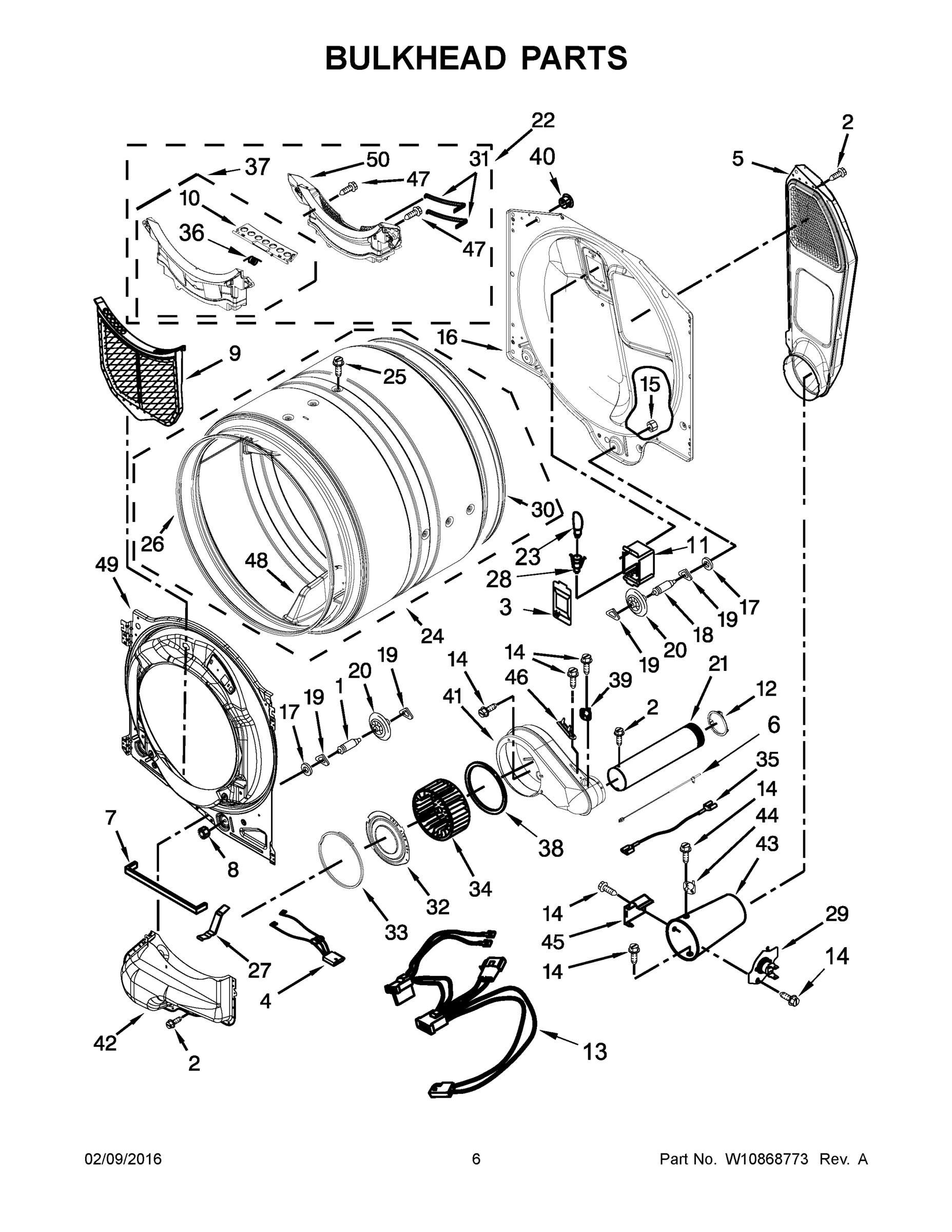

04 - BULKHEAD PARTS

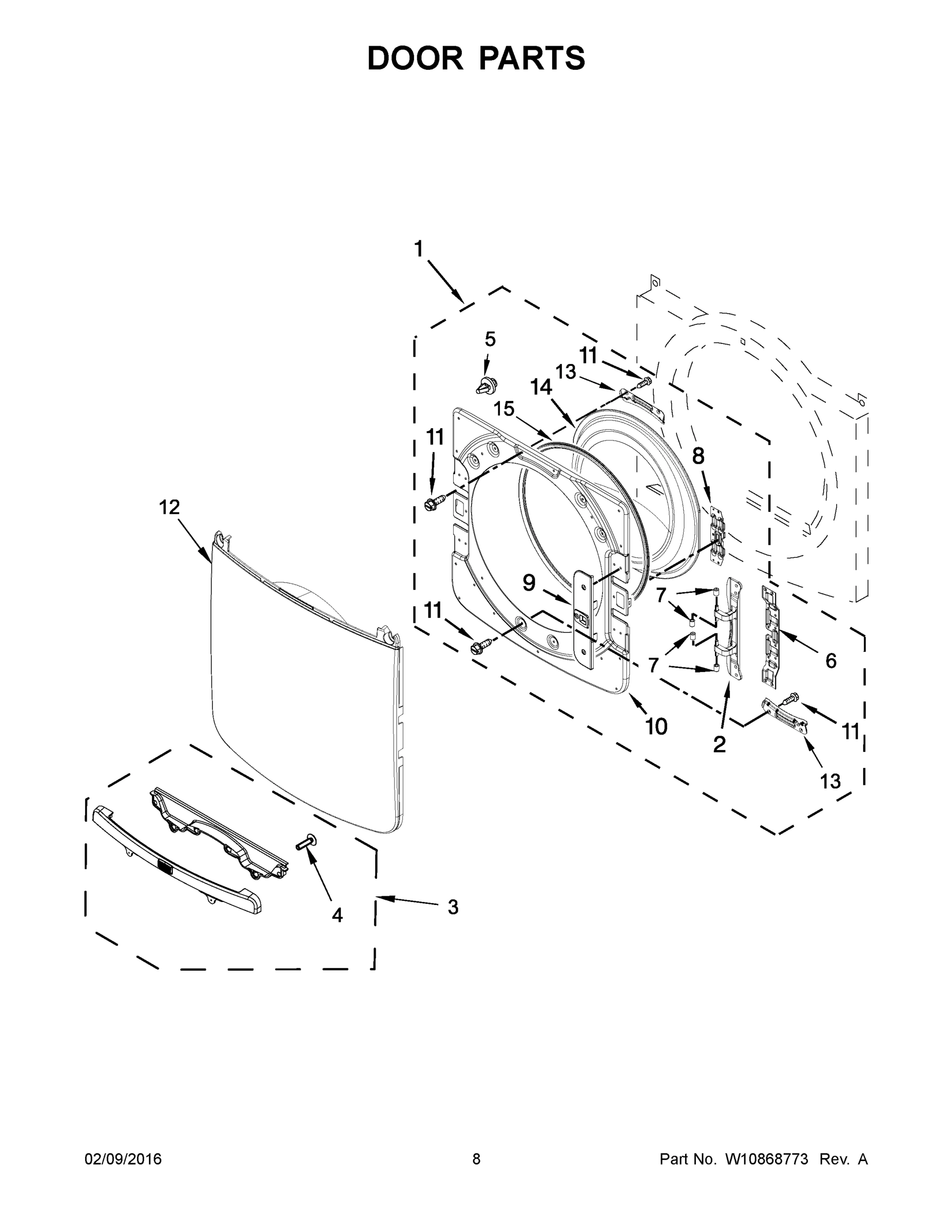

05 - DOOR PARTS

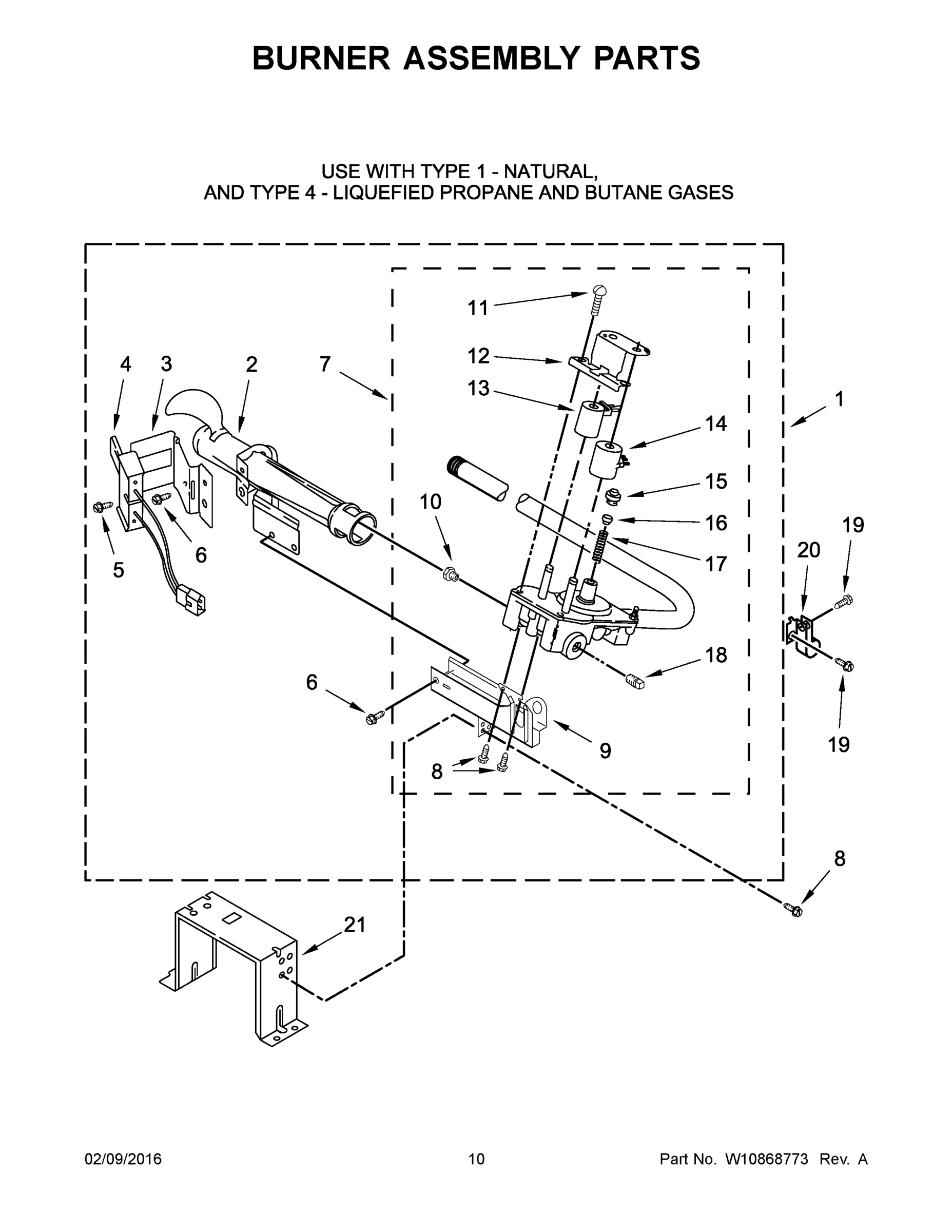

06 - BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD3500FW0 GAS DRYER
1
MAY W10804690 MAY W10804690 Contact Us For Availability
1
MAY 8317339 MAY 8317339 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10797893 MAY W10797893 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS MAY 8576353 Contact Us For Availability
1A
MAY W10806850 MAY W10806850 Contact Us For Availability
1B
MAY W10775221 MAY W10775221 Contact Us For Availability
1C
MAY W10806078 MAY W10806078 Contact Us For Availability
1D
MAY W10804670 MAY W10804670 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
2
MAY W10208415 MAY W10208415 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY W10801124 MAY W10801124 Contact Us For Availability
3
SCREW MAY 489463 Contact Us For Availability
3
MAY 3402841 MAY 3402841 Contact Us For Availability
3
MAY W10626039 MAY W10626039 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
ASSEMBLY, CONSOLE (WHITE) MAY W10391555 Contact Us For Availability
4
PANEL, SIDE (RIGHT) (WHITE) MAY W10469589 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10636058 MAY W10636058 Contact Us For Availability
5
MAY W10774832 MAY W10774832 Contact Us For Availability
5
MAY W10295533 MAY W10295533 Contact Us For Availability
5
MAY 8572266 MAY 8572266 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
PANEL, SIDE (LEFT) (WHITE) MAY W10468495 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY W10623852 MAY W10623852 Contact Us For Availability
6
MAY W10208419 MAY W10208419 Contact Us For Availability
7
MAY W10783692 MAY W10783692 Contact Us For Availability
7
MAY 3392100 MAY 3392100 Contact Us For Availability
7
MAY W10211950 MAY W10211950 Contact Us For Availability
7
MAY W10208398 MAY W10208398 Contact Us For Availability
7
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
8
MAY W10727011 MAY W10727011 Contact Us For Availability
8
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10208254 MAY W10208254 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY W10540654 MAY W10540654 Contact Us For Availability
9
MAY W10446781 MAY W10446781 Contact Us For Availability
9
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
9
MAY 3389871 MAY 3389871 Contact Us For Availability
10
MAY W10489172 MAY W10489172 Contact Us For Availability
10
SCREW MAY 3389420 Contact Us For Availability
10
MAY W10219016 MAY W10219016 Contact Us For Availability
10
DOOR, INNER MAY W10272388 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 15422 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234867 Contact Us For Availability
11
PLUG, MULTIVENT (WHITE) MAY W10404617 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY 8578825 MAY 8578825 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10468057 MAY W10468057 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
ASSEMBLY, OUTER DOOR MAY W10424248 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
13
MAY W10708958 MAY W10708958 Contact Us For Availability
13
MAY W10208252 MAY W10208252 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
14
SCREW MAY 693995 Contact Us For Availability
14
MAY W10749947 MAY W10749947 Contact Us For Availability
14
MAY 694539 MAY 694539 Contact Us For Availability
15
MAY W10259611 MAY W10259611 Contact Us For Availability
15
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
15
MAY W10329710 MAY W10329710 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10315109 MAY W10315109 Contact Us For Availability
16
MAY 8520836 MAY 8520836 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10651061 MAY W10651061 Contact Us For Availability
17
WASHER MAY 3387459 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY W10688148 MAY W10688148 Contact Us For Availability
18
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
18
MAY 239822 MAY 239822 Contact Us For Availability
19
SCREW MAY 3390647 Contact Us For Availability
19
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10354249 MAY W10354249 Contact Us For Availability
20
MAY W10314171 MAY W10314171 Contact Us For Availability
20
MAY 3387561 MAY 3387561 Contact Us For Availability
21
MAY W10504381 MAY W10504381 Contact Us For Availability
21
MAY W10342188 MAY W10342188 Contact Us For Availability
21
MAY 3389889 MAY 3389889 Contact Us For Availability
22
MAY W10847946 MAY W10847946 Contact Us For Availability
22
MAY W10219012 MAY W10219012 Contact Us For Availability
23
MAY W10208382 MAY W10208382 Contact Us For Availability
23
MAY 3406124 MAY 3406124 Contact Us For Availability
24
MAY W10806760 MAY W10806760 Contact Us For Availability
24
MAY W10508188 MAY W10508188 Contact Us For Availability
25
MAY W10487431 MAY W10487431 Contact Us For Availability
25
MAY W10219342 MAY W10219342 Contact Us For Availability
26
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
26
MAY W10521122 MAY W10521122 Contact Us For Availability
27
MAY W10112954 MAY W10112954 Contact Us For Availability
27
MAY W10414388 MAY W10414388 Contact Us For Availability
28
MAY 8529757 MAY 8529757 Contact Us For Availability
28
MAY W10214261 MAY W10214261 Contact Us For Availability
29
MAY W10242878 MAY W10242878 Contact Us For Availability
29
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
30
MAY 3401401 MAY 3401401 Contact Us For Availability
30
MAY W10521118 MAY W10521118 Contact Us For Availability
31
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
32
MAY W10211901 MAY W10211901 Contact Us For Availability
33
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
33
MAY W10211899 MAY W10211899 Contact Us For Availability
34
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
34
MAY W10211915 MAY W10211915 Contact Us For Availability
35
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
35
MAY W10525140 MAY W10525140 Contact Us For Availability
36
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
36
MAY W10726027 MAY W10726027 Contact Us For Availability
37
MAY W10219013 MAY W10219013 Contact Us For Availability
38
MAY W10639171 MAY W10639171 Contact Us For Availability
38
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
39
THERMISTOR MAY 8577274 Contact Us For Availability
40
MAY 8529007 MAY 8529007 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY W10211911 MAY W10211911 Contact Us For Availability
42
MAY W10416072 MAY W10416072 Contact Us For Availability
42
MAY W10211896 MAY W10211896 Contact Us For Availability
43
MAY W10208250 MAY W10208250 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
MAY 8565046 MAY 8565046 Contact Us For Availability
44
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
45
MAY W10323246 MAY W10323246 Contact Us For Availability
45
MAY 338906 MAY 338906 Contact Us For Availability
46
MAY W10693363 MAY W10693363 Contact Us For Availability
47
MAY W10794806 MAY W10794806 Contact Us For Availability
48
MAY W10416098 MAY W10416098 Contact Us For Availability
49
MAY W10673493 MAY W10673493 Contact Us For Availability
50
MAY W10211903 MAY W10211903 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 31682 MAY 31682 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 4396899 MAY 4396899 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8212487 MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
MAY W10298318 MAY W10298318 Contact Us For Availability
× ![]()
