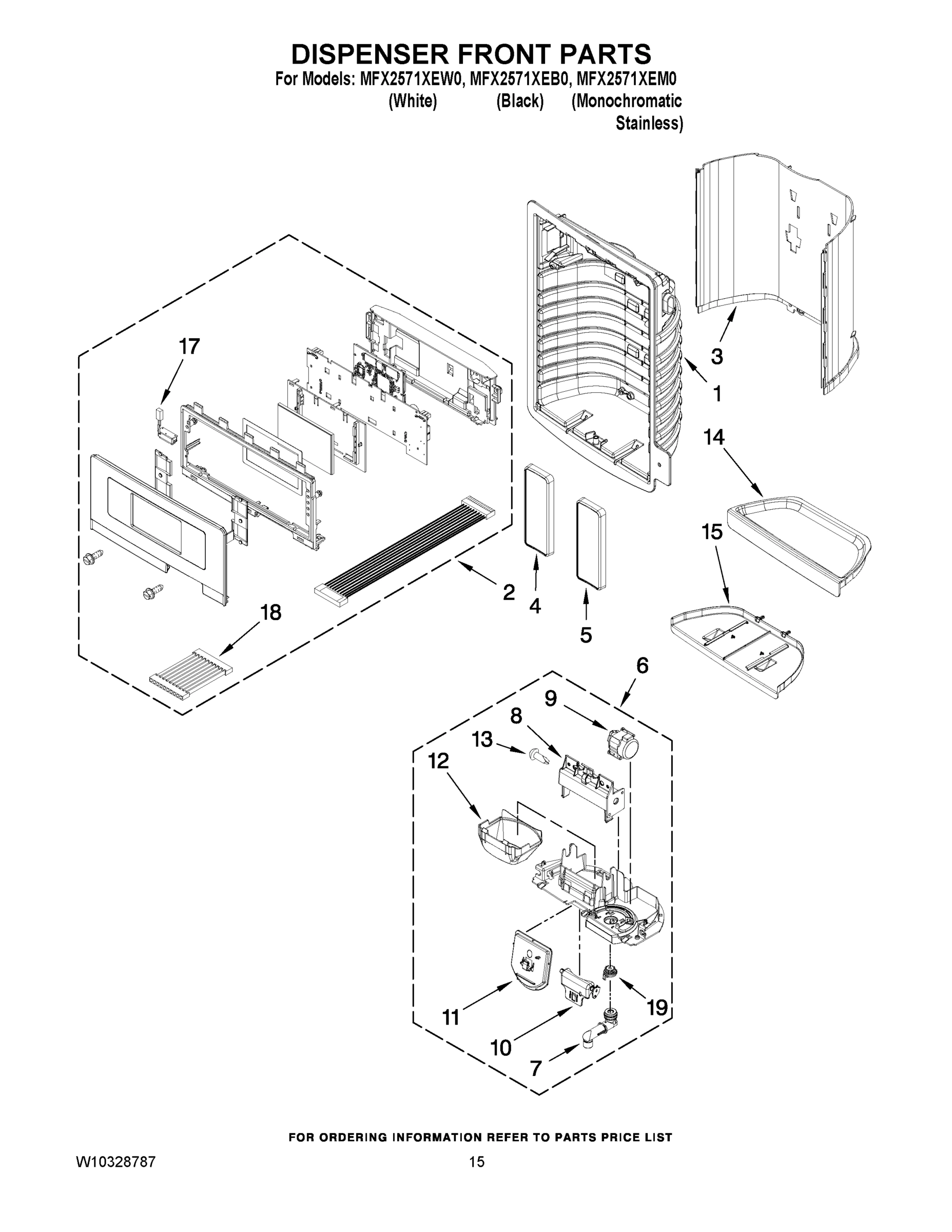

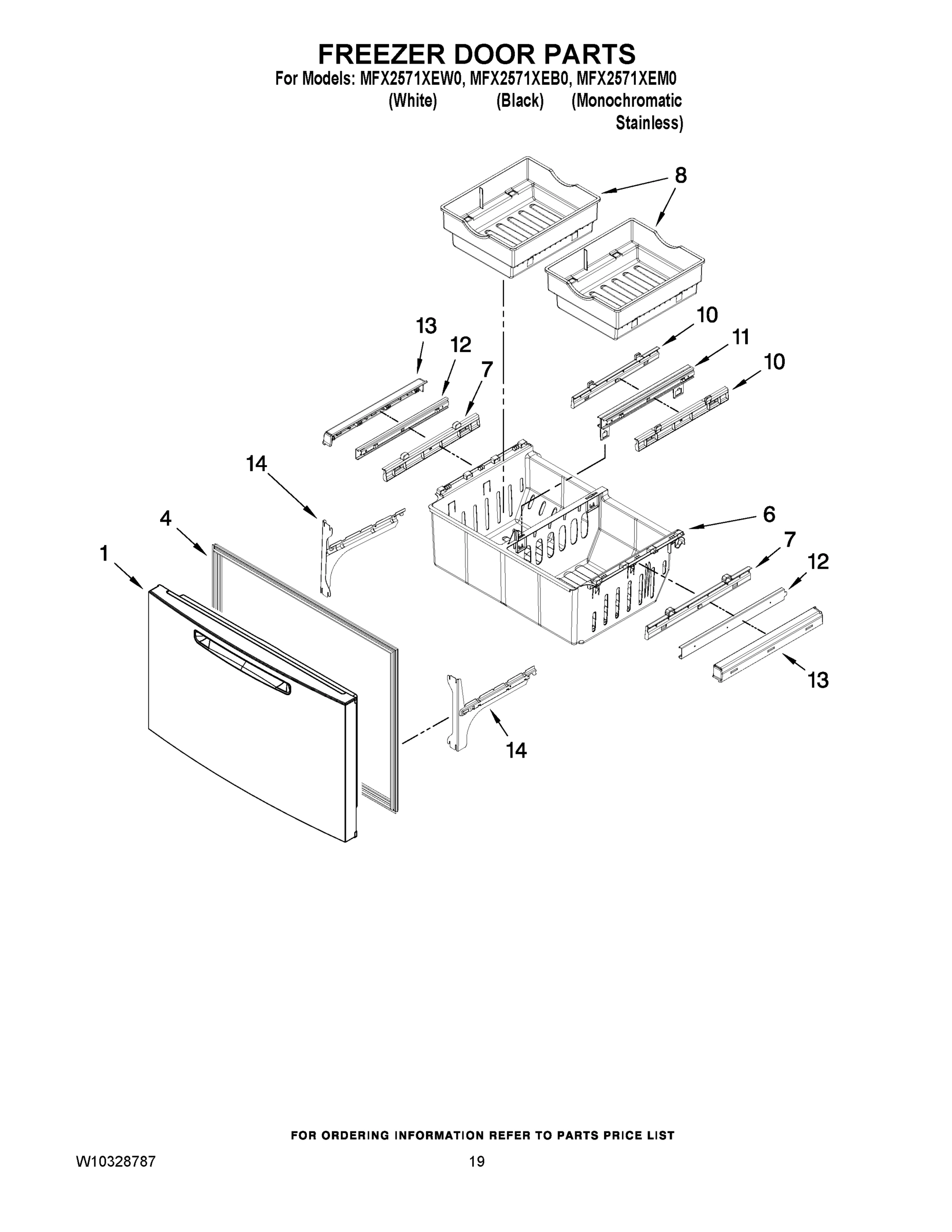

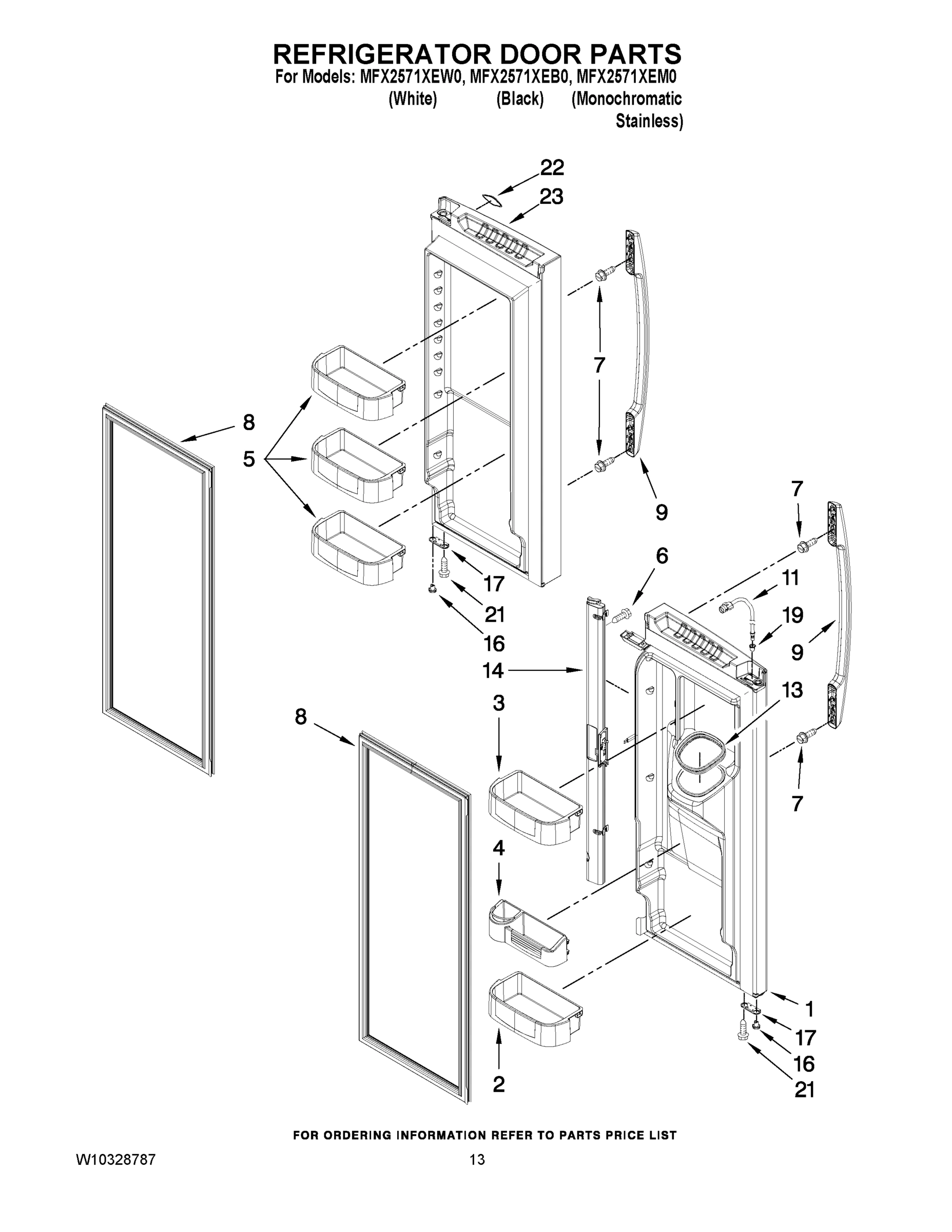

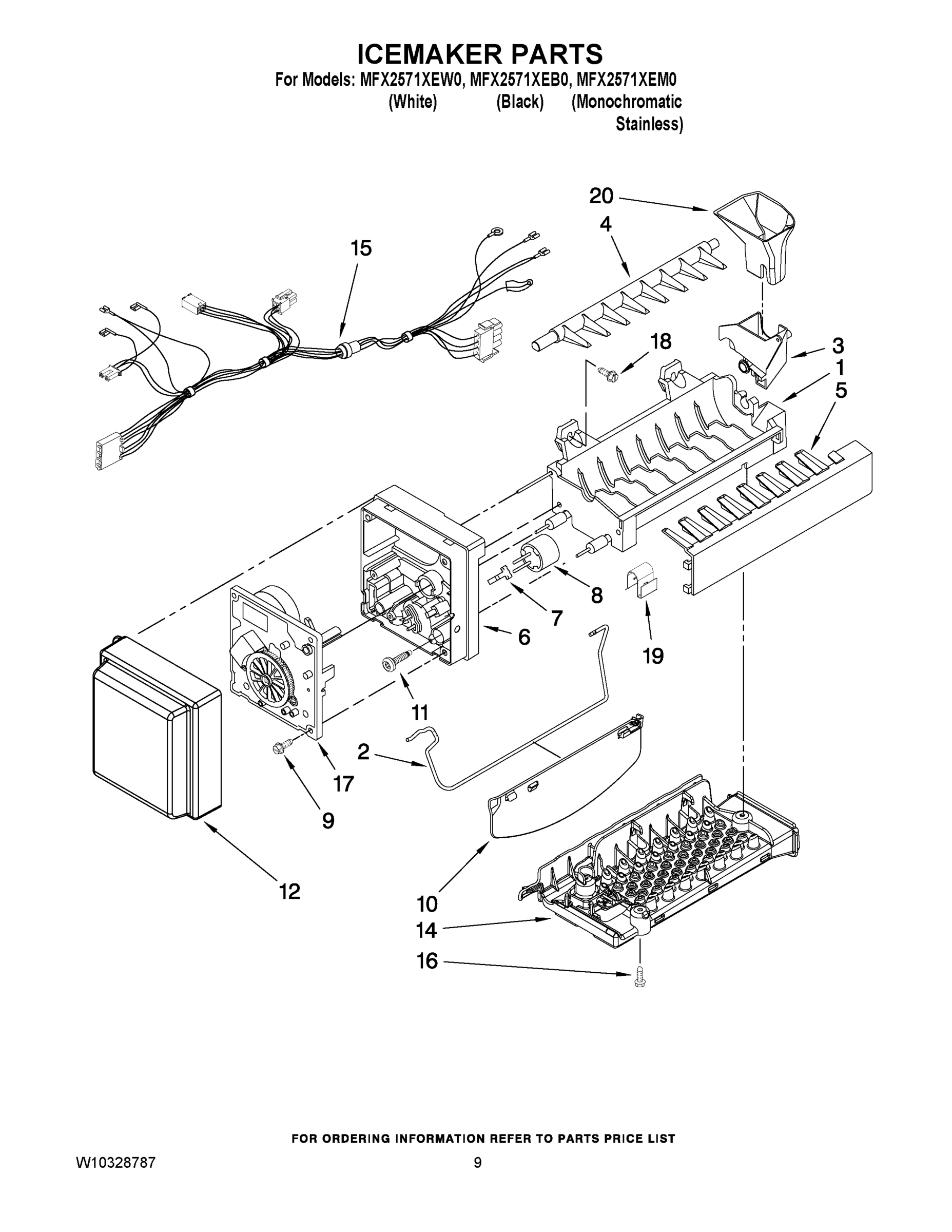

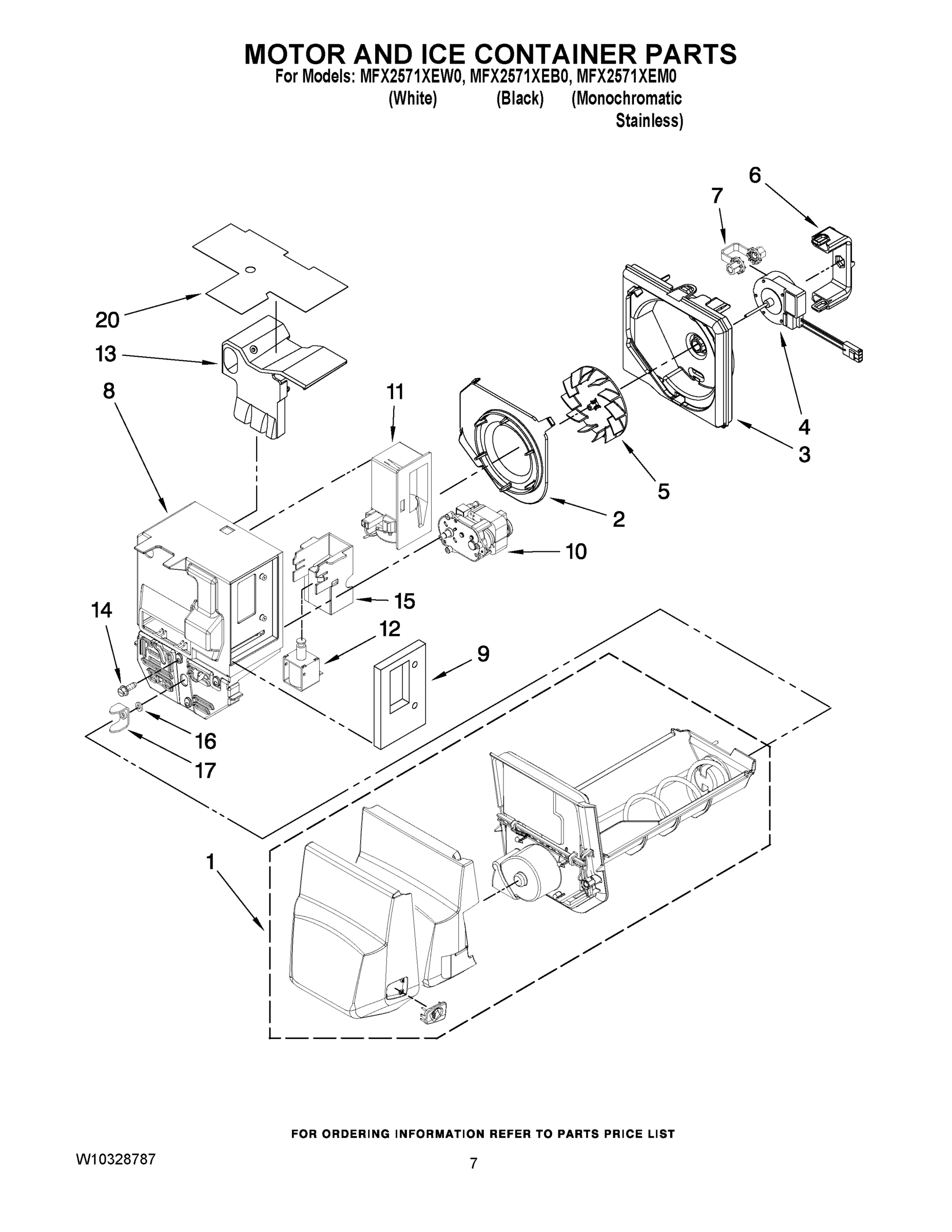

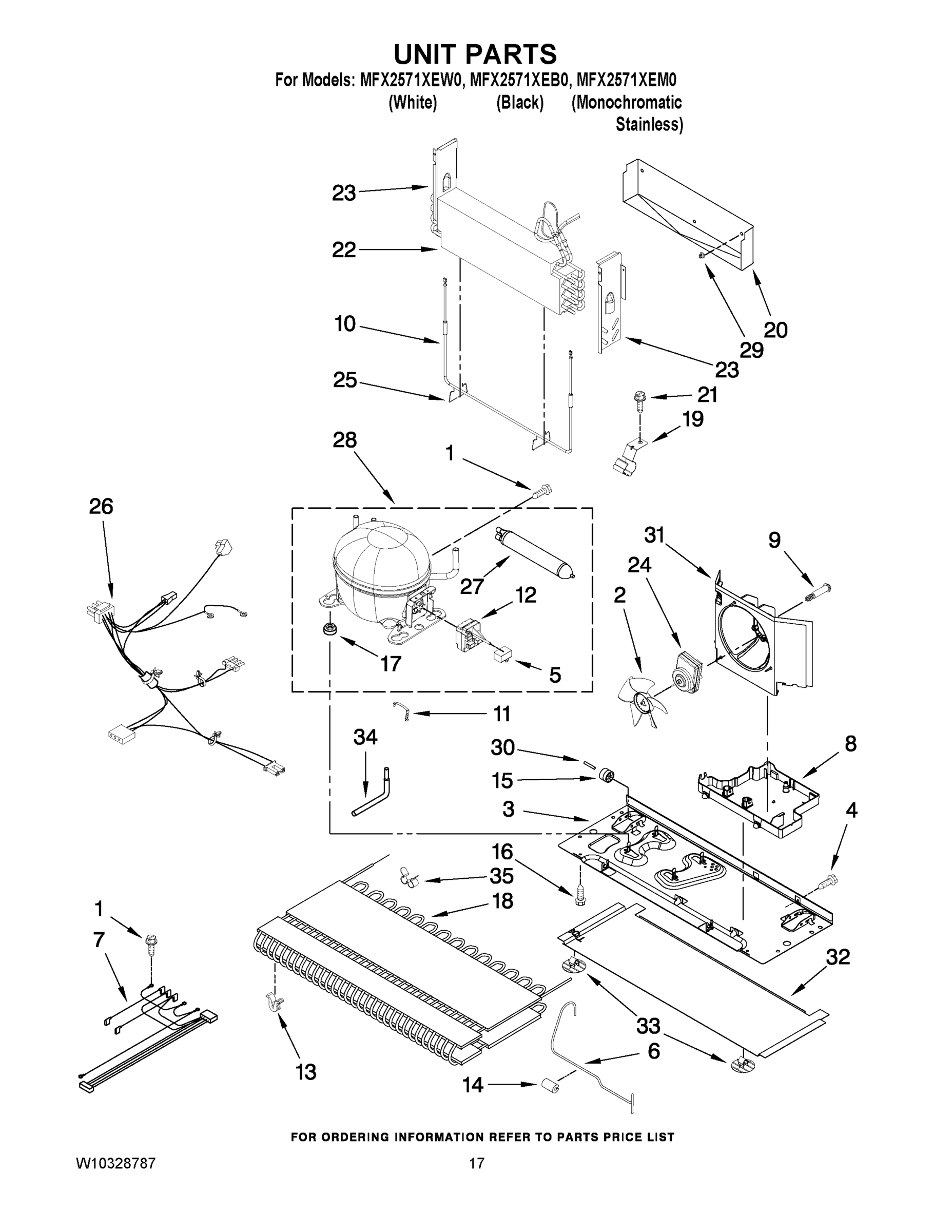

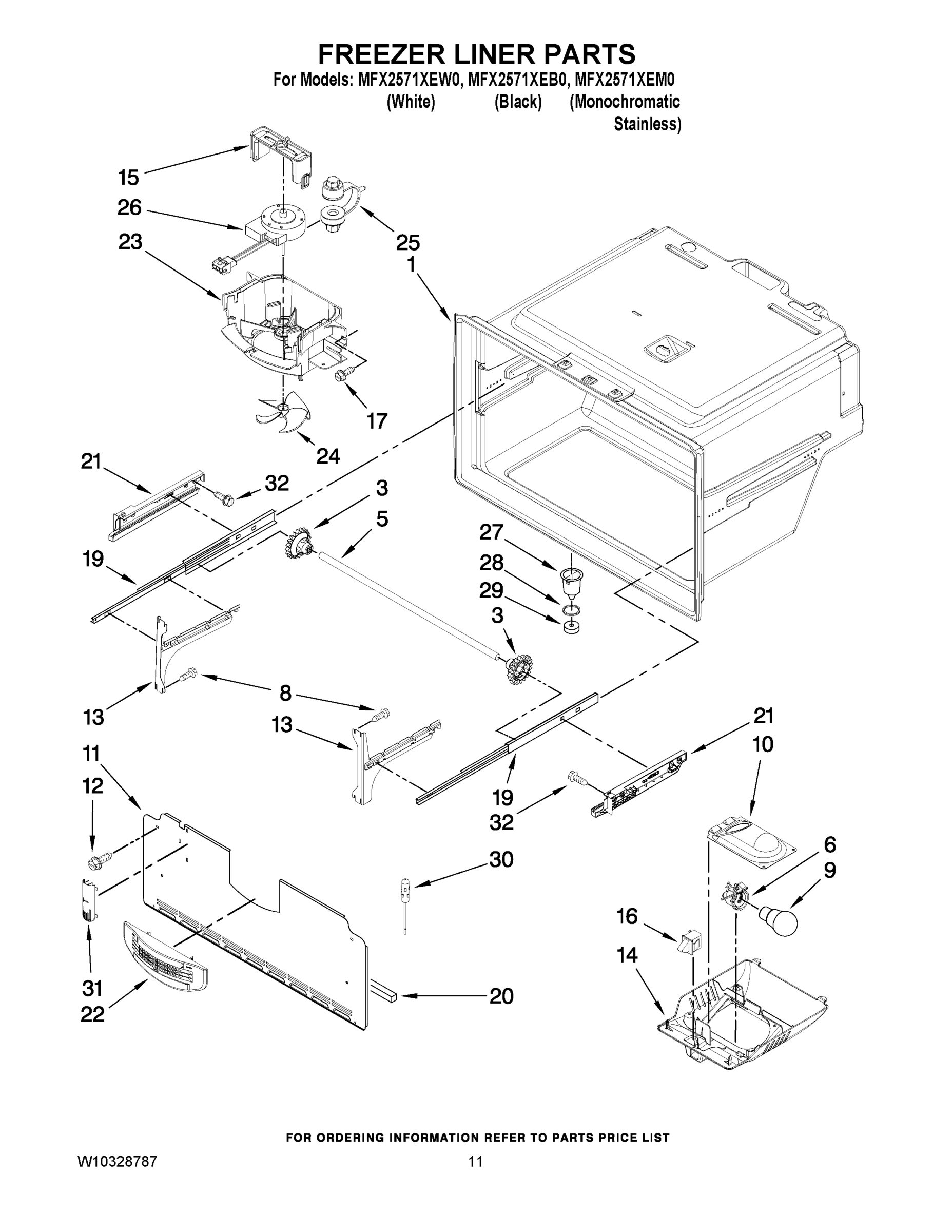

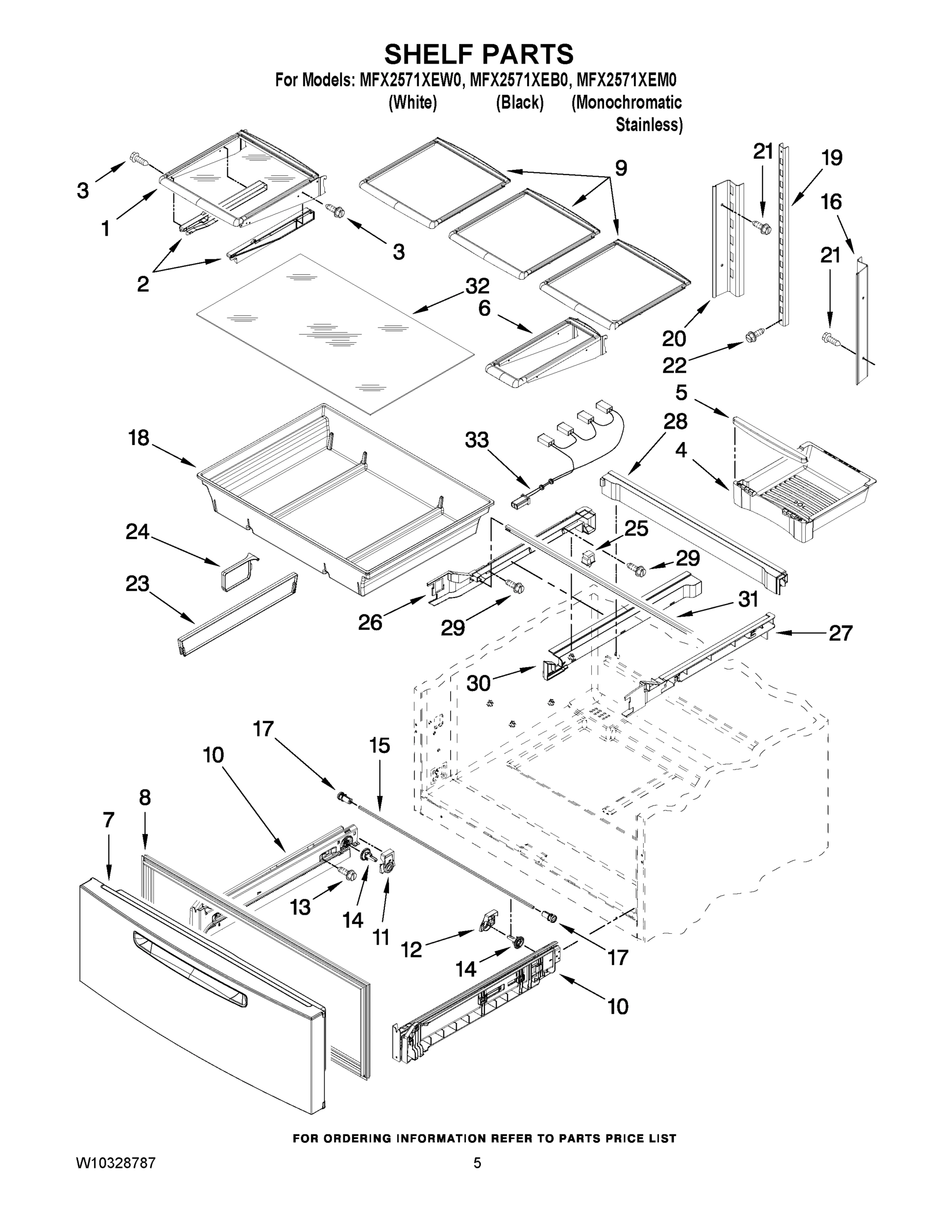

Model Whirlpool MFX2571XEW0 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP12883508SP Whirlpool Refrigerator Glass She Backorder WPL WP12883508SP $165.85

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $102.80

1

FREEZER DOOR (BLACK) WPL 13107101B Contact Us For Availability

1

FREEZER DOOR (MONO STAINLESS) WPL 13107101S Contact Us For Availability

1

FREEZER DOOR (WHITE) WPL 13107101W Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.32

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $39.44

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $48.32

2

WPW10194031 Whirlpool Refrigerator Glide In Stock WPL WPW10194031 $45.71

2

WPW10194032 Whirlpool Refrigerator Glide Backorder WPL WPW10194032 $46.70

2

U I ASSEMLY (BLACK) WPL W10296554 Contact Us For Availability

2

BUCKET-LOWER-LH WPL W10297151 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.38

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $37.14

3

W10311756 Whirlpool Refrigerator Light Lens Backorder WPL W10311756 $59.84

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $52.77

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $7.81

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $14.12

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $79.98

4

WPW10436253 Whirlpool Refrigerator Black Free Backorder WPL WPW10436253 $152.74

4

WPW10443321 Whirlpool Door Gasket In Stock WPL WPW10443321 $134.09

4

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $102.30

4

PAN-SNACK WPL W10319331 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.49

5

WP12840004 Whirlpool Refrigerator Cantilever Backorder WPL WP12840004 $54.16

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $36.98

5

HANDLE-SNACK PAN WPL W10158455 Contact Us For Availability

6

12981401B Whirlpool Refrigerator Filtration C Backorder WPL 12981401B $7.91

6

12981401W Whirlpool Refrigerator Cover Filter Backorder WPL 12981401W $7.91

6

W11197490 Whirlpool Refrigerator Cantilever S Backorder WPL W11197490 $143.93

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $53.74

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $44.29

7

W10166742 Whirlpool Refrigerator Bracket Backorder WPL W10166742 $34.89

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $53.51

7

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.65

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

7

PANTRY DOOR (BLACK) WPL 13107102B Contact Us For Availability

7

PANTRY DOOR (STAINLESS) WPL 13107102S Contact Us For Availability

7

PANTRY DOOR (WHITE) WPL 13107102W Contact Us For Availability

8

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $45.87

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $29.37

8

W10443325 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443325 $134.83

8

W10830277 Whirlpool Refrigerator FIP Gasket In Stock WPL W10830277 $124.72

8

W11625002 Whirlpool Refrigerator FIP Gasket Backorder WPL W11625002 $94.91

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $76.93

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $46.57

8

WPW10443326 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10443326 $129.26

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.75

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.10

9

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $133.70

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $38.12

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $23.34

W11093713 Whirlpool Refrigerator Adapter Backorder WPL W11093713 $82.05

W11093714 Whirlpool Refrigerator Adapter Backorder WPL W11093714 $81.18

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $61.89

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $64.83

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $32.59

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $114.48

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $75.12

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $155.64

GEAR SPUR-L & R WPL W10277360 Contact Us For Availability

WATERLINE, DOOR WPL W10296451 Contact Us For Availability

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $29.65

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $34.09

W10884722 Whirlpool Refrigerator Front Cover Backorder WPL W10884722 $9.19

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $42.90

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $139.89

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $73.67

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $36.12

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.98

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.55

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $149.78

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $4.63

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $9.75

W10311758 Whirlpool Refrigerator Mullion Rail Backorder WPL W10311758 $83.22

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

W11045970 Whirlpool Refrigerator Drip Tray Backorder WPL W11045970 $39.21

W11045971 Whirlpool Refrigerator Drip Tray Backorder WPL W11045971 $39.21

WPW10305897 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10305897 $46.43

WPW10311757 Whirlpool Door Guide In Stock WPL WPW10311757 $78.59

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $123.62

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $58.39

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $62.46

MULLION, DOOR (WHITE) WPL W10311759 Contact Us For Availability

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $60.28

W10267860 Whirlpool Refrigerator Drip Tray Backorder WPL W10267860 $39.90

W10267861 Whirlpool Refrigerator Drip Tray Backorder WPL W10267861 $39.97

W10298176 Whirlpool Refrigerator Shaft Backorder WPL W10298176 $40.94

HARNESS, ICEMAKER WPL W10322960 Contact Us For Availability

BRACKET, SOLENOID WPL W10309865 Contact Us For Availability

16

W10251965 Whirlpool Refrigerator Ladder Backorder WPL W10251965 $12.15

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $30.85

16

BOX, HV CONTROL WPL W10285271 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.94

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $31.34

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.76

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.35

W10502642 Whirlpool Refrigerator Reservoir In Stock WPL W10502642 $103.10

W11592375 Whirlpool Door Hinge In Stock WPL W11592375 $10.23

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.96

WPW10530656 Whirlpool Refrigerator Utility Pa Backorder WPL WPW10530656 $128.33

HARNESS-JUMPER WPL W10193350 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $7.03

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.22

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.07

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $79.37

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.69

W10251968 Whirlpool Ladder Backorder WPL W10251968 $10.55

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.24

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $10.03

WPW10270395 Whirlpool Refrigerator Valve In Stock WPL WPW10270395 $182.70

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $38.35

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $38.78

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $54.13

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $82.51

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $44.27

22

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

22

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $32.53

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $40.18

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $44.64

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.00

WATERLINE, CABINET (W/NUT) WPL W10290356 Contact Us For Availability

DIVIDER-PANTRY-SM WPL W10285594 Contact Us For Availability

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $32.59

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $14.15

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.24

26

W10234029 Whirlpool Refrigerator Wire Harness Backorder WPL W10234029 $200.62

26

W10311723 Whirlpool Refrigerator Rail In Stock WPL W10311723 $55.13

27

W11715934 Whirlpool Rail Backorder WPL W11715934 $17.95

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

27

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $240.43

28

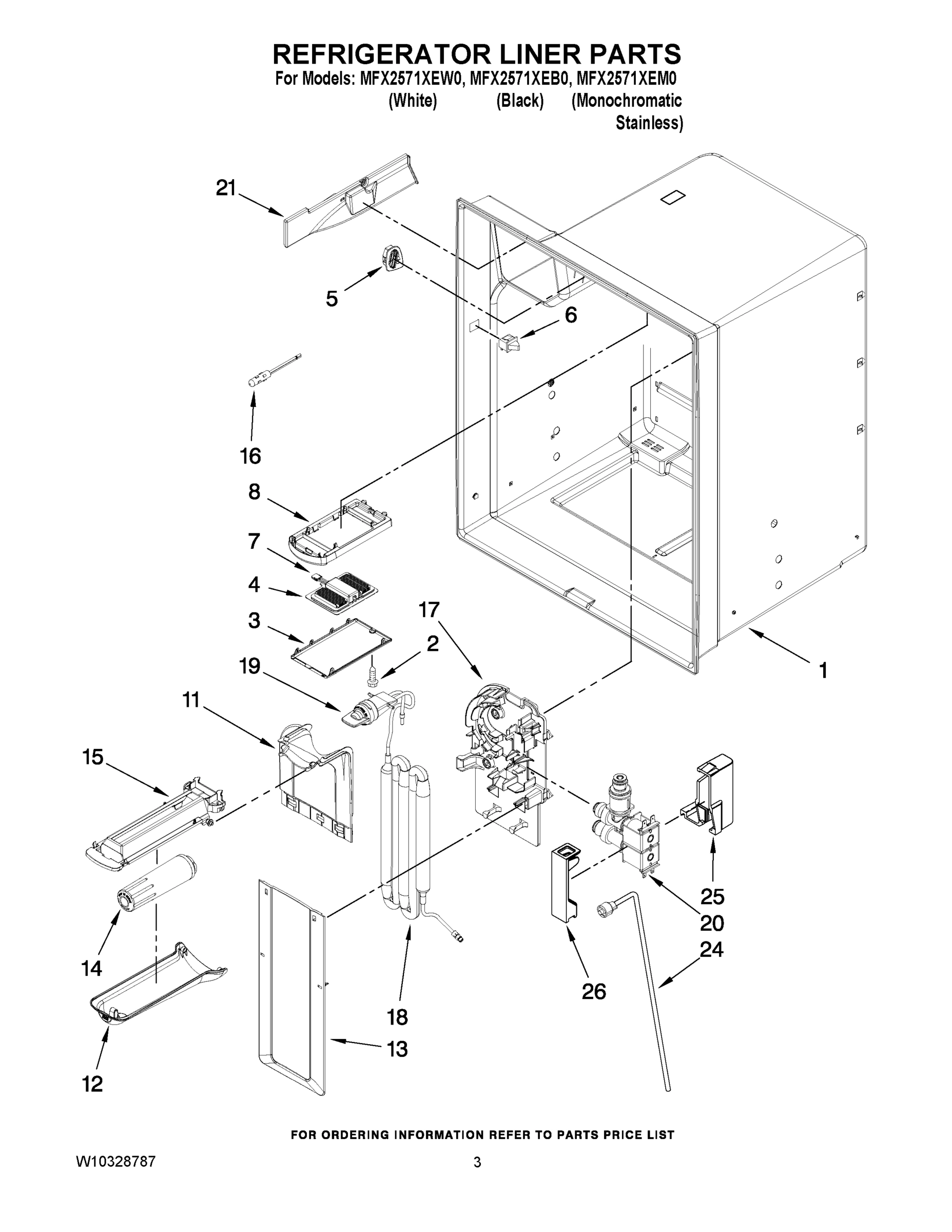

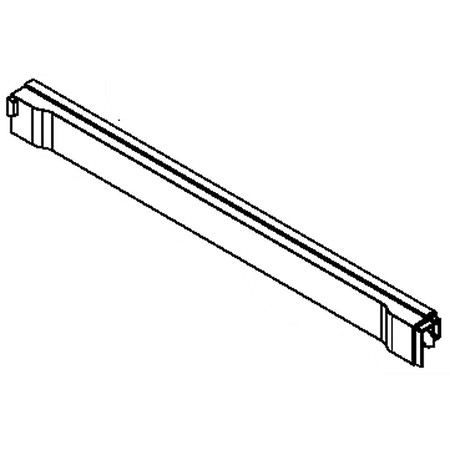

W10311727 Whirlpool Rail Backorder WPL W10311727 $56.03

28

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $2.75

29

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.55

30

W10311725 Whirlpool Refrigerator Cover Backorder WPL W10311725 $10.04

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $30.95

31

BRACE-PANTRY WPL 12227305 Contact Us For Availability

32

WPW10296571 Whirlpool Glass Shelf Assembly Backorder WPL WPW10296571 $130.52

32

WPL W10236761 WPL W10236761 Contact Us For Availability

33

W10335721 Whirlpool Refrigerator Harness Swit Backorder WPL W10335721 $32.59

33

WPL 12820505 WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

34

PROCESS TUBE WPL W10184616 Contact Us For Availability

35

WPL W10285198 WPL W10285198 Contact Us For Availability

35

CLIP, CONDENSER WPL W10196187 Contact Us For Availability

40

W10311719 Whirlpool Refrigerator Housing Backorder WPL W10311719 $58.48

42

W10311721 Whirlpool Refrigerator Insulation Backorder WPL W10311721 $29.65

43

W10316401 Whirlpool Refrigerator Insulation Backorder WPL W10316401 $29.65

44

WPL W10316403 WPL W10316403 Contact Us For Availability

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $146.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.52

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.65

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $108.62

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

WPW10324088 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324088 $231.63

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Refinishing Material (Enamel, Black (1 Qt. Un WPL 799340 Contact Us For Availability
