Model Maytag MER7662WW3 ELECTRIC RANGE – Common Parts & Diagrams

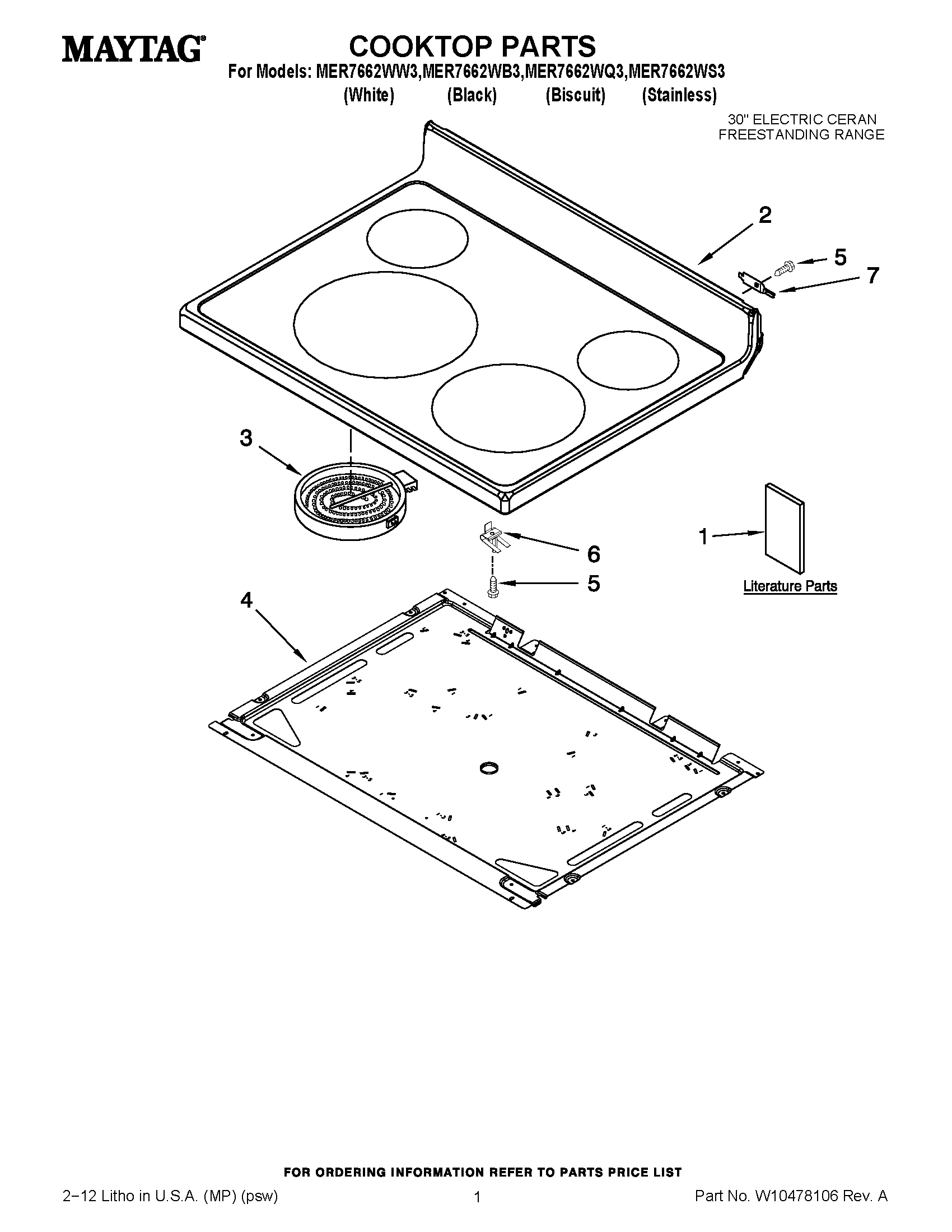

01 - COOKTOP PARTS

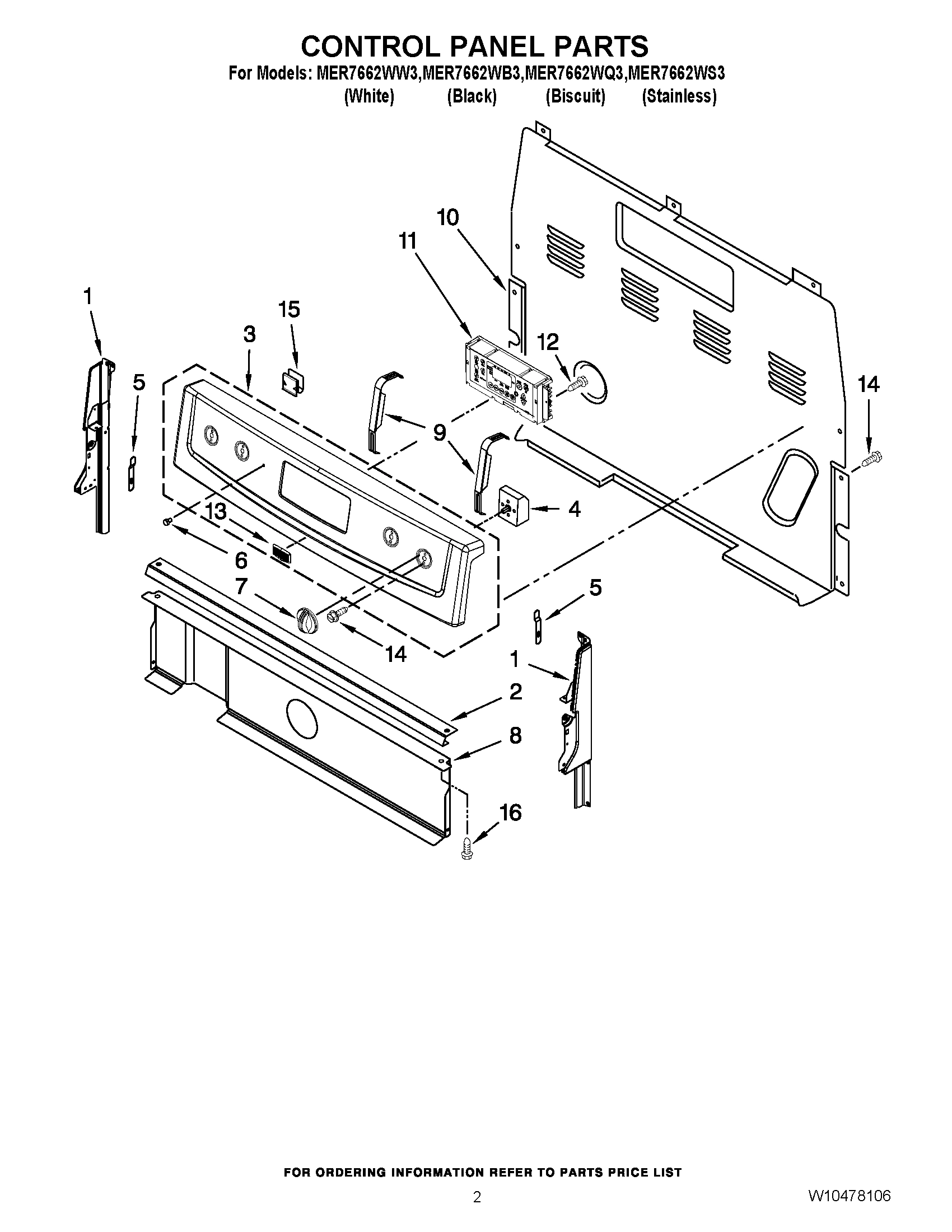

02 - CONTROL PANEL PARTS

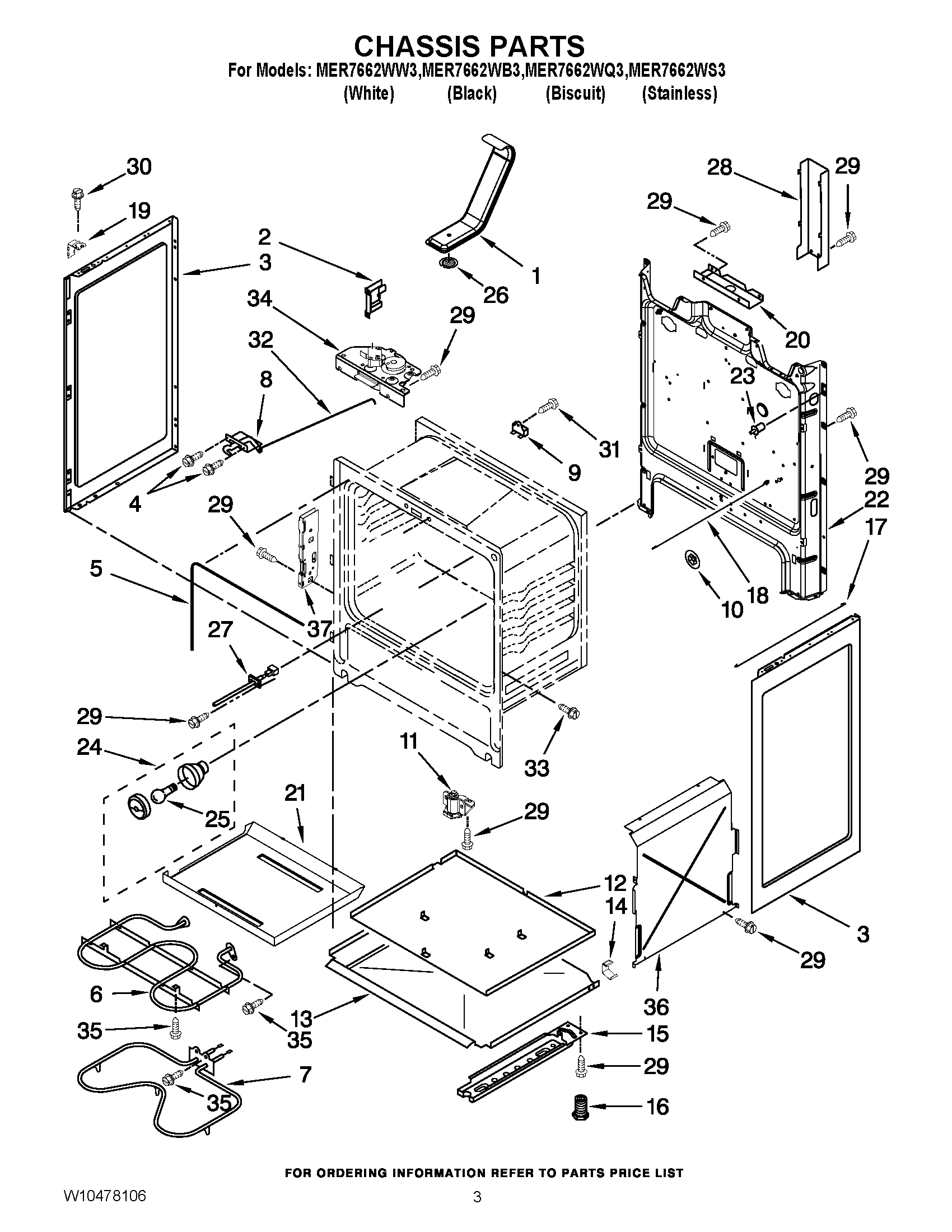

03 - CHASSIS PARTS

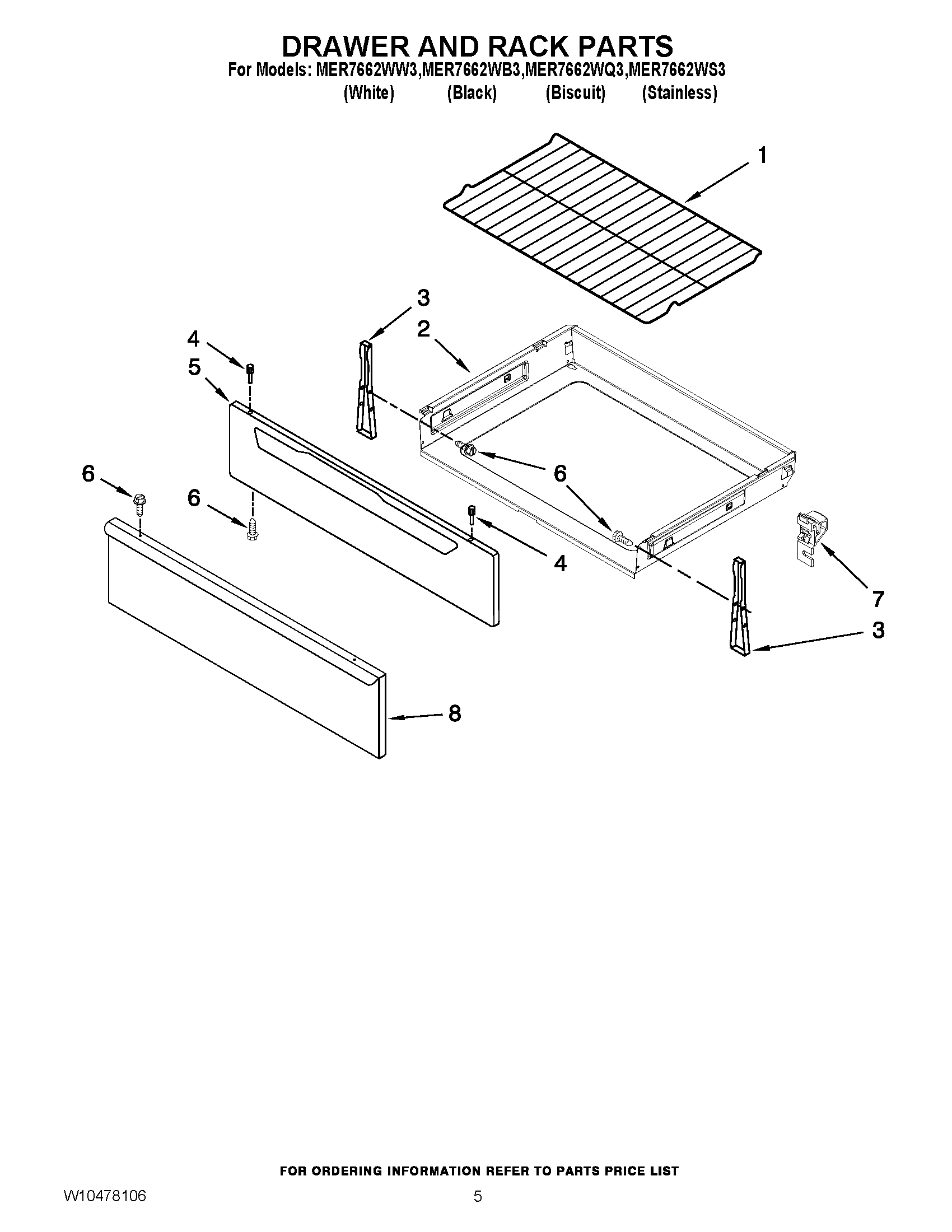

04 - DRAWER AND RACK PARTS

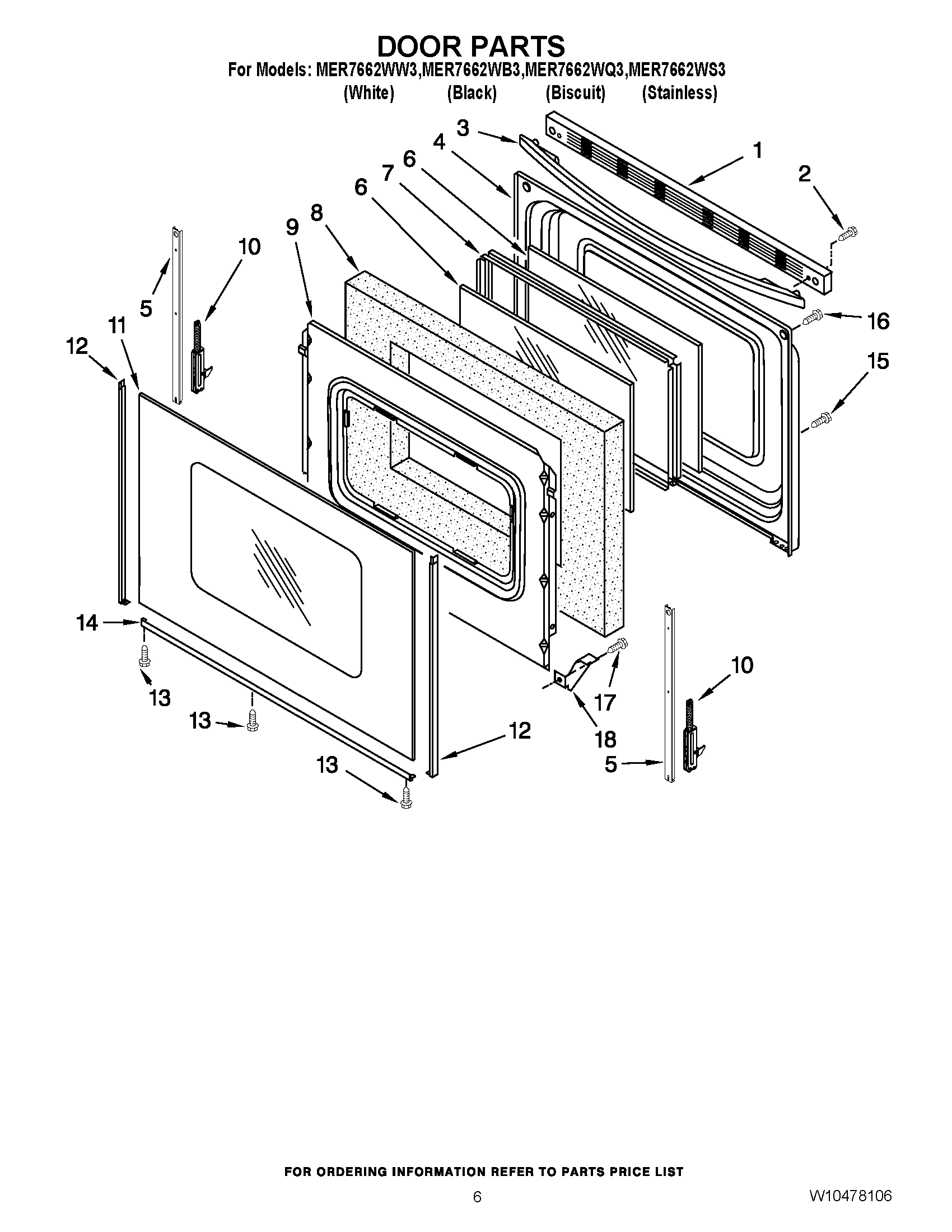

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MER7662WW3 ELECTRIC RANGE
1
MAY 9757142 MAY 9757142 Contact Us For Availability
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
TEMPLATE, ANTI-TIP (SAFE COOKING TIPS) MAY 9762761 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10403811 Contact Us For Availability
1
OWNER’S MANUAL MAY W10419388 Contact Us For Availability
1
MAY W10434978 MAY W10434978 Contact Us For Availability
1
ENDCAP (WHITE LH) MAY W10184433 Contact Us For Availability
1
ENDCAP (WHITE RH) MAY W10184434 Contact Us For Availability
1
ENDCAP (BISCUIT, LH) MAY W10184435 Contact Us For Availability
1
ENDCAP (BISCUIT, RH) MAY W10184436 Contact Us For Availability
1
ENDCAP (BLACK LH) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK RH) MAY W10184438 Contact Us For Availability
1
Vent Tube Asmbly MAY W10134285 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
1
MAY W10310923 MAY W10310923 Contact Us For Availability
2
MAY W10211389 MAY W10211389 Contact Us For Availability
2
MAY W10211390 MAY W10211390 Contact Us For Availability
2
MAY W10211391 MAY W10211391 Contact Us For Availability
2
Bracket, Console MAY W10182322 Contact Us For Availability
2
BRACKET, OVEN SUPPORT, LATCH MAY W10355173 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
Element, Surface (1200 W - LR & RR) MAY 8273994 Contact Us For Availability
3
ELEMENT, SURFACE (3000 W - LF) MAY W10169796 Contact Us For Availability
3
ELEMENT, SURFACE (2500/1200W (RF)) MAY W10275049 Contact Us For Availability
3
MAY W10292009 MAY W10292009 Contact Us For Availability
3
MAY W10292010 MAY W10292010 Contact Us For Availability
3
MAY W10292011 MAY W10292011 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W10292012 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
PANEL, SIDE (BISCUIT) MAY W10322771 Contact Us For Availability
3
BRKT-MNTG, DRAWER MAY W10462912 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
3
MAY W10323586 MAY W10323586 Contact Us For Availability
4
PAN, RADIANT ELMT MAY W10106409 Contact Us For Availability
4
Switch, Infinite (LR,RR) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (LF) MAY W10167742 Contact Us For Availability
4
SWITCH, INFINITE (RF (DUAL)) MAY W10434452 Contact Us For Availability
4
MAY 3196560 MAY 3196560 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
Panel, Drawer Frnt (Biscuit) MAY 8272501 Contact Us For Availability
5
STRAP, DOOR MAY W10113759 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
HINGE, PIN MAY 3195060 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
KNOB, INFINITE (BISCUIT) MAY W10211373 Contact Us For Availability
7
ELEMENT, BAKE (HIDDEN) MAY W10308474 Contact Us For Availability
7
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
7
GLIDE, DRAWER (LEFT) MAY W10317899 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
Latch, Door MAY 9761013 Contact Us For Availability
8
PANEL(STLS. MODEL) MAY W10237657 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
NUT, PUSH ON MAY 3400968 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
CONTROL, RANGE (LCC 95) (WHITE) MAY W10236239 Contact Us For Availability
11
CONTROL, RANGE (LCC 95) (BLACK) MAY W10236240 Contact Us For Availability
11
CONTROL, RANGE (LCC 95) (BISCUIT) MAY W10236241 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
11
MAY W10106406 MAY W10106406 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10181749 Contact Us For Availability
12
MAY W10134125 MAY W10134125 Contact Us For Availability
12
TRIM, SIDE (BLACK RH) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE RH) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BISCUIT, RH) MAY 8523167 Contact Us For Availability
12
TRIM, SIDE (BLACK LH) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE LH) MAY 8523172 Contact Us For Availability
12
TRIM, SIDE (BISCUIT, LH) MAY 8523173 Contact Us For Availability
13
MAY W10199708 MAY W10199708 Contact Us For Availability
13
MAY W10134121 MAY W10134121 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
14
MAY 8523178 MAY 8523178 Contact Us For Availability
15
Clip, Cover MAY 8273564 Contact Us For Availability
15
RAIL, BASE (RIGHT) MAY W10390007 Contact Us For Availability
15
RAIL, BASE (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
ROD, INSUL RETAINR MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
CLIP, SPRING MAY W10183541 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
TRAY-BAKE, HIDDEN MAY W10183712 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
LIGHT SOCKET ASSY MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
COVER, BOX MAY W10326122 Contact Us For Availability
29
MAY 3196169 MAY 3196169 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
32
MAY W10078380 MAY W10078380 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
34
LATCH ASSY, REAR MAY W10107820 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
RETAINER, SIDE MAY 9758238 Contact Us For Availability
37
BRKT-MOUNTING MAY W10289077 Contact Us For Availability
NI
MAY 9759689 MAY 9759689 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Harness, Wire (Bake, Hidden) MAY 9757339 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273581 Contact Us For Availability
NI
WIRE ADAPTER KIT MAY W10281322 Contact Us For Availability
NI
HARNESS, MAIN MAY W10349643 Contact Us For Availability
NI
MAY W10349654 MAY W10349654 Contact Us For Availability
× ![]()
