Model Whirlpool MDG25PRAWW0 GAS DRYER – Common Parts &amp; Diagrams

1

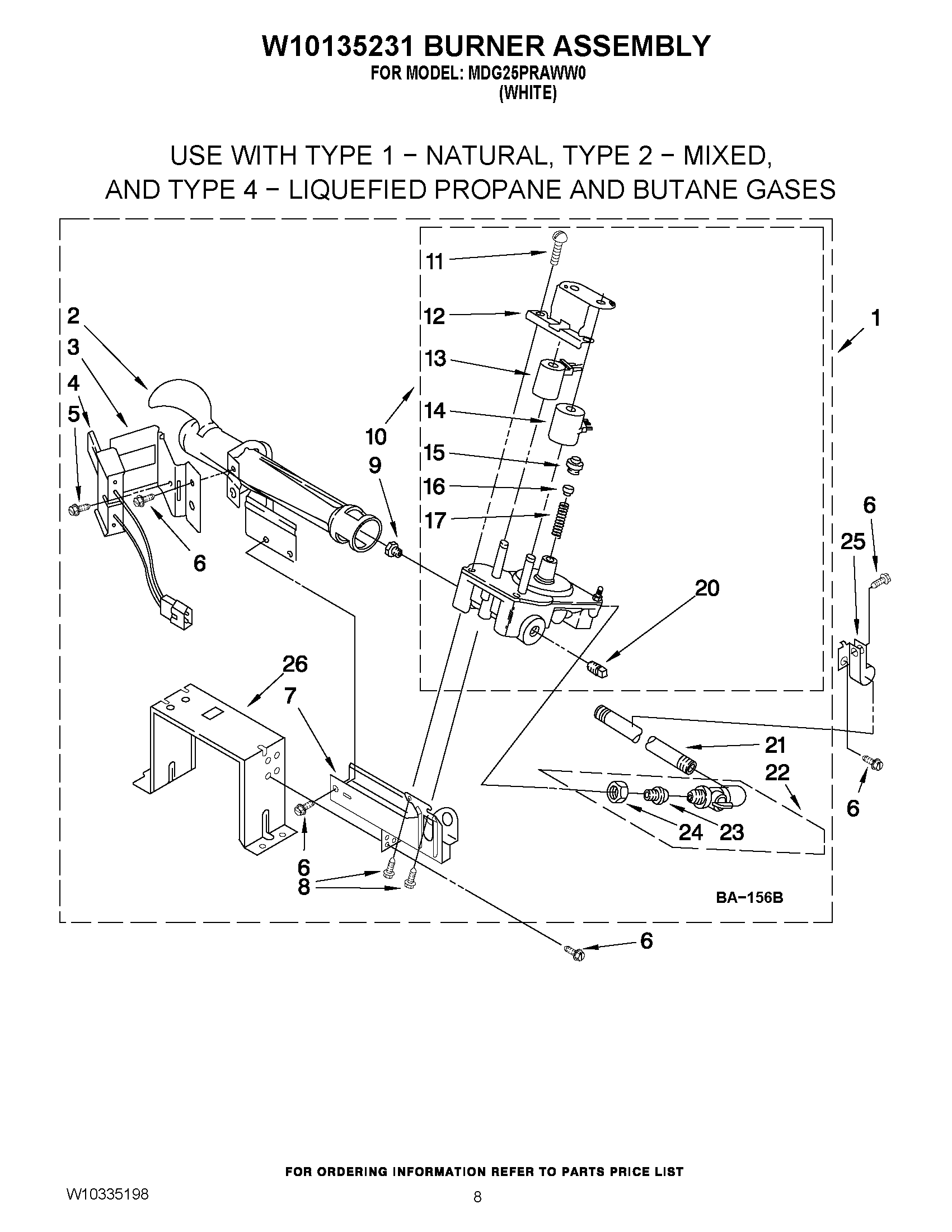

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL W10135231 Contact Us For Availability

1

INSTALLATION INSTRUCTION WPL W10135154 Contact Us For Availability

1

TECH SHEET WPL W10239202 Contact Us For Availability

1

INSTALLATION INSTRUCTIONS, CARD READER WPL W10313706 Contact Us For Availability

1

PARTS LIST WPL W10335198 Contact Us For Availability

2

W11622909 Whirlpool Top Backorder WPL W11622909 $431.15

3

W11222846 Whirlpool Door Backorder WPL W11222846 $85.90

3

HARNESS, MAIN WPL W10337045 Contact Us For Availability

4

W10779120 Whirlpool Console Backorder WPL W10779120 $61.55

4

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.96

4

Screw WPL 9742177 Contact Us For Availability

5

3400618 Whirlpool Screw Backorder WPL 3400618 $2.38

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $64.31

6

W11706993 Whirlpool Seal Backorder WPL W11706993 $10.13

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.03

6

WP8565237 Whirlpool Bracket Assembly Backorder WPL WP8565237 $82.72

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.60

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.54

9

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.60

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.84

10

WPW10141728 Whirlpool Gas Valve Backorder WPL WPW10141728 $192.92

10

WPW10164062 Whirlpool Door Assembly Backorder WPL WPW10164062 $142.38

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.60

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.60

12

W11790400 Whirlpool Console Backorder WPL W11790400 $121.99

12

DOOR, OUTER RING WPL W10198431 Contact Us For Availability

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $118.03

14

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.29

14

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.73

15

8564011 Whirlpool Bracket Backorder WPL 8564011 $6.88

15

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.42

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.05

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.84

16

WP8580059 Whirlpool Window Backorder WPL WP8580059 $33.99

16

Ground Wire Assembly WPL W10188087 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.79

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.60

17

WPW10139046 Whirlpool Nut Backorder WPL WPW10139046 $3.27

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.79

18

WP8565018 Whirlpool Hinge Backorder WPL WP8565018 $44.10

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.60

19

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.43

19

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $49.86

20

WPW10112927 Whirlpool Control Pad Backorder WPL WPW10112927 $3.84

20

WPW10135255 Whirlpool Switch Backorder WPL WPW10135255 $159.19

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.66

21

FACIA-DISPENSER WPL W10137461 Contact Us For Availability

Valve & Union Shut-Off WPL 697441 No Longer Available

8565083 Whirlpool Ramp Assembly Backorder WPL 8565083 $38.48

W10137445 Whirlpool Bracket Assembly Backorder WPL W10137445 $11.65

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $62.25

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $36.33

23

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.74

23

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $3.84

24

W10137444 Whirlpool Bracket Backorder WPL W10137444 $11.65

24

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.60

24

Nut, Compression WPL 233076 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.64

25

WPW10137457 Whirlpool Screw In Stock WPL WPW10137457 $2.43

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.60

26

WPW10137454 Whirlpool Bezel Backorder WPL WPW10137454 $2.74

27

W10331020 Whirlpool Harness Wire Backorder WPL W10331020 $15.98

28

W11113654 Whirlpool Pad In Stock WPL W11113654 $11.17

28

W11637765 Whirlpool Cover Backorder WPL W11637765 $27.85

28

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.84

29

W10189075 Whirlpool Washer Backorder WPL W10189075 $8.63

30

3373818 Whirlpool Terminal Backorder WPL 3373818 $13.47

30

WPW10131172 Whirlpool Belt In Stock WPL WPW10131172 $19.15

31

W10187276 Whirlpool Gasket Backorder WPL W10187276 $12.12

32

W11676491 Whirlpool Base Backorder WPL W11676491 $53.11

32

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

33

W11131294 Whirlpool Cover Backorder WPL W11131294 $6.25

34

FASCIA-CONSOLE WPL W10334889 Contact Us For Availability

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $8.28

35

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.60

35

WPW10424308 Whirlpool Push Button In Stock WPL WPW10424308 $7.24

36

W10166307 Whirlpool Wire Harness Backorder WPL W10166307 $18.07

36

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.78

37

WPW10189313 Whirlpool Insert Backorder WPL WPW10189313 $3.46

37

WPW10349492 Whirlpool Wheel In Stock WPL WPW10349492 $42.25

38

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $35.72

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $33.57

40

W11129439 Whirlpool Wire Harness Backorder WPL W11129439 $6.84

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.03

41

W11502995 Whirlpool Card Reader Backorder WPL W11502995 $23.41

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.52

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $79.94

46

CONTROL BOARD WPL W10166305 Contact Us For Availability

47

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $47.96

47

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $78.41

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $18.66

49

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.74

51

W11247665 Whirlpool Switch In Stock WPL W11247665 $13.19

52

Foam-Seal (IEC) WPL 8318396 Contact Us For Availability

53

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $3.84

54

WP3405160 Whirlpool Belt Assembly In Stock WPL WP3405160 $11.38

59

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $59.07

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350938 Whirlpool Spray Gun Backorder WPL 350938 $52.25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.49

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

W10436933 Whirlpool LP Gas Connection Backorder WPL W10436933 $29.45

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
