Model Maytag MDG18CSAWW0 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

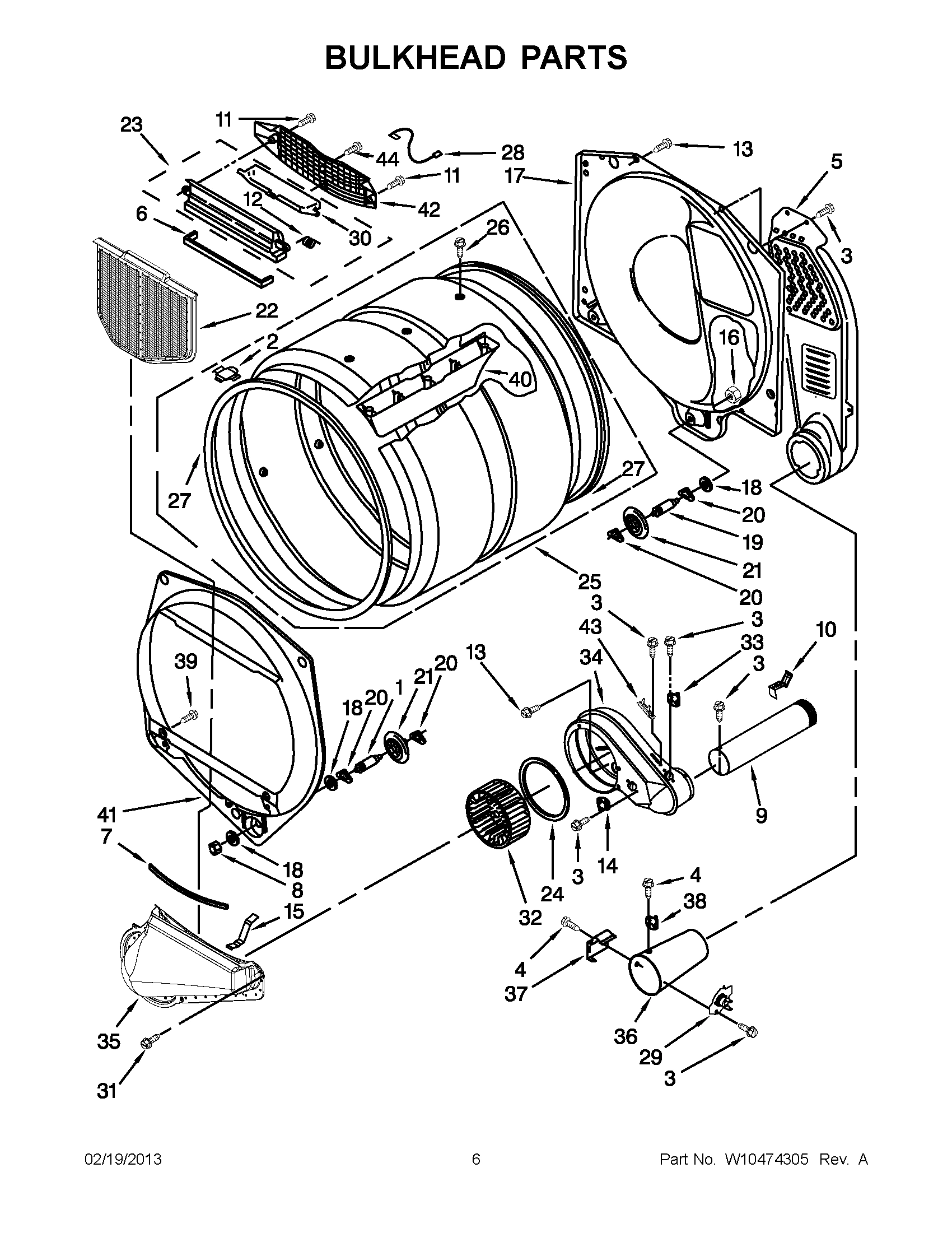

03 - BULKHEAD PARTS

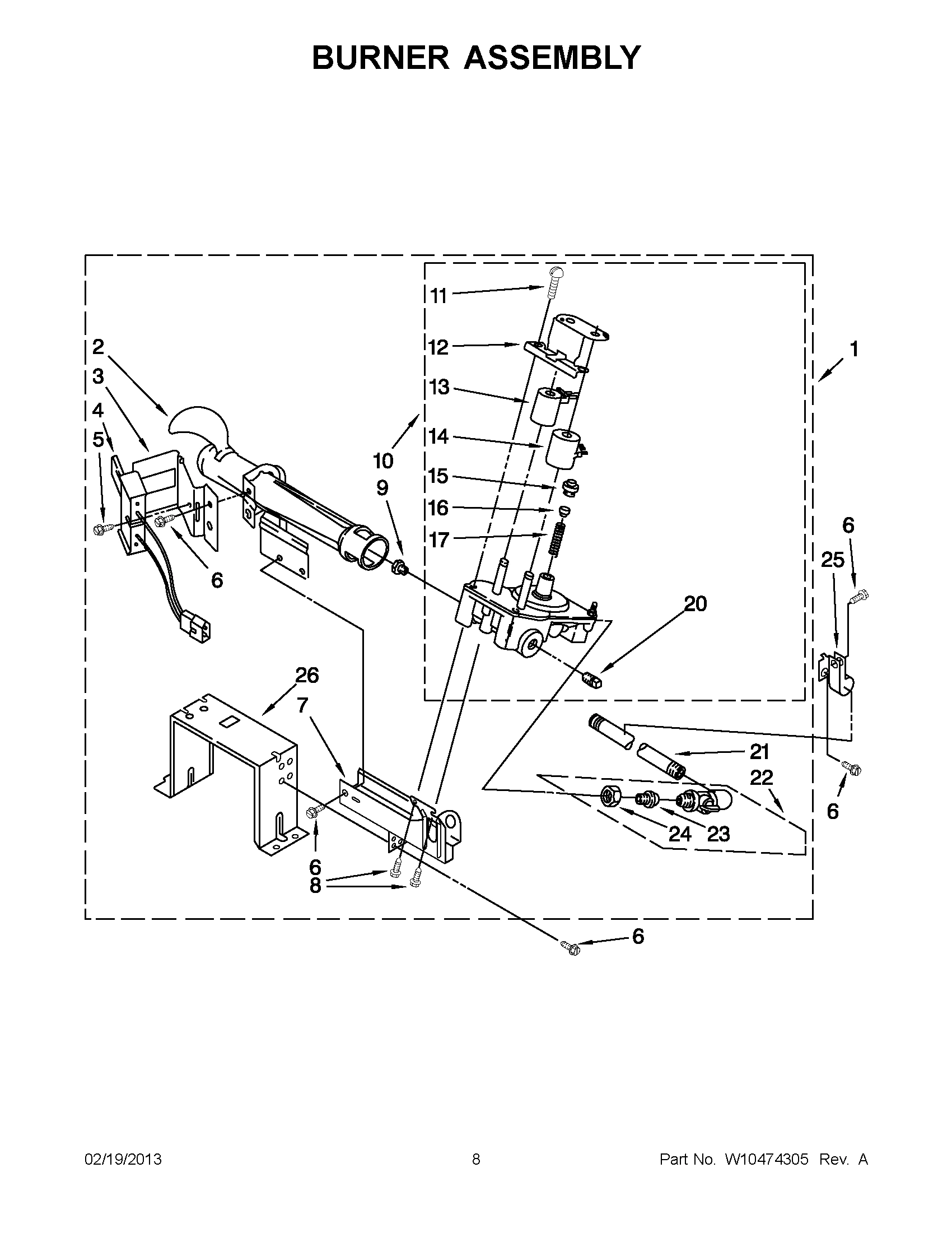

04 - BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG18CSAWW0 GAS DRYER
1
MAY W10167622 MAY W10167622 Contact Us For Availability
1
MAY W10474273 MAY W10474273 Contact Us For Availability
1
MAY 3391943 MAY 3391943 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) MAY W10135231 Contact Us For Availability
2
TIMING CAM MAY 3387974 Contact Us For Availability
2
TIMING CAM, 6 PIN (30 MINUTES) MAY 343777 Contact Us For Availability
2
CONE WEDGE MAY 356674 Contact Us For Availability
2
Plug, Drum Hole MAY 8066086 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY W10140928 MAY W10140928 Contact Us For Availability
3
MAY 3400077 MAY 3400077 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10133502 MAY W10133502 Contact Us For Availability
4
Clip, Front Panel MAY 3391846 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
MAY W10133507 MAY W10133507 Contact Us For Availability
5
MAY 8564010 MAY 8564010 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
6
MAY W10386302 MAY W10386302 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
7
MAY W10461109 MAY W10461109 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
MAY W10461070 MAY W10461070 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY W10139100 MAY W10139100 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8066224 MAY 8066224 Contact Us For Availability
9
Orifice, Burner (Type 2) MAY 234868 Contact Us For Availability
9
Orifice, Burner (Type 1) MAY 234870 Contact Us For Availability
10
MAY W10327105 MAY W10327105 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
VALVE, GAS (60 HZ -COMPLETE) MAY W10141728 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY W10488054 MAY W10488054 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 3387230 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10130072 MAY W10130072 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
MAY W10461094 MAY W10461094 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
NUT, ``U`` MAY W10131123 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
THERMOSTAT MAY W10178810 Contact Us For Availability
14
COIL, 60 HZ (SPLIT, 3 TERMINAL) MAY 694539 Contact Us For Availability
15
MAY W10139210 MAY W10139210 Contact Us For Availability
15
COVER PLATE, EXHAUST PLATE MAY 3394331 Contact Us For Availability
15
MAY W10345456 MAY W10345456 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY 3978608 MAY 3978608 Contact Us For Availability
16
MAY W10167613 MAY W10167613 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY 693152 MAY 693152 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY 8317340 MAY 8317340 Contact Us For Availability
18
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY 303776 MAY 303776 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10177793 MAY W10177793 Contact Us For Availability
20
Screw MAY 693995 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
21
Timer 7 Harness Assembly MAY W10135260 Contact Us For Availability
21
MAY W10279703 MAY W10279703 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10110395 MAY W10110395 Contact Us For Availability
22
MAY W10156125 MAY W10156125 Contact Us For Availability
22
MAY W10116360 MAY W10116360 Contact Us For Availability
22
Screen, Lint MAY W10049370 Contact Us For Availability
22
VALVE, GAS MAY 697441 Contact Us For Availability
23
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
23
SCREW, DOOR SWITCH MOUNTING MAY 3390663 Contact Us For Availability
23
MAY W10181928 MAY W10181928 Contact Us For Availability
23
MAY 3393767 MAY 3393767 Contact Us For Availability
24
MAY W10529172 MAY W10529172 Contact Us For Availability
24
MAY 90406 MAY 90406 Contact Us For Availability
24
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
24
MAY 233076 MAY 233076 Contact Us For Availability
25
BOLT, METER CASE (SCREW) MAY 3349065 Contact Us For Availability
25
MAY 3387561 MAY 3387561 Contact Us For Availability
25
DRUM ASSEMBLY MAY W10545923 Contact Us For Availability
26
Cushion, Meter Case MAY 3954812 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY 3389889 MAY 3389889 Contact Us For Availability
27
MAY W10139060 MAY W10139060 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
SEAL, DRUM (FRONT) MAY W10521118 Contact Us For Availability
28
MAY W10133509 MAY W10133509 Contact Us For Availability
28
JUMPER, WIRE MAY 3401707 Contact Us For Availability
29
MAY W10153108 MAY W10153108 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
30
WHITE MAY W10136707 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10181925 MAY W10181925 Contact Us For Availability
31
SCREW MAY 3390647 Contact Us For Availability
31
MAY 3347825 MAY 3347825 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
32
SCREW MAY 98445 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY W10153513 MAY W10153513 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
MAY W10131836 MAY W10131836 Contact Us For Availability
34
MAY W10135254 MAY W10135254 Contact Us For Availability
35
MAY 8066168 MAY 8066168 Contact Us For Availability
36
MAY W10440461 MAY W10440461 Contact Us For Availability
36
MAY 8573824 MAY 8573824 Contact Us For Availability
37
MAY 338906 MAY 338906 Contact Us For Availability
38
MAY 8564011 MAY 8564011 Contact Us For Availability
38
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
39
SCREW MAY 3357011 Contact Us For Availability
40
MAY W10155571 MAY W10155571 Contact Us For Availability
40
Baffle, Drum MAY 697693 Contact Us For Availability
41
Switch, Door MAY 3406109 Contact Us For Availability
41
MAY 697557 MAY 697557 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
MAY W10181926 MAY W10181926 Contact Us For Availability
43
WHITE MAY 697215 Contact Us For Availability
43
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
SCREW MAY 695240 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY W10323061 MAY W10323061 Contact Us For Availability
48
MAY 359625 MAY 359625 Contact Us For Availability
49
MAY W10322546 MAY W10322546 Contact Us For Availability
50
MAY 8539892 MAY 8539892 Contact Us For Availability
51
WHITE MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
MAY 8533974 MAY 8533974 Contact Us For Availability
54
Door Catch Assembly MAY 3392538 Contact Us For Availability
55
ELBOW MAY 49026 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
MAY 8529757 MAY 8529757 Contact Us For Availability
59
LOCK-TOP MAY 345670 Contact Us For Availability
60
Plug-Hinge MAY W10191265 Contact Us For Availability
61
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE L.P.G. MAY W10436933 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
× ![]()
