Model Whirlpool MDG12PDBAL GAS DRYER – Common Parts & Diagrams
04 - DOOR

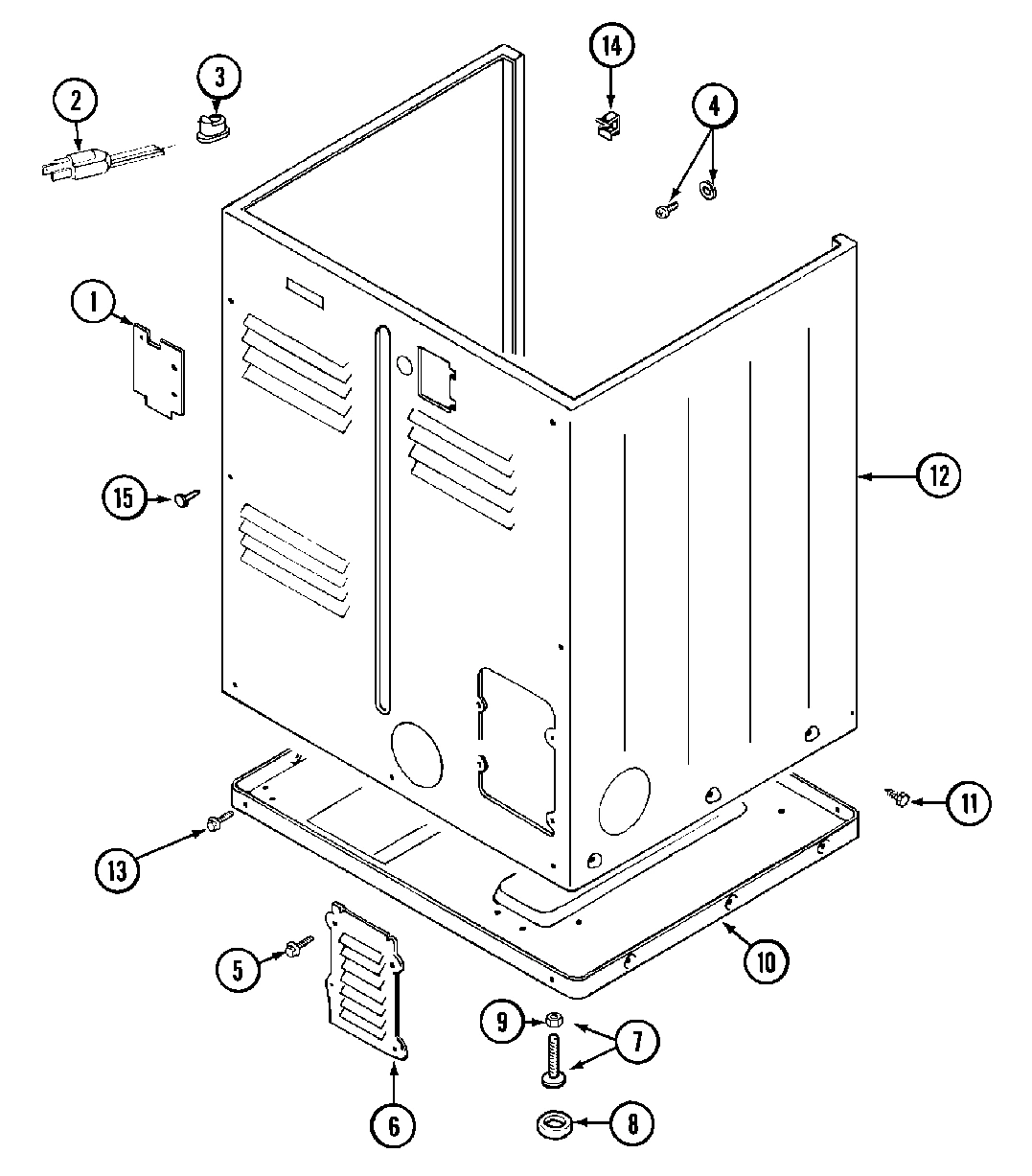

05 - CABINET-REAR
06 - TUMBLER

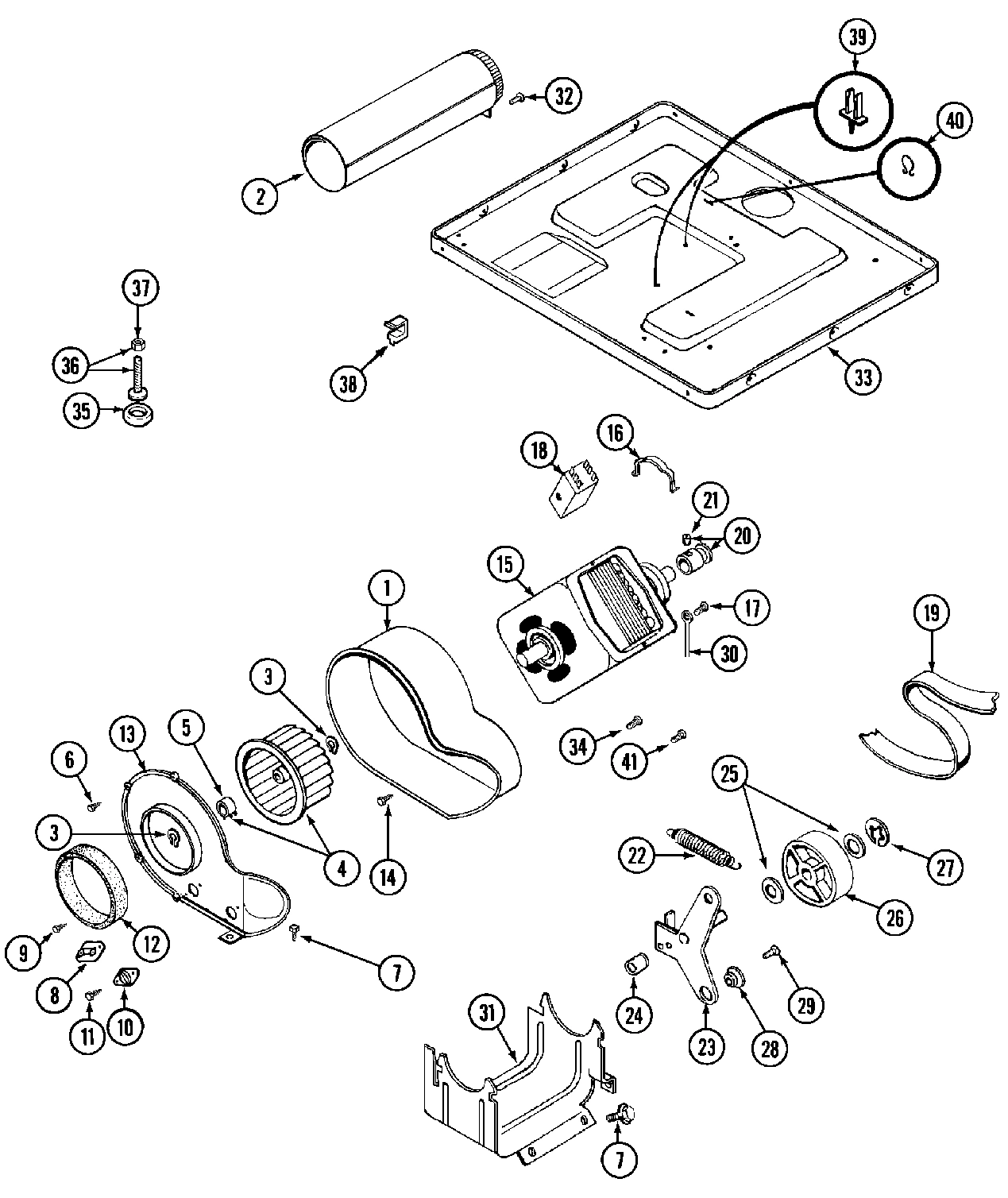

08 - MOTOR DRIVE

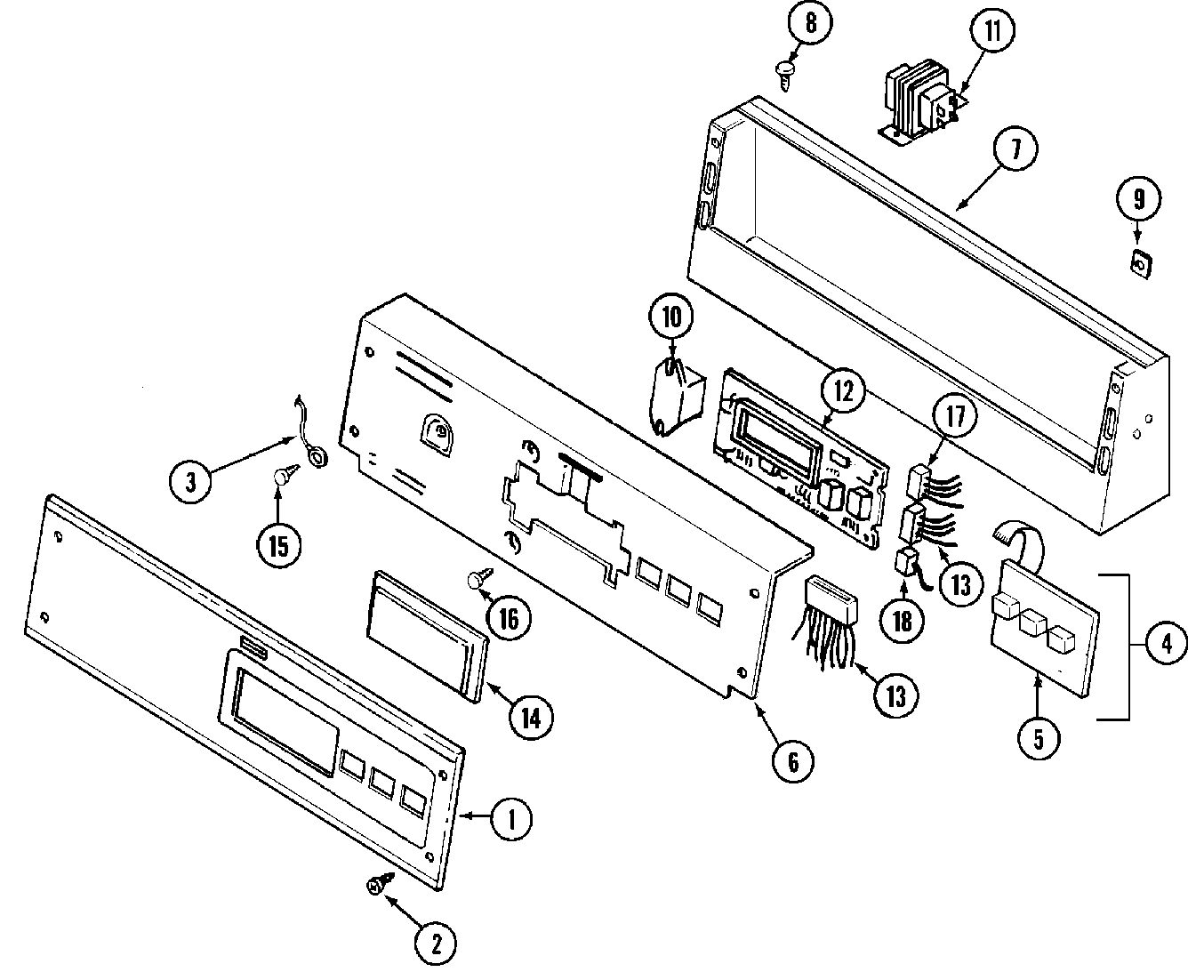

01 - CONTROL PANEL

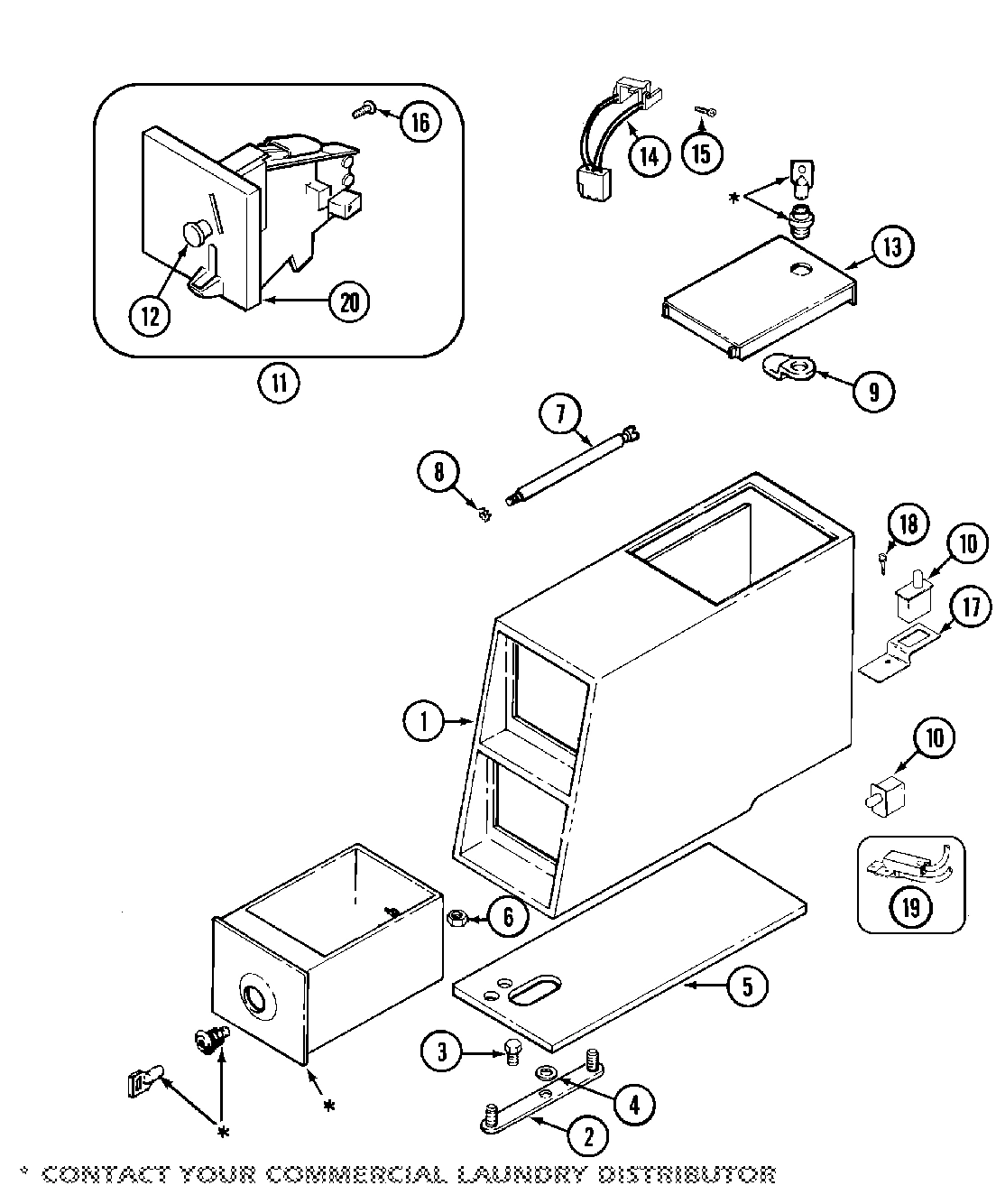

02 - CONTROL CENTER

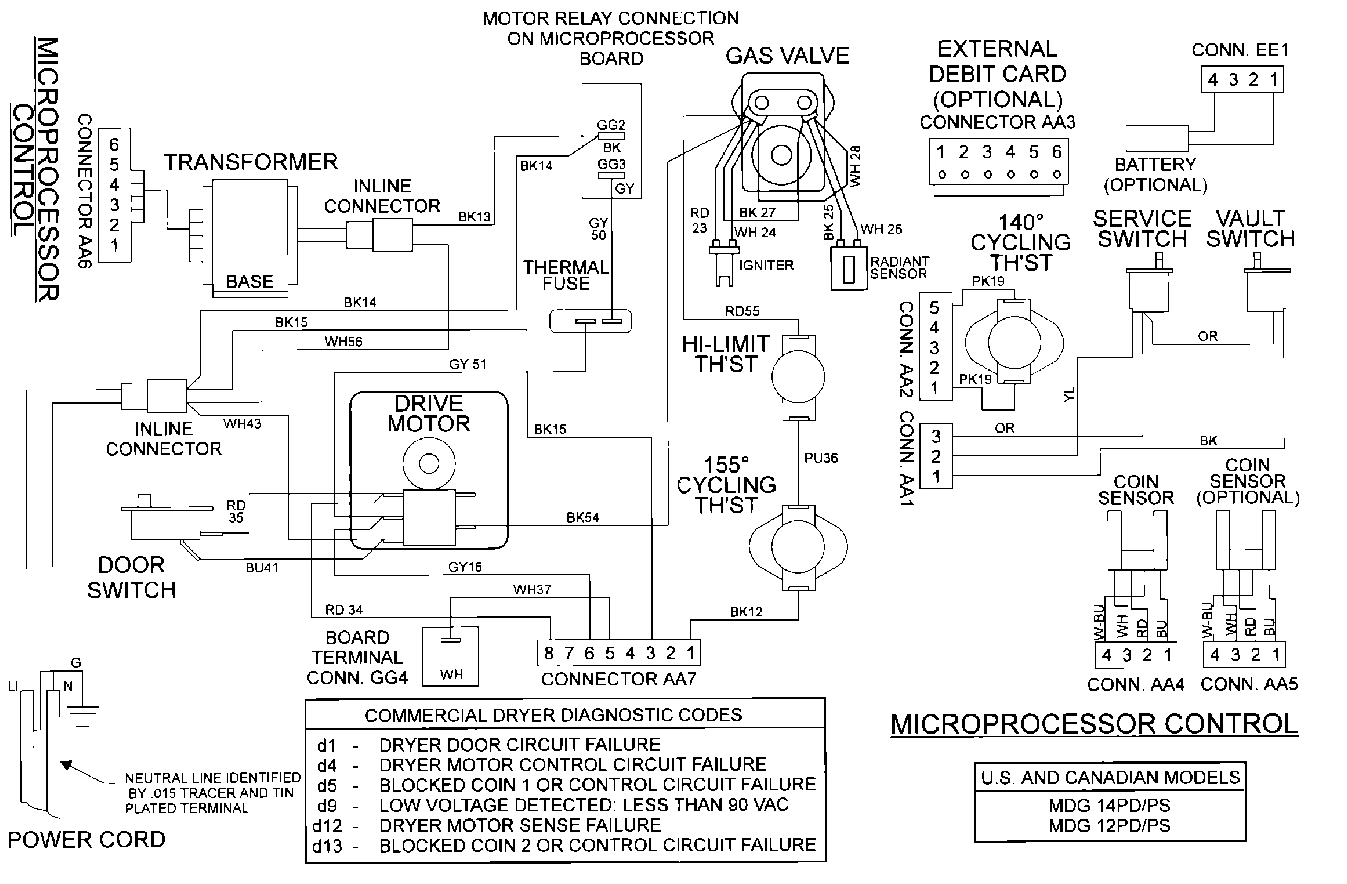

09 - WIRING INFORMATION
03 - CABINET-FRONT

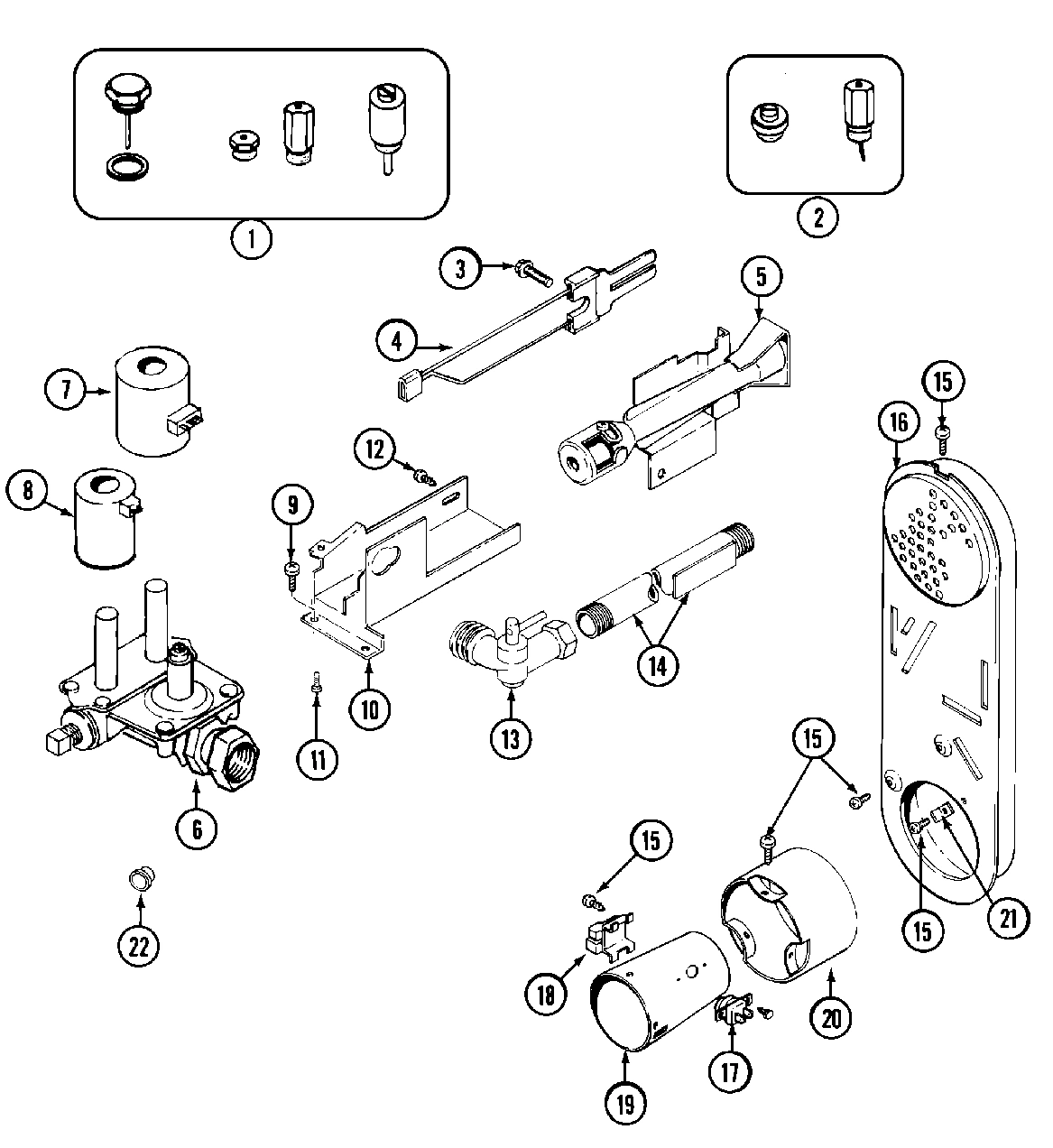

07 - GAS VALVE
Common parts from model Whirlpool MDG12PDBAL GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
PANEL, CONTROL WPL 33001737 Contact Us For Availability
001
(ALM) WPL 22001872 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
003
GROMMET, CORD WPL 211881 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001740 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
GASKET, COIN VAULT (WHT) WPL 22001870 Contact Us For Availability
005
(ALM) WPL 22001874 Contact Us For Availability
005
(ALM) WPL 33001254 Contact Us For Availability
006
COVER, ACCESS WPL Y312951 Contact Us For Availability
006
PLATE, BACK-UP (WHT) WPL 33001736 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
009
SCREW, GAS VALVE WPL Y313561 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
010
SCREW, CABINET WPL Y310632 Contact Us For Availability
010
RELAY, MOTOR (SPST) WPL 206824 Contact Us For Availability
010
SCREW, SENSOR SWITCH WPL 912012 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
(CAN) WPL 22001875 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
012
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
013
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
013
CONNECTOR, EDGEBOARD WPL 314531 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001743 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001879 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
(ALM) WPL 22001911 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
CABINET (WHT) WPL NLA Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
018
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
018
(ALM) WPL 33001615 Contact Us For Availability
019
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308548 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
020
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) WPL Y303841 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
