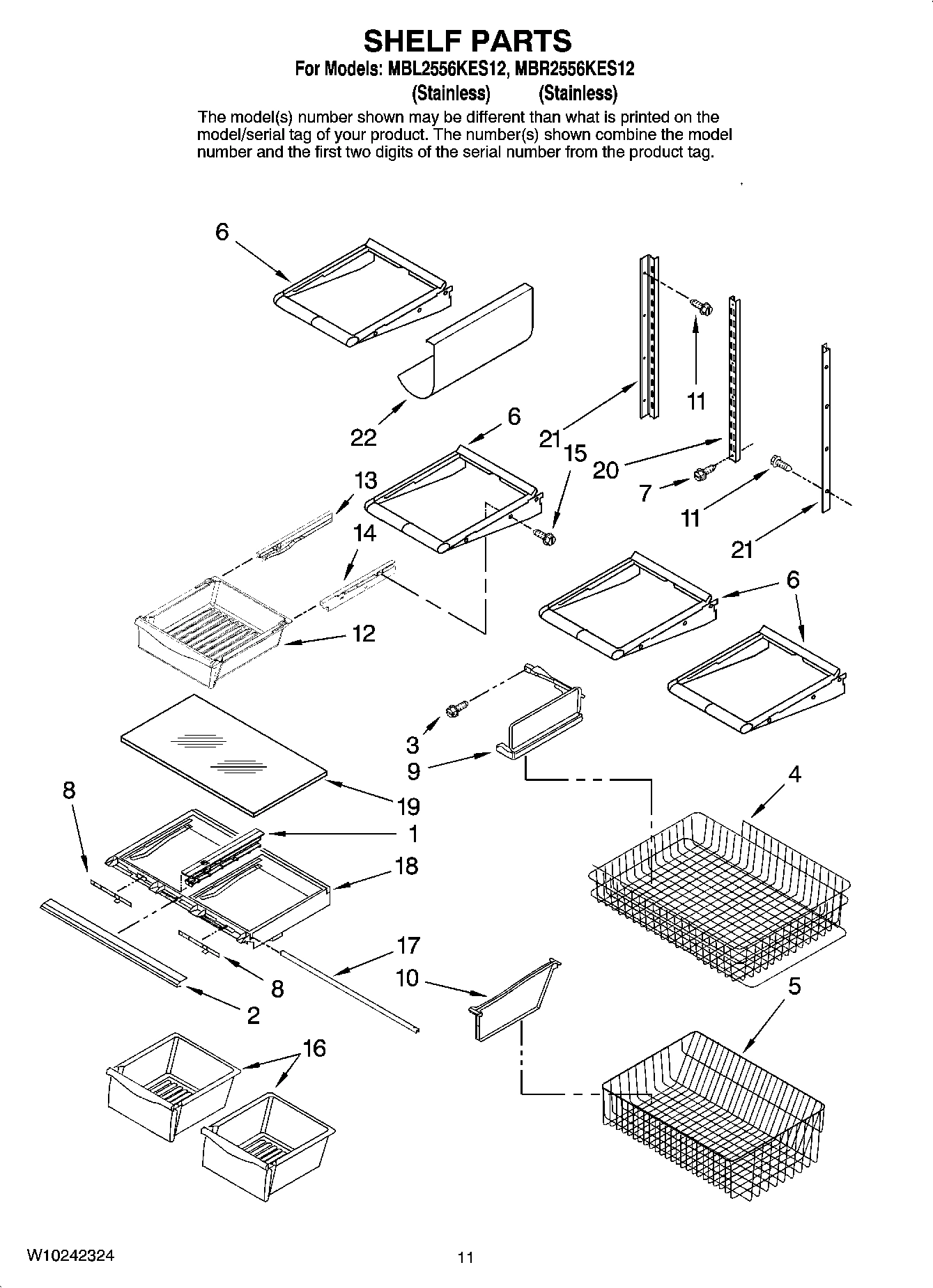

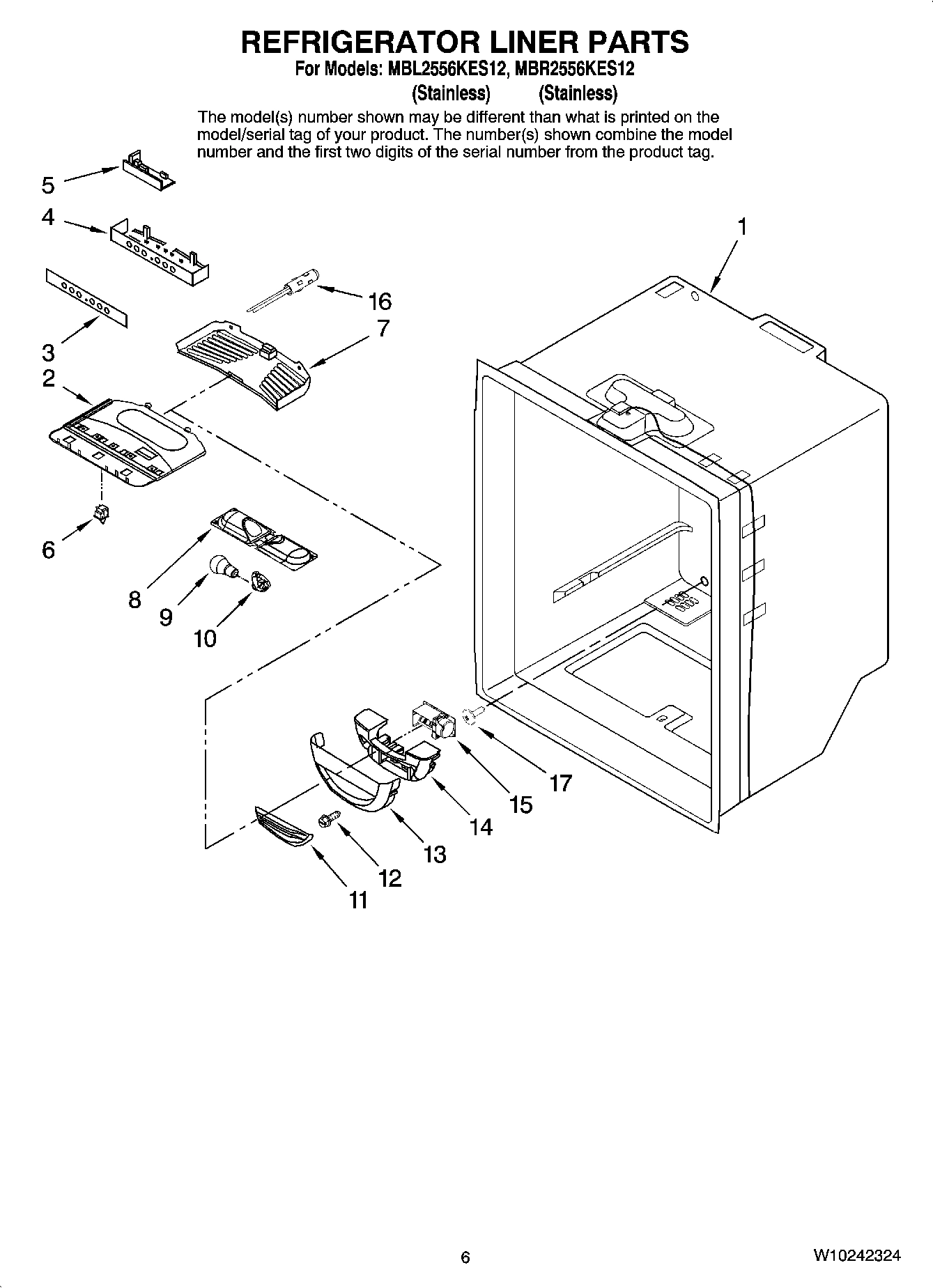

Model Maytag MBR2556KES12 REFRIGERATOR – Common Parts &amp; Diagrams

1

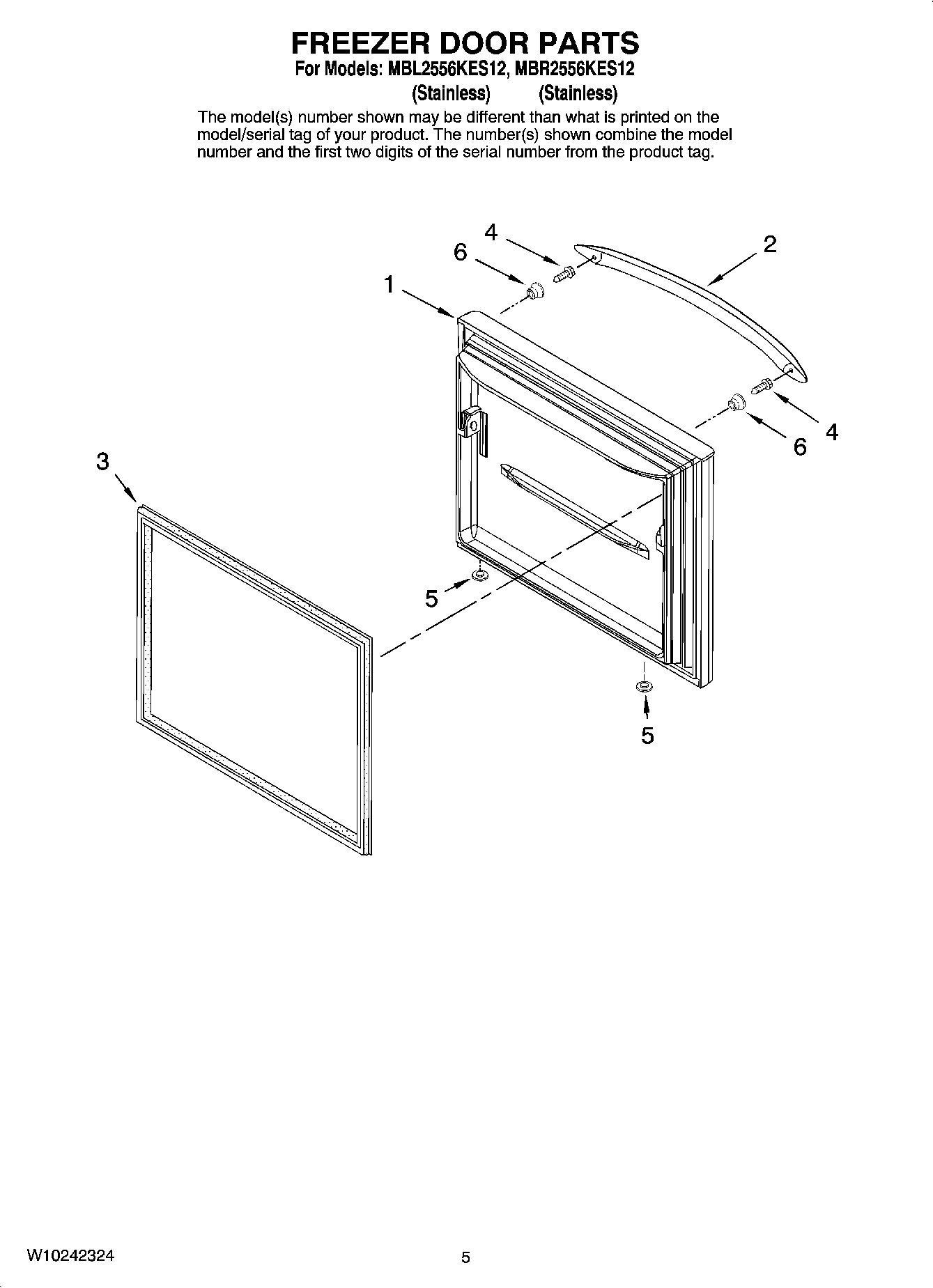

DOOR, FREEZER STAINLESS MAY 13092213SQ Contact Us For Availability

1

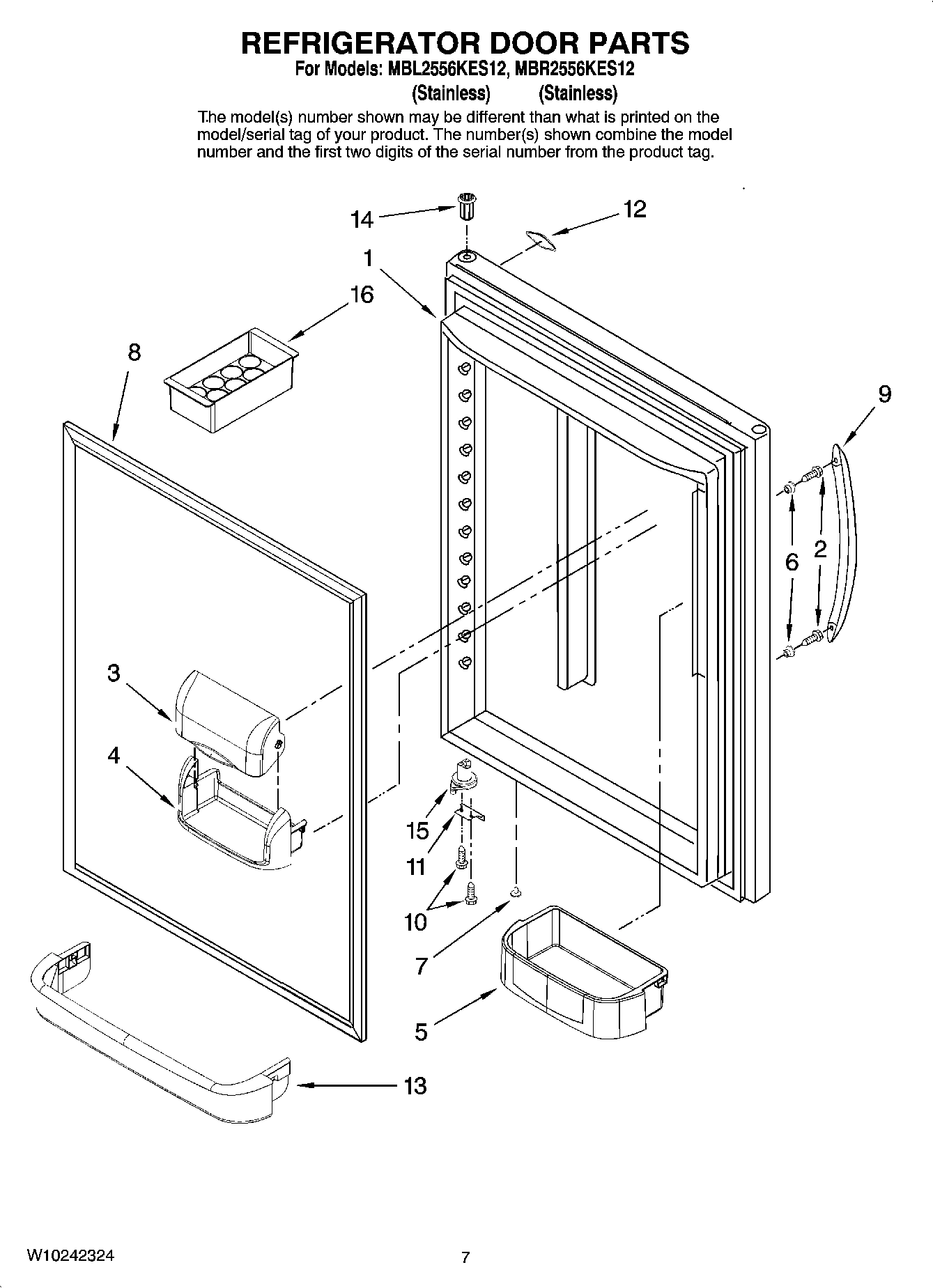

Door, Refrigerator (Stainless (For MBR2556KES MAY 13023834SQ Contact Us For Availability

1

Door, Refrigerator (Stainless (For MBL2556KES MAY W10205209 Contact Us For Availability

1

MAY 67006433 MAY 67006433 Contact Us For Availability

1

MAY 2256086 MAY 2256086 Contact Us For Availability

2

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

2

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $49.46

2

MAY Y67003896 MAY Y67003896 Contact Us For Availability

2

MAY W10162928 MAY W10162928 Contact Us For Availability

2

MAY 67003729 MAY 67003729 Contact Us For Availability

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $44.73

3

MAY W10131754 MAY W10131754 Contact Us For Availability

3

Overlay MAY 67004058 Contact Us For Availability

3

MAY 67005889 MAY 67005889 Contact Us For Availability

3

MAY 67006608 MAY 67006608 Contact Us For Availability

3

MAY 67003932 MAY 67003932 Contact Us For Availability

4

67004987 Whirlpool Refrigerator Upper Basket Backorder WPL 67004987 $185.15

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $38.85

4

Screw MAY 67006425 Contact Us For Availability

4

MAY 489276 MAY 489276 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $54.33

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $63.11

5

WPW10503184 Whirlpool Refrigerator Freezer Ba In Stock WPL WPW10503184 $132.11

5

MAY W10165748 MAY W10165748 Contact Us For Availability

5

Bucket, Door (Large (2)) MAY 67004530 Contact Us For Availability

5

MAY 67005491 MAY 67005491 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.86

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.82

6

MAY C3680310 MAY C3680310 Contact Us For Availability

6

MAY 67004700 MAY 67004700 Contact Us For Availability

6

Shelf (4) MAY 67004435 Contact Us For Availability

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

MAY W10119856 MAY W10119856 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $160.93

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

8

Gasket, Door (Black) MAY W10133881 Contact Us For Availability

8

MAY 67005864 MAY 67005864 Contact Us For Availability

8

MAY A3223101 MAY A3223101 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

9

MAY 61004743 MAY 61004743 Contact Us For Availability

9

Handle, Door (Stainless) MAY W10136871 Contact Us For Availability

9

DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability

9

Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $72.92

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

MAY 67001035 MAY 67001035 Contact Us For Availability

Socket, Light (2) MAY Y12570701 Contact Us For Availability

MAY 67006644 MAY 67006644 Contact Us For Availability

CUP, WATER FILL MAY 628515 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

MAY 67007052 MAY 67007052 Contact Us For Availability

MAY 67006400 MAY 67006400 Contact Us For Availability

MAY 627843 MAY 627843 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $32.26

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

MAY 67004512 MAY 67004512 Contact Us For Availability

MAY 67006602 MAY 67006602 Contact Us For Availability

MAY 2182124 MAY 2182124 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Retainer, Ref Door MAY 67003027 Contact Us For Availability

Support MAY 2194712 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.70

MAY 67006604 MAY 67006604 Contact Us For Availability

MAY W10165425 MAY W10165425 Contact Us For Availability

Retainer MAY 2315522 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

MAY W10127429 MAY W10127429 Contact Us For Availability

Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $94.95

MAY 67215-2 MAY 67215-2 Contact Us For Availability

MAY 67006573 MAY 67006573 Contact Us For Availability

MAY 8533917 MAY 8533917 Contact Us For Availability

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $45.27

Plug Button White MAY M0310343 Contact Us For Availability

MAY W10169124 MAY W10169124 Contact Us For Availability

MAY 489464 MAY 489464 Contact Us For Availability

18

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $156.87

18

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

18

HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability

19

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $131.97

19

Screw MAY 67006432 Contact Us For Availability

19

MAY M0114003 MAY M0114003 Contact Us For Availability

20

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $29.57

20

MAY 67002490 MAY 67002490 Contact Us For Availability

20

Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability

21

SCREW MAY 67006737 Contact Us For Availability

21

MAY 67001317 MAY 67001317 Contact Us For Availability

21

MAY 626684 MAY 626684 Contact Us For Availability

22

MAY 12002051 MAY 12002051 Contact Us For Availability

22

RACK, BOTTLE MAY 10448903 Contact Us For Availability

22

Screw MAY 489136 Contact Us For Availability

23

MAY 67001083 MAY 67001083 Contact Us For Availability

23

MAY 67001084 MAY 67001084 Contact Us For Availability

23

MAY W10137519 MAY W10137519 Contact Us For Availability

MAY 67001066 MAY 67001066 Contact Us For Availability

Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability

MAY 67004432 MAY 67004432 Contact Us For Availability

MAY 67005603 MAY 67005603 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability

BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability

26

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

26

Screw (8) MAY 67006473 Contact Us For Availability

26

MAY 13060301 MAY 13060301 Contact Us For Availability

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

27

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

27

Drier MAY 2317845 Contact Us For Availability

28

SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability

28

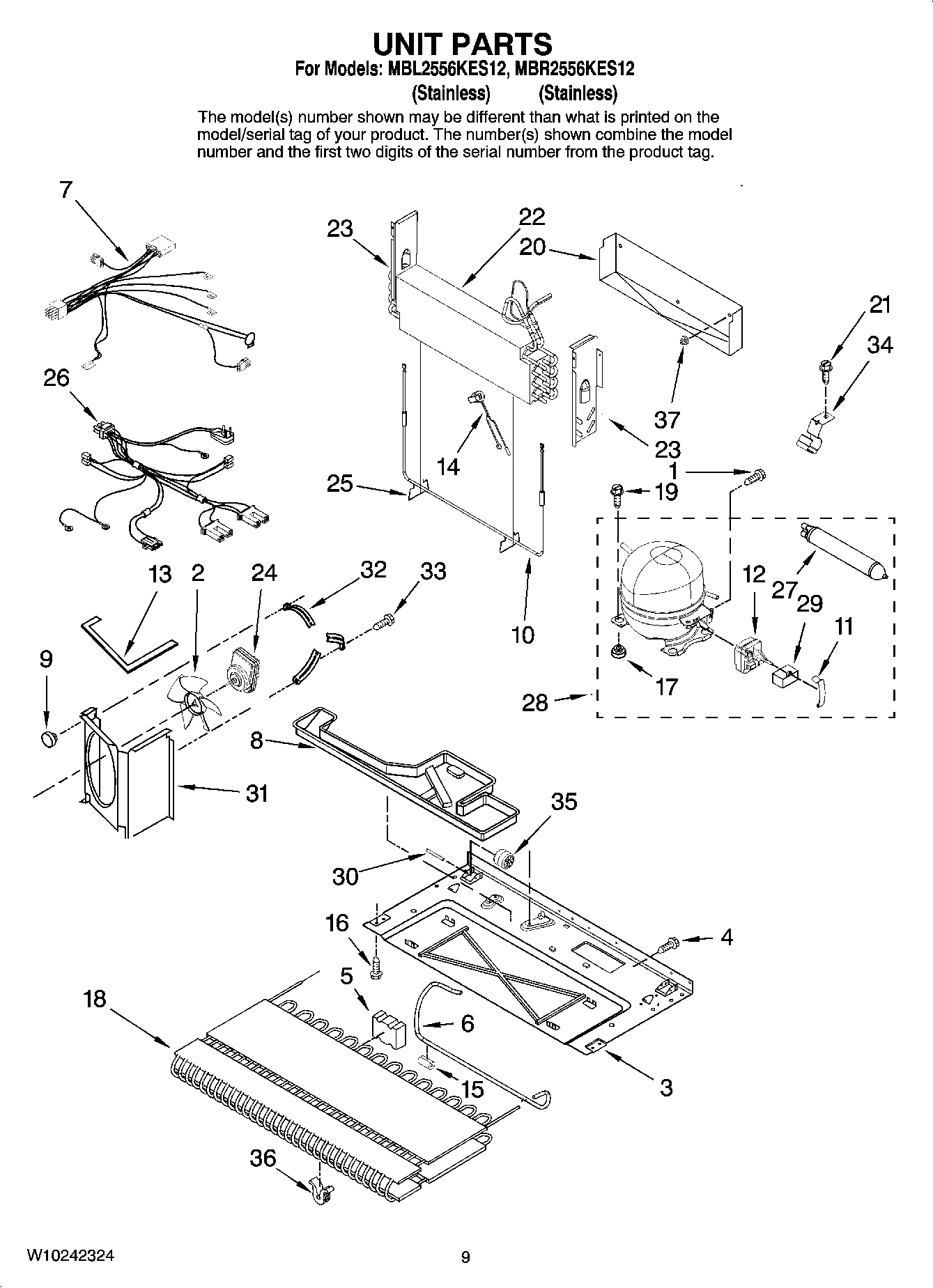

Compressor (Includes items 11,12,17,27,29) MAY 67005565 Contact Us For Availability

29

MAY W10128118 MAY W10128118 Contact Us For Availability

29

MAY W10128119 MAY W10128119 Contact Us For Availability

29

Capacitor MAY 67005562 Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

30

Screw (6) MAY 67006406 Contact Us For Availability

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

31

MAY W10158508 MAY W10158508 Contact Us For Availability

32

MAY 67004953 MAY 67004953 Contact Us For Availability

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

34

MAY 10547003 MAY 10547003 Contact Us For Availability

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

GROMMET, COND (4) MAY W10137529 Contact Us For Availability

37

MAY 10623002 MAY 10623002 Contact Us For Availability

100

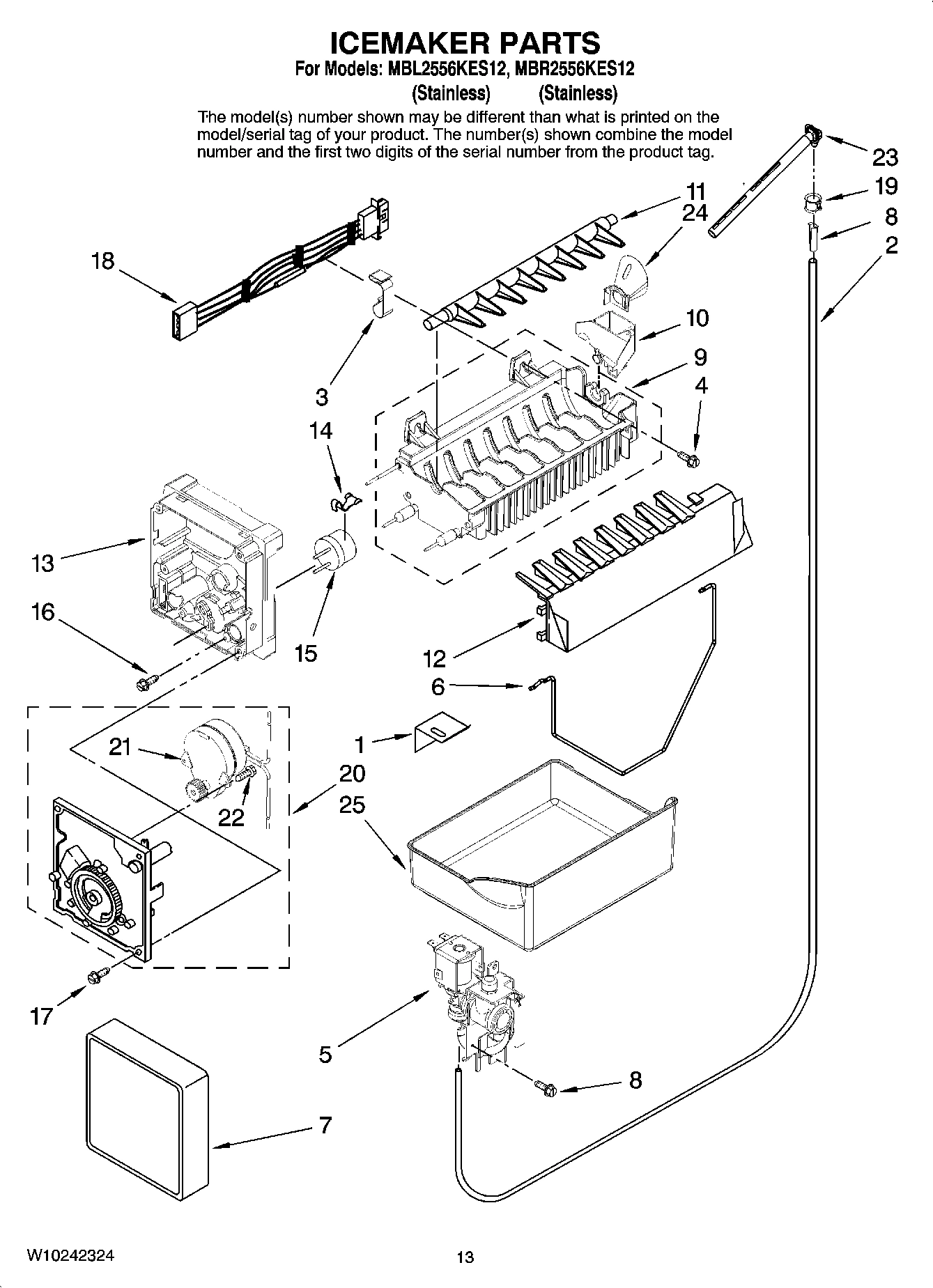

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $50.00

MAY 67006095 MAY 67006095 Contact Us For Availability

MAY 876764 MAY 876764 Contact Us For Availability

VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability

Valve, Access (5/16``) MAY 978026 Contact Us For Availability

VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability

Valve, Access (1/2``) MAY 978028 Contact Us For Availability

Valve, Access (5/8``) MAY 978029 Contact Us For Availability

Valve, Access (3/4``) MAY 978030 Contact Us For Availability

MAY 1117510 MAY 1117510 Contact Us For Availability

SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability

MAY 4392900 MAY 4392900 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability

MAY 479502 MAY 479502 Contact Us For Availability

MAY 503695 MAY 503695 Contact Us For Availability

MAY 505587 MAY 505587 Contact Us For Availability

MAY 542638 MAY 542638 Contact Us For Availability

MAY 542639 MAY 542639 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability

MAY 833938 MAY 833938 Contact Us For Availability
