Model Maytag MBL2556KES4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

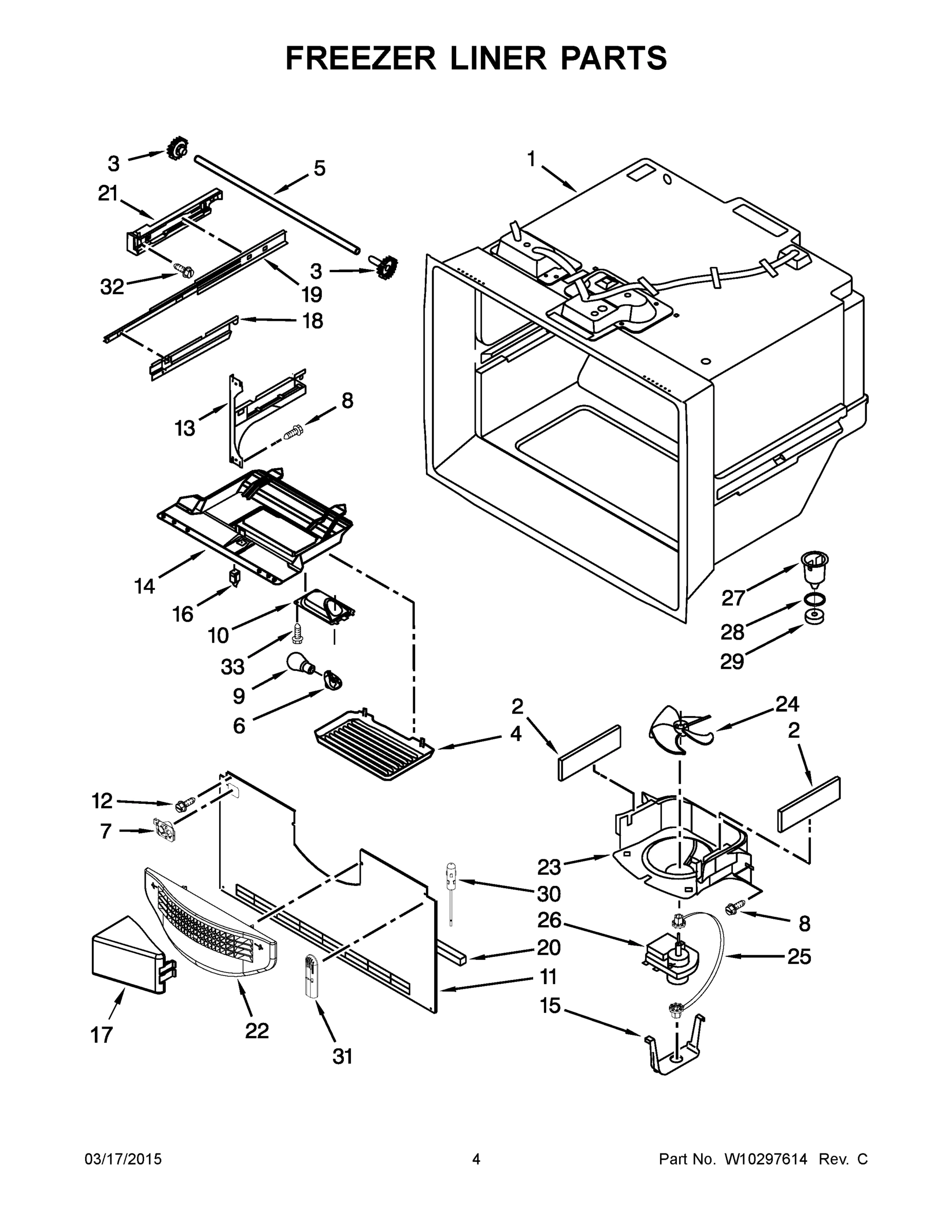

03 - FREEZER LINER PARTS

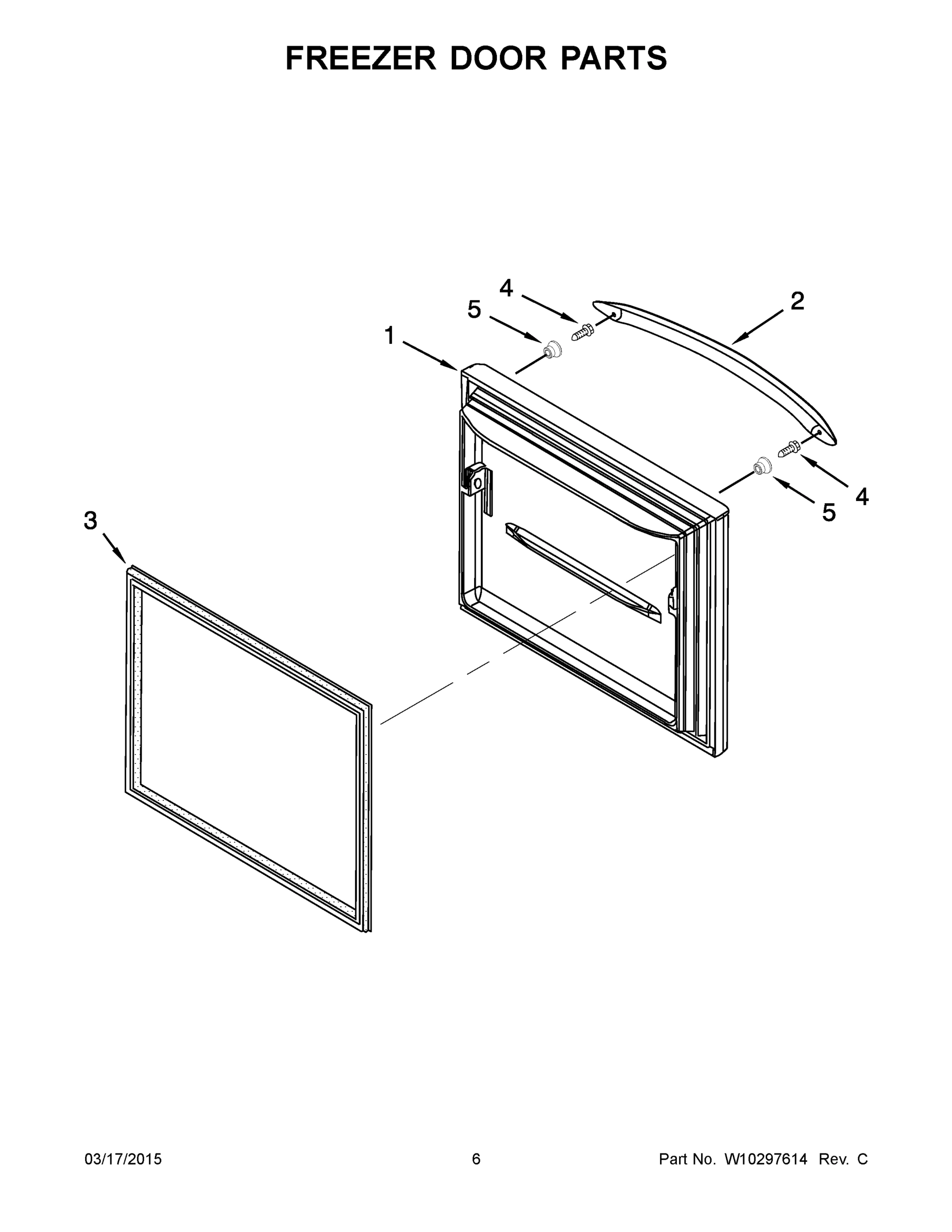

04 - FREEZER DOOR PARTS

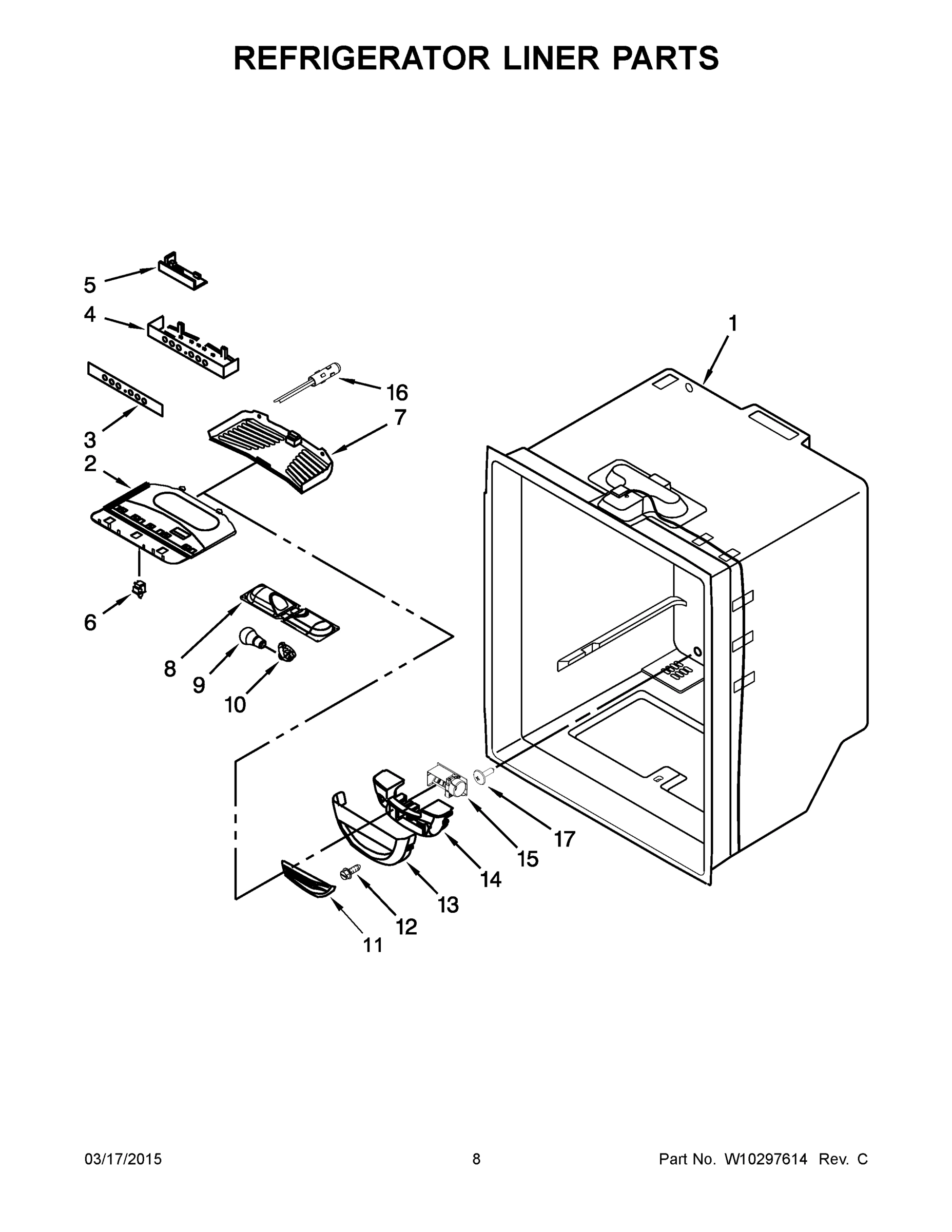

05 - REFRIGERATOR LINER PARTS

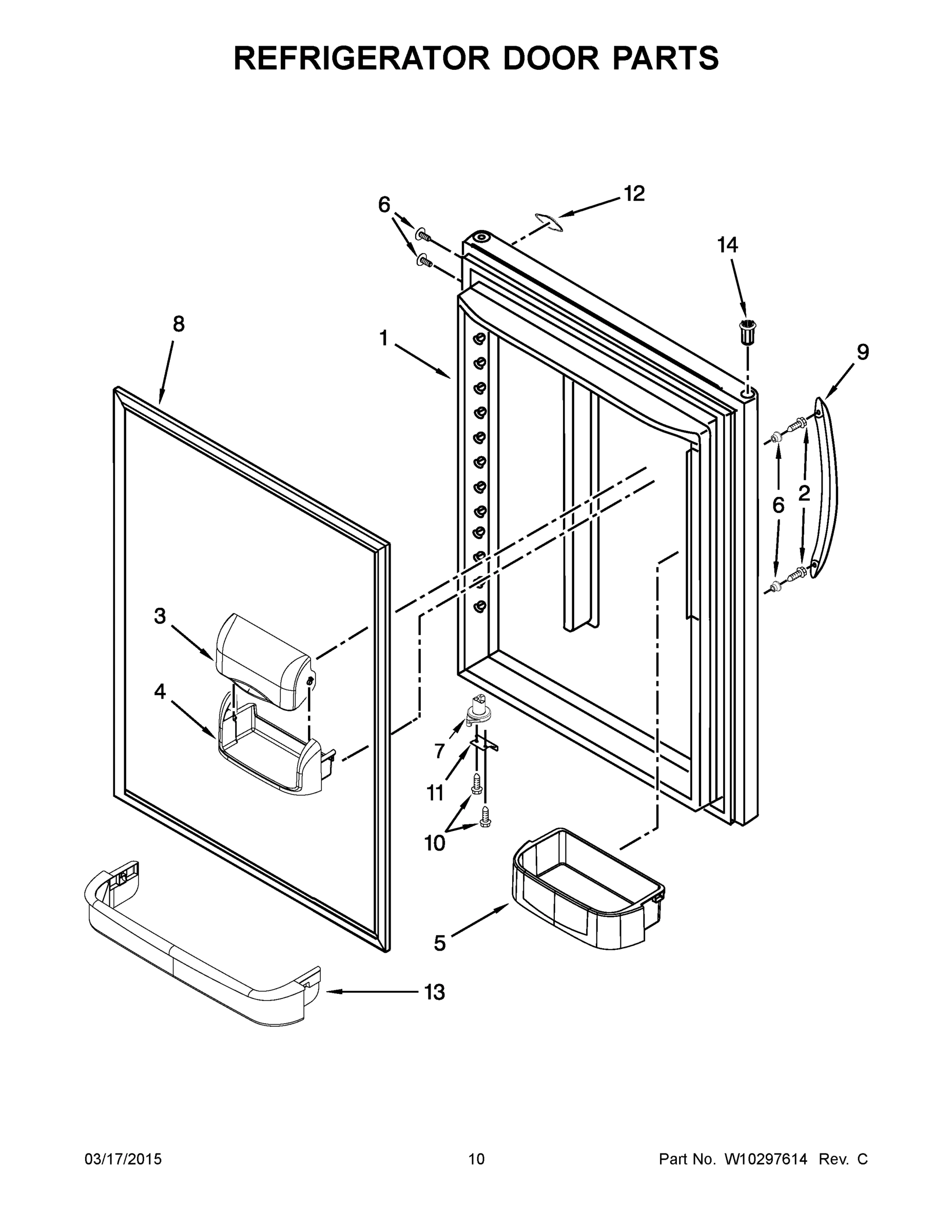

06 - REFRIGERATOR DOOR PARTS

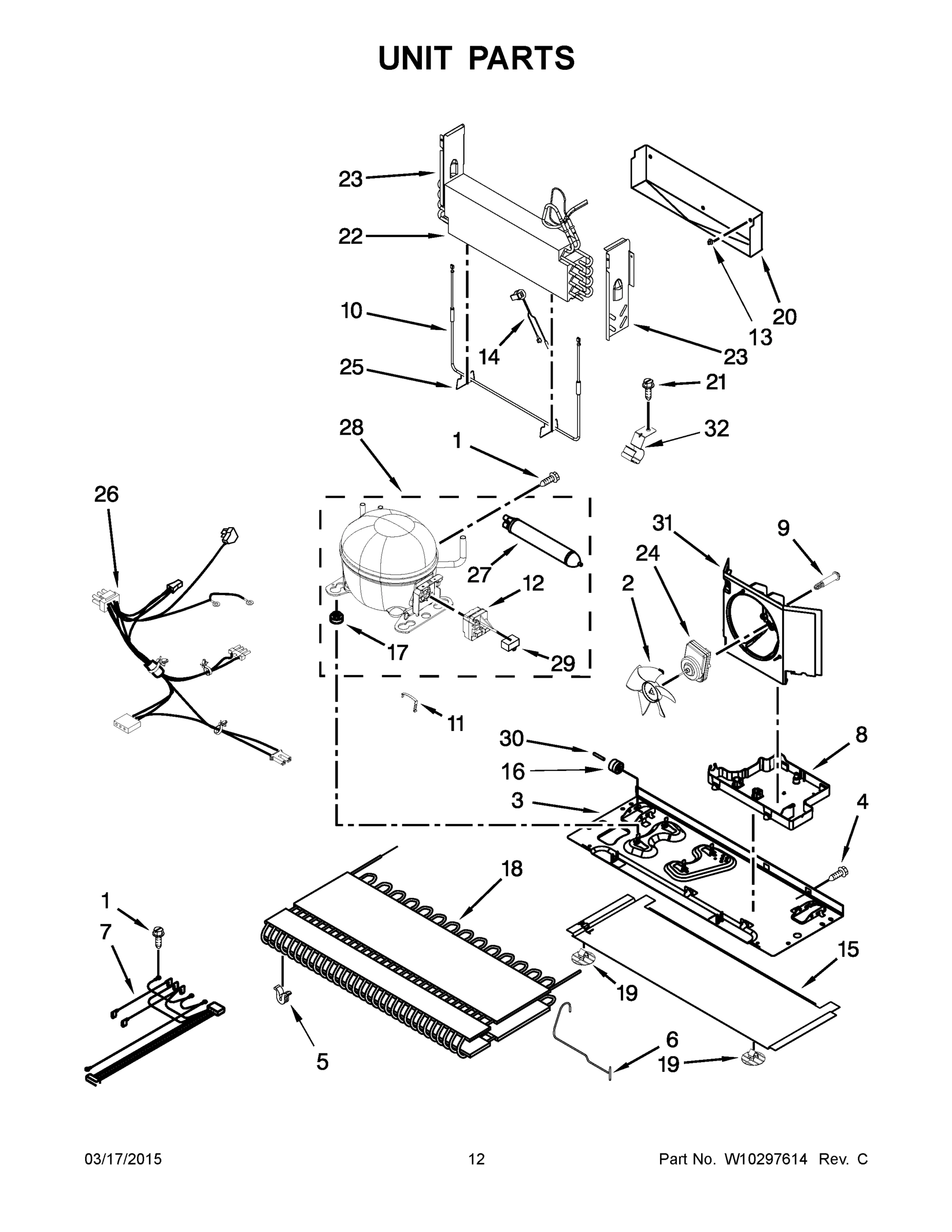

07 - UNIT PARTS

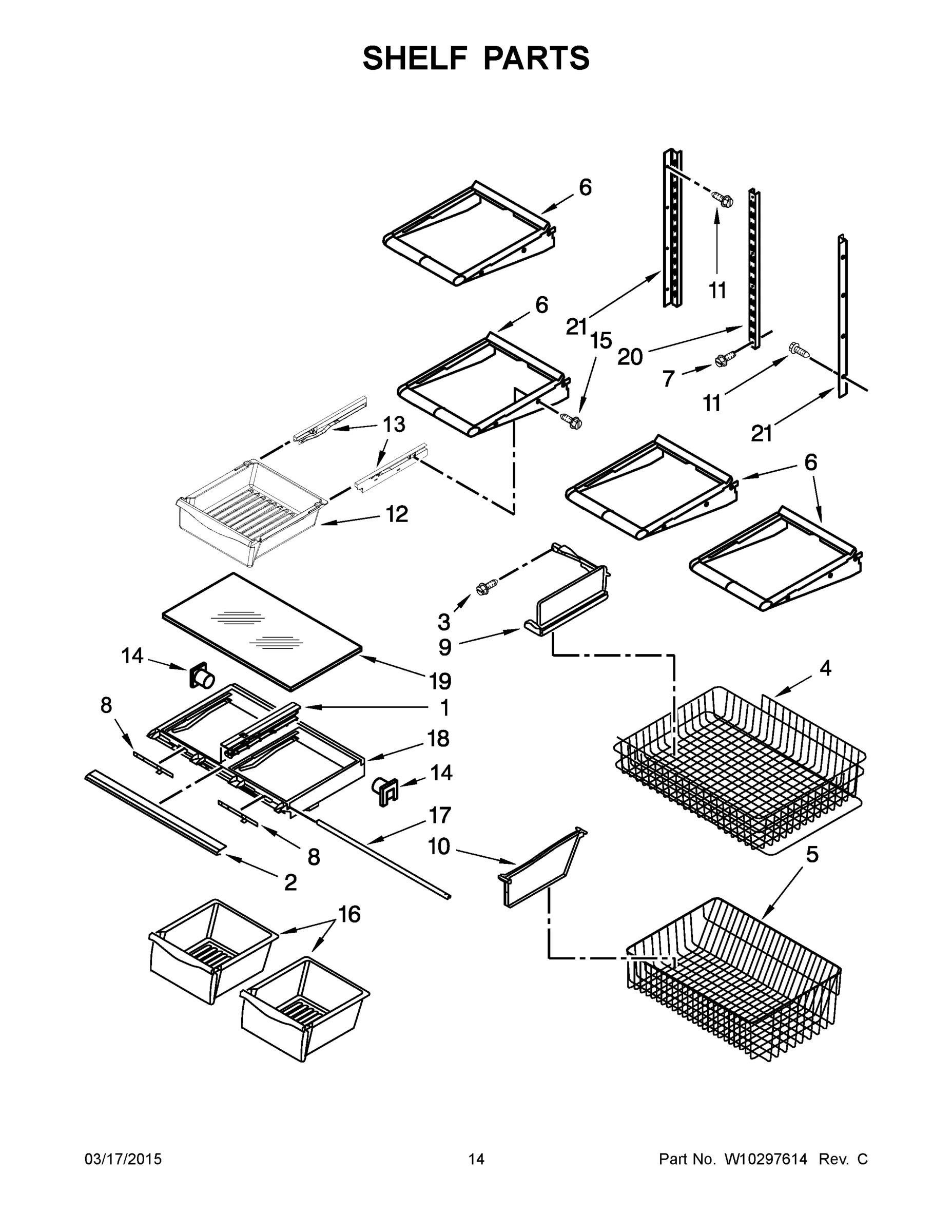

08 - SHELF PARTS

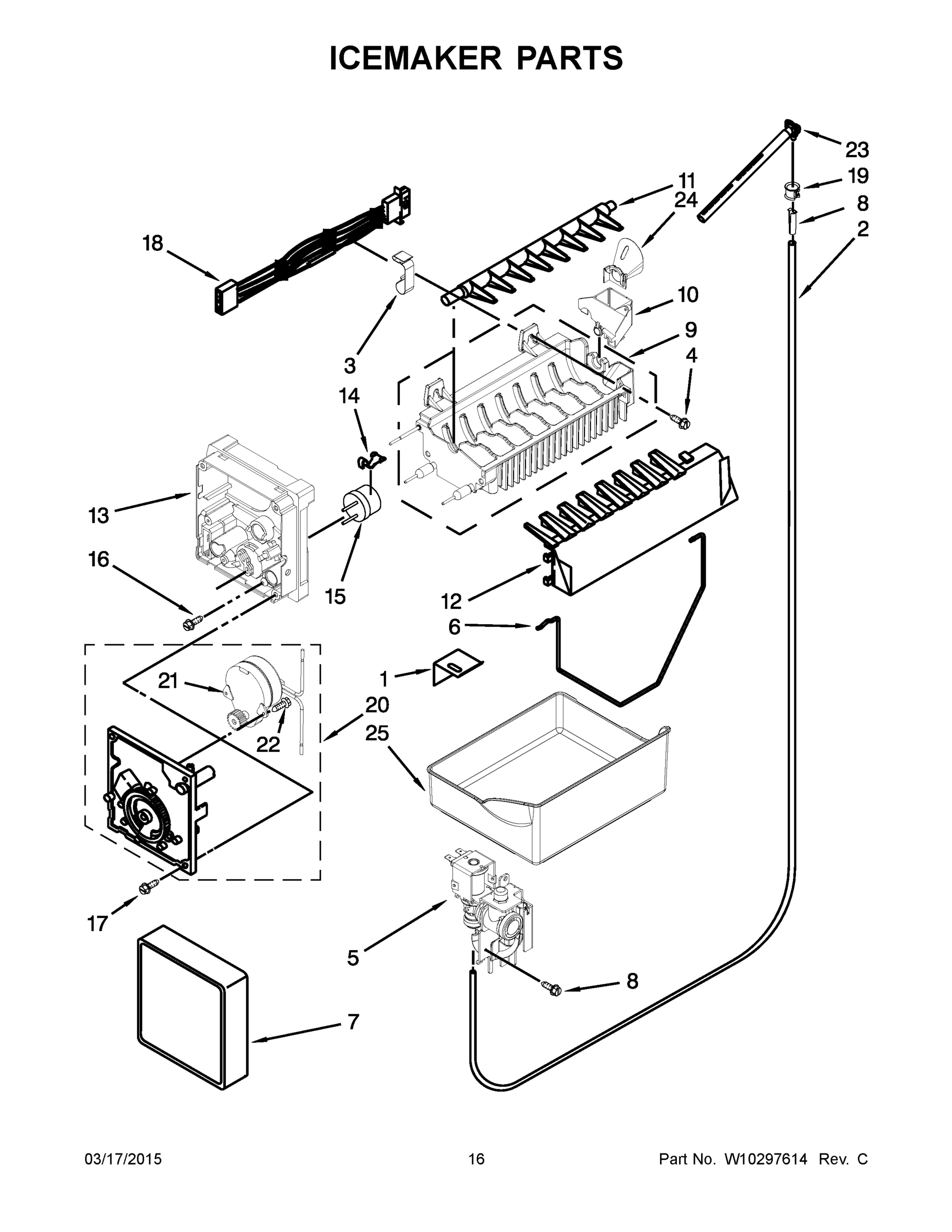

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MBL2556KES4 REFRIGERATOR
1
FREEZER DOOR, (STAINLESS) MAY 13092262SQ Contact Us For Availability
1
DOOR, REFRIGERATOR (STAINLESS (LEFT HAND)) MAY 13023876SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12796401 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1A
DOOR, REFRIGERATOR (STAINLESS (RIGHT HAND)) MAY 13023891SQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
SCREW MAY 12991703 Contact Us For Availability
2
MODULE, LIGHT MAY 12806301 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231345 MAY W10231345 Contact Us For Availability
2
TUBING, PLASTIC MAY B5705333SP Contact Us For Availability
3
PLUG, BUTTON (BLACK) MAY M0310731 Contact Us For Availability
3
MAY W10164041 MAY W10164041 Contact Us For Availability
3
MAY 12816502 MAY 12816502 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12990601 MAY 12990601 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
COVER, FREEZER LIGHT MAY 12804901 Contact Us For Availability
4
MODULE, CONTROL MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
BASKET, FREEZER UPPER MAY 12896403 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10208592 MAY W10208592 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
CONTROL, ELECTRONIC MAY 12868513 Contact Us For Availability
5
BUCKET, MEDIUM MAY 12801902 Contact Us For Availability
5
MAY W10137529 MAY W10137529 Contact Us For Availability
5
MAY 13016003 MAY 13016003 Contact Us For Availability
5
VALVE, WATER INLET MAY W10219716 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY 13001201 MAY 13001201 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY W10217746 MAY W10217746 Contact Us For Availability
6
SHELF, STATIONARY MAY 12654710 Contact Us For Availability
6
ARM, SHUT OFF MAY 12868001 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12028505B MAY 12028505B Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER MAY W10280423 Contact Us For Availability
7
SCREW MAY 12990515 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY W10216614 MAY W10216614 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10164039 MAY W10164039 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10194422V MAY W10194422V Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10197295 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 12693802 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
10
MAY 12477601B MAY 12477601B Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
HOUSING, FREEZER LIGHT MAY 12476401V Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12659608 MAY 12659608 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12226112 MAY 12226112 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
11
MAY 12745704 MAY 12745704 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 12990101 MAY 12990101 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10170766 MAY W10170766 Contact Us For Availability
12
START PROTECT, COMBO (DEVICE, START) MAY W10244032 Contact Us For Availability
12
MAY 12802801SP MAY 12802801SP Contact Us For Availability
12
STRIPPER, ICE MAY 2182124 Contact Us For Availability
12A
START PROTECT, COMBO (DEVICE, START (COMBINAT MAY W10136414 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
BRACKET, DOOR (LEFT HAND) MAY W10122147 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
RETAINER, REF DOOR MAY 12690503 Contact Us For Availability
13
MAY 10623002 MAY 10623002 Contact Us For Availability
13
GLIDE, DELI (LEFT HAND) MAY 12656601SP Contact Us For Availability
13
MAY 2194712 MAY 2194712 Contact Us For Availability
13A
BRACKET, DOOR (RIGHT HAND) MAY W10122148 Contact Us For Availability
13A
GLIDE, DELI (RIGHT HAND) MAY 12656602SP Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MODULE, FREEZER LIGHT MAY 12805001 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
BUSHING (BLACK) MAY 10961006B Contact Us For Availability
14
THERMOSTAT MAY 12639324SP Contact Us For Availability
14
MAY 13062602 MAY 13062602 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
15
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
15
SCREW MAY 12990302SP Contact Us For Availability
15
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS MAY 628397 Contact Us For Availability
16
TOP HINGE (RIGHT HAND) MAY 12566604ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
ROLLER MAY 12477102 Contact Us For Availability
16
PAN, CRISPER MAY 12804601 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
MAY W10157765 MAY W10157765 Contact Us For Availability
17
PLUG, BUTTON (WHITE) MAY M0310343 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12642303WD MAY 12642303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY W10280608 MAY W10280608 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
MAY 12796301SP MAY 12796301SP Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
18A
MAY W10280613 MAY W10280613 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT HAND) MAY W10275850 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY W10206339 MAY W10206339 Contact Us For Availability
19
MAY 12204824 MAY 12204824 Contact Us For Availability
19A
ROLLER ASSEMBLY (RIGHT HAND) MAY W10275849 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10223929 Contact Us For Availability
21
MAY W10211854 MAY W10211854 Contact Us For Availability
21
ADAPTER, SIDE (LEFT) MAY W10261199 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER #20) MAY N/P Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
21A
ADAPTER, SIDE (RIGHT) MAY W10261200 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
SCREW MAY 489136 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
MAY 12695001 MAY 12695001 Contact Us For Availability
26
MAY 12820505 MAY 12820505 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10212854 MAY W10212854 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
DRIER MAY W10143759 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY 12049769 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY 2255130 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
32
MAY 10547003 MAY 10547003 Contact Us For Availability
33
MAY 12991603V MAY 12991603V Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10190978 Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE ) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
