Model Whirlpool LWA40AW2 WASHER – Common Parts & Diagrams

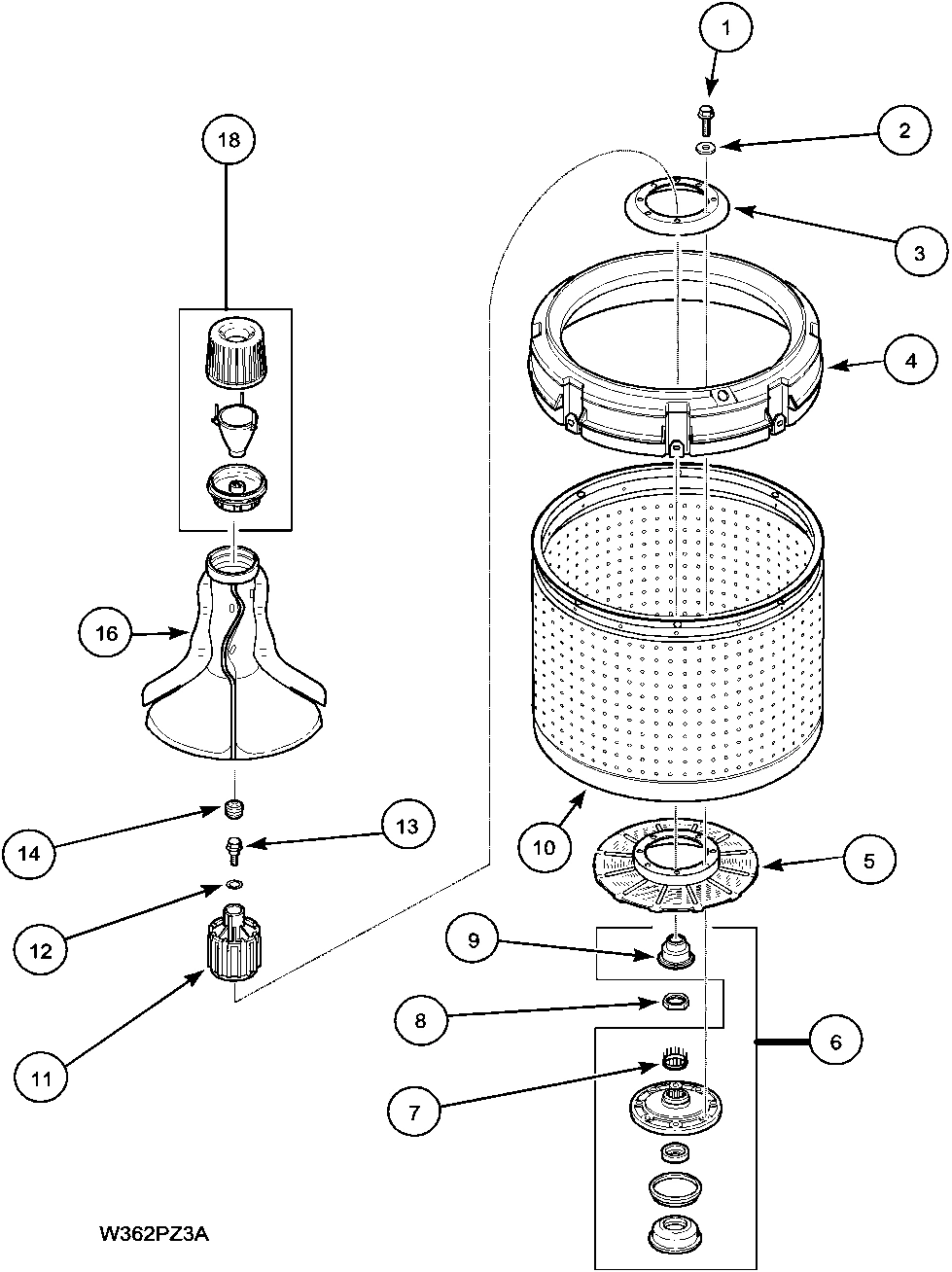

01 - AGITATOR, DRIVE BELL AND WASH TUB

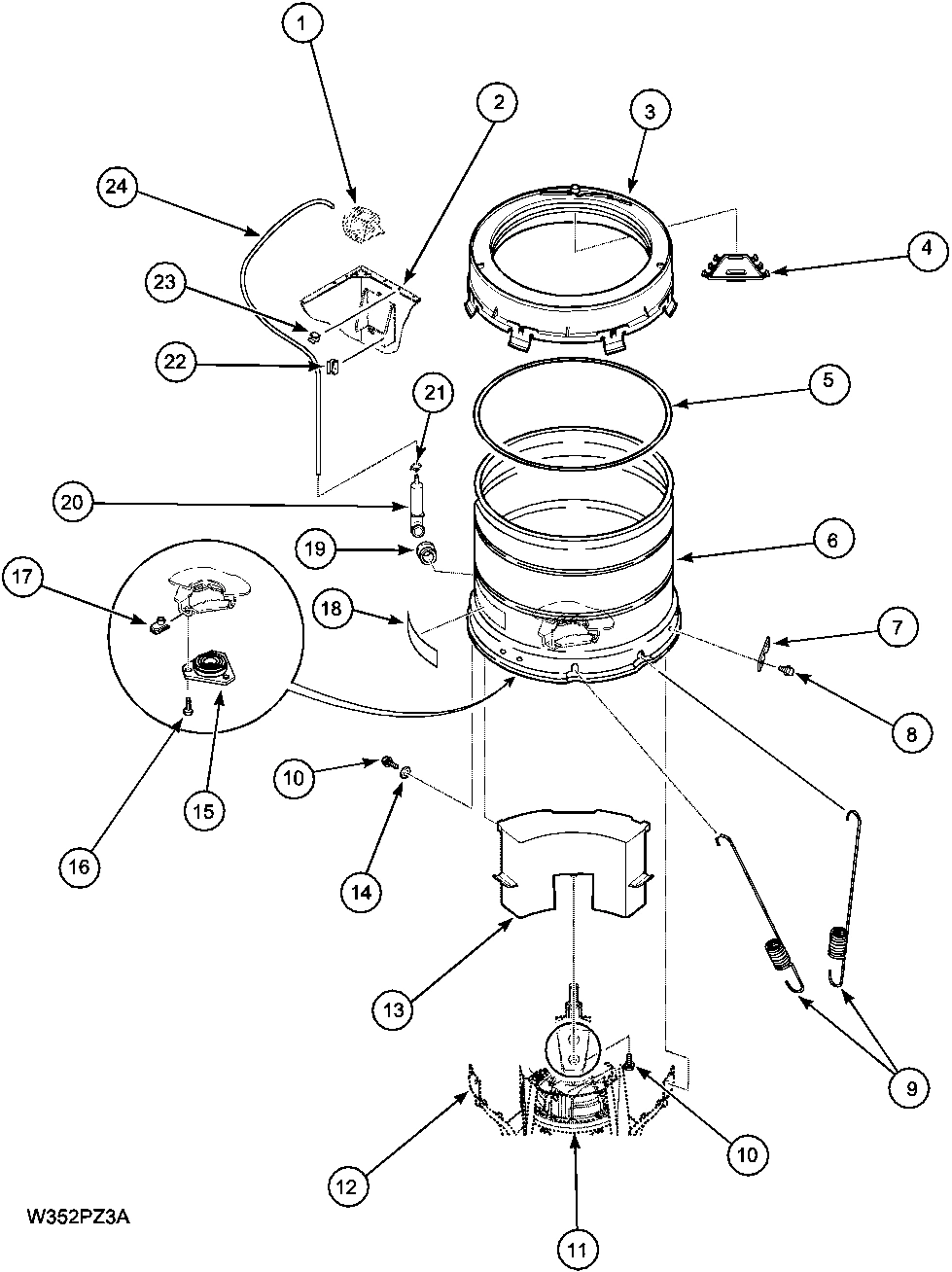

10 - OUTER TUB, COVER, PRESSURE HOSE

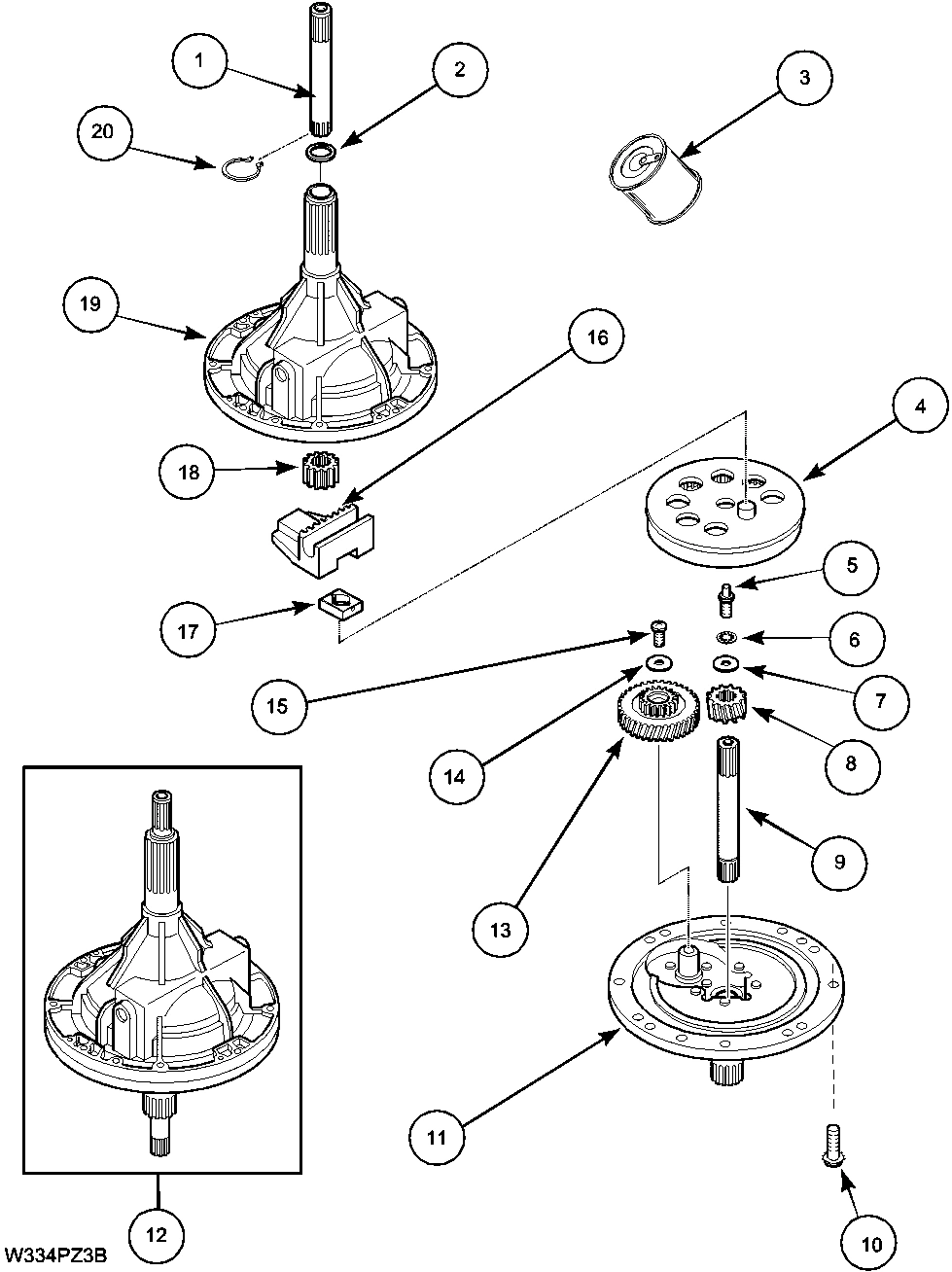

11 - TRANSMISSION ASSEMBLY

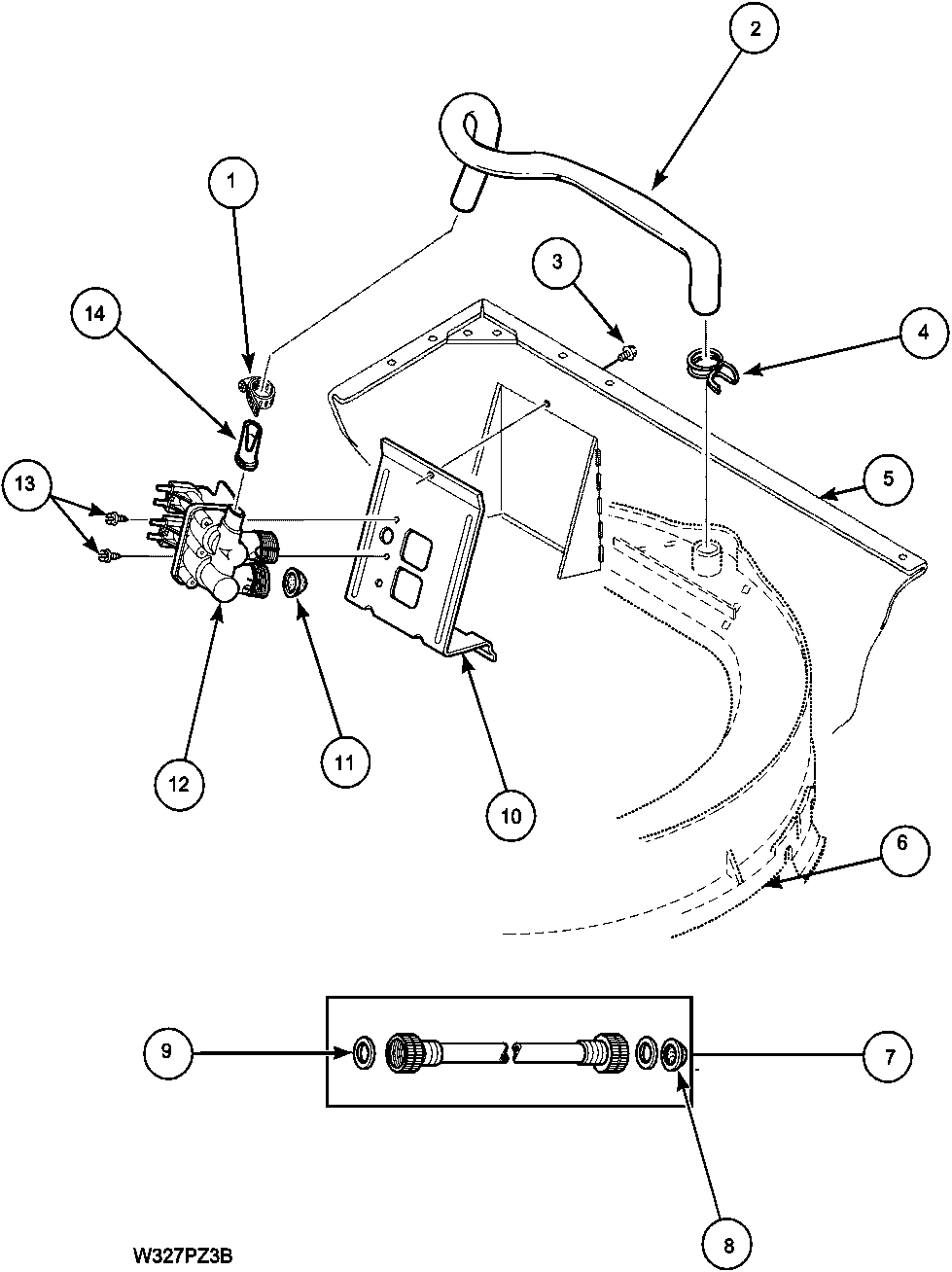

06 - INLET/FILL HOSES AND MIXING VALVE
08 - MISCELLAEOUS INFORMATION

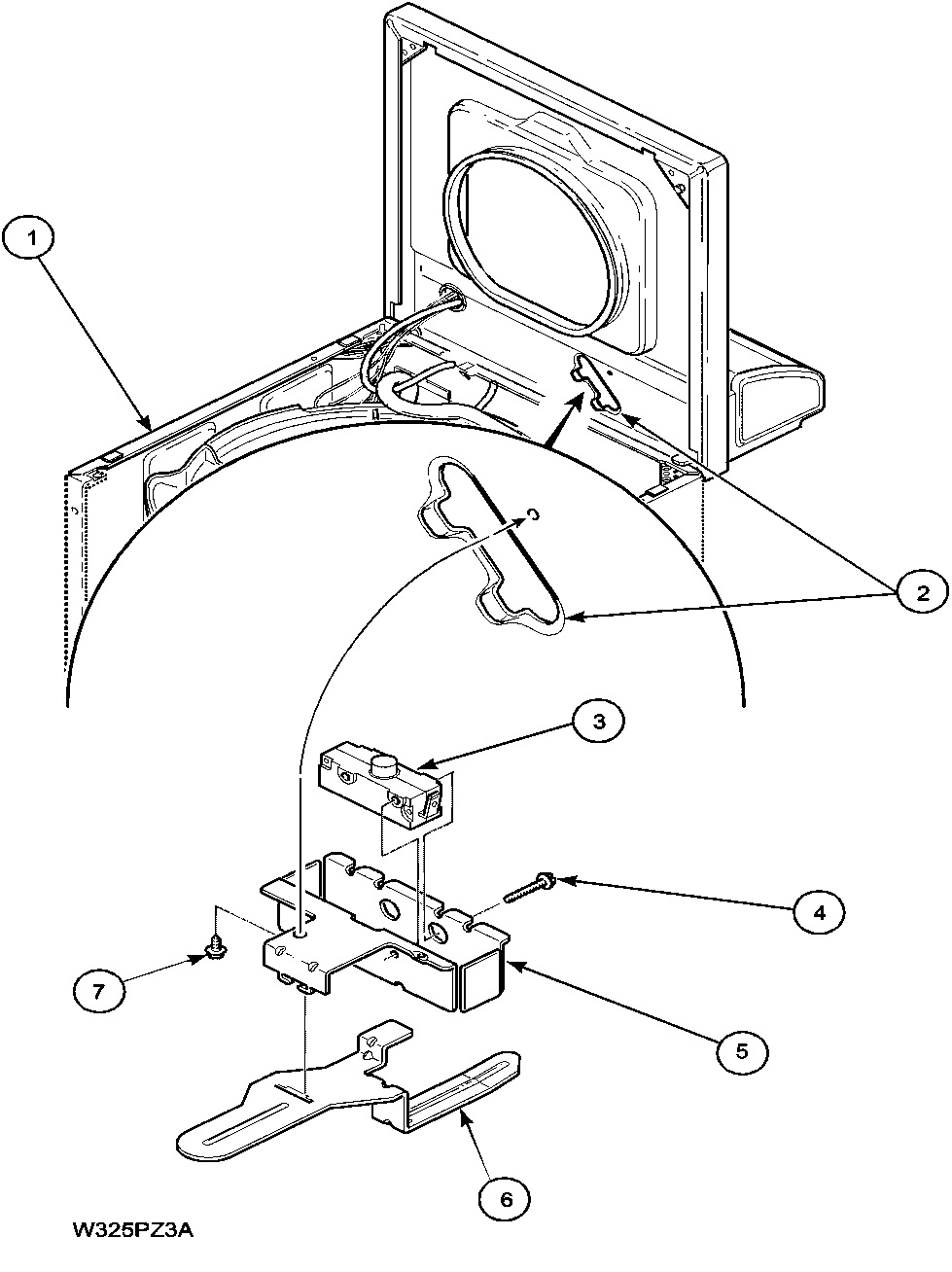

07 - LOADING DOOR SWITCH

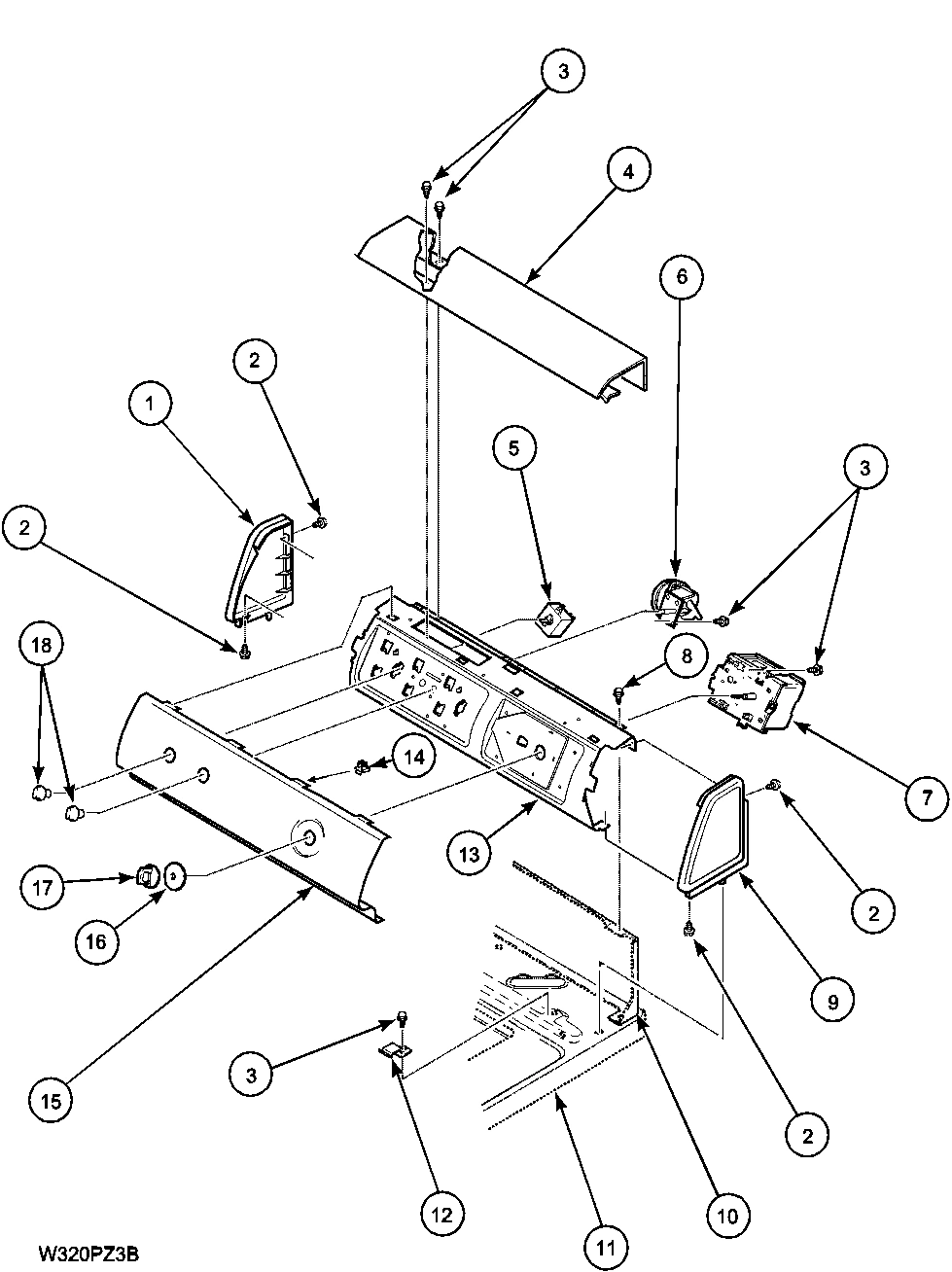

03 - CONTROL PANEL

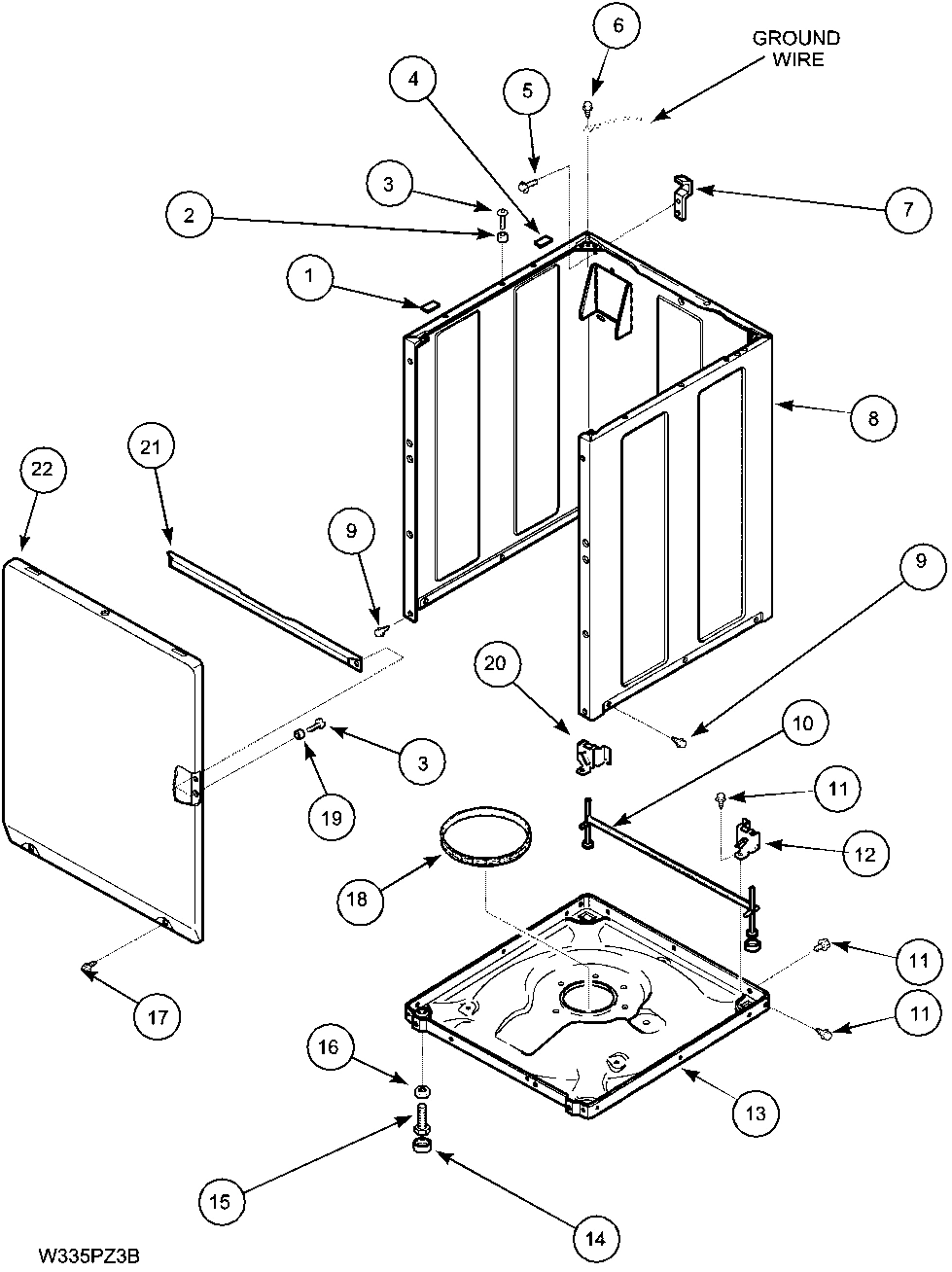

05 - FRONT PANEL, BASE AND CABINET ASSEMBLY

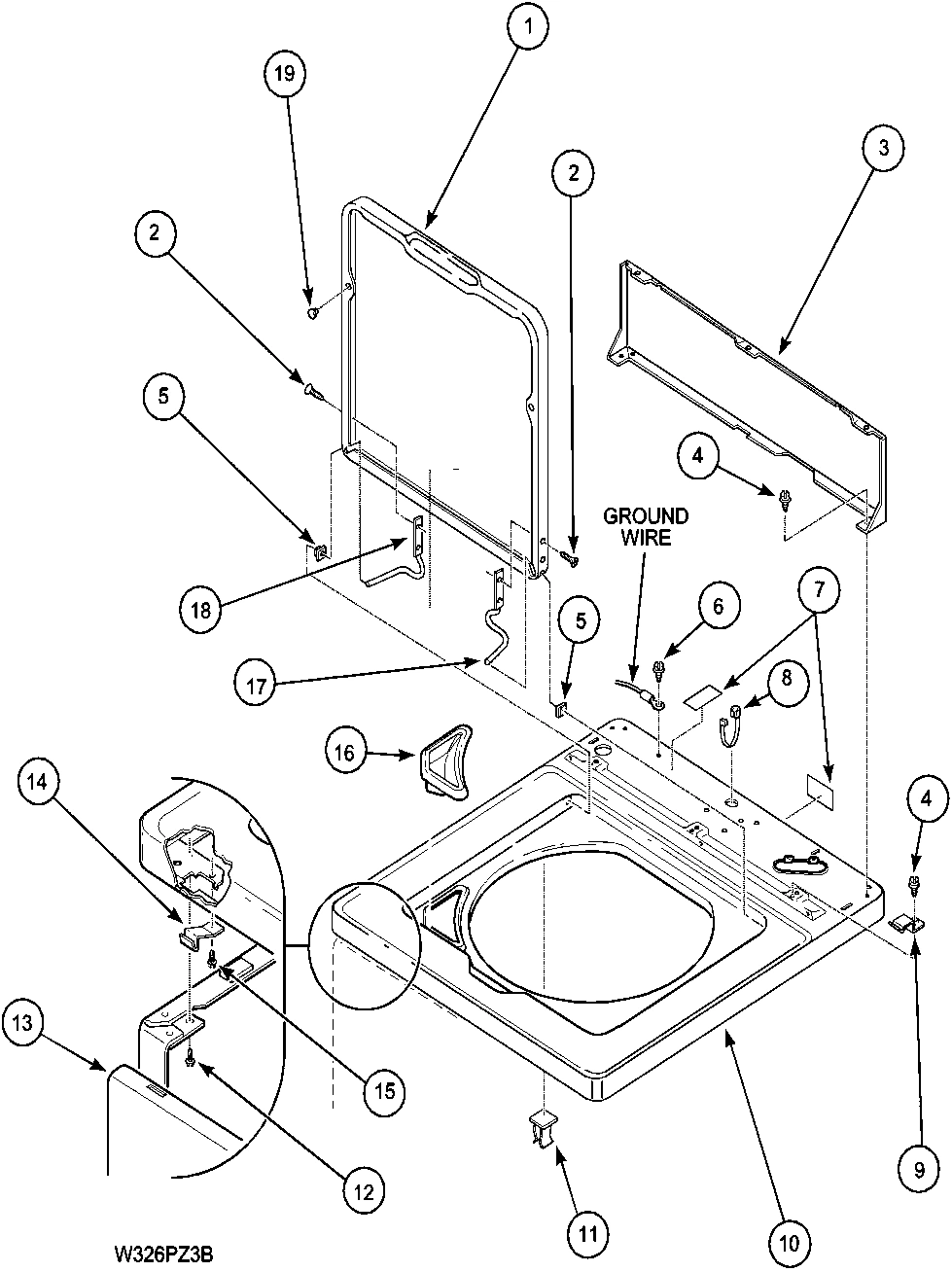

02 - CABINET TOP AND DOOR

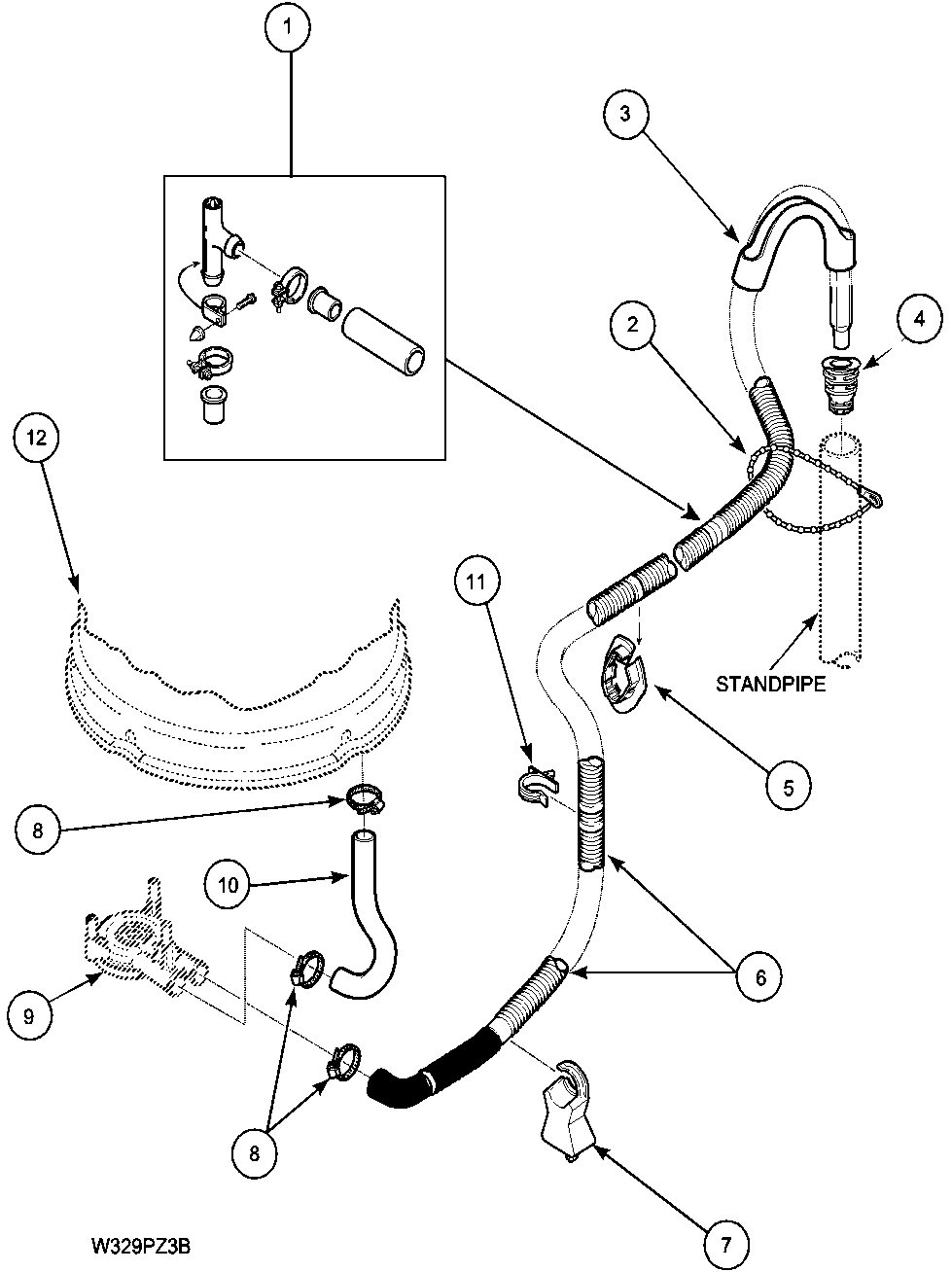

04 - DRAIN HOSE AND SIPHON BREAK

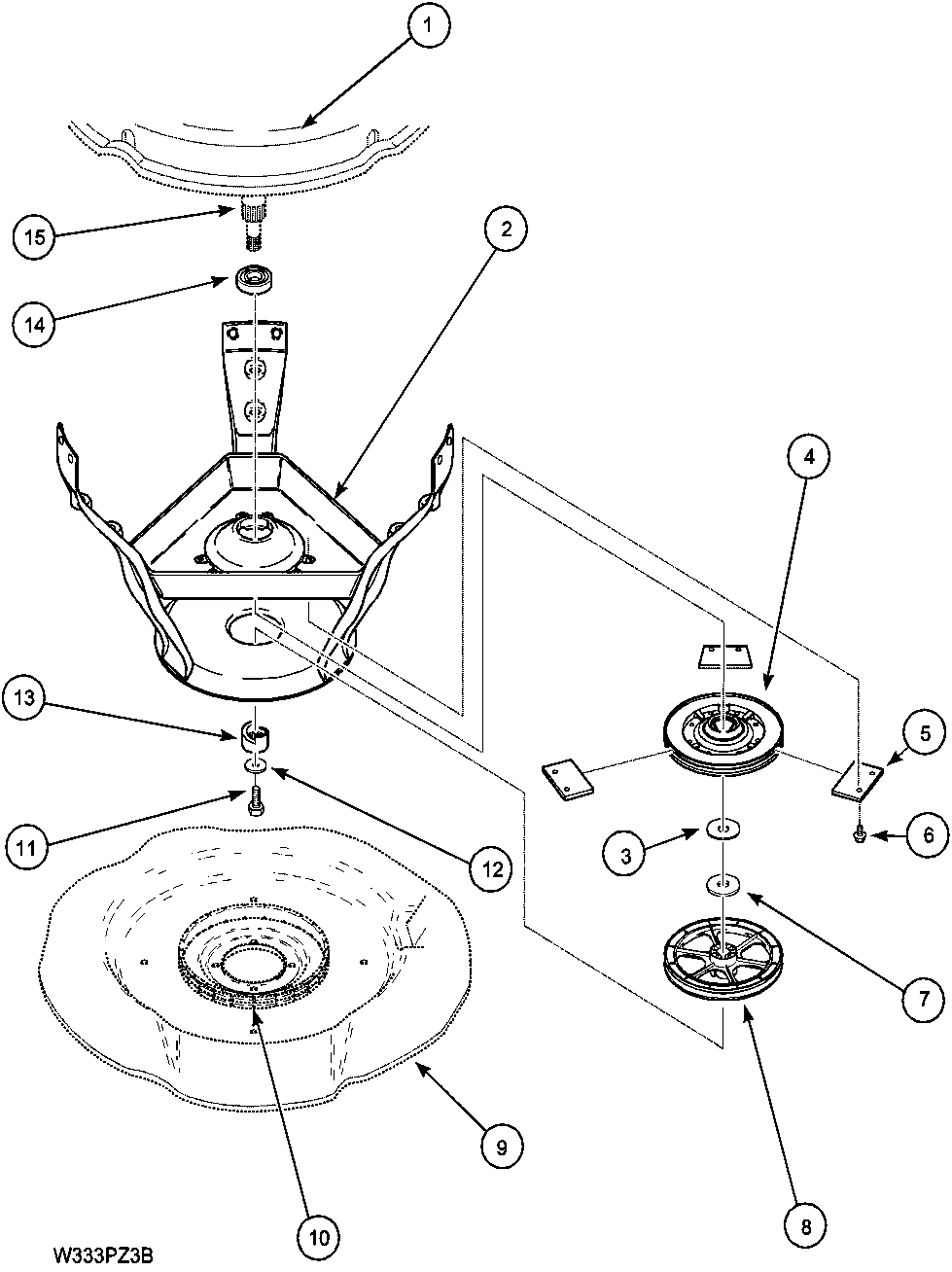

12 - WELDMENT/BEARING ASSY AND BRAKE/PULLEY

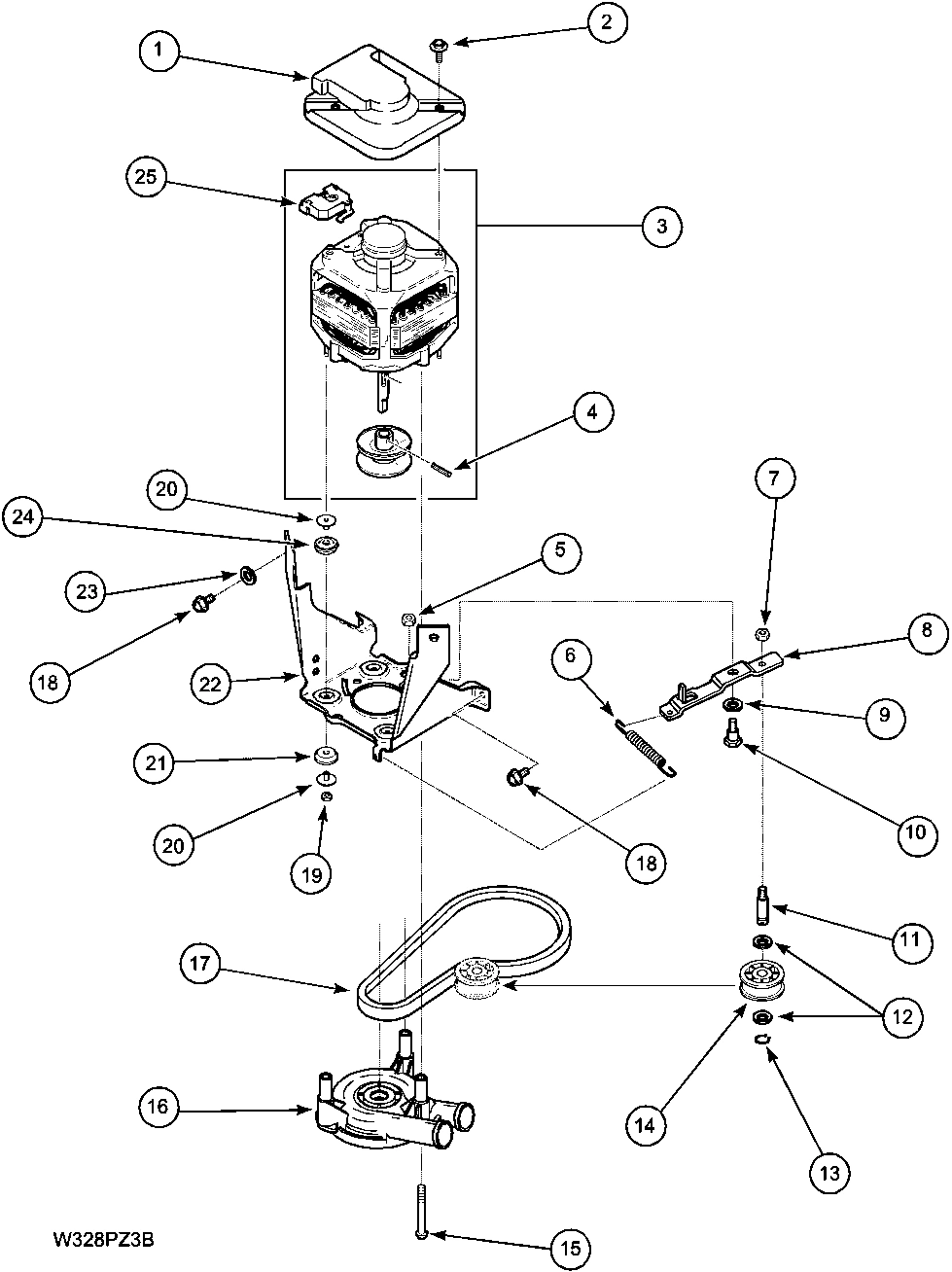

09 - MOTOR, BELT AND PUMP AND IDLER ASSY
Common parts from model Whirlpool LWA40AW2 WASHER
1
TUB, OUTER-TALL WPL 37813P Contact Us For Availability
1
SHAFT, OUTPUT WPL Y36570 Contact Us For Availability
1
CAP-END LH WPL 504009W Contact Us For Availability
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
LOADING DOOR WPL 37827WP Contact Us For Availability
1
MOTOR SHIELD WPL 34754 Contact Us For Availability
2
GASKET WPL 28094 Contact Us For Availability
2
ASSY, WELD & BEARING WPL 39253 Contact Us For Availability
2
WASHER,3628ID X 1.00 X .056 WPL 35092 Contact Us For Availability
2
HOSE, MIX VALVE TO TU WPL 38155 Contact Us For Availability
2
LOCATER, PANEL WPL 56079 Contact Us For Availability
2
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
3
WASHER (LARGE RING FOR TUB) WPL 39113 Contact Us For Availability
3
OIL,CW TRANSMISSION F- WPL 27243P Contact Us For Availability
3
SWITCH WPL 33445 Contact Us For Availability
3
CONTROL HOOD BACK PANEL WPL 37782 Contact Us For Availability
3
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
3
WASHER WPL 35535 Contact Us For Availability
3
MOTOR ASSY-115V, 60HZ, 2 SPEED WPL 37819 Contact Us For Availability
4
BALANCE RING WPL 37411 Contact Us For Availability
4
CHANNEL,WATER WPL 39079 Contact Us For Availability
4
ASSY,GEAR & STUD WPL 26577 Contact Us For Availability
4
HOSE CLAMP WPL 29210 Contact Us For Availability
4
COVER, TOP WPL 38231W Contact Us For Availability
4
PAD, BUMPER .25 WPL 36226 Contact Us For Availability
4
BRAKE WPL 38505 Contact Us For Availability
4
PIN,ROLL WPL 10416 Contact Us For Availability
5
BRAKE PAD WPL R0000014 No Longer Available
5
LINT FILTER WPL 39112 Contact Us For Availability
5
GASKET, TUB COVER LARGE WPL 38359 Contact Us For Availability
5
SCREW,1/4-20 SPECIAL WPL 27030 Contact Us For Availability
5
SWITCH HOLDER WPL 37629 Contact Us For Availability
5
SWITCH,TEMPERATURE 3 P WPL 35115 Contact Us For Availability
5
BUSHING WPL 39039 Contact Us For Availability
5
RELIEF, STRAIN WPL 32219 Contact Us For Availability
6
HUB AND SEAL KIT WPL 646P3 Contact Us For Availability
6
PRESSURE SWITCH WPL 38842 Contact Us For Availability
6
COVER, OUTER TUB WPL 37502 Contact Us For Availability
6
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
6
ACTUATOR ARM WPL 37630 Contact Us For Availability
6
IDLER LEVER SPRING W/SILENCER WPL Y39666 Contact Us For Availability
7
SPLINED INSERT WPL WP40008301 No Longer Available
7
PLATE,LEG .063 WPL 27926 Contact Us For Availability
7
HOSE, INLET (8 FT) WPL 20617 Contact Us For Availability
7
HOSE, INLET (10 FT) WPL 20618 Contact Us For Availability
7
TIMER, 115V/60HZ 3 CYC WPL 37929 Contact Us For Availability
7
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
7
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
7
HOSE SUPPORT WPL 38732 Contact Us For Availability
7
WASHER WPL 27015 Contact Us For Availability
8
LOCKNUT WPL Y29220 Contact Us For Availability
8
CABINET WPL 34475WP Contact Us For Availability
8
PINION, DRIVE WPL 37406 Contact Us For Availability
8
STRAIN RELIEF WPL 21903 Contact Us For Availability
8
PULLEY ASSY WPL Y38007 Contact Us For Availability
8
IDLER LEVER WPL 38011 Contact Us For Availability
9
SEAL WPL 36425 Contact Us For Availability
9
MODULE SPRINGS WPL 37575 Contact Us For Availability
9
SHAFT, INPUT WPL 38268 Contact Us For Availability
9
CAP-END RH WPL 504008W Contact Us For Availability
9
HOLD-DOWN CLIP WPL 35887 Contact Us For Availability
9
BASE WPL 37807 Contact Us For Availability
9
WASHER WPL 81392 Contact Us For Availability
10
WASHTUB WPL 39386 Contact Us For Availability
10
MIXING VALVE MOUNTING BRACKET WPL 34972 Contact Us For Availability
10
ASSY,LEG & STABILIER WPL 34443 Contact Us For Availability
10
FRICTION RING WPL 37937 Contact Us For Availability
10
CABINET TOP WPL 37992W Contact Us For Availability
10
SHOULDER BOLT WPL 27229 Contact Us For Availability
11
DRIVE BELL & SEAL KIT WPL 36443P Contact Us For Availability
11
ASSY, TRANSMISSION COVER WPL Y37471 Contact Us For Availability
11
TOP, HOME W/BLEACH WPL 37992WP Contact Us For Availability
11
CLIP WPL 36519 Contact Us For Availability
11
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
12
O-RING WPL 36472 Contact Us For Availability
12
WASHER WPL 26509 Contact Us For Availability
12
MIXING VALVE WPL 38495 Contact Us For Availability
12
BRACKET,SLL-RIGHT WPL 36036 Contact Us For Availability
13
SHOULDER SCREW WPL 34288 Contact Us For Availability
13
ASSY, COUNTERWEIGHT WPL 38769 Contact Us For Availability
13
GEAR, REDUCTION WPL 37403 Contact Us For Availability
13
PANEL, CONTROL SUPPORT WPL 38171 Contact Us For Availability
13
FRONT PANEL WPL 38238WP Contact Us For Availability
13
HELIX WPL Y38008 Contact Us For Availability
14
PLUG WPL 36511 Contact Us For Availability
14
WASHER, ALUMINUM .28X WPL 37767 Contact Us For Availability
14
WASHER WPL 29260 Contact Us For Availability
14
PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability
14
GROUND CLIP WPL Y00161 Contact Us For Availability
14
RUBBER FOOT WPL 34318 Contact Us For Availability
14
CLIP WPL 38271 Contact Us For Availability
15
TRANSMISSION ASSY WPL 38826P Contact Us For Availability
15
PANEL, GRAPHICS (WHITE) WPL 39614W Contact Us For Availability
16
AGITATOR WPL 36507 Contact Us For Availability
16
RACK WPL Y31526 Contact Us For Availability
16
KNOB SKIRT WPL 36700W Contact Us For Availability
16
BLEACH DISPENSER WPL 38382 Contact Us For Availability
16
PUMP ASSEMBLY WPL 36863P Contact Us For Availability
17
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
17
SLIDE WPL 26493 Contact Us For Availability
17
KNOB, TIMER WPL 35333W Contact Us For Availability
17
HINGE, LID R WPL 36437 Contact Us For Availability
18
FABRIC SOFTENER DISPENSER WPL 36542 Contact Us For Availability
18
STICKER WPL 500049 Contact Us For Availability
18
PINION,AGITATOR WPL 27003 Contact Us For Availability
18
HINGE, LEFT WPL 36513 Contact Us For Availability
19
GROMMET WPL 29175 Contact Us For Availability
19
ASSY,TRANSMISSION CASE WPL 33223 Contact Us For Availability
19
LOCATOR,PANEL WPL 28102 Contact Us For Availability
19
BUMPER WPL 21685 Contact Us For Availability
20
PRESSURE BULB WPL 30907 Contact Us For Availability
20
RING,RETAINING WPL 27197 Contact Us For Availability
20
BRACKET,SLL-LEFT WPL 36037 Contact Us For Availability
20
MOTOR MOUNT POST WPL 38325 Contact Us For Availability
21
BRACE, FRT PNL WPL Y35097 Contact Us For Availability
21
MOTOR MOUNT LOWER WPL 38396 Contact Us For Availability
22
CLIP, HOSE WPL 36985 Contact Us For Availability
22
MOTOR MOUNTING BRACKET WPL 37445 Contact Us For Availability
23
CLIP,CABLE WPL 21036 Contact Us For Availability
23
WASHER, ALUMINUM .34X WPL 37772 Contact Us For Availability
24
PRESSURE HOSE WPL 29213 Contact Us For Availability
24
MOTOR MOUNT UPPER WPL 38395 Contact Us For Availability
25
SWITCH, MOTOR WPL 35632 Contact Us For Availability
NI
SEALANT WPL 37577P Contact Us For Availability
NI
MNL, PTS WASHER WPL RP3100010 Contact Us For Availability
NI
MNL, SVC WASHER WPL RS3100005 Contact Us For Availability
× ![]()
