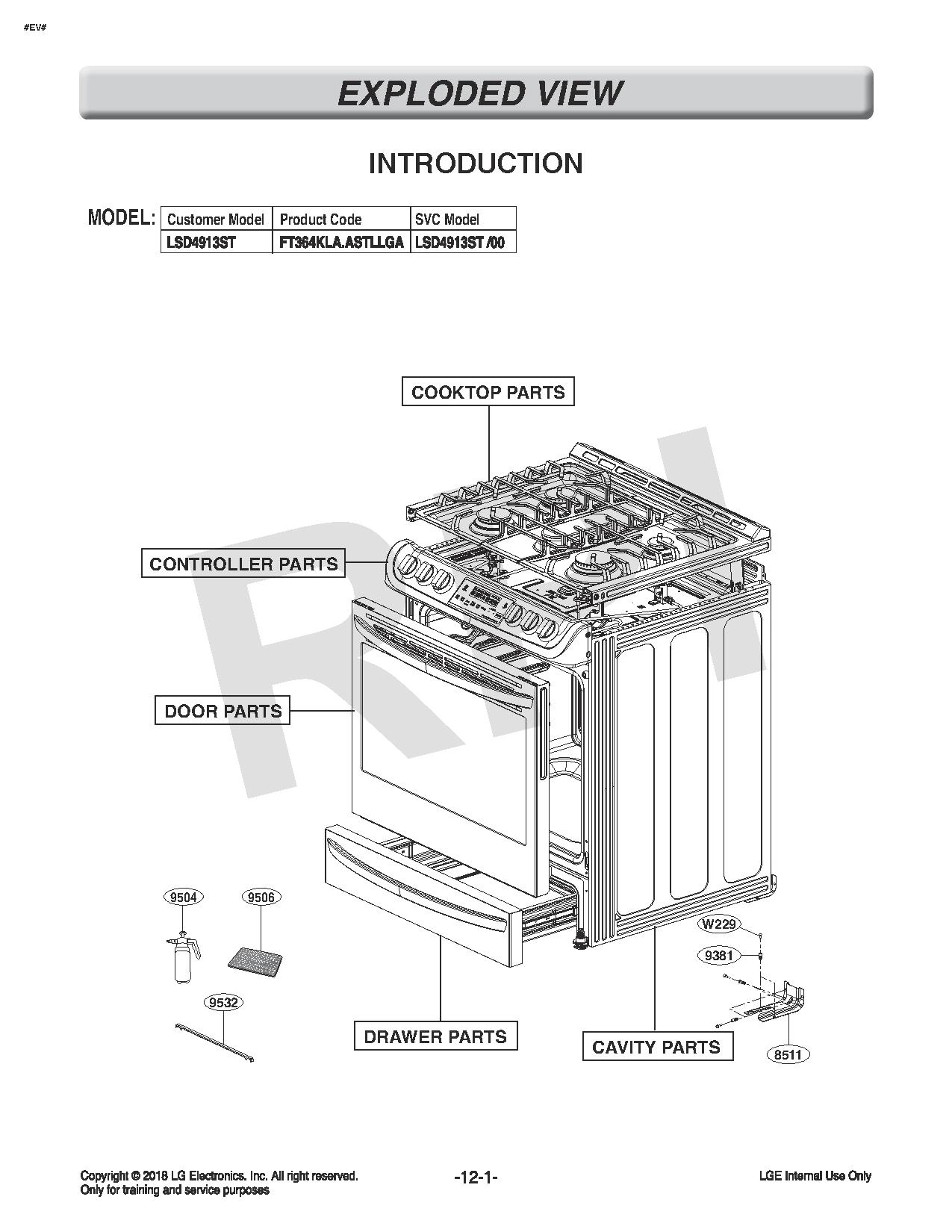

Model LG LSD4913ST – Common Parts & Diagrams
0
1
2
3
4
5
Common parts from model LG LSD4913ST
173U
Bracket,Mount LGE MAZ64569401 Contact Us For Availability
244A
Knob Assembly LGE AEZ74533305 Contact Us For Availability
244E
Knob Assembly LGE AEZ74533318 Contact Us For Availability
260B
PCB Assembly,Option LGE EBR76332902 Contact Us For Availability
260E
PCB Assembly,Option LGE EBR80327001 Contact Us For Availability
260K
PCB Assembly,Sub LGE EBR79627801 Contact Us For Availability
260M
PCB Assembly,WiFi LGE EBR83227508 Contact Us For Availability
381A
Nozzle LGE MFV61841526 Contact Us For Availability
507R
PCB Assembly,Option LGE EBR80595407 Contact Us For Availability
507S
PCB Assembly,Power LGE EBR80595701 Contact Us For Availability
521L
Pipe Assembly LGE AGR75305601 Contact Us For Availability
521R
Pipe Assembly LGE AGR75305602 Contact Us For Availability
851D
Foot Assembly LGE ADU73049401 Contact Us For Availability

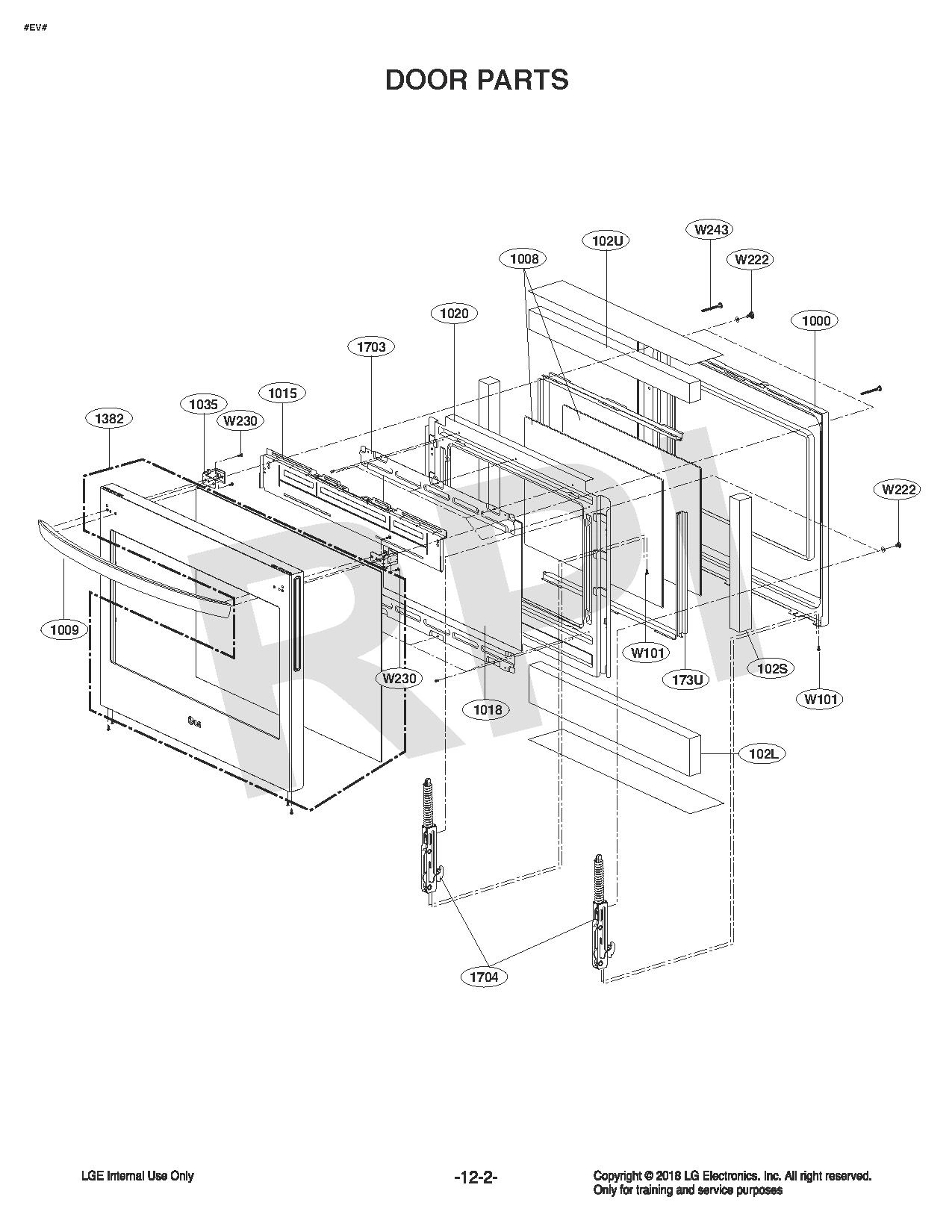

1000
Frame,Door LGE MDQ64176902 Contact Us For Availability
1008
Window,Glass LGE 4890W1N005L Contact Us For Availability
1009
Handle,Door LGE MEB62494913 Contact Us For Availability
1018
Window,Glass LGE 4890W1N005A Contact Us For Availability
1035
Supporter,Handle LGE MJH64673101 Contact Us For Availability
1382
Parts Assembly LGE AGM75509801 Contact Us For Availability
1704
Hinge Assembly LGE AEH75637211 Contact Us For Availability
2002
Panel Assembly,Front LGE AGL75512543 Contact Us For Availability
2006
PCB Assembly,Main LGE EBR82864011 Contact Us For Availability
2037
Supporter,Lever LGE MJH64334701 Contact Us For Availability
2041
Harness,Single LGE EAD60700211 Contact Us For Availability
2043
Harness,Single LGE EAD34822941 Contact Us For Availability
2044
Harness,Single LGE EAD62349808 Contact Us For Availability
2050
Supporter,PCB LGE MJH63756801 Contact Us For Availability
2053
Supporter,PCB LGE MJH64354501 Contact Us For Availability
2090
Spring LGE MHY64083701 Contact Us For Availability
2221
Window,Glass LGE MKC65459112 Contact Us For Availability
3006
Holder,Wire LGE 4B72510F Contact Us For Availability
3013
Cover,Rear LGE MCK68474101 Contact Us For Availability
3024
Grille,Vent LGE MDX64331905 Contact Us For Availability
3056
Plate,Top LGE MGJ64431506 Contact Us For Availability
3944
Grille Assembly LGE AEB74684603 Contact Us For Availability
3945
Grille Assembly LGE AEB74684703 Contact Us For Availability
3946
Grille Assembly LGE AEB74684803 Contact Us For Availability
3950
Nozzle LGE MFV61841503 Contact Us For Availability
3951
Nozzle LGE MFV61841521 Contact Us For Availability
3952
Nozzle LGE MFV61841519 Contact Us For Availability
3953
Nozzle LGE MFV61841520 Contact Us For Availability
3961
Valve Assembly,Gas LGE AJU74852803 Contact Us For Availability
3962
Valve Assembly,Gas LGE AJU74852802 Contact Us For Availability
3964
Valve Assembly,Gas LGE AJU74852801 Contact Us For Availability
3965
Valve Assembly,Gas LGE AJU74852806 Contact Us For Availability
3972
Burner LGE MBE61842501 Contact Us For Availability
3976
Cap,Burner LGE MBL61908504 Contact Us For Availability
3977
Cap,Burner LGE MBL66377905 Contact Us For Availability
3978
Cap,Burner LGE MBL61908704 Contact Us For Availability
3979
Cap,Burner LGE MBL61908604 Contact Us For Availability
3994
Pipe,Bending LGE MGE64232101 Contact Us For Availability
4002
Switch,Tact LGE EBF60663403 Contact Us For Availability
5016
Thermostat LGE 6930W1A003J Contact Us For Availability
5019
Harness,Single LGE EAD61076101 Contact Us For Availability
5020
Thermostat LGE 6930W1A003X Contact Us For Availability
5021
Thermistor,PTC LGE EBG61305805 Contact Us For Availability
5032
Harness,Single LGE 6877W1N024F Contact Us For Availability
5039
Motor,AC Fan LGE EAU62343001 Contact Us For Availability
5124
Fan Assembly,Blower LGE ADP74573301 Contact Us For Availability
5206
Duct LGE MCZ64011701 Contact Us For Availability
5405
Bracket,Motor LGE 4810W1N060B Contact Us For Availability
5407
Fan,Convection LGE MDG62882901 Contact Us For Availability
5408
Fan,Convection LGE 3B72559A Contact Us For Availability
5502
Motor Assembly,AC,Synchronous LGE EAU62862901 Contact Us For Availability
5505
Supporter LGE 4980W1N013A Contact Us For Availability
5506
Bracket,Heater LGE MAZ64548501 Contact Us For Availability
5509
Panel,Rear LGE MGC63819802 Contact Us For Availability
5510
Panel,Side LGE MGC62644017 Contact Us For Availability
5511
Lamp,Incandescent LGE 6913W1N002C Contact Us For Availability
5556
Packing,Gasket LGE MFZ64539501 Contact Us For Availability
5955
Governor Assembly LGE AMP30060101 Contact Us For Availability
7384
Burner Assembly LGE ABF73729805 Contact Us For Availability
8501
Frame,Door LGE MDQ64177401 Contact Us For Availability
8504
Plate,Front LGE MGJ63105904 Contact Us For Availability
8508
Foot LGE 4778W1N001A Contact Us For Availability
8512
Slider LGE MHS62022301 Contact Us For Availability
8513
Slider LGE MHS62022201 Contact Us For Availability
8602
Bracket,Mount LGE MAZ63250603 Contact Us For Availability
9384
Accessory Assembly,Nozzle LGE AAA75946006 Contact Us For Availability
G039
Burner LGE MBE61841305 Contact Us For Availability
G045
Burner LGE MBE61841404 Contact Us For Availability
G058
Burner LGE MBE61842001 Contact Us For Availability
W124
Washer,Common LGE 1WSD0500075 Contact Us For Availability
W129
Nut,Common LGE 1NHA0400018 Contact Us For Availability
W140
Screw,Customized LGE 4000W4A003A Contact Us For Availability
W222
Screw,Customized LGE 1SZZW5N001C Contact Us For Availability
W232
Washer,Customized LGE 1WZZ81N001A Contact Us For Availability
W233
Nut,Common LGE 1NHB0500032 Contact Us For Availability
W243
Screw,Customized LGE 1SZZW5N001H Contact Us For Availability
W287
Screw,Customized LGE FAB30162501 Contact Us For Availability
W291
Screw,Customized LGE 1SZZW2A004E Contact Us For Availability
W294
Screw,Customized LGE 1SZZW1E002E Contact Us For Availability
W323
Screw,Customized LGE FAB30424502 Contact Us For Availability
× ![]()
