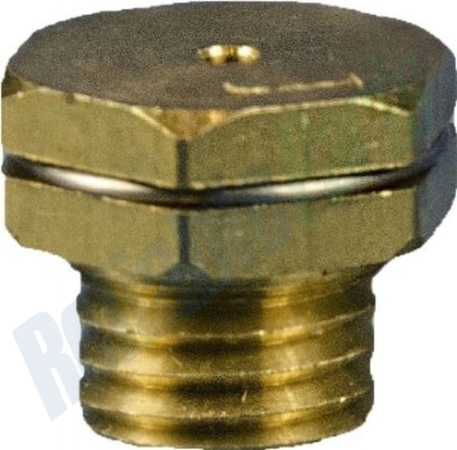

MFV61841503 LG Gas Range Oven Stove Cooktop Nozzle Orifice
LG Electronics Sears Kenmore Gas Range Oven Stove Cooktop Nozzle Orifice MFV61841503
Weight : 0.0002 lbs
Dimension : 0.35 x 0.3 x 0.4
LG Electronics Sears Kenmore Gas Range Oven Stove Cooktop Nozzle Orifice MFV61841503
Weight : 0.0002 lbs
Dimension : 0.35 x 0.3 x 0.4
Write Your Own Review
DIY Steps to Replace the Gas Range Oven Stove Cooktop Nozzle Orifice on the MFV61841503 LG Model
1. Shut off the gas supply for the range. This can be done by turning off the gas supply valve located behind the appliance, or by unplugging the gas range from its power source.
2. Remove the cooktop grates and drip pans below the burners.
3. Disconnect any electrical wires running to the stove top.
4. Unscrew the screws that are located around the edge of the cooktop.
5. Gently lift off the cooktop and set aside.
6. Locate the nozzle orifice that needs to be replaced; it should be clearly visible in the center of the burner.
7. Use a pair of needle nose pliers to remove the old orifice and discard it.
8. Obtain the correct replacement orifice for the MFV61841503 LG model and install it.
9. Ensure that the orifice is securely fastened and replace the cooktop.
10. Reconnect any loose electrical connections.
11. Replace the cooktop grates and drip pans.
12. Turn on the gas supply for the range.
13. Test the burner to ensure the new orifice was installed correctly.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
