  • Whirlpool LGT7848DZ0

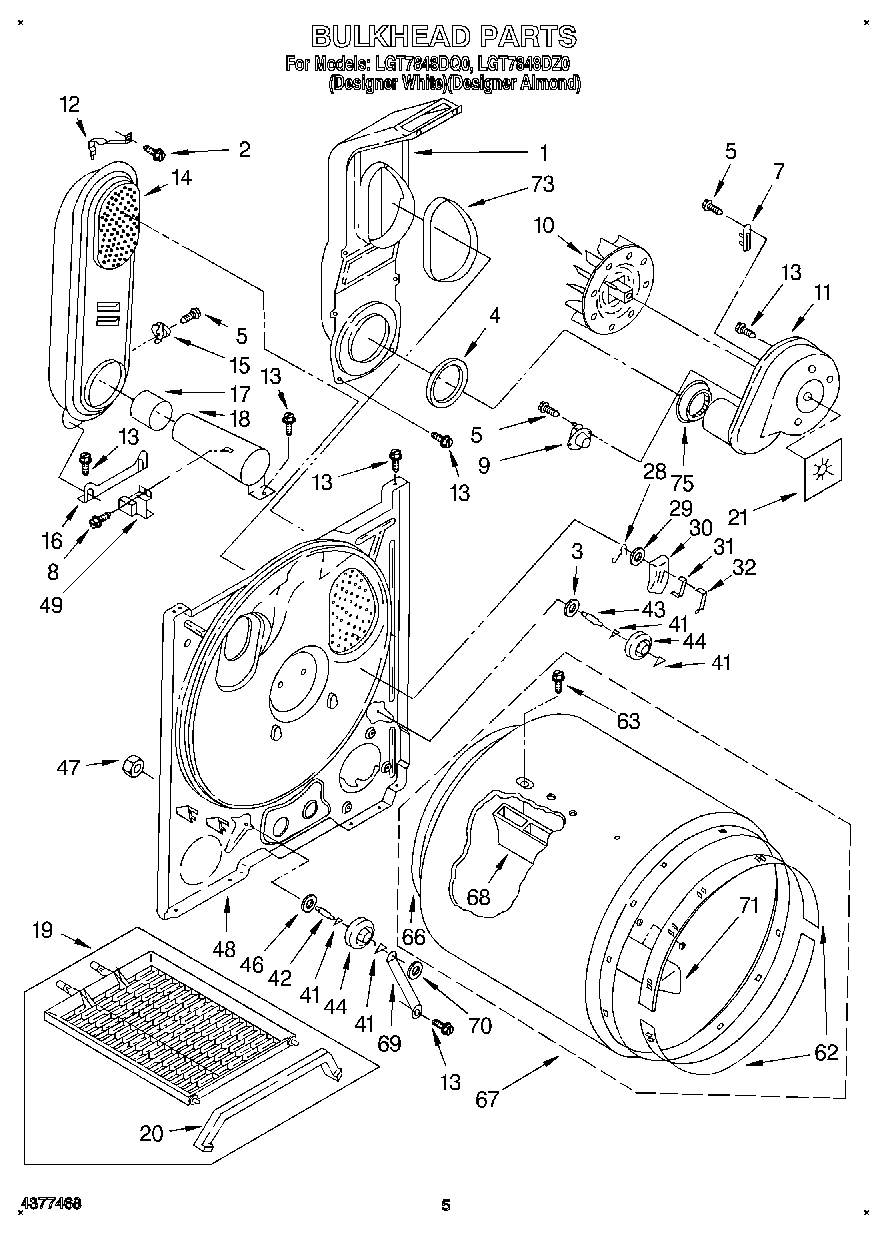

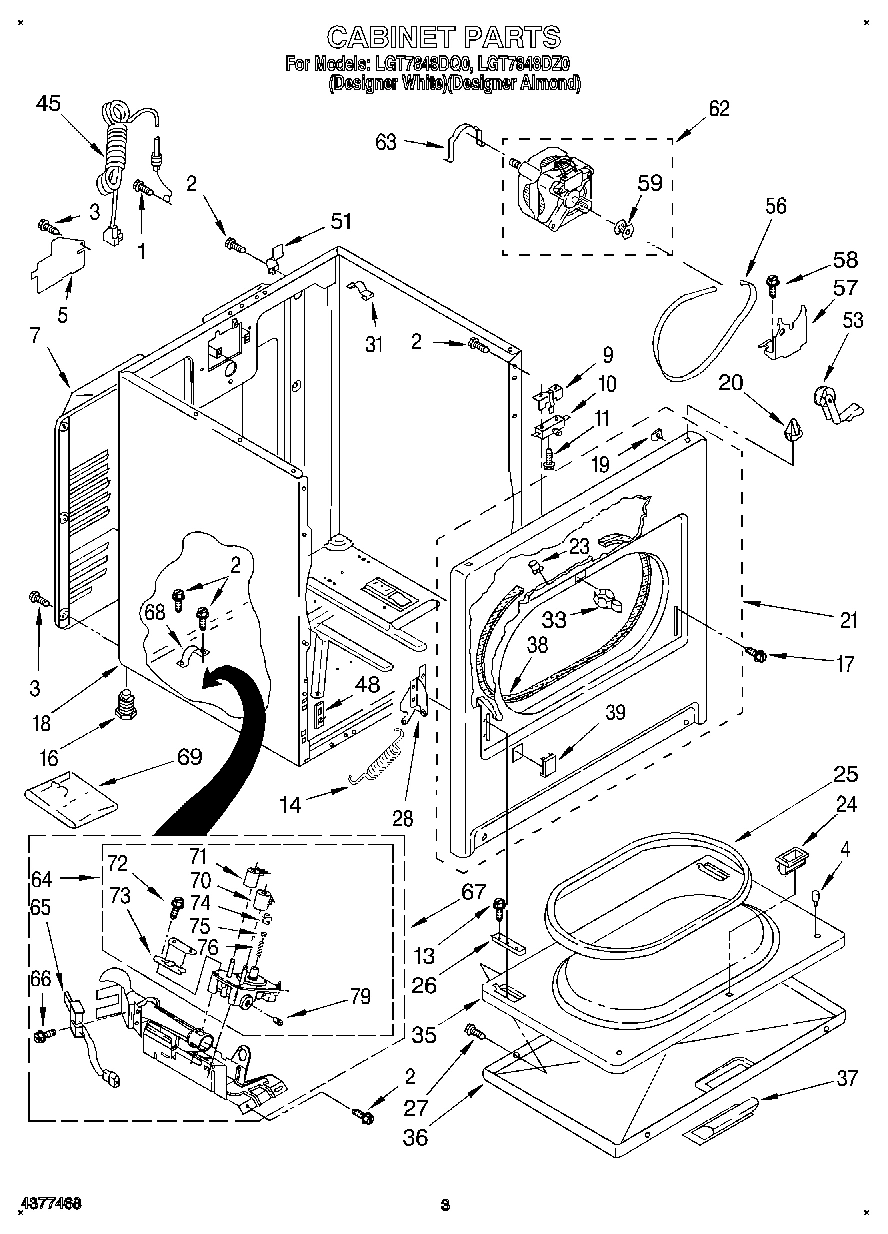

Model Whirlpool LGT7848DZ0 GAS DRYER – Common Parts & Diagrams

WPL 978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
WPL LIT3395332
WPL LIT3395332 WPL LIT3395332 Contact Us For Availability
View on Model
WPL LIT3401092
WPL LIT3401092 WPL LIT3401092 Contact Us For Availability
View on Model
WPL LIT3401725
WPL LIT3401725 WPL LIT3401725 Contact Us For Availability
View on Model
WPL LIT677818
WPL LIT677818 WPL LIT677818 Contact Us For Availability
View on Model
1

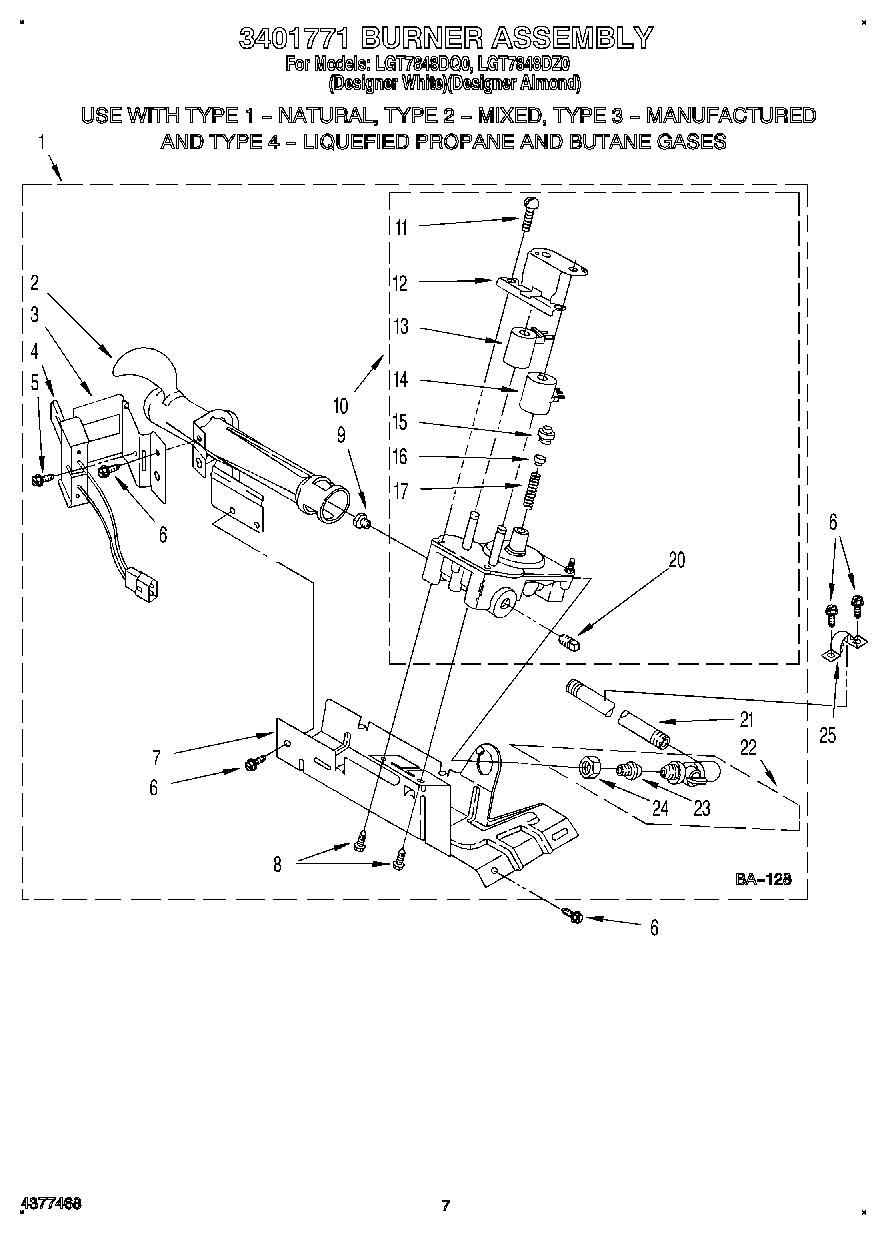

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability
View on Model
1

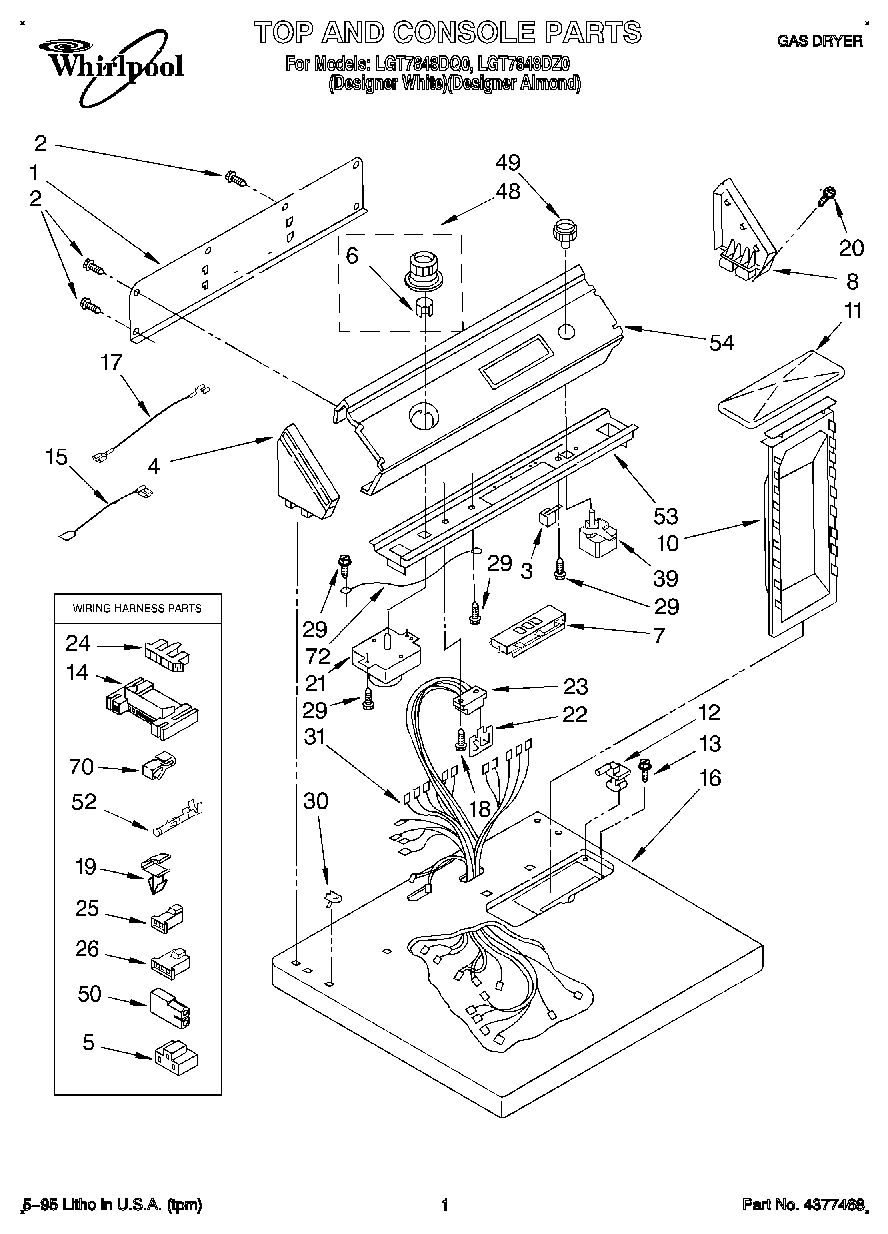

Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 3358528 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 3358529 Contact Us For Availability
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
7
Switch, Clean-Touch (White)
Switch, Clean-Touch (White) WPL 3403966 Contact Us For Availability
View on Model
7
Switch, Clean-Touch (Almond)
Switch, Clean-Touch (Almond) WPL 3403967 Contact Us For Availability
View on Model
8
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 3358513 Contact Us For Availability
View on Model
8
Cap, End (R.H.) (Almond)
Cap, End (R.H.) (Almond) WPL 3358514 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
15
Wire, Jumper (Violet)
Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability
View on Model
15
Wire, Jumper (Blue)
Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability
View on Model
15
Wire, Jumper (White)
Wire, Jumper (White) WPL 3401671 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
17
Wire, Jumper (Black)
Wire, Jumper (Black) WPL 3401684 Contact Us For Availability
View on Model
20
Bracket, Dryer Rack
Bracket, Dryer Rack WPL 692989 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
24
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
25
Connector, 2-Position (Gas Valve)
Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability
View on Model
26
Connector, 3-Position (Gas Valve)
Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability
View on Model
31
Harness, Wiring
Harness, Wiring WPL 3401636 Contact Us For Availability
View on Model
39
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
50
Receptacle, 2 Way
Receptacle, 2 Way WPL 717252 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396295 Contact Us For Availability
View on Model
54
Panel, Control (White)
Panel, Control (White) WPL 3398533 Contact Us For Availability
View on Model
54
Panel, Control (Almond)
Panel, Control (Almond) WPL 3398534 Contact Us For Availability
View on Model
70
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
