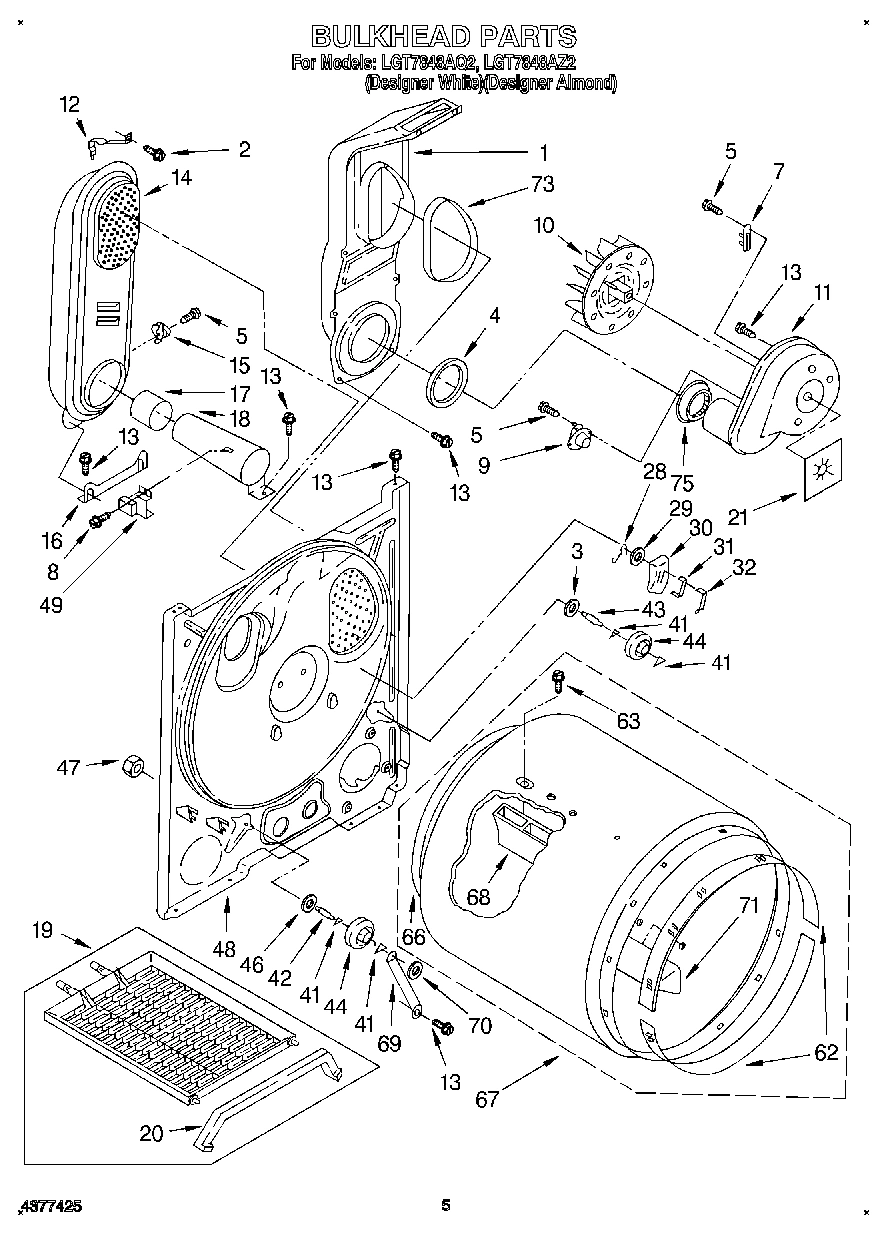

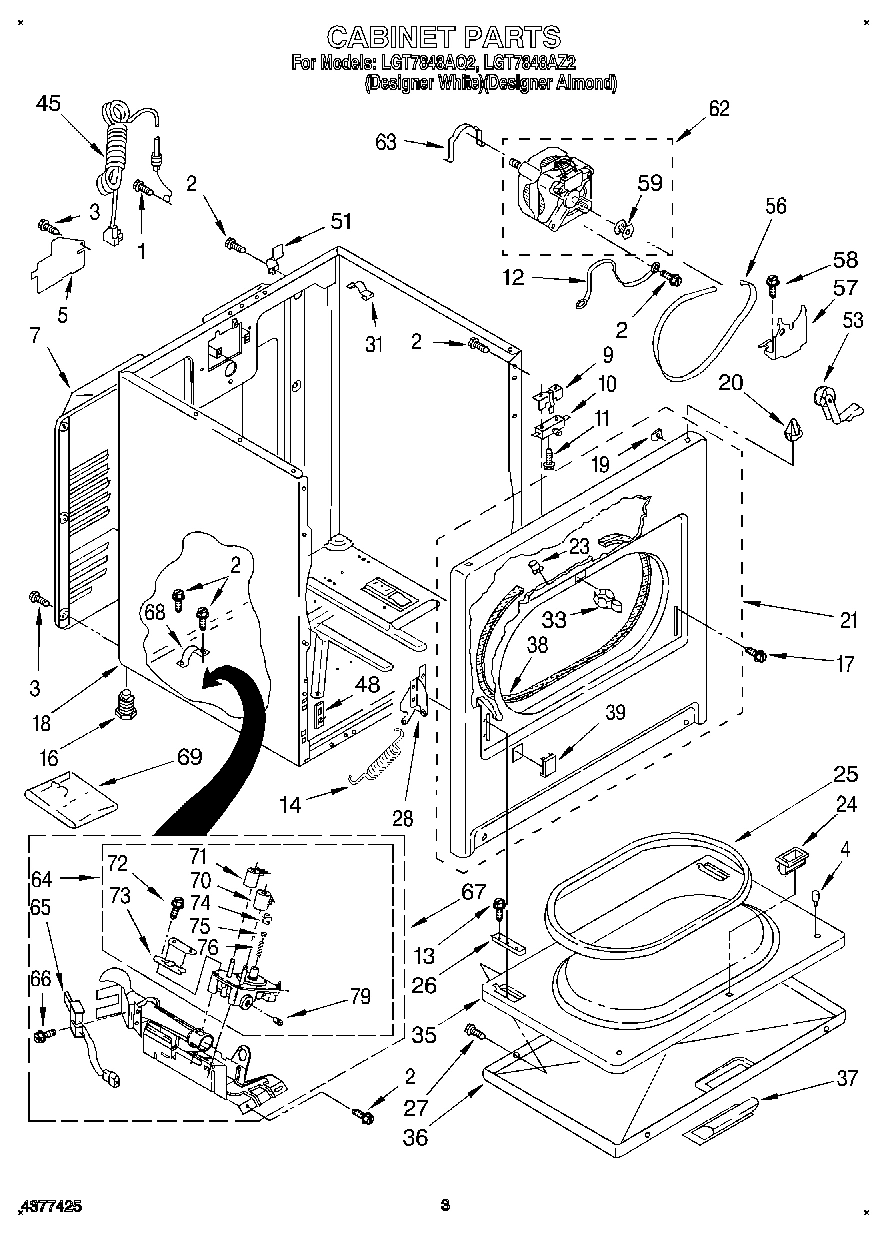

Model Whirlpool LGT7848AQ2 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3395332 WPL LIT3395332 Contact Us For Availability

WPL LIT3401083 WPL LIT3401083 Contact Us For Availability

WPL LIT3401725 WPL LIT3401725 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

1

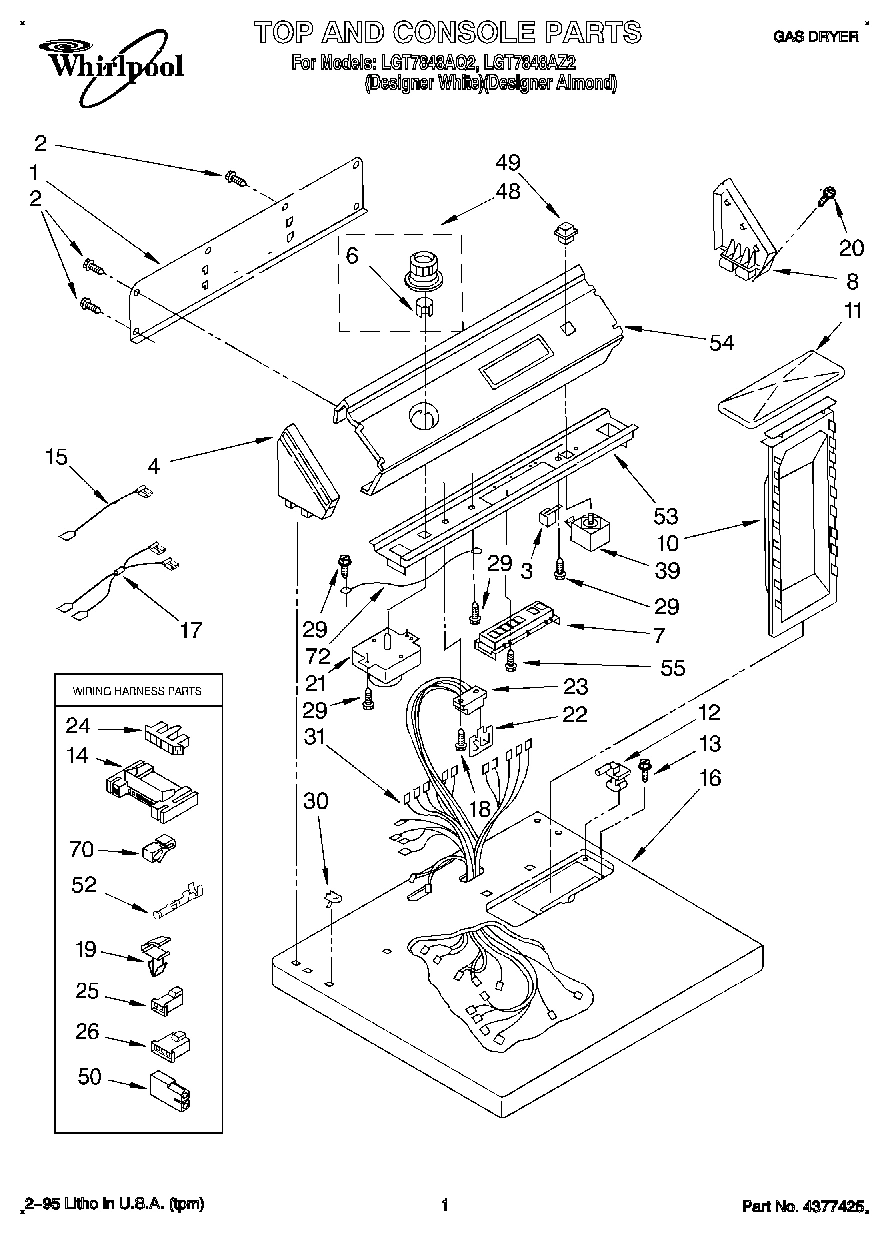

Panel, Rear Console WPL 3397545 Contact Us For Availability

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Switch, Clean Touch (Almond) WPL 3396237 Contact Us For Availability

7

Switch, Clean Touch (White) WPL 3396239 Contact Us For Availability

8

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

8

Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability

8

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

Housing, Blower WPL 695081 Contact Us For Availability

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

15

Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability

15

Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Support, Heater Box WPL 348484 Contact Us For Availability

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

17

Wire, Jumper (Signal Bypass) WPL 3396033 Contact Us For Availability

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

19

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Rack, Dry WPL 692990 Contact Us For Availability

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

20

Bracket, Dryer Rack WPL 692989 Contact Us For Availability

21

WP3397273 Whirlpool Timer Backorder WPL WP3397273 $181.09

21

Seal, Blower WPL 3392123 Contact Us For Availability

23

3391885 Whirlpool Connector Backorder WPL 3391885 $28.80

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Connector, Timer WPL 3397269 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

28

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

29

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

30

279366 Whirlpool Sensor Kit In Stock WPL 279366 $52.19

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

31

Harness, Wiring WPL 3401646 Contact Us For Availability

32

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

39

Switch, Push-To-Start WPL 3395395 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

3957753 Whirlpool Knob Backorder WPL 3957753 $35.32

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $34.13

Bulkhead WPL 3396793 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Button, Push To Start (White) WPL 3396176 Contact Us For Availability

49

Button, Push To Start (Almond) WPL 3396177 Contact Us For Availability

50

Receptacle, 2 Way WPL 717252 Contact Us For Availability

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3396295 Contact Us For Availability

54

Panel, Control (White) WPL 3397232 Contact Us For Availability

54

Panel, Control (Almond) WPL 3398498 Contact Us For Availability

55

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

67

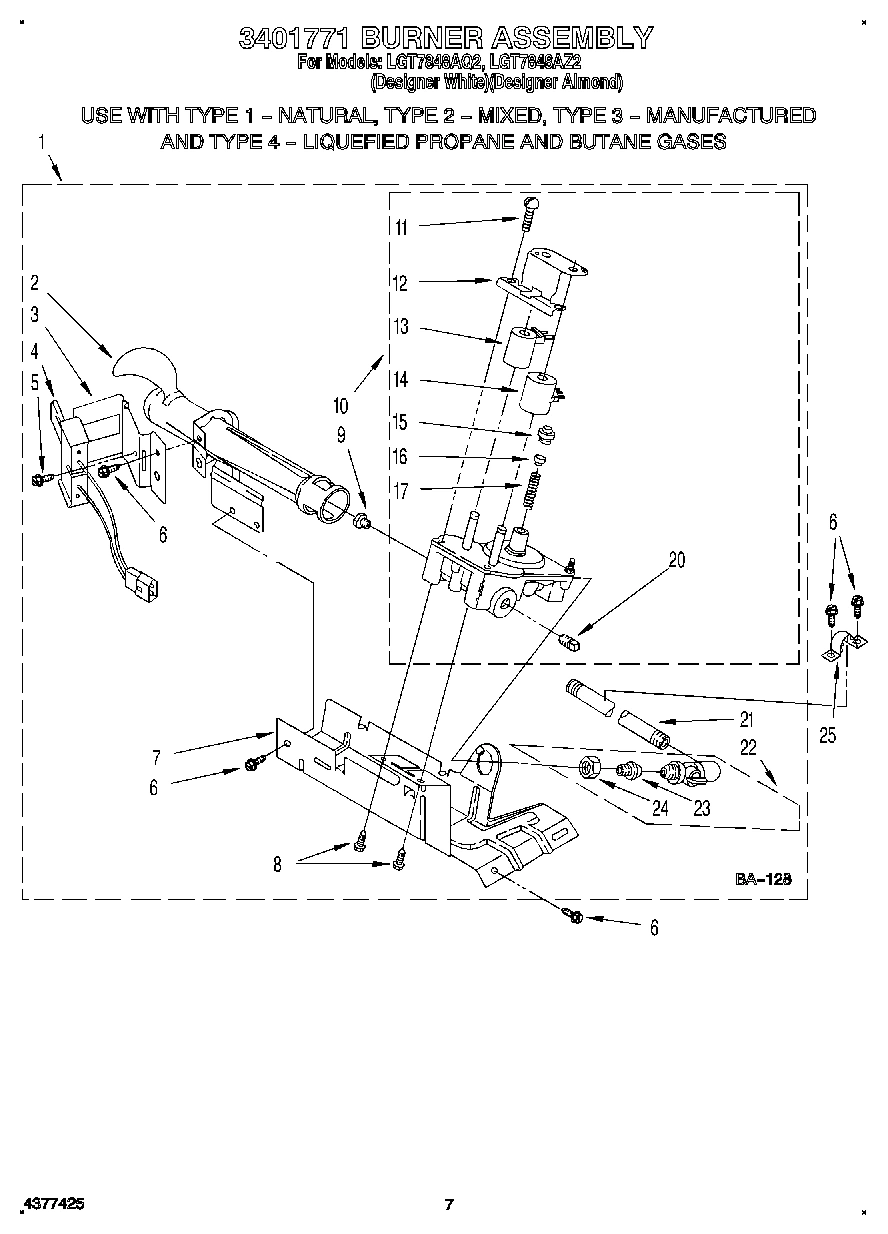

Burner Assembly, 60 Hz. (See Burner Assembly WPL 3401771 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 689180 Contact Us For Availability

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

72

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

72

Wire, Ground WPL 690853 Contact Us For Availability

73

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

79

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76
