  • Whirlpool LGT5624BW2

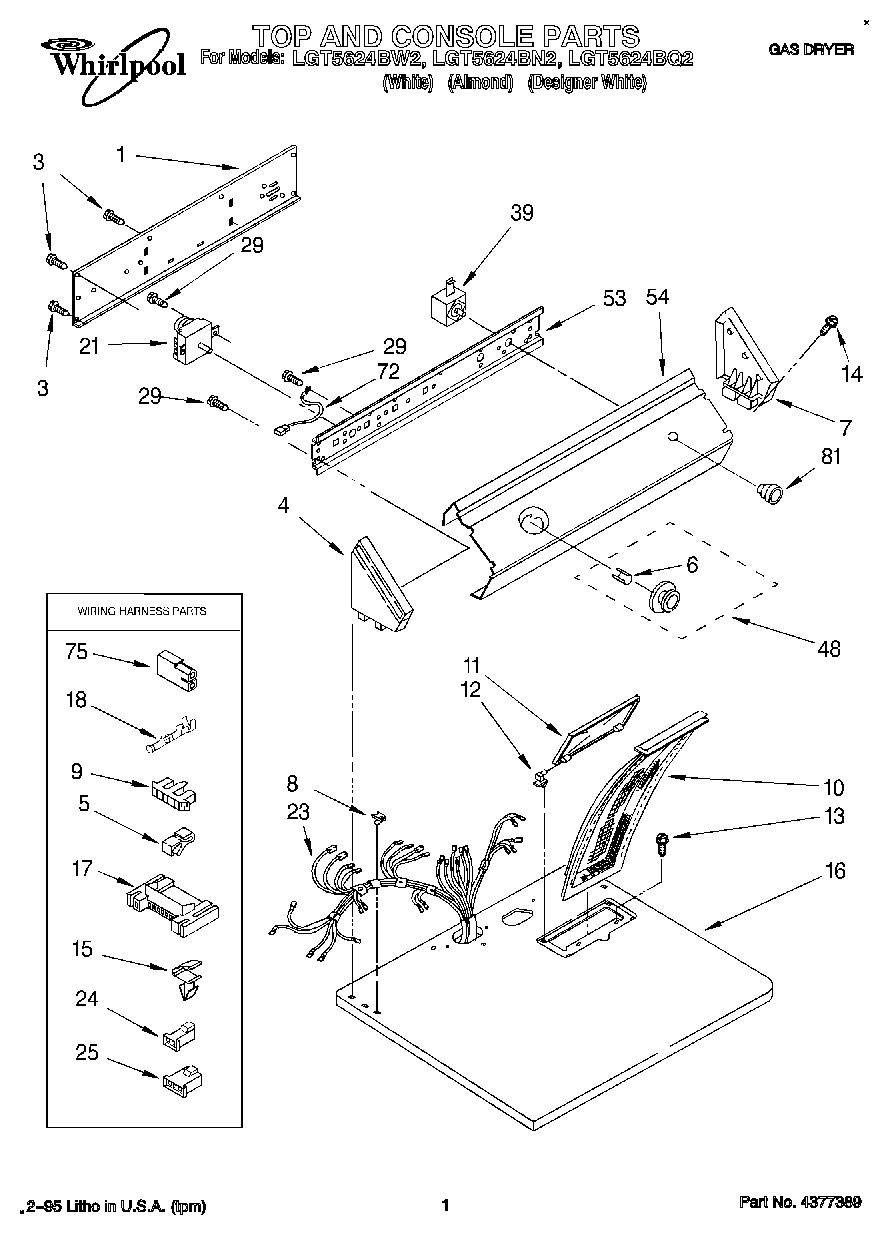

Model Whirlpool LGT5624BW2 GAS DRYER – Common Parts & Diagrams

Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3395332 Contact Us For Availability
View on Model
Guide,
Guide, WPL LIT3401083 Contact Us For Availability
View on Model
WPL LIT3401728
WPL LIT3401728 WPL LIT3401728 Contact Us For Availability
View on Model
WPL LIT677818
WPL LIT677818 WPL LIT677818 Contact Us For Availability
View on Model
1

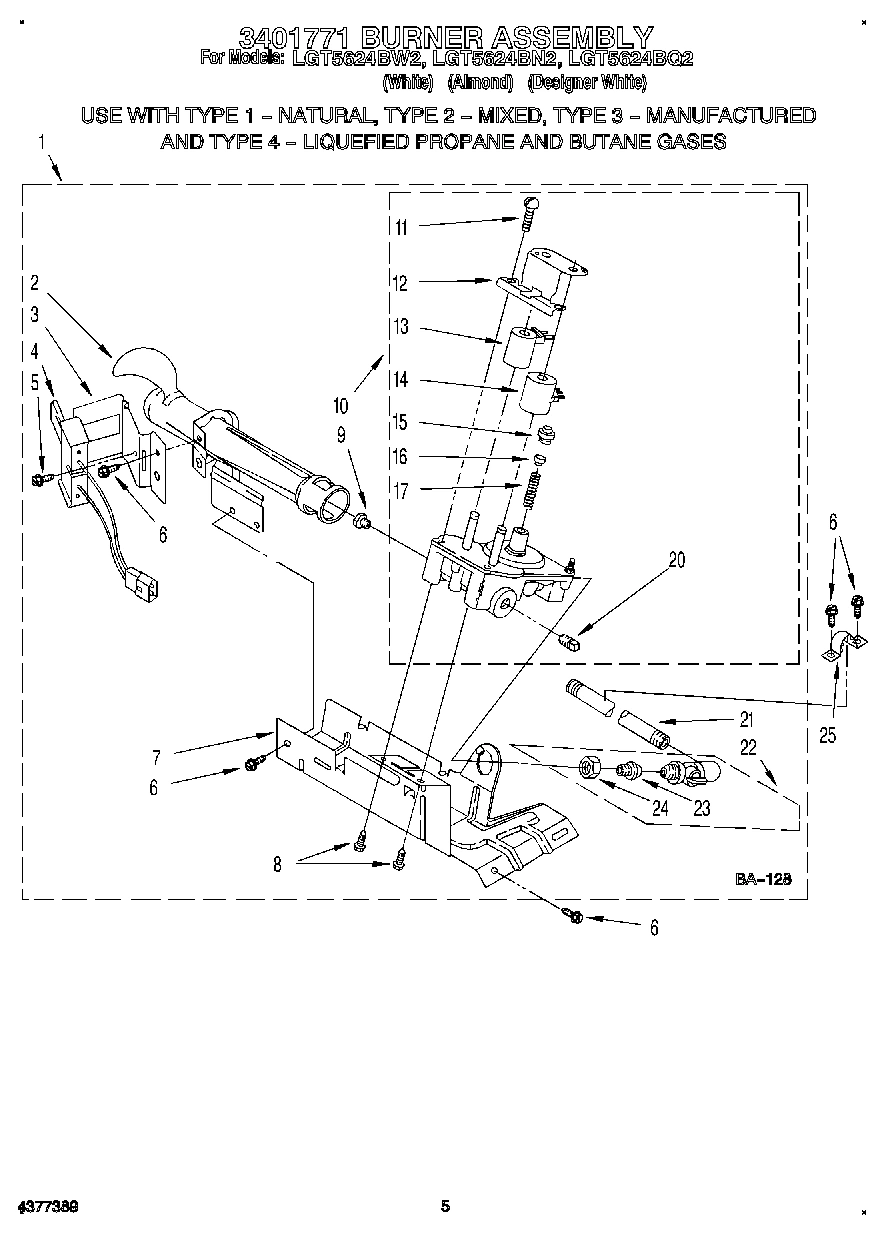

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability
View on Model
1
Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
View on Model
5
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
6
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
7
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
View on Model
7
Cap, End (R.H.) (Almond)
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
View on Model
9
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
12
GUIDE
GUIDE WPL 337182 Contact Us For Availability
View on Model
12
Guide, Cable (R.H.)
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
View on Model
14
Cable, Door (2)
Cable, Door (2) WPL 230131 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
23
Harness, Wiring
Harness, Wiring WPL 3401616 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
24
Connector, 2-Position (Gas Valve)
Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability
View on Model
25
Connector, 3-Position (Gas Valve)
Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability
View on Model
28
Hinge, Door (R.H.)
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396293 Contact Us For Availability
View on Model
54
Panel, Control (White)
Panel, Control (White) WPL 3397197 Contact Us For Availability
View on Model
54
Panel, Control (Almond)
Panel, Control (Almond) WPL 3397198 Contact Us For Availability
View on Model
54
Panel, Control (Designer White)
Panel, Control (Designer White) WPL 3397199 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, Latching (2-Way) (Uses Terminal
Receptacle, Latching (2-Way) (Uses Terminal WPL 717252 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 3396163 Contact Us For Availability
View on Model
