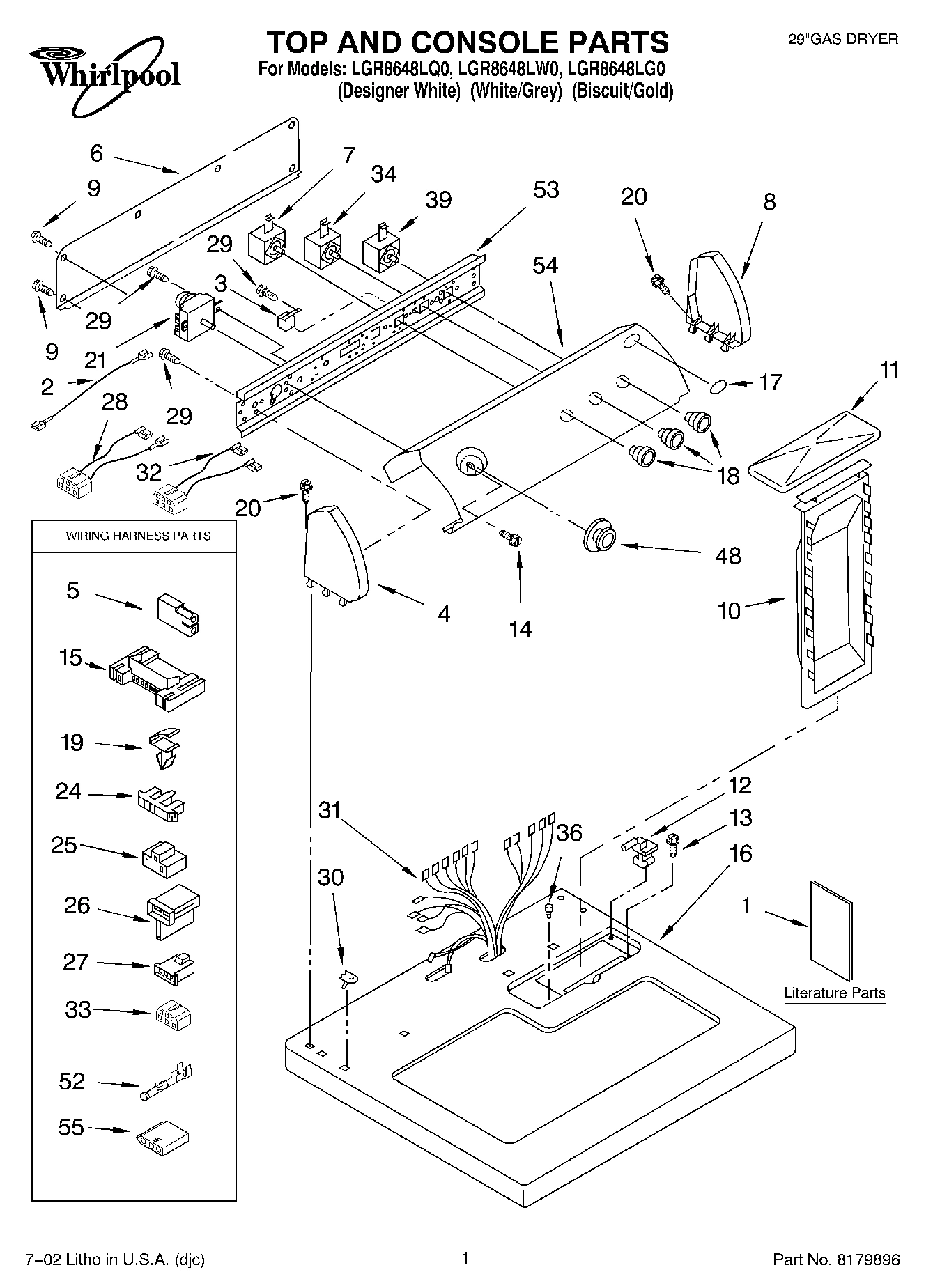

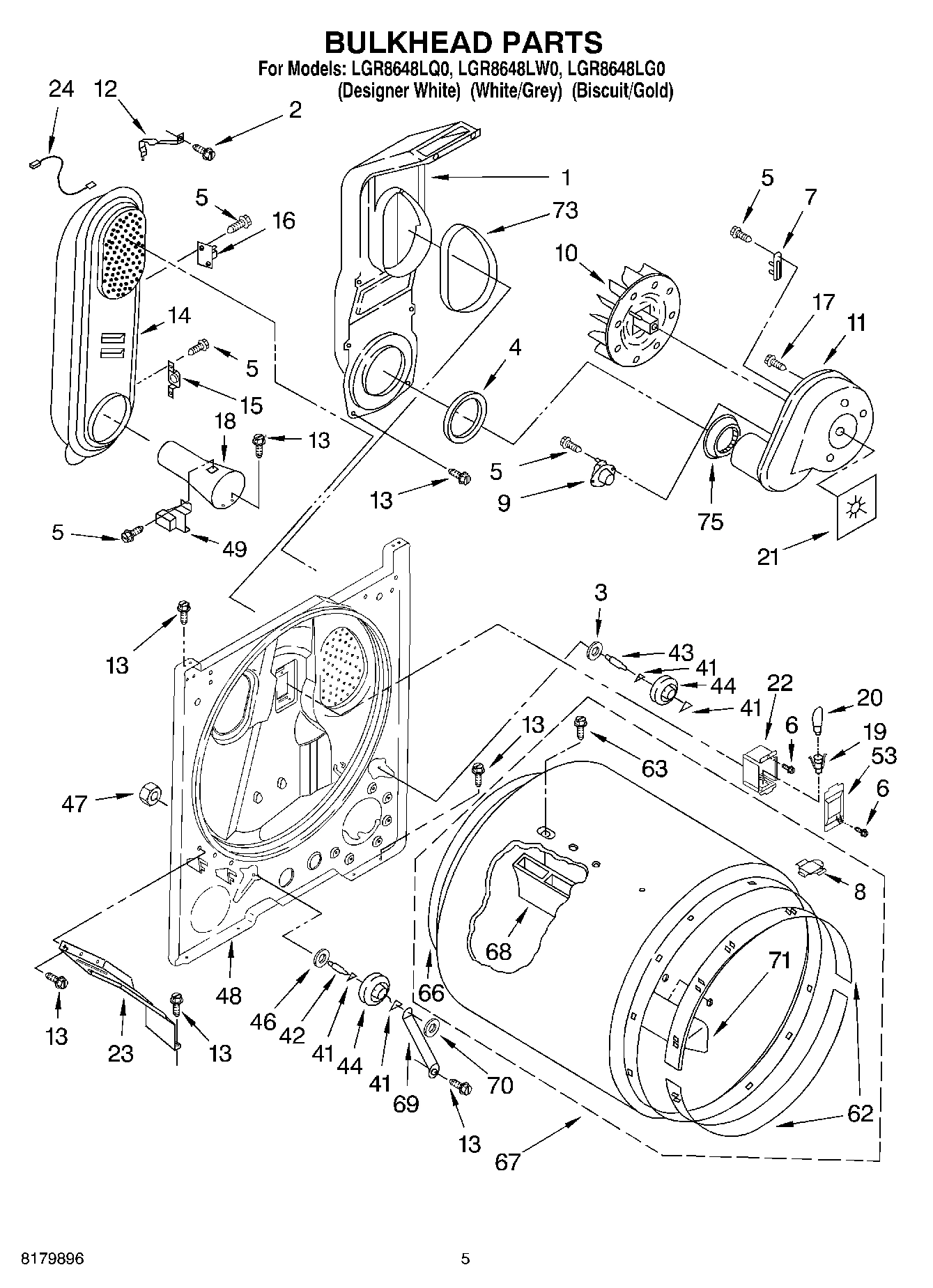

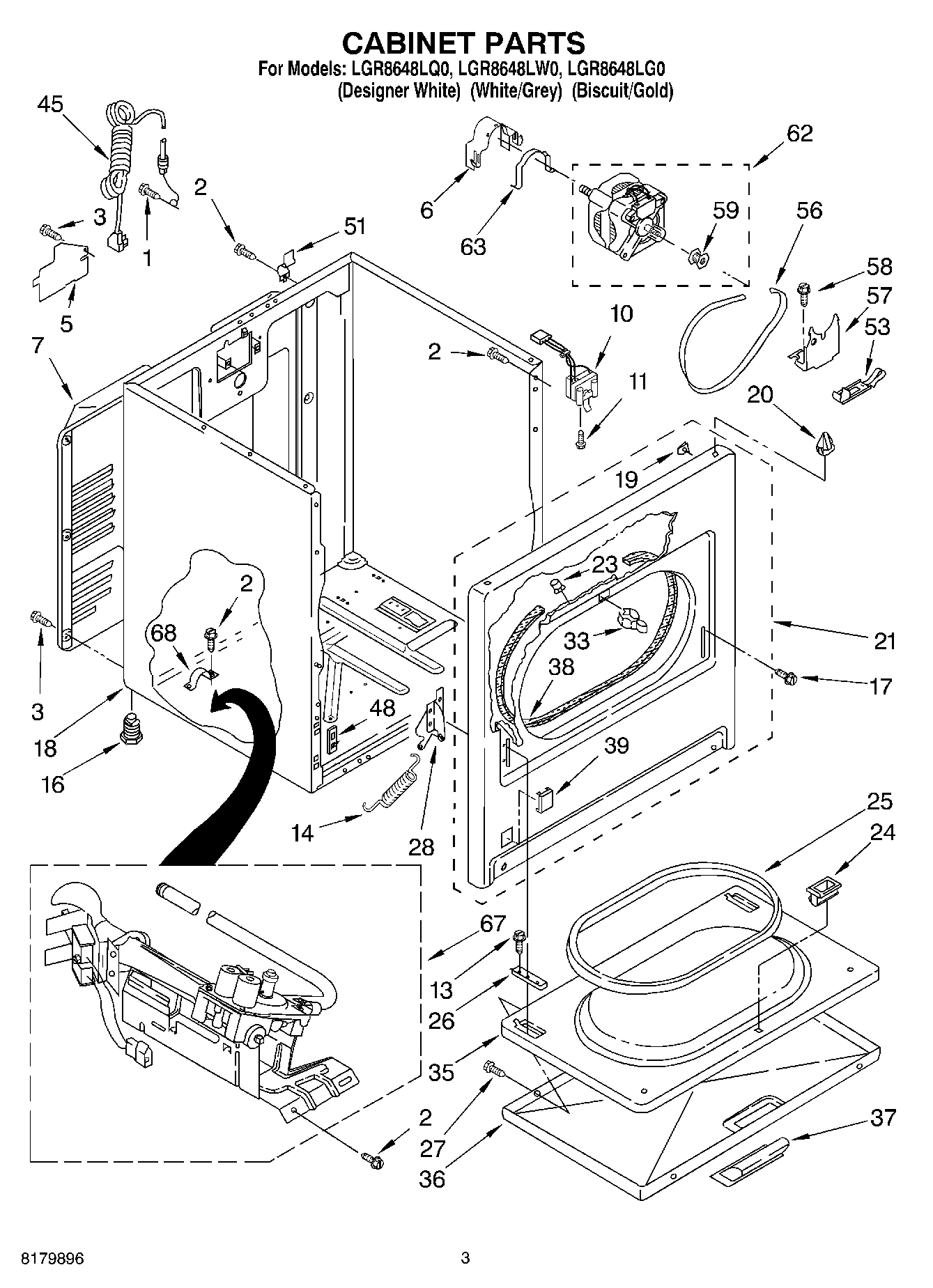

Model Whirlpool LGR8646LG0 GAS DRYER – Common Parts &amp; Diagrams

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2

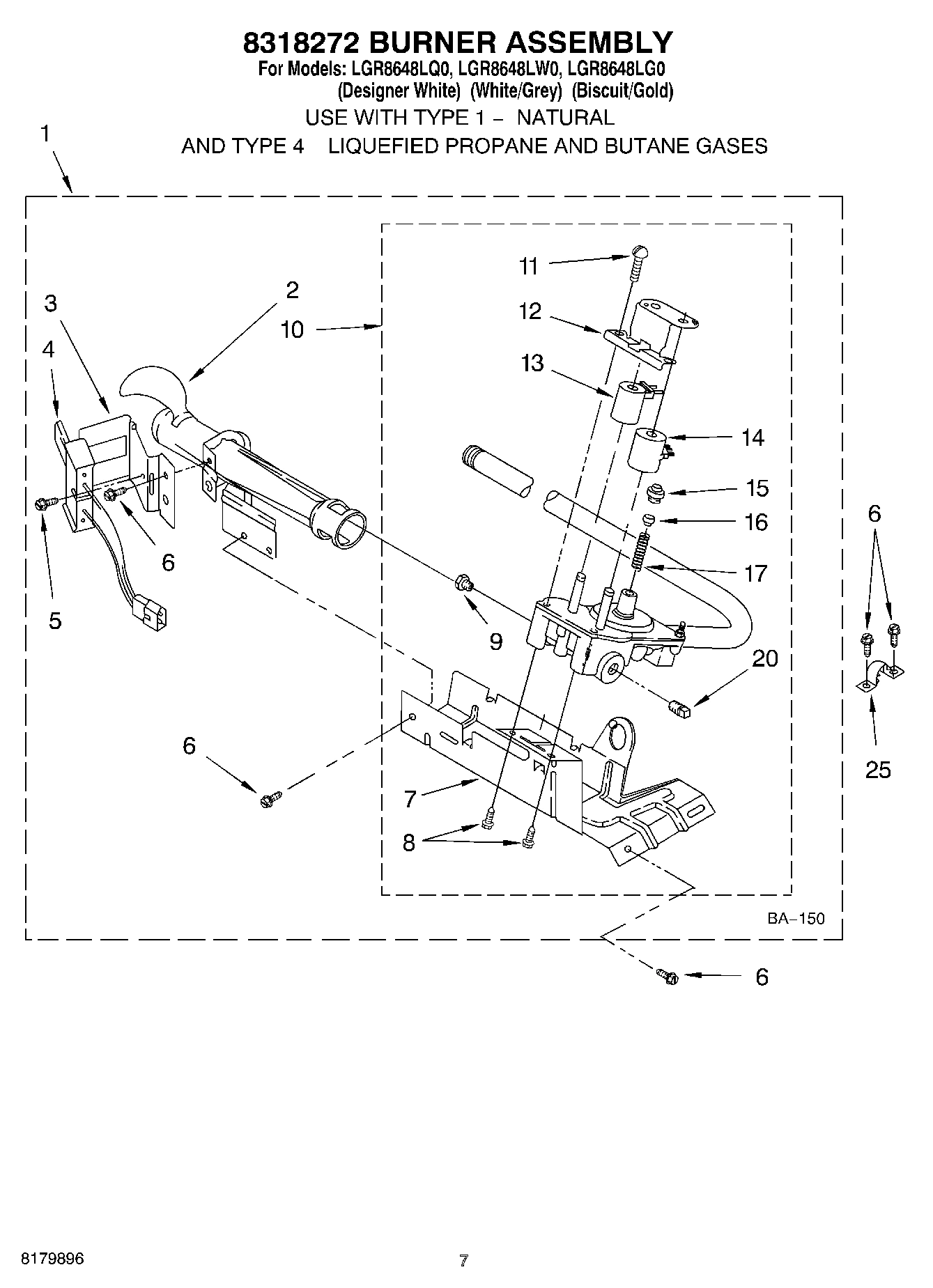

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

Wire, Jumper (Black) WPL 3401684 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

7

Base, Burner WPL 693986 Contact Us For Availability

8

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $10.86

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

WP8318277 Whirlpool Gas Valve In Stock WPL WP8318277 $198.88

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Cover, Lint Screen (White) WPL 8283378 Contact Us For Availability

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

15

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

19

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

21

WP8299766 Whirlpool Timer Assembly Backorder WPL WP8299766 $156.96

21

Seal, Blower WPL 3394196 Contact Us For Availability

22

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

23

W11398682 Whirlpool Bracket Backorder WPL W11398682 $19.91

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

24

Connector, Timer WPL 3397269 Contact Us For Availability

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

28

3397695 Whirlpool Wire Harness Backorder WPL 3397695 $28.80

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

8299879 Whirlpool Wire Harness Backorder WPL 8299879 $133.07

34

WP3405156 Whirlpool Switch In Stock WPL WP3405156 $48.50

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

39

WP3398095 Whirlpool Dryer Start Relay In Stock WPL WP3398095 $45.97

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

W10828431 Whirlpool Oven Bulkhead Backorder WPL W10828431 $118.41

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

WP8557455 Whirlpool Knob Timer In Stock WPL WP8557455 $37.19

WPL 8316549 WPL 8316549 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WPL 8271418 WPL 8271418 Contact Us For Availability

54

WPL 8532627 WPL 8532627 Contact Us For Availability

54

WPL 8532628 WPL 8532628 Contact Us For Availability

54

WPL 8532643 WPL 8532643 Contact Us For Availability

3406839 Whirlpool Drying Rack In Stock WPL 3406839 $42.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

4392065 Whirlpool Dryer Maintenance Kit In Stock WPL 4392065 $16.88

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

WPL 346764 WPL 346764 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76
