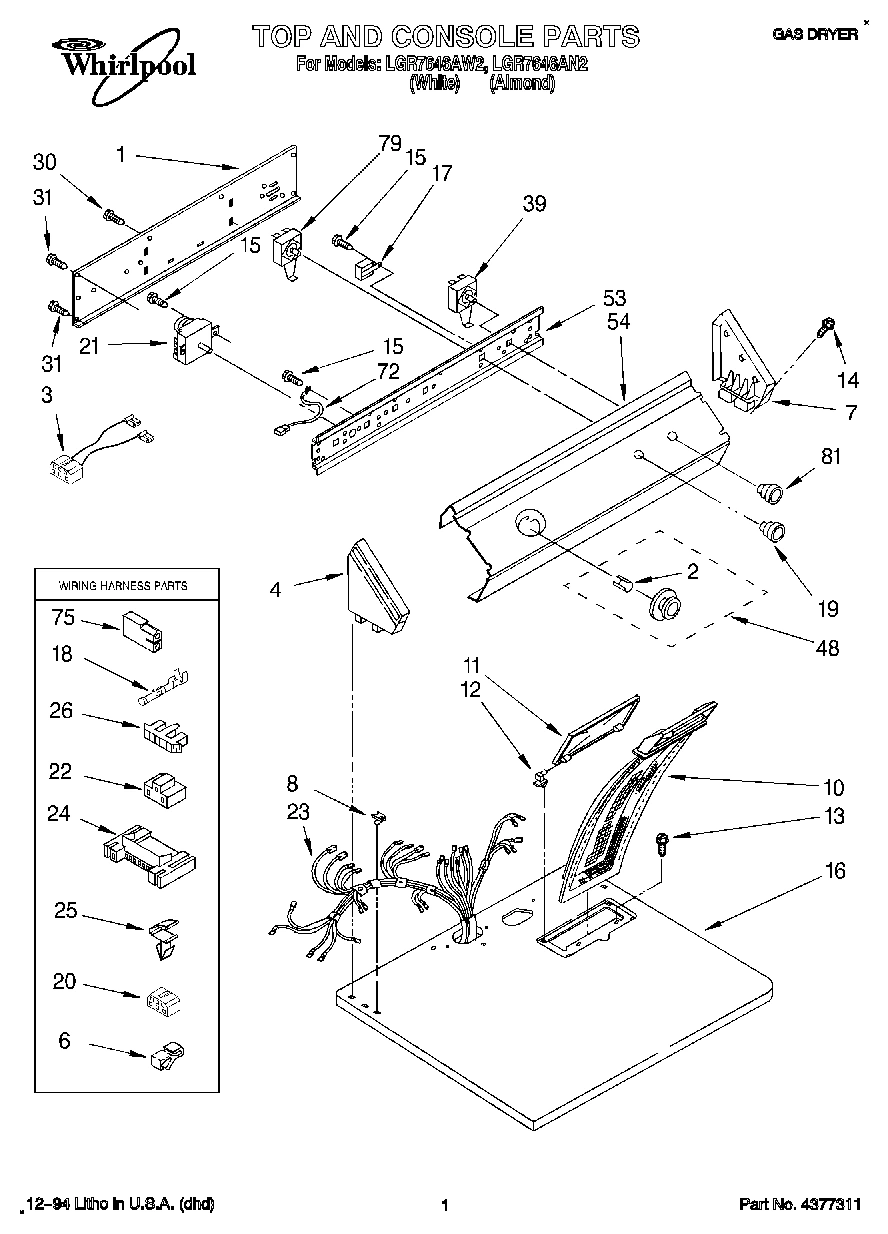

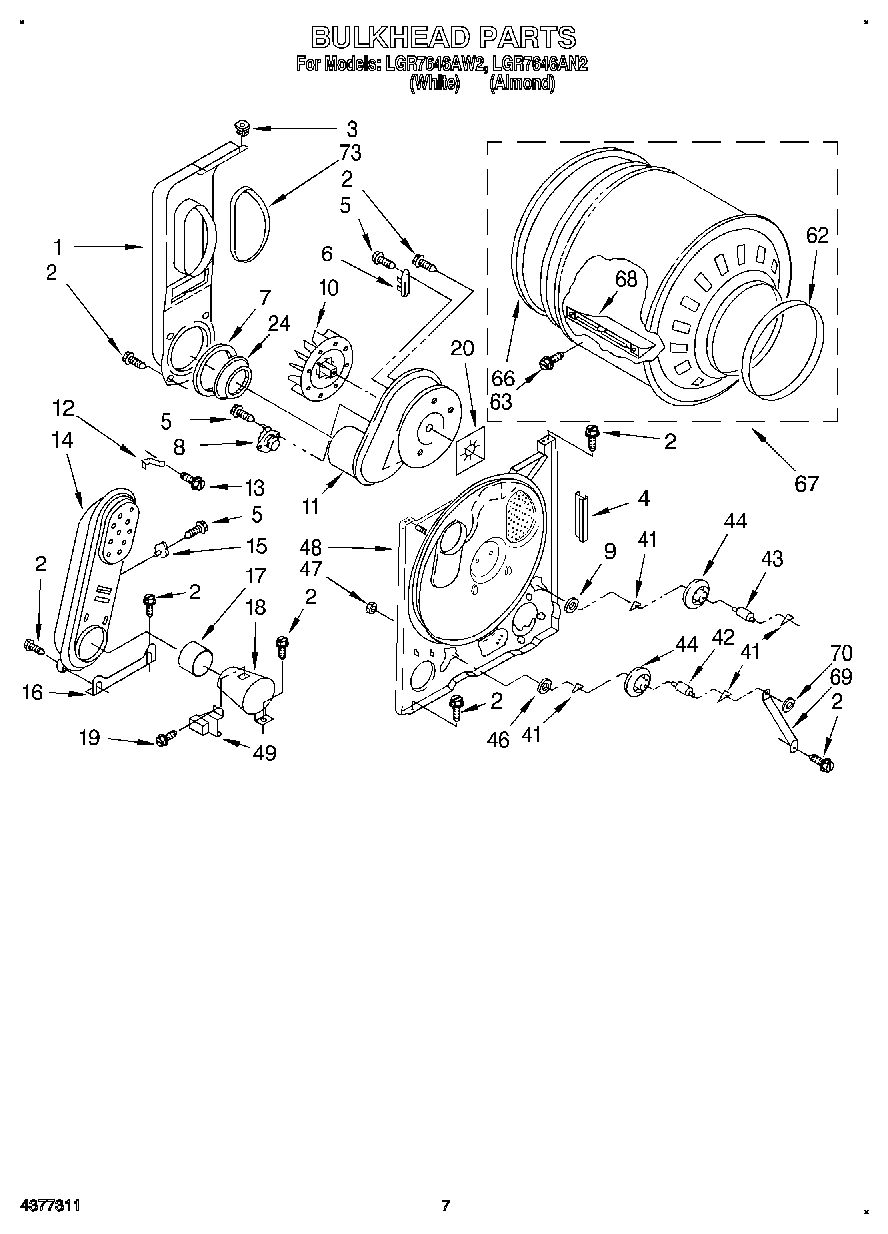

Model Whirlpool LGR7646AW2 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3395332 Contact Us For Availability

Guide, Use & Care WPL LIT3396303 Contact Us For Availability

Label, Wi WPL LIT3401723 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

3

8539893 Whirlpool Wire Harness Backorder WPL 8539893 $7.36

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

4

686889 Whirlpool Pad Backorder WPL 686889 $10.76

4

Hinge, R.H. WPL 687905 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

6

Clip, Retainer WPL 689180 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

7

Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability

7

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

15

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Support, Heater Box WPL 348484 Contact Us For Availability

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

Backorder WPL 3358431 $32.90

19

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 3392123 Contact Us For Availability

20

Connector 6-Circuit WPL 3347243 Contact Us For Availability

21

WP3976574 Whirlpool Timer Backorder WPL WP3976574 $182.76

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

23

Harness, Wiring WPL 3401626 Contact Us For Availability

24

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

25

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

26

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

26

Connector, Timer WPL 3397269 Contact Us For Availability

30

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

31

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

34

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

39

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $42.69

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $34.13

48

Bulkhead WPL 3399464 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (White) WPL 3399009 Contact Us For Availability

54

Panel, Control (Almond) WPL 3399010 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

Seal, Rear Drum WPL 3397509 Contact Us For Availability

67

Drum Assembly WPL 3396778 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

Seal WPL 3398160 Contact Us For Availability

75

Receptacle, Latching (2-Way) WPL 717252 Contact Us For Availability

79

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

81

Knob, Push To Start WPL 3396160 Contact Us For Availability

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
