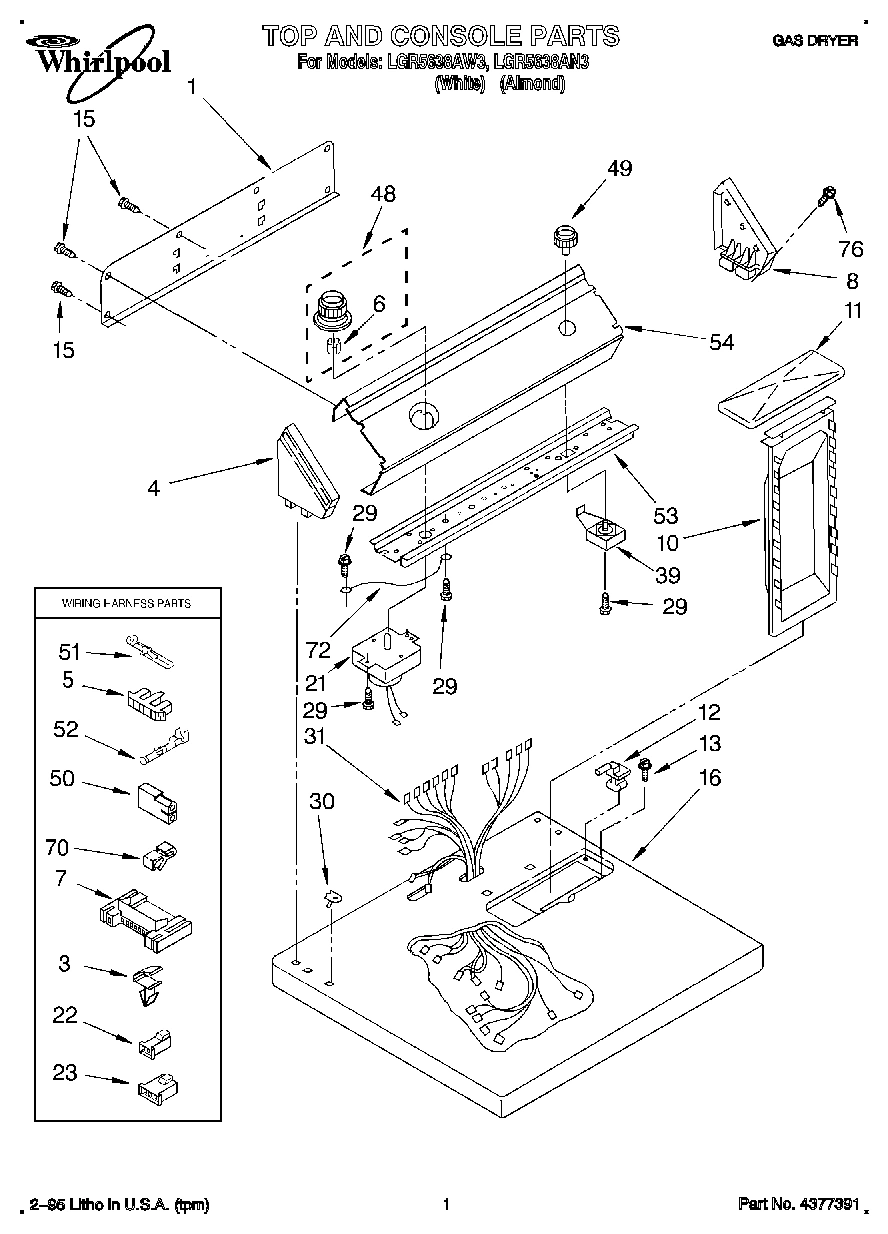

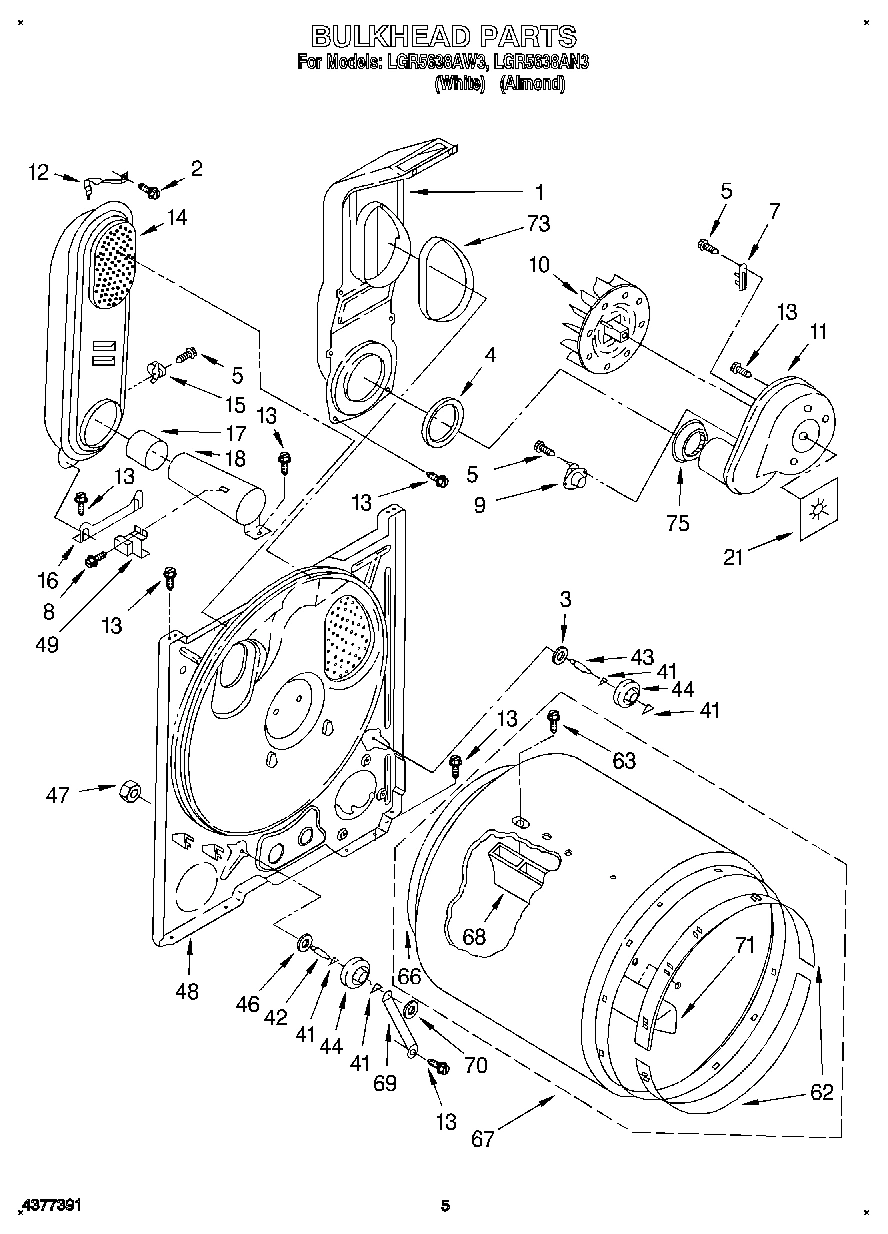

Model Whirlpool LGR5638AW3 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3395332 Contact Us For Availability

Guide, Use & Care WPL LIT3401083 Contact Us For Availability

Label, Wiring Diagram WPL LIT3401728 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

3

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Connector, Timer WPL 3397269 Contact Us For Availability

6

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

7

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

8

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

8

Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability

8

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

Support, Heater Box WPL 348484 Contact Us For Availability

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

21

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $147.09

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

21

Seal, Blower WPL 3392123 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

22

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

23

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Harness, Wiring WPL 3401622 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

39

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $28.58

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $118.41

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $34.13

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

49

Knob, Push To Start WPL 3396160 Contact Us For Availability

50

Receptacle, 2 Way WPL 717252 Contact Us For Availability

51

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (White) WPL 3399013 Contact Us For Availability

54

Panel, Control (Almond) WPL 3399014 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 689180 Contact Us For Availability

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
