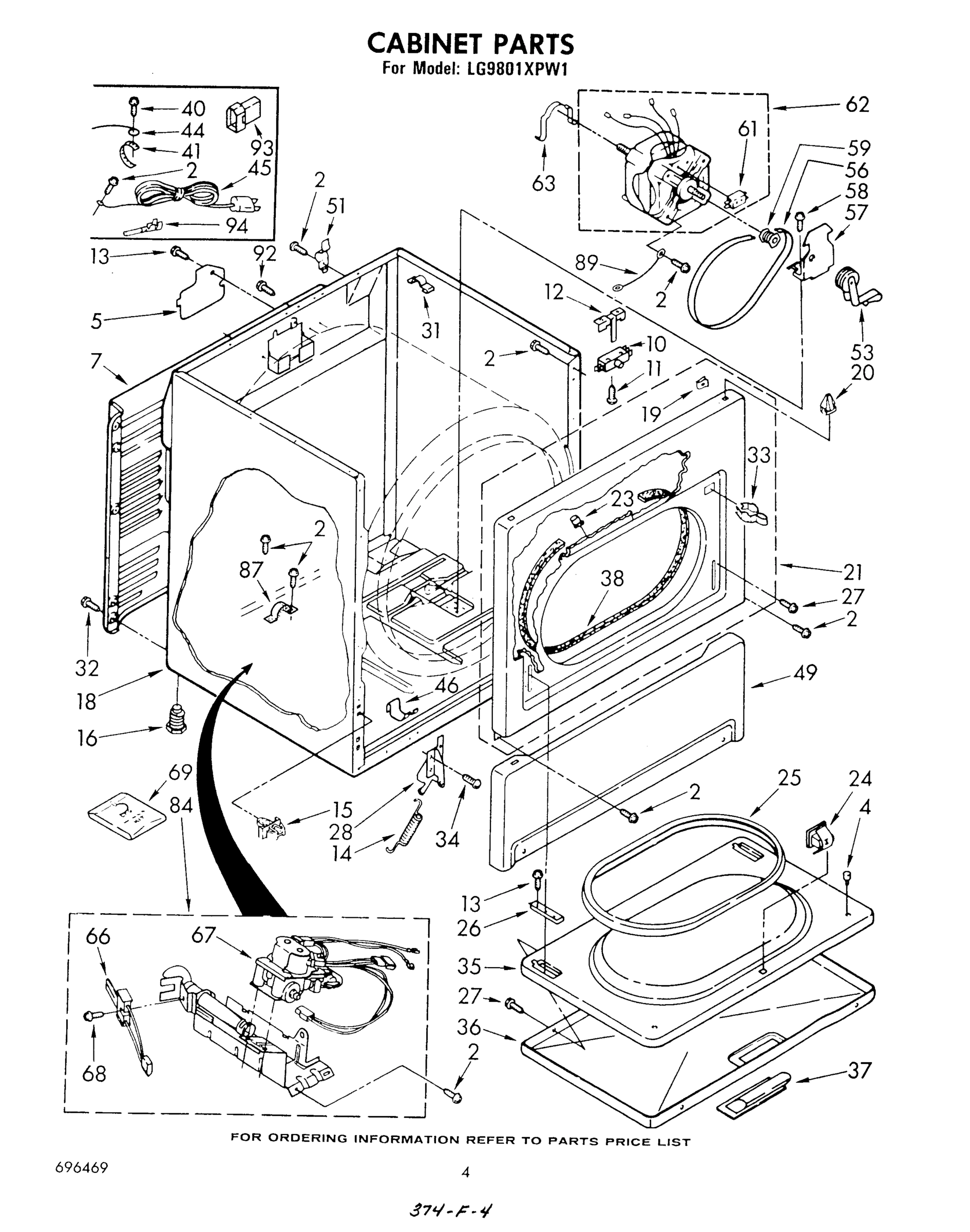

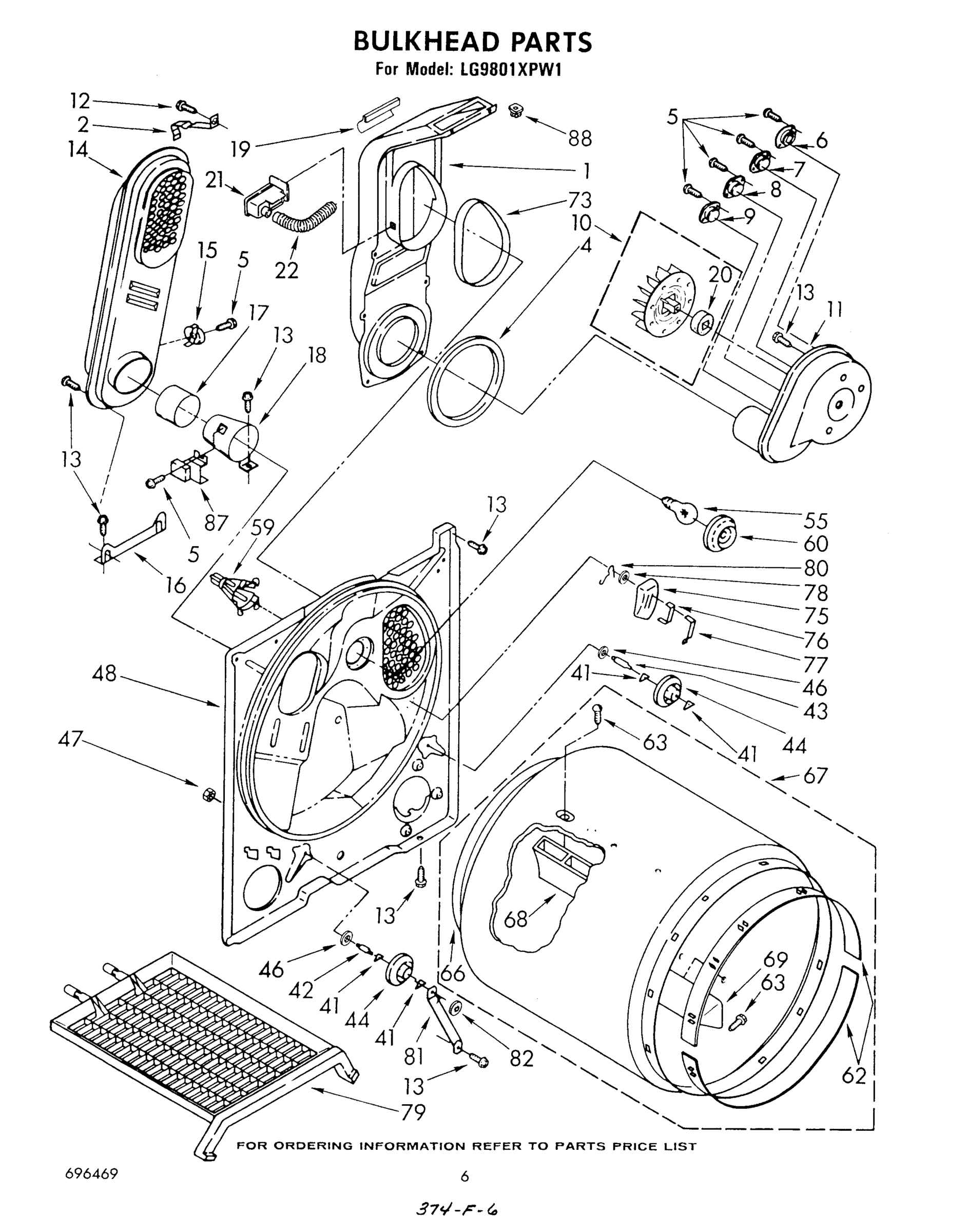

Model Whirlpool LG9801XPW1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL LIT693849 WPL LIT693849 Contact Us For Availability

WPL LIT694205 WPL LIT694205 Contact Us For Availability

WPL LIT696233 WPL LIT696233 Contact Us For Availability

WPL LIT696469 WPL LIT696469 Contact Us For Availability

1

Panel, Rear Console WPL 696198 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

2

Panel, Control WPL 386795 Contact Us For Availability

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

Rack, Literature WPL 63020 Contact Us For Availability

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Bracket, Control WPL 696004 Contact Us For Availability

7

Panel, Rear WPL 348364 Contact Us For Availability

8

Trim, Frame WPL 359787 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Pivot, Lever WPL 358563 Contact Us For Availability

9

Thermostat, Operating 140~F (60~C) WPL 690031 Contact Us For Availability

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

10

Switch, Door WPL 691361 Contact Us For Availability

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

13

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Lever WPL 358564 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

Support, Heater Box WPL 348484 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

Transformer WPL 60996 Contact Us For Availability

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Stop, Push-In (2) WPL 358472 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Module, Touch WPL 693263 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Display Assembly WPL 61292 Contact Us For Availability

Upper Front Panel (Almond) WPL 692436 Contact Us For Availability

Upper Front Panel (Golden Harvest) WPL 692439 Contact Us For Availability

Upper Front Panel (Toast) WPL 692454 Contact Us For Availability

Upper Front Panel (Platinum) WPL 692455 Contact Us For Availability

Alert, Lint WPL 690981 Contact Us For Availability

22

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

22

Hose, Differential WPL 686577 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Relay, Start-To-Stop WPL 691359 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Screw, 8-18 x 1/2 (6) WPL 690756 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

Power Relay (2) WPL 691360 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Microcomputer Assembly WPL 61203 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Speaker & Housing WPL 359201 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

28

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

32

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

32

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

33

Receptacle, Latching (3-Way) WPL 691707 Contact Us For Availability

34

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

34

Connector, 15 Circuit (Uses 60279 Terminal) WPL 60278 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Terminal WPL 60279 Contact Us For Availability

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability

40

Housing, Speaker WPL 359188 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

42

Harness, Wiring WPL 696551 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

43

Clip, Harness Retainer (Bulkhead Rear Area) WPL 688412 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

44

Clip, Harness Retainer (Door Switch) WPL 689180 Contact Us For Availability

44

Wire, Grou WPL 364089 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

45

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

46

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Bulkhead WPL 685817 Contact Us For Availability

WPL 692427 WPL 692427 Contact Us For Availability

WPL 692428 WPL 692428 Contact Us For Availability

WPL 692431 WPL 692431 Contact Us For Availability

WPL 695142 WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

59

Socket Assembly WPL 691034 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

67

Drum Assembly WPL 692492 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

68

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

69

WPL 279243 WPL 279243 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

279366 Whirlpool Sensor Kit In Stock WPL 279366 $52.19

76

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

77

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

78

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

79

Dry Rack Assembly WPL 692990 Contact Us For Availability

80

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

81

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

82

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

84

WPL 694670 WPL 694670 Contact Us For Availability

87

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

87

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

88

98460 Whirlpool Nut Backorder WPL 98460 $9.59

89

WPL 690236 WPL 690236 Contact Us For Availability

93

353424 Whirlpool Connector Backorder WPL 353424 $10.76

93

WPL 353425 WPL 353425 Contact Us For Availability

94

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

94

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51
