Model Whirlpool LG7001XMW0 GAS DRYER – Common Parts & Diagrams
02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
03 - CABINET

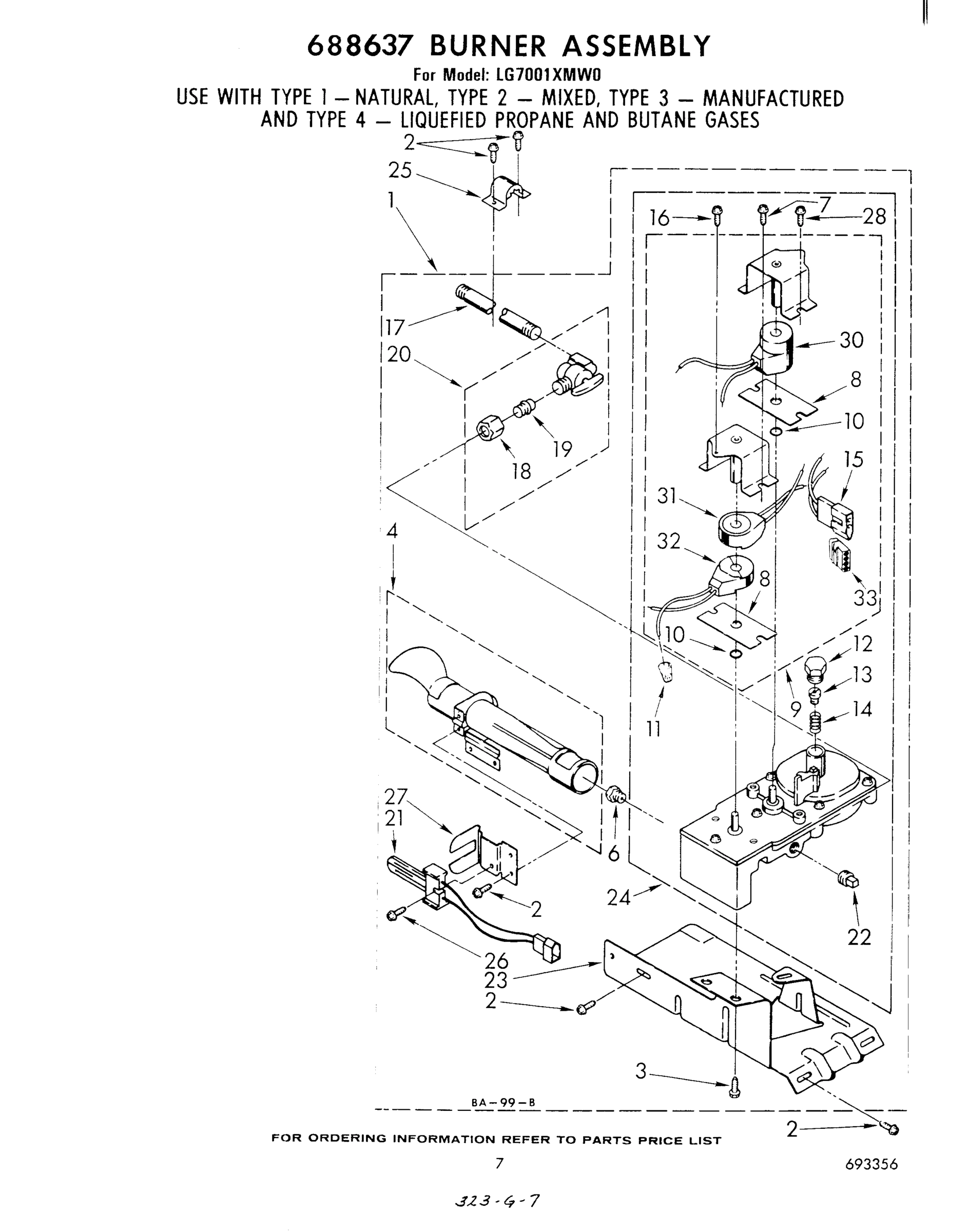

05 - 688637 BURNER

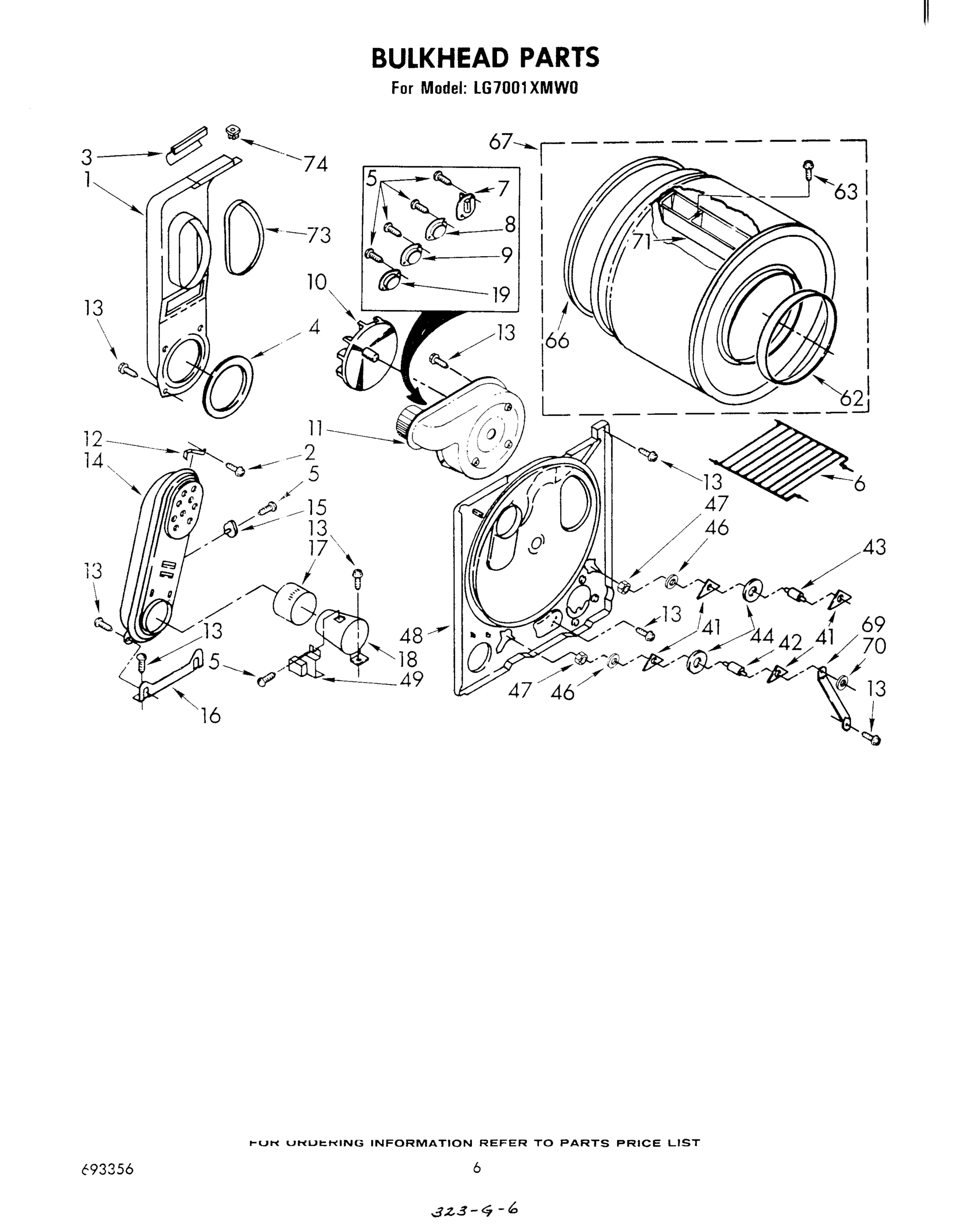

04 - BULKHEAD

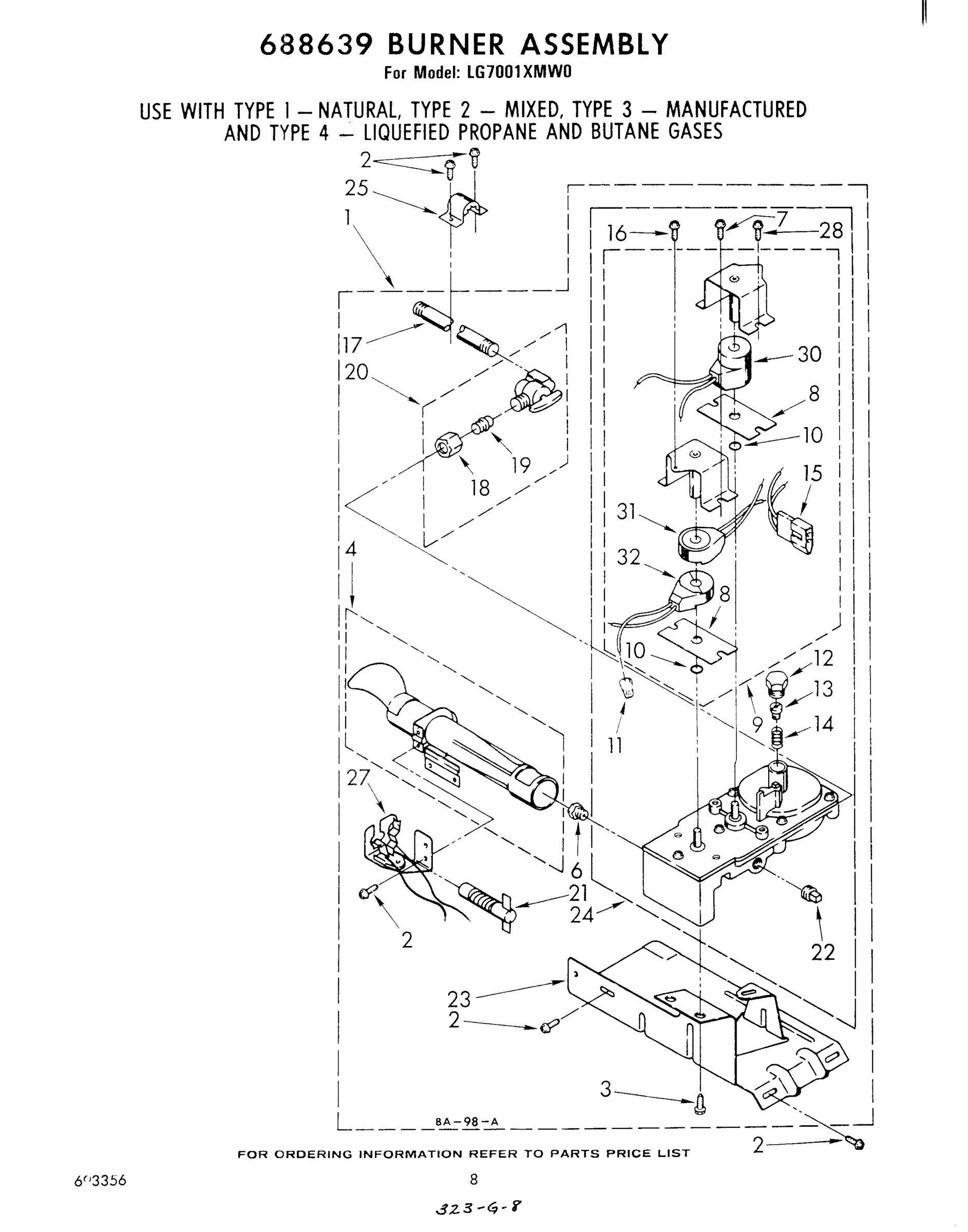

06 - 688639 BURNER
Common parts from model Whirlpool LG7001XMW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability
3
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
16
Support, Heater Box WPL 337445 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 689535 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Clamp, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689537 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
70
WPL 688412 WPL 688412 Contact Us For Availability
80
WPL 357645 WPL 357645 Contact Us For Availability
80
WPL 688644 WPL 688644 Contact Us For Availability
80
WPL 691274 WPL 691274 Contact Us For Availability
80
WPL 693356 WPL 693356 Contact Us For Availability
80
WPL 693849 WPL 693849 Contact Us For Availability
80
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
× ![]()
