Model Whirlpool LG5701XMW0 GAS DRYER – Common Parts & Diagrams

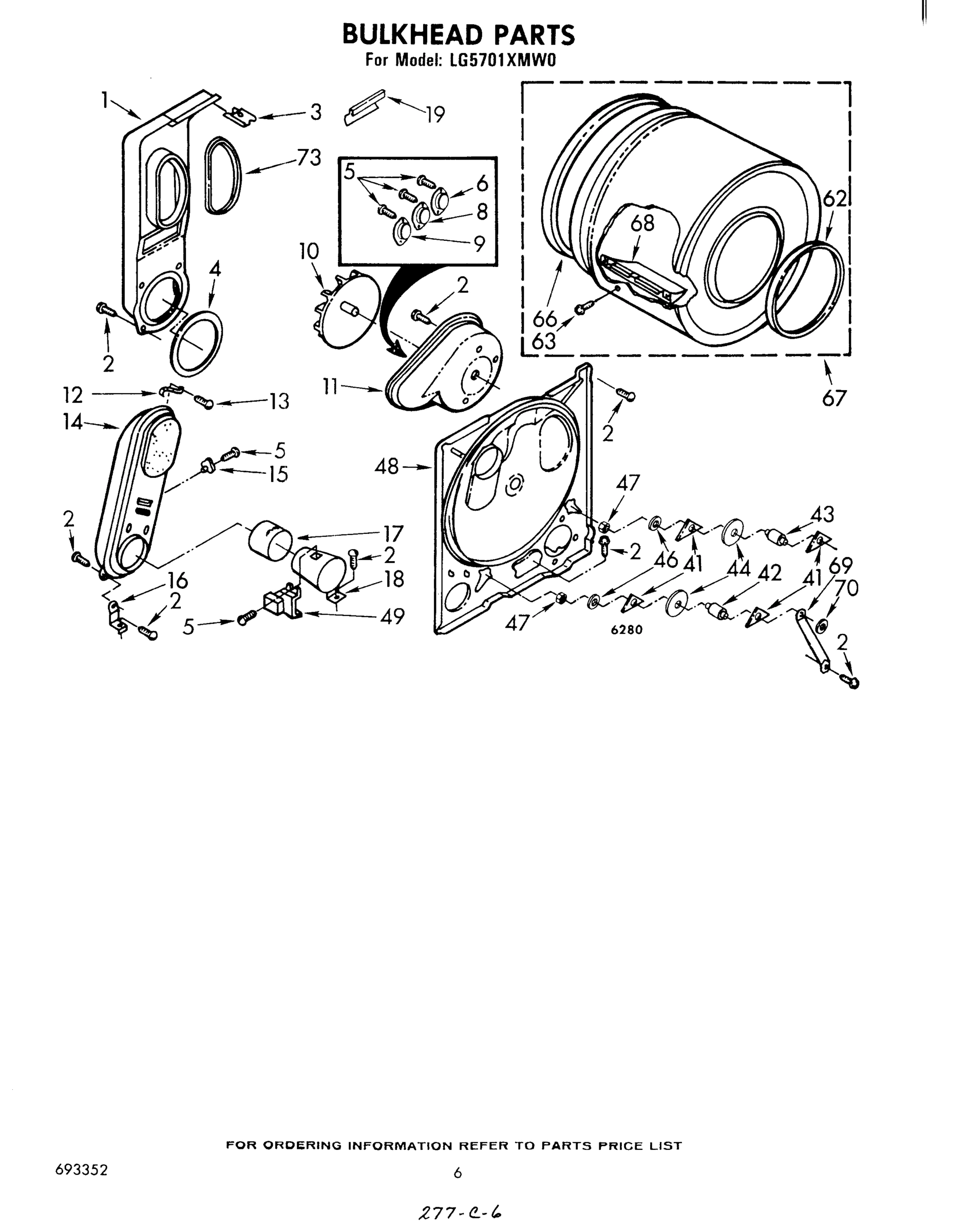

04 - BULKHEAD

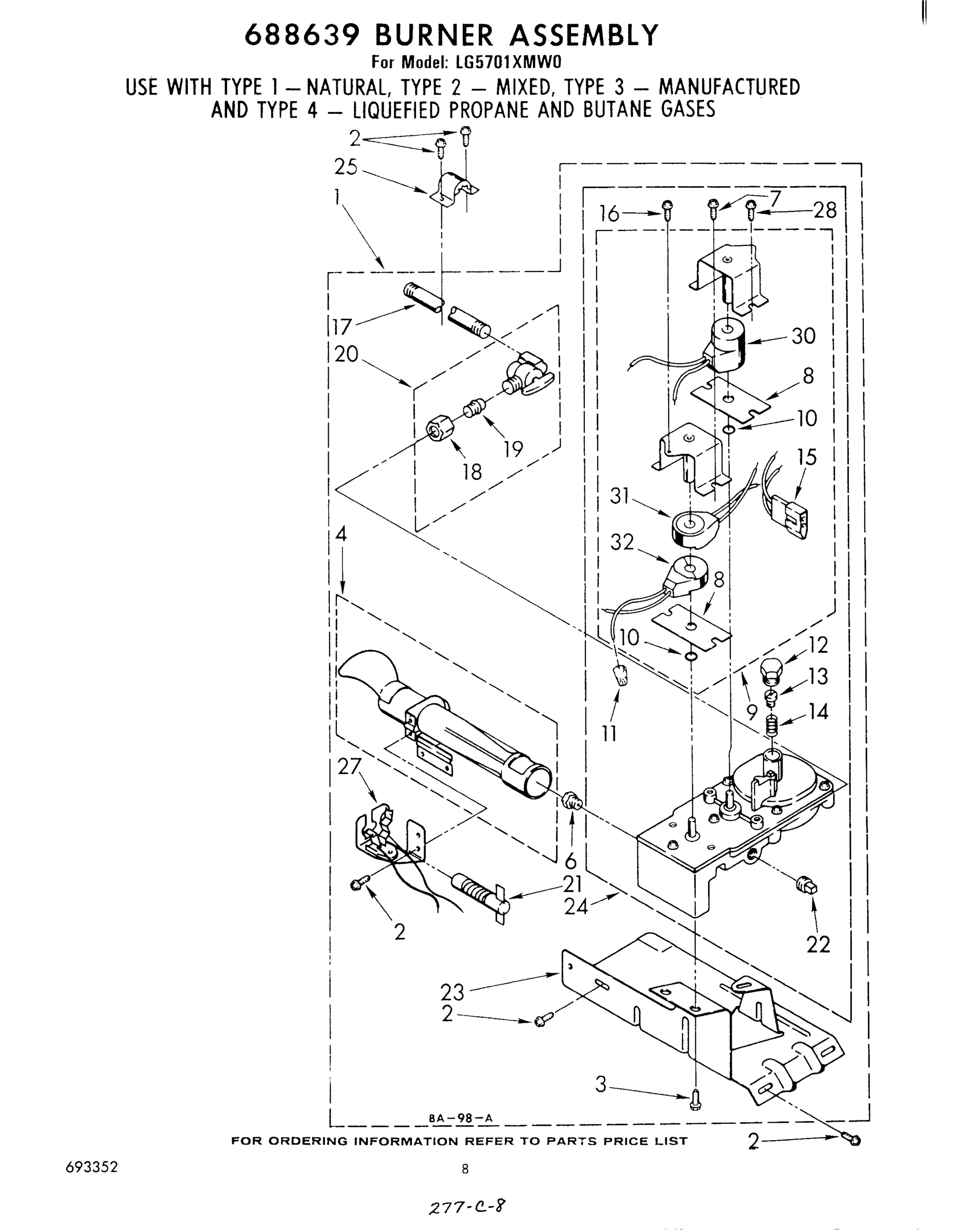

06 - 688639 BURNER ASSEMBLY
03 - CABINET
05 - 688637 BURNER ASSEMBLY
02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
Common parts from model Whirlpool LG5701XMW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 (2) WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
5
Stop, Push-In (2) WPL 358472 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
6
Clip WPL 90015 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
14
Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
19
Control Knob, Temperature WPL 690292 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Upper Front Panel (White) WPL 693202 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 693203 Contact Us For Availability
21
Upper Front Panel (Golden Harvest) WPL 693206 Contact Us For Availability
21
Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
23
Harness, Wiring WPL 694069 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
32
Screw WPL 689791 Contact Us For Availability
33
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
37
Handle (Almond) WPL 689306 Contact Us For Availability
37
Handle (Golden Harvest) WPL 689584 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground (60 Hz.) WPL 364089 Contact Us For Availability
48
Timer Knob Assembly WPL 690201 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689537 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 690419 Contact Us For Availability
60
Set Screw WPL 690046 Contact Us For Availability
64
WPL 690236 WPL 690236 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
67
WPL 688639 WPL 688639 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
79
Switch, Temperature WPL 348686 Contact Us For Availability
81
Button Assembly WPL 689857 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
84
WPL 688412 WPL 688412 Contact Us For Availability
84
Golden Harvest WPL 261890 Contact Us For Availability
84
Leveler (Thinner) WPL 350941 Contact Us For Availability
84
Instructio WPL 688644 Contact Us For Availability
84
WPL 691272 WPL 691272 Contact Us For Availability
84
WPL 693352 WPL 693352 Contact Us For Availability
84
WPL 693849 WPL 693849 Contact Us For Availability
84
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
