Model GE LES10A* General Electric Model LES10A* – Common Parts & Diagrams

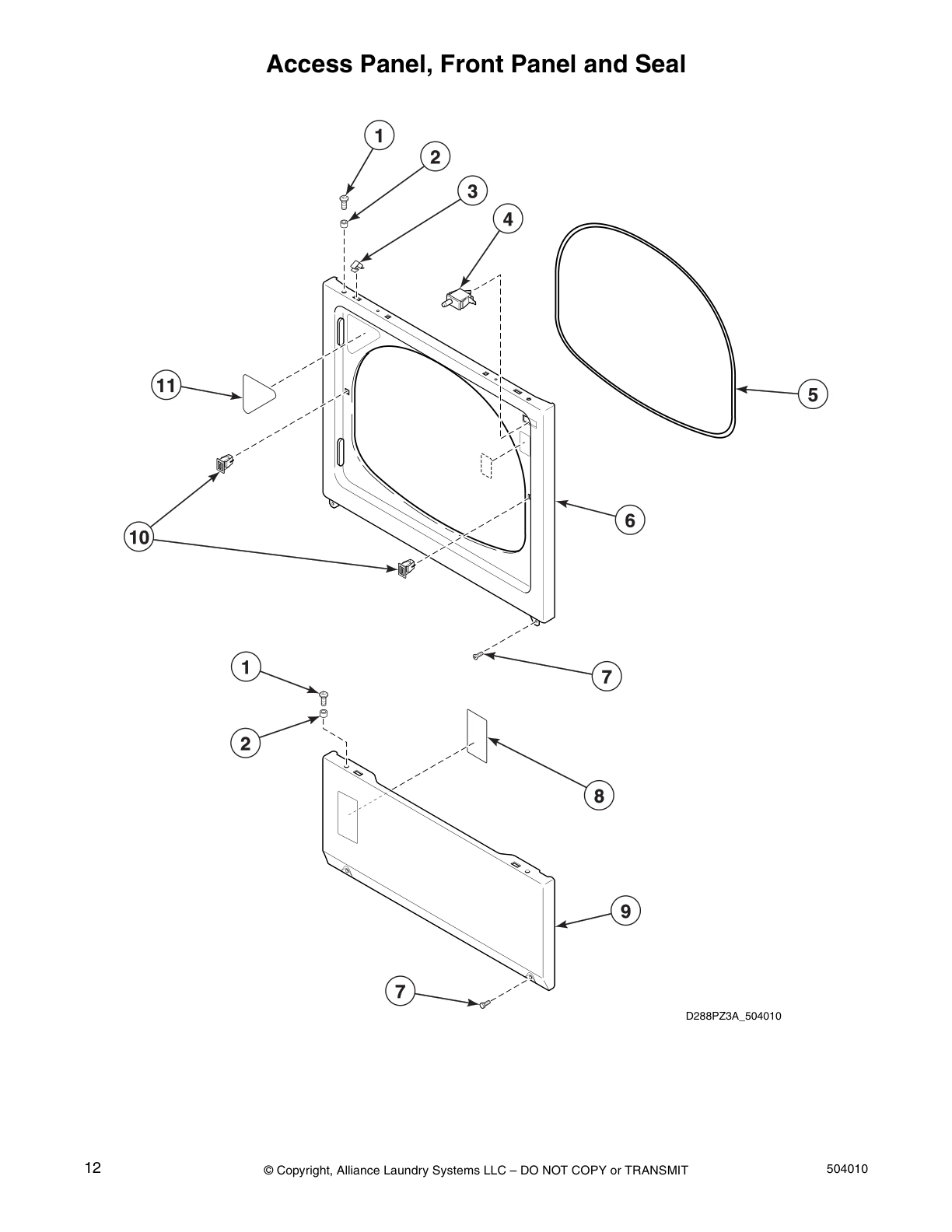

Access Panel, Front Panel and Seal

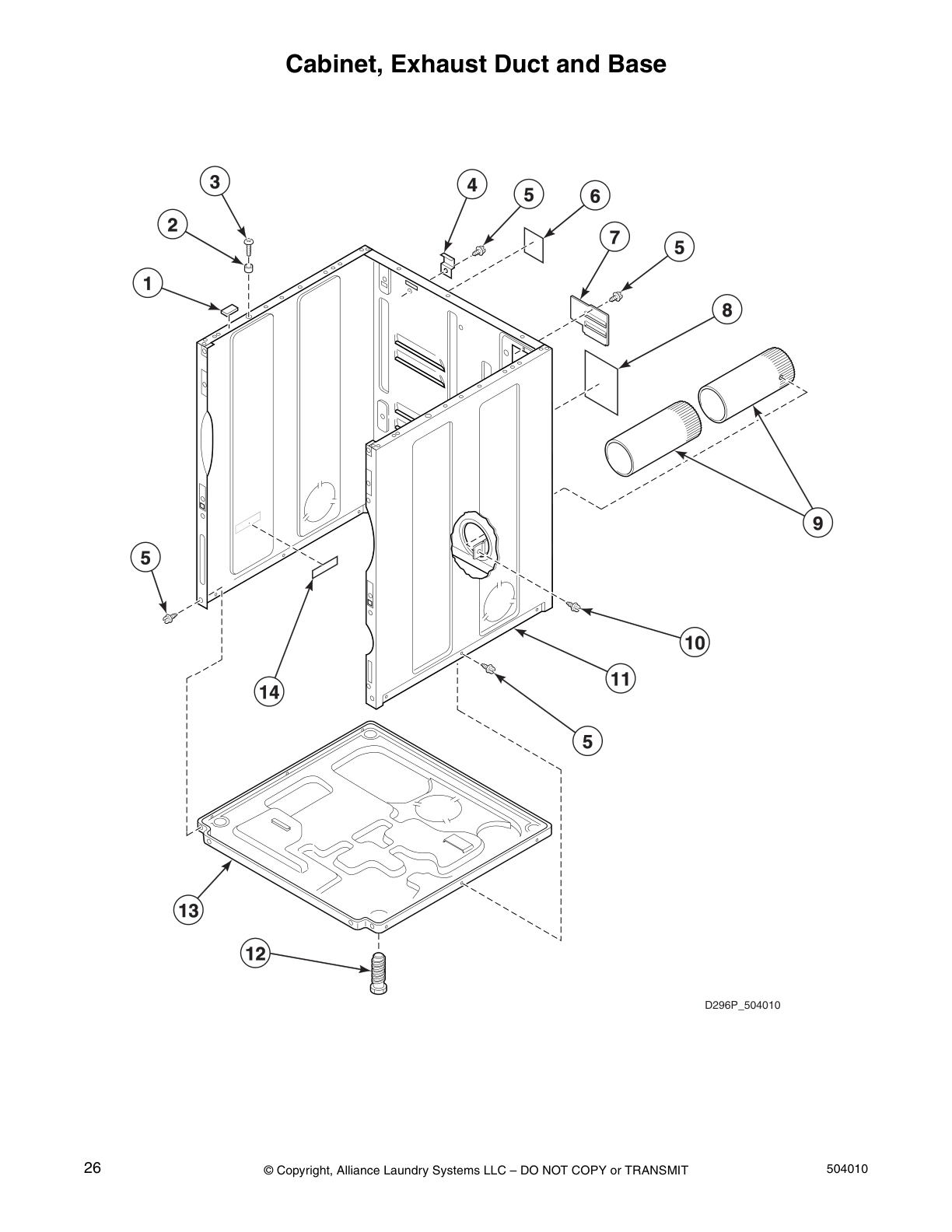

Cabinet, Exhaust Duct and Base

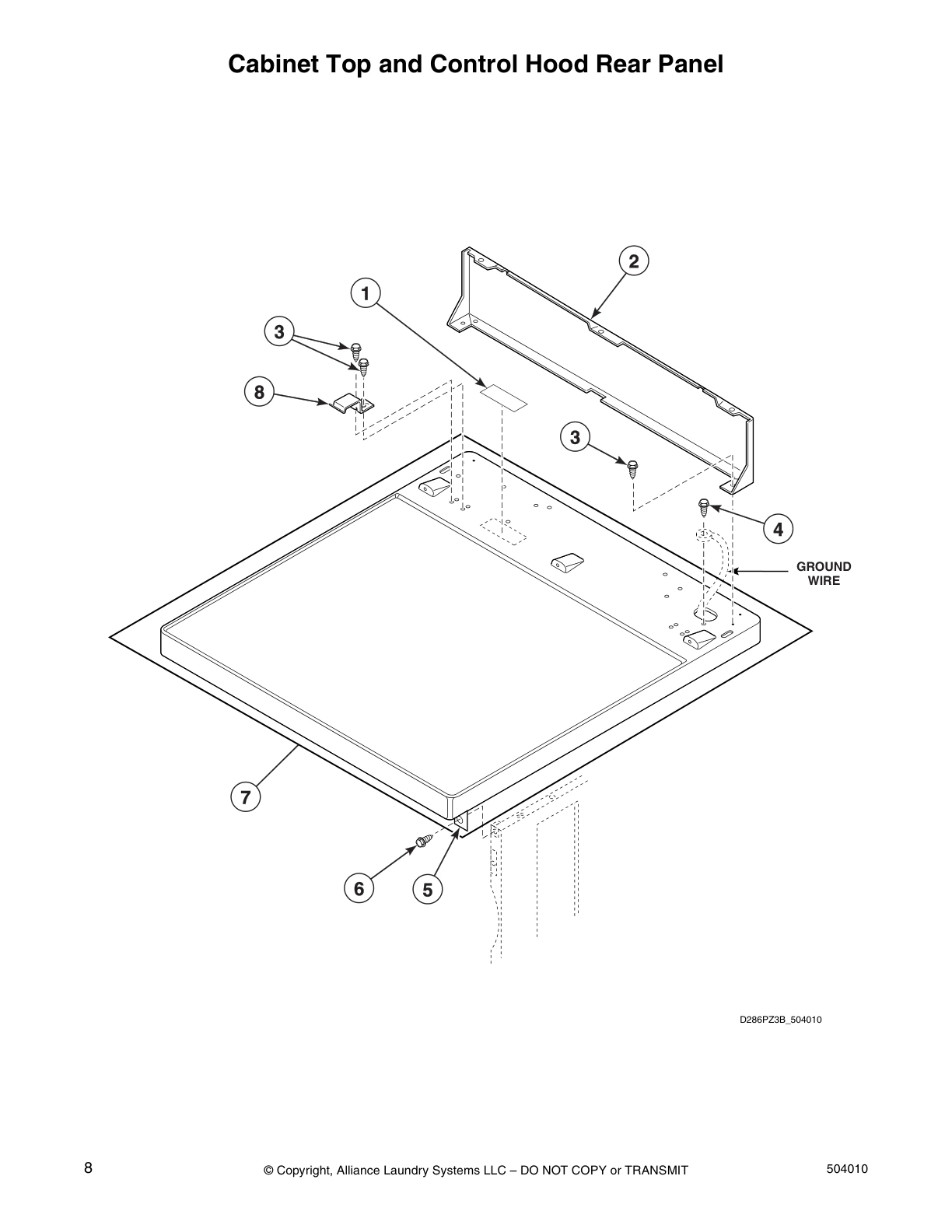

Cabinet Top and Control Hood Rear Panel

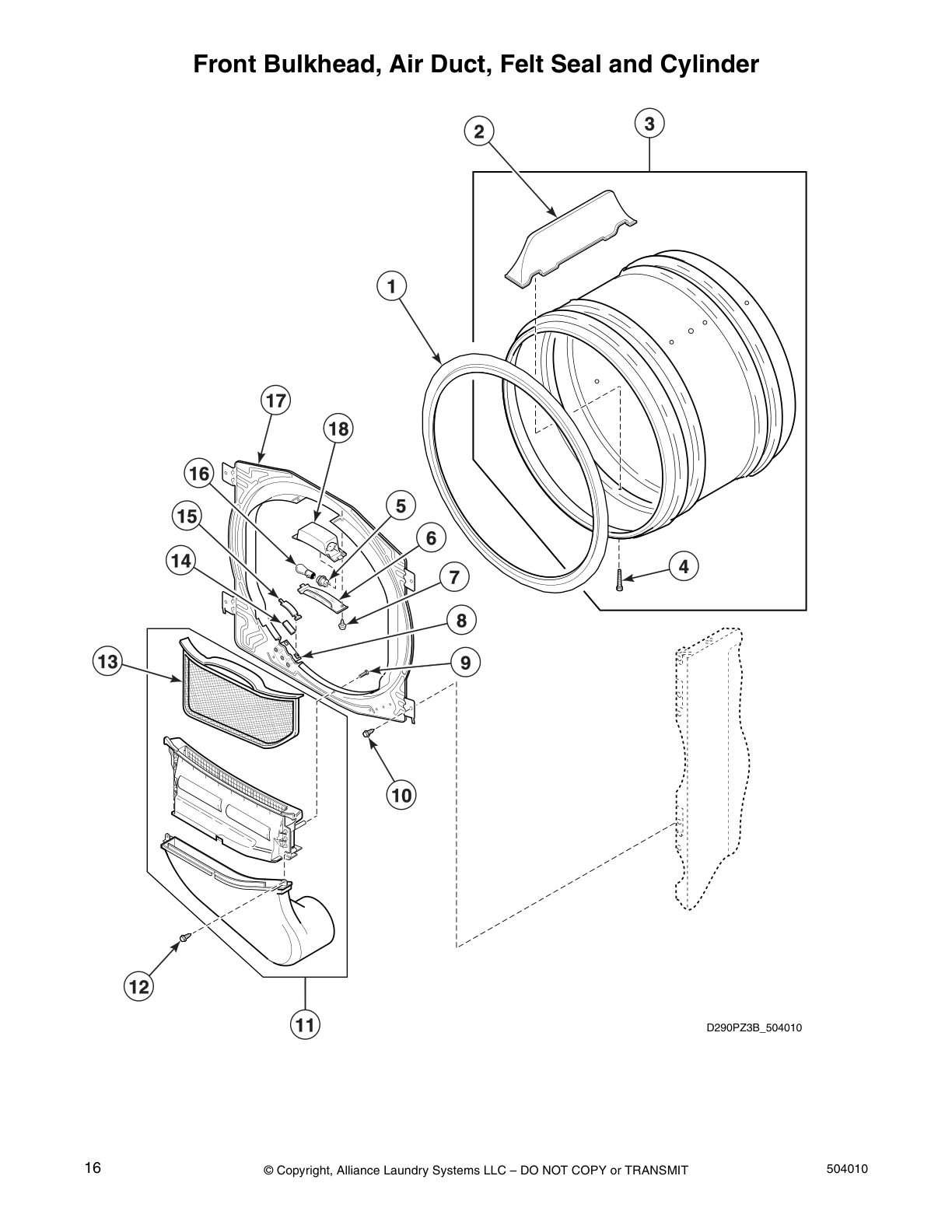

Front Bulkhead, Air Duct, Felt Seal and Cylinder

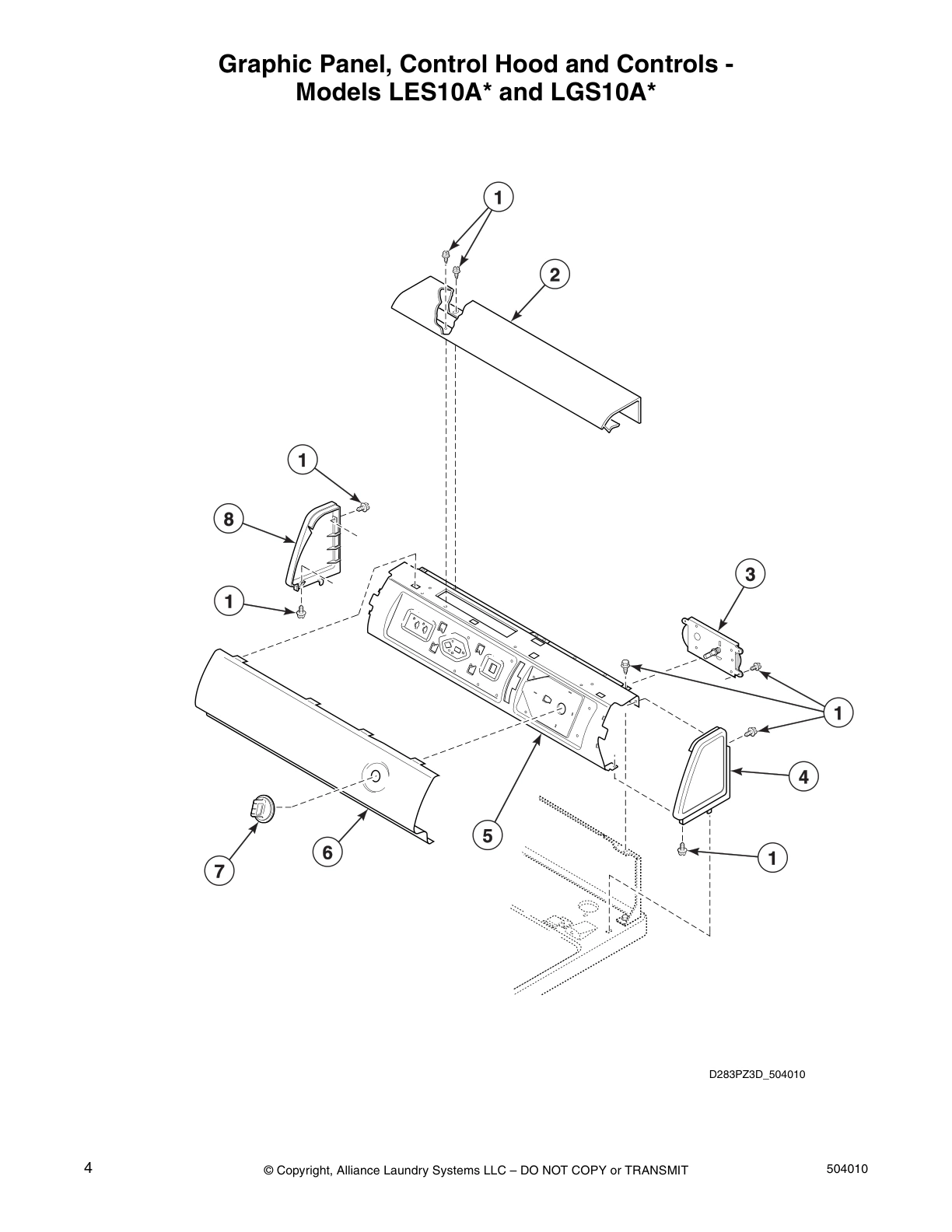

Graphic Panel, Control Hood and Controls - Models LES10A* and LGS10A*

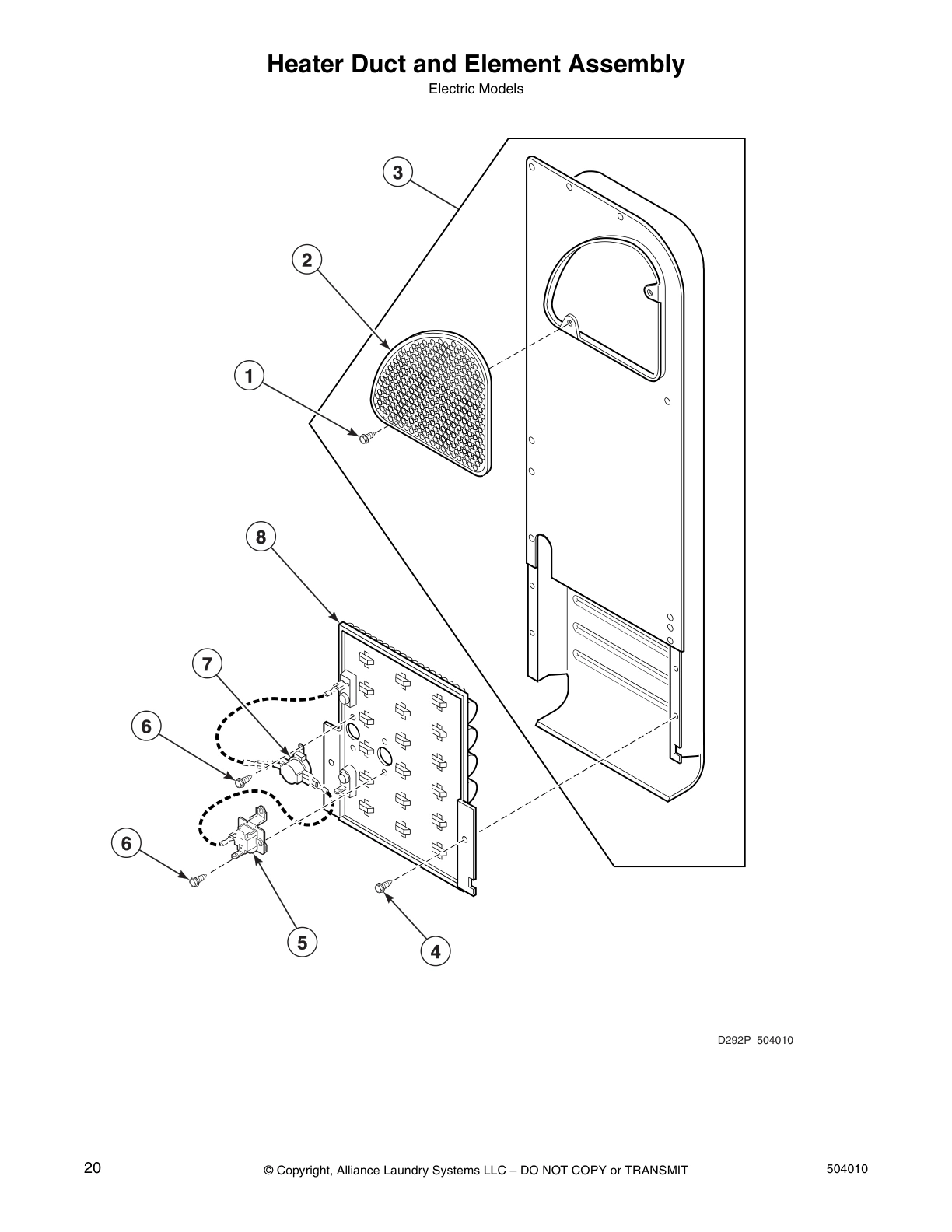

Heater Duct and Element Assembly

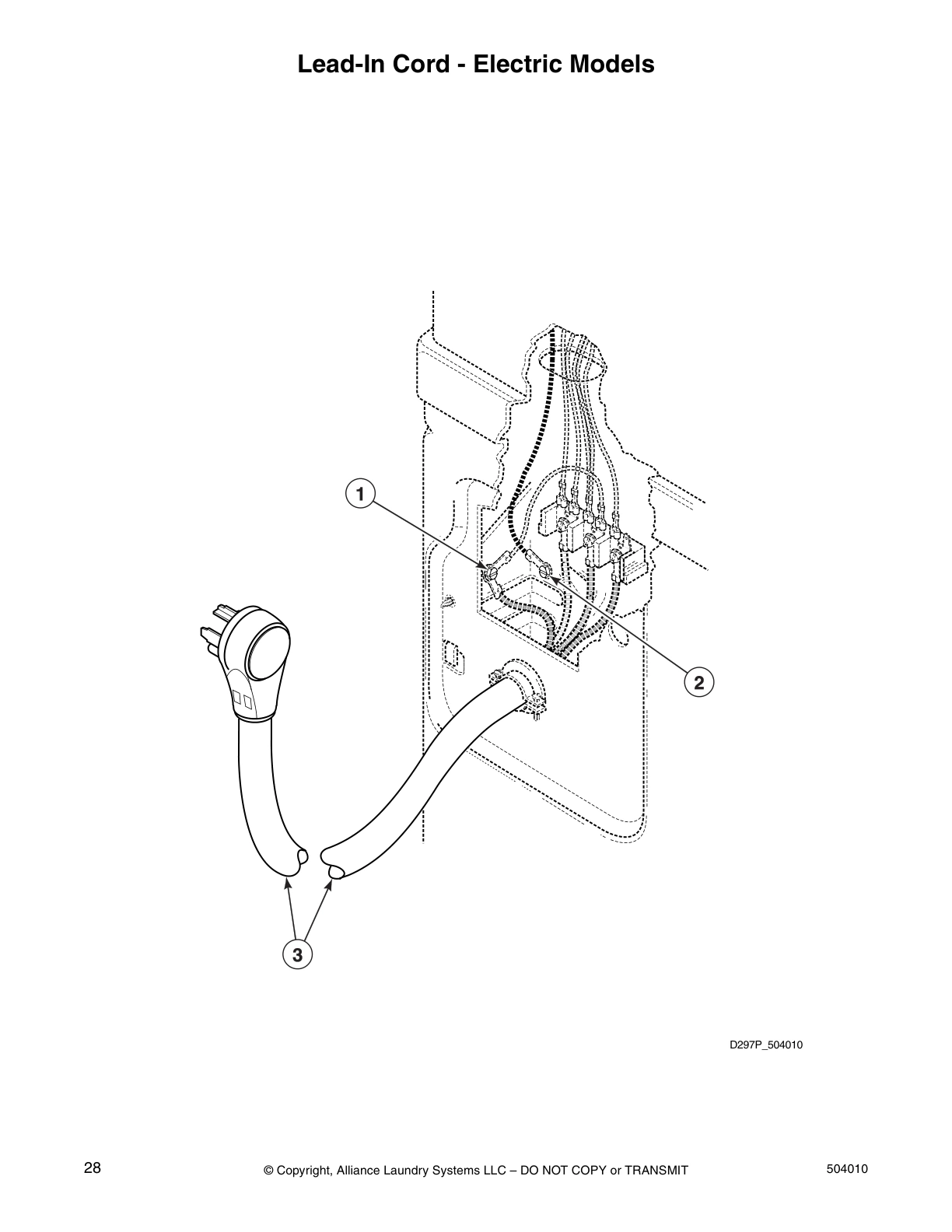

Lead-In Cord - Electric Models

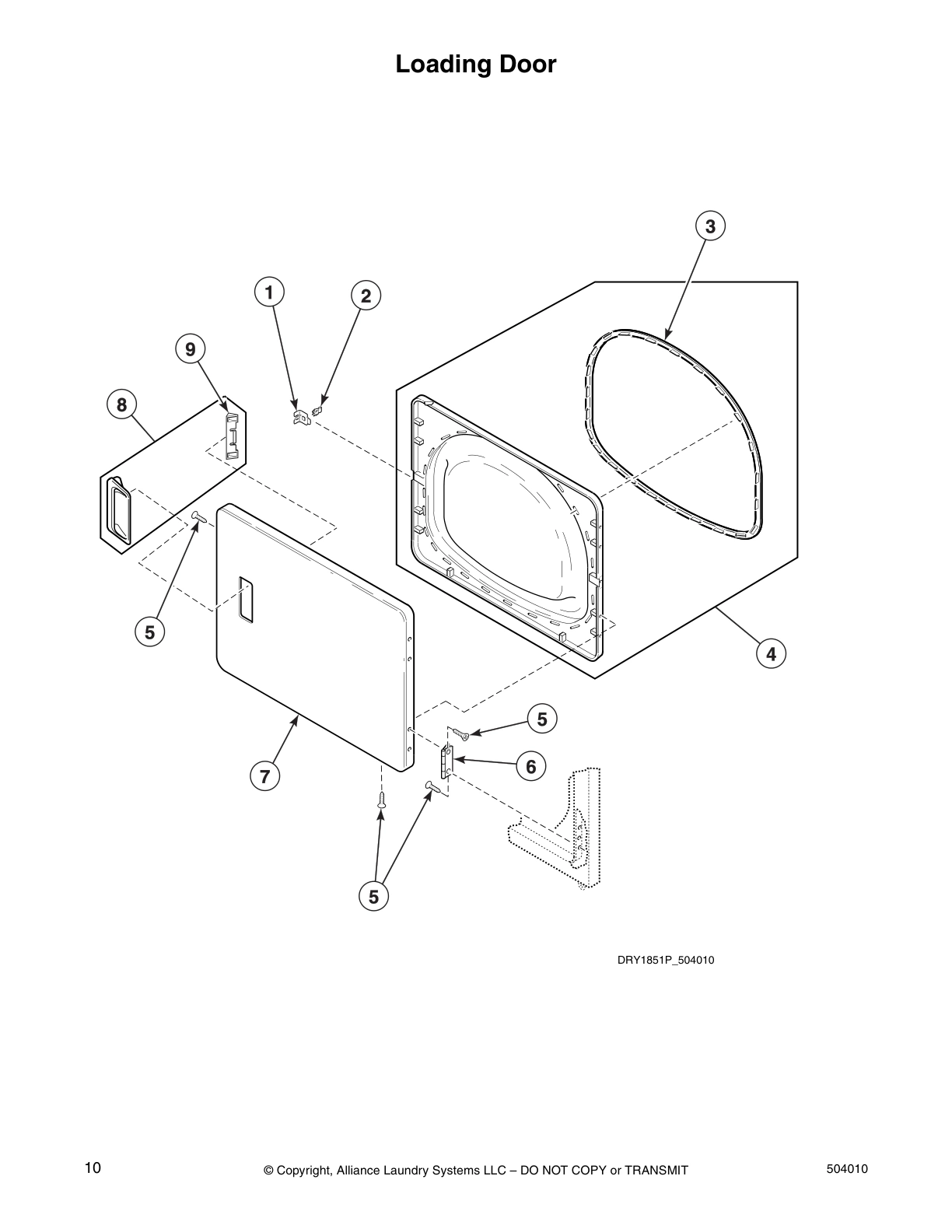

Loading Door

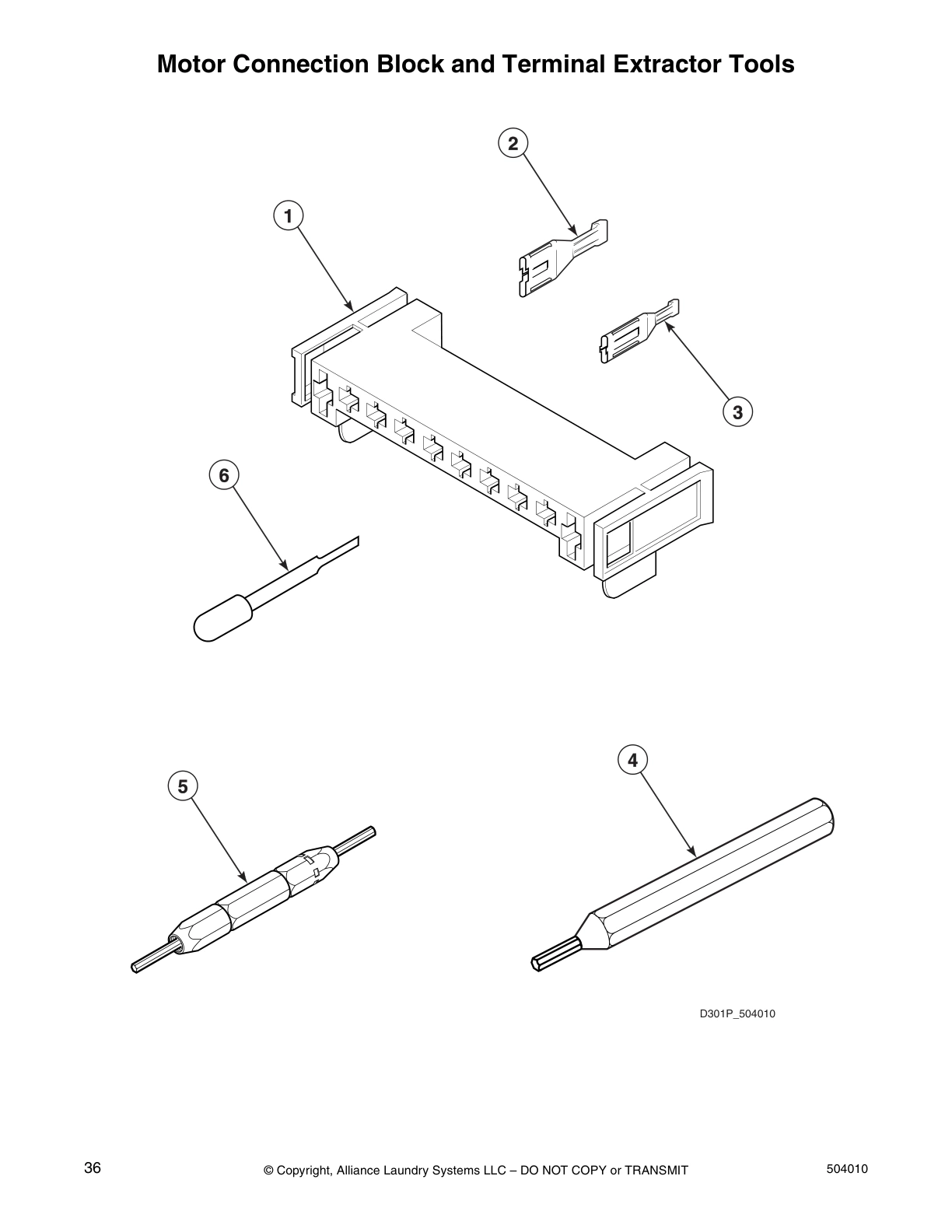

Motor Connection Block and Terminal Extractor Tools

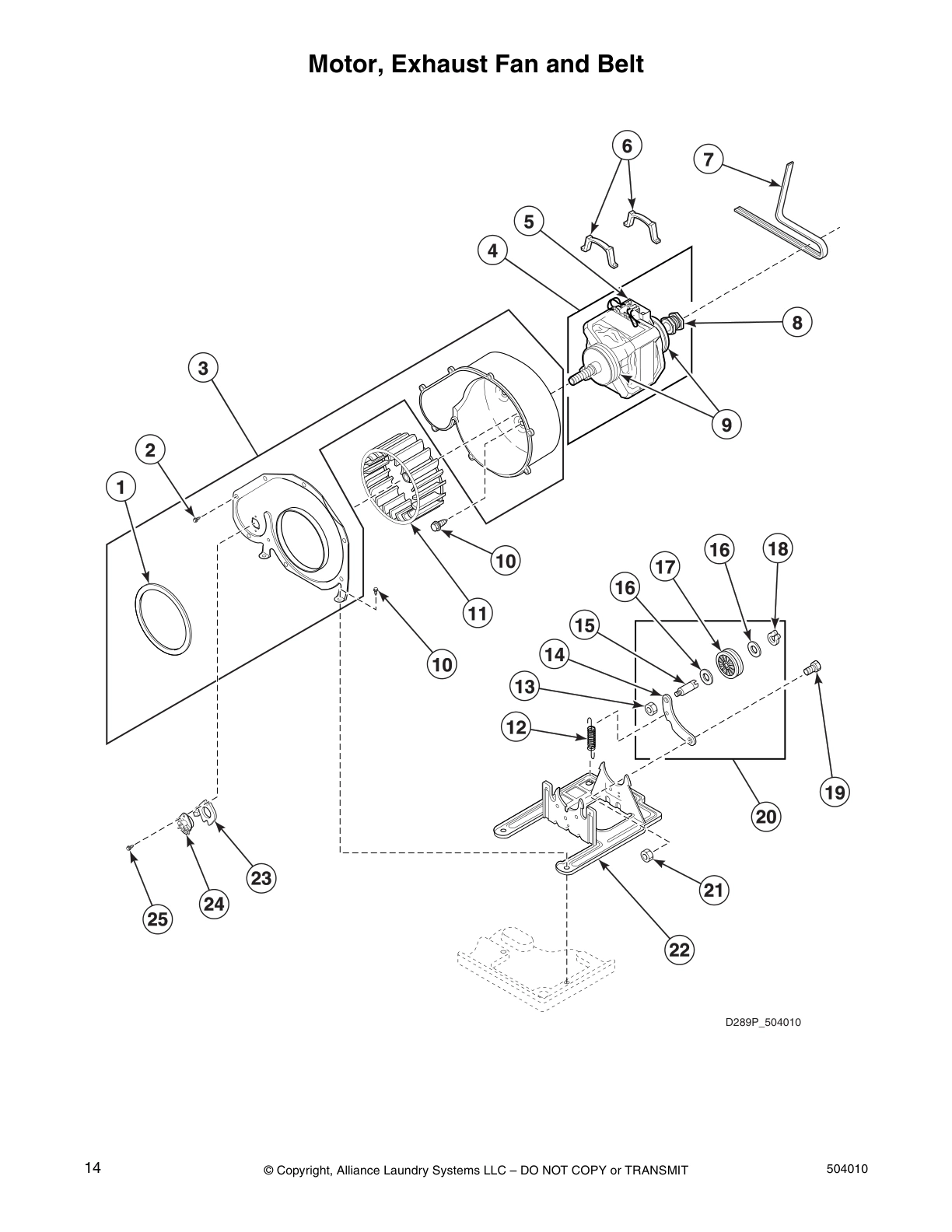

Motor, Exhaust Fan and Belt

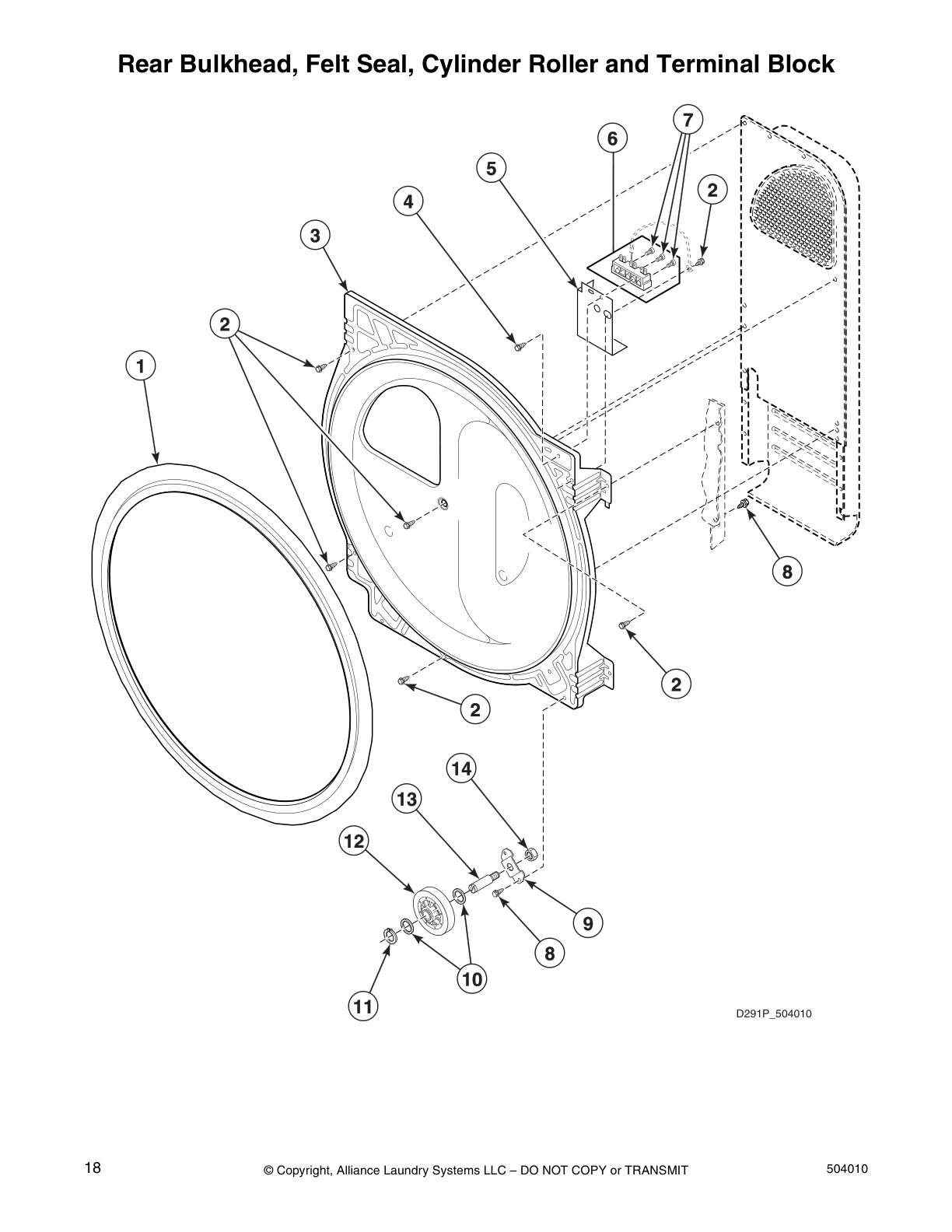

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

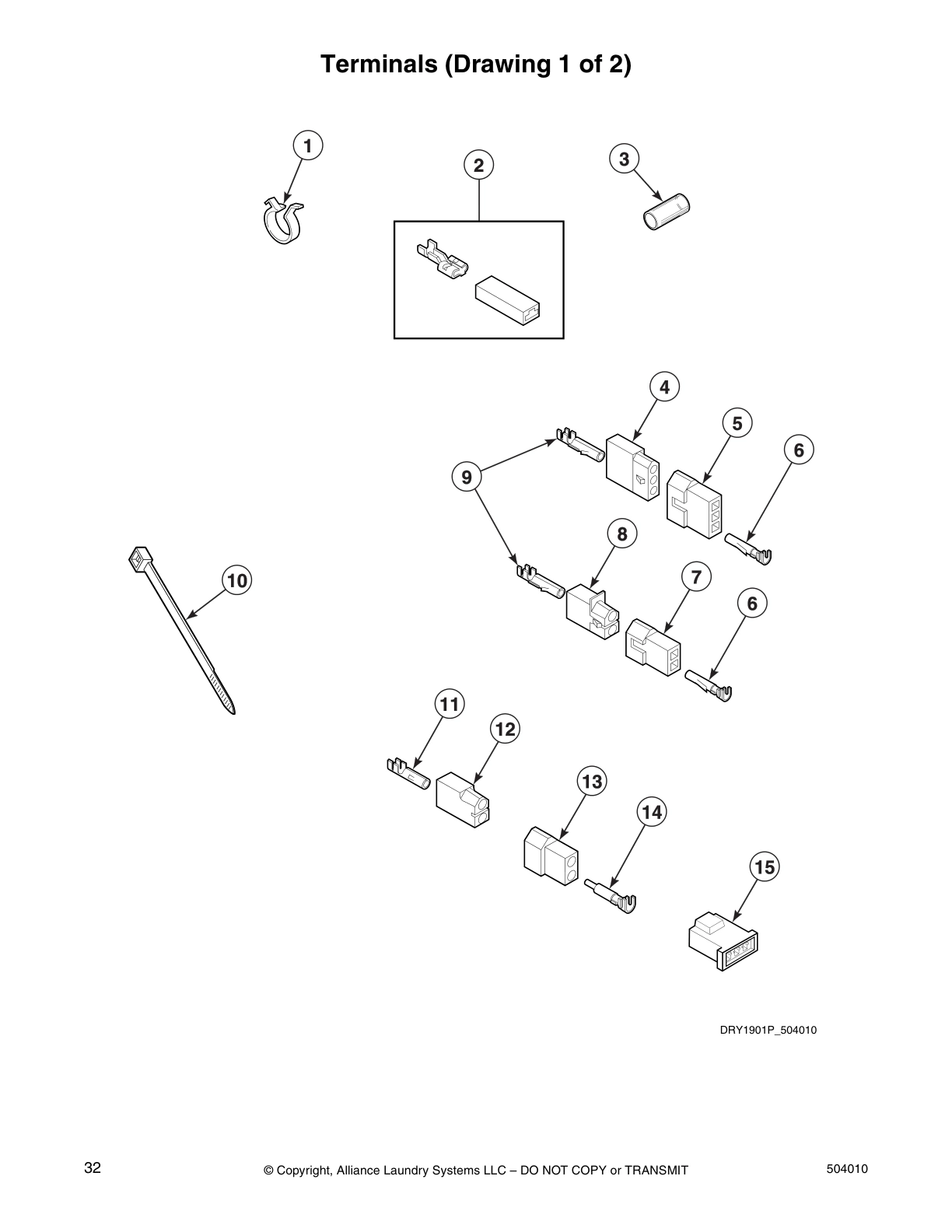

Terminals (Drawing 1 of 2)

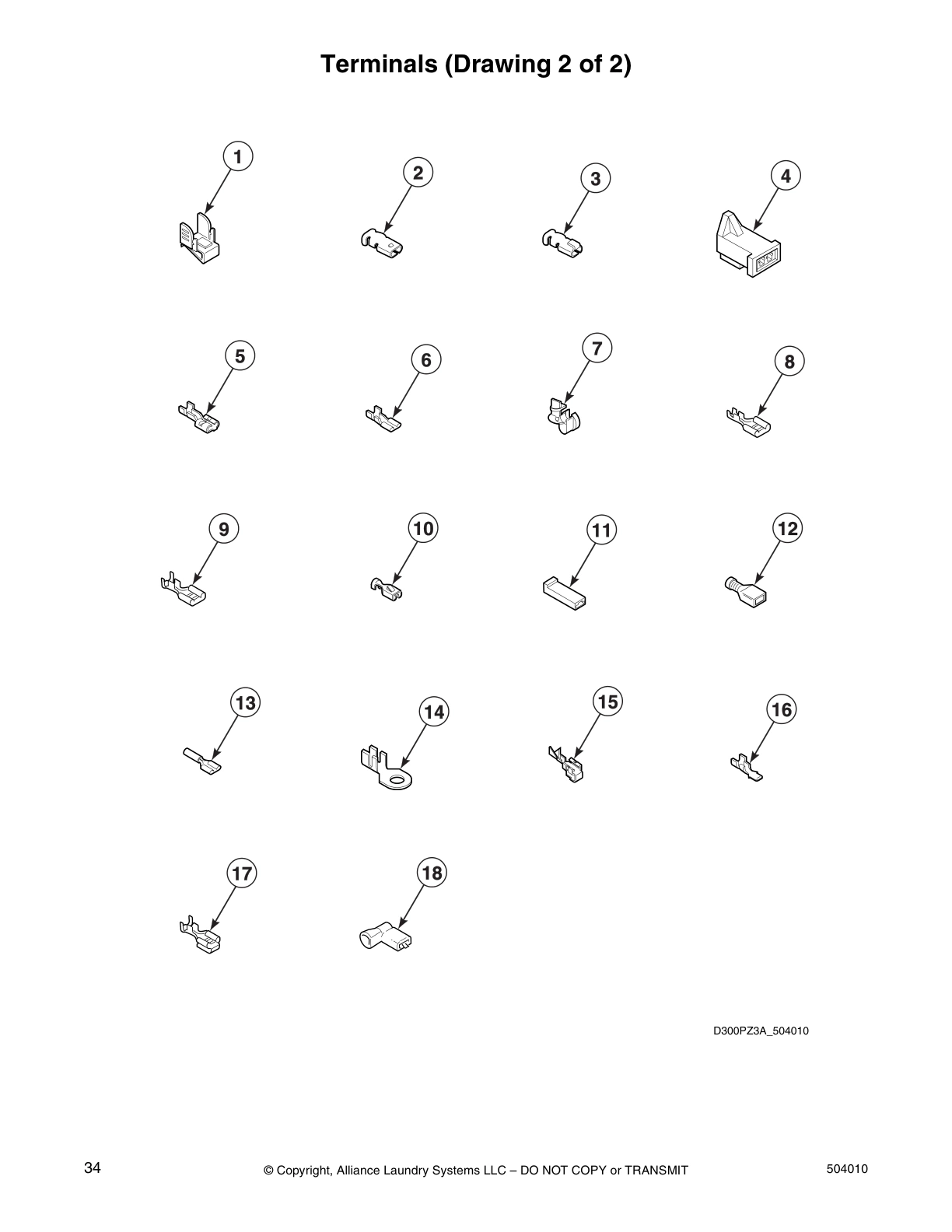

Terminals (Drawing 2 of 2)
Common parts from model GE LES10A* General Electric Model LES10A*
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
1
Screw GEN D501086 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Screw GEN 23962 Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Wire Clip GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Screw GEN D503661 Contact Us For Availability
2
Hood Back Panel GEN D510099 Contact Us For Availability
2
Cylinder Baffle GEN D503703 Contact Us For Availability
2
Top Cover (Comment: Almond) GEN D505808L Contact Us For Availability
2
Top Cover (Comment: White) GEN D505808W Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Cylinder Assembly (Comment: White, Includes i GEN D510159W Contact Us For Availability
3
Timer and Harness Kit GEN D505793P Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Lead-In Cord Assembly GEN D510505 Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Blower Housing and Cover Kit (Comment: Includ GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Painted, Inc GEN D510905W Contact Us For Availability
3
Insulator Sleeve GEN D503670 Contact Us For Availability
3
Female Piggyback Terminal GEN 00361 Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Top Hinge GEN D510136 Contact Us For Availability
4
Screw GEN 62588 Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
End Panel (Comment: Almond, Right) GEN D504008L Contact Us For Availability
4
End Panel (Comment: White, Right) GEN D504008W Contact Us For Availability
4
Liner and Seal Assembly (Comment: Includes it GEN D510289W Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Bracket GEN D510146 Contact Us For Availability
5
Light Housing Assembly GEN D504452 Contact Us For Availability
5
Control Support Panel GEN D503901 Contact Us For Availability
5
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
5
Motor Switch Kit (Comment: Does not include t GEN D501218P Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Plug GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Front Panel (Comment: Almond) GEN D510066L Contact Us For Availability
6
Front Panel (Comment: White) GEN D510066W Contact Us For Availability
6
Drum Light Lens GEN D512106 Contact Us For Availability
6
Screw GEN 23222 Contact Us For Availability
6
Door Hinge GEN D511036 Contact Us For Availability
6
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
6
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (2 GEN 00209 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Top Panel Kit (Comment: Almond, Includes 2 of GEN D510029LP Contact Us For Availability
7
Top Panel Kit (Comment: White, Includes 2 of GEN D510029WP Contact Us For Availability
7
Screw GEN D505870 Contact Us For Availability
7
Timer Knob Assembly (Comment: Almond) GEN D510287L Contact Us For Availability
7
Timer Knob Assembly (Comment: White) GEN D512117W Contact Us For Availability
7
Limit Thermostat GEN D510701 Contact Us For Availability
7
Dryer Door (Comment: Almond) GEN D510013L Contact Us For Availability
7
Dryer Door (Comment: White) GEN D510013W Contact Us For Availability
7
Cylinder Belt GEN D511255 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
2 Circuit Plug GEN 56448 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Electric Clearance Label GEN D511005 Contact Us For Availability
8
Screw GEN D503688 Contact Us For Availability
8
Hold-Down Spring Clip GEN D503876 Contact Us For Availability
8
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
8
End Panel (Comment: Almond, Left) GEN D504009L Contact Us For Availability
8
End Panel (Comment: White, Left) GEN D504009W Contact Us For Availability
8
Heater Assembly GEN D510329P Contact Us For Availability
8
Door Pull and Wedge Kit (Comment: Almond, Inc GEN D510103LP Contact Us For Availability
8
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
8
Motor Pulley GEN D512196 Contact Us For Availability
8
2 Circuit Receptacle GEN 56451 Contact Us For Availability
8
Terminal GEN 00346 Contact Us For Availability
9
Access Panel (Comment: Almond) GEN D510069L Contact Us For Availability
9
Access Panel (Comment: White) GEN D510069W Contact Us For Availability
9
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
9
Screw GEN D500226 Contact Us For Availability
9
Door Handle Wedge GEN D510129 Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Female Pin Terminal GEN 00117 Contact Us For Availability
9
Terminal GEN 00347 Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Washer GEN 52549 Contact Us For Availability
10
Harness Strap GEN 55881 Contact Us For Availability
10
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
10
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00321 Contact Us For Availability
11
Warning/Caution Label GEN D500281 Contact Us For Availability
11
Panel Kit (Comment: Almond) GEN 727P3L Contact Us For Availability
11
Panel Kit (Comment: White) GEN 727P3W Contact Us For Availability
11
Air Duct and Door Liner Kit (Comment: Include GEN 750P3 Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
11
Female Pin Terminal GEN 00130 Contact Us For Availability
11
Receptacle Housing GEN 90789 Contact Us For Availability
12
Leveling Leg GEN D510135 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Cylinder Roller GEN D510708P Contact Us For Availability
12
2 Circuit Receptacle GEN 56265 Contact Us For Availability
12
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
12
Ultra Pod Terminal (Comment: 1/4 inch) GEN 00359 Contact Us For Availability
13
Dryer Base GEN D510084 Contact Us For Availability
13
Lint Filter GEN D503627 Contact Us For Availability
13
Pre-Insulated Spade Terminal (Comment: 1/4 in GEN N/A Contact Us For Availability
13
Shaft GEN 56461 Contact Us For Availability
13
2 Circuit Plug GEN 56266 Contact Us For Availability
13
Pre-Insulated Spade Terminal (Comment: 1/4 in GEN 00215 Contact Us For Availability
14
Fuse Notice Label GEN 61294 Contact Us For Availability
14
Felt Pad GEN D510189 Contact Us For Availability
14
Nut GEN 56156 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Male Pin Terminal GEN 00127 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (1) 18 gauge GEN 00110 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (2) 18 gauge GEN 00111 Contact Us For Availability
15
Cylinder Glide (Comment: 1 required per side) GEN D513710 Contact Us For Availability
15
3 Circuit Connector GEN 58800 Contact Us For Availability
15
GEN 00114 GEN 00114 Contact Us For Availability
16
Drum Light Lamp GEN 60954 Contact Us For Availability
16
GEN 00139 GEN 00139 Contact Us For Availability
17
Front Bulkhead Assembly (Comment: White) GEN D511033W Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
GEN 00344 GEN 00344 Contact Us For Availability
18
GEN 00345 GEN 00345 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
NOT ON YOUR MODEL GEN - Contact Us For Availability
24
Thermostat (Comment: Orange) GEN D504514 Contact Us For Availability
25
Screw GEN 33561 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Wire Harness Assembly GEN D503769 Contact Us For Availability
NA
Flexible Venting Kit GEN 521P3 Contact Us For Availability
NA
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
NA
Adhesive (Comment: Cylinder seal to bulkhead) GEN D511637 Contact Us For Availability
NA
Blower and Fan Kit (Comment: Includes items 1 GEN D510717P Contact Us For Availability
× ![]()
