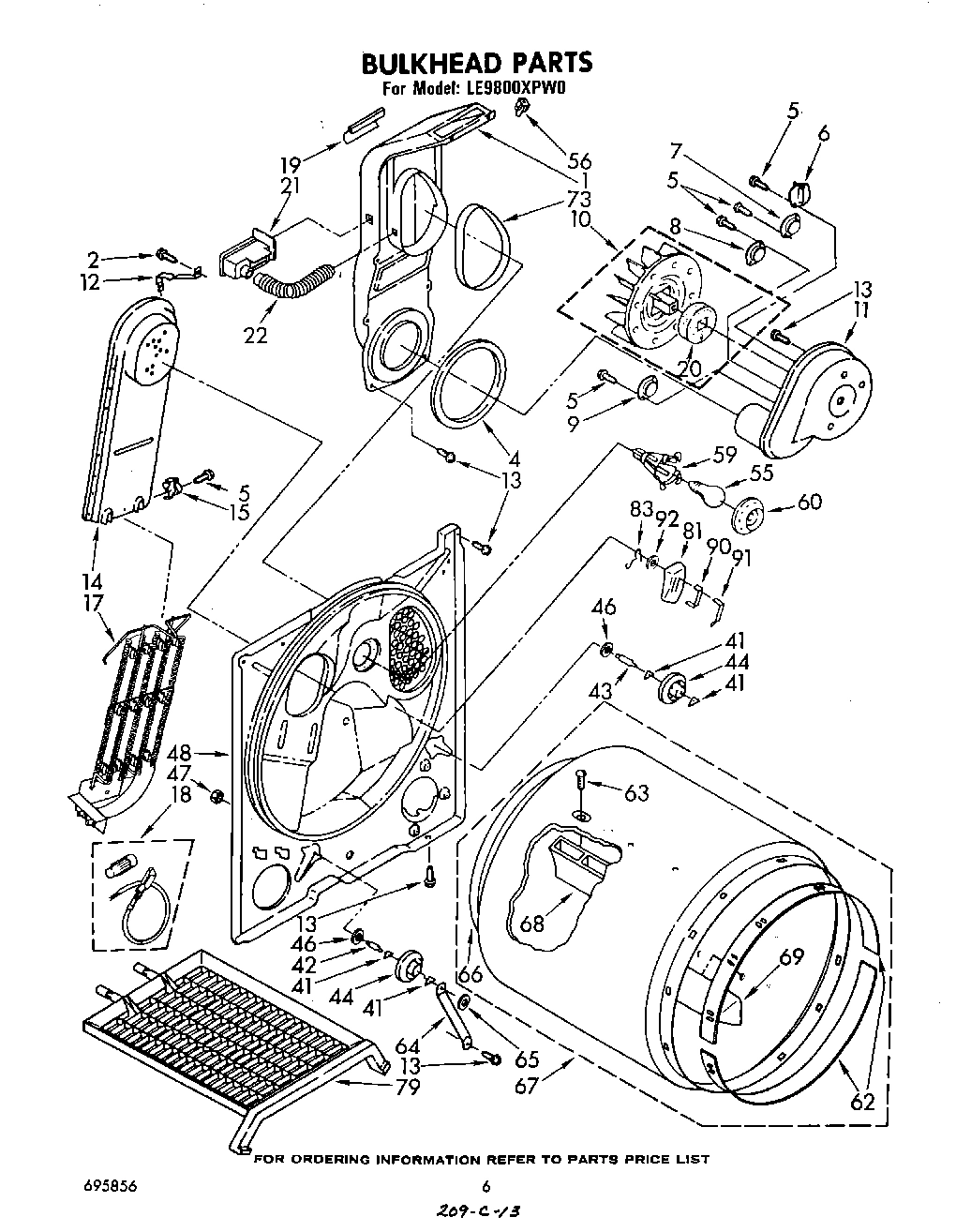

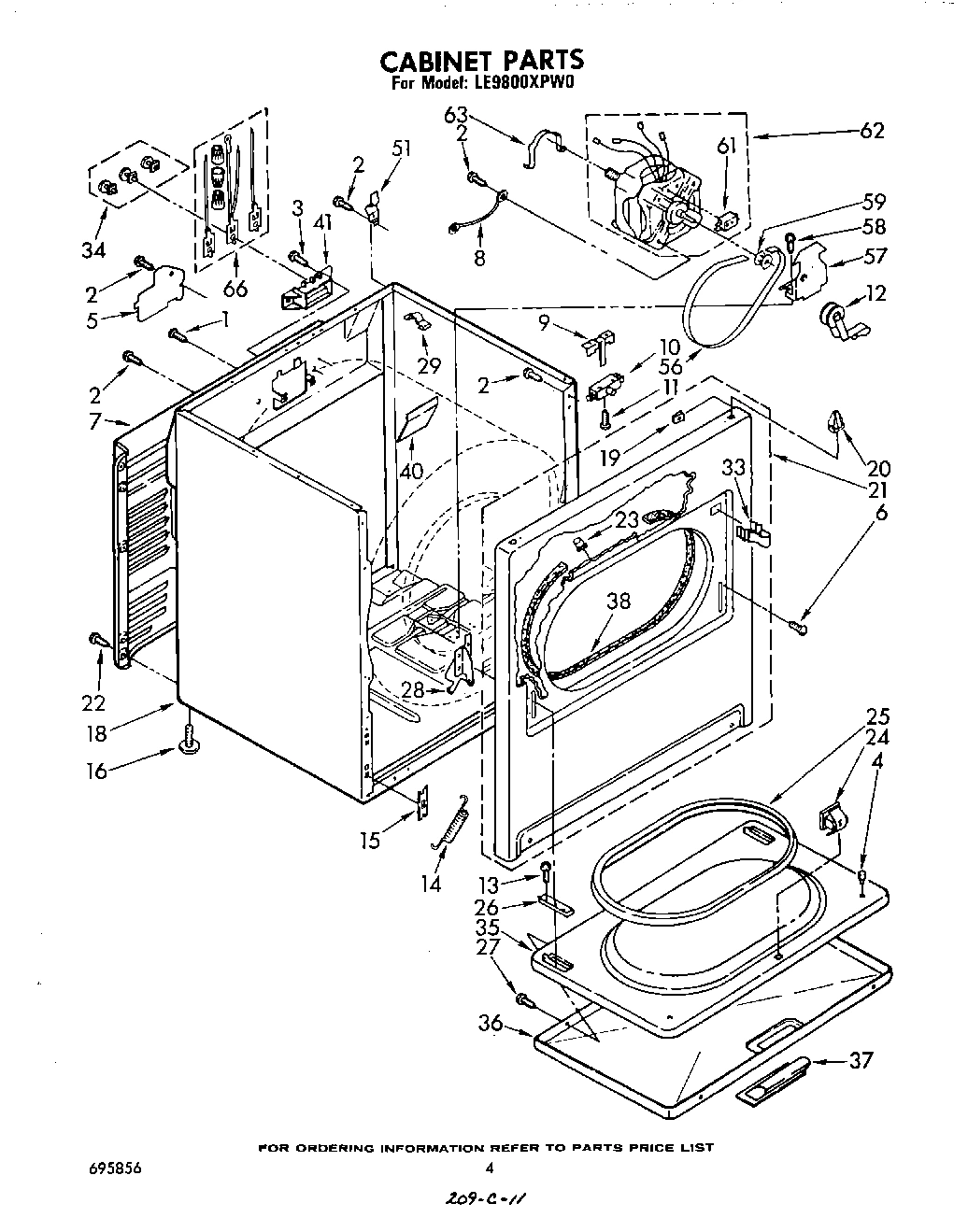

Model Whirlpool LE9800XPW0 ELECTRIC DRYER – Common Parts & Diagrams

1
Lint Chute Assembly
Lint Chute Assembly WPL 686214 Contact Us For Availability
View on Model
1
Panel, Rear Console
Panel, Rear Console WPL 696198 Contact Us For Availability
View on Model
2
Panel, Control
Panel, Control WPL 386795 Contact Us For Availability
View on Model
3
Screw, 13/16 x 5/8 (4)
Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability
View on Model
4
Cap, End (L.H.)
Cap, End (L.H.) WPL 63789 Contact Us For Availability
View on Model
5
Rack, Literature
Rack, Literature WPL 63020 Contact Us For Availability
View on Model
7
Bracket, Control
Bracket, Control WPL 696004 Contact Us For Availability
View on Model
8
Trim, Frame
Trim, Frame WPL 359787 Contact Us For Availability
View on Model
9
Thermostat, 140~F (60~C)
Thermostat, 140~F (60~C) WPL 690031 Contact Us For Availability
View on Model
9
Pivot, Lever
Pivot, Lever WPL 358563 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 348493 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Golden Harvest)
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Toast)
Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Platinum)
Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 685457 Contact Us For Availability
View on Model
15
Lever
Lever WPL 358564 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 695507 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 695508 Contact Us For Availability
View on Model
16
Top (Golden Harvest)
Top (Golden Harvest) WPL 695509 Contact Us For Availability
View on Model
16
Top (Toast)
Top (Toast) WPL 695510 Contact Us For Availability
View on Model
16
Top (Platinum)
Top (Platinum) WPL 695511 Contact Us For Availability
View on Model
17
Transformer
Transformer WPL 60996 Contact Us For Availability
View on Model
18
Screw, 8-18 (2)
Screw, 8-18 (2) WPL 64211 Contact Us For Availability
View on Model
19
Stop, Push-In (2)
Stop, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
20
Seal, Blower
Seal, Blower WPL 694630 Contact Us For Availability
View on Model
20
Module, Touch
Module, Touch WPL 693263 Contact Us For Availability
View on Model
21
Panel, Front (Almond)
Panel, Front (Almond) WPL 692459 Contact Us For Availability
View on Model
21
Panel, Front (Golden Harvest)
Panel, Front (Golden Harvest) WPL 692462 Contact Us For Availability
View on Model
21
Panel, Front (Toast)
Panel, Front (Toast) WPL 692470 Contact Us For Availability
View on Model
21
Panel, Front (Platinum)
Panel, Front (Platinum) WPL 692471 Contact Us For Availability
View on Model
21
Alert, Lint
Alert, Lint WPL 690981 Contact Us For Availability
View on Model
21
Display Assembly
Display Assembly WPL 61292 Contact Us For Availability
View on Model
22
Hose, Differential
Hose, Differential WPL 686577 Contact Us For Availability
View on Model
22
Cap, End. (R.H.)
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
View on Model
23
Relay, Start-To-Stop
Relay, Start-To-Stop WPL 691359 Contact Us For Availability
View on Model
24
Screw, No. 8 Hi-Lo
Screw, No. 8 Hi-Lo WPL 690756 Contact Us For Availability
View on Model
25
Relay, Power
Relay, Power WPL 691360 Contact Us For Availability
View on Model
26
Microcomputer Assembly
Microcomputer Assembly WPL 61203 Contact Us For Availability
View on Model
27
Relay, Motor
Relay, Motor WPL 693891 Contact Us For Availability
View on Model
28
Speaker & Housing
Speaker & Housing WPL 359201 Contact Us For Availability
View on Model
29
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
30
Nut, Push-In (2)
Nut, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 692319 Contact Us For Availability
View on Model
36
Door, Front (Golden Harvest)
Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability
View on Model
36
door, front (toast)
door, front (toast) WPL 695130 Contact Us For Availability
View on Model
36
Door, Front (Platinum)
Door, Front (Platinum) WPL 695131 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 690266 Contact Us For Availability
View on Model
37
Handle, Door (Golden Harvest)
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
View on Model
37
Handle, Door (Toast)
Handle, Door (Toast) WPL 695016 Contact Us For Availability
View on Model
37
Ha
Ha WPL 695017 Contact Us For Availability
View on Model
37
Terminal
Terminal WPL 60279 Contact Us For Availability
View on Model
38
Screw, 6-20 X 1/2
Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability
View on Model
39
Clip, Wire (Tech Sheet/Top)
Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability
View on Model
40
WPL 690262
WPL 690262 WPL 690262 Contact Us For Availability
View on Model
40
Housing, Speaker
Housing, Speaker WPL 359188 Contact Us For Availability
View on Model
41
Connector
Connector WPL 60278 Contact Us For Availability
View on Model
42
Harness, Electric
Harness, Electric WPL 694295 Contact Us For Availability
View on Model
43
Clip, Harness (Rear Bulkhead Area)
Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability
View on Model
45
Clip, Harness Retainer (Door Switch Wires)
Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability
View on Model
48
Bulkhead
Bulkhead WPL 685817 Contact Us For Availability
View on Model
59
Socket Assembly
Socket Assembly WPL 691034 Contact Us For Availability
View on Model
60
Lens, Drum Light
Lens, Drum Light WPL 341165 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
67
Drum Assembly
Drum Assembly WPL 692492 Contact Us For Availability
View on Model
79
Dry Rack Assembly
Dry Rack Assembly WPL 692990 Contact Us For Availability
View on Model
