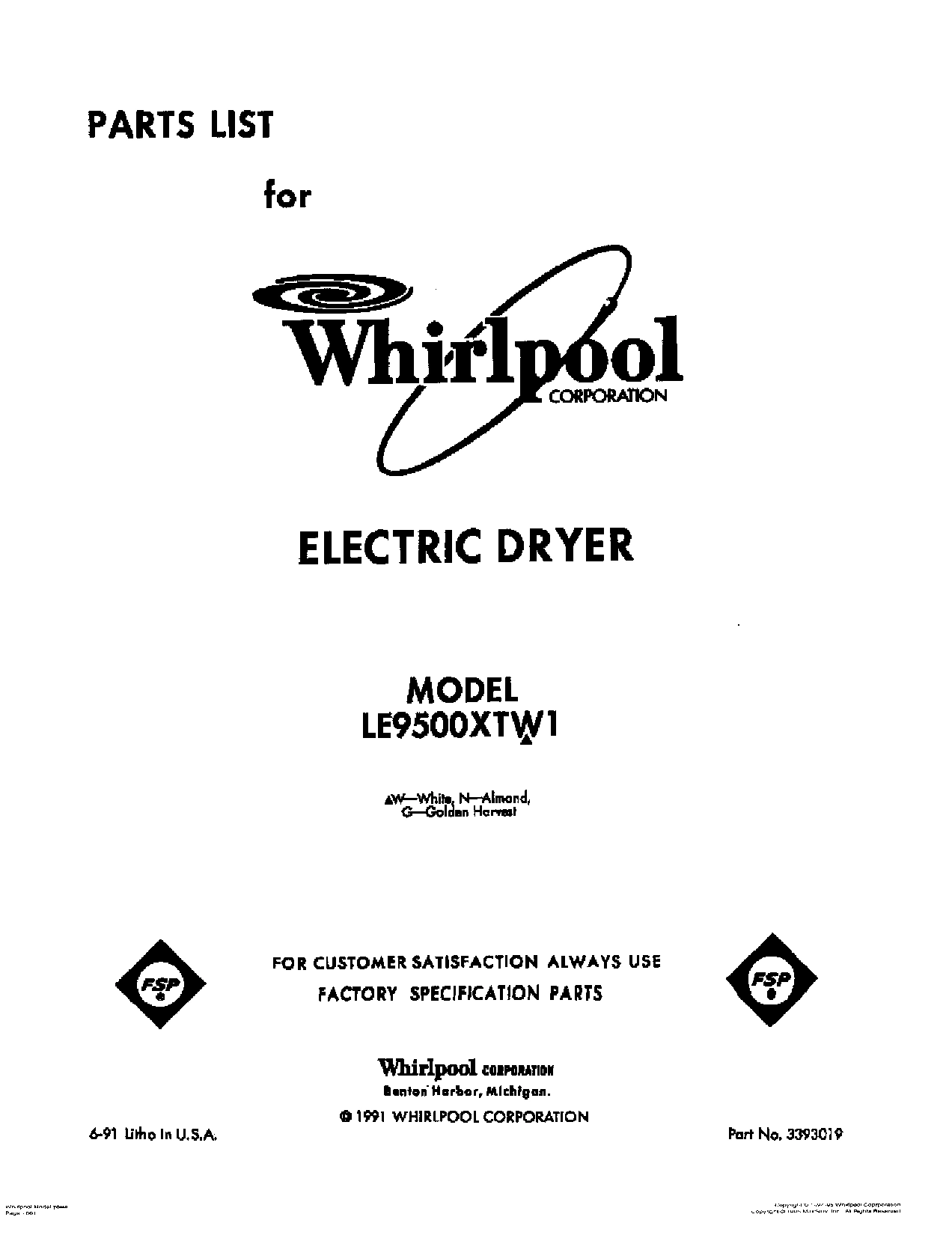

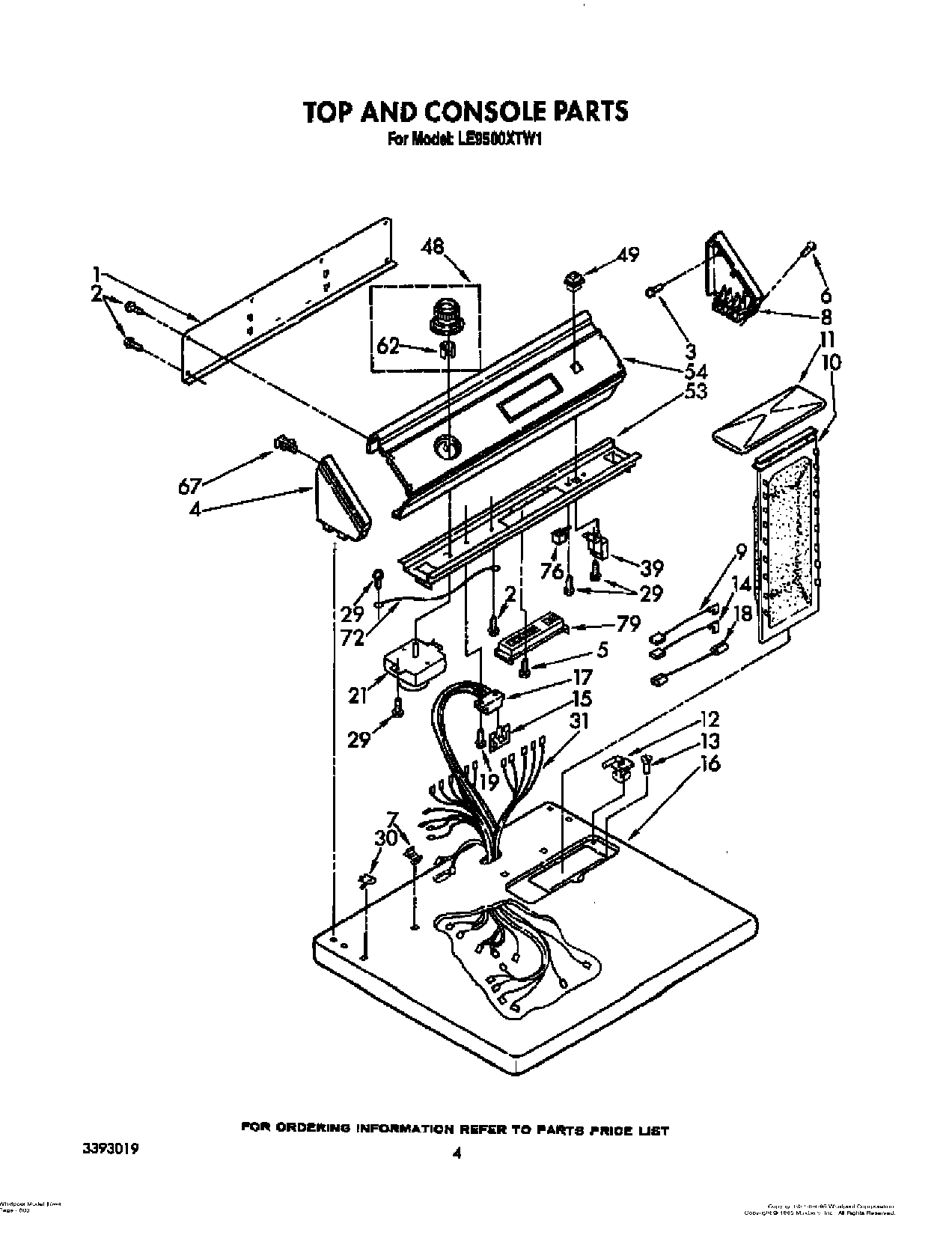

Model Whirlpool LE9500XTN1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

1

Wire, Ground WPL 690236 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $36.08

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Panel, Rear WPL 348365 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

Clip, Strain Relief WPL 689180 Contact Us For Availability

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

Clamp, Harness WPL 690987 Contact Us For Availability

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Box, Heater WPL 695547 Contact Us For Availability

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

15

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $44.08

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

16

98460 Whirlpool Nut Backorder WPL 98460 $9.59

17

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

17

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $33.79

Clip, Retainer WPL 688412 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

279443 Whirlpool Primary Panel Backorder WPL 279443 $184.59

686889 Whirlpool Pad Backorder WPL 686889 $10.76

Panel, Front (Almond) WPL 695621 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 695622 Contact Us For Availability

22

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Alert, Lint WPL 690981 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Hose, Differential WPL 686577 Contact Us For Availability

28

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

29

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

30

279366 Whirlpool Sensor Kit In Stock WPL 279366 $54.81

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

31

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

32

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

33

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

36

Door, Front (Golden Harvest) WPL 3393553 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.71

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 690274 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

39

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Bulkhead WPL 685823 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

67

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

67

Nut, Push-On (4) WPL 689559 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

79

Switch, Clean-Touch WPL 3393836 Contact Us For Availability

87

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51
