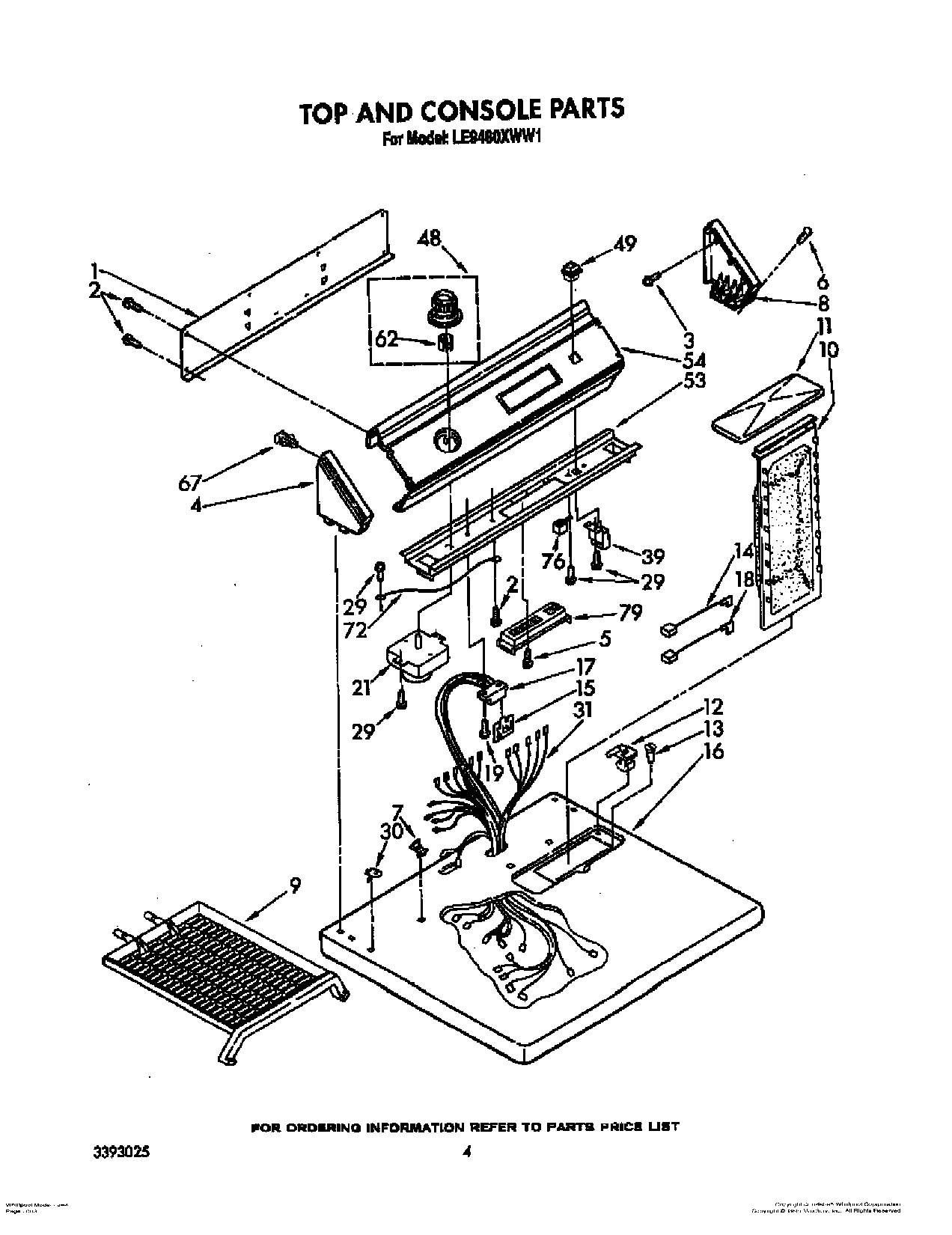

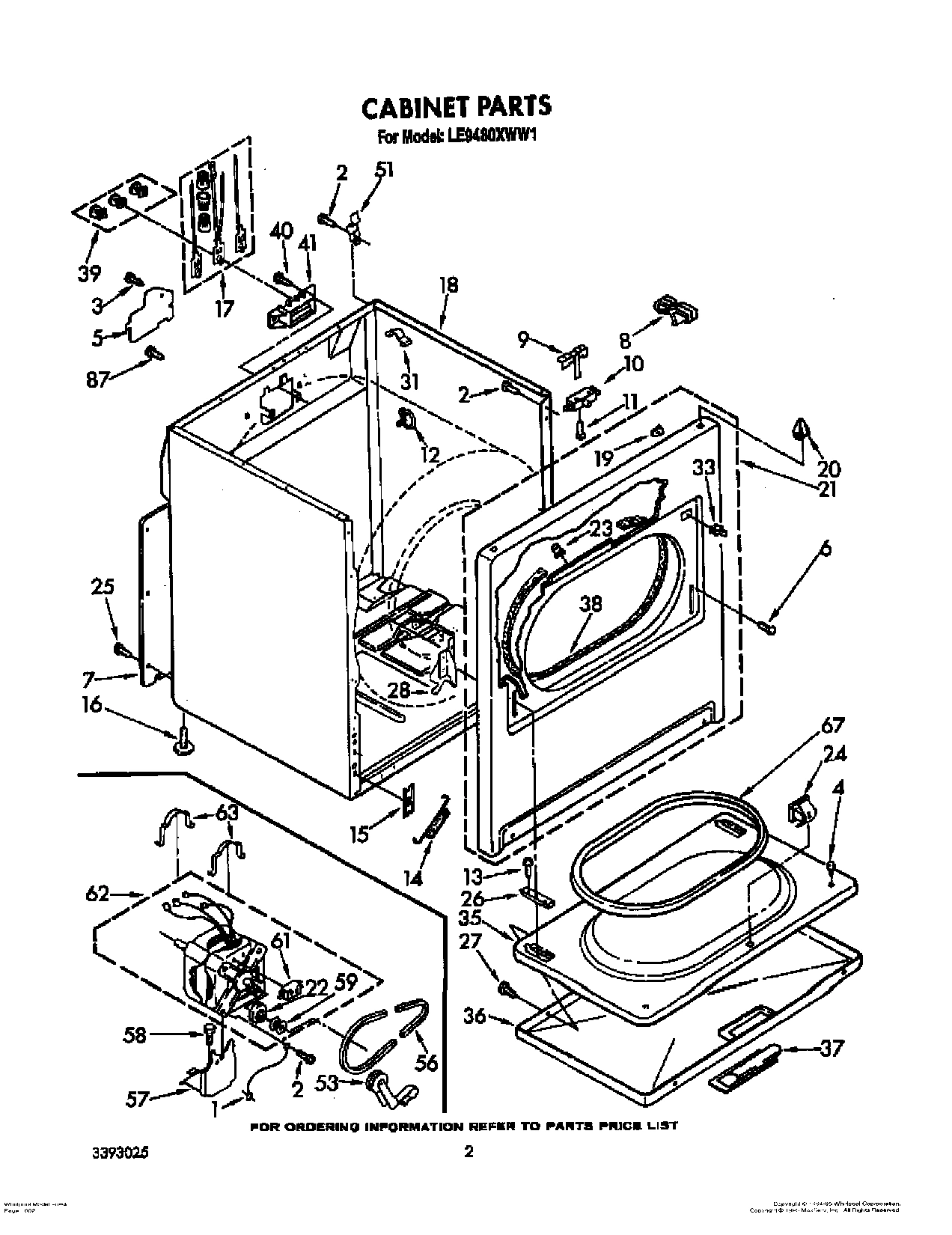

Model Whirlpool LE9480XWN1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3389444 Contact Us For Availability

Use & WPL LIT3391358 Contact Us For Availability

WPL LIT3391427 WPL LIT3391427 Contact Us For Availability

WPL LIT3393025 WPL LIT3393025 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

6

Screw, 8-18 WPL 64211 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Panel, Rear WPL 348365 Contact Us For Availability

7

Stop, Push-In WPL 358472 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

Clip, Strain Relief WPL 689180 Contact Us For Availability

8

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

Rack, Dry WPL 692990 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

12

Clamp, Harness WPL 690987 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

15

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $44.08

15

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $180.58

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

Top (White) WPL 3393385 Contact Us For Availability

Top (Almond) WPL 3393386 Contact Us For Availability

Top (Golden Harvest) WPL 3393387 Contact Us For Availability

17

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

17

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

279443 Whirlpool Primary Panel Backorder WPL 279443 $184.59

Panel, Front (Almond) WPL 695621 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 695622 Contact Us For Availability

Timer, 60 Hz. WPL 3392949 Contact Us For Availability

22

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

29

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

31

Harness, Wiring WPL 3392952 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

36

Door, Front (Golden Harvest) WPL 3393553 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.71

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 690274 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

39

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

39

Relay, Push-To-Start WPL 348314 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

49

Button, Push To Start WPL 3391230 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 3391255 Contact Us For Availability

54

Panel, Control WPL 3391301 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

67

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

67

Nut, Push-On (4) WPL 689559 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

79

Switch, Clean-Touch WPL 3393834 Contact Us For Availability

87

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51
