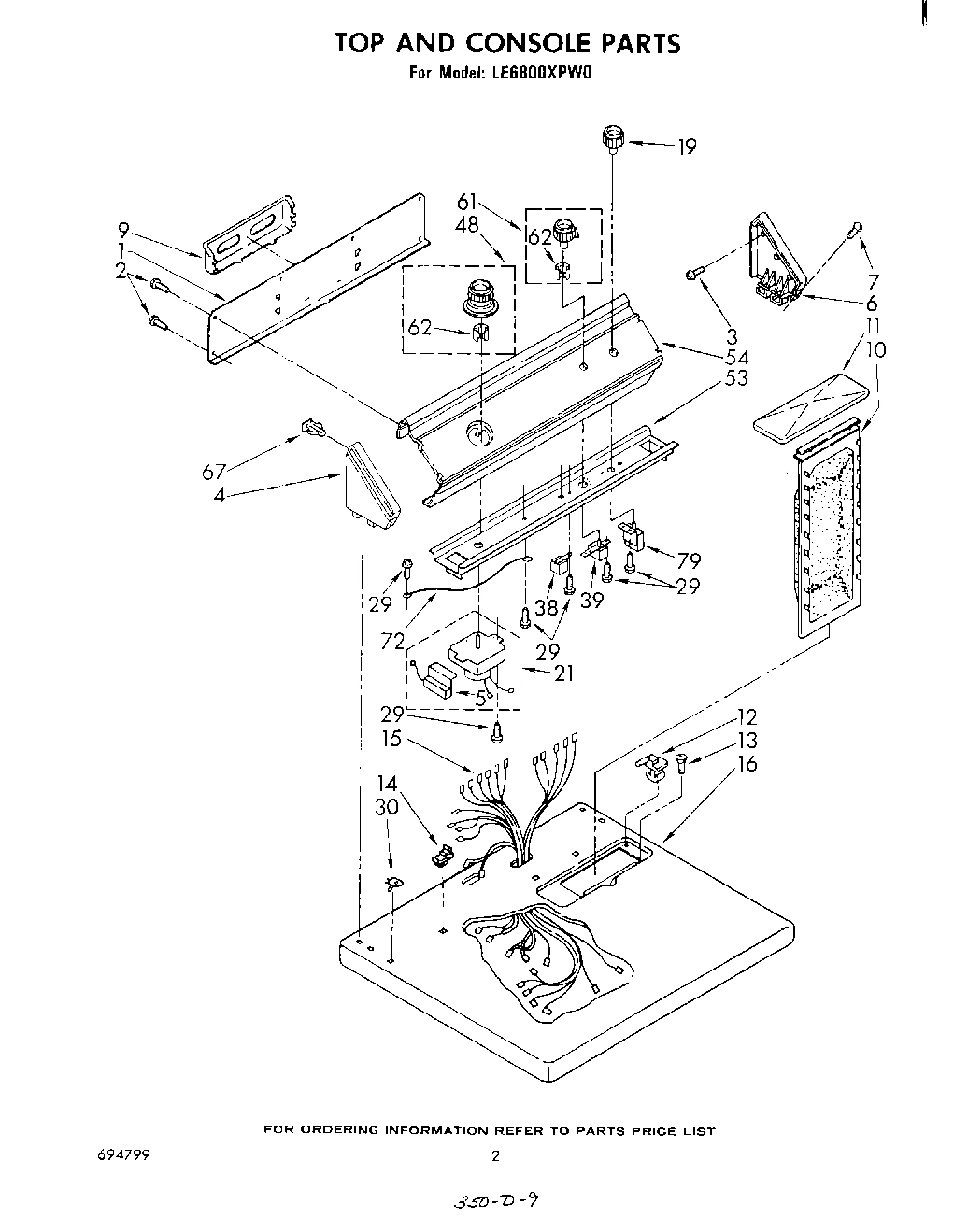

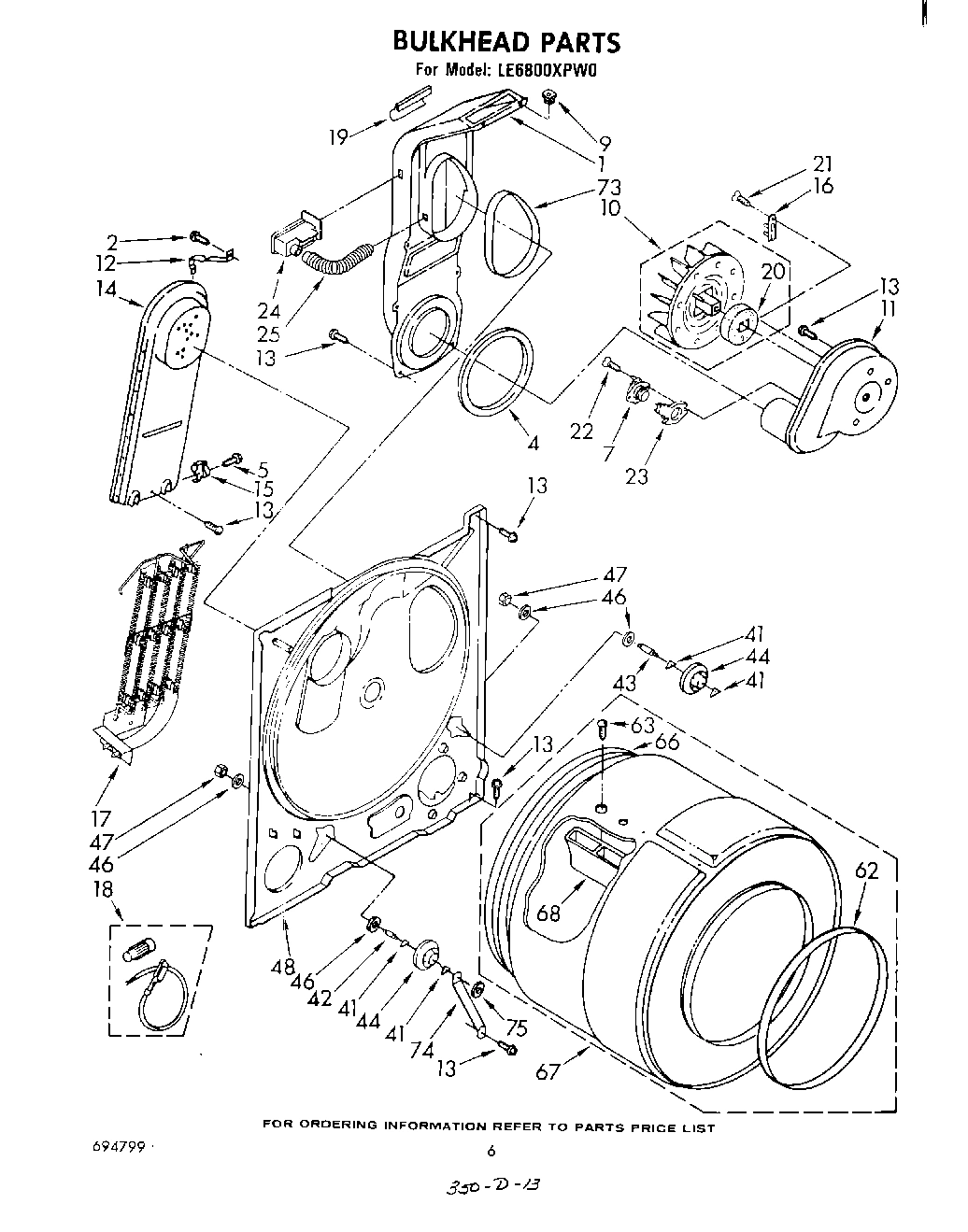

Model Whirlpool LE6800XPW0 ELECTRIC DRYER – Common Parts & Diagrams
04 - SECTION
02 - SECTION
01 - SECTION
03 - SECTION
Common parts from model Whirlpool LE6800XPW0 ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Panel, Rear Console WPL 386367 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
3
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
4
Cap, End (L.H.) WPL 63789 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Screw, 8-18 x 1 WPL 64211 Contact Us For Availability
7
Panel, Rear WPL 346368 Contact Us For Availability
9
Rack, Literature WPL 63020 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability
11
Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability
14
Stop, Push-In (2) WPL 358472 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
Harness, Wiring WPL 694747 Contact Us For Availability
15
Clip, Toe Panel WPL 690625 Contact Us For Availability
16
Top (White) WPL 695507 Contact Us For Availability
16
Top (Almond) WPL 695508 Contact Us For Availability
16
Top (Golden Harvest) WPL 695509 Contact Us For Availability
16
Top (Toast) WPL 695510 Contact Us For Availability
16
Top (Platinum) WPL 695511 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
18
Cabinet (Toast) WPL 694874 Contact Us For Availability
18
Cabinet (Platinum) WPL 694875 Contact Us For Availability
19
Knob, Push To Start WPL 695946 Contact Us For Availability
21
Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 689535 Contact Us For Availability
21
Upper Front Panel Assembly (Toast) WPL 695026 Contact Us For Availability
21
Upper Front Panel Assembly (Platinum) WPL 695027 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
35
Door, Rear (Toast) WPL 695003 Contact Us For Availability
35
Door, Rear (Platinum) WPL 695004 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
36
Door, Front (Toast) WPL 695034 Contact Us For Availability
36
Door, Front (Platinum) WPL 695035 Contact Us For Availability
37
Handle (Almond) WPL 690266 Contact Us For Availability
37
Handle (Golden Harvest) WPL 690269 Contact Us For Availability
37
Handle (Toast) WPL 695016 Contact Us For Availability
37
Handle (Platinum) WPL 695017 Contact Us For Availability
39
Switch, Rotary (Temperature) WPL 694720 Contact Us For Availability
46
WPL 341776 WPL 341776 Contact Us For Availability
48
Timer Knob & Skirt WPL 695554 Contact Us For Availability
49
WPL 237035 WPL 237035 Contact Us For Availability
49
WPL 689537 WPL 689537 Contact Us For Availability
49
WPL 689539 WPL 689539 Contact Us For Availability
49
WPL 694999 WPL 694999 Contact Us For Availability
49
WPL 695000 WPL 695000 Contact Us For Availability
53
Bracket, Control WPL 386627 Contact Us For Availability
54
Panel, Control WPL 695962 Contact Us For Availability
61
Knob, Temperature WPL 386629 Contact Us For Availability
67
Clip, Push-On (4) WPL 689559 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Golden Harvest WPL 261890 Contact Us For Availability
79
Toast WPL 285365 Contact Us For Availability
79
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
79
Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability
79
Leveler (Thinner) WPL 350941 Contact Us For Availability
79
Switch, Push-To-Start WPL 660648 Contact Us For Availability
79
Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability
79
Use & Care Guide WPL 693689 Contact Us For Availability
79
Guide, Dryer WPL 693849 Contact Us For Availability
79
List, Parts WPL 694799 Contact Us For Availability
79
Instructions, Installation WPL 696234 Contact Us For Availability
79
WPL 72112 WPL 72112 Contact Us For Availability
79
WPL 799351 WPL 799351 Contact Us For Availability
89
WPL 688412 WPL 688412 Contact Us For Availability
90
WPL 689180 WPL 689180 Contact Us For Availability
× ![]()
