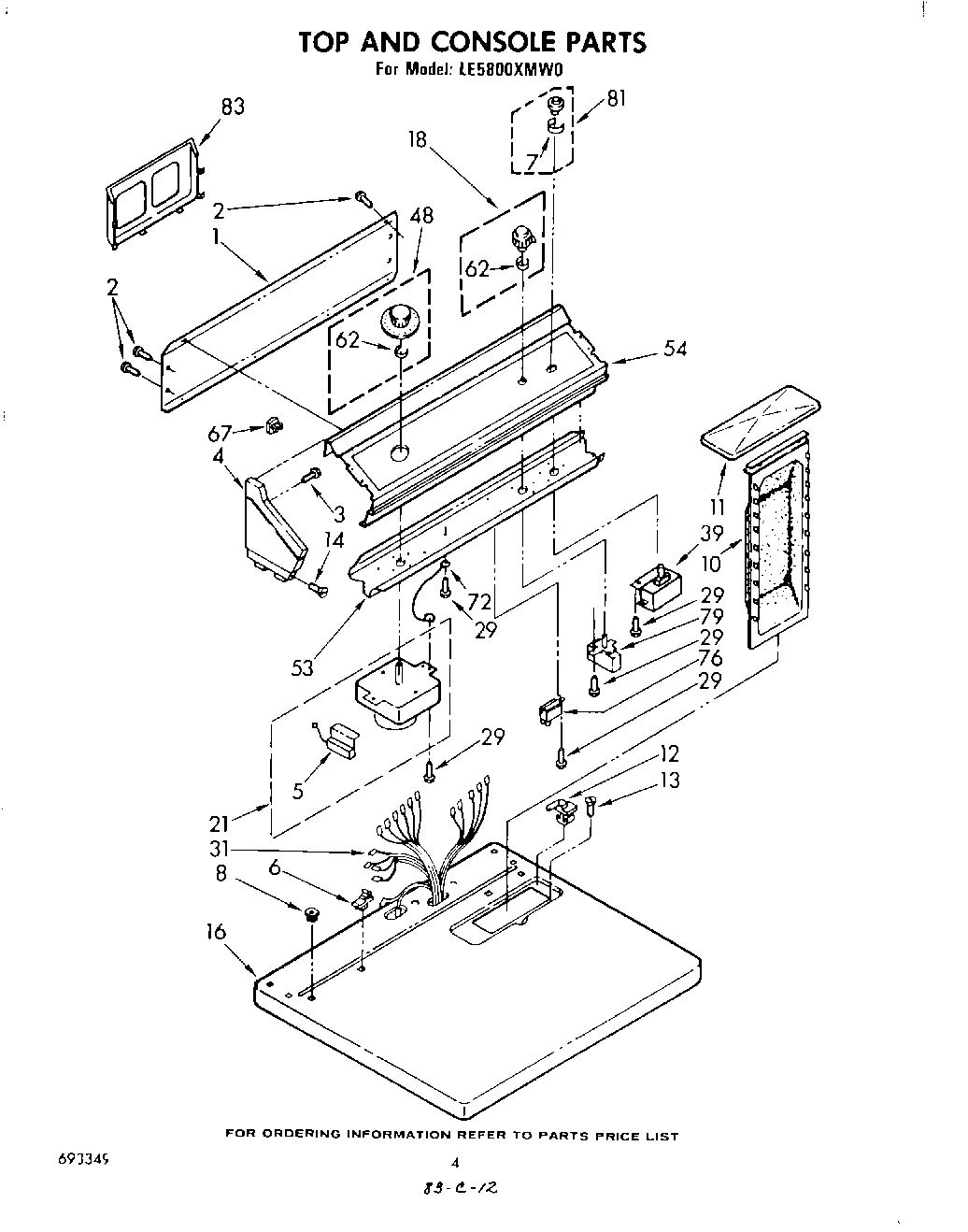

Model Whirlpool LE5800XMW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Clip, Harness WPL 688412 Contact Us For Availability

2

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

Panel, Rear WPL 346368 Contact Us For Availability

8

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Spring, Door (2) WPL 237979 Contact Us For Availability

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

15

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

21

Panel Assembly, Upper Front (White) WPL 338012 Contact Us For Availability

21

Panel Assembly, Upper Front (Almond) WPL 689533 Contact Us For Availability

21

Panel Assembly, Upper Front (Golden Harvest) WPL 689535 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

Screw WPL 689791 Contact Us For Availability

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

33

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

35

Door, Rear (White) WPL 346370 Contact Us For Availability

35

Door, Rear (Almond) WPL 689258 Contact Us For Availability

35

Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability

36

Door, Front (White) WPL 348728 Contact Us For Availability

36

Door, Front (Almond) WPL 689330 Contact Us For Availability

36

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690266 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start WPL 660648 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Clip, Toe Panel Lock WPL 341776 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

49

Panel, Toe (White) WPL 237035 Contact Us For Availability

49

Panel, Toe (Almond) WPL 689537 Contact Us For Availability

49

Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 690418 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

76

Buzzer WPL 686864 Contact Us For Availability

79

Switch, Rotary (Temperature Selector) WPL 688712 Contact Us For Availability

81

Pushbutton Assembly WPL 689857 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Rack, Literature WPL 357645 Contact Us For Availability

Instructions, Installation WPL 688643 Contact Us For Availability

Use & Care Guide WPL 691271 Contact Us For Availability

List, Ser WPL 693349 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
