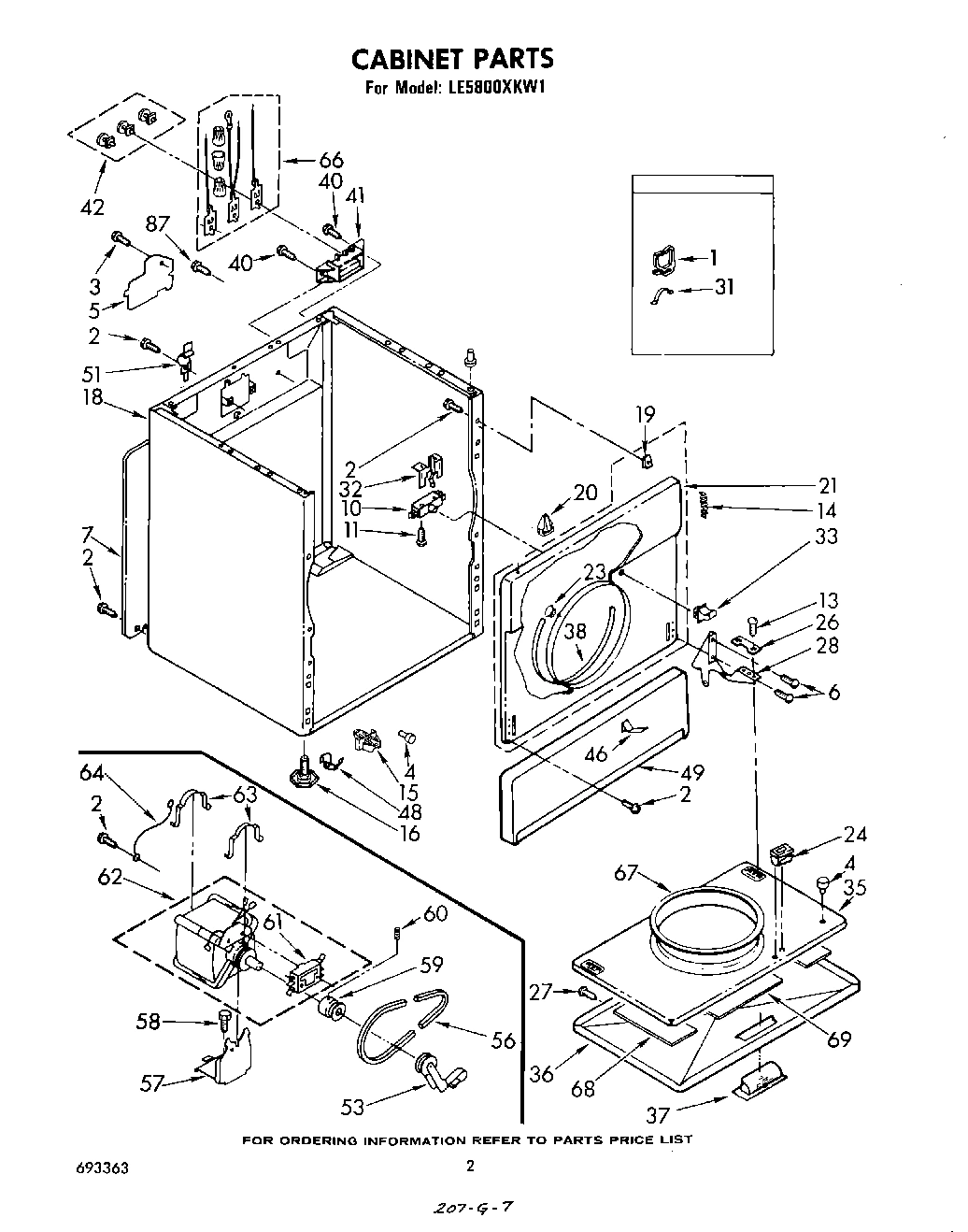

Model Whirlpool LE5800XKW1 ELECTRIC DRYER – Common Parts &amp; Diagrams

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Panel, Rear Console WPL 359372 Contact Us For Availability

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

5

279872 Whirlpool Resistor In Stock WPL 279872 $26.21

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

6

Stop, Push-In WPL 358472 Contact Us For Availability

7

Clip WPL 90015 Contact Us For Availability

8

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

Screw, 8-18 x 1 WPL 358225 Contact Us For Availability

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (New Avocado) WPL 689451 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

18

Knob, Temperature Selector WPL 690303 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

21

Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

31

Harness, Wiring WPL 693290 Contact Us For Availability

36

Door, Front (New Avocado) WPL 689332 Contact Us For Availability

36

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690266 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (685067) (Alt.) (348771 WPL 660648 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Clip, Toe Panel Lock WPL 341776 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690203 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

Panel, To WPL 337833 Contact Us For Availability

WPL 689246 WPL 689246 Contact Us For Availability

WPL 689248 WPL 689248 Contact Us For Availability

WPL 689249 WPL 689249 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 691674 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

66

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

68

WPL 691525 WPL 691525 Contact Us For Availability

69

WPL 691207 WPL 691207 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

76

Buzzer WPL 686864 Contact Us For Availability

79

Switch, Rotary (Temperature Selector) WPL 688712 Contact Us For Availability

81

Pushbutton Assembly WPL 689857 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 357645 WPL 357645 Contact Us For Availability

WPL 688643 WPL 688643 Contact Us For Availability

WPL 688898 WPL 688898 Contact Us For Availability

WPL 690724 WPL 690724 Contact Us For Availability

WPL 693363 WPL 693363 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

87

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51
