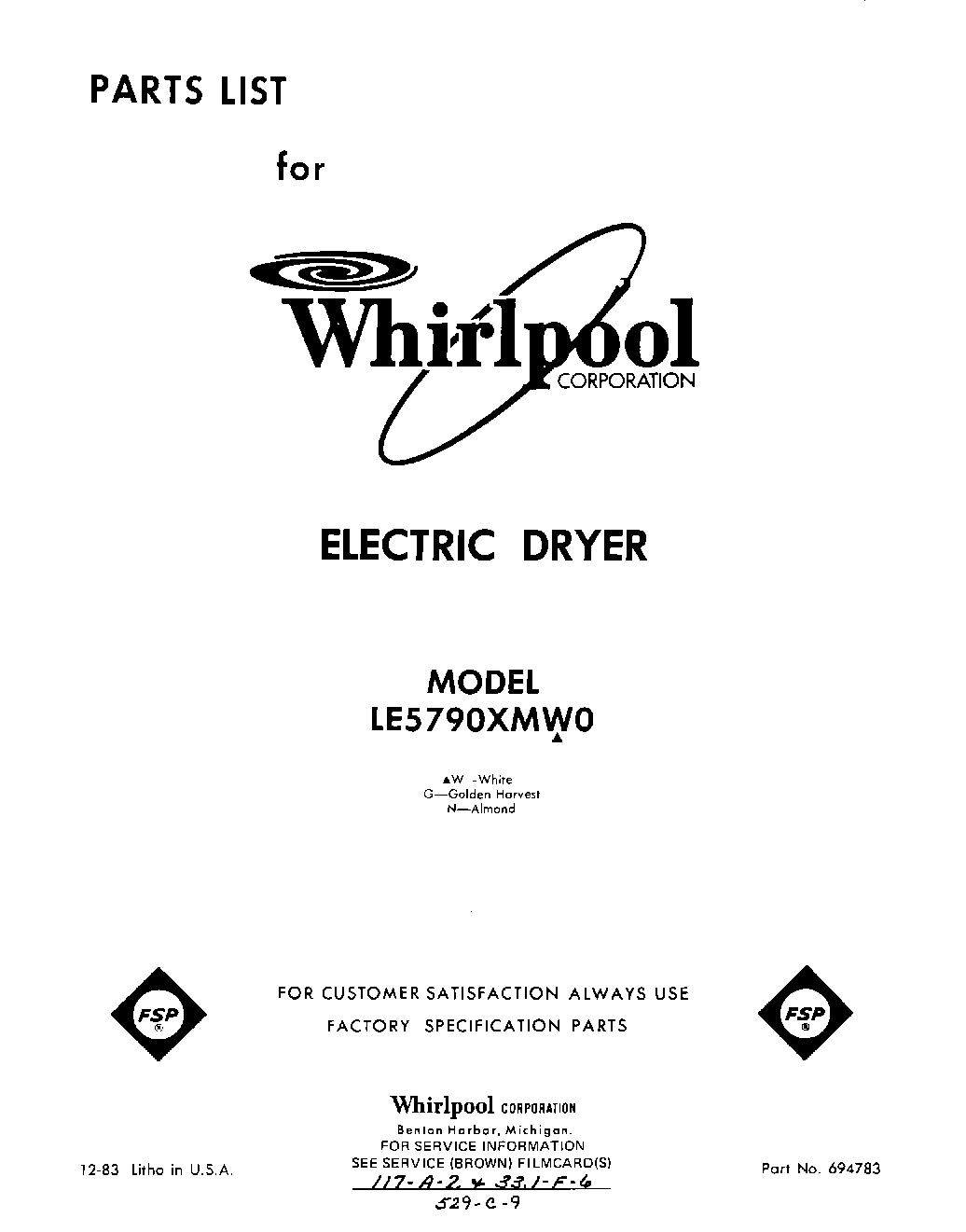

Model Whirlpool LE5790XMW0 ELECTRIC DRYER – Common Parts & Diagrams

1
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
1
Lint Chute
Lint Chute WPL 686215 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 346368 Contact Us For Availability
View on Model
8
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 348493 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 685457 Contact Us For Availability
View on Model

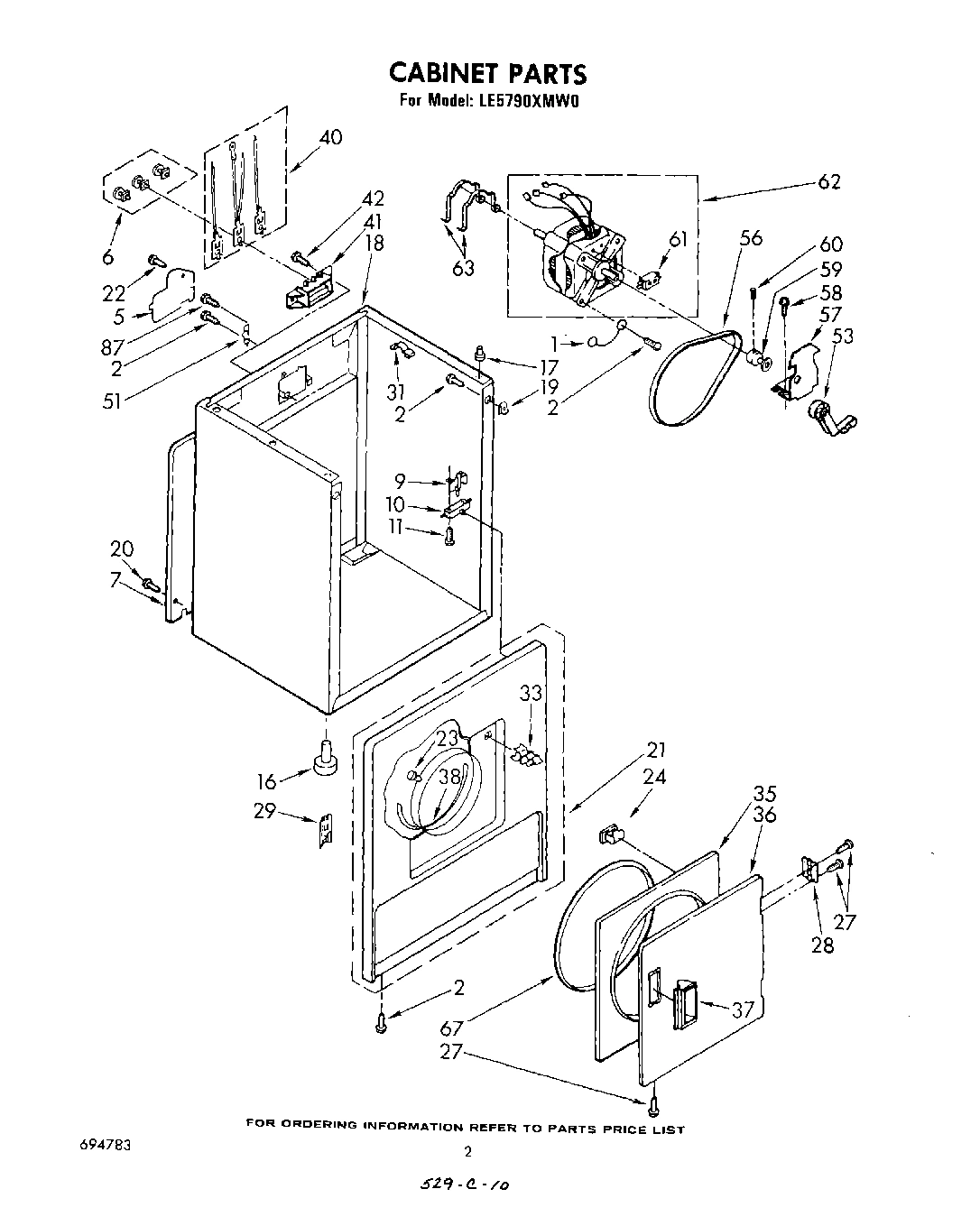

18
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
18
Cabinet (Almond)
Cabinet (Almond) WPL 690848 Contact Us For Availability
View on Model
18
Cabinet (Golden Harvest)
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
View on Model
21
front panel assembly (white)
front panel assembly (white) WPL 693197 Contact Us For Availability
View on Model
21
Front Panel Assembly (Almond)
Front Panel Assembly (Almond) WPL 693198 Contact Us For Availability
View on Model
21
Front Panel Assembly (Golden Harvest)
Front Panel Assembly (Golden Harvest) WPL 693201 Contact Us For Availability
View on Model
23
Seal, Blower
Seal, Blower WPL 694630 Contact Us For Availability
View on Model
25
Alert, Lint
Alert, Lint WPL 690981 Contact Us For Availability
View on Model
26
Hose, Differential
Hose, Differential WPL 686577 Contact Us For Availability
View on Model
31
Screw, 13/16 x 5/8 (4)
Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689314 Contact Us For Availability
View on Model
36
Door Front (Golden Harvest)
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 689306 Contact Us For Availability
View on Model
37
Handle, Door (Golden Harvest)
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
View on Model
48
Timer Knob
Timer Knob WPL 690200 Contact Us For Availability
View on Model

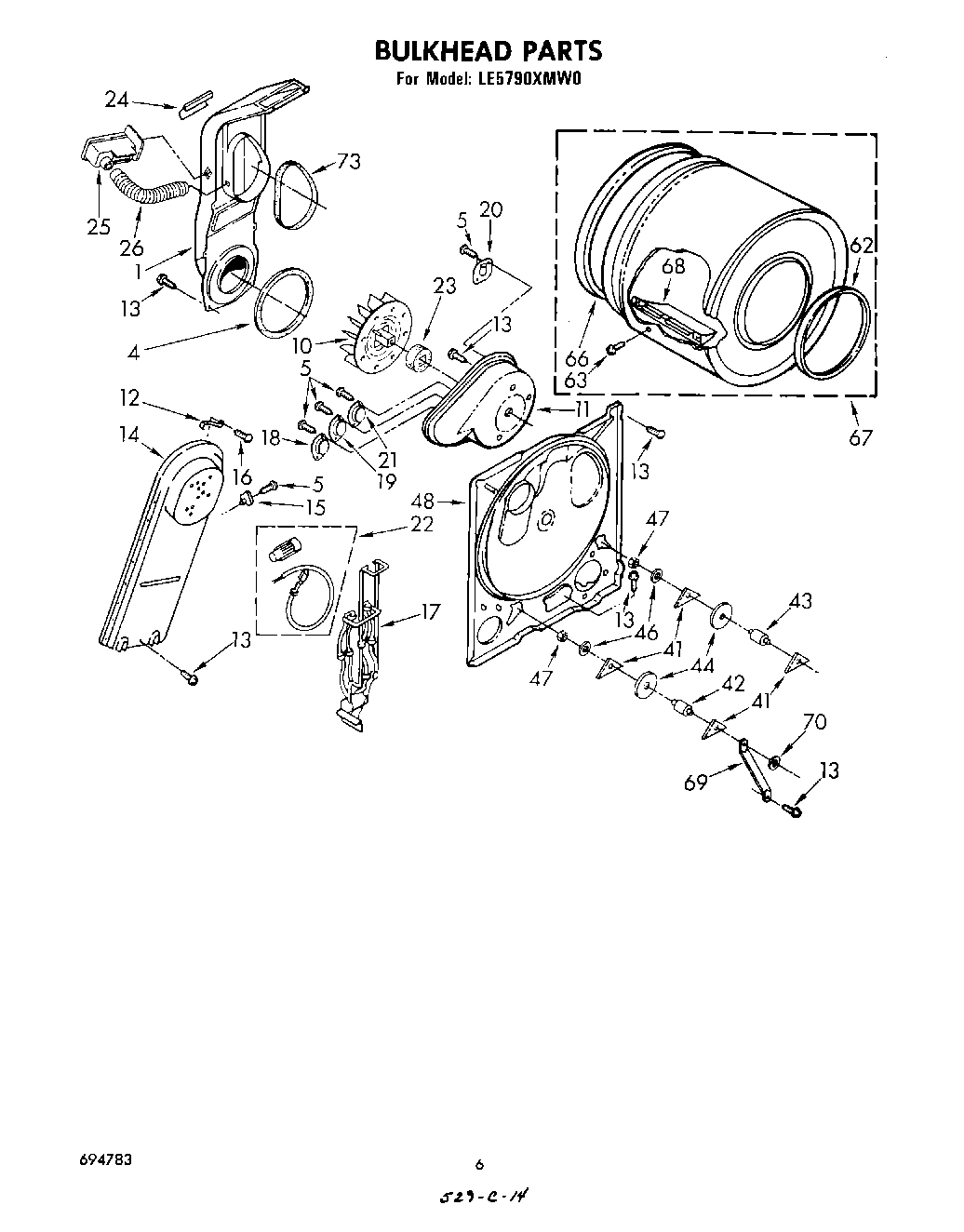

48
Bulkhead
Bulkhead WPL 685769 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 359708 Contact Us For Availability
View on Model

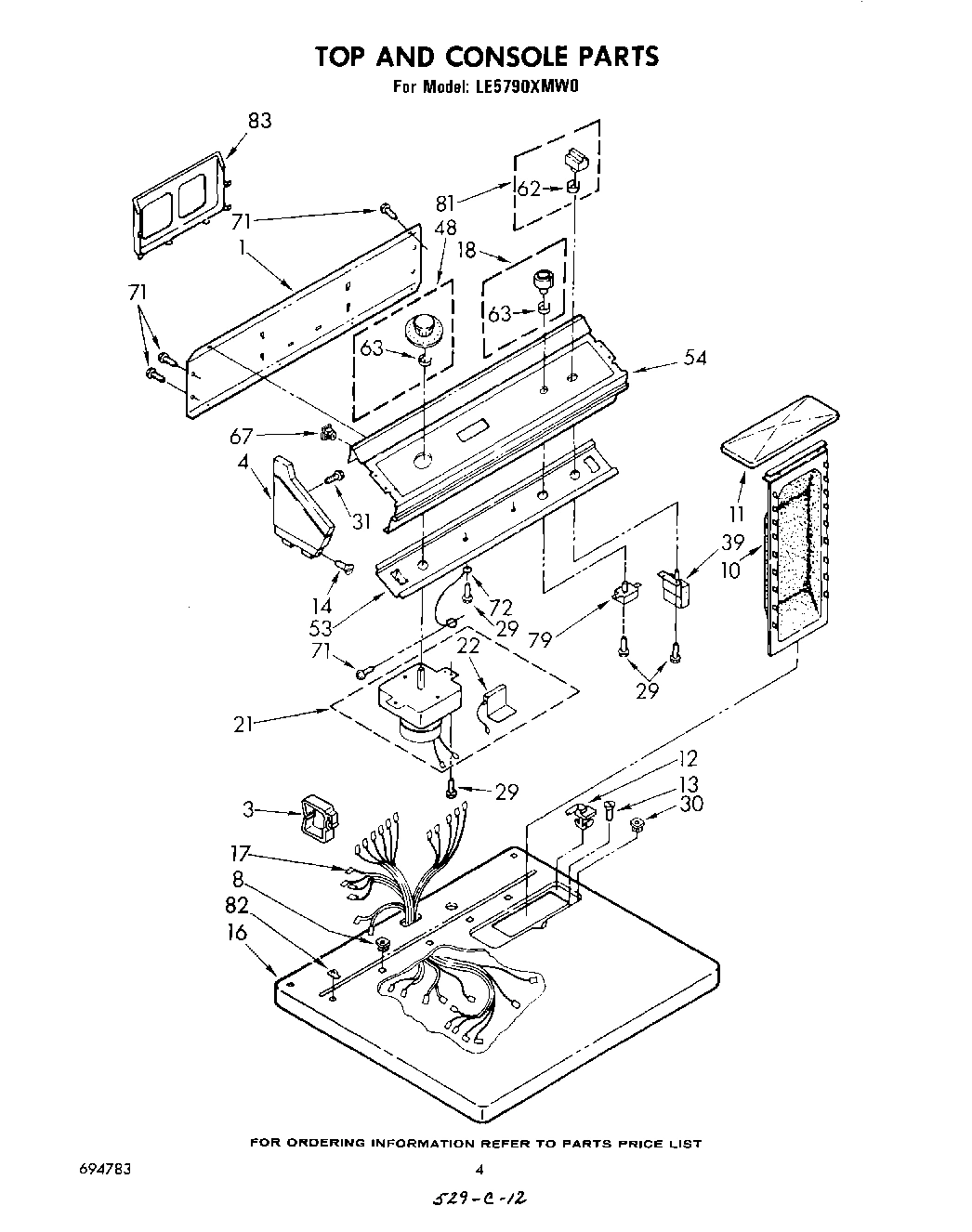

54
Panel, Console
Panel, Console WPL 692006 Contact Us For Availability
View on Model
60
Set Screw
Set Screw WPL 690046 Contact Us For Availability
View on Model
62
Clip
Clip WPL 90015 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
67
Clip (4)
Clip (4) WPL 694055 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
79
Switch, Rotary
Switch, Rotary WPL 688712 Contact Us For Availability
View on Model
81
Button, Push-To-Start
Button, Push-To-Start WPL 689857 Contact Us For Availability
View on Model
82
Stop, Push-In (2)
Stop, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
83
Golden Harvest
Golden Harvest WPL 261890 Contact Us For Availability
View on Model
83
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
83
Rack, Literature
Rack, Literature WPL 357645 Contact Us For Availability
View on Model
83
Use & Care Guide
Use & Care Guide WPL 693680 Contact Us For Availability
View on Model
83
Guide, Dryer
Guide, Dryer WPL 693849 Contact Us For Availability
View on Model
83
Instructions, Install
Instructions, Install WPL 694345 Contact Us For Availability
View on Model
83
WPL 694783
WPL 694783 WPL 694783 Contact Us For Availability
View on Model
83
WPL 799351
WPL 799351 WPL 799351 Contact Us For Availability
View on Model
