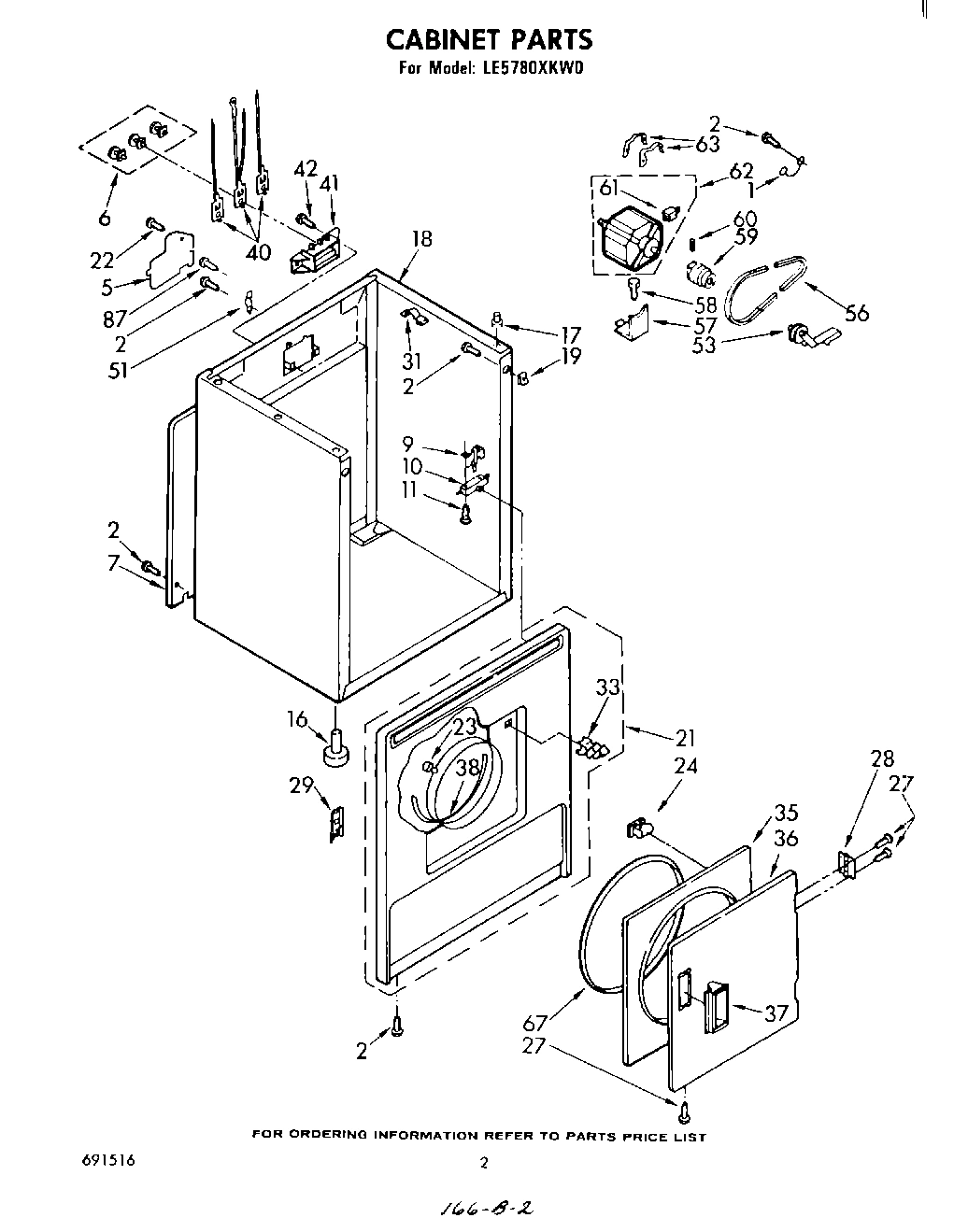

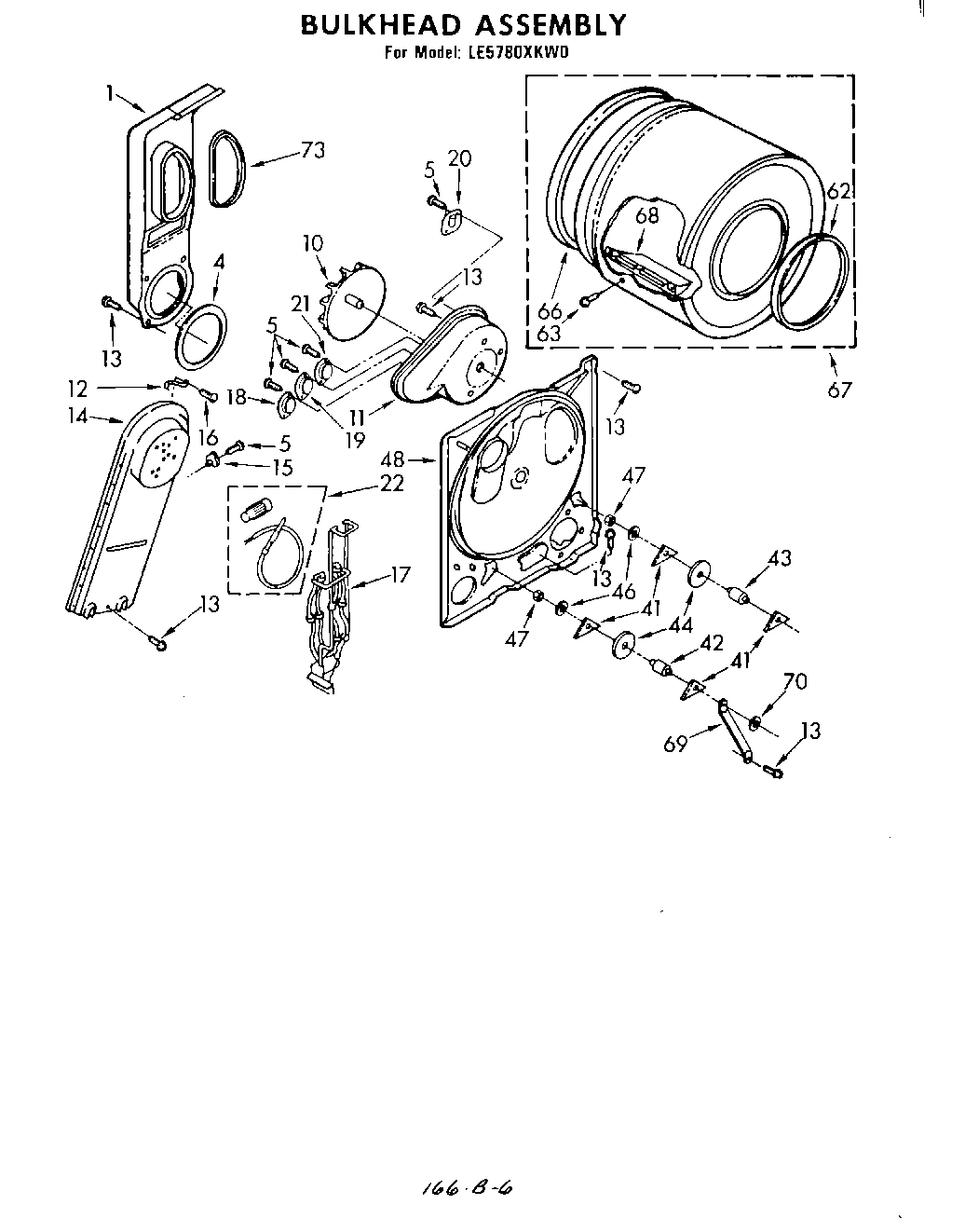

Model Whirlpool LE5780XKW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

7

Panel, Rear WPL 346368 Contact Us For Availability

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

17

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (New Avocado) WPL 690850 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

Front Panel Assembly (White) WPL 348390 Contact Us For Availability

Front Panel Assembly (Almond) WPL 689294 Contact Us For Availability

Front Panel Assembly (New Avocado) WPL 689298 Contact Us For Availability

Front Panel Assembly (Golden Wheat) WPL 689299 Contact Us For Availability

22

Terminal Wire Kit (For Heater Element Wiring WPL 279139 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

27

Screw WPL 689791 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door, Front (New Avocado) WPL 689318 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (New Avocado) WPL 689583 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start WPL 346364 Contact Us For Availability

39

(Alternate) WPL 692021 Contact Us For Availability

40

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Timer Knob WPL 690203 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Console WPL 692004 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

Set Scr WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

Clip WPL 90015 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

79

Switch, Rotary WPL 688712 Contact Us For Availability

81

Button, Push-To-Start WPL 689857 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W10851673 Whirlpool Transformer Backorder WPL W10851673 $227.00

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Instructions, Harness Rework WPL 339896 Contact Us For Availability

Supplement, Installation Instructions WPL 340704 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Rack, Literature WPL 357645 Contact Us For Availability

Instructions, Installation WPL 688643 Contact Us For Availability

Guide, Dryer WPL 688898 Contact Us For Availability

Use & Care Guide WPL 691264 Contact Us For Availability

List, Service Parts WPL 691516 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
