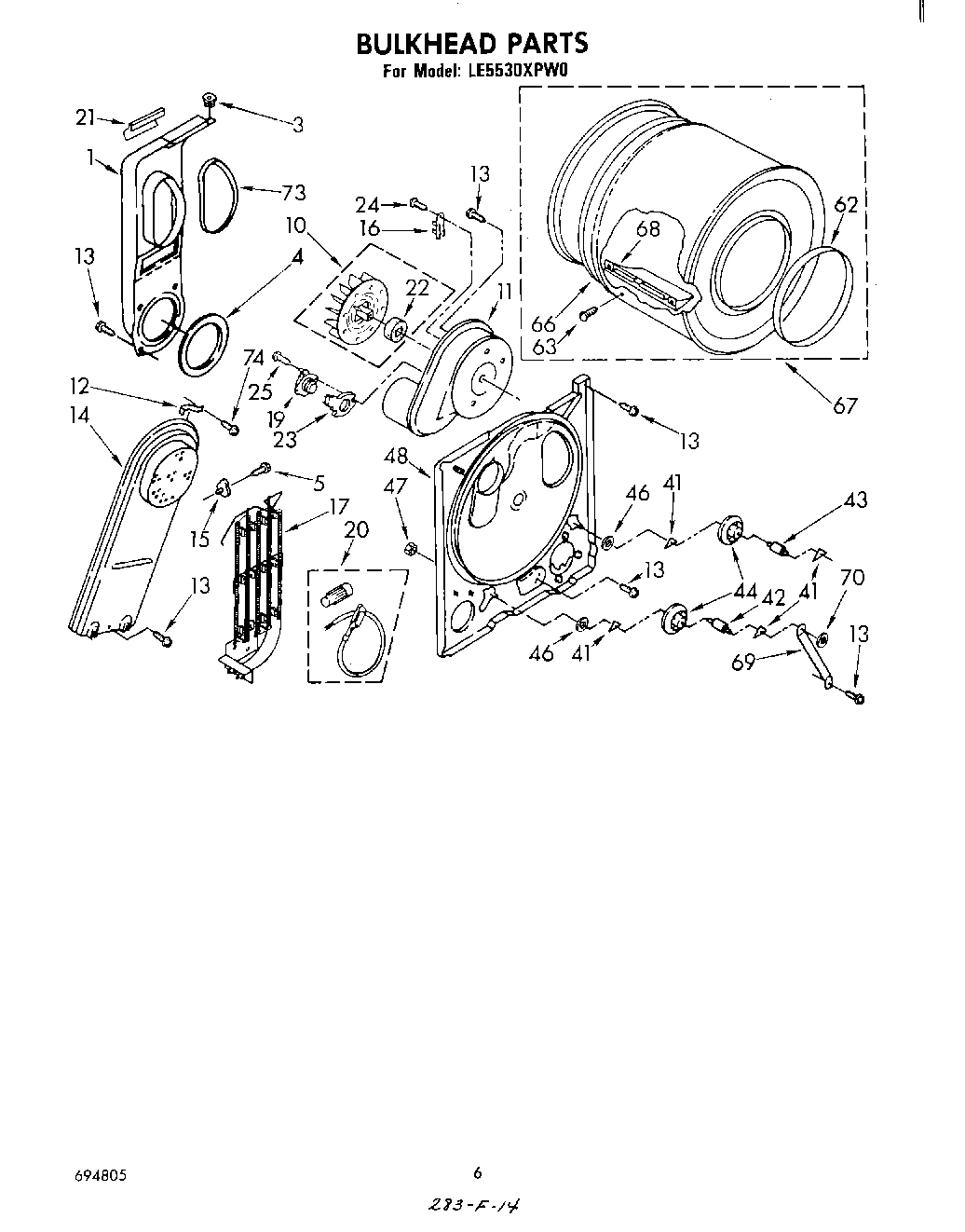

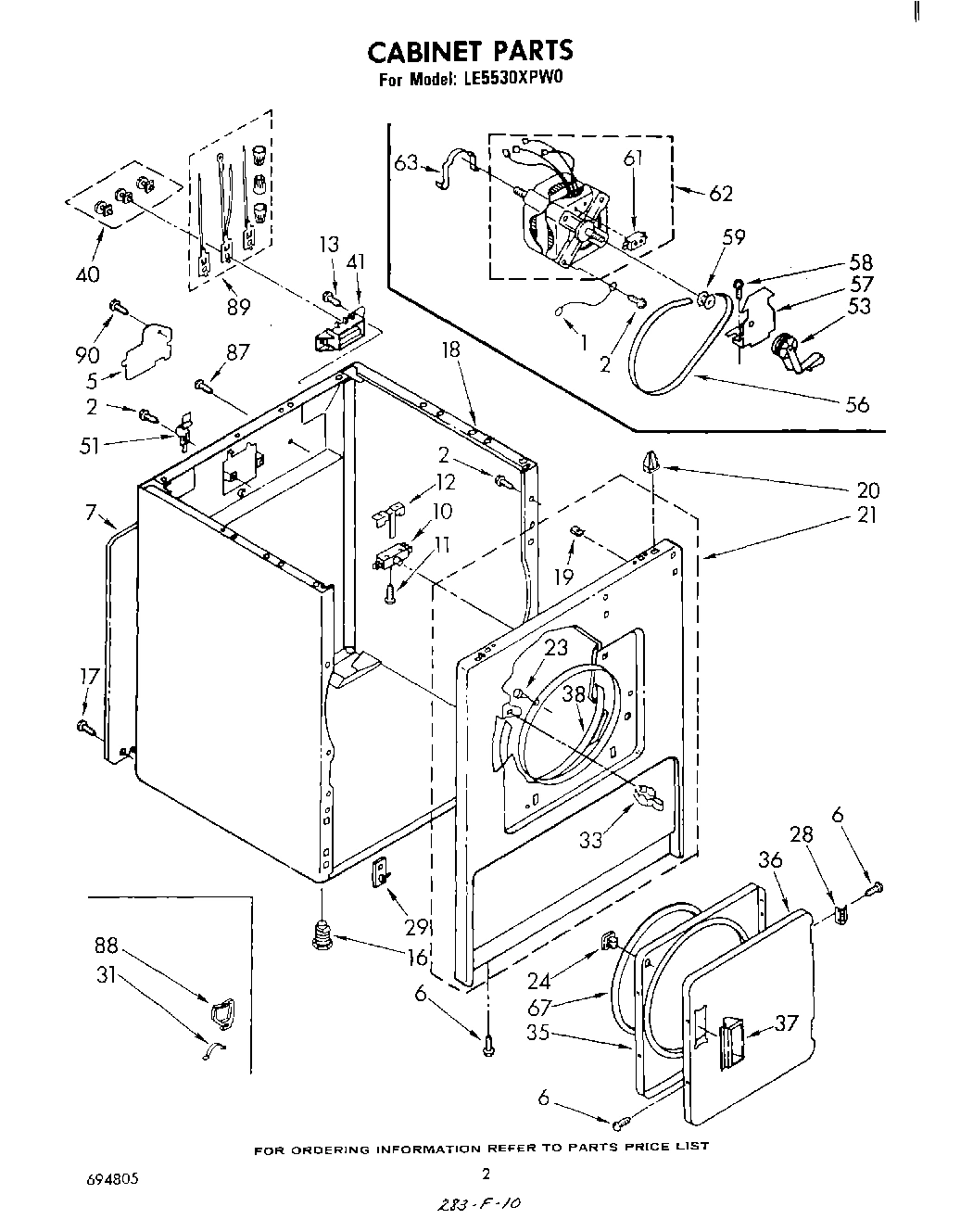

Model Whirlpool LE5530XPW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

7

Panel, Rear WPL 346368 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

17

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

Panel Assembly (White) WPL 693197 Contact Us For Availability

Panel Assembly (Almond) WPL 693198 Contact Us For Availability

Panel Assembly (Golden Harvest) WPL 693201 Contact Us For Availability

Panel Assembly (Toast) WPL 695259 Contact Us For Availability

Panel Assembly (Platinum) WPL 695260 Contact Us For Availability

22

Seal, Blower WPL 694630 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Thermostat, Heater WPL 61298 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

25

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695214 Contact Us For Availability

Door, Front (Platinum) WPL 695215 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Timer Knob & Dial WPL 695555 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695965 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Clip WPL 90015 Contact Us For Availability

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

79

Switch, Temperature Selector WPL 694720 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Rack, Literature WPL 63020 Contact Us For Availability

Automatic Washer (Belt Drive) WPL 677813 Contact Us For Availability

DIY WPL 677818 Contact Us For Availability

compactor WPL 677821 Contact Us For Availability

Dishwasher WPL 677967 Contact Us For Availability

Use & Care Guide WPL 693692 Contact Us For Availability

Guide, Dryer WPL 693849 Contact Us For Availability

List, Parts WPL 694805 Contact Us For Availability

Instructions, Installation WPL 696234 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

88

WPL 688412 WPL 688412 Contact Us For Availability

89

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

90

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92
