Model Maytag LDG9606AAM GAS DRYER – Common Parts & Diagrams

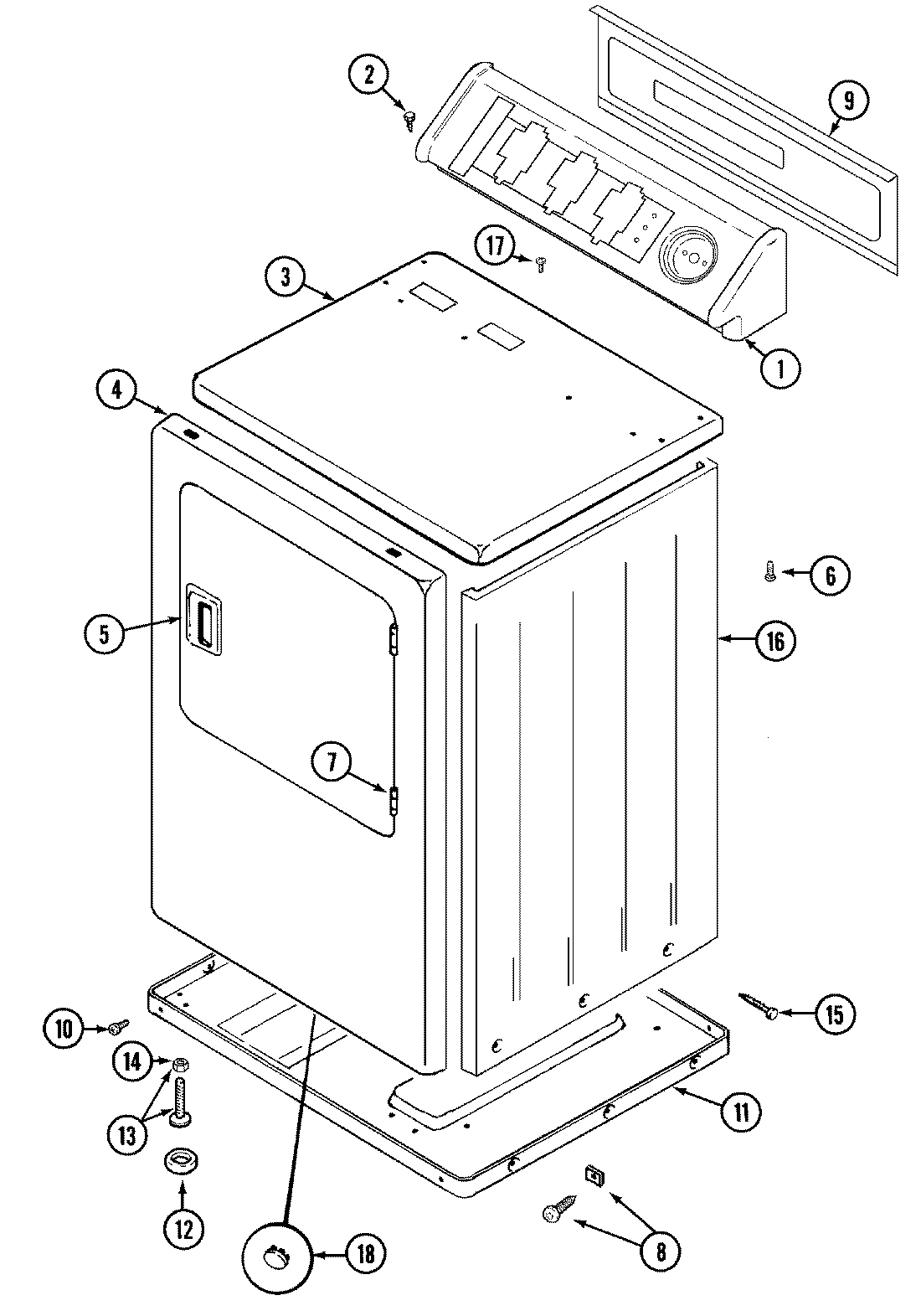

01 - CABINET-FRONT

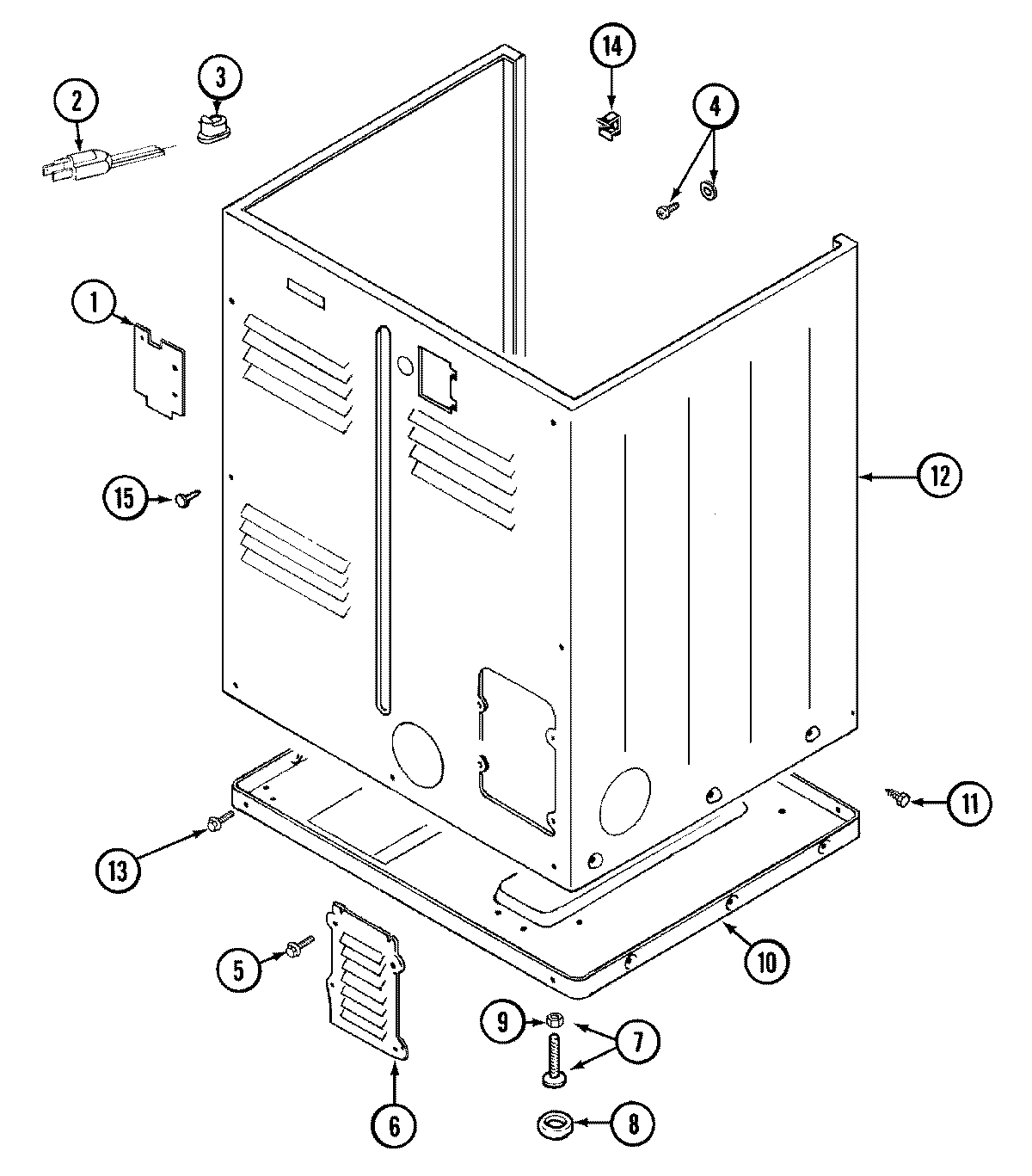

02 - CABINET-REAR

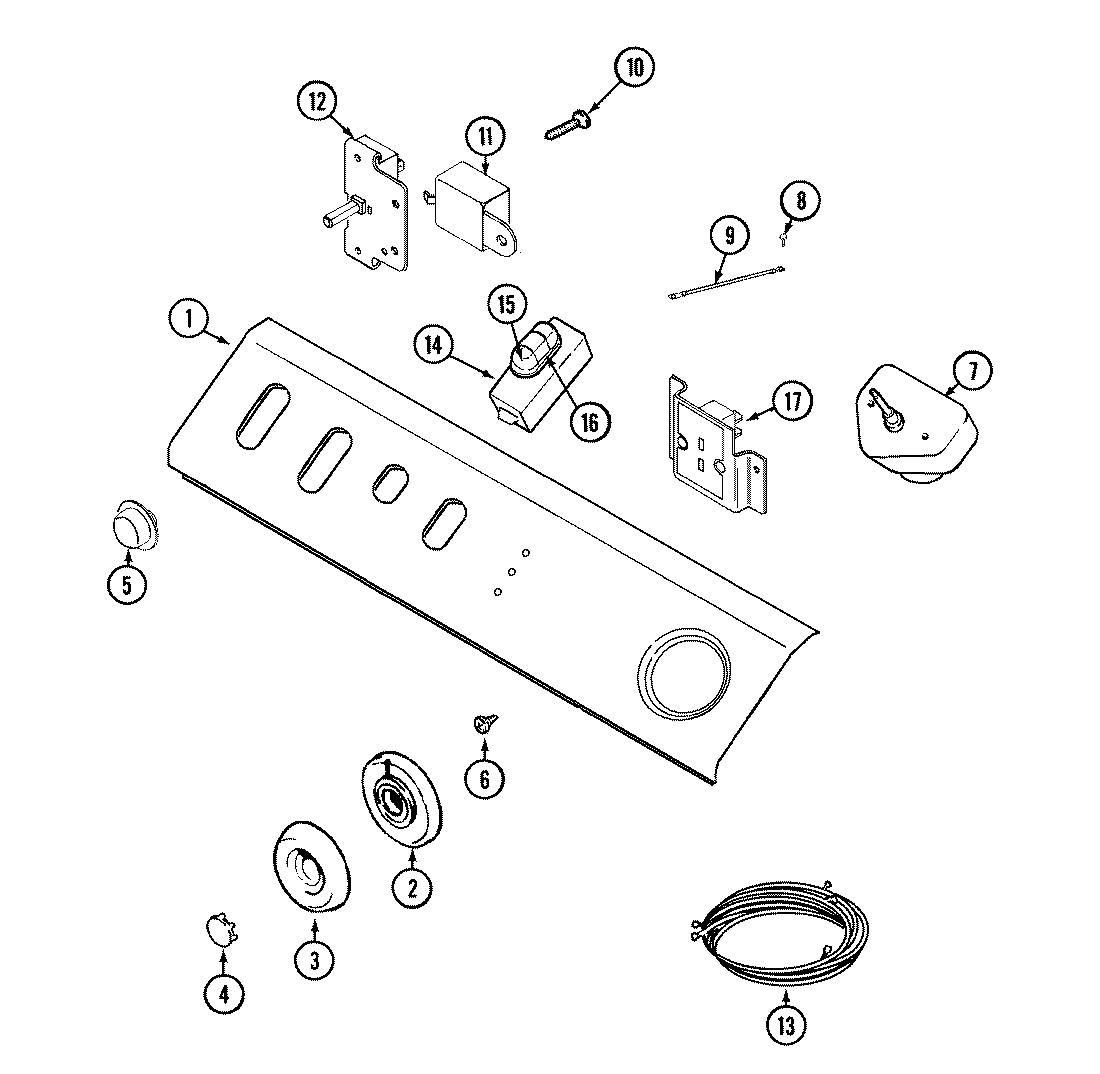

03 - CONTROL PANEL
04 - DOOR

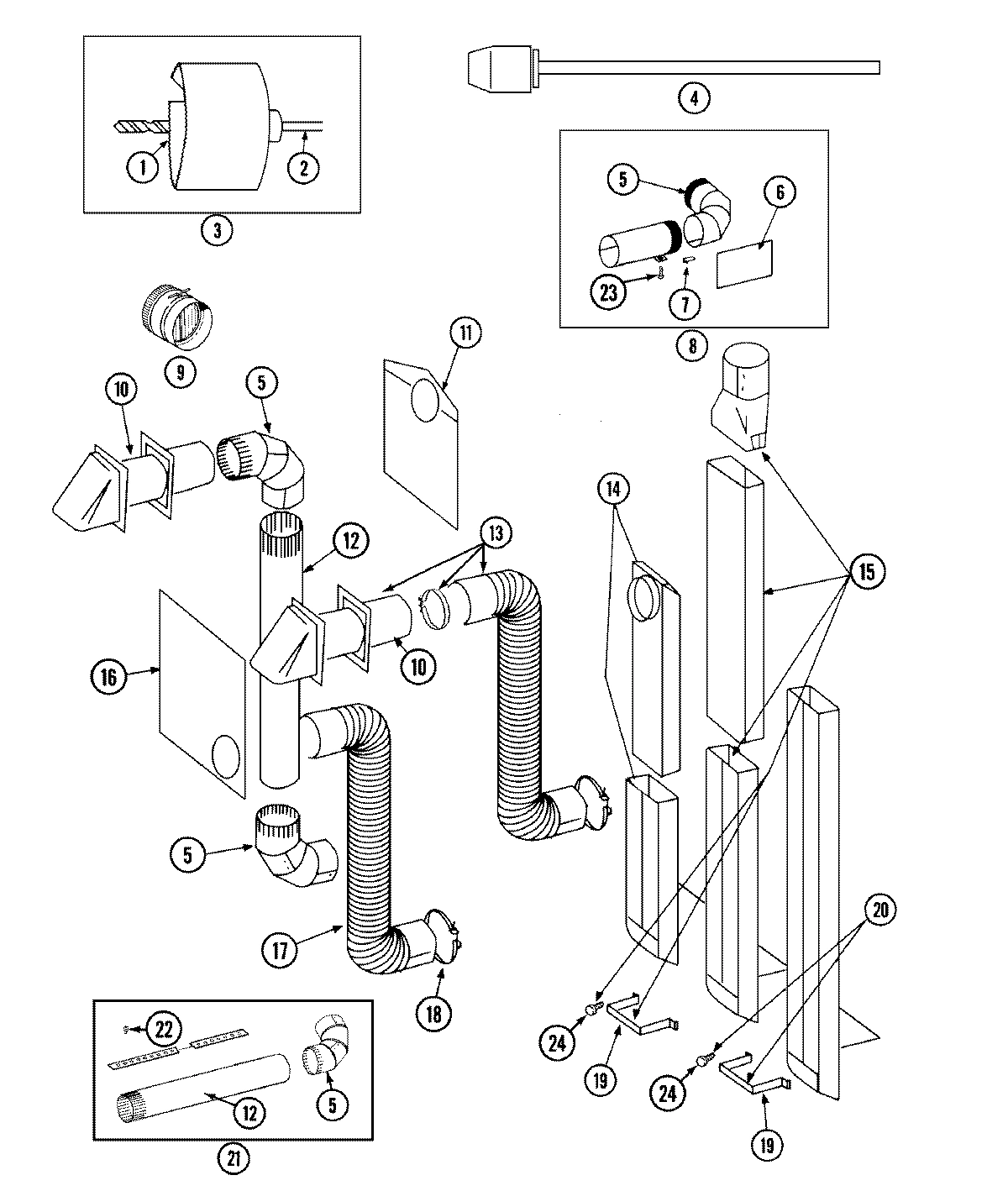

05 - DUCTING

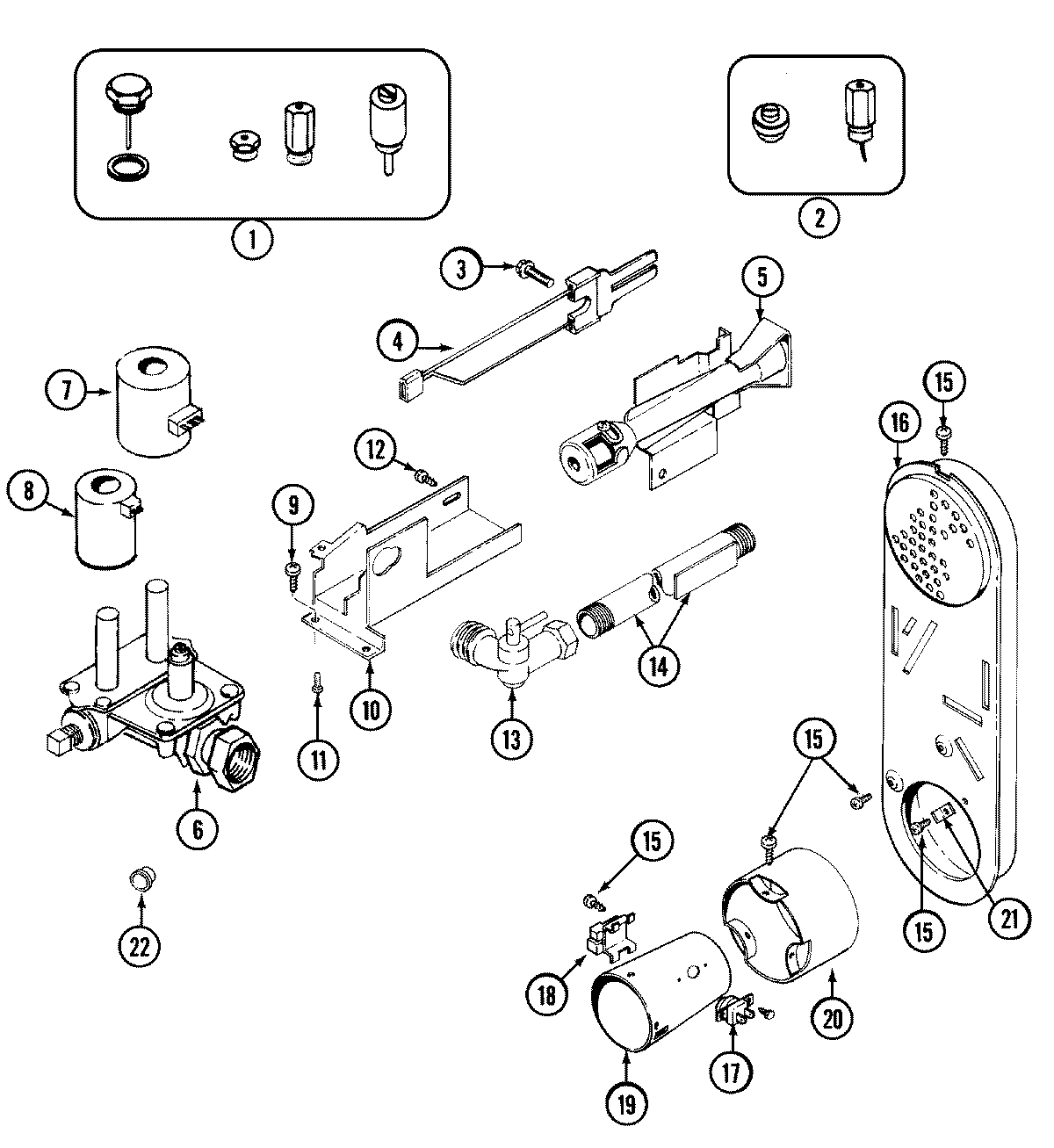

06 - GAS VALVE

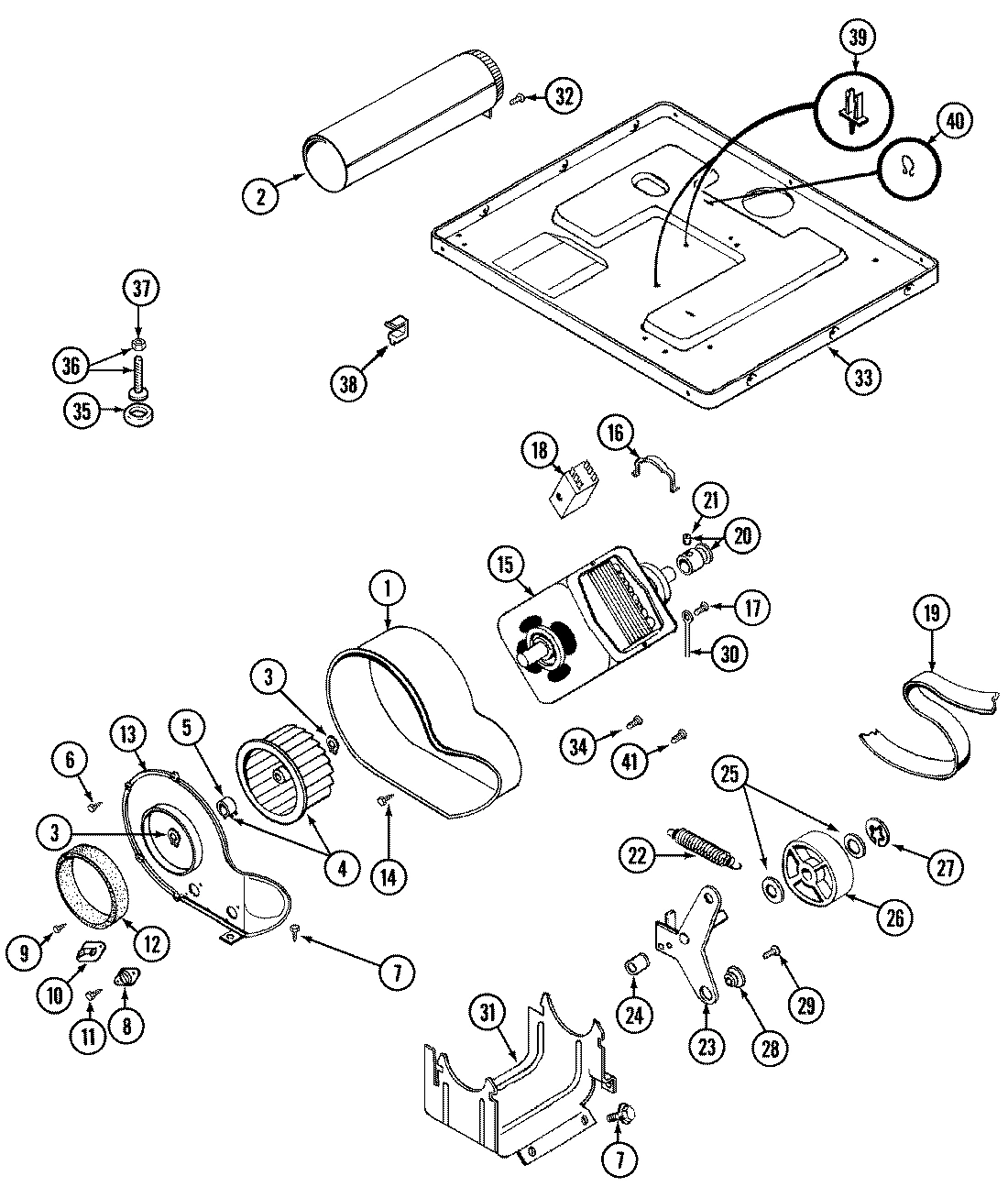

07 - MOTOR DRIVE

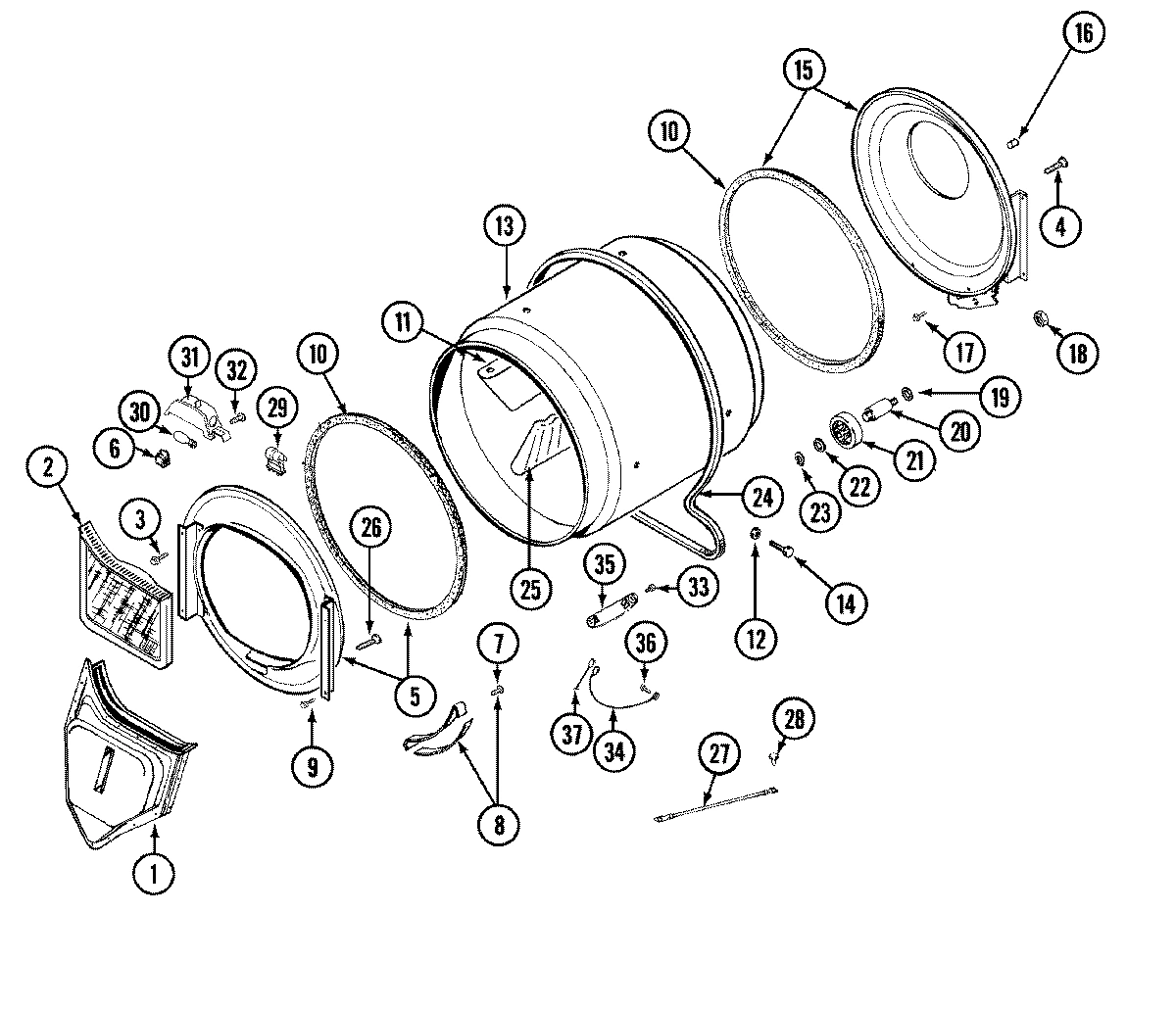

08 - TUMBLER

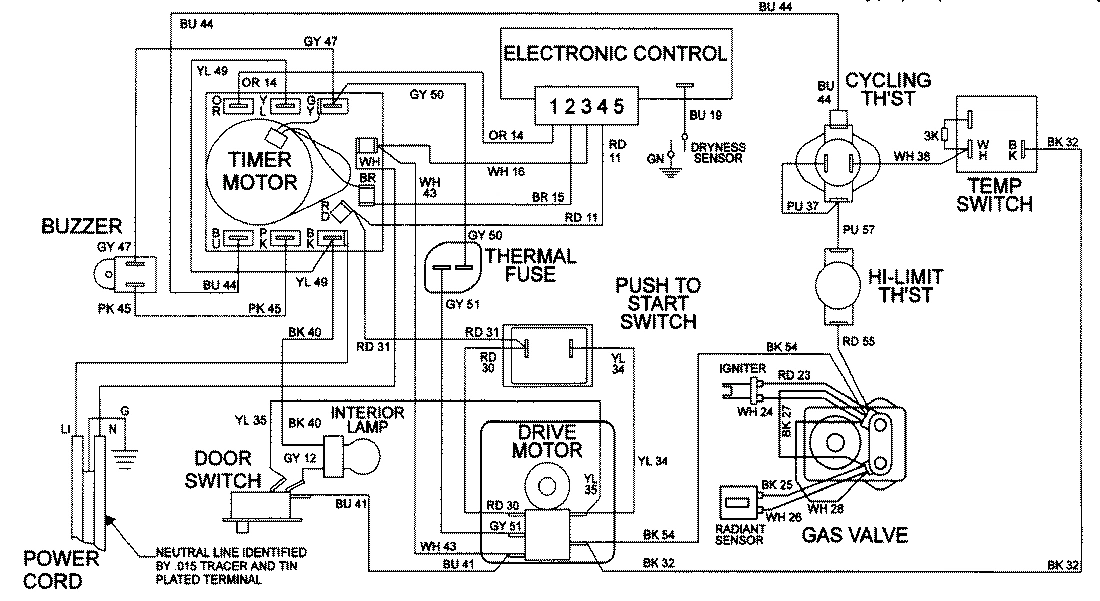

09 - WIRING INFORMATION
Common parts from model Maytag LDG9606AAM GAS DRYER
1
MAY 33001016 MAY 33001016 Contact Us For Availability
1
MAY 33001595 MAY 33001595 Contact Us For Availability
1
MAY 038179 MAY 038179 Contact Us For Availability
1
MAY Y306195 MAY Y306195 Contact Us For Availability
1
MAY Y312893 MAY Y312893 Contact Us For Availability
2
MAY 33001230 MAY 33001230 Contact Us For Availability
2
MAY 038180 MAY 038180 Contact Us For Availability
2
MAY Y303442 MAY Y303442 Contact Us For Availability
2
MAY 33001171 MAY 33001171 Contact Us For Availability
3
MAY 33001257 MAY 33001257 Contact Us For Availability
3
MAY 038766 MAY 038766 Contact Us For Availability
3
MAY 304971 MAY 304971 Contact Us For Availability
3
MAY 313764 MAY 313764 Contact Us For Availability
4
MAY 22001665 MAY 22001665 Contact Us For Availability
4
MAY 33001254 MAY 33001254 Contact Us For Availability
4
MAY 038767 MAY 038767 Contact Us For Availability
4
MAY Y313561 MAY Y313561 Contact Us For Availability
5
MAY 33001620 MAY 33001620 Contact Us For Availability
5
MAY 33001131 MAY 33001131 Contact Us For Availability
5
MAY Y059131 MAY Y059131 Contact Us For Availability
5
MAY 33001423 MAY 33001423 Contact Us For Availability
6
MAY 33001168 MAY 33001168 Contact Us For Availability
6
MAY Y310376 MAY Y310376 Contact Us For Availability
6
MAY 312302 MAY 312302 Contact Us For Availability
7
MAY 33001633 MAY 33001633 Contact Us For Availability
7
MAY Y304578 MAY Y304578 Contact Us For Availability
7
MAY 213323 MAY 213323 Contact Us For Availability
8
MAY 210186 MAY 210186 Contact Us For Availability
8
MAY Y304652 MAY Y304652 Contact Us For Availability
9
MAY 22001654 MAY 22001654 Contact Us For Availability
9
MAY 059146 MAY 059146 Contact Us For Availability
10
MAY 216423 MAY 216423 Contact Us For Availability
10
MAY 314566 MAY 314566 Contact Us For Availability
11
MAY 33001012 MAY 33001012 Contact Us For Availability
11
MAY 33001623 MAY 33001623 Contact Us For Availability
11
MAY 314937 MAY 314937 Contact Us For Availability
11
MAY 311353 MAY 311353 Contact Us For Availability
11
MAY Y313559 MAY Y313559 Contact Us For Availability
11
MAY 314848 MAY 314848 Contact Us For Availability
12
MAY 314158 MAY 314158 Contact Us For Availability
12
MAY 33001727 MAY 33001727 Contact Us For Availability
12
MAY 33001487 MAY 33001487 Contact Us For Availability
12
MAY Y059130 MAY Y059130 Contact Us For Availability
12
MAY 314082 MAY 314082 Contact Us For Availability
12
MAY 314568 MAY 314568 Contact Us For Availability
13
MAY 33001672 MAY 33001672 Contact Us For Availability
13
MAY 33001611 MAY 33001611 Contact Us For Availability
13
MAY Y059143 MAY Y059143 Contact Us For Availability
13
MAY Y303349 MAY Y303349 Contact Us For Availability
13
MAY 314846 MAY 314846 Contact Us For Availability
13
MAY 33001108 MAY 33001108 Contact Us For Availability
14
MAY 33001647 MAY 33001647 Contact Us For Availability
14
MAY 33001174 MAY 33001174 Contact Us For Availability
14
MAY Y059135 MAY Y059135 Contact Us For Availability
14
MAY Y303383 MAY Y303383 Contact Us For Availability
14
MAY 314818 MAY 314818 Contact Us For Availability
14
MAY Y310759 MAY Y310759 Contact Us For Availability
15
MAY 33001178 MAY 33001178 Contact Us For Availability
15
MAY 22001790 MAY 22001790 Contact Us For Availability
15
MAY 33001176 MAY 33001176 Contact Us For Availability
15
MAY 059144 MAY 059144 Contact Us For Availability
16
MAY 22001791 MAY 22001791 Contact Us For Availability
16
MAY Y313910 MAY Y313910 Contact Us For Availability
16
MAY Y059134 MAY Y059134 Contact Us For Availability
16
MAY Y308504 MAY Y308504 Contact Us For Availability
16
MAY 313915 MAY 313915 Contact Us For Availability
17
MAY 33001662 MAY 33001662 Contact Us For Availability
17
MAY 12001340 MAY 12001340 Contact Us For Availability
17
MAY Y304353 MAY Y304353 Contact Us For Availability
17
MAY Y310632 MAY Y310632 Contact Us For Availability
18
MAY 33001243 MAY 33001243 Contact Us For Availability
18
MAY Y304630 MAY Y304630 Contact Us For Availability
18
MAY 306207 MAY 306207 Contact Us For Availability
18
MAY Y303877 MAY Y303877 Contact Us For Availability
18
MAY Y303879 MAY Y303879 Contact Us For Availability
18
MAY 312538 MAY 312538 Contact Us For Availability
19
MAY 313272 MAY 313272 Contact Us For Availability
19
MAY Y308548 MAY Y308548 Contact Us For Availability
20
MAY 303736 MAY 303736 Contact Us For Availability
20
MAY Y303841 MAY Y303841 Contact Us For Availability
20
MAY Y305185 MAY Y305185 Contact Us For Availability
21
MAY 306399 MAY 306399 Contact Us For Availability
21
MAY Y312890 MAY Y312890 Contact Us For Availability
21
MAY Y053241 MAY Y053241 Contact Us For Availability
21
MAY Y303373 MAY Y303373 Contact Us For Availability
22
MAY 33001693 MAY 33001693 Contact Us For Availability
22
MAY Y303945 MAY Y303945 Contact Us For Availability
25
MAY Y312527 MAY Y312527 Contact Us For Availability
26
MAY Y314110 MAY Y314110 Contact Us For Availability
27
MAY 901220 MAY 901220 Contact Us For Availability
28
MAY 910343 MAY 910343 Contact Us For Availability
28
MAY Y312894 MAY Y312894 Contact Us For Availability
29
MAY 307097 MAY 307097 Contact Us For Availability
30
MAY Y307100 MAY Y307100 Contact Us For Availability
31
MAY 312897 MAY 312897 Contact Us For Availability
31
MAY 314955 MAY 314955 Contact Us For Availability
32
MAY 214872 MAY 214872 Contact Us For Availability
33
MAY Y305084 MAY Y305084 Contact Us For Availability
34
MAY Y303711 MAY Y303711 Contact Us For Availability
35
MAY Y303389 MAY Y303389 Contact Us For Availability
37
MAY Y312658 MAY Y312658 Contact Us For Availability
39
MAY 315471 MAY 315471 Contact Us For Availability
40
MAY 410490 MAY 410490 Contact Us For Availability
NI
MAY 15001957 MAY 15001957 Contact Us For Availability
× ![]()
