Model Whirlpool LCR7244HQ2 COMPACT AUTOMATIC WASHER – Common Parts & Diagrams
03 - AGITATOR, BASKET AND TUB PARTS
06 - WIRING HARNESS PARTS

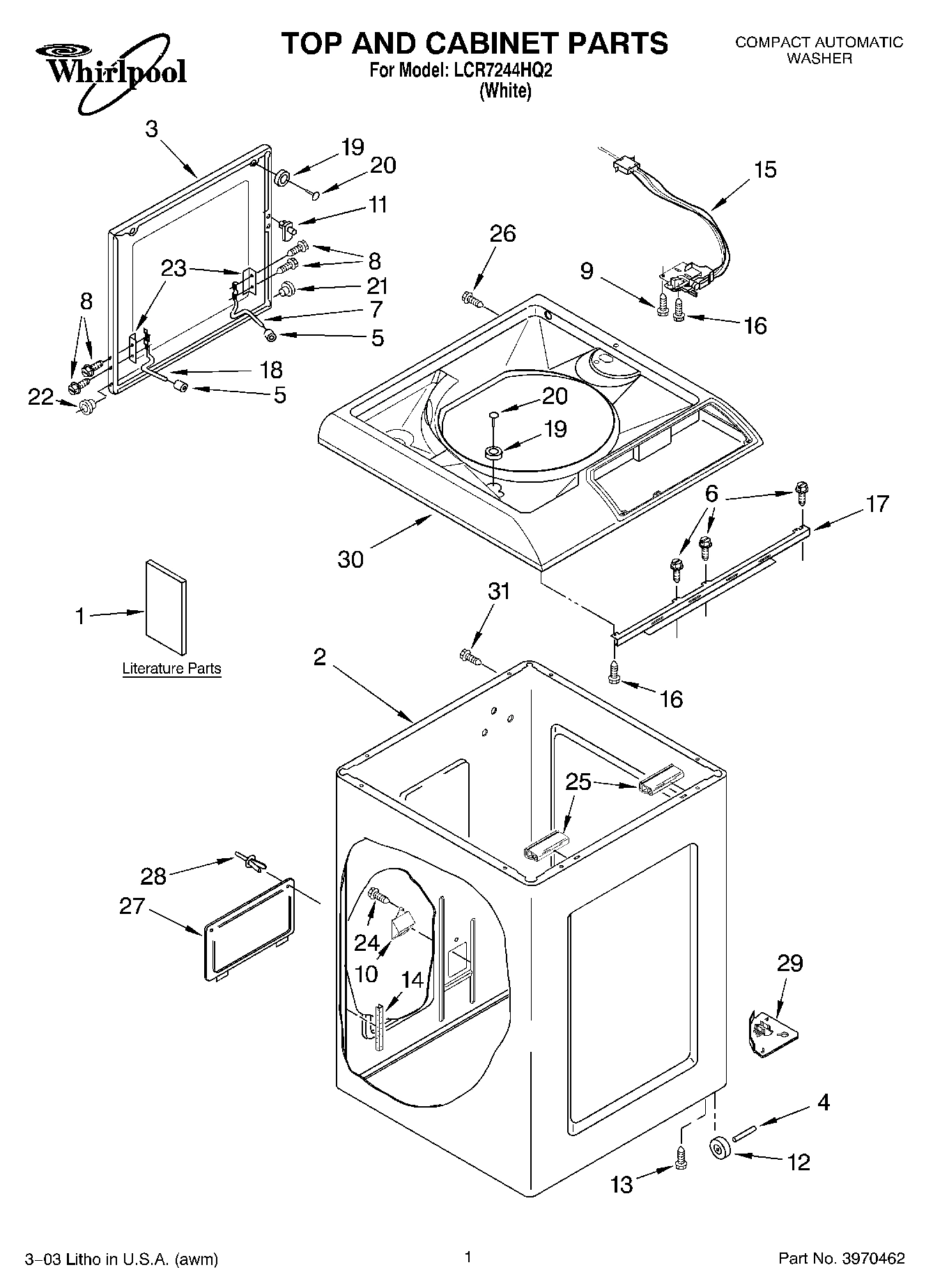

01 - TOP AND CABINET PARTS

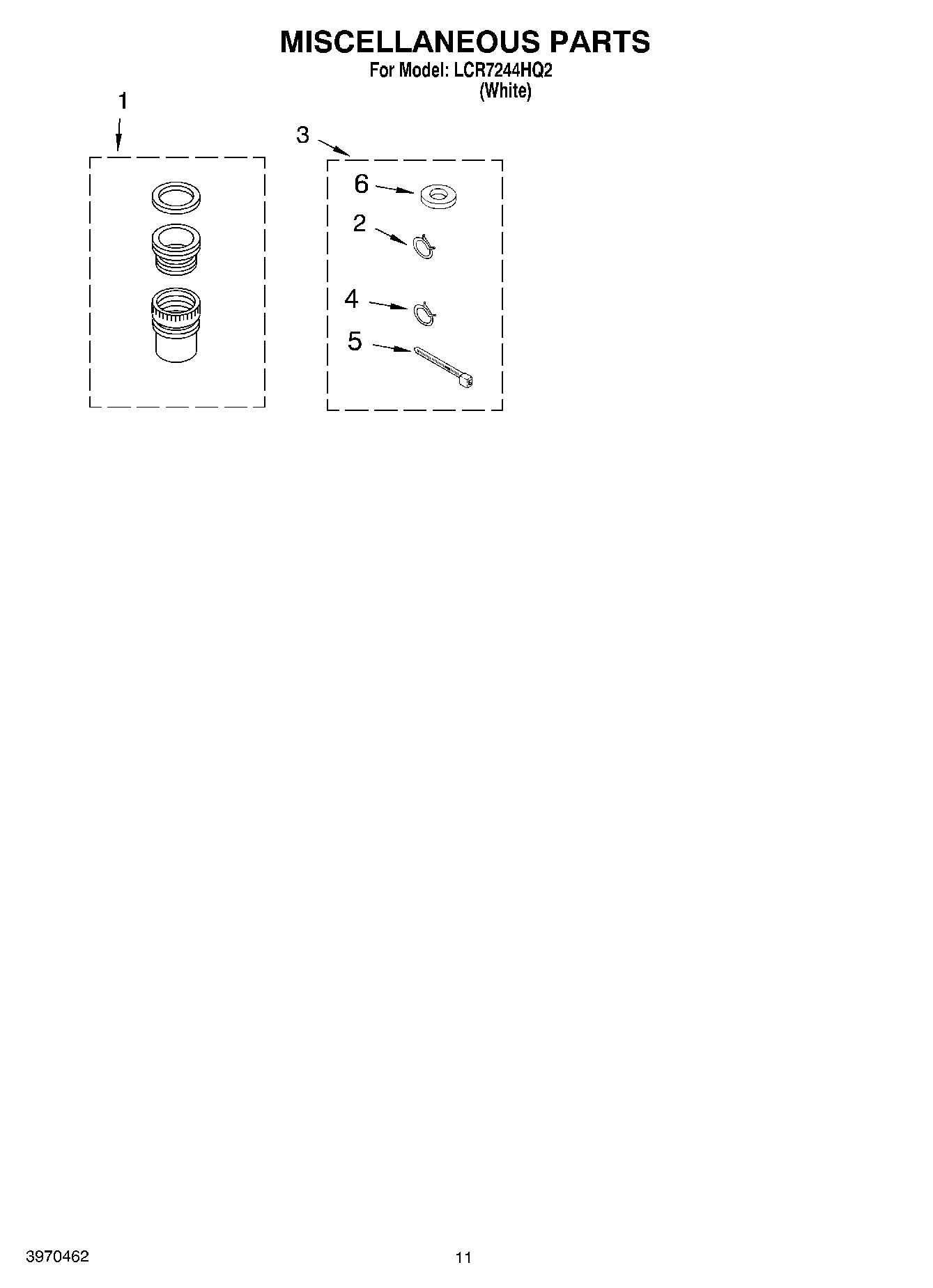

08 - MISCELLANEOUS PARTS - OPTIONAL PARTS (NOT INCLUDED

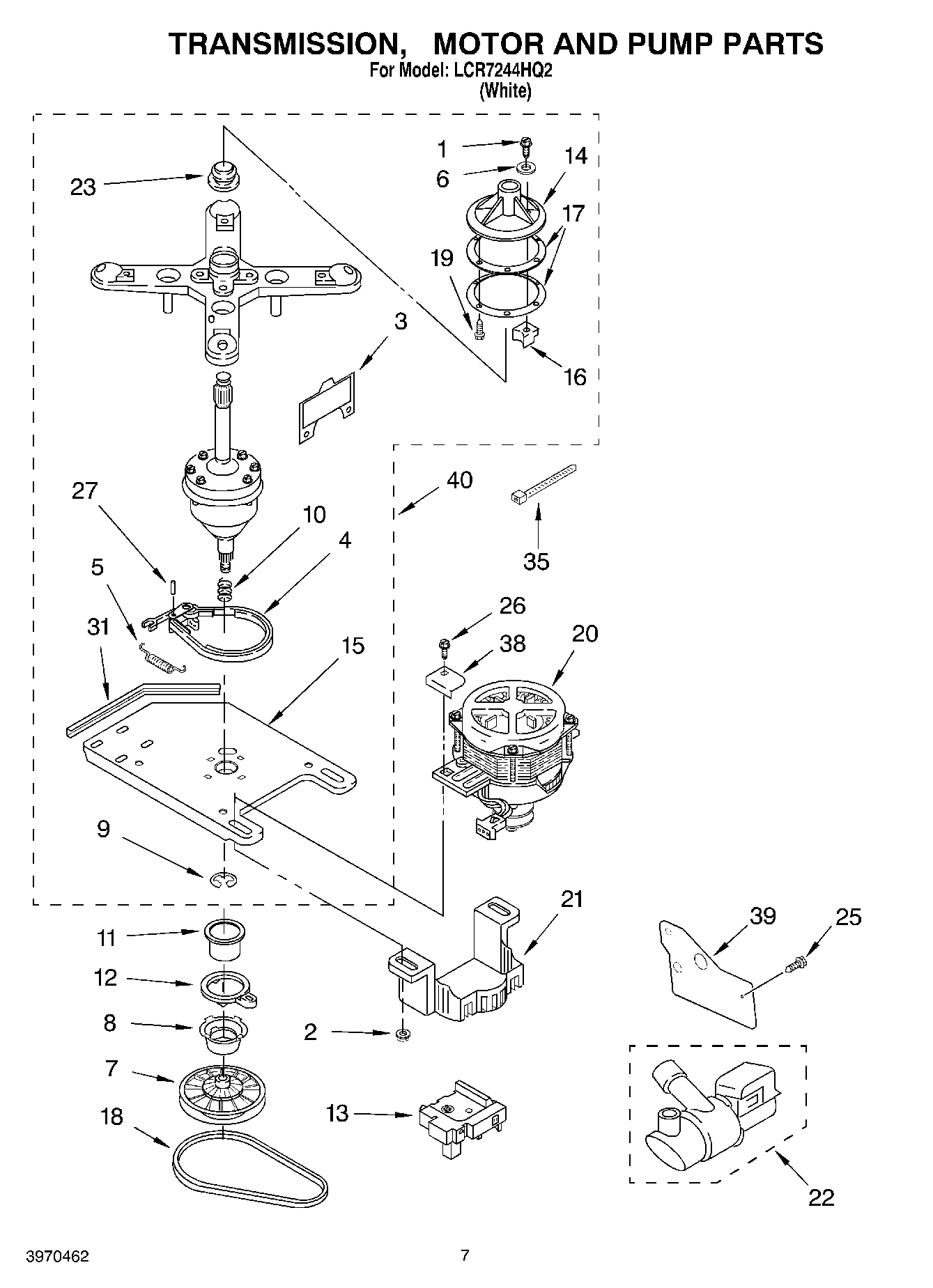

04 - TRANSMISSION, MOTOR AND PUMP PARTS

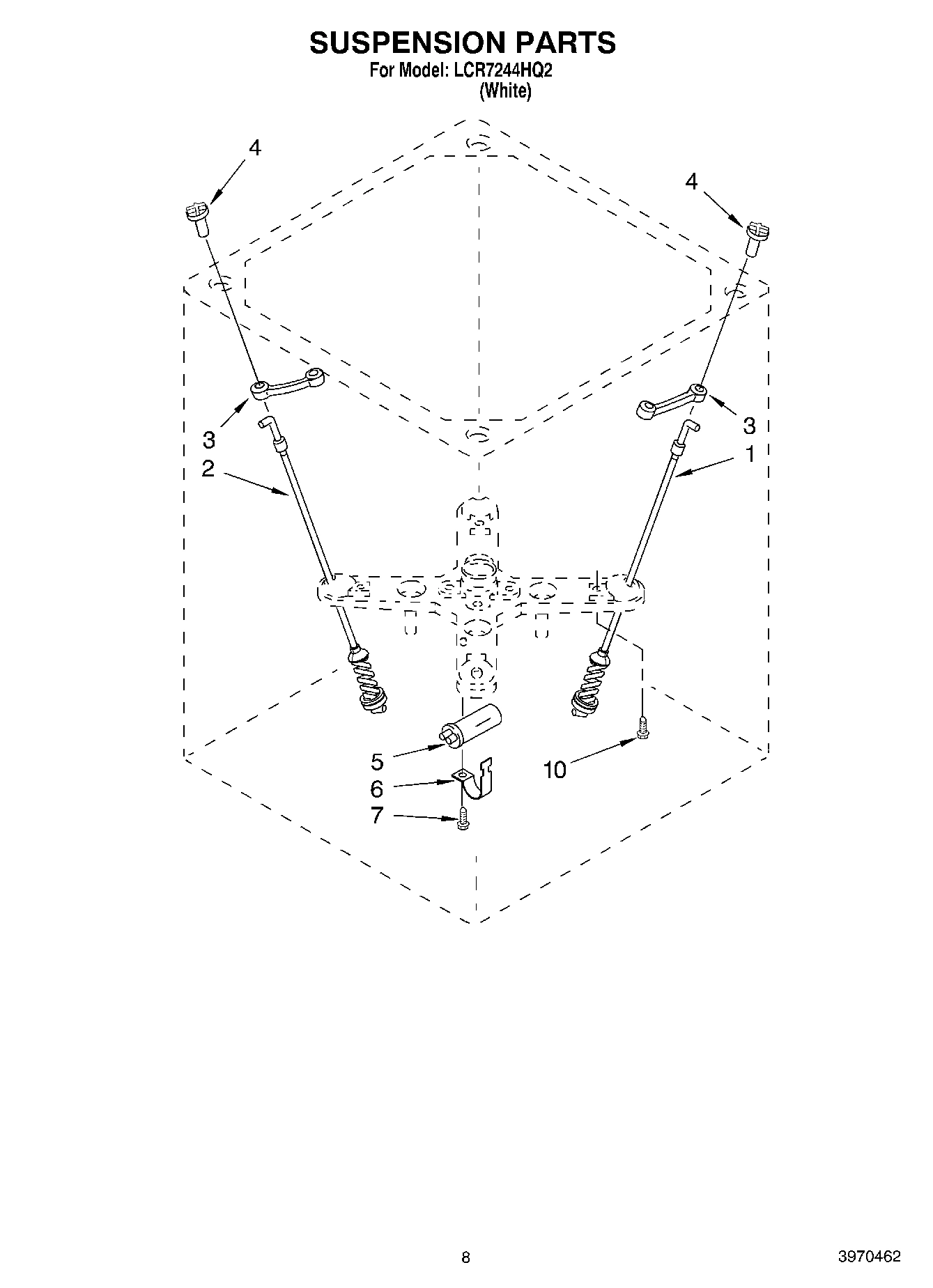

05 - SUSPENSION PARTS

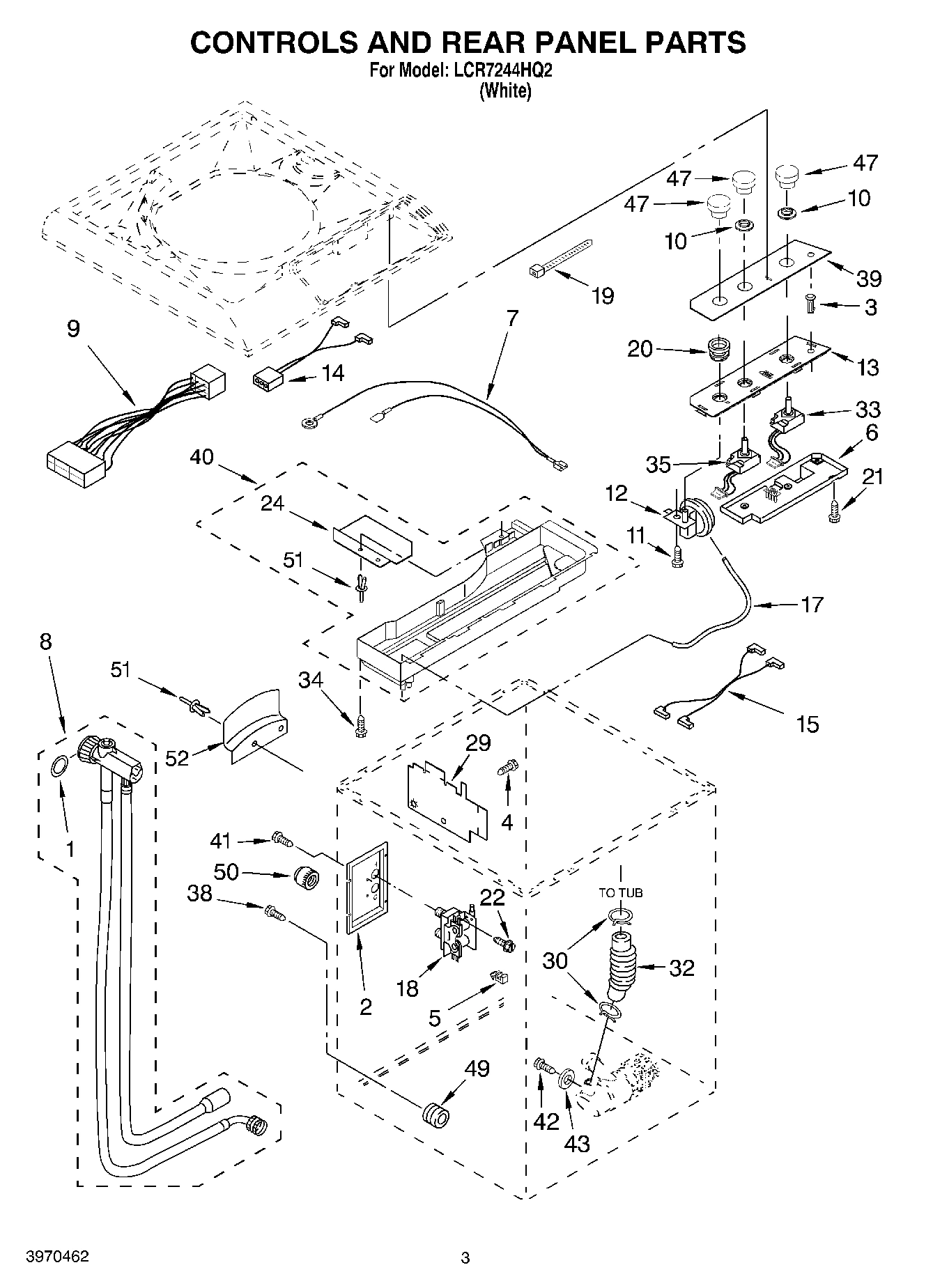

02 - CONTROLS AND REAR PANEL PARTS

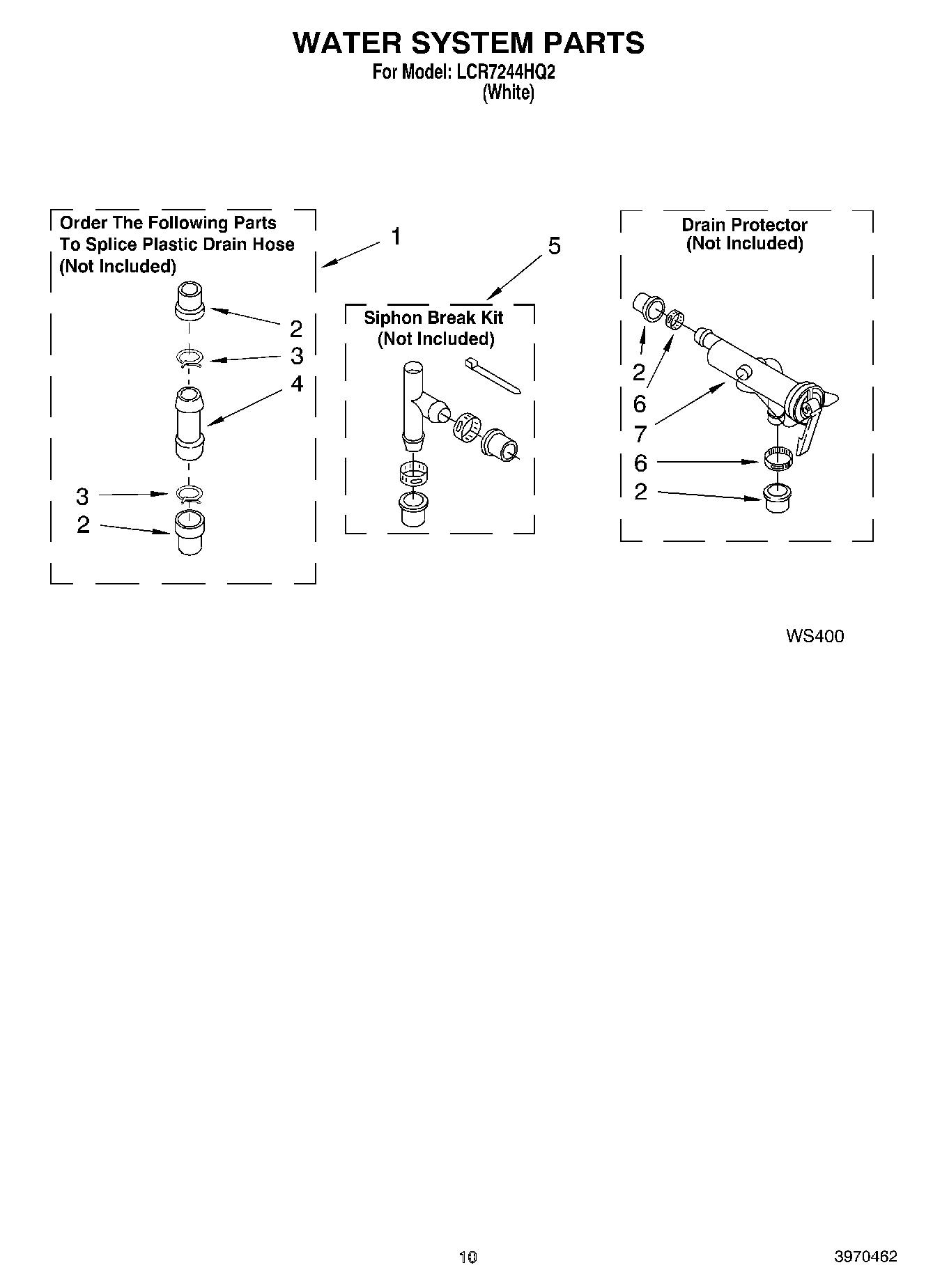

07 - WATER SYSTEM PARTS
Common parts from model Whirlpool LCR7244HQ2 COMPACT AUTOMATIC WASHER
1
Screw WPL 3428430 Contact Us For Availability
1
Suspension Rod, Front (2) WPL 3935137 Contact Us For Availability
2
Suspension Rod, Rear (2) WPL 3935136 Contact Us For Availability
2
Bracket-Valve WPL 3935155 Contact Us For Availability
3
Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability
3
Shield, Motor Splash WPL 3967307 Contact Us For Availability
3
Extension, Start-Pause WPL 3935357 Contact Us For Availability
4
Pin, Wheel WPL 3935130 Contact Us For Availability
4
Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability
4
Screw WPL 3429189 Contact Us For Availability
4
Clamp, Hose WPL 661581 Contact Us For Availability
4
Brake Band WPL 3428323 Contact Us For Availability
5
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
5
Clip, Harness WPL 3935875 Contact Us For Availability
6
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
6
Stationary To Portable WPL 3935674 Contact Us For Availability
6
COUPLING WPL ARI156737A Contact Us For Availability
6
CONVERSION KIT WPL ARI156738A Contact Us For Availability
6
DRYER STACK STAND WPL ARI156739A Contact Us For Availability
6
Washer WPL 3429750 Contact Us For Availability
6
Bracket, Capacitor WPL 3428343 Contact Us For Availability
6
Timer/Control Board WPL 3970436 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Screw, Bracket WPL 3934040 Contact Us For Availability
7
Jumper-Wire WPL 3935929 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
9
Harness, Control Board WPL 3970202 Contact Us For Availability
10
Spring, Splutch WPL 3934212 Contact Us For Availability
10
Screw (4) WPL 3428033 Contact Us For Availability
10
Seal WPL 3935353 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
11
Screw, Switch Mtg. WPL 3935602 Contact Us For Availability
12
Switch, Water Level WPL 3966789 Contact Us For Availability
12
Caster (4) WPL 3934872 Contact Us For Availability
12
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
13
Brake Actuator WPL 3970266 Contact Us For Availability
13
Bracket, Control (Must Order No. 3 And No. 3 WPL 3967605 Contact Us For Availability
14
Hub, Drive WPL 3970053 Contact Us For Availability
14
Harness, Lid Switch WPL 3970203 Contact Us For Availability
15
Motor Plate & Bearing Asm WPL 3969965 Contact Us For Availability
15
Harness, Pressure Switch WPL 3970204 Contact Us For Availability
16
Saddle Block WPL 3428429 Contact Us For Availability
17
Hose, Pressure Switch WPL 3969225 Contact Us For Availability
17
Gasket, Hub WPL 3428179 Contact Us For Availability
18
Drive Belt WPL 3934700 Contact Us For Availability
18
Valve, Water Mixing WPL 3967755 Contact Us For Availability
19
Screw WPL 3934714 Contact Us For Availability
20
Motor, Main Drive WPL 3934201 Contact Us For Availability
20
Seal, Pressure Switch WPL 3935354 Contact Us For Availability
21
Shield, Pulley WPL 3429190 Contact Us For Availability
21
Screw, Control Board (3) WPL 3934036 Contact Us For Availability
22
Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability
22
Pump (Complete) WPL 3970171 Contact Us For Availability
24
Shield, Harness WPL 3935672 Contact Us For Availability
25
Extrude-Top (2) WPL 3935201 Contact Us For Availability
25
Screw WPL 3967955 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability
27
Panel-Cabinet WPL 3430058 Contact Us For Availability
27
Pin, Brake Band WPL 3934183 Contact Us For Availability
28
Rivet, Plastic (2) WPL 3429823 Contact Us For Availability
29
Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability
29
Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability
29
Shield, Water Valve WPL 3935995 Contact Us For Availability
30
Top WPL 3968521 Contact Us For Availability
31
Protector, Edge WPL 3429705 Contact Us For Availability
32
Hose, Pump To Tub WPL 3429900 Contact Us For Availability
33
Switch, Cycle Selection WPL 3966202 Contact Us For Availability
34
Screw, Top Shield (3) WPL 3935634 Contact Us For Availability
35
Switch, Water Temperature WPL 3966208 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
39
Shield, Pump WPL 3967958 Contact Us For Availability
39
Panel, Console WPL 3935527 Contact Us For Availability
40
Transmission Kit WPL 3966743 Contact Us For Availability
40
Top, Shield Asm WPL 3970443 Contact Us For Availability
41
Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability
42
Screw (3) WPL 3400038 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
51
Rivet (4) WPL 3430186 Contact Us For Availability
52
Bracket, Hose Storage WPL 356499 Contact Us For Availability
× ![]()
